4HP13 Features and Benefits
B Model
L Model
Split System Heat Pump 13
seer
•High-quality condenser coil with
copper tubing and enhanced
louvered fin for maximum heat
transfer capacity
•Top discharge directs hot air and
sound away from living area
and shrubbery
•All units run tested
•Available with louvered panel
or wire guard coil protection
option
•Easy access to electrical panels,
pre-wired for easy hook-up
•Hinged control panel allows simple
access to internal components
•Bi-directional liquid line filter drier
factory installed
•Discharge muffler for quiet
operation
•Reliable, solid state time/
temperature defrost control, with
field selectable 30/60/90 minute
intervals
•Defrost control is Quiet Shift
capable
•Low pressure switch factory
installed for loss of charge
protection
•Integrated control with LED
diagnostics
•Short cycle protection factory
installed
•All units ETL, ETLC approved and
ARI listed
•Charged for 15 feet of
interconnecting tubing
•10 year limited parts
warranty available

4HP13 Split System Heat Pump
seer
13
4HP13 Split System Heat Pump
seer
13
Model Number Guide
4 HP 13 B 24 P - 1 A
4 = R410a Refrigerant Minor Revision Code
HP = Heat Pump Major Revision Code
13 - 13 SEER Nominal Electric
p - 208-230V/60Hz/1Ph
B = Wire Guard
L = Louvered Nominal Capacity
24 - 24,000 Btuh
Model Volts/Hz/Phase Voltage
Range
Min.
Circuit
Amp.
Max.
Over-
current
Device
(amps)
Compressor Fan Motor Refrig.
Charge
(oz.)
Weight (lbs.)
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated HP Nom.
RPM
Wire Guard/
Louvered
4HP13*18P 208-230/60/1 197/253 11.90 20 9.0 48 0.7 1/10 1075 117 151/166
4HP13*24P 208-230/60/1 197/253 11.10 15 8.3 43 0.7 1/10 1075 130 169/185
4HP13*30P 208-230/60/1 197/253 14.4 20 10.6 54 1.1 1/5 1075 159 186/203
4HP13*36P 208-230/60/1 197/253 19.6 30 14.7 74 1.2 1/4 1075 151 197/208
4HP13*42P 208-230/60/1 197/253 20.2 30 15.2 84 1.2 1/4 1075 170 218/229
4HP13*48P 208-230/60/1 197/253 25.1 35 19.1 102 1.2 1/4 1075 267 260/277
4HP13*60P 208-230/60/1 197/253 26.7 40 20.4 105 1.2 1/4 1075 251 262/279

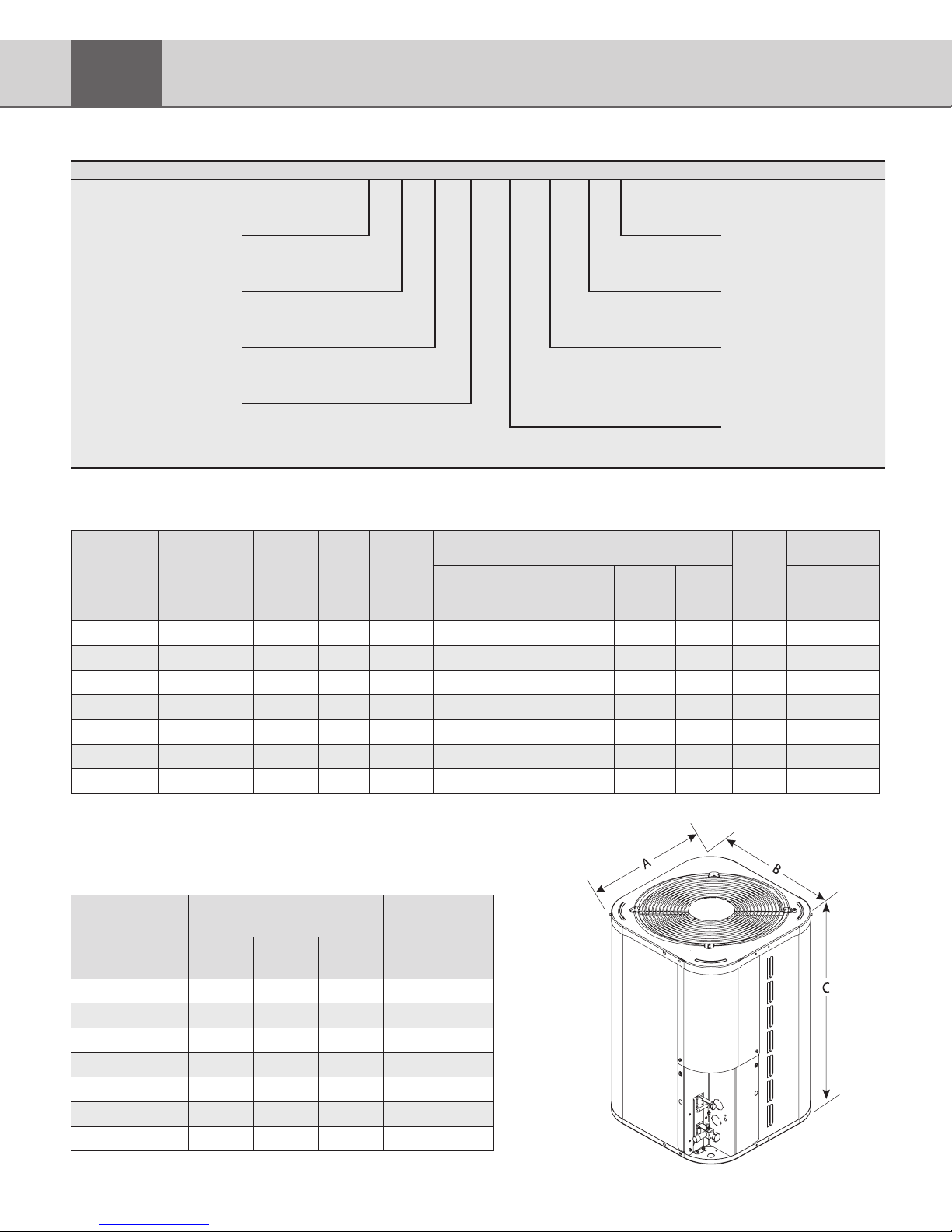

Physical and Electrical Data
Unit Dimensions & Sound Ratings
Model
Dimensions Sound
Ratings
(dBa)
A
(in.)
B
(in.)
C
(in.)
4HP13*18P 30 30 34 77
4HP13*24P 30 30 34 78
4HP13*30P 30 30 38 78
4HP13*36P 30 30 26 77
4HP13*42P 30 30 26 77
4HP13*48P 30 30 38 79
4HP13*60P 30 30 42 79
* -B or L
* -B or L

4HP13 Split System Heat Pump
seer
13
4HP13 Split System Heat Pump
seer
13
Cooling Performance with Air Handlers and Furnaces
Outdoor
Model Indoor Model Furnace
Cooling Heating
Refrigerant
Connection
Refrigerant
Line Size
Indoor
Metering
Device
Outdoor Indoor
Suction
Liquid
Req'd Optional
SEER EER
ARI
Rated
Capacity1
Rated
Sensible
Capacity
HSPF
47° 17°
CFM
Suction
Liquid
Suction
Liquid
Btuh COP Btuh COP
4HP13*18
RBCS2M18C*****P ----- 13.0 11.0 18,000 13,100 7.70 16,800 3.30 10,500 2.18 650 3/4 3/8 3/4 3/8 3/4 3/8 0.051 H4TXV01
RBCS2M24V*****P ----- 14.0 12.0 18,300 13,300 7.90 16,500 3.52 10,200 2.34 650 3/4 3/8 3/4 3/8 3/4 3/8 0.051 H4TXV01
E(C,M,U)1P29NA CMPEV050,075 13.5 11.5 18,100 13,200 7.70 16,700 3.44 10,400 2.30 650 3/4 3/8 3/4 3/8 3/4 3/8 0.051 H4TXV01
E(C,M,U)1P29NA MPGAV050,075 13.5 11.5 18,100 13,200 7.70 16,700 3.44 10,400 2.30 650 3/4 3/8 3/4 3/8 3/4 3/8 0.051 H4TXV01
E(C,M,U)1P36NA,NB CMPEV050, 075, 100 13.5 11.5 18,200 13,300 7.80 16,700 3.48 10,400 2.34 650 3/4 3/8 3/4 3/8 3/4 3/8 0.051 H4TXV01
E(C,M,U)1P36NA,NB,NC MPGAV050,075,100,125 13.5 11.5 18,200 13,300 7.80 16,700 3.48 10,400 2.34 650 3/4 3/8 3/4 3/8 3/4 3/8 0.051 H4TXV01
4HP13*24
RBCS2M24C*****P ----- 13.0 11.0 24,000 18,200 7.70 21,400 3.34 11,800 2.18 900 3/4 3/8 3/4 3/8 3/4 3/8 0.055 H4TXV01
RBCS2M24V*****P ----- 14.0 12.0 24,200 18.400 7.90 20,800 3.60 11,400 2.44 900 3/4 3/8 3/4 3/8 3/4 3/8 0.055 H4TXV01
E(C,M,U)1P36NA,NB,NC CMPEV050,075,100 13.0 11.0 24,000 18,200 7.70 23,400 3.72 11,900 2.34 900 3/4 3/8 3/4 3/8 3/4 3/8 0.055 H4TXV01
E(C,M,U)1P36NA,NB,NC MPGAV050,075,100,125 13.0 11.0 24,000 18,200 7.70 23,400 3.72 11,900 2.34 900 3/4 3/8 3/4 3/8 3/4 3/8 0.055 H4TXV01
4HP13*30
RBCS2M30C*****P ----- 13.0 11.0 28,000 20,700 7.70 27,000 3.34 15,400 2.26 1050 3/4 3/8 7/8 3/8 3/4 3/8 0.059 H4TXV01
RBCS2M36V*****P ----- 14.0 11.5 28,200 20,900 7.90 26,600 3.58 14,800 2.56 1050 3/4 3/8 7/8 3/8 3/4 3/8 0.059 H4TXV01
E(C,H,M,U)1P36NA,NB CMPEV050,075,100 13.0 11.0 28,000 20,700 7.70 27,000 3.40 15,400 2.46 1050 3/4 3/8 3/4 3/8 3/4 3/8 0.059 H4TXV01
E(C,H,M,U)1P36NA,NB,NC MPGAV050,075,100,125 13.0 11.0 28,000 20,700 7.70 27,000 3.40 15,400 2.46 1050 3/4 3/8 3/4 3/8 3/4 3/8 0.059 H4TXV01
4HP13*36
RBCS2M36C*****P ----- 13.0 11.0 35,600 27,000 7.70 33,000 3.40 19,000 2.26 1250 3/4 3/8 7/8 3/8 3/4 3/8 0.070 H4TXV02
RBCS2M36V*****P ----- 14.0 11.5 36,000 27,400 7.80 32,400 3.62 18,400 2.60 1250 3/4 3/8 7/8 3/8 3/4 3/8 0.070 H4TXV02
E(C,M,U)1P36NB CMPEV100 13.0 11.0 35,400 26,900 7.70 33,000 3.48 19,100 2.48 1250 3/4 3/8 3/4 3/8 3/4 3/8 0.070 H4TXV02
E(C,M,U)1P36NB,NC MPGAV100,125 13.0 11.0 35,400 26,900 7.70 33,000 3.48 19,100 2.48 1250 3/4 3/8 3/4 3/8 3/4 3/8 0.070 H4TXV02
E(C,H,M,U)1P43NB CMPEV100 13.0 11.0 35,800 27,200 7.70 34,800 3.62 19,100 2.48 1250 3/4 3/8 7/8 3/8 3/4 3/8 0.070 H4TXV02
E(C,H,M,U)1P43NB MPGAV100 13.0 11.0 35,800 27,200 7.70 34,800 3.62 19,100 2.48 1250 3/4 3/8 7/8 3/8 3/4 3/8 0.070 H4TXV02
E(C,H,M,U)1P49NC MPGAV125 13.5 11.0 35,800 27,200 7.70 34,800 3.72 18,600 2.50 1250 3/4 3/8 7/8 3/8 3/4 3/8 0.070 H4TXV02
4HP13*42
RBCS2M42C*****P ----- 13.0 11.0 42,000 30,200 7.70 38,500 3.42 21,200 2.52 1350 7/8 3/8 7/8 3/8 7/8 3/8 0.070 H4TXV02
RBCS2M42V*****P ----- 14.0 12.0 42,500 30,600 7.80 38,000 3.52 20,600 2.62 1350 7/8 3/8 7/8 3/8 7/8 3/8 0.070 H4TXV02
E(C,H,M,U)1P62NC MPGAV125 13.5 11.5 43,000 30,900 7.70 39,000 3.50 21,600 2.38 1350 7/8 3/8 7/8 3/8 7/8 3/8 0.070 H4TXV02
4HP13*48
RBCS2M48C*****P ----- 13.0 11.0 48,000 35,500 7.70 43,500 3.20 27,400 2.50 1600 7/8 3/8 7/8 3/8 7/8 3/8 0.082 H4TXV03
RBCS2M48V*****P ----- 14.0 11.50 48,500 35,900 8.00 43,000 3.28 27,000 2.58 1600 7/8 3/8 7/8 3/8 7/8 3/8 0.082 H4TXV03
E(C,H,M,U)1P62NC MPGAV125 13.0 11.50 48,500 35,900 7.70 43,500 3.24 27,200 2.40 1600 7/8 3/8 7/8 3/8 7/8 3/8 0.082 H4TXV03
4HP13*60
RBCS2M60*****P ----- 13.0 11.0 54,500 40,900 7.70 52,000 3.74 30,400 2.58 1800 7/8 3/8 7/8 3/8 1-1/8 3/8 0.082 H4TXV03
RBCS2M60V*****P ----- 13.5 11.50 54,500 40,900 8.00 51,500 3.80 30,000 2.64 1800 7/8 3/8 7/8 3/8 1-1/8 3/8 0.082 H4TXV03
* -B or L
1Certified in accordance with Unitary Air Conditioner Certification Program, which is based on ARI Standard 210/240

4HP13 Split System Heat Pump
seer
13
Outdoor
Model
Indoor
Model
Indoor
Temp
DB/WB
˚F
Outdoor Temp - DB˚F
65 82 95 105 115
Btuh S/T kW Btuh S/T kW Btuh S/T kW Btuh S/T kW Btuh S/T kW
4HP13*18P-1A RBCS2M18
85/72 20,000 0.59 1.24 19,500 0.64 1.46 19,100 0.68 1.64 18,000 0.71 1.83 16,900 0.74 2.03
80/67 18,800 0.67 1.23 19,100 0.71 1.44 18,000 0.76 1.64 16,300 0.80 1.83 14,700 0.84 2.01
75/63 18,200 0.72 1.23 17,100 0.77 1.45 16,300 0.80 1.63 15,000 0.84 1.82 13,700 0.88 2.01
4HP13*24P-1A RBCS2M24
85/72 27,700 0.59 1.75 26,600 0.63 2.01 25,800 0.66 2.21 23,400 0.71 2.35 21,000 0.76 2.50
80/67 26,600 0.66 1.74 25,700 0.70 1.98 24,000 0.74 2.18 21,100 0.80 2.30 18.300 0.86 2.41
75/63 25,200 0.70 1.73 22,600 0.76 1.95 20,600 0.80 2.12 18,400 0.85 2.24 16,100 0.90 2.36
4HP13*30P-1A RBCS2M30
85/72 33,500 0.60 2.05 31,900 0.65 2.37 30,700 0.68 2.61 28,000 0.73 2.78 25,400 0.77 2.95
80/67 31,800 0.67 2.03 30,900 0.72 2.33 28,000 0.77 2.55 24,900 0.83 2.69 21,700 0.88 2.83
75/63 30,200 0.72 2.02 27,300 0.77 2.28 25,000 0.81 2.48 22,400 0.85 2.62 19,800 0.89 2.76
4HP13*36P-1A RBCS2M36
85/72 40,500 0.59 2.48 39,400 0.63 2.92 38,500 0.66 3.26 35,100 0.71 3.50 31,600 0.75 3.75
80/67 38,900 0.66 2.48 39,700 0.69 2.93 35,600 0.75 3.24 31,000 0.81 3.44 26,400 0.87 3.65
75/63 37,600 0.69 2.49 33,800 0.75 2.87 30,800 0.80 3.16 27,500 0.85 3.37 24,100 0.90 3.57
4HP13*42P-1A RBCS2M42
85/72 51,700 0.57 3.02 49,500 0.61 3.52 47,800 0.64 3.90 43,400 0.68 4.16 39,100 0.71 4.43
80/67 49,400 0.64 3.01 45,800 0.69 3.48 42,000 0.73 3.82 38,200 0.77 4.04 34,400 0.80 4.26
75/63 47,100 0.67 2.98 42,500 0.69 3.40 39,100 0.71 3.73 34,800 0.78 3.94 30,400 0.84 4.16
4HP13*48P-1A RBCS2M48
85/72 57,400 0.62 3.42 55,400 0.64 4.00 53,900 0.66 4.44 48,800 0.70 4.76 43,700 0.73 5.07
80/67 55,300 0.67 3.39 53,100 0.70 3.96 48,000 0.74 4.36 43,000 0.79 4.65 38,100 0.84 4.94
75/63 53,000 0.71 3.37 47,600 0.75 3.89 43,500 0.78 4.28 39,300 0.83 4.55 35,100 0.87 4.82
4HP13*60P-1A RBCS2M60
85/72 62,700 0.59 3.86 61,000 0.63 4.55 59,800 0.66 5.08 55,000 0.70 5.44 50,200 0.74 5.80
80/67 61,200 0.67 3.85 59,900 0.70 4.51 54,500 0.75 4.95 48,800 0.80 5.26 43,100 0.85 5.58
75/63 59,100 0.71 3.84 53,200 0.76 4.43 48,700 0.80 4.88 43,700 0.84 5.14 38,600 0.88 5.41
Cooling Performance with Extended Ratings
* = B, L

4HP13 Split System Heat Pump
seer
13
Outdoor
Model
Indoor
Model
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10
4HP13*18P-
1A
RBCS2M18C
*****P
Btuh 21,500 20,200 18,700 17,500 16,800 16,300 15,400 14,300 13,100 12,300 10,900 10,500 9,800 8,700
Kw 1.58 1.55 1.53 1.50 1.49 1.480 1.47 1.46 1.44 1.43 1.42 1.41 1.40 1.39
COP 3.98 3.82 3.58 3.42 3.30 3.22 3.06 2.86 2.66 2.52 2.24 2.18 2.04 1.84
4HP13*24P-
1A
RBCS2M24C
*****P
Btuh 24,100 23,500 22,800 22,000 21,400 20,800 19,200 17600 16200 14700 13000 11800 11200 9200
Kw 1.94 1.92 1.90 1.88 1.87 1.84 1.76 1.73 1.69 1.66 1.62 1.60 1.59 1.55
COP 3.64 3.59 3.52 3.44 3.34 3.32 3.20 2.98 2.80 2.60 2.34 2.18 2.06 1.74
4HP13*30P-
1A
RBCS2M30C
*****P
Btuh 30,200 29,500 28,500 27,600 27,000 25,700 23,500 22,300 20,600 18,400 16,500 15,400 14,700 12,100
Kw 2.47 2.43 2.40 2.38 2.37 2.31 2.25 2.21 2.16 2.11 2.04 2.01 2.00 1.93
COP 3.58 3.56 3.48 3.40 3.34 3.26 3.06 2.96 2.80 2.56 2.38 2.26 2.14 1.84
4HP13*36P-
1A
RBCS2M36C
*****P
Btuh 37,600 36,300 35,200 34,000 33,000 31,300 29,300 27,500 25,300 22,800 20,500 19,000 17,900 15,100
Kw 3.03 2.95 2.90 2.87 2.85 2.76 2.70 2.64 2.59 2.54 2.49 2.45 2.45 2.41
COP 3.64 3.60 3.56 3.46 3.40 3.32 3.18 3.04 2.86 2.62 2.40 2.26 2.14 1.84
4HP13*42P-
1A
RBCS2M42C
*****P
Btuh 43,500 42,400 41,000 39,200 38,500 36,100 32,800 30,900 28,300 25,200 22,400 21,200 18,700 13,300
Kw 3.54 3.47 3.41 3.32 3.30 3.23 3.11 3.04 2.88 2.70 2.49 2.39 2.28 2.00
COP 3.60 3.58 3.52 3.46 3.42 3.28 3.08 2.98 2.88 2.74 2.64 2.60 2.40 1.94
4HP13*48P-
1A
RBCS2M60C
*****P
Btuh 51,800 49,100 46,200 44,200 43,500 41,900 41,300 37,400 34,900 32,500 29,700 27,400 26,600 24,200
Kw 4.56 4.35 4.14 4.00 3.98 3.87 3.83 3.64 3.52 3.44 3.31 3.23 3.22 3.13
COP 3.32 3.30 3.26 3.24 3.20 3.18 3.16 3.00 2.90 2.76 2.62 2.50 2.42 2.26
4HP13*60P-
1A
RBCS2M60C
*****P
Btuh 58,700 56,300 54,200 52,900 52,000 49,600 46,600 42,400 39,300 36,100 32,600 30,400 29,000 25,500
Kw 4.34 4.19 4.14 4.10 4.07 4.03 3.96 3.82 3.72 3.63 3.53 3.46 3.41 3.31
COP 3.96 3.94 3.84 3.78 3.74 3.60 3.44 3.24 3.10 2.92 2.70 2.58 2.48 2.26
Heating Performance with Extended Ratings
* = B, L
The information below is for nominal CFM and 70° indoor dry bulb.

Form No. D4HP13B/L-100 (01/09) ©2009 Allied Air Enterprises Inc., a Lennox International Inc. Company Printed in the U.S.A.
www.ducanehvac.com
1-800-448-5872
All specifications and illustrations
subject to change without notice
and without incurring obligations.
4HP13 Split System Heat Pump
seer
13
Accessories
Description Where Used Kit Number
Compressor Sound Cover 4HP13*18 14W00
Compressor Sound Cover 4HP13*24, 30, 36 47W03
Compressor Sound Cover 4HP13*42, 48, 60 47W04
Crankcase Heater 4HP13*18 14W05
Hard Start Kit 4HP13*18 12W59
Hard Start Kit 4HP13*24 47W10
Hard Start Kit 4HP13*30 47W09
Hard Start Kit 4HP13*36 47W08
Hard Start Kit 4HP13*42, 48 47W06
Hard Start Kit 4HP13*60 47W05
TXV Kit14HP13*18, 24,30 H4TXV01
TXV Kit14HP13*36,42 H4TXV02
TXV Kit14HP13*48,60 H4TXV03
Blower Off Delay Kit All Units 40K58
Low Ambient Kit Al Units 34M72
* = B, L
1Note: When using indoor TXV Kits with 4HP13B/L 24, 30, 36, 42, 48, 60 models,
the appropriate hard start kit above must also be installed for proper performance.
