Ducati Multistrada 1000ds User manual

E
1
Owner's manual
DUCATIMULTISTRADA
1000DS
DUCum_1000DS####03_###e.book Page 1 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
2
DUCum_1000DS####03_###e.book Page 2 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
3
Hearty welcome among Ducati fans! Please accept our
best compliments for choosing a Ducati motorcycle. We
think you will ride your Ducati motorcycle for long journeys
as well as short daily trips. Ducati Motor Holding S.p.A.
wishes you smooth and enjoyable riding.
We are steadily doing our best to improve our "Technical
Assistance" service. For this reason, we recommend you
to strictly follow the indications given in this manual,
especially for motorcycle running-in. In this way, your
Ducati motorbike will surely give you unforgettable
emotions. Please contact our authorised service centres
to have your motorcycle repaired or if you simply need
advice.
Enjoy your ride!
Note
Ducati Motor Holding S.p.A. declines any liability
whatsoever for any mistakes incurred in drawing up this
manual. The information contained herein is valid at the
time of going to print. Ducati Motor Holding S.p.A.
reserves the right to make any changes required by the
future development of the above-mentioned products.
For your safety, as well as to preserve the warranty,
reliability and worth of your motorcycle, use original Ducati
spare parts only.
Warning
This manual forms an integral part of the motorcycle
and - in the event the motorcycle is resold - must always
be handed over to the new owner.
DUCum_1000DS####03_###e.book Page 3 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
4
TABLE OF CONTENTS
General 6
Warranty 6
Symbols 6
Useful information for safe riding 7
Carrying the maximum load allowed 8
Identification data 9
Controls 10
Position of motorcycle controls 10
Instrument panel 11
LCD unit functions 12
LCD - Parameter setting/display 14
Backlighting function 21
Pilot lights brightness function 21
Auto-off headlight function 21
The immobilizer system 21
Keys 22
Code card 23
Procedure to disable immobilizer engine block through
throttle twistgrip 24
Duplicate keys 25
Ignition switch and steering lock 26
Left switch 27
Clutch lever 28
Right switch 29
Throttle twistgrip 29
Front brake lever 30
Rear brake pedal 31
Gear change pedal 31
Setting the gear change and rear brake pedals 32
Main components and devices 34
Location 34
Tank filler plug 35
Passenger seat catch and helmet hook 36
Glove compartment lock 37
Side stand 38
Front fork adjusters 39
Rear shock absorber adjusters 41
Rear-view mirrors adjustment 42
Motorcycle trim adjustment 43
Directions for use 44
Running-in recommendations 44
Pre-ride checks 46
Starting the engine 47
Moving off 49
Braking 49
Stopping the motorcycle 50
Parking 50
Refuelling 51
Tool kit and accessories 52
DUCum_1000DS####03_###e.book Page 4 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
5
Main maintenance operations 53
Removing the fairing 53
Checking brake and clutch fluid level 58
Checking brake pads for wear 60
Lubricating joints 61
Throttle cable free play adjustment 62
Charging the battery 63
Checking the drive chain tension 64
Chain lubrication 65
Replacing headlamp bulbs 66
Changing the front direction indicators bulbs 70
Changing the rear direction indicators bulbs 71
Changing the number plate and stop light bulbs 72
Beam setting 74
Tubeless tyre pressure 75
Checking engine oil level 77
Cleaning and replacing the spark plugs 78
Cleaning the motorcycle 79
Storing the bike away 79
Important notes 79
Technical data 80
Overall dimensions 80
Weights 80
Engine 82
Timing system 82
Performance data 83
Spark plugs 83
Exhaust system 83
Transmission 84
Brakes 85
Frame 86
Wheels 86
Tyres 86
Suspensions 87
Available in the following colors: 87
Electric system 88
For United States of America version Only 93
Routine maintenance record 102
DUCum_1000DS####03_###e.book Page 5 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
6
GENERAL
Warranty
In your own interest, and in order to guarantee product
reliability, you are strongly advised to refer to a Ducati
Dealer or Authorised Workshop for any servicing requiring
particular technical expertise. Our highly skilled staff have
access to the implements required to perform any
servicing job at best, and use Ducati original spare parts
only as the best guarantee for full interchangeability,
smooth running and long life.
All Ducati motorcycles come with a "Warranty Card". The
warranty does not apply to the motorcycles used in
competitions. No motorcycle part may be tampered with,
altered, or replaced with parts other than original Ducati
spare parts during the warranty period, or the warranty will
be automatically invalidated.
Symbols
Ducati Motor Holding S.p.A. advises you to read this
booklet carefully so as to become familiar with your
motorcycle. In case of any doubts, please call a Ducati
Dealer or Authorised Workshop. The information
contained herein will prove useful on your trips - and
Ducati Motor Holding S.p.A. wishes you smooth,
enjoyable riding - and will help you keep the performance
of your motorcycle unchanged for a long time.
Warning
Failure to comply with these instructions may put you
at risk and lead to severe injury or death.
Important
Possibility of damaging the motorcycle and/or its
components.
Note
Additional information on the job being carried out.
The terms right and left are referred to the motorcycle
viewed with respect to the direction of travel.
DUCum_1000DS####03_###e.book Page 6 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
7
Useful information for safe riding
Warning
Read this section before riding your motorcycle.
Accidents are frequently due to inexperience. Always
make sure you have your licence with you when riding;
you need a valid licence to be entitled to ride your
motorcycle.
Do not lend your motorcycle to inexperienced riders or
who do not hold a valid licence.
Both rider and pillion passenger must always wear a
safety helmet.
Wear proper clothing, with no loose items or accessories
that may become tangled in the controls or limit your zone
of vision.
Never start or run the engine indoors. Exhaust gases are
poisonous and may lead to loss of consciousness or even
death within a short time.
Both rider and pillion passenger should keep their feet on
the footpegs when the motorcycle is in motion.
Always hold handlebar firmly with both hands so you will
be ready for sudden changes of direction or in the road
surface. The pillion passenger should always hold on to
the suitable grab handle at the rear seat with both hands.
Ride within the law and observe national and local rules.
Always respect speed limits where these are posted.
However, always adjust your speed to the visibility, road
and traffic conditions you are riding in.
Always signal your intention to turn or pull to the next lane
in good time using the suitable turn indicators.
Be sure you are clearly visible and do not ride within the
blind spot of vehicles ahead.
Be very careful when tackling road junctions, or when
riding in the areas near exits from private grounds, car
parks or on slip roads to access motorways.
Always turn off the engine when refuelling.
Be extremely careful not to spill fuel on the engine or on
the exhaust pipe when refuelling.
Do not smoke when refuelling.
While refuelling, you may inhale noxious fuel vapours.
Should any fuel drops be spilled on your skin or clothing,
immediately wash with soap and water and change your
clothing.
Always remove the key when you leave your motorcycle
unattended.
The engine, exhaust pipes, and mufflers stay hot for a long
time.
Warning
The exhaust system might be hot, even after engine
is switched off; pay particular attention not to touch
exhaust system with any body part and do not park the
vehicle next to inflammable material (wood, leaves etc.).
Park your motorcycle where no one is likely to hit it and
use the side stand.
Never park on uneven or soft ground or your motorcycle
may fall over.
DUCum_1000DS####03_###e.book Page 7 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
8
Carrying the maximum load allowed
Your motorcycle is designed for long-distance riding,
carrying the maximum load allowed in full safety.
Even weight distribution is critical to preserving these
safety features and avoiding trouble when performing
sudden manoeuvres or riding on bumpy roads.
Information about carrying capacity
The total weight of the motorcycle in running order
including rider, pillion passenger, luggage and additional
accessories should not exceed 410 Kg.
Arrange your luggage or heavy accessories in the lowest
possible position and close to motorcycle centre.
Be sure to secure the luggage to the supports provided on
the motorcycle as firmly as possible. Improperly secured
luggage may affect stability.
Never fix bulky or heavy objects to the handlebar or to the
front mudguard as this would affect stability and cause
danger.
Do not insert any objects you may need to carry into the
gaps of the frame as these may foul moving parts.
Make sure the tyres are inflated to the proper pressure
indicated at page 75 and that they are in good condition.
DUCum_1000DS####03_###e.book Page 8 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
9
Identification data
All Ducati motorcycles have two identification numbers,
for frame (fig. 1) and engine (fig. 2).
Note
These numbers identify the motorcycle model and
should always be indicated when ordering spare parts.
Frame number
Engine number
fig. 1
fig. 2
DUCum_1000DS####03_###e.book Page 9 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
10
CONTROLS
Warning
This section details the position and function of all the
controls you need to drive your motorcycle. Be sure to
read this information carefully before you use the controls.
Position of motorcycle controls (fig. 3)
1) Instrument panel.
2) Key-operated ignition switch and steering lock.
3) Left switch.
4) Right switch.
5) Throttle twistgrip.
6) Clutch lever.
7) Front brake lever.
8) Rear brake pedal.
9) Gear change pedal.
3
2
89
5
6
74
1
fig. 3
DUCum_1000DS####03_###e.book Page 10 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
11

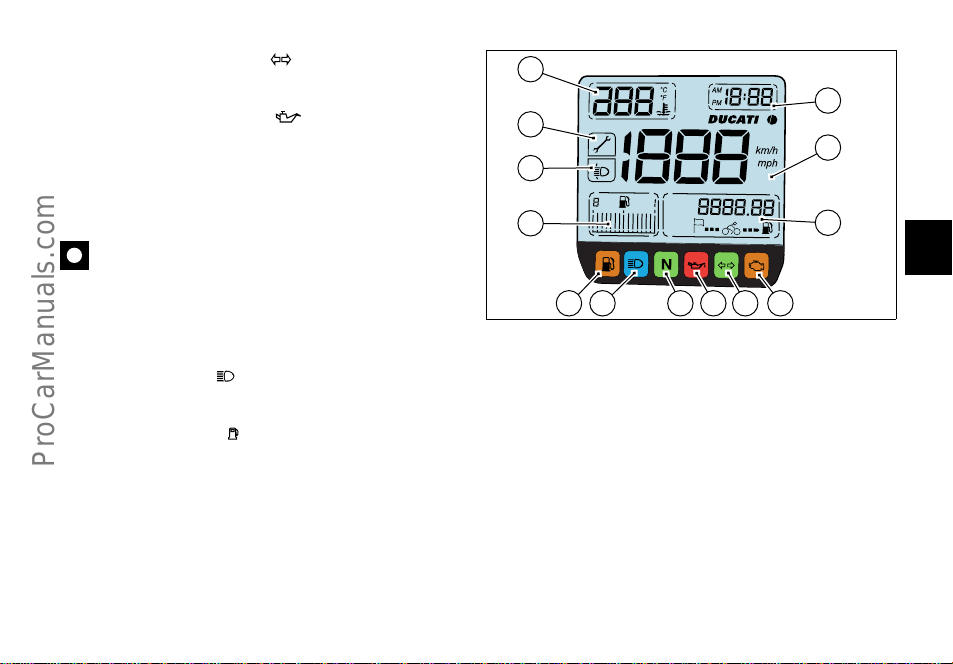

Instrument panel
1) LCD, (see page 12).
2) Control buttons A and B.
Buttons used to display and set instrument panel
parameters.
3) Immobilizer IMMO indicator (amber).
The indicator stays on in case of wrong key code or key
code not recognised; it flashes in case an immobilizer
system warning was reset with the procedure to override
the immobilizer with the throttle twistgrip (see page 24).
Important
The instrument panel allows to making diagnosis on
the electronic injection/ignition system.
These menus are for the trained personnel only; do not
use them for any reason. Should you accidentally enter
this function, turn the key to OFF and contact an
authorised Ducati Service Center for the necessary
inspections.
4) Revolution counter (rpm).
Shows the engine rotation speed/minute.
km/h
miles
mph
km/L
mpgal
3
4
21
fig. 4
DUCum_1000DS####03_###e.book Page 11 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
12
LCD unit functions
Warning
Stop the motorcycle before using the instrument
panel controls. Never operate the instrument panel
controls while riding.
1) Oil temperature warning light.
This function indicates engine oil temperature.
Important
Never use the vehicle when the temperature reaches
max. value or the engine might damage.
2) Clock.
3) Tachometer.
This function indicates vehicle speed.
4) Auxiliary display.
This function indicates odometer, trip meter, average
speed, instant fuel consumption, average fuel
consumption, fuel used, range and residual fuel quantity,
in this sequence.
5) EOBD light (amber).
When on, this light is used by the control unit to signal the
presence of errors and the consequent engine disabling.
It is also used as a reference light during the immobilizer
overriding procedure with the throttle twistgrip.
If there are no errors, the light should turn on when the
ignition switch is turned ON and should go off after a few
seconds (usually 1.8 - 2 seconds).
DUCum_1000DS####03_###e.book Page 12 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
13
6) Indicators repeater light (green).
Comes on and flashes when a turn indicator is on.
7) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and
normally goes out a few seconds after engine starts.
It may shortly come on when the engine is very hot,
however, it should go out as the engine revs up.
Important
If this light (7) stays on, stop the engine or it may
suffer severe damage.
8) Neutral light N(green).
Comes on when in neutral position.
9) High beam light (blue).
Comes on when high beam is on.
10)Fuel warning light (yellow).
Comes on when there are about 6.5 liters fuel left in the
tank.
11) Fuel Display.
This function indicates the quantity of fuel in the fuel tank.
When the last bar stays on (flashing), the low fuel light (10)
comes on.
12)Beam vertical adjustment indicator.
The pilot light comes on to signal that the user has entered
the beam vertical setting mode.
13)Service warning.
The light comes on to signal that the vehicle has covered
the distance corresponding to a Scheduled Maintenance
interval. The light keeps flashing until the vehicle has
travelled 50 km after hitting the service interval. Then it
stays on permanently. The system shall be reset by the
DUCATI Authorised Service Center that has serviced the
vehicle.
km/h
miles
mph
km/L
mpgal
5
4
3
2
67810
11
12
13
1
9
fig. 5
DUCum_1000DS####03_###e.book Page 13 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
14
LCD - Parameter setting/display
When turning the key from OFF to ON (Key-ON) the
instrument panel carries out a Check of the whole
instruments: indexes, displays and pilot lights (see fig. 6).
Oil temperature (fig. 7)
This function indicates engine oil temperature.
When temperature is below 40 °C/104 °F a flashing "LO"
message is displayed.
When oil temperature is between 40 °C/104 °F and 170
°C/338 °F temperature measurement is displayed.
When oil temperature goes over 170 °C/338 °F a flashing
"HI" message is displayed.
km/h
miles
mph
km/L
mpgal
km/h
OFF
CHECK 1
CHECK 2
ON
fig. 6
40 ˚C/104 ˚F 170 ˚C/338 ˚F
171 ˚C/340 ˚F
39 ˚C/102 ˚F
fig. 7
DUCum_1000DS####03_###e.book Page 14 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
15
Note
If the sensor measuring the temperature is
disconnected, a string of dashes "- - -" is displayed.
Clock setting function
Hold down button (A, see page 11) for 2 seconds, the
wording AM begins to flash. If button (B) is pressed again,
PM begins to flash; press button (B) to go back to previous
step. Press button (A) to confirm and start setting hours
that shall begin to flash.
Use button (B) to change hour value. If button (B) is
pressed for more than 5 seconds, fast scroll is activated.
Press button (A) to confirm and start setting minutes. Use
button (B) to set minutes. Press button (A) to confirm and
exit clock setting mode and go back to normal operation.
Auxiliary display functions (fig. 8)
Press button (B) with the key on ON to scroll down the
following functions, in sequence:
- Odometer
-TRIPmeter
- Average speed
- Instant fuel consumption
- Average consumption
- Fuel used
-Range
-Digitalfuellevel indication
km
miles
km
km/h
km/L
mpgal
km/L
L
gal
km
miles
L
ODOMETER
TRIP METER
AVERAGE SPEED
INSTANT FUEL CONSUMPTION
AVERAGE CONSUMPTION
FUEL USED
RANGE
DIGITAL FUEL LEVEL INDICATION
miles
mph
mpgal
gal
fig. 8
DUCum_1000DS####03_###e.book Page 15 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
16
"Odometer" indication (fig. 9)
Indicates total distance covered by the vehicle.
"TRIP meter" indication
This function indicates the distance covered since the
meter was last reset. It is possible to reset this indication
by entering the relevant function and holding down button
(A, see page 11), for at least 2 seconds. When a value of
9999.9 km (or miles) is reached, the display will
automatically reset.
"Average speed" indication
This function indicates vehicle average road speed.
Average speed calculation is based on the distance
travelled since the "TRIP meter" was last reset.
"Instant fuel consumption" indication
This function indicates the instant consumption of the
vehicle when in motion. When the vehicle is stopped with
engine running, a string of dashes is displayed "- - . -". With
vehicle stopped and engine off "0.0" is displayed.
km
miles
km/h
mph
km/L
mpgal
km
miles
fig. 9
DUCum_1000DS####03_###e.book Page 16 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
17

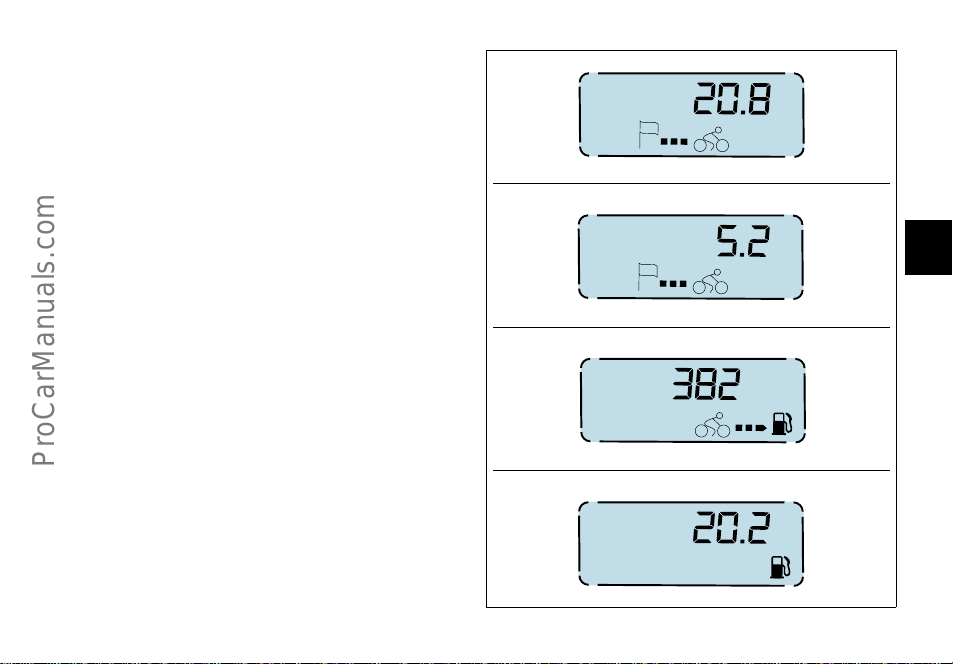

"Average consumption" indication (fig. 10)
This function indicates the vehicle average consumption
when in motion. The calculation is based on the distance
travelled since the "TRIP meter" was last reset. When the
vehicle is stopped, either with the engine off or running,
the last value stored is displayed until indication is
refreshed.
"Fuel used" indication
This function indicates the fuel used by the vehicle to travel
the distance. The calculation is based on the distance
travelled since the "TRIP meter" was last reset. When
indication exceeds 9999.9 liters (2201.9 Imp. gal. - 2641.9
US gal.), the display shows a string of dashes "- - . -".
L
gal
km
miles
L
gal
km/L
mpgal
fig. 10
DUCum_1000DS####03_###e.book Page 17 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
18
"Range" indication
This function indicates how far the vehicle can travel using
the fuel left in the tank. When this display function is not
selected, the display automatically switches to "Range"
indication as soon as the LOW FUEL LIGHT (10, fig. 5)
comes on and the display shows a string of dashes "- - . -"
and the indication for 10 seconds. Range indication is then
turned on automatically every 60 seconds while the low
fuel light stays on.
When the vehicle is stopped, either with the engine off or
running, the last value stored is displayed until indication is
refreshed.
Note
The value is refreshed every10 seconds, the
tolerance is 0.5 km.
"Digital fuel level" indication
This function indicates how much fuel is left in the fuel
tank.
When the LOW FUEL LIGHT (10, fig. 5) comes on, the
display shows a string of dashes "- - . -" and the fuel pump
symbol begins to flash.
Note
This vehicle is equipped with a long fuel tank, fuel
level indication might be slightly altered when riding up- or
downhill for a certain period.
DUCum_1000DS####03_###e.book Page 18 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
19
Beam vertical adjustment (fig. 11)
This function allows headlight beam height setting.
To enter this function, hold down button (B, see page 11)
and turn the key to ON; the display shows a value (fig. 11a)
corresponding to beam position and the pilot light on the
display (12, fig. 5) comes on.
Use buttons (A) and (B), respectively, to lower or raise the
beam. Range available is from position "3" (max. beam
height) to position "-3" (min. beam height).
Turn the key to OFF to exit the function. While exiting
setting mode, the selected beam position is stored.
fig. 11
BBBA
AAAA
AB B B
fig. 11a
DUCum_1000DS####03_###e.book Page 19 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com

E
20
Special selection function: vehicle model and unit of
measurement (fig. 12)
The control unit automatically informs the instrument
panel about the vehicle model and unit of measurement to
be displayed; hold down buttons (A) and (B) and turn
ignition switch from OFF to ON to force the system and
change these parameters. The display shows vehicle
model and version in flashing mode. Press button (B) to
display in sequence all possible settings. To save the
setting chosen hold down button (A) for at least 5
seconds, until OFF is displayed, then turn the key to OFF.
Note
When this function is activated, vehicle ignition is
inhibited.
fig. 12
DUCum_1000DS####03_###e.book Page 20 Wednesday, March 12, 2003 4:33 PM
ProCarManuals.com
