Duerkopp Adler 511 User manual

511
CNC-Automat für Riegel- und Kurznähte
CNC automat for bartacking seams
and short seams
Bedienanleitung / Operating Instructions
Aufstellanleitung / Installation Instructions
Serviceanleitung / Service Instructions
Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld
Telefon [phone] Telefax+49(0)521/9252435www.duerkopp-adler.com
1
2
3
Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:
08/2009 Rev. index: 00.0 Printed in Federal Republic of Germany 0791 511001

Alle Rechte vorbehalten.
Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise
Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG
verboten.
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,
even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright © Dürkopp Adler AG - 2009

Foreword
This instruction manual is intended to help the user to become familiar
with the machine and take advantage of its application possibilities in
accordance with the recommendations.
The instruction manual contains important information on how to
operate the machine securely, properly and economically. Observation
of the instructions eliminates danger, reduces costs for repair and
down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national
accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing
unit.
The instruction manual must be read and applied by any person that is
authorized to work on the machine/sewing unit. This means:
–Operation, including equipping, troubleshooting during the work
cycle, removing of fabric waste,
–Service (maintenance, inspection, repair) and/or
–Transport.
The user also has to assure that only authorized personnel work on the
machine.
The user is obliged to check the machine at least once per shift for
apparent damages and to immediatly report any changes (including the
performance in service), which impair the safety.
The user company must ensure that the machine is only operated in
perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or
maintaining, the safety devices must be remounted directly after
completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the
manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger
areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe
the general safety and accident prevention regulations!

General safety instructions
The non-observance of the following safety instructions can cause
bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the
instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and
instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of
the machine without the safety devices is not permitted. Observe all
the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle
plate, feed dog and bobbin) when threading, when the workplace is
left, and during service work, the machine must be disconnected
from the mains by switching off the master switch or disconnecting
the mains plug.
5. Daily servicing work must be carried out only by appropriately
trained persons.
6. Repairs, conversion and special maintenance work must only be
carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the
machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made
by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by
electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted,
except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us
and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as
the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains
plug. This work must be carried out by appropriately trained
technicians (see paragraph 8).
It is absolutely necessary to respect the safety
instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.

Contents Page:
Part 2: Installation Instructions – Class 511 (DAC III)
1. Items delivered ............................................... 3
2. General and transport packaging ................................... 3
3. Mount stand and control circuitry cabinet
3.1 Tabletops................................................... 5
3.2 Framepartsassembly........................................... 5
3.3 Completethetabletop........................................... 6
3.4 Connect the control box to the main switch............................... 7
3.5 Mount the reference value transmitter and the equipotential bonding ............... 8
3.6 Adjustingworkingheight.......................................... 9
4. Assembly of automatic bartacker
4.1 Mount the oil pan .............................................. 10
4.2 Setuptheautomaticbartacker...................................... 11
4.3 Mount the oil lines .............................................. 12
4.4 Mount the control panel .......................................... 12
4.5 Mount the cover ............................................... 13
5. Connect the plug connections to the control box
5.1 Plug connections at the four-way multiple pin strip .......................... 14
5.2 Wiring..................................................... 15
6. Change sewing feet and fabric support plate ........................... 16
7. Fit eye protection ............................................. 17
8. Convert automatic bartacker 511-213 to thick fabrics
8.1 General .................................................... 18
8.2 Adjustclampheight............................................. 19
8.3 Change stop position ........................................... 19
9. Oil lubrication
9.1 Topping up with oil ............................................. 20
9.2 Oilthewicksandthefeltpartintheoilpan............................... 21
9.3 Oiling the hook path............................................. 22
10. Setting in motion
10.1 Standard delivery .............................................. 22
10.2 Softwareinstallation ............................................ 23
10.2.1 General .................................................... 23
10.2.2 Loading the program ............................................ 24
10.2.3 Dongle update via Internet......................................... 26
10.3 Sewingtest.................................................. 27
11. Additional equipment
11.1 Sewinglight ................................................. 28
2

1
3
9
8
76
2
5
4

2
1. Items Delivered
The items that are supplied depend on your order.
Before setup, please check that all the required components are
present.
This description refers to an automatic bartacker and the individual
components which are completely delivered by Dürkopp Adler AG.
–1 Upper part (head) including oil pan
“Electro” parts set with:
–2 Control panel
–5 Mains switch
–6 DAC control unit
Dürkopp-Adler accessory kit with:
–3 Reel stand
–Protective cover (not shown)
–8 Frame (optional)
–7 Pedal and rods (optional)
–4 Table plate (optional)
–9 Drawer (optional)
2. General and transport packaging
CAUTION !
The automatic bartacker should only be installed by trained specialists.
Transport packing
If you have bought an assembled automatic bartacker, the following
transport securing devices have to be removed:
–Safety straps and battens from the upper machine head, table and
frame.
3

Punch-marks from the underside (1 x), only at
this point
Four punch marks for Spax screws
4

5
2
3. Mount stand and control circuitry cabinet
3.1 Table tops
The cutouts of self-manufactured table tops must have the dimensions
indicated in the sketch.
Caution – Risk of Injury !
The table tops must have the required load-carrying capacity and
strength.

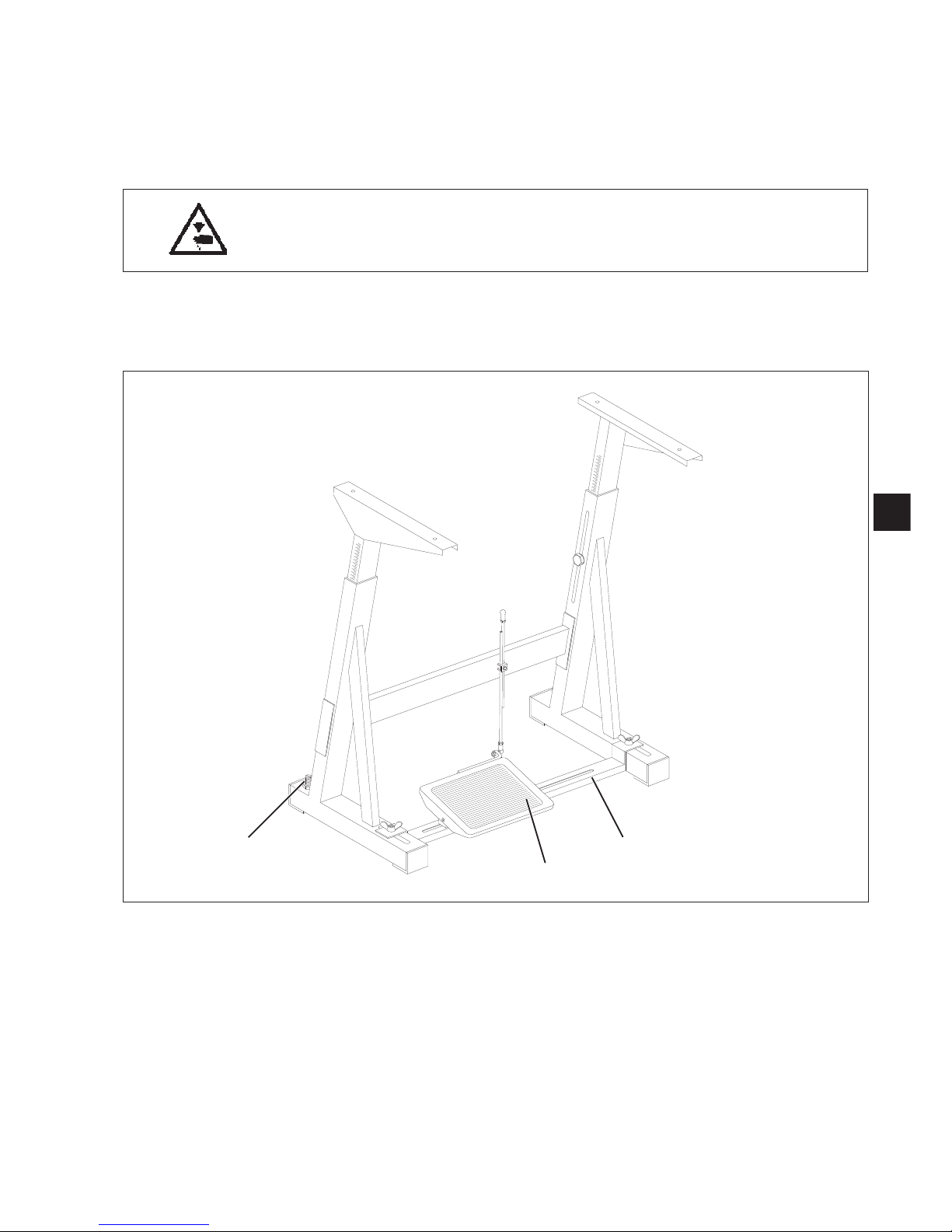

3.2 Frame parts assembly
–Mount the individual parts of the stand as shown in the illustration.
–Set the adjusting screw 3 to ensure the stability of the stand.
The frame must be resting with all four feet on the floor.
–Screw pedal 2 on the stand strut 1.
–Align pedal laterally (side-to-side).
Shift the pedal sideways so that it is positioned centrally to the oil
pan.
The stand strut is provided with slotted holes for aligning the pedal.
3
2
1

3.3 Complete the table top
–Place the table top on a worktop upside down.
–Screw the main switch 6 on the underside of the table top on the
left.
–Screw cable duct 5 tight behind the main switch 6.
–Screw cable duct 2 tight to the left of the lead-through 1.
–Put the access line 4 in the cable duct.
–Fasten the access line 4 by means of strain relief 3.
–Place the control box 7 on the underside of the table top and
position it in such a way that the side with the four sockets points to
the left (towards the thread reel holder).
–Screw the control box with four screws on the punch-marked spot
at the underside of the table top.
6
654321
7

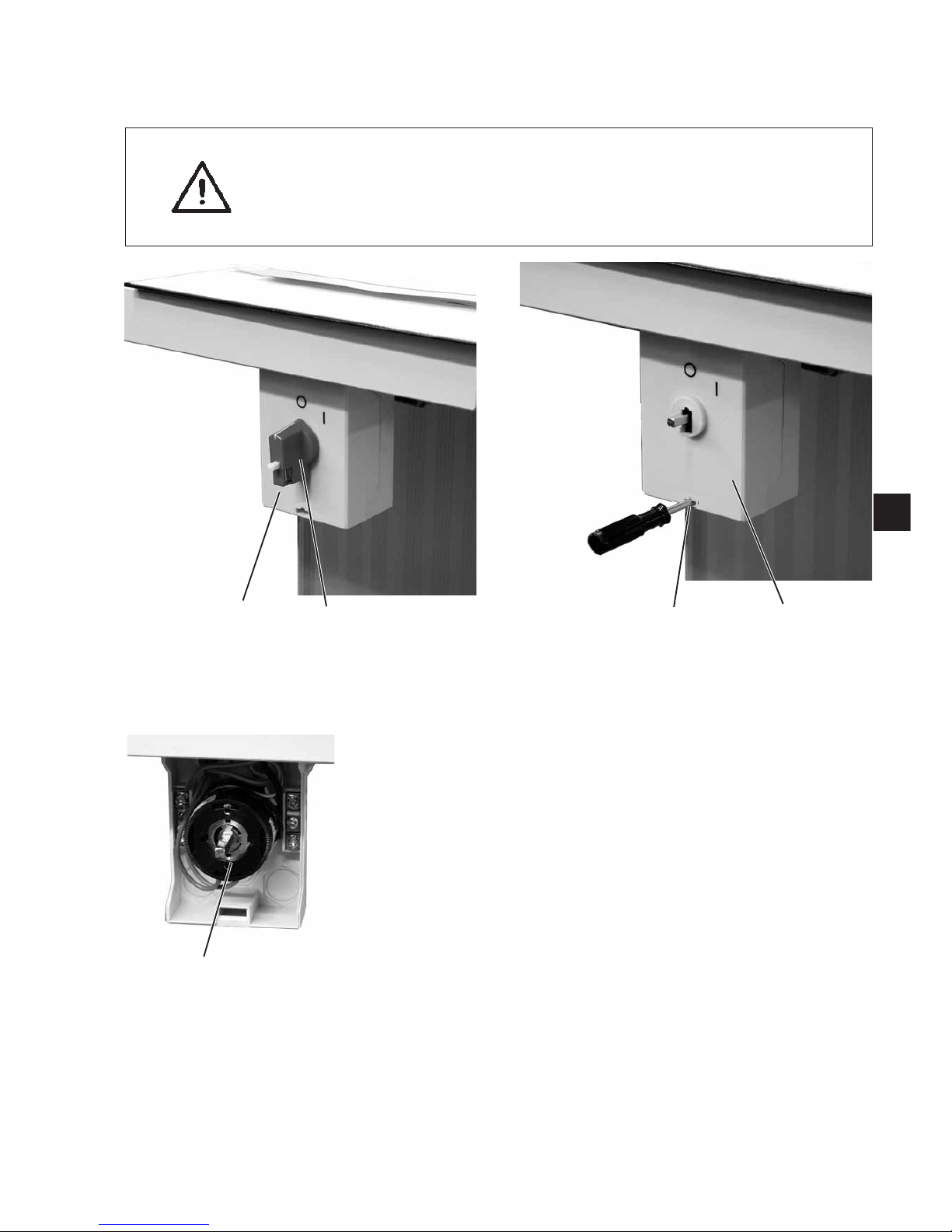

3.4 Connect the control box to the main switch
CAUTION !
Only trained personnel or electricians may work on the electric
equipment of the automatic bartacker.
The mains plug must be unplugged!
–Take off the switching knob.
Loosen the screw 2 in the knob in order to remove.
–Remove the cover 3 from the main switch.
Unlock the locking bar in drill-hole 4 with a screwdriver in order to
remove.
–Run the cable from the control box into the cable duct.
–Insertthecableinthemainswitch.
–Connect the cable wires from the control box to the
screws “T1” and “T2”.
–Connect the protective-earth conductor of the control box in
themainswitch.
–Put the cover on the mains switch again.
–Put on the switching knob 1 and screw it tight.
–Put on the cover of the cable duct.
7
2
21 43
5

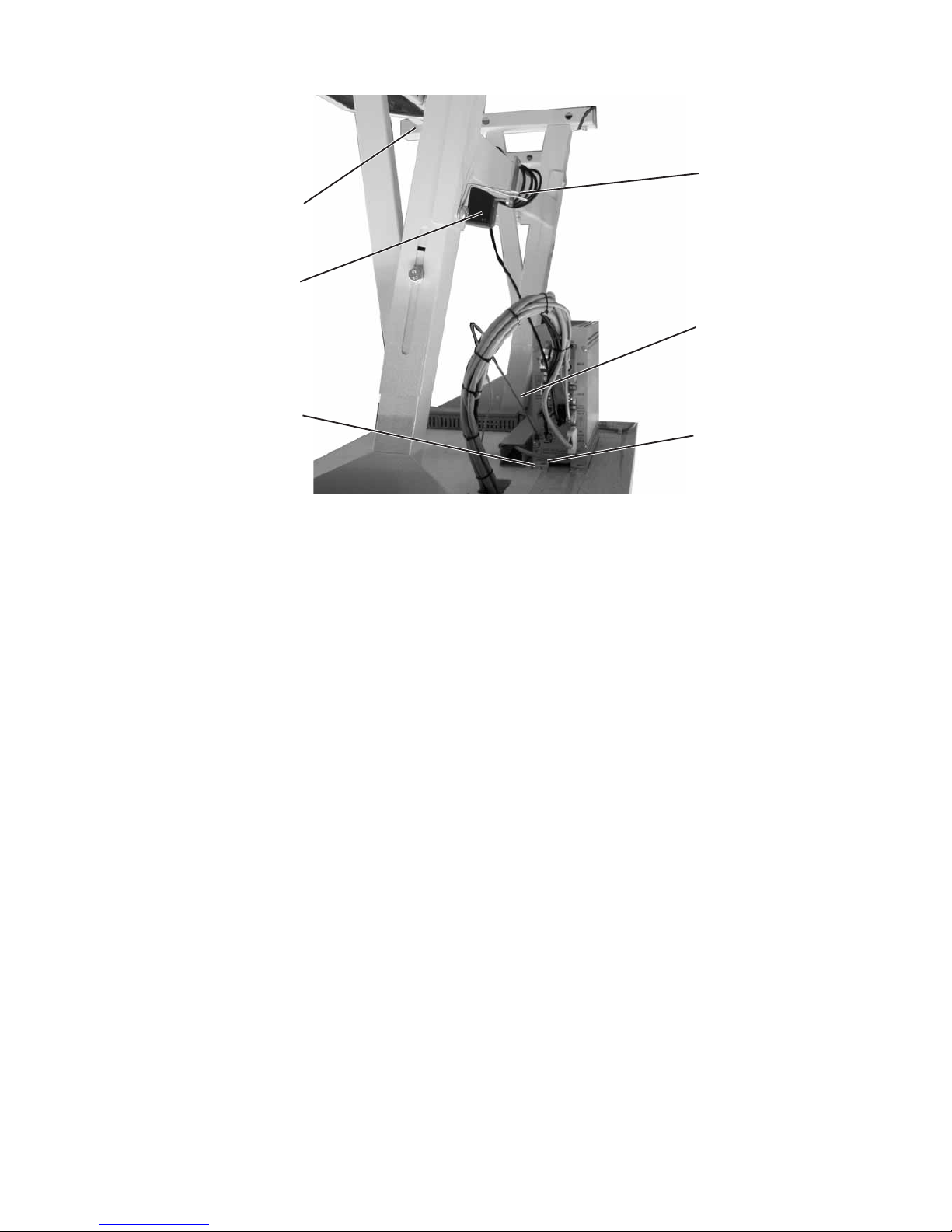

3.5 Mount the reference value transmitter and the equipotential bonding
–Screw the reference value transmitter 5 on the stand strut with
fixing link 1.
–Hook the ball mugs of the pedal bars 6 in at the pedal and at the
reference value transmitter 5.
–Screw the potential compensation cable 2 on the fixing link 1.
–Screw the equipotential bonding cable 2 of the reference value
transmitter and the equipotential bonding cable 4 of the sewing
machine tight on the control box by means of screw 3.
8
1
2
3
6
5
4

3.6 Adjusting the working height
The working height is adjustable between 750 mm and 950 mm (as
measured to the upper edge of the table plate).
–Loosen screws 1 at both legs of the stand.
In order to prevent twisting, pull out or push in the table
top equally on both sides. The scales 2 at the exterior surfaces of
the legs serve as adjusting aid.
–Tighten screws 1.
9
2
2
1

4. Assembly of automatic bartacker
4.1 Mount the oil pan
–Lay oil pan 1 on table top 3. Align it and screw it tight through the
two through bore-fits 2 with two wood screws.
–Insert thread reel holder 1 in the drill-hole of the table top and
screw tight with nuts and washers.
Mount and align the thread reel arms and the thread guides.
The thread reel arms and thread guides must be positioned exactly
one above the other.
10
23
1

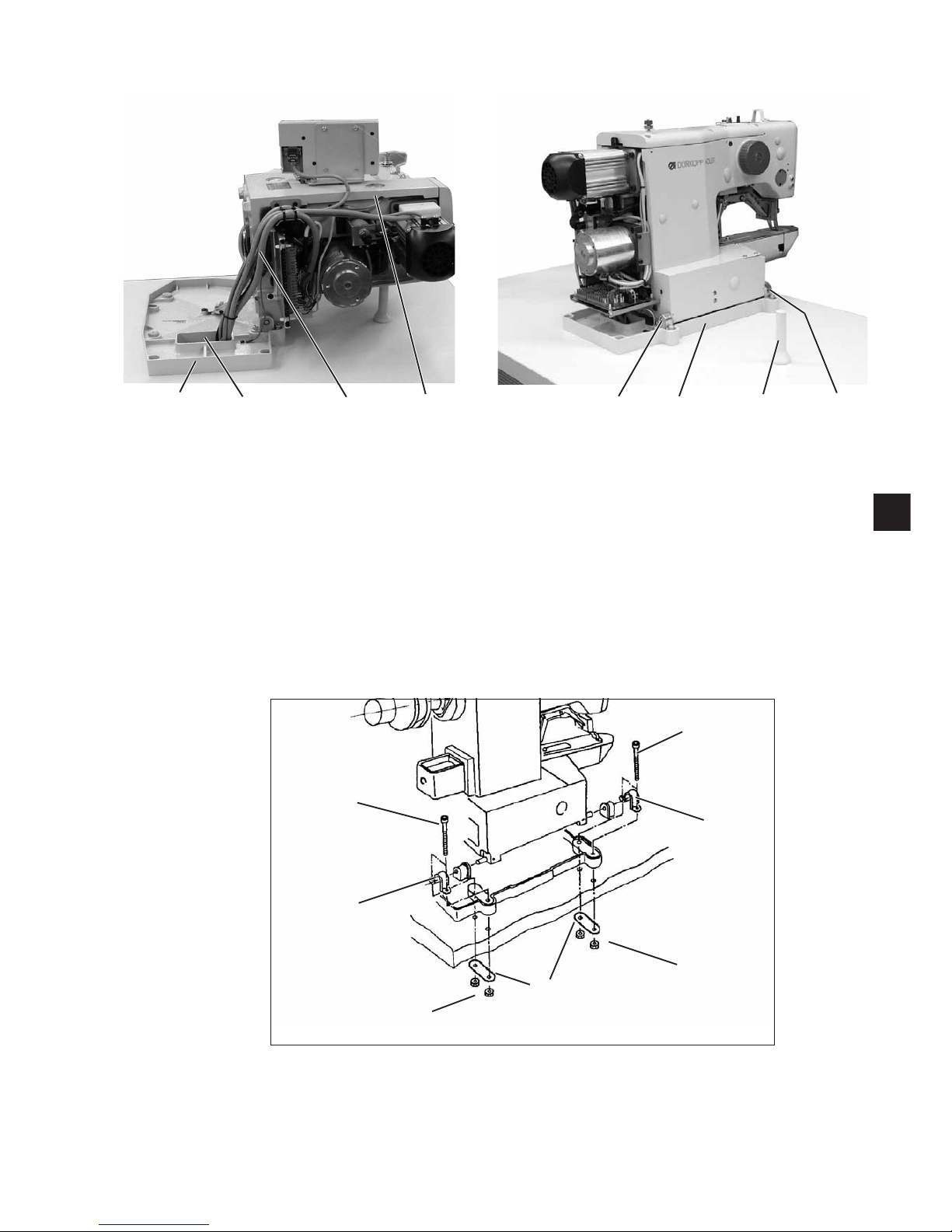

4.2 Set up the automatic bartacker
The small parts for setting up the automatic bartacker are included in
the accessories kit.
–Place the automatic bartacker 1 on the oil pan 4.
–Fasten the bartacker on the left and right sides using the fixtures 5
and 8.
Screw the fixtures 5 and 8 tight with the screws 9, the sheets 11
and the counter-nuts 10.
–Insert the machine head support 6 in the drill-hole of the table top.
–Tilt the automatic bartacker sideways.
–Run the connecting cables 2 under the table top through the
opening 3.
–Tilt the automatic bartacker back.
2
11
87 6 5
8
43 2 1
10
9
9
5
10
11

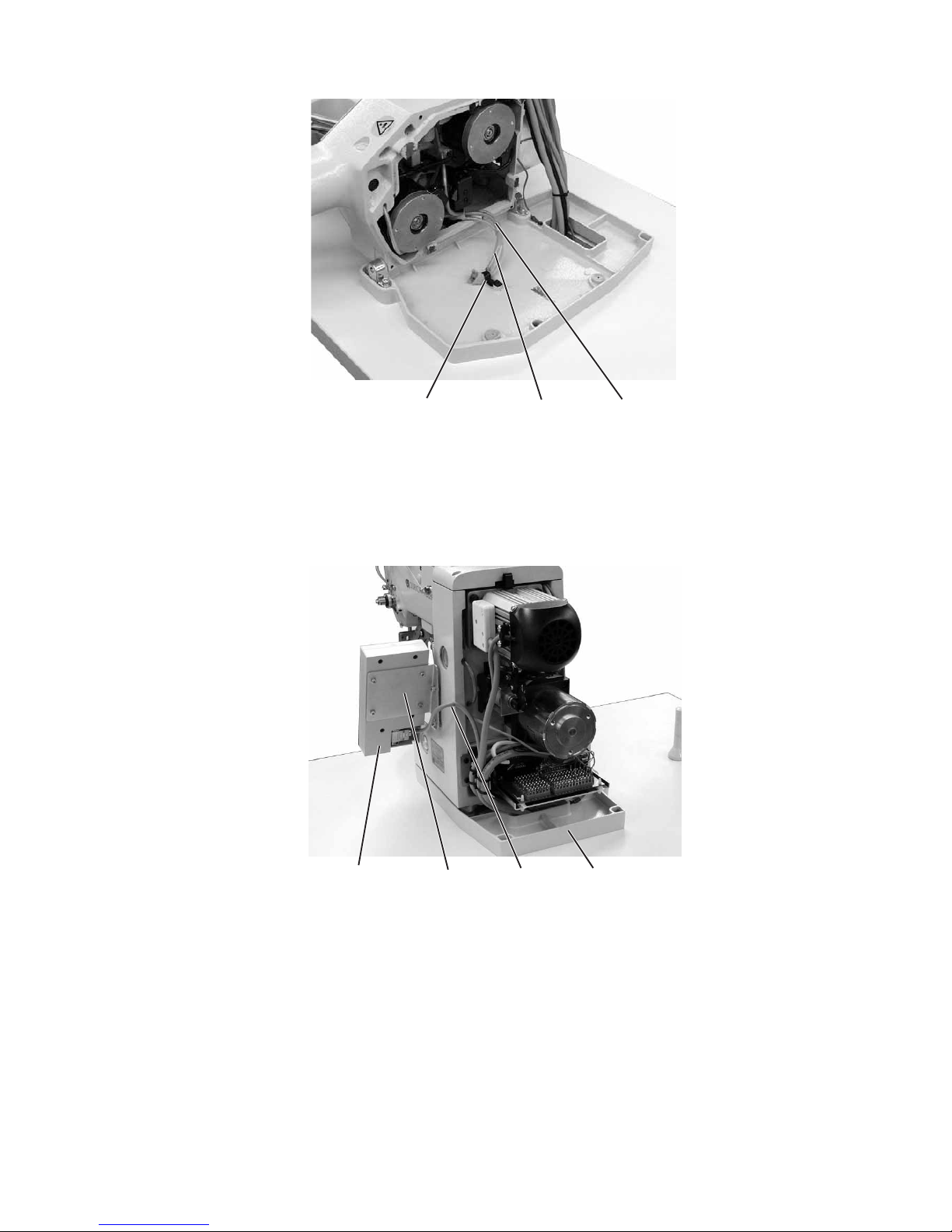

4.3 Mount the oil lines
–Fasten oil lines 8 and 9 in the oil pan with the fitting clip 10.
The oil filter must be completely surrounded by the felt.
4.4 Mount the control panel
–Screw on the panel 4 to the automatic bartacker using the angle 3.
Lay rubber washers between the mounting angle of the control
panel and the cast housing.
–Run the connecting cable 2 under the table top through oil pan 1.
12
10 9 8
4321

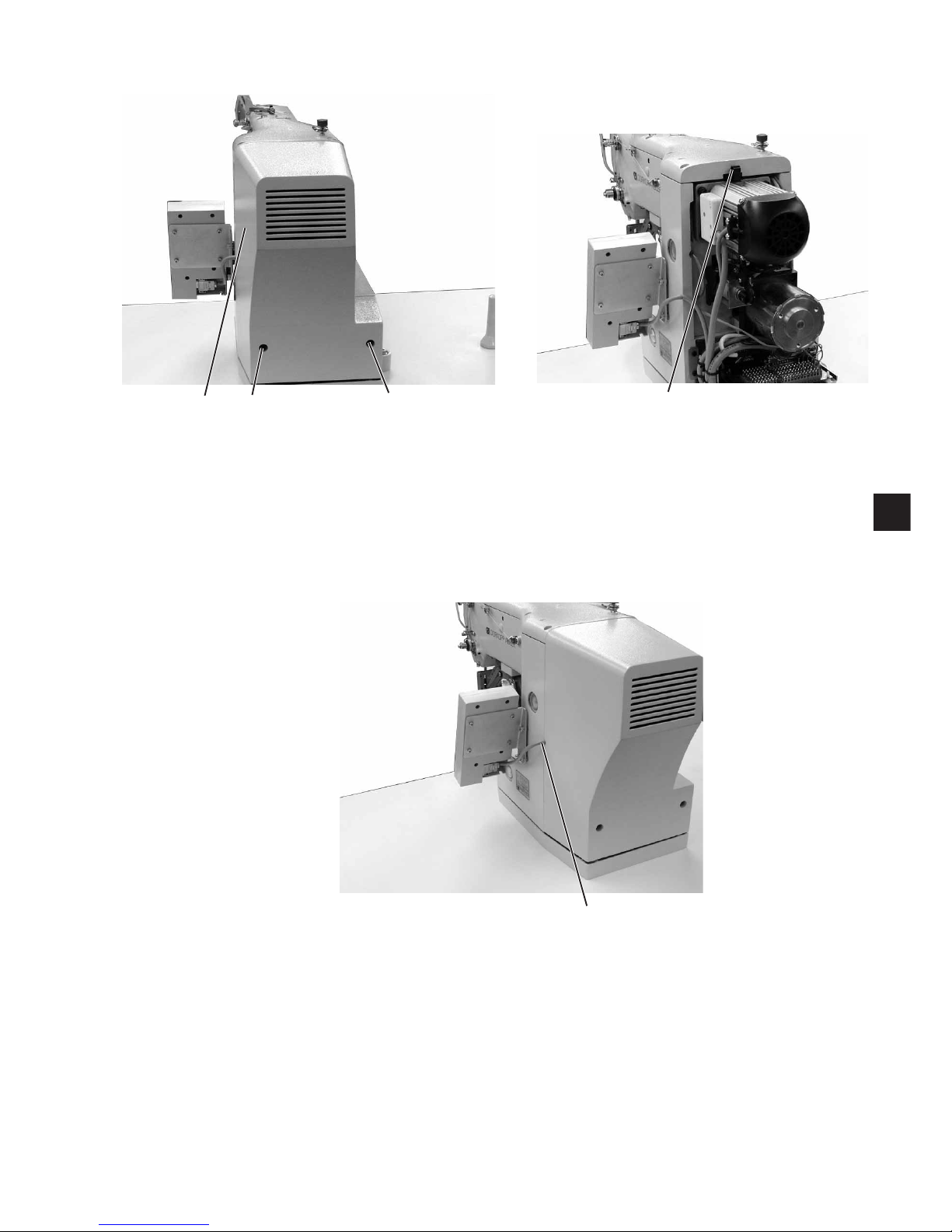

4.5 Mount the cover
–Lower the cover 9 onto the retaining spring 10.
–First lay the cable of the control panel in the gap 1 of the cover.
–Screw the cover on the automatic bartacker with two screws
through the drill-holes 6 and 8.
13
2
98 6 10
1

1
2
3
4
5
5. Connect the plug connections to the control box
5.1 Plug connections at the four-way multiple pin strip
Connect the plug connections of the automatic bartacker as follows:
–Plug 1 -> Step motor, X axis
–Plug 2 -> Step motor, Y axis
–Plug 3 -> 15-pole plug for control panel BF3
–Plug 4 -> 25-pole plug for clamping-foot
magnet (thin connecting cable)
–Plug 5 -> 25-pole plug for I/O 21 – 28
(thick connecting cable)
–Plug 6 -> 5-pole plug for sewing motor
–Plug 7 -> 9-pole plug for sewing-motor
incremental transmitter
–Plug 8 -> 9-pole plug for pedal
–Plug 9 -> 9-pole plug for sewing-motor
reference switch
–Plug 10 -> 37-pole plug for I/O 1 – 19
14
6
7
8
9
10

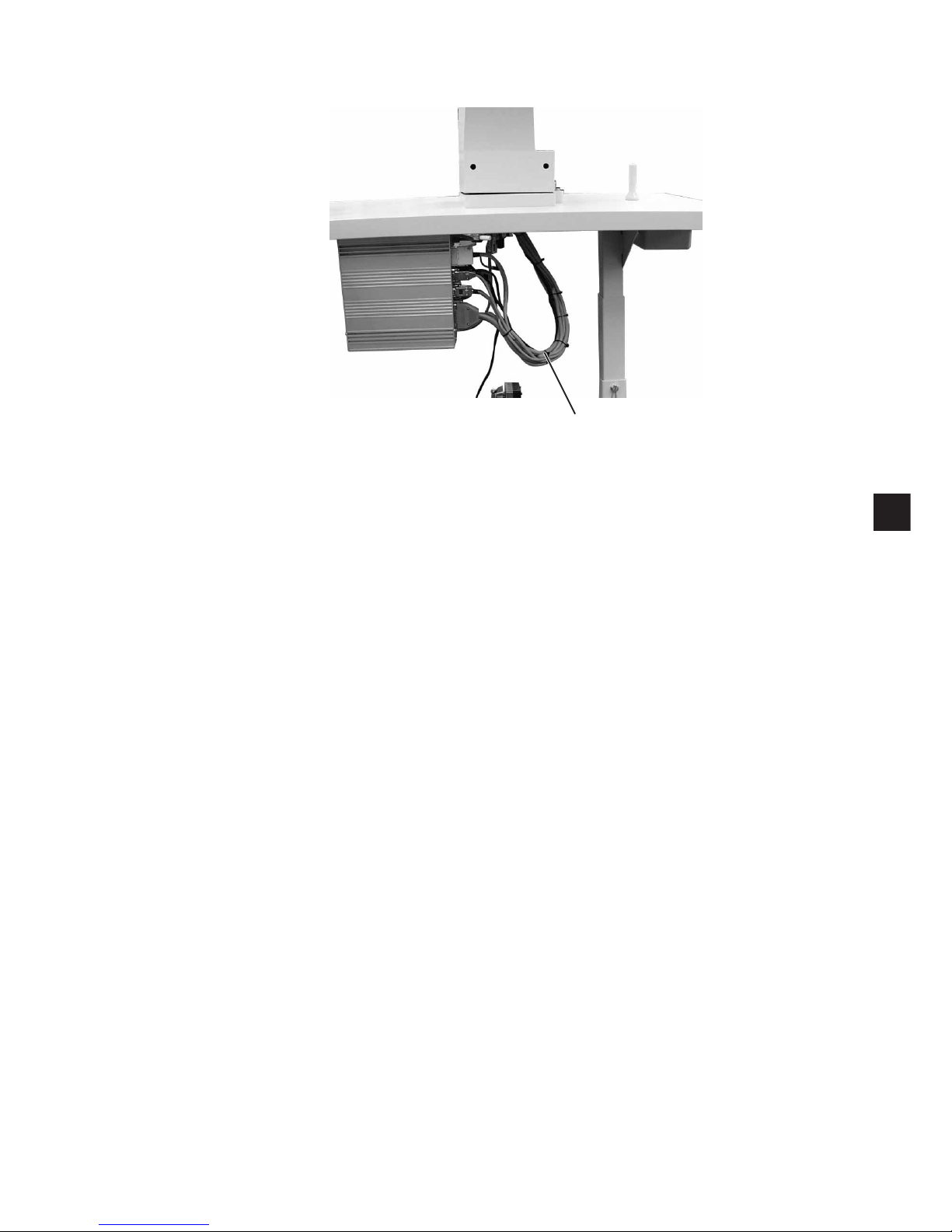

5.2 Wiring
To make the tilting of the machine head possible, make sure that the
cables leading from the head through the opening in the table top to
either the 15-way multiple pin strip at the control box and to the cable
duct are long enough. For this purpose the cables must be laid to form
an arc 1 with the help of the cable ties.
15
2
1

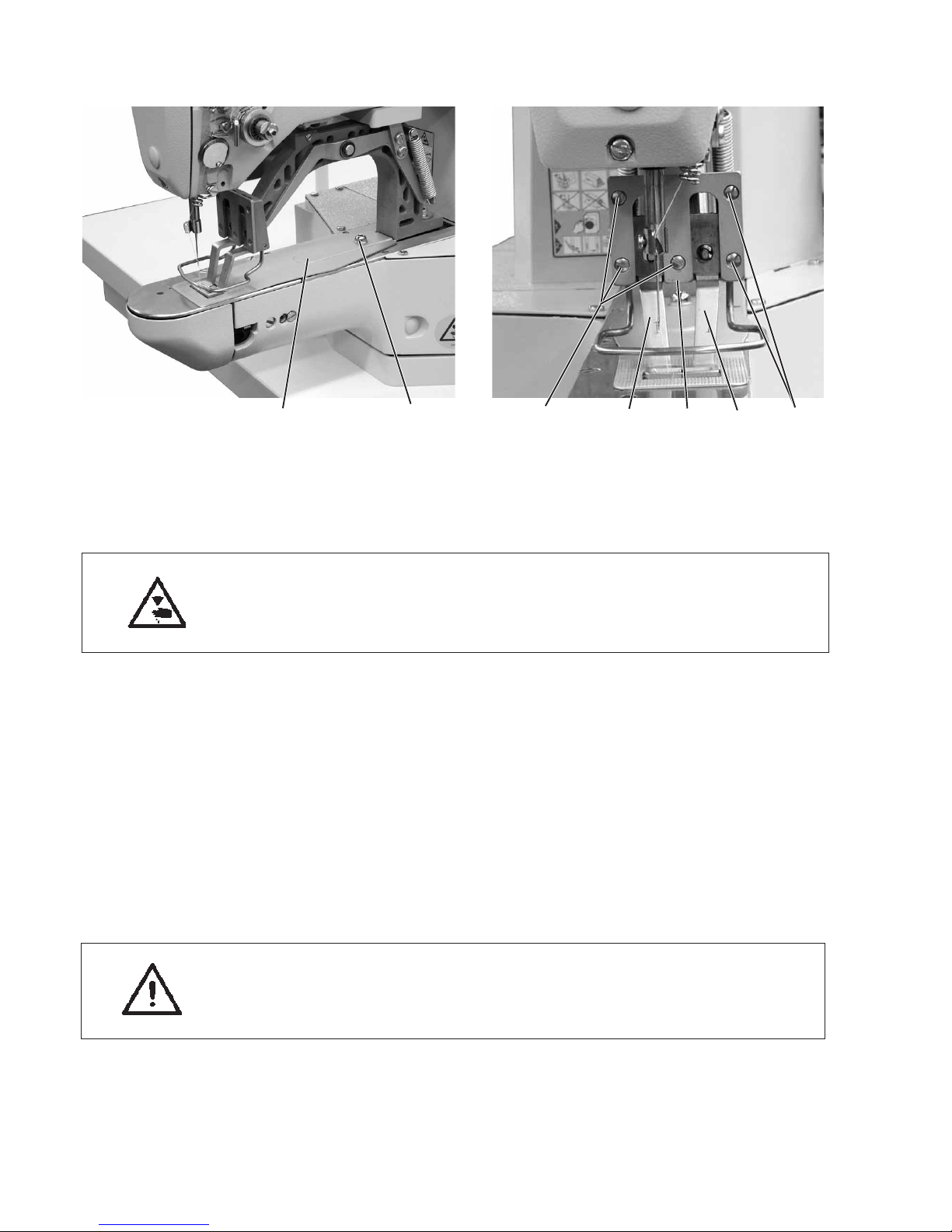

6. Change sewing feet and fabric support plate
The automatic bartacker 511 is delivered with standard sewing
equipment.
If you have received further optional sewing equipment, this has to be
mounted as follows:
Caution – Risk of Injury !
Turnthemainswitchoff.
Change sewing equipment only when main switch is switched off.
Disassemble sewing equipment
–Unscrew screw 3.
–Pull off holder 5.
–Take out sewing feet 4 and 6.
–Unscrew screw 1.
–Take off support plate 2.
Assemble sewing equipment
–Insert sewing feet 4 and 6.
–Place retainer plate 5 and screw tight with screws 3.
–Place support plate 2 and screw tight with screw 1.
ATTENTION: Danger of breakage !
When changing the clamping foot, be sure to enter the new clamping
foot number in the menu “Equipment”.
16
21
36543
