Duerkopp Adler 745-34 Manual

Manual, complete
745-34
Sewing unit for runstitching of piped flap
and welt pocket openings and pocket corners
Working methods: A, B, D, F
Operating Instructions
Installation Instructions
Service Instructions
Instructions for Programming DAC
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon + 49 (0) 5 21 / 9 25-00 • Telefax + 49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com
1
2
3
4
Ausgabe / Edition: 01/2004 Printed in Federal Republic of Germany Teile-Nr./Part.-No.: 0791 745161

745 - 34
Manual, complete
Summary
Operating Instructions
Installation Instructions
Service Instructions
Instructions for Programming DAC
Interconnection-diagram
9870 745100 B
9870 745115 B
9870 745116 B
9870 001018 B
Pneumatic circuit plan
9770 745003

Index Page:
Foreword and general safety instructions
Part 1: Operating Instructions 745-34
1. Product Description
1.1 Description of proper use ....................................... 5
1.2 Brief description ............................................. 5
1.3 Technical data .............................................. 7
1.4 Optional equipment ........................................... 8
2. Operation
2.1 Swinging the folding station aside .................................. 11
2.2 Pushing the covering hood back and removing the fabric sliding sheet ............ 12
2.3 Tilting the machine head up ...................................... 15
2.4 Needles and threads .......................................... 16
2.5 Threading the needle thread ..................................... 19
2.6 Winding the hook thread ........................................ 20
2.7 Remaining thread monitor ....................................... 21
2.8 Changing the bobbins ......................................... 22
2.9 Thread tension.............................................. 24
2.10 Stacking control ............................................. 25
2.11 Slanted pocket corners......................................... 26
2.11.1 Swinging the corner knife station out / in .............................. 27
2.11.2 Setting the corner knives (Manual corner knife station)...................... 28
2.12 Reference position - Starting the sewing cycle - Quick stop ................... 30
2.13 Flap and piping projection ....................................... 31
2.14 Piping strip length ............................................ 32
2.15 Working methods ............................................ 33
2.15.1 Working method A (Production of trousers)............................. 34
2.15.2 Sewing with flap ............................................. 37
2.15.2.1 Sewing without light barrier ...................................... 37
2.15.2.2 Sewing with light barrier ........................................ 39
2.15.3 Working method A (Production of jackets)
Piped pockets, manual positioning of piping strip, flaps and other additional parts ..... 40
2.15.4 Working method B
Piped pockets, automatic feed of the piping strip, without/with incision of the
piping ends ................................................ 46
2.15.5 Working method D
Breast welt pockets, automatic feed and matching of the breast welt ............. 56
2.15.6 Working method F
Piped pockets, automatic feed of the piping strip,
incision of the piping ends, matching and feed of the flap .................... 62
2.15.7 Folder monitoring ............................................ 66

Index Page:
2.16 Functions and Operation of the optional equipment ........................ 67
2.16.1 Automatic incision device for piping ends .............................. 67
2.16.2 Downholder, pocket bag and waistband clamp........................... 70
2.16.3 Feeding devices for flaps, pocket bags etc.............................. 71
2.16.4 Throw-over stacker ........................................... 72
2.16.5 Roll-off device .............................................. 74
2.16.6 Blow-out device ............................................. 75
2.16.7 Bundle clamp and roll-off device ................................... 76
2.16.8 Tape feed and automatic cutting ................................... 77
2.16.9 Endless zipper device ......................................... 80
2.16.10 Vacuum device.............................................. 82
2.16.11 Working method B with set of parts “Pocket bag on flap” .................... 83
2.16.12 Zipper feeders for method B...................................... 86
2.16.13 Set of parts “Shaped guide Lining loop triangle” for 745-34 methods B and F ........ 87
3. Maintenance
3.1 Cleaning ................................................. 88
3.2 Weekly lubrication............................................ 91

1. Product description
1.1 Description of proper use
The 745-34 is a sewing unit which can properly be used for sewing
light to medium-weight material. Such material is, as a rule, material
made of textile fibres or leather. These materials are used in the
garment industry.
In general only dry material should be sewn on this machine. The
material must not contain any hard objects.
The seam is generally made with core thread, polyester fibre
or cotton threads.
The dimensions for needle and hook threads can be taken from the
table in chapter 2.4.
Before using any other threads it is necessary to estimate the
consequential dangers and to take the respective safety measures, if
required.
This sewing unit must only be installed and operated in dry and
well-kept rooms. If the sewing unit is used in other rooms, which are
not dry and well-kept, further measures to be agreed upon may
become necessary (see EN 60204-31 : 1999).
We, as a manufacturer of industrial sewing machines, assume that at
least semi-skilled operating personnel will be working on our products
so that all usual operations and, where applicable, their risks are
presumed to be known.
1.2 Brief description
The Dürkopp Adler 745-34 is a sewing unit for automatic runstitching
of piped, flap and welt pocket openings with rectangular or slanted
pocket corners.
The slanted pocket corners result from the seam offset of the two seam
rows. At the seam beginning and seam end it is possible to sew with
different slants.
Dependent on the working method different feeding devices, corner
knife stations and optional equipment are used.
Machine head
–Twin needle lockstitch version
–Needle bars can be switched separately or together
–Large vertical hooks
–Externally driven center knife, speed and circuit timing
programmable
–Thread trimming device for needle and hook threads
–Needle thread monitor
–Photoelectric remaining thread monitor for the hook threads
–Sewing drive as DC direct drive
5

Step motors for the material feed and the length adjustment of the
corner cutting device
The step motor technology results in short machine times and
guarantees an absolutely precise corner incision.
Thus, it contributes to a pocket quality as yet unequalled and combined
with high productivity.
New generation of “DAC II C” controls (DÜRKOPP ADLER Control)
The graphic user guidance exclusively occurs via internationally
comprehensible symbols and text lines in the corresponding language.
The various symbols are combined in groups within the menu structure
of the sewing and test programs.
The ease of use makes short training times possible.
The user can combine 99 freely programmable pocket programs with
up to 20 seam patterns.
20 pocket sequences can be called up.
Every pocket sequence can be combined of up to 8 pocket programs in
any order whatever.
All slants suitable for practical application can be programmed by the
operator at the touch of a button.
The time-consuming adjustment of the corner knives and the tiresome
programming of seam offsets are not required.
The comprehensive test and monitoring system MULTITEST is
integrated in the DAC.
A microcomputer does the control tasks, monitors the sewing cycle and
signals operating faults and malfunctions on the display.
Optional equipment
By means of a flexible system of optional equipment the sewing unit
can be equipped optimally and economically corresponding to the
respective application.
See chapter 1.4 (Equipment of the 745-34).
Sewing equipment and folders
Data concerning the sewing equipment and folders for the various
applications can be taken from the Equipment Sheets of cl. 745-34.
Please direct your enquiries to the DÜRKOPP-ADLER sales offices.
6

1.3 Technical data
Machine head: Class 0246 992002
Needle system: 2134-85
Needle distance: 10, 12, 14, 16, 20 mm
Needle size: Nm 80 to Nm110
Threads: see table chapter 2.4
Stitch type: Twin needle lockstitch
Speed: min. 2000 rpm
max. 3000 rpm
Stitch length: min. 2.0 to 3.0 mm
Number of stitches/condensed
stitches: 1 - 10 stitches
Number of stitches/bartack
stitch: 0 - 5 stitches
Stitch length condensed
stitches / bartack: 0.5 - 3.0 mm
Pocket length: max. 220 mm
Seam offset: max. +/- 13 mm
Operating pressure: 6 bar
Air consumption: approx. 6 NL per work cycle
Rated voltage: 3 x 230 / 400 V / 50/60 Hz
Rated load:
Machine with
vacuum blower 1,9 KW
Machine without
vacuum blower 1,14 KW
Dimensions: 1550 x 1050 x 1200 mm (L xWxH)
Working height: 770...1080 mm
(upper edge of table top)
Weight: 330 kg
Rated noise level: LC = 81 dB (A)
Workstation-specific emission value
according to DIN 45635-48-B-1
Stitch length: 2.5 mm
Seam length: 180 mm
Speed: 2750 rpm
Material: double fabric
240 g/m2
Measuring point according to DIN
4895 Part 1
X = 600 mm Y = 0 mm Z = 300 mm
7

1.4 Optional equipment
Order No. Optional equipment A B D F
0745 597514 Downholder- pocket bag clamp
Downholder for smoothing the fullness
caused by darts as well as a
clamping device for pocket bags
XX
0745 597524 Waistband clamp
For smoothing the fullness.
Only possible in conjunction with 0745 597514
XX
0745 597534 Three-pack lasers
For expanding the 5 standard laser markings
to a maximum of 8 laser markings
(The method F always includes
8 laser markings)
XXXX
0745 597544 Endless zipper
Scissors with roll-off device for endless zippers
without slider
X
0745 597554 Throw-over stacker
To be positioned near the machine for stacking to the
side or to the back.
Furthermore, this throw-over stacker is equipped with
an easy-to-operate height adjustment and
a swivel device.
XXXX
0745 597594 Ejector roller
The ejector roller can be used for transporting short
pieces into the stacker
or for ejecting the pieces to be processed. Speed and
working cycle of the ejector roller can be regulated
according to the program.
XXXX
0745 597604 Blow-out device
For blowing the finished workpieces out XX
0745 597614 Shaped guide “Lining loop triangle”
In case of inside pockets the lining loop triangle
is fed automatically.
XX
0745 597624 Vacuum (side channel compressor)
For precise positioning of the material without
an in-house vacuum unit the side channel compressor
can be inserted in the basic unit.
XXXX
0745 597664 Electromotoric tape feed/Automatic cutting
Automatic feeding and cutting of a
reinforcement strip pulled from a roll. Start time and
cutting time can be programmed
corresponding to the pocket.
XX
8

Order No. Optional equipment A B D F
0745 597674 Table extension (large)
The table extension required for the working method
with bundle clamp carriage
X
0745 597684 Table extension (small)
Table extension to be used for stacking to the side XXXX
0745 597694 Bundle clamp
This includes the required large
table extension
XX
0745 597764 Right zipper feeder
In conjunction with feeding device 0745 517574
For cut-to-length zippers,
without slider, total width 24 mm, chain width
approx. 4 mm, in case of ready-made pocket chain
inside.
X
0745 597774 Left zipper feeder
In conjunction with feeding device 0745 517564
For cut-to-length zippers,
without slider, total width 24 mm, chain width
approx. 4 mm, in case of ready-made pocket chain
inside.
X
0745 597784 Right zipper feeder
In conjunction with feeding device 0745 517574
For cut-to-length zippers,
without slider, total width 24 mm, chain width
approx. 4 mm, in case of ready-made pocket chain
inside.
X
0745 597794 Left zipper feeder
In conjunction with feeding device 0745 517564
For cut-to-length zippers,
without slider, total width 24 mm, chain width
approx. 4 mm, in case of ready-made pockets chain
inside.
X
0745 597874 Set of parts “Pocket bag on flap” NA 10 and 12
for the simultaneous attaching of two pocket bag
halves and flap. Combination only in conjunction with
equipment E 3103 or E 3503 for NA 10
as well as E 3107 or E 3507 for NA 12.
X
0745 597904 Electromotoric tape feed/Automatic cutting
Automatic feeding and cutting of a
reinforcement strip pulled from a roll. Start time and
cutting time can be programmed
corresponding to the pocket.
XX
0797 003031 Pneumatic connection package
Connection hose to the pneumatic supply line
with the appropriate couplings.
XXXX
9

10
1
2

2. Operation
2.1 Swinging the folding station aside
For operations at the sewing point (threading the needle threads,
needle change etc.) the whole folding station with folder and light
barriers can be swung to the right.
–Swing the complete folding station 1 with folder
to the right.
Note:
With the sewing unit switched on, a safety message
appears on the screen of the control panel.
Folding station swung out
–The sewing point is freely accessible.
Swinging the folding station back
–Swing the folding station back.
ATTENTION!
After being swung back the folding station must lock
in the catch 2.
11

2.2 Pushing the covering hood back and removing the fabric sliding sheets
Caution: Danger of injury!
Switch the main switch off.
Push the covering hood back and remove the fabric sliding sheet only
with the sewing unit switched off.
–Switch the main switch off
For a better accessibility of the feeding clamps the covering hood can
simply be displaced.
Pushing the covering hood back
–Push the covering hood to the left.
The feeding clamps are accessible.
–Push the covering hood to the right again until you hear it
snapping in.
12
12 3

For changing the hook thread bobbins:
–Lift the left fabric sliding sheet 4 in the area of pin 5 and swing it to
the left.
–Swing the right fabric sliding sheet 6 to the right.
For a complete removal (for maintenance and adjusting operations):
–Lift off the fabric sliding sheets 4 and 6.
13
45 6

14
1
45
3
67

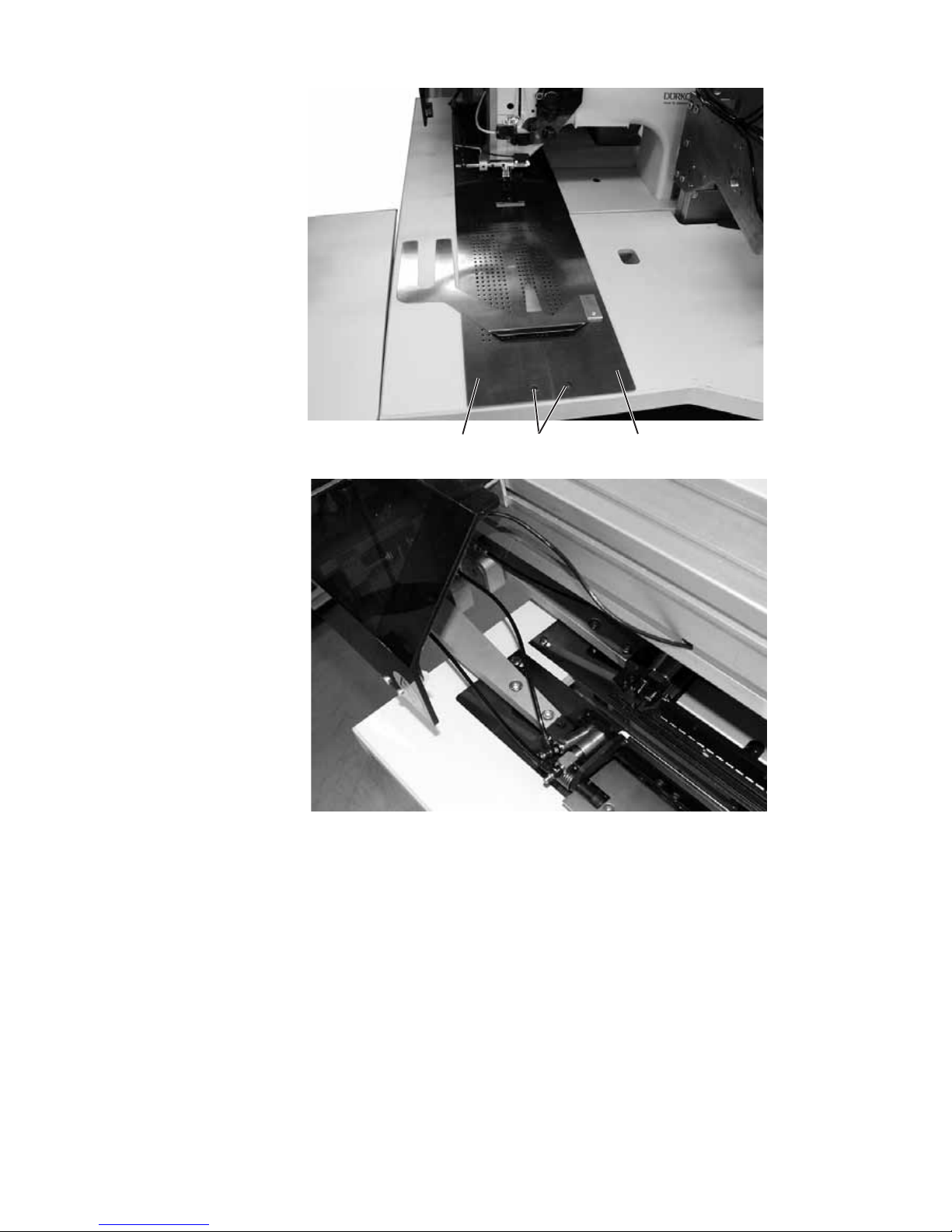

2.3 Tilting the machine head up
For maintenance work the machine head can be tilted up.
For this purpose the transport carriage must be in its rear end position.
Caution: Danger of injury!
Switch the main switch off.
Tilting the machine head up.
–Remove the covering hood 1.
For this purpose lift the covering hood at the front so that the catch
is released. Carefully lift the covering hood upwards.
–Swing the folding station 3 out by 90°.
–Swivel the locking lever 4 up.
–Lift the left fabric sliding sheet 6 at the front and swing it to the left.
–Remove the right fabric sliding sheet 7
(see Operating Instructions, chapter 2.2.)
–Lift the machine head in the area of head cover 5 and tilt it up
carefully.
Pawl 2 snaps in additionally.
The space under the machine table is accessible for cleaning now.
Caution: Danger of injury !
Do not reach into the table top cutout when the machine head is tilted
up.
Swinging the machine head back
–Hold the machine head tight in the area of head cover 5.
–Release the pawl 2.
–Swing the machine head back carefully.
Caution: Danger of breakage!
Hold the machine head tight until it is at rest completely.
–Insert the fabric sliding sheets.
–Swivel the locking lever 4 down.
–Swing the folding station 3 back and let it catch with the locking
lever.
–Put on the covering hood 1 and let it catch again.
15
2

2.4 Needles and threads
Needle system: 2134-85
Recommended
needle size: Nm 90 for thin material
Nm 100 for medium-weight material
Nm 110 for heavy-weight material
High sewing security and good sewability are achieved with the
following core threads:
–Two-ply polyester endless polyester core-spun
(e.g. Epic Poly-Poly, Rasant x, Saba C, ...)
–Two-ply polyester endless cotton core-spun
(e.g. Frikka, Koban, Rasant, ...)
If these threads are not available, the polyester fibre or cotton threads
listed in the table can also be sewn.
Often two-ply core threads are offered by the thread manufacturers
with the same designation as three-ply polyester fibre threads
(3cyl.-spun).This causes uncertainty with regard to twisting and thread
thickness.
When in doubt, unravel the thread and check whether it is twisted 2- or
3-ply.
The label no. 120 on the thread reel of a core thread corresponds e.g.
to the thread size Nm 80/2 (see table values in brackets).
In case of monofilament threads you can use needle threads and hook
threads of the same thickness. The best results are achieved with soft
and elastic threads (software) of the thread thickness 130 Denier.
Recommended thread sizes:
Needle size Core thread Core thread
Nm
Needle thread Hook thread Needle thread Hook thread
Polyester Polyester Polyester Cotton
endless core-spun endless core-spun
Label No. Label No. Label No. Label No.
90 120 (Nm 80/2) 120 (Nm 80/2) 120 (Nm 80/2) 120 (Nm 80/2)
100 100 (Nm 65/2) 100 (Nm 65/2) 100 (Nm 65/2) 100 (Nm 65/2)
110 75 (Nm 50/2) 75 (Nm 50/2) 75 (Nm 50/2) 75 (Nm 50/2)
Needle size Polyester fibre thread Cotton thread
Nm (3cyl.-spun)
Needle thread Hook thread Needle thread Hook thread
90 Nm 80/3-120/3 Nm 80/3-120/3 NeB50/3-70/3 NeB50/3-70/3
100 Nm 70/3-100/3 Nm 70/3-100/3 NeB40/3-60/3 NeB40/3-60/3
110 Nm 50/3-80/3 Nm 50/3-80/3 NeB40/4-60/4 NeB40/4-60/4
16

Changing the needles
Caution: Danger of injury!
Switch the main switch off.
Change the needles only with the main switch switched off.
Risk of injuries from cuts!
Do not reach into the area of the center knife 3 when changing the
needles.
–Swing the folding station aside (see chapter 2.1)
The needles are freely accessible.
–Loosen screw 2 and remove the needle from the needle holder 1.
–Push the new needle into the drill-hole of the needle holder 1 as far
as it will go.
ATTENTION!
Seen from the operator’s side the hollow groove 4 of the left needle
must point to the left and the hollow groove 5 of the right needle
must point to the right (see sketch).
–Tighten screw 2.
ATTENTION!
After changing to another needle size the needle protection on the
hook has to be readjusted (see Service Instructions).
Note:
The standard needle size of class 745-34 is Nm 100.
17
1
23
45

18
3
4
5
6
8
10
12 11
17
16
15
14
1
2

2.5 Threading the needle thread
Caution: Danger of injury!
Switch the main switch off.
Thread the needle threads only with the sewing unit switched off.
The threading of the needle threads is done in ascending numerical
order as shown in the illustrations opposite.
–Swing the folding station aside
Left needle
–Put the thread reel on the thread reel holder.
–Thread the thread from the thread reel through the drill-hole 1 of
the thread reel holder.
–Guide the thread through guide 2.
–Guide the thread through the drill-hole in the support plate 3.
–Guide the thread through guide 5.
–Guide the thread through the tension discs of the needle thread
tension 6.
–Guide the thread through the thread controller spring 8.
–Guide the thread through the drill-hole in the support plate 10.
–Thread the thread through the drill-hole in the thread lever 17.
–Guide the thread downward through the thread puller 16.
–Thread the thread through guide 15 and the needle thread monitor
14.
–Thread the thread through guide 12, through the drill-hole in the
needle holder and through the eye of the needle.
Right needle
–Put the thread reel on the thread reel holder.
–Thread the thread from the thread reel through the drill-hole 1 of
the thread reel holder.
–Guide the thread through guide 2.
–Guide the thread through the drill-hole in the support plate 3.
–Guide the thread through the tension disc of the needle thread
tension 4.
–Guide the thread through the guides 5 and 7.
–Guide the thread through the thread controller spring 9.
–Guide the thread through the drill-hole in the support plate 10.
–Thread the thread through the drill-hole in the thread lever 17.
–Thread the thread downward through the thread puller 16, through
guide 15 and through the needle thread monitor 11.
–Thread the thread through guide 12, through the drill-hole in the
needle holder and through the eye of the needle.
–Clamp the thread in the needle thread catcher and cut it off
19

2.6 Winding the hook thread
The external winder makes it possible to wind the hook threads
independent of the sewing operation.
–Remove remaining thread from the bobbin hubs before winding.
–Put the thread reel on the thread reel holder.
–Thread the thread through the drill-hole 1 of the unwinding arm
(see picture on the left).
–Guide the thread through guide 4.
–Guide the thread through the bobbin thread tension 2.
–Prewind the thread to the right in the front and back reserve
grooves of the bobbin hub.
The full reserve grooves guarantee a secure winding, even with
monofilament threads.
With the thread reserves in the reserve grooves the pocket opening
can safely be finished after the remaining thread monitor has
indicated that the bobbin is empty.
The reflecting surface 5 of the bobbin hub is to be kept clean.
–Press the bobbin retainer 3 against the bobbin hub.
The winder starts.
After reaching the set bobbin filling level the winder shuts off
automatically.
See Service Instructions for setting the bobbin filling level.
20
43 2
5
1
