HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
Table of Contents
Step 1: Getting Started..........................................................................................................................................4-6
A. Thermostat Buttons and Indicators ............................................................................................................4
B. Thermostat Display................................................................................................................................5-6
Step 2: Main Menu and Thermostat Settings..........................................................................................................7-15
A. Wi-Fi®Settings Menu ..........................................................................................................................7-10
B. Filter Timer Settings Menu..................................................................................................................11-12
C. Reset Filter Timer ..................................................................................................................................12
D. LCD Backlight Settings Menu ..................................................................................................................13
E. Nightlight Settings Menu ....................................................................................................................13-14
F. Keypress Beep Confirmation Menu ............................................................................................................14
G. Time-of-Day (TOD) Recovery ..................................................................................................................15
Step 3: How to Set a Temperature “Hold” ............................................................................................................16-17
A. Temporary Hold......................................................................................................................................16
B. Timed Temporary Hold ......................................................................................................................16-17
C. Permanent Hold ....................................................................................................................................17
D. Ending a Hold........................................................................................................................................17
Step 4: Using the Keypad Lock ..........................................................................................................................18-20
A. Partial (PART) Lockout ............................................................................................................................18
B. Full (FULL) Lockout ................................................................................................................................19
C. Unlocking the Keypad ............................................................................................................................20
Step 5: Conservation Events ..............................................................................................................................21-22
Troubleshooting ................................................................................................................................................23-25
©2014 Comverge, Inc. All rights reserved. Wi-Fi®is a registered trademark of Wi-Fi Alliance®.

LETTER
8.5” X 11”
Your Duke Energy HōM™ Energy Manager thermostat controls your central air conditioning and heating system. The types of
compatible systems include:
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
3
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
Central Air Conditioners:
•Single-Stage
•Multi-Stage
Heat Pump*:
•Single-Stage
•Multi-Stage
Furnaces:
•Single-Stage Gas or Oil
•Multi-Stage Gas or Oil
•Single-Stage Electric
•Multi-Stage Electric
•Two-Wire Hydronic
•Millivolt Heat System
Aux Heat:
•Single-Stage Electric
•Multi-Stage Electric
*If you have a heat pump, make sure your settings are no more than 2 degrees between the warmest temperature (the
one you set when you are home) and coolest temperature (the one you set when you are away). Large temperature
differences may enable the auxiliary heating mode and potentially cause your electric bill to increase significantly in the
fall and winter months.
IMPORTANT
All programming functions are available through the Duke Energy HōM Energy Manager Portal. The “7-Day/4-Interval”
programming function cannot be done manually at the thermostat. It can only be done through the HōM Energy Manager
Portal.
You may enter the HōM Energy Manager Portal from anywhere you have Web access, using your smartphone, tablet,
or computer. You may manually use the thermostat to raise or lower the temperature in your home, and set all other HVAC
features. For details on programming through the HōM Energy Manager Portal, please see your Welcome to Duke Energy
H ō M Energy Manager brochure or visit duke-energy.com/homenergymgr.
All compatible components are connected and configured by the HōM Energy Manager technician during installation.

LETTER
8.5” X 11”
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
4
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
Nightlight Enables or disables illumination. Provides night light function. Can be used to
activate the LCD back light.
FAN Button Changes fan setting (Auto/On)
SYSTEM Button Changes operating mode (Off, Cool, Off, Heat, Aux Heat [displayed on heat pump
units only] and Off)
User Program Buttons Facilitate various operations in different menus
Temperature Setpoint Buttons Changes temperature up or down
LEDs Indicates status of conservation periods
Module Slot Houses the communications radio module
Step 1: Getting Started
A. Thermostat Buttons and Indicators
1
2
3
4
5
7
1
2
3
4
5
6
7
6

LETTER
8.5” X 11”
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
5
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
Step 1: Getting Started
B. Thermostat Display
Aux
Auto
On
Energy
Perm
Menu
Done
Timed
Prev
Other
Select
Utility
Sched
Run
Next
Clock
Set At
HOLD
O
1
CF
Stage
24
3
MoTuWeThFr
Sa
Su
AM
PM
Evening
Morning
Night
Day
Un Occupied
Off
Cool
Heat
¿¿¿¿¿¿¿¿¿¿¿¿¿¿¿¿
1
2
3
4
5
7
6
Messaging Display Displays current date, HVAC system status, conservation period status, and Duke
Energy-related messages. In the event of a power outage, the clock will maintain
the correct time for 24 hours
Lock Icon Confirms keypad lockout, preventing unwanted changes to thermostat settings
HOLD Indicator Appears only when thermostat program is overridden
Time and Day Display Indicates current time and day of the week
HEAT/COOL Stage Display When ON, the indicated stage is active; when OFF, the state is inactive; when
flashing, compressor delay is active
Fan Status Appears only when fan is on
System Status Displays current operation mode according to system configuration as set
by installer
•Off – system is OFF
•Cool
•Off
•Heat
•Aux Heat
•Off
Fan Mode •Auto
•On
1
2
3
4
5
6
7
8
8

LETTER
8.5” X 11”
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
6
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
Step 1: Getting Started
B. Thermostat Display (continued)
Aux
Auto
On
Energy
Perm
Menu
Done
Timed
Prev
Other
Select
Utility
Sched
Run
Next
Clock
Set At
HOLD
O
1
CF
Stage
24
3
MoTuWeThFr
Sa
Su
AM
PM
Evening
Morning
Night
Day
Un Occupied
Off
Cool
Heat
¿¿¿¿¿¿¿¿¿¿¿¿¿¿¿¿
9
10
11
Time Of Day Program
Interval
Displays current programming interval setting
User Buttons Display
(Programming Buttons)
Actions to be performed when corresponding user button is pressed
Link Status Indicates status of Wi-Fi®link
9
10
11
NOTE: Should a communications error (COMM ERROR) display in the thermostat messaging area, please call Duke
Energy at 800.956.8825 immediately. The message indicates a communication problem between your thermostat
and Duke Energy. In some instances, the utility will program the thermostat to also display whom to contact during a
communications error.

LETTER
8.5” X 11”
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
7
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement

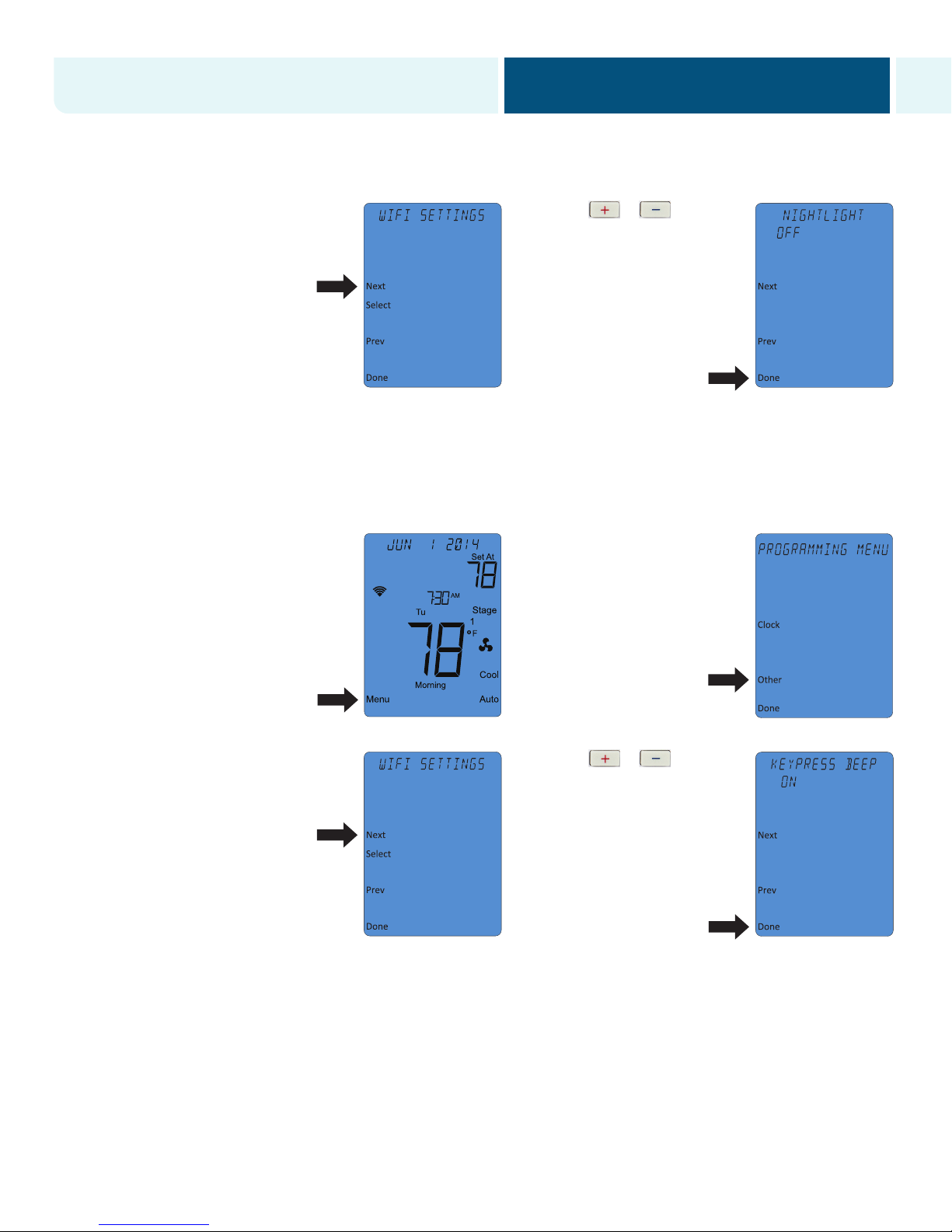

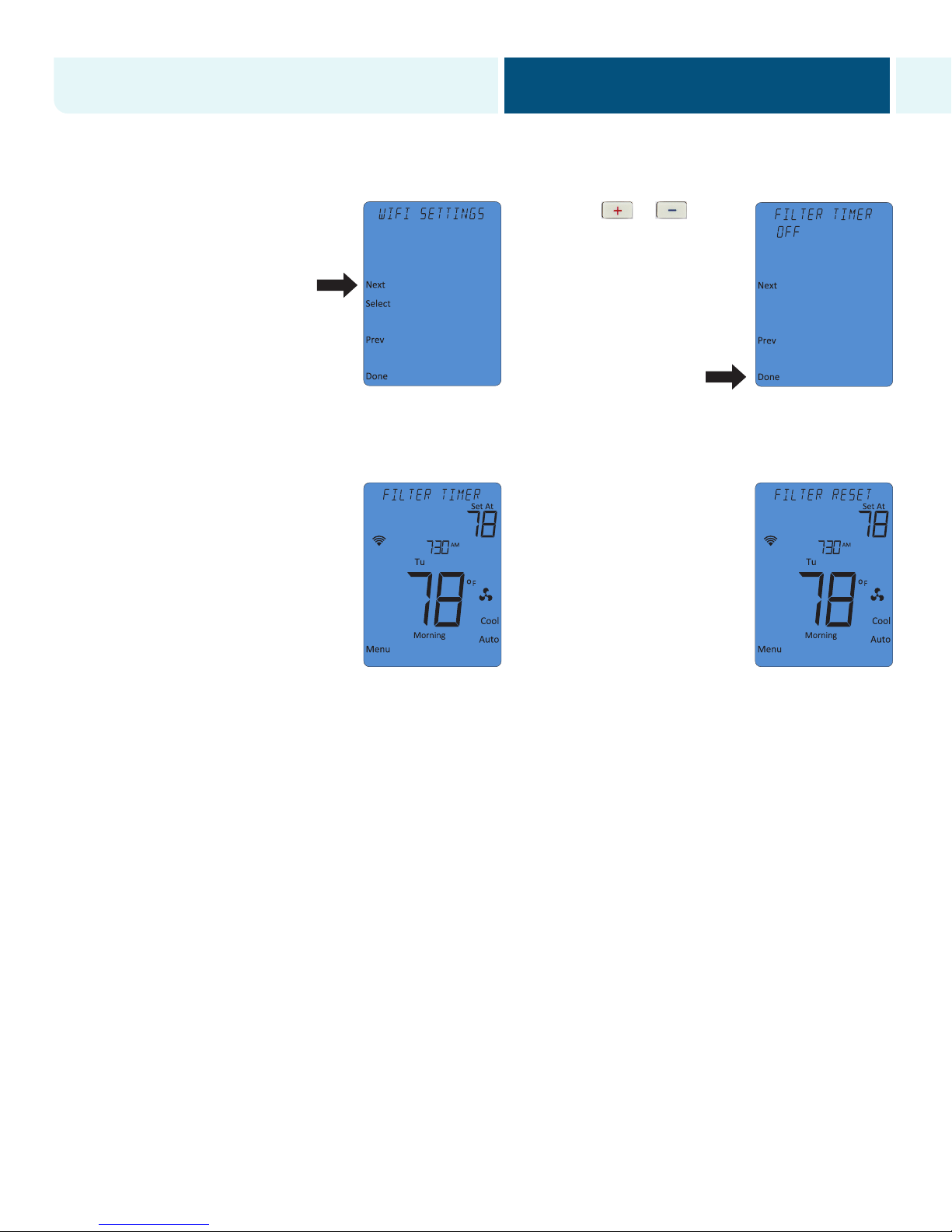

Step 2: Main Menu and Thermostat Settings
The Homeowner Programming Menu table (next page) summarizes the configuration items that the
homeowner can adjust, and provides a convenient space to keep track of your settings.
To enter the Homeowner Programming Menu:
1. Ensure the thermostat is at the home screen (see example at right).
2. Press the Menu button. The display will show the first level of the Homeowner Programming Menu.
3. While in the Homeowner Programming Menu:
•The and buttons change settings
•The Next and Previous buttons move from one item screen to another
•The Done button exits the Homeowner Programming Menu
A. Wi-Fi®Settings Menu
This menu displays the name of the wireless Internet access network to which the thermostat is connected. In this
menu, you may reset your wireless Internet connection [RESET WI-FI®] or remain connected to the existing network
[CLIENT]. The default setting is CLIENT.
STEP 1: Return Thermostat to Wi-Fi®Configuration Mode
Sometimes it might be necessary to move the wireless Internet accessible thermostat to a different wireless Internet
access network, change your network name or change your network password. To do this, you will need to
disconnect your HōM™ Energy Manager thermostat for your wireless Internet network as follows:
1. On the Main Menu screen,
press the Menu button.
2. Press the Other button. The
thermostat will display the
WI-FI®SETTINGS menu.
3. Press the Select button. The
message area of the thermostat
will display the wireless
Internet access network name
(SSID) to which you are
currently connected.
4. Press the Next button. The top
line of the message area will
flash CLIENT.

LETTER
8.5” X 11”
Step 2: Main Menu and Thermostat Settings (continued)
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
8
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
5. Press the button to
advance the display to
RESET WI-FI®.
6. As RESET WI-FI®is flashing,
press the Select button.
STEP 2: Connect to a Wireless Internet Network
In the configuration mode, the HōM™ Energy Manager thermostat acts like a wireless Internet access point. This
allows the homeowner to use any wireless Internet-enabled device to connect to the thermostat and configure it to
use their Wi-Fi®settings with a standard Web browser.
NOTE: If any settings on your wireless Internet router are changed at any time during this step, you must cycle the
power to your thermostat and restart this procedure.
1. On the thermostat Main Menu
screen, press the Menu button.
2. Press the Other button. The
thermostat will display the
WI-FI®SETTINGS menu.
3. Press the Select button. 4. The message area of the
thermostat will display
THERMOSTAT followed by
the last four digits of the
thermostat’s Wi-Fi®module
serial number. This is the
network name (SSID) you
will use to connect to the
thermostat.
If you continue to have connectivity problems, please call the HōM Energy Manager customer service center
at 800.956.8825.

LETTER
8.5” X 11”
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
Step 2: Main Menu and Thermostat Settings (continued)
5. Use a Wi-Fi®-enabled
smartphone, tablet, or computer
to connect to the thermostat.
Open the Wi-Fi®settings menu
on your device and select the
THERMOSTAT name displayed
in step 4.
6. You may receive a notification
that you are connected to a
non-secure network. Select OK
or CONTINUE.
7. Open the web browser on your device. If your browser is set to automatically open
aWeb page, the IntelliTEMP configuration page should automatically appear.
8. If the settings page does not appear after a few seconds, type “directlink/settings”
in the address bar, then press ENTER. If the settings page still does not appear,
on the thermostat Main Menu screen, press the button next to Menu. Then
press the button next to Other. The thermostat will display the WI-FI®
SETTINGS menu. Press the button next to Select. The message area of the
thermostat will display the Wi-Fi®network name (SSID) to which you are
currently connected. Press the button next to Next. The IP Address of your
device will be displayed in the thermostat’s message area. In the browser bar of
your device, type “http://” followed by the IP address displayed on the
thermostat. Press ENTER.
9. Use the pull-down on
the settings page to
select your home
network name.
10. If your wireless
Internet router is set
to hide the network
name or your network
is not listed in the
pull-down, click on the
link below the pull-
down to display the
manual settings page.
11. Enter the network password for your network.
12. Once all fields are filled in correctly, click on the Save button.
9
HōM Energy Manager Portal
homenergymgr.com/portal/engagement

LETTER
8.5” X 11”
14. After clicking on Apply, the web page will now display the form
shown on the right. The Wi-Fi®thermostat will close the wireless
Internet connection to your device. It will then attempt to connect to
your wireless Internet accessible router. If there was an error detected
in one of the settings you will be prompted to return to the settings
page and correct the error.
OHDRTS1301–Duke OH IT800 User Manual (DirectLink)
Piece: Manual
Quantity: XXXXX
Size: 8.5 x 11”
Colors: 4/4
Finishing: Fold, Trim
Mail: N/A
CREATIVE PROOFREADER COPY COPYWRITER CREATIVE ACCOUNT
DIRECTOR SUPERVISOR SERVICES MANAGER
MANAGER
Program Specific Checklist Name: Date:
®Phone Number _________ _________
®URL _________ _________
®Program Details _________ _________
OHDRTS1301
Duke OH IT800 User Manual (DirectLink)
Job Opened: January 14, 2014
Requested In-Home Date: March 1, 2014
Latest Revision: May 23, 2014
Approved: May 23, 2014
10
HōM™ Energy Manager Web-Programmable Thermostat Homeowner’s Manual
HōM Energy Manager Portal
homenergymgr.com/portal/engagement
Step 2: Main Menu and Thermostat Settings (continued)
13. The settings page will now show an overview of the settings you
entered. If all settings are correct, click on Apply. If you need to
correct any settings, click on Cancel.
