Dura-Max 8 Ft WoodSide User manual

• All Weather Durable PVC
• Won’t Dent, Rust, Rot or Mildew
• Tall Walk In Shed
• Never Needs Painting
• 61 Inch Wide Double Doors
• Easy Assembly
• High Wind Tested
• Snow Load Tested 20lbs/sq. foot
• Pad Lock Ready (Lock not included)
• Wooden or Cement Foundation Needed
Call us for any missing or damaged parts.
Do not return to the store.
Requires two people and takes about
3-4 hours for Installation.
Your Total Solution To Maintenance Free Storage Sheds.
Available Kits
• Foundation Kit Available
• Modular 2.5 Ft Extension Kits Available
• 8 Ft x 6 Ft Window Kits Available
Ver: 0.0
OWNER’S MANUAL /
Instructions for Assembly ‘8 Ft WoodSide’
Size 8 Ft x 6 Ft / 2.4 m x 1.6 m (Approx.)
Vinyl Garden Shed
Vinyl Garden Shed
A Product of
TM
ALL PURPOSE VINYL GARDEN SHEDS
Building Dimensions :
Approximate
Size
Storage Exterior Dimension Interior Dimension
8 Ft x 6 Ft 39 Sq. Ft 238 1/4 Cu. Ft
Roof Edge to Edge
Base Dimension Door Opening
2.4 m x 1.6 m 3.6 Sq. m 6.8 Cu. m
Width
Depth
Height
inch cm
94 1/4 239.4
inch cm
63 1/8 160.3
94 3/8 239.7
64 162.5
196.2
inch cm
92 1/4 234.3
inch cm
61 1/8 155.2
60 5/8 154
Wall to Wall
Area Volume
Customer
Service Hotline
[phone]
www.uspolymersinc.com
71 1/2 181.6
73 185.5
77 1/4

Duramax Garden Shed
Limited Fifteen Year Warranty
U.S. Polymer Inc. will send a replacement part free of charge, in the event of material defects and or
workmanship for a period of fifteen years from the date of purchase.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of
original purchase will be required before warranty service is rendered. In no event shall we pay the
cost of flooring, labor, installation or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship which occurs during normal
use and does not extend to color change arising due to normal weathering or to damage resulting from
misuse or neglect, commercial use, failure to follow assembly instructions and the owner’s manual
(including proper anchoring of the shed), painting, forces of nature and other causes which is beyond
our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mail
in a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
1057 S. Vail Ave,
Montebello, CA 90640.
We reserve the right to discontinue or change components. If a component has been discontinued
or is not available,
U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental
or consequential damages resulting from the use of this product, or arising out of any breach of this
warranty. All express warranties are limited to the warranty period set forth above . Some states do
not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitations may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state or country to country.
1

2
SAFETY & PRECAUTIONS
Before You Begin...
1. Check your local building codes regarding footings, location, etc.
2. Select a site that allows enough working space around the shed.
3. Determine building foundation and anchor system.
4. Read and understand the Owner’s manual enclosed in the package.
5. Follow all directions and dimensions thoroughly.
6. Follow the steps given in the manual carefully for correct assembly.
7. Make sure all parts are present before you start assembling.
8. BE SAFE : Follow safety instructions and avoid injury.
(See inside page).
9. GROUND MUST BE EVEN : Make sure the foundation frame lies flat on
the ground. If the earth bed is uneven, remove sod and other debris and
level it with a flat shoval.
10. Separate contents of the carton by the part number and review the list.
Be sure you have all the necessary parts for your shed.
Refer Owner’s manual for part list.
CAUTION
Sharp
Edges

3

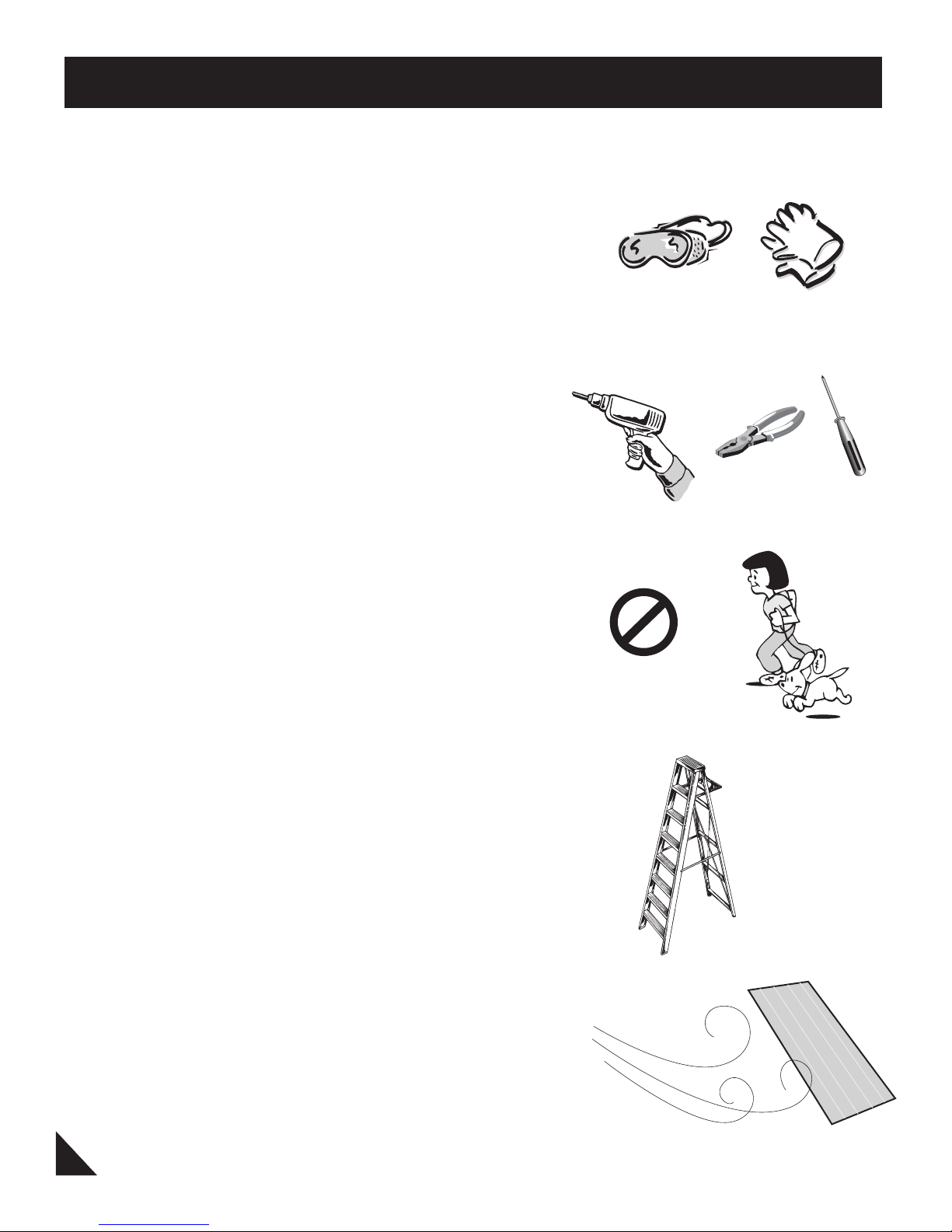

SAFETY & PRECAUTIONS
For your own safety, please read and follow these instructions during the shed assembly.
1. Always wear work gloves, long sleeves and eye protection
during assembly of the shed. Some pieces of the shed
contain sharp edges and can cause injury.
2. Be cautious with the tools used for the assembly of
the shed.Familiarize yourself with the operation of all
the power tools.
3. Children and pets should be kept away from the assembly
site to avoid any distractions and accidents.
4. When using a step ladder, make sure it is on even ground and
fully open with the safety latch in place. Never concentrate your full
weight on the roof or any part of the shed.
5. Do not attempt to assemble the shed on a windy day.
Shed panels can be whipped across by the wind making the
worksite difficult and dangerous.

4
IMPORTANT
Wear eye protection when using any form of power tools. Do not use voltage power tools in a wet or damp
enviornment to avoid electric shock.
Do not use any part of the shed as a means of personal support while attaching componets during assembly.
The shed must be constructed on a solid base foundation. A concrete pad or a large size concrete patio
stone squares is recommended for suitable floor base. Make sure it is firm and level and will allow drainage
away from the site. The base foundation should be at least 4 inches (100mm) larger than the shed dimensions.
Please refer to the front page of your owner’s manual for the exterior dimensions of the shed. Manufacturer is
not responsible for the choice and construction of the foundation.
For a concrete pad base, prepare a level bed for a firm footing layer of crushed stone. The concrete pad
should then be poured to a thickness of 4 inches (100mm) to 5 inches (125mm). Allow to dry thoroughly
for at least 48 hours
Your shed must be firmly anchored to the concrete pad or large concrete patio stone squares, to help protect
against damage in high winds.
Care & Maintenance
Although this unit does not require any maintenance, care should be taken to prolong the life
of your shed.
ROOF : Keep roof clean of leaves and snow with long handled, soft bristled broom. Heavy amounts
of snow on the roof can damage the shed making it unsafe. Do not step on the roof.
WALLS : Do not rest any object against the wall panels of the shed.
DOORS : Keep doors closed to prevent wind damage.
FASTENERS : Regularly check your shed for loose screws, bolts, nuts, etc. And retighten them as
necessary.
MOISTURE : With changing temperatures, condensation will accumulate inside the shed. Good
ventilation will help in regulating and avoid moisture.
TIP : A noncorrosive caulking is helpful to seal the shed.
DO NOT store swimming pool chemicals in your building.
Combustibles and corrosive must be stored in
air tight containers

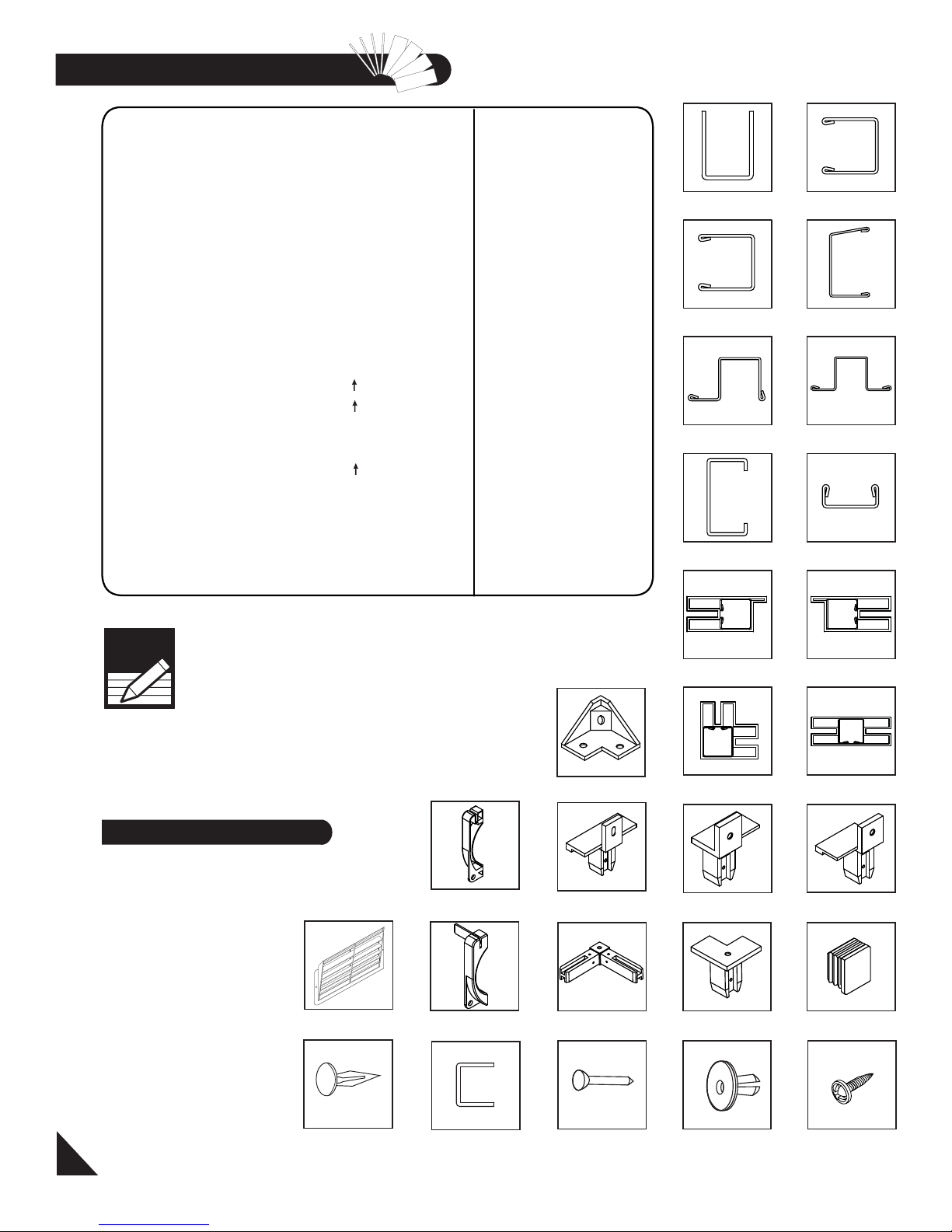

Parts List
Cordless Drill - Philips Head
Hammer or Rubber mallet
Carpenters Square
8’ Step Ladder
Adjustable pliers
Level - 3ft.
Tape Measure
Caulk Gun
Waterproof Clear Silicon
Hand Gloves
Dia 5/32” (4.2mm) drill bit
Dia 1/2” (12.5mm) drill bit
Tools You Will Need
2. Maximum no. of Extension can be build
upto 8’x10’ (ie. T
wo Extension).
Note 1. Before starting installation, please refer
Safety & Precautions.
5
B21, B22, B2B,
B1LB, B1RB
CB1B, CB2B,CB3B
CB3XB, CB4F, MJ
RS1XB1, RS3LH,
RS8B1, RS9B1
RS5B1
RS2B1, RS10A1 RS4XB1, RS11A1,
RS12B1
DSH1 RS14B
CDLA CDRA
CCA CMA
FDCL FDCR
FCB
FMC
FCCRJ EPS
CBC PIN PPG & PWS S1, S2, S7
CODE QTY
B1LB 1
B1RB 1
B2B 2
B21 1
B22 1
CB1B 2
CB2B 2
CB3B 1
CB3XB 1
CB4F 2
RS1XB1 4
RS2B1 4
RS3LH 2
RS4XB1 2
RS5B1 4
RS8B1 4
RS9B1 4
RS10A1 2
CODE QTY
FDCL 1
FDCR 1
FCC 4
FMC 4
FCB 4
RJ 4
EPS 4
CBC 1
VC 2
VCP 4
PPG 64
PIN 64
L 1
R 1
S1 169
S2 12
S7 8
CODE QTY
RS11A1 1
RS12B1 1
RS14B 8
DSH1 1
MJ 3
CMA 4
CCA 1
CDLA 1
CDRA 1
SPA1 7
FSPA 2
FPLB1 2
FPRB1 2
RPB1 4
RRS1 2
DL 1
DR 1
ACCESSORIES
PARTS
VCP
VC
L
R
R

Exploded View
6
B21
B1RB
B1LB
RS3LH
RS3LH
FPLB1
FPRB1
RS2B1
RS2B1
FPLB1
FPRB1
RS11A1
B2B
B2B
MJ
RS2B1
RS8B1
RS10A1
B22
RS4XB1
RS1XB1
DSH1
RS9B1
RS8B1
RS8B1
MJ
RS9B1
RS1XB1
RS12B1
RS10A1
RS2B1
DL
DR
FSPA
FSPA
CDLA
CDRA
CCA
CB4F CB1B
CB1B
CB4F
CCA
CMA
CCA
CCA
CMA
CMA
CMA
CB2B
CB2B
CB3XB
CB3B
RS5B1
RS5B1
RS5B1
RS4XB1 RS9B1
RRS1
RRS1
SP
SP
SP
SP
SP
SP
SP
RPB1
RPB1
RPB1
RPB1

A. Foundation
7
1. Use pressure treated wood studs 2 x 4 (Actual
size 2” x 3 1/2”, 50mm x 88.9mm) to create a
platform frame that has an outside dimension of
65” x 96” (1651mm x 2438.4mm).
DuraMax must be installed on a level wooden
platform or a level concrete foundation.
2. Using exterior grade CDX 3/4” (19mm) plywood,
cut and fit together the sheets to form solid foundation
as shown. Foundation must be square and level.
The following are the list of lumber and sizes
you will need.
Wooden Platform (Not Included)
Pressure Treated - Wood Studs:
4ea 2” x 3 1/2” x 89” (50mm x 88.9mm x 2260.6 mm)
2ea 2” x 3 1/2” x 65” (50mm x 88.9mm x 1651 mm)
Exterior Grade (CDX) - 3/4” (19mm) plywood
1ea 3/4” x 48” x 96” (19mm x 1219.2mm x 2438.4mm)
1ea 3/4” x 17” x 96” (19mm x 431.8mm x 2438.4mm)
L-Brackets: 4ea
The shed must be constructed on a solid base
foundation. A concrete pad or a large size concrete
patio stone squares is recommended for suitable
floor base. Make sure it is firm and level and will
allow drainage away from the site.
The base foundation should be at least 4
inches(100mm)larger than the shed dimensions.
Please refer to the front page of your owner’s manual
for the exterior dimensions of the shed.
Manufacturer is not responsible for the choice
and construction of the foundation
Concrete Platform
Note For a concrete pad base, prepare a level bed for
a firm footing layer of crushed stone. The concrete
pad should then be poured to a thickness of 4
inches (100mm) to 5 inches (125mm). Allow to dry
thoroughly for at least 48 hours
If the shed is assembled with
wooden foundation on soil, use the
soil anchor kit.
Note
Lay 2 x 4
(Actual size 2”x 3 1/2”, 50mm x 88.9mm)
Note
50
mm (2”)
88.9mm (3 1/2”)
Note : If you have DURAMAX Foundation, please follow instruction manual
in that package. If not, follow below wooden platform instruction.
65”
1651mm.
L- BRACKET
24 1/2”
622.3mm.
23 1/2”
596.9mm.
17”
431.8mm.
96”
2438.4mm.
48”
1219.2mm.
17”
431.8mm.
96”
2438.4mm.

8
Parts Needed:

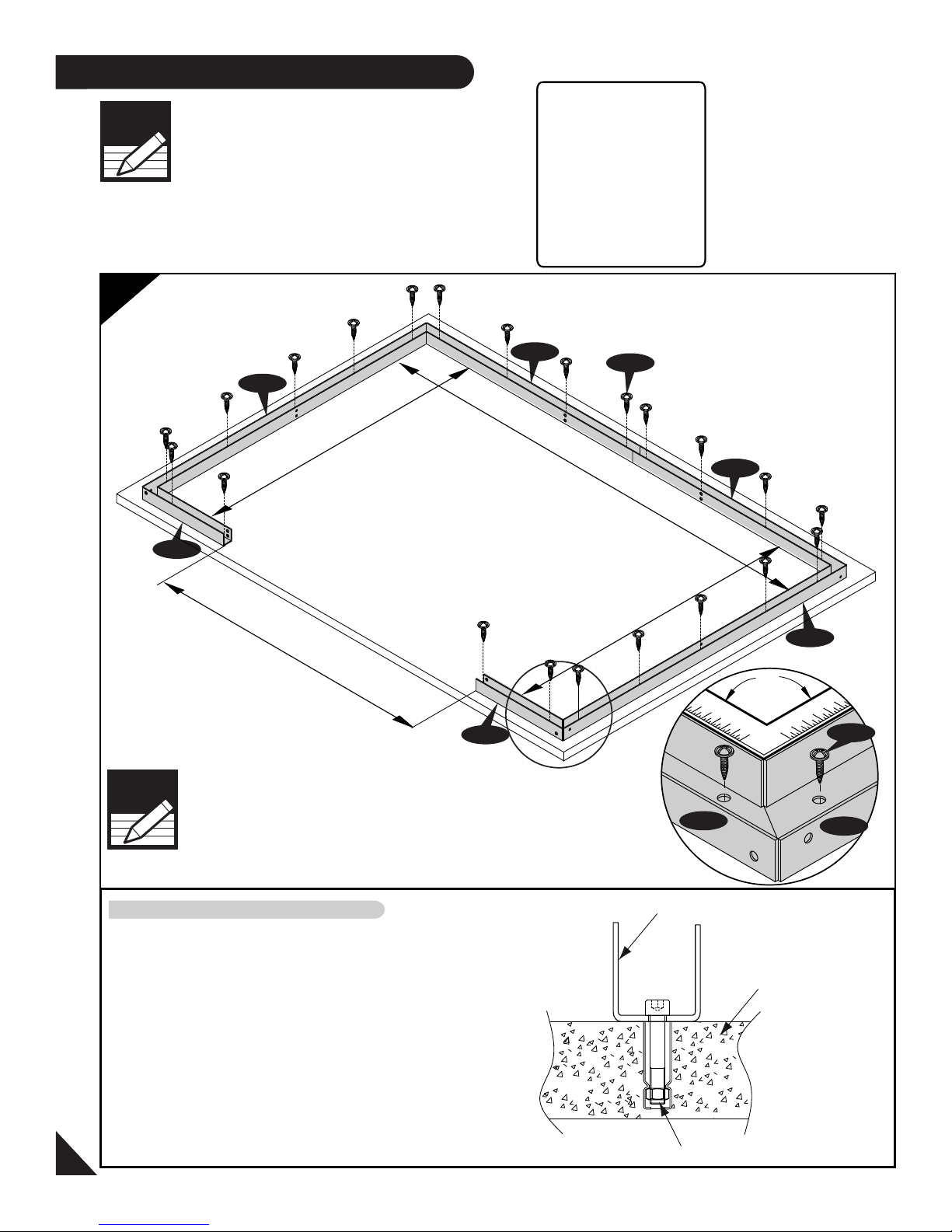

B. Base Frame
Code Qty
B1LB 1
B1RB 1
B21 1
B22 1
B2B 2
S1 22
Note
S1
B2B
B1RB
90O
Using a carpenter square, line up corners. Align
base bars, mark the concrete at the holes in the
base and drill concrete with 1/2” (dia. 12.5mm)
concrete bit to accept anchor bolts to a 1 3/4”
(44mm) depth. Replace base and secure with
1/4” x 1 1/2” (M6 x 40mm) anchor bolts
(Qty - 22Nos. not provided).
Assembly on concrete foundation
Note Measure in all direction as shown in
figure to make the base channel
assembly in a perfect.
1
M6 Anchor Bolt
Base ‘U’ Channel
Concrete
1. It is important that these instructions
are followed step by step.
2. All parts are clearly marked and care should
be taken to use the correct one.
3. Don’t install under windy conditions.
4. If you are building the shed against a wall,
build it 2.5 ft. away then slide it in.
94 1/4”
2343mm.
61 1/4”
1556mm.
B1LB
61 1/8”
1553mm.
61 1/8”
1553mm.
B1RB
B2B
B2B
B21
B22
S1

9
C. Wall & Columns
1
Front
All parts are clearly marked and care
should be taken to use the correct
one.
Note
Fig.3
Fig.1
CDRA
Fig.2
CDRA
B1RB Right
Back
Left
1
2&3
B1RB
CDRA
B1LB
B1RB
CDRA
S1
Parts Needed:
Code Qty
CCA 4
CDLA 1
CDRA 1
CMA 4
CB1B 2
CB2B 2
CB3B 1
CB3XB 1
CB4F 2
MJ 1
FCB 4
CBC 1
SP 7
FSPA 2
S1 46
S2 4
EPS 4

10
Check the stamped label on top
of all panels inside.
Note
SP
2
B1RB
CDRA
Fig.2
CCA
B1RB B2B
Fig.1
CCA
SP
Fig.3
CCA
S1
SP
S2
CCA
FCB
4
Do not tighten the screw.
Leave it loose
Note
Front
CDRA
CCA
1
2&3
B1RB
B2B
3
CCA
FSPA
FSPA
FSPA
FSPA
FSPA
FCB
B1RB

Fig.3
CB4F
CB1B
EPS
11
S1
CB1B
CDRA
Fig.2
5
6
2
CB1B
CDRA
1
Fig.1
CB1B
S1
FCB
1
2&3
CB4F
B1RB
Fig.1
S1
CB4F CDRA
Fig.2
S1
S1
SP
CMA
7
CB4F
SP
B2B
CMA
FSPA
SP
CCA
2
1
Fig.1
Fig.2
B2B
B1RB
CDRA

12
CB2B
8
Fig.3
CB2B
FCB
S1
CB2B
S1
CMA
9
CB2B CB1B
S1 Fig.2
SP
CCA
10
1&2
3
B2B
B22
CCA
B22
B2B
CCA
S1
B22
CCA
SP
CCA
Do not tighten the(S2)
screw. Leave it loose.
Note
Fig.1
Fig.3
SP
CMA
SP
SP
1
2
3&4
Fig.1 Fig.2
Fig.4
FCB
Fig.1
CB2B
S1
FCB
Fig.2
1&2
CB2B
S2
FCB
CCA
CMA

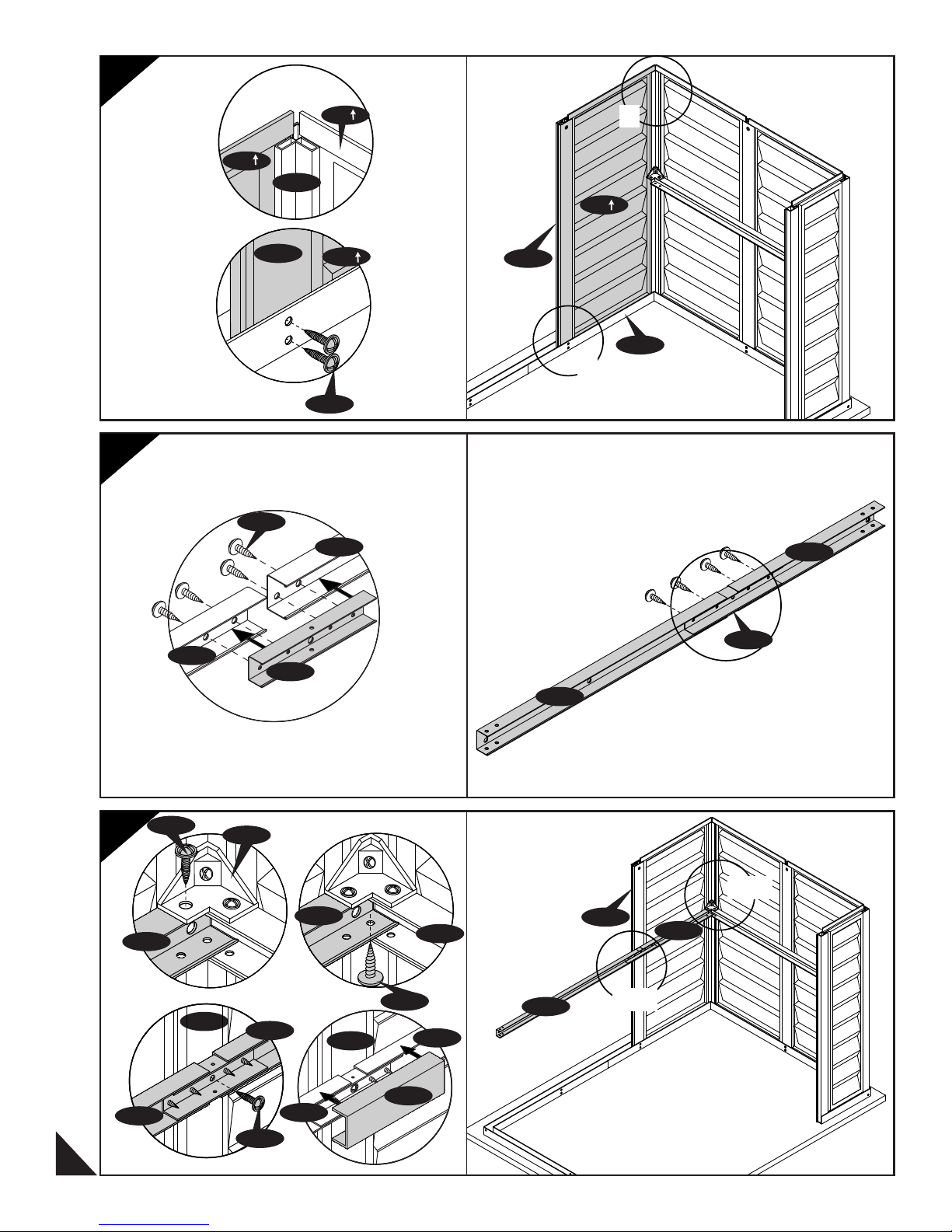

13
SP
B22
1
CB3XB
CB3B
FCB
S1
CB3B
CB2B
S1
CMA CB3B
S1
CB3XB
CBC
CB3B
CMA
CB3XB
11
12
13
2
S1
SP
CMA
SP
SP
CCA
CMA
CB3B
CB3XB
S1
MJ
CB3B
Fig.1
Fig.2
3&4
1&2
Fig.1 Fig.2
Fig.3 Fig.4
CB3XB
CB3B
MJ
CMA

14
SP
CMA
S1
SP
CMA
B21
Fig.1
Fig.1 Fig.2
Fig.3
Do not tighten the (S2)
screw. Leave it loose.
Note
14
15
16
CB3XB
CB3XB
S1
CMA
1
2
SP
CCA
B2B
B21
CCA
S1
B2B
CCA
SP
CCA
3&4
CCA
FCB
CCA
CMA
SP
SP
1
2
Fig.4
Fig.2
FCB
Fig.2
CB3XB
S1
FCB
CB3XB
Fig.1
1&2
S2
B21
B21
B2B

B1LB
B2B
CCA
Fig.3
S1
B1LB
CCA
SP
CCA
15
SP
CMA
S1
Fig.1
Fig.2
CMA
Fig.1
3
1&2
17
18
19
SP
SP
SP
CCA
CB2B
FCB
S1
CB2B
S1
CMA
CB2B CB3XB
S1
Fig.2
CB2B
CMA
CCA
SP
2
1
Fig.1 Fig.2
Fig.3
CMA
SP
SP
Fig.4
3&4
1
2
B2B
B2B
B1LB

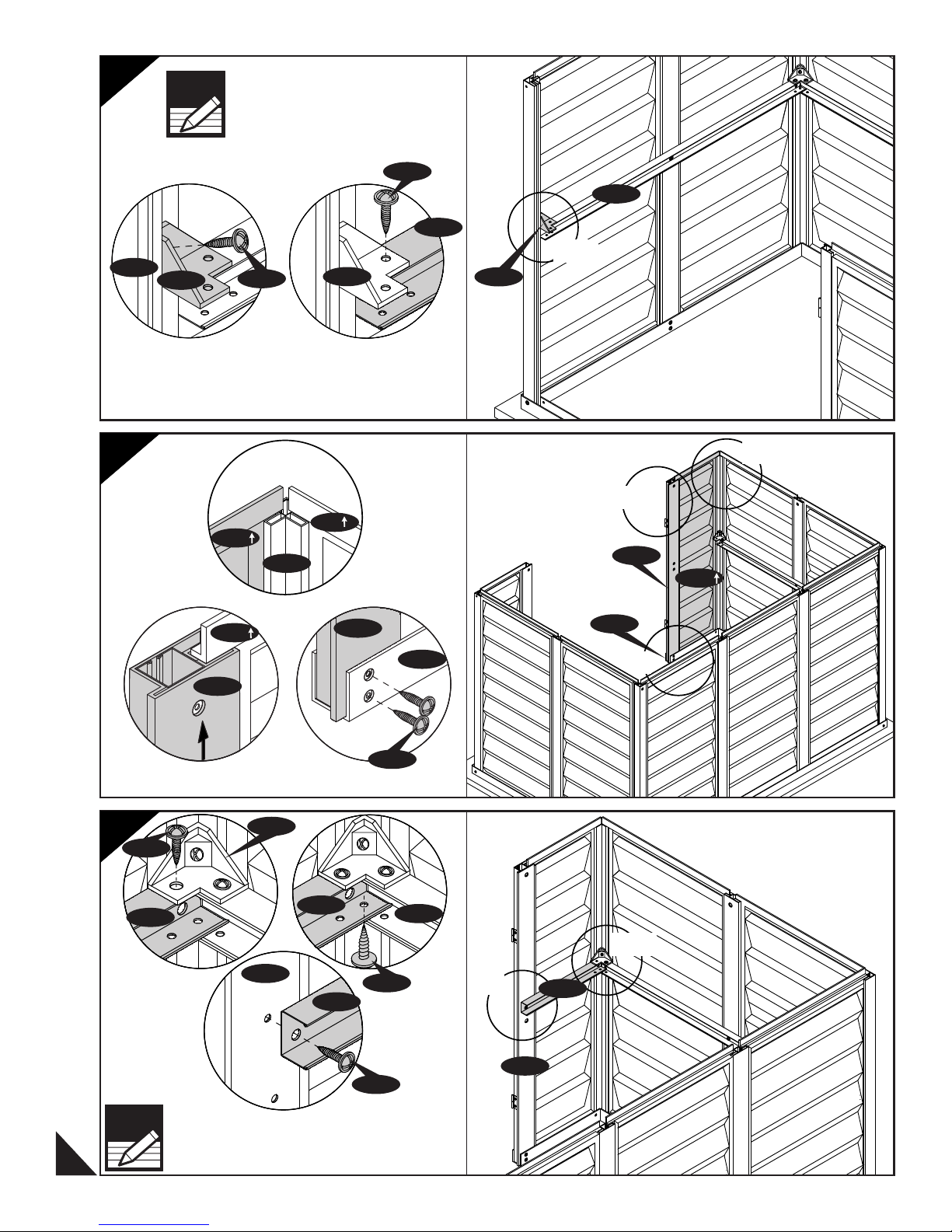

16
CB2B
S1
FCB
Fig.1 Fig.2
Fig.3
After completing the center band
assembly, fully tighten the four center
band fittings (FCB) to the corner
column (CCB).
Note
20
21
22
CDLA
B1LB
S1
FSPA
CDLA
FSPA
CDLA
B1LB
CDLA
CB1B
S1
CB2B
1&2
2
Fig.1
Fig.2
FCB
S1
CB1B
CB1B
CDLA
S1
3CB1B
Do not tighten the(S2)
screw. Leave it loose.
Note
CB2B
1&2
Fig.1 Fig.2
1
3
FSPA
SP
CCA
Fig.3
S2
FCB
CCA FCB

CDLA
CB4F
B1LB S1 CDLA CB4F
S1
Fig.1 Fig.2
Fig.3
CB4F
CB1B
EPS CB4F
B1LB
2&3
1
61 1/4”
1556mm.
17
23
24
CDRA
CDLA

D. Roof Structures
Parts Needed:
Code Qty
RS1XB1 4
RS2B1 4
RS3LH 2
RS4XB1 2
RS5B1 4
RS8B1 4
RS9B1 4
RS10A1 2
RS11A1 1
RS12B1 1
MJ 2
Code Qty
DSH1 1
FDCL 1
FDCR 1
FCC 4
FMC 4
RJ 4
S1 101
S2 4
S7 8
CMB
FMC
18
1
CMA
S1
CMA
FMC
CMA
CMA
CMA
1&2
Fig.1
Fig.2

FCC
CCA
FCC
CCA
S1
Fig.1
1
Fig.2
CDLA
FDCL
S1
CDRA
FDCR
S1
CDRA
CDLA
2

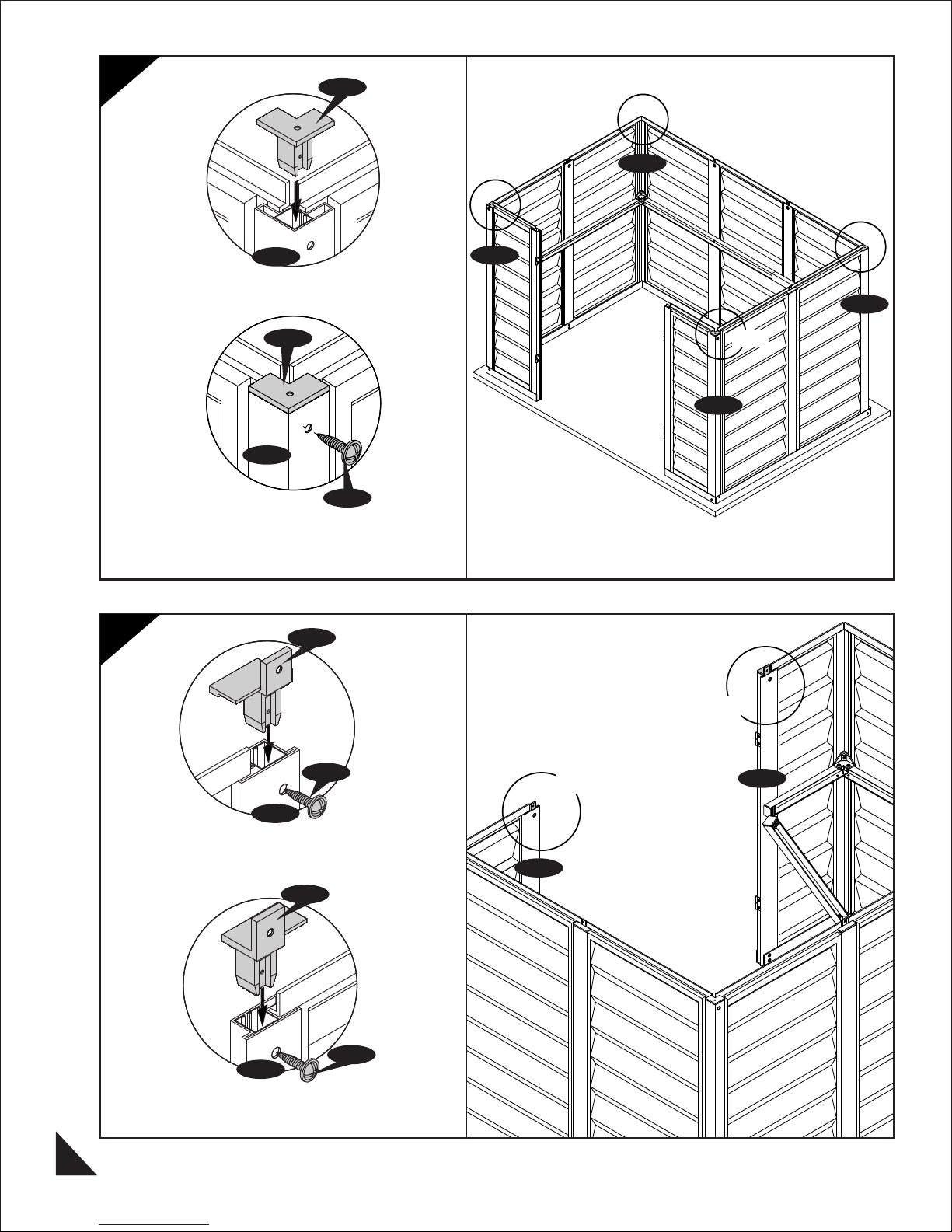

19
2
3
CCA
CCA
CCA
CCA
1&2
Fig.1
Fig.2
