Before You Start
EN-5
Before You Start
Congratulations on your purchase of this tablet PC.
This fully-rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your tablet PC, read this chapter to familiarize yourself with the main
components installed in the system.
Package Contents
If any of following items is damaged, please contact your retailer.
Tablet PC
AC adapter
Power cord
Stylus & Tether
Hand Strap
NOTE
•The pictures are for reference only, actual items may slightly differ.
•Declaration of product weight: 1.39kg. The actual weight may vary by
configuration.

Before You Start
EN-6
Product Overview

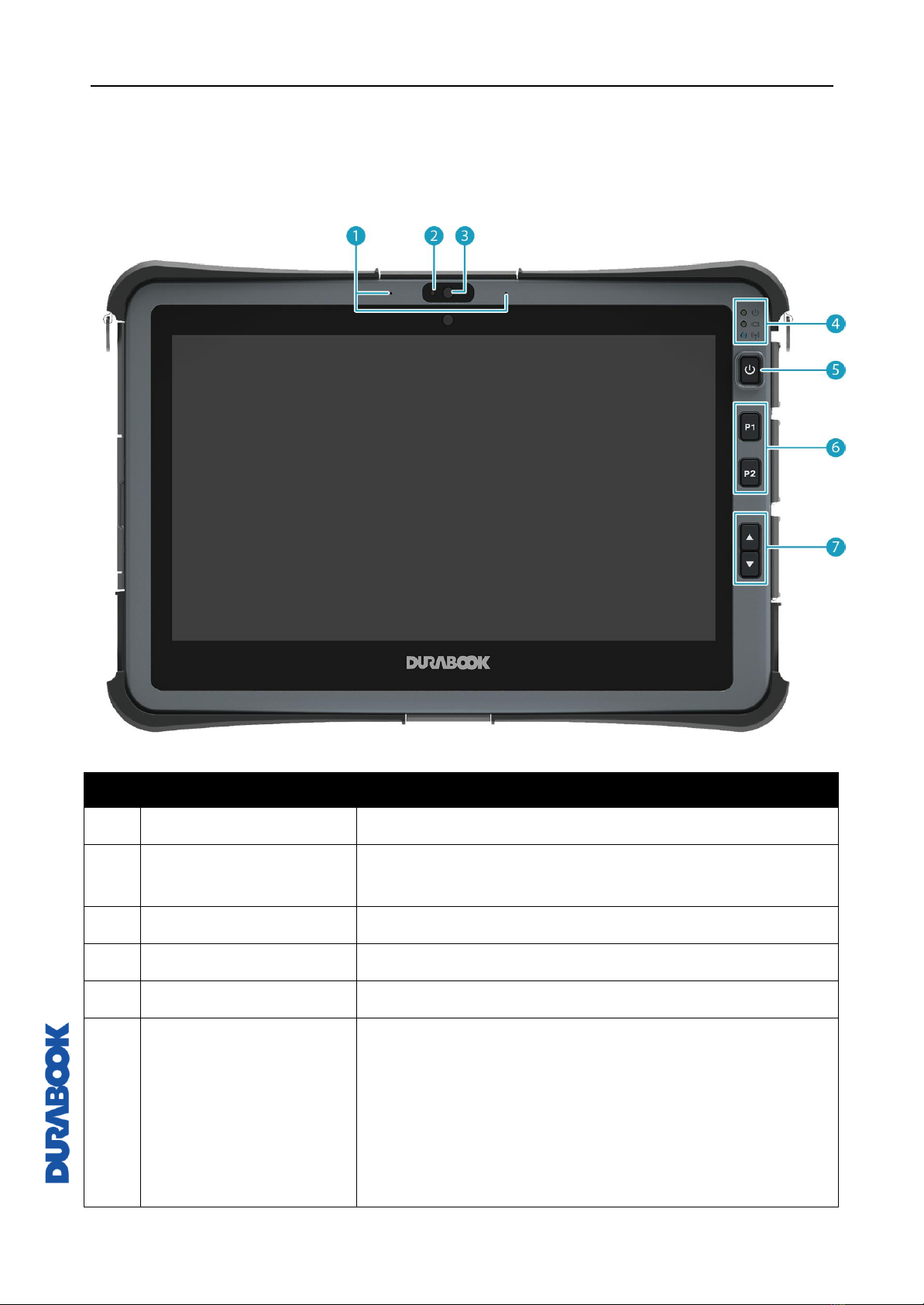

Front View
No.
Item
Description
1
Microphones
Record the surrounding sound.
2
Ambient light sensor
Use to detect the current level of visible light in the
surrounding environment.
3
Front camera
Use for video conferencing.
4
Status indicators
Indicate the corresponding function status.
5
Power button
Press to turn your tablet PC on or off.
6
Programmable
buttons
P1: Press to activate the assigned function.
-Stealth mode button (by default).
-Night Vision button.
-Shortcut key for launching specific
applications.
-Disable (no function).
Pre-OS Phase: Press into BIOS setup menu

Before You Start
EN-7
No.
Item
Description
P2: Press to activate the assigned function.
-Scanner button (if the barcode scanner is
integrated).
-Touch screen mode selection.
-Shortcut key for launching specific
applications.
-Disable (no function).
Pre-OS Phase: Press into boot menu
7
Up/Down buttons
: Press to activate the assigned function.
-Increase the LCD panel brightness level (by
default).
-Increase the volume level.
-Disable (no function).
Pre-OS Phase: “Enter” Key function
: Press to activate the assigned function.
-Decrease the LCD panel brightness level (by
default).
-Decrease the volume level.
-Disable (no function).
Pre-OS Phase: SAS key(Ctrl+Alt+Delete) function

Before You Start
EN-8
Back View
No.
Item
Description
1
Speakers
Emit sound.
2
SSD kit latch
Lock the SSD kit in place.
3
SSD kit compartment
Contain the SSD module.
4
Camera LED flash
Provide additional lighting when taking pictures
under low light environments.
5
Rear camera
Use to take pictures.
6
Fingerprint scanner
Scan fingerprint for biometric identification.
7
Battery compartment
Contain the battery.
8
Battery latch release
button
Press and hold to slide the battery latch to the
unlock position.

Before You Start
EN-9

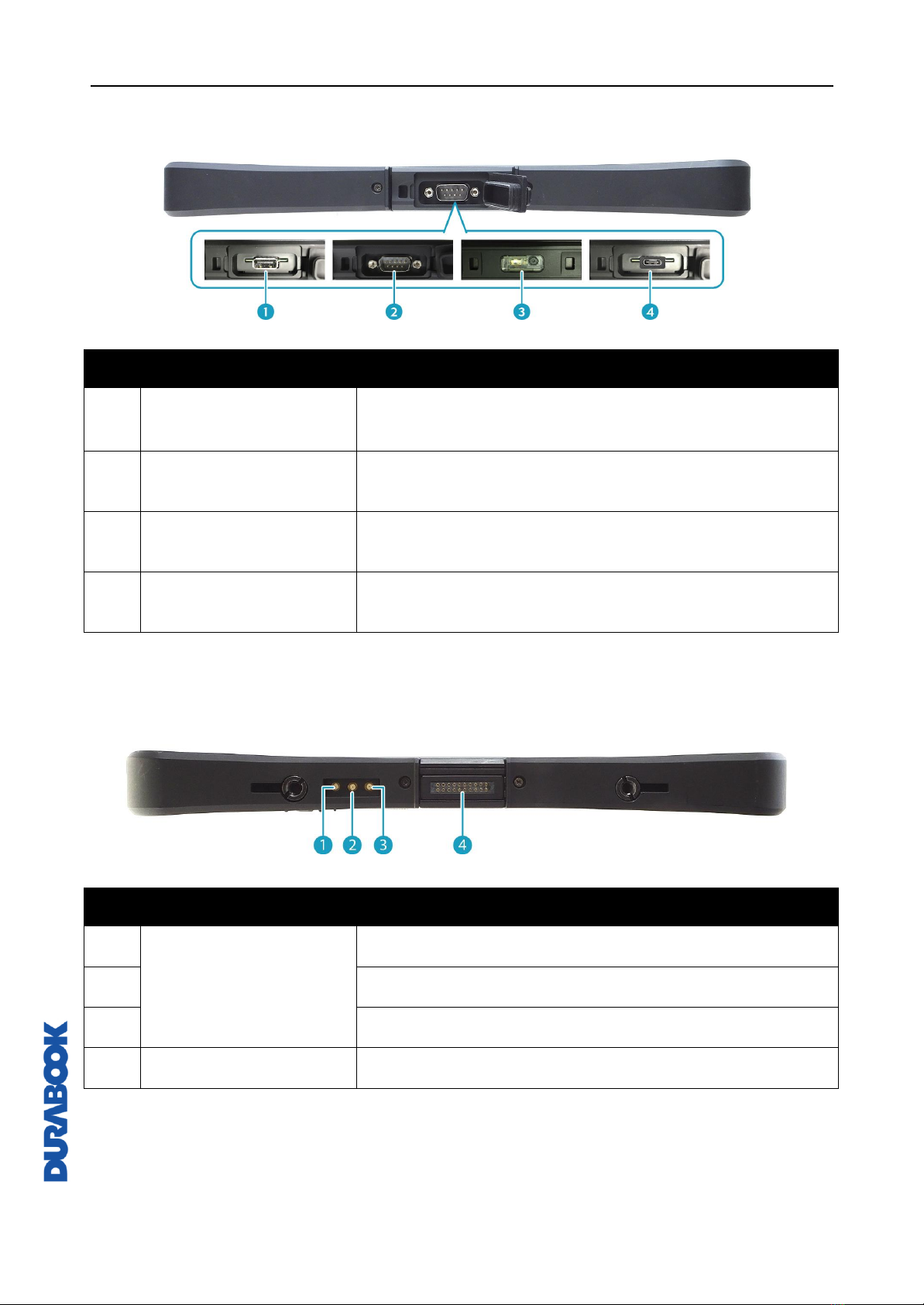

Top View
No.
Item
Description
1
USB Type-A port
(for selected model)
Connect a USB peripheral device.
2
RS232 port
(for selected model)
Connect a serial peripheral device.
3
Barcode scanner
(for selected model)
Scan barcodes.
4
USB Type-C port
(for selected model)
Connect a USB peripheral device.
Bottom View
No.
Item
Description
1
RF Pass-thru
connector
(for selected model)
Use for the external WLAN antenna.
2
Use for the external GNSS antenna.
3
Use for the external WWAN antenna.
4
Docking connector
Connect the tablet PC to a docking station.

Before You Start
EN-10
Left View
No.
Item
Description
1
Strap holes
Attach the strap for the stylus pen.
2
Kensington lock slot
Connect a Kensington-compatible tablet PC
security lock.
3
Smart card reader
(for selected model)
Use to insert smart cards.
Right View
No.
Item
Description
1
DC-in jack
Connect the power adapter.
2
HDMI Port
Connect to an external display.
3
USB 3.1 port
Connect USB 3.1 peripheral devices.
4
RJ-45 jack
Connect to a local area network (LAN) using an
Ethernet cable.
5
Memory card slot
Use to insert memory cards to transfer pictures,
music, and data between your Tablet PC and flash
compatible devices. The card reader supports
micro-SDHC and micro-SDXC.
6
SIM card slot
Use to insert a SIM card for WWAN module
connection.
7
Audio Combo jack
Connect headphones, external speakers, or a
microphone.
