Durabrand HT-395 User manual

IB-HT395-WM-E-073003
PLEASE READ CAREFULLY BEFORE USE
Digital Audio
Home Theater System
MODEL HT-395
Turns Your DVD Player Into a Home Theater
•Just add your TV & DVD player; everything else is in the box.
•
Incredible surround sound, perfect for DVD viewing & enhanced TV game experience.
•Front panel GAME INPUT jacks. •Dual DIGITAL inputs - COAXIAL & OPTICAL.
The Perfect Sound System for Your DVD Player
Computer Compatible - Also Turns Your Computer Into a Home Theater (Cable Included)
All manuals and user guides at all-guides.com
all-guides.com

IB-HT395-WM-E-073003
1

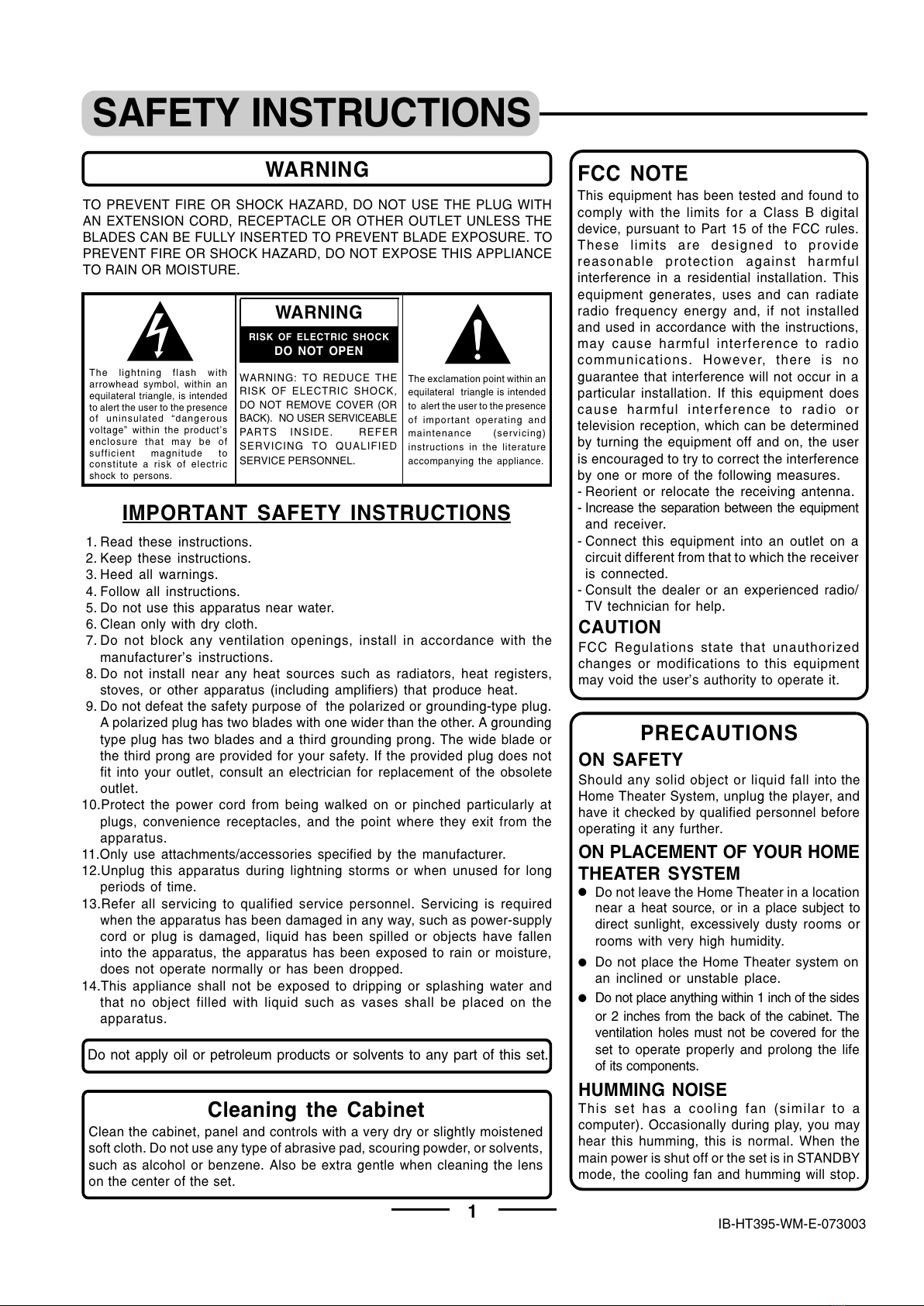

SAFETY INSTRUCTIONS
CAUTION
FCC Regulations state that unauthorized
changes or modifications to this equipment
may void the users authority to operate it.
FCC NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect this equipment into an outlet on a
circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/
TV technician for help.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO
PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the
manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10.Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Unplug this apparatus during lightning storms or when unused for long
periods of time.
13.Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
14.This appliance shall not be exposed to dripping or splashing water and
that no object filled with liquid such as vases shall be placed on the
apparatus.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence
of uninsulated dangerous
voltage within the products
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Do not apply oil or petroleum products or solvents to any part of this set.
PRECAUTIONS
ON SAFETY
Should any solid object or liquid fall into the
Home Theater System, unplug the player, and
have it checked by qualified personnel before
operating it any further.
ON PLACEMENT OF YOUR HOME
THEATER SYSTEM
Cleaning the Cabinet
Clean the cabinet, panel and controls with a very dry or slightly moistened
soft cloth. Do not use any type of abrasive pad, scouring powder, or solvents,
such as alcohol or benzene. Also be extra gentle when cleaning the lens
on the center of the set.
HUMMING NOISE
Do not leave the Home Theater in a location
near a heat source, or in a place subject to
direct sunlight, excessively dusty rooms or
rooms with very high humidity.
Do not place the Home Theater system on
an inclined or unstable place.
Do not place anything within 1 inch of the sides
or 2 inches from the back of the cabinet. The
ventilation holes must not be covered for the
set to operate properly and prolong the life
of its components.
This set has a cooling fan (similar to a
computer). Occasionally during play, you may
hear this humming, this is normal. When the
main power is shut off or the set is in STANDBY
mode, the cooling fan and humming will stop.
All manuals and user guides at all-guides.com

IB-HT395-WM-E-073003

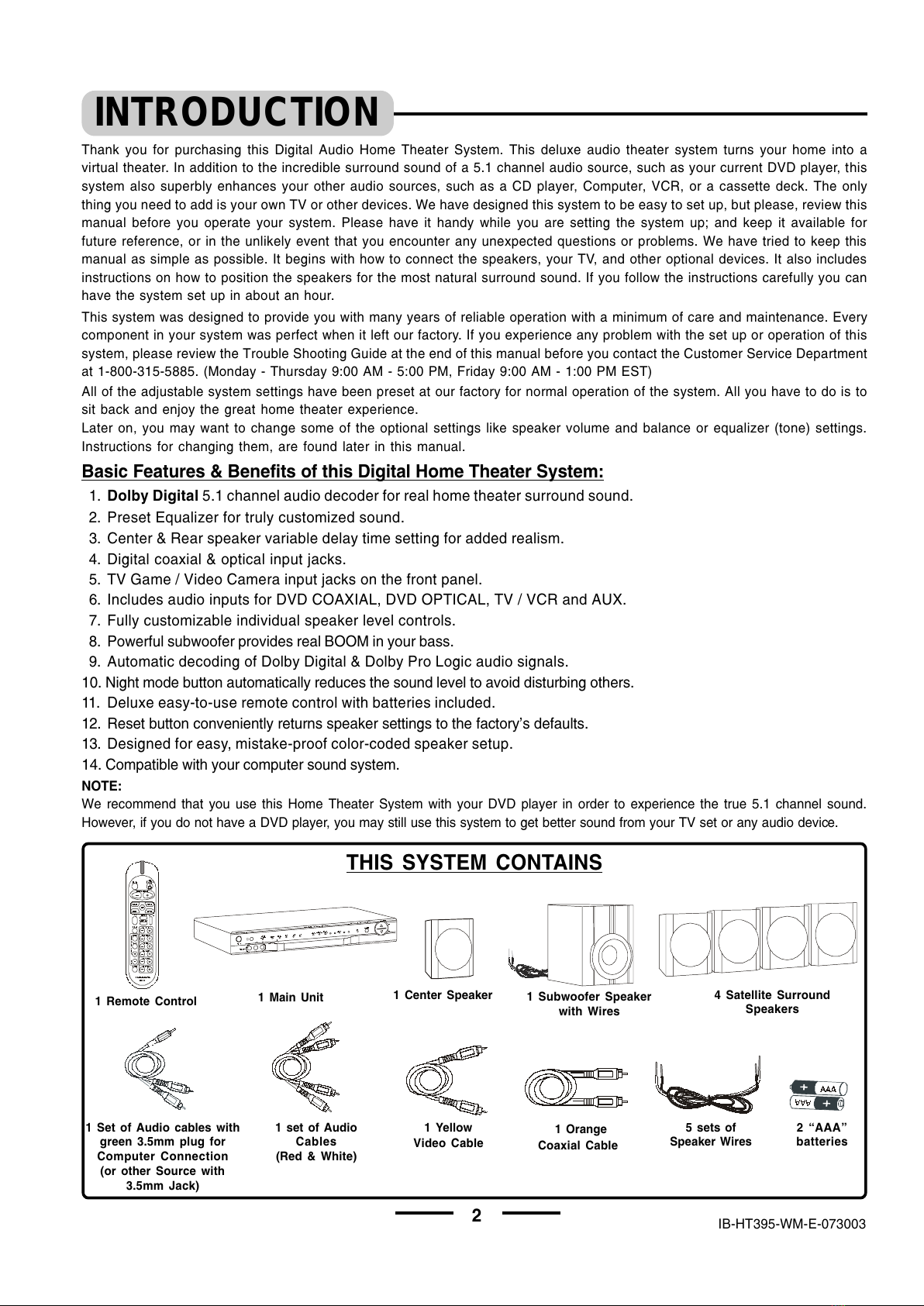

INTRODUCTION
All of the adjustable system settings have been preset at our factory for normal operation of the system. All you have to do is to
sit back and enjoy the great home theater experience.
Later on, you may want to change some of the optional settings like speaker volume and balance or equalizer (tone) settings.
Instructions for changing them, are found later in this manual.
This system was designed to provide you with many years of reliable operation with a minimum of care and maintenance. Every
component in your system was perfect when it left our factory. If you experience any problem with the set up or operation of this
system, please review the Trouble Shooting Guide at the end of this manual before you contact the Customer Service Department
at 1-800-315-5885. (Monday - Thursday 9:00 AM - 5:00 PM, Friday 9:00 AM - 1:00 PM EST)
Thank you for purchasing this Digital Audio Home Theater System. This deluxe audio theater system turns your home into a
virtual theater. In addition to the incredible surround sound of a 5.1 channel audio source, such as your current DVD player, this
system also superbly enhances your other audio sources, such as a CD player, Computer, VCR, or a cassette deck. The only
thing you need to add is your own TV or other devices. We have designed this system to be easy to set up, but please, review this
manual before you operate your system. Please have it handy while you are setting the system up; and keep it available for
future reference, or in the unlikely event that you encounter any unexpected questions or problems. We have tried to keep this
manual as simple as possible. It begins with how to connect the speakers, your TV, and other optional devices. It also includes
instructions on how to position the speakers for the most natural surround sound. If you follow the instructions carefully you can
have the system set up in about an hour.
Basic Features & Benefits of this Digital Home Theater System:
2
1. Dolby Digital 5.1 channel audio decoder for real home theater surround sound.
2. Preset Equalizer for truly customized sound.
3. Center & Rear speaker variable delay time setting for added realism.
4. Digital coaxial & optical input jacks.
5. TV Game / Video Camera input jacks on the front panel.
6. Includes audio inputs for DVD COAXIAL, DVD OPTICAL, TV / VCR and AUX.
7. Fully customizable individual speaker level controls.
8. Powerful subwoofer provides real BOOM in your bass.
9. Automatic decoding of Dolby Digital & Dolby Pro Logic audio signals.
10. Night mode button automatically reduces the sound level to avoid disturbing others.
11. Deluxe easy-to-use remote control with batteries included.
12. Reset button conveniently returns speaker settings to the factorys defaults.
13. Designed for easy, mistake-proof color-coded speaker setup.
14. Compatible with your computer sound system.
NOTE:
We recommend that you use this Home Theater System with your DVD player in order to experience the true 5.1 channel sound.
However, if you do not have a DVD player, you may still use this system to get better sound from your TV set or any audio device.
THIS SYSTEM CONTAINS
1 Remote Control 1 Main Unit 1 Center Speaker 1 Subwoofer Speaker
with Wires
4 Satellite Surround
Speakers
2 AAA
batteries
1 set of Audio
Cables
(Red & White)
5 sets of
Speaker Wires
1 Yellow
Video Cable
1 Orange
Coaxial Cable
1 Set of Audio cables with
green 3.5mm plug for
Computer Connection
(or other Source with
3.5mm Jack)
All manuals and user guides at all-guides.com

IB-HT395-WM-E-073003
 Getting Started
Safety Instructions-------------------------------------------------------------------------------------------------------------------------------------1
Introduction----------------------------------------------------------------------------------------------------------------------------------------------- 2
Location of Controls----------------------------------------------------------------------------------------------------------------------------------- 4,5
Remote Control Operation---------------------------------------------------------------------------------------------------------------------------6
 Connections

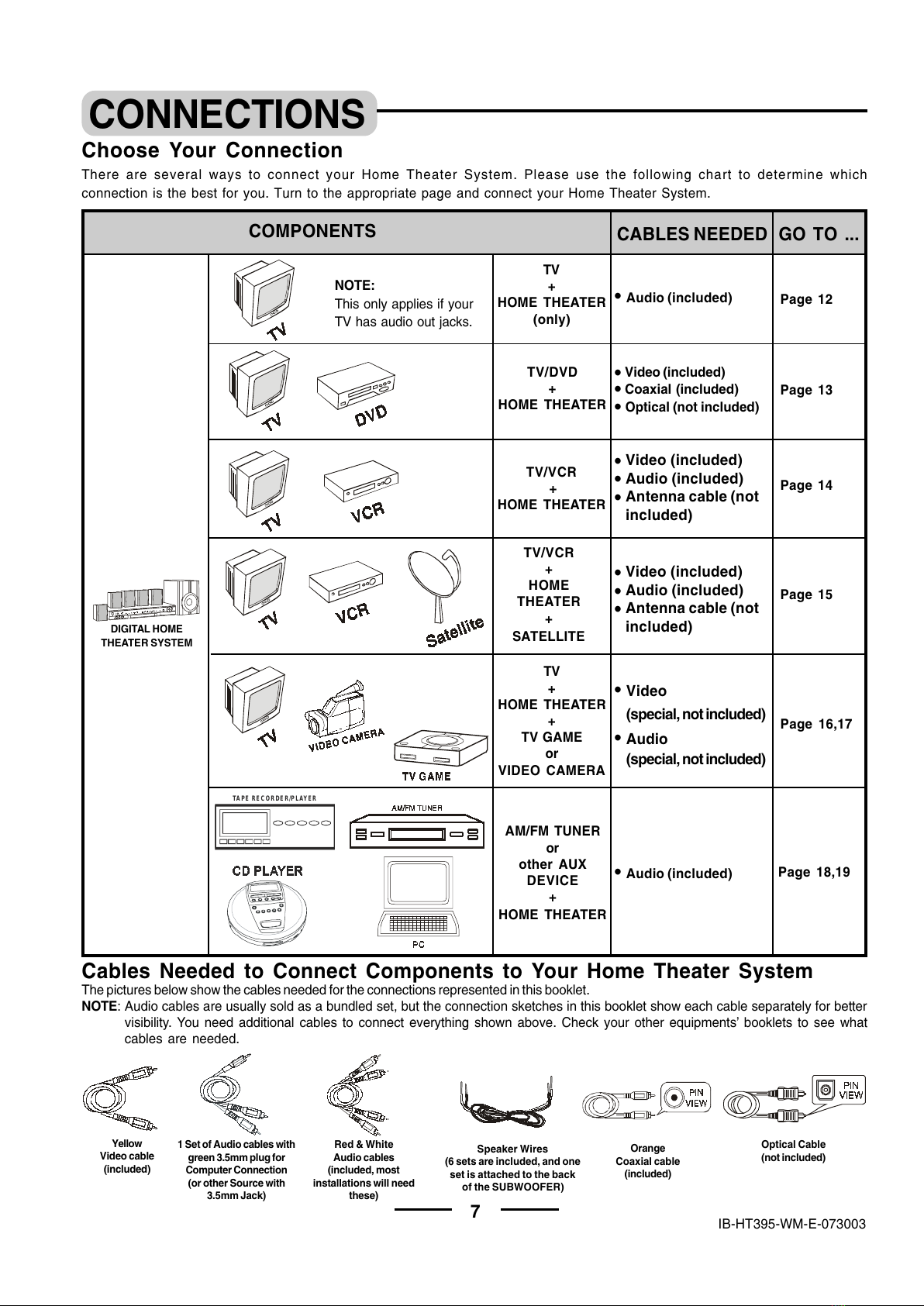

Choose Your Connection-----------------------------------------------------------------------------------------------------------------------------7
Cables Needed to Connect Components to Your Home Theater System -------------------------------------------------------- 7
Speaker System Connections:
Speaker System Connections--------------------------------------------------------------------------------------------------------------------- 8,9

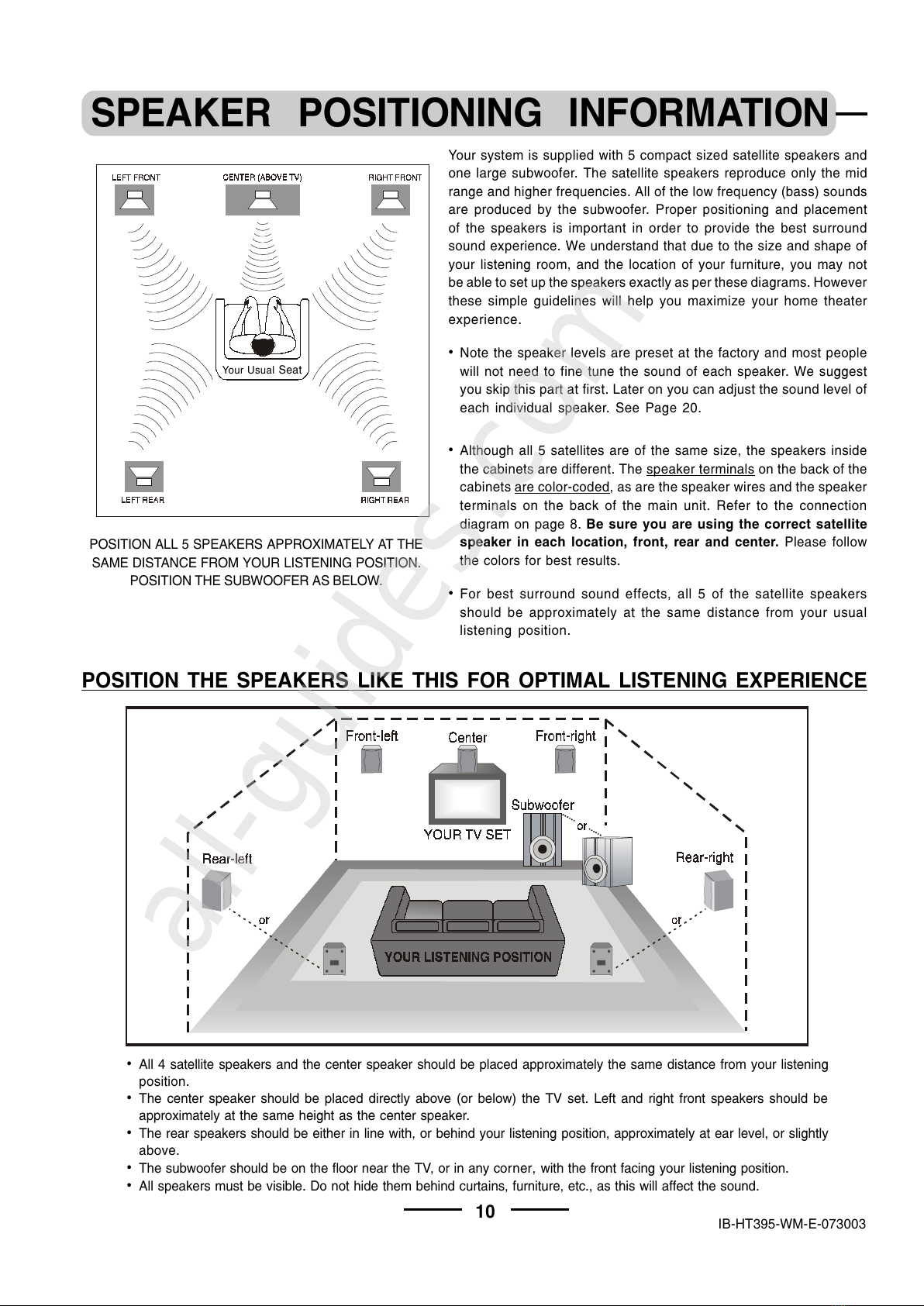

Speaker Positioning Information------------------------------------------------------------------------------------------------------------------ 10,11

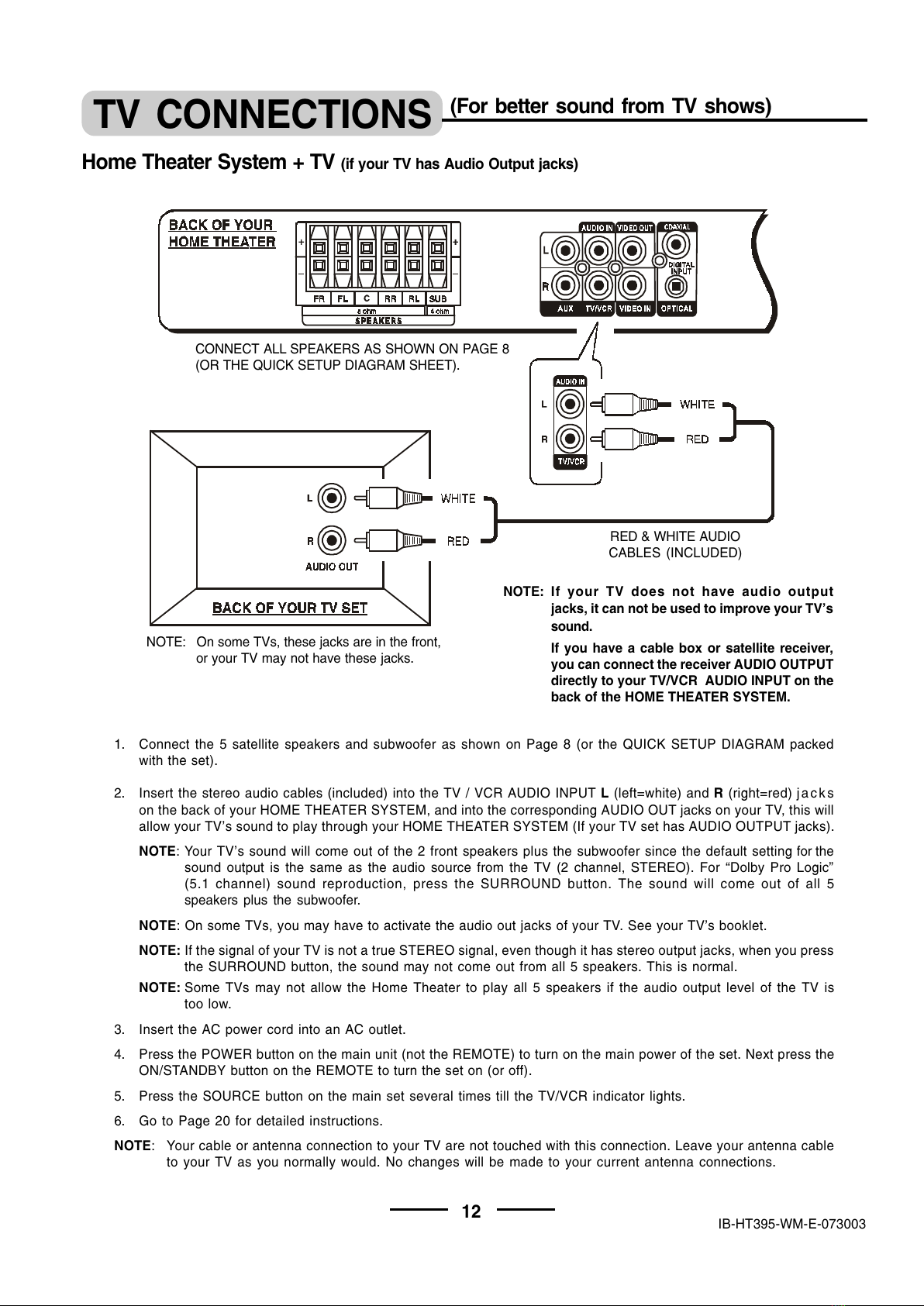

TV Connections ---------------------------------------------------------------------------------------------------------------------------------------- 12
TV + DVD Connections ----------------------------------------------------------------------------------------------------------------------------- 13
TV + VCR Connections ----------------------------------------------------------------------------------------------------------------------------- 14

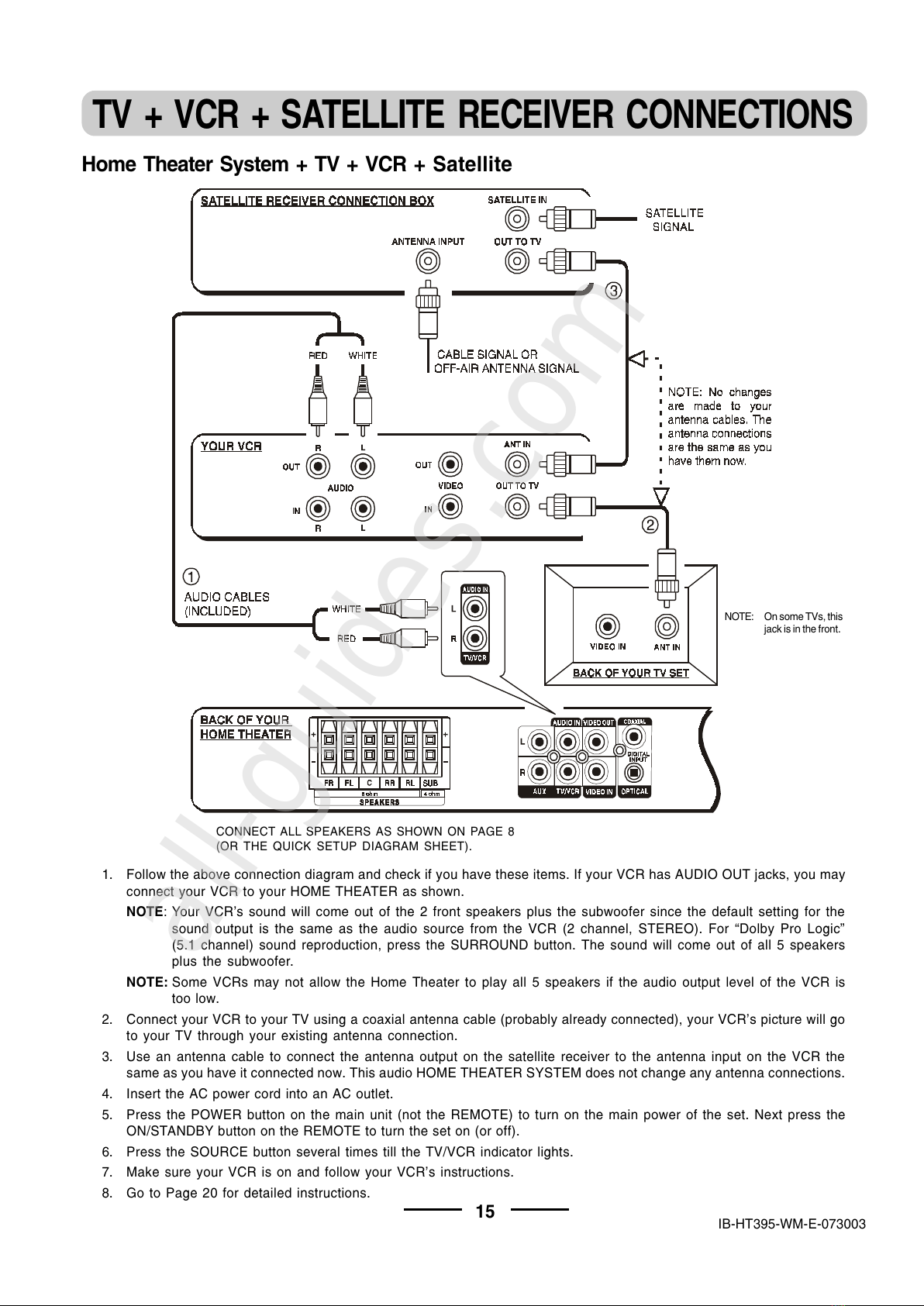

TV + VCR + Satellite Receiver Connections ------------------------------------------------------------------------------------------------15

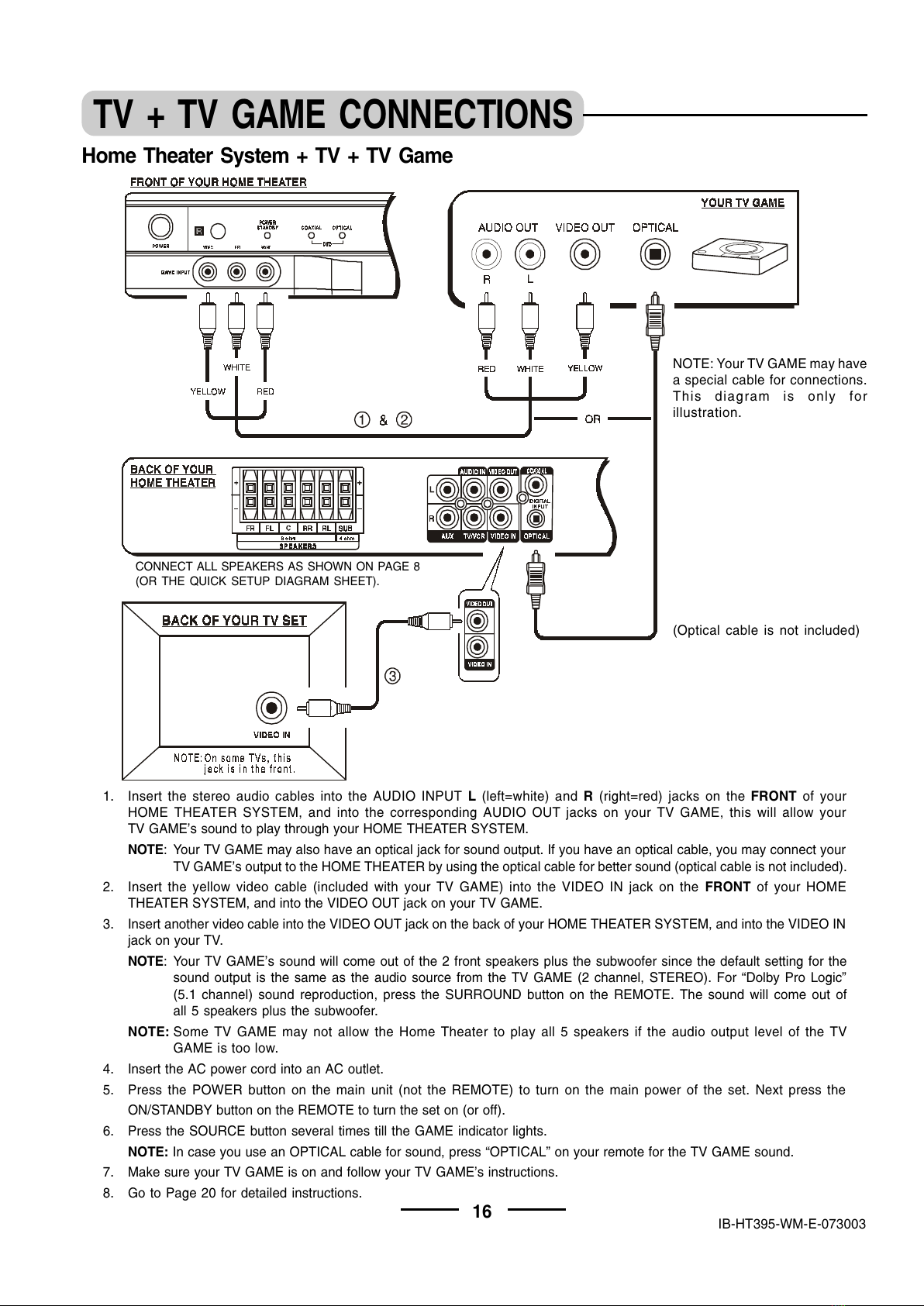

TV + TV Game Connections ---------------------------------------------------------------------------------------------------------------------- 16

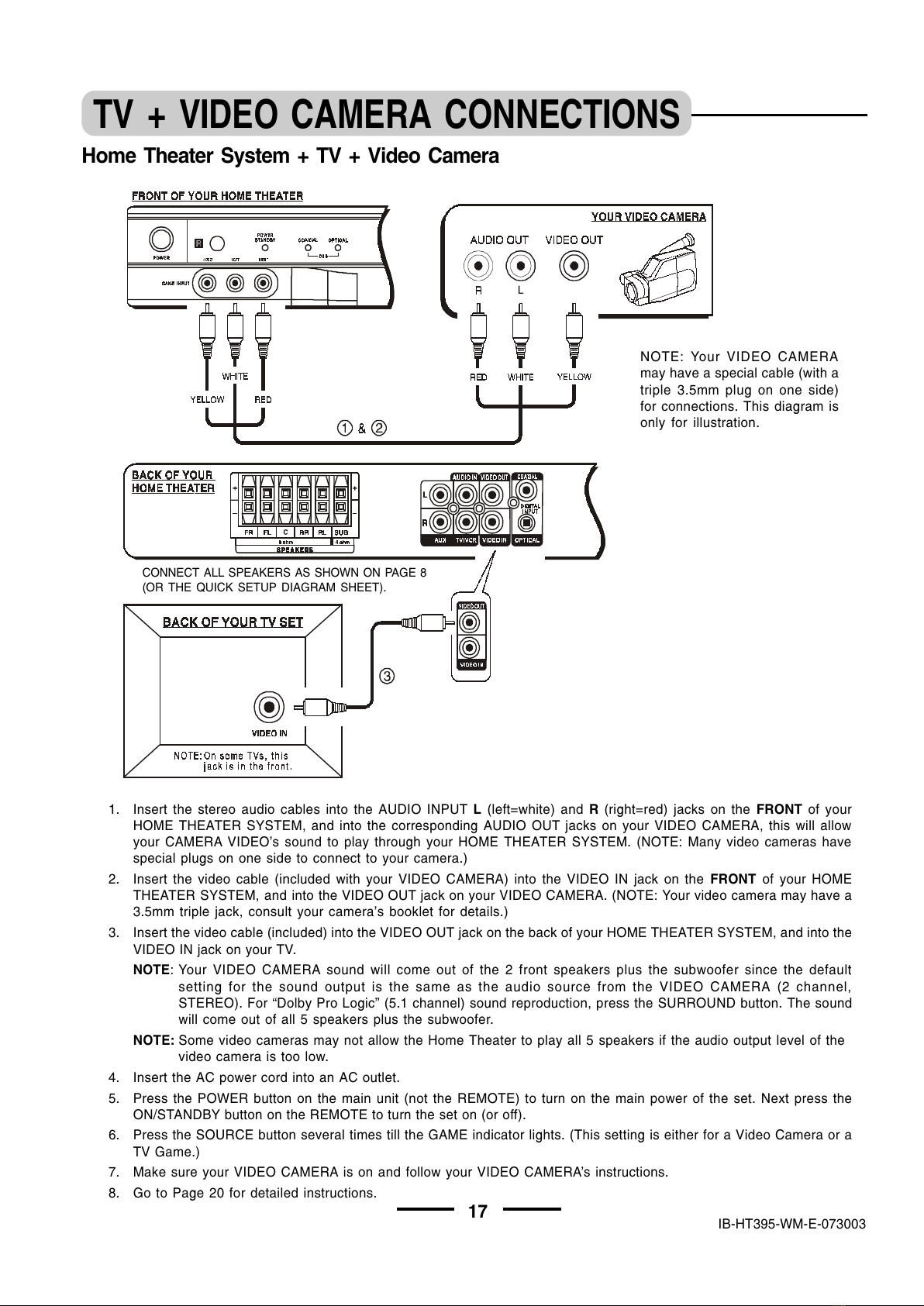

TV + Video Camera Connections ----------------------------------------------------------------------------------------------------------------17
AUX IN Connections --------------------------------------------------------------------------------------------------------------------------------- 18

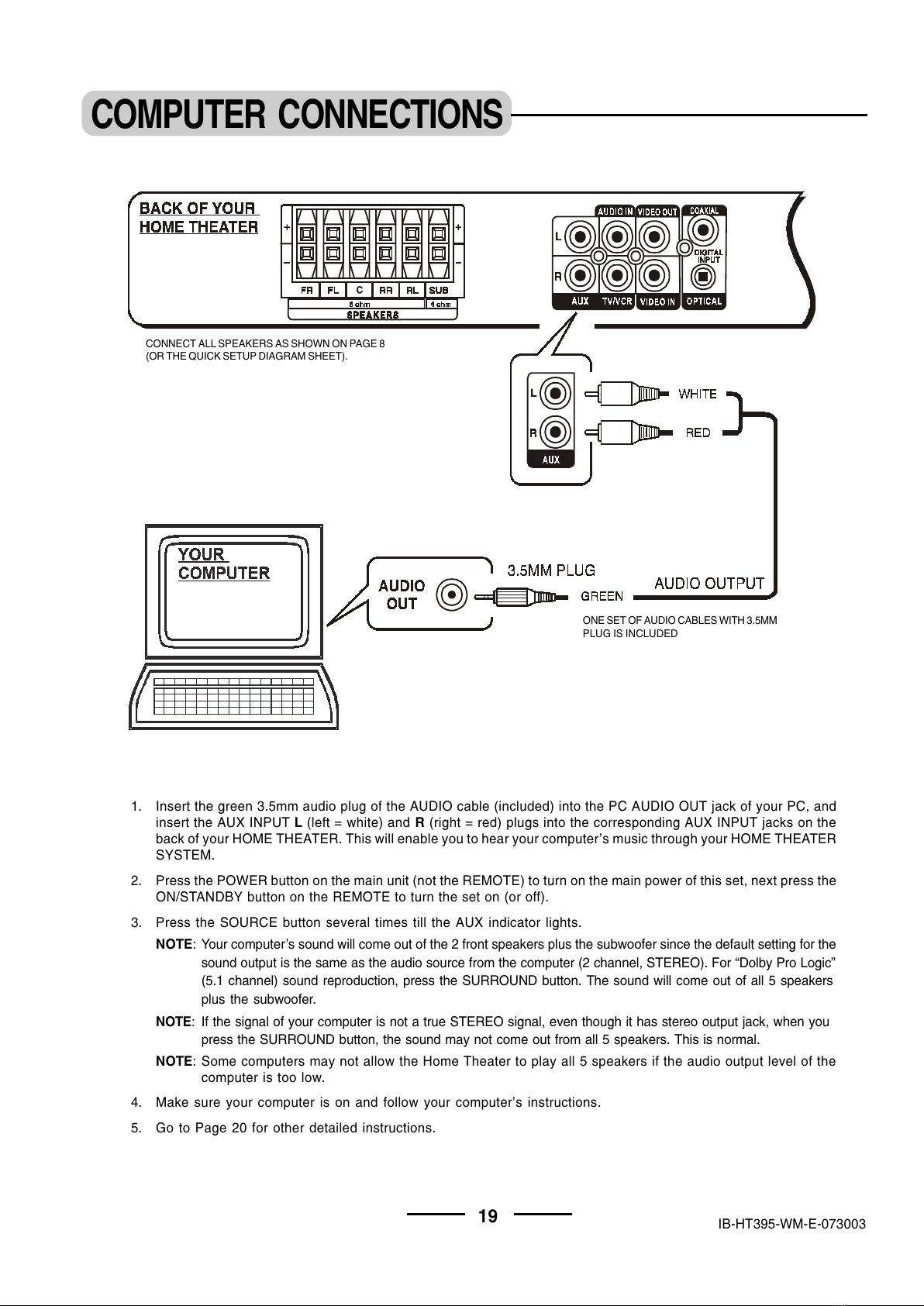

Computer Connections ------------------------------------------------------------------------------------------------------------------------------ 19
 Amplifier
General ----------------------------------------------------------------------------------------------------------------------------------------------------20
Test Tones -----------------------------------------------------------------------------------------------------------------------------------------------21
Volume Adjustment-------------------------------------------------------------------------------------------------------------------------------------22
ListeningMode--------------------------------------------------------------------------------------------------------------------------- 23
 Others
EQ Mode, Night Mode, Center & Rear Speaker Sound Delay ---------------------------------------------------------------------------- 24
 Trouble Shooting ------------------------------------------------------------------------------------------------------------------------ 25
 Specifications -------------------------------------------------------------------------------------------------------------------------------26
3
TABLE OF CONTENTS
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories. Confidential Unpublished works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.
All manuals and user guides at all-guides.com

IB-HT395-WM-E-073003
LOCATION OF CONTROLS
9. GAME indicator - For TV GAME or VIDEO CAMERA
sound use, press the SOURCE button till this lights or
press the GAME button on your REMOTE control.
10. TV / VCR indicator - For TV / VCR sound use, press the
SOURCE button till this lights or press the TV / VCR
button on your REMOTE control.
11. AUX indicator - For Auxiliary input sound use, press the
SOURCE button till this lights or press the AUX button on
your REMOTE control.
12. STEREO indicator - In STEREO mode, this red indicator
lights up (for 2 channel sound).
13. DOLBY PRO LOGIC indicator - If a Dolby Pro Logic
Signal is received, this red indicator will light.
14. DOLBY DIGITAL indicator - If a Dolby Digital Signal
is received, this orange indicator will light.
15.VOLUME indicators - These indicators light up
showing the level of the master volume, also each
individual speakers volume.
16. MUTE indicator - In mute mode, this indicator will light.
17. SOURCE button - Press several times to select the sound
input source you want: DVD COAXIAL, DVD OPTICAL,
GAME, TV / VCR, or AUX.
18. MASTER VOLUME UP & DOWN control - Increases or
decreases the volume level of all speakers.
8. TV/VCR AUDIO INPUT jacks - Connect to audio output
of a TV or VCR.
1. MAIN POWER button - Press to switch the set on or off.
NOTE: This button must be on in order to be able to use
the REMOTE control.
2. REMOTE CONTROL SIGNAL sensor - Receives the
signal from the REMOTE CONTROL (Aim the REMOTE
control towards this sensor).
3. POWER/STANDBY indicator - This indicator has 2
colors: red and green (red is standby, green is on). When the
set is off (standby), pressing the SOURCE or MASTER
VOLUME buttons on the main unit, or pressing any button
on the REMOTE CONTROL will turn the set on. The
indicator will become green. Also this indicator will flash
confirming that you pressed any button on the REMOTE
CONTROL.
4. VIDEO IN jack - For connection of a video signal from a
TV game or video camera (see details on Page 16 & 17).
5. AUDIO LEFT jack - Connect to the left channel audio
output of a TV game or video camera.
6. AUDIO RIGHT jack - Connect to the right channel
audio output of a TV game or video camera.
7. DVD COAXIAL indicator - For DVD COAXIAL INPUT sound
use, press the SOURCE button till this lights or press the
COAXIAL button on your REMOTE control.
8. DVD OPTICAL indicator - For DVD OPTICAL INPUT sound
use, press the SOURCE button till this lights or press the
OPTICAL button on your REMOTE control.
4
1. FRONT RIGHT SPEAKER jacks - Connect the FRONT
RIGHT SPEAKER to the red and black terminals.
2. FRONT LEFT SPEAKER jacks - Connect the FRONT LEFT
SPEAKER to the red and black terminals.
3. CENTER SPEAKER jacks - Connect only the CENTER
SPEAKER to the blue and black terminals.
4. REAR RIGHT SPEAKER jacks - Connect the REAR RIGHT
SPEAKER to the grey and black terminals.
5. REAR LEFT SPEAKER jacks - Connect the REAR LEFT
SPEAKER to the grey and black terminals.
6. SUBWOOFER SPEAKER jacks - Connect the
SUBWOOFER SPEAKER to the green and black terminals.
7. AUX AUDIO INPUT jacks - Connect to the audio output of a
tape deck or other component.
9. VIDEO OUT jack - Connect to your TVs video input jack.
(If your TV has no VIDEO jack, you have to buy a VIDEO
RF MODULATOR.)
IMPORTANT: This jack is only used if you are connecting
a TV GAME or VIDEO CAMERA to the set.
10. DVD VIDEO INPUT jack - Connect to your DVDs video
out jack.
11. DVD COAXIAL DIGITAL INPUT jack - Connect to the
COAXIAL digital audio output of a DVD player to have
Dolby Digital 5.1 channel surround sound.
12. DVD OPTICAL DIGITAL INPUT jack - Connect to the
OPTICAL digital audio output of a DVD Player to have
Dolby Digital 5.1 channel surround sound.
13.AC LINE CORD - Connect to a 120V/60Hz AC
standard wall outlet.
All manuals and user guides at all-guides.com
