SERVICE MANUAL
DBTV2702
Design and specifications are subject to change without notice.
COLORTELEVISION RECEIVER
SUPPLEMENT
MFR'S VERSION A
This SUPPLEMENT must be used together SERVICE MANUAL for MT2271S.
All other test and repair procedures are as shown in the ORIGINAL MANUAL.
Please file this SUPPLEMENT with the ORIGINAL VERSIONS.

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
R001 R002T4272J RC 2.7K OHM 1/4W DEL
R002 R903N8101J RC 100 OHM 1/8W DEL
R004 R903N8104J RC 100K OHM 1/8W
R105 R903N8472J RC 4.7K OHM 1/8W R002T4332J RC 3.3K OHM 1/4W
R106 R903N8472J RC 4.7K OHM 1/8W R002T4332J RC 3.3K OHM 1/4W
R107 R001T6474J RC 470K OHM 1/6W R002T4473J RC 47K OHM 1/4W
R117 R903N8473J RC 47K OHM 1/8W DEL
R118 R00106223J RC 22K OHM 1/6W R903N8681J RC 680 OHM 1/8W
R125 R903N8101J RC 100 OHM 1/8W
R133 R903N8101J RC 100 OHM 1/8W
R134 R903N8471J RC 470 OHM 1/8W R903N8100J RC 10 OHM 1/8W
R136 R903N8103J RC 10K OHM 1/8W
R137 R002T4563J RC 56K OHM 1/4W
R138 R002T4472J RC 4.7K OHM 1/4W
R143 R903N8103J RC 10K OHM 1/8W
R144 R903N8102J RC 1K OHM 1/8W
R145 R903N8182J RC 1.8K OHM 1/8W
R146 R903N8103J RC 10K OHM 1/8W
R403 R903N8103J RC 10K OHM 1/8W
R405 R001T6103J RC 10K OHM 1/6W R002T4102J RC 1K OHM 1/4W
R410 R002T2561J RC 560 OHM 1/2W
R415 R3X181221J R,METAL OXIDE 220 OHM 1W R002T2561J RC 560 OHM 1/2W
R421 R001T4184J RC 180K OHM 1/4W R002T2683J RC 68K OHM 1/2W
R422 R002T2682J RC 6.8K OHM 1/2W R002T2822J RC 8.2K OHM 1/2W
R428 R002T28R2J RC 8.2 OHM 1/2W DEL
!R429 R6558A1R8J R,FUSE 1.8 OHM 2W R6558A2R2J R,FUSE 2.2 OHM 2W
R430 R002T4682J RC 6.8K OHM 1/4W
R431 R002T4473J RC 47K OHM 1/4W
R438 R002T4103J RC 10K OHM 1/4W
!R439 R3X181680J R,METAL OXIDE 68 OHM 1W
R440 R002T4224J RC 220K OHM 1/4W
R441 R002T4273J RC 27K OHM 1/4W
R443 R002T4472J RC 4.7K OHM 1/4W
R444 R002T4223J RC 22K OHM 1/4W
R445 R002T2104J RC 100K OHM 1/2W R002T4223J RC 22K OHM 1/4W
R446 R002T2472J RC 4.7K OHM 1/2W R002T2471J RC 470 OHM 1/2W
R447 R002T4182J RC 1.8K OHM 1/4W
!R450 R655U2101J R,FUSE 100 OHM 1/2W R002T2104J RC 100K OHM 1/2W
R451 R002T4151J RC 150 OHM 1/4W DEL
R452 R002T4181J RC 180 OHM 1/4W DEL
R454 R002T2222J RC 2.2K OHM 1/2W
R455 R002T4272J RC 2.7K OHM 1/4W
R456 R002T4153J RC 15K OHM 1/4W
!R457 R635U2100J R,FUSE 10 OHM 1/2W
R458 R002T2152J RC 1.5K OHM 1/2W
R459 R002T2821J RC 820 OHM 1/2W
R460 R002T4102J RC 1K OHM 1/4W
!R461 R65581010J R,FUSE 1 OHM 1W
!R501 R5X2AE3R3J R,CEMENT 3.3 OHM 7W R5X2AE1R2J R,CEMENT 1.2 OHM 7W
!R503 R002T4225J RC 2.2M OHM 1/4W R002T4125J RC 1.2M OHM 1/4W
R504 R002T2155J RC 1.5M OHM 1/2W R002T2103J RC 10K OHM 1/2W
R505 R903N8103J RC 10K OHM 1/8W
!R506 R002T4222J RC 2.2K OHM 1/4W DEL
R507 R001T6102J RC 1K OHM 1/6W R002T4151J RC 150 OHM 1/4W
R508 R002T4101J RC 100 OHM 1/4W
R509 R002T4223J RC 22K OHM 1/4W DEL
R511 R002T4125J
RC 1.2M OHM 1/4W
ELECTRICAL REPLACEMENT PARTS LIST
MT2271S DBTV2702

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
R512 R002T4271J RC 270 OHM 1/4W
R513 R002T2102J RC 1K OHM 1/2W
!R514 R002T4562J RC 5.6K OHM 1/4W R002T4682J RC 6.8K OHM 1/4W
R516 R002T4101J RC 100 OHM 1/4W
!R520 R002T2155J RC 1.5M OHM 1/2W
!R521 R3X28A151J R.METAL OXIDE 150 OHM 2W
R533 R903N8221J RC 220 OHM 1/8W R903N8102J RC 1K OHM 1/8W
R535 R002T2683J RC 68K OHM 1/2W
R536 R002T2683J RC 68K OHM 1/2W
!R543 R3X181221J R,METAL OXIDE 220 OHM 1W R3X28A331J R,METAL OXIDE 330 OHM 2W
R547 R002T4101J RC 100 OHM 1/4W
R554 R002T4124J RC 120K OHM 1/4W R002T4682J RC 6.8K OHM 1/4W
R555 R002T4104J RC 100K OHM 1/4W
R601 R903N8152J RC 1.5K OHM 1/8W R903N8102J RC 1K OHM 1/8W
R609 R903N8471J RC 470 OHM 1/8W R903N8221J RC 220 OHM 1/8W
R610 R002T4273J RC 27K OHM 1/4W
R613 R002T4101J RC 100 OHM 1/4W R002T4391J RC 390 OHM 1/4W
R617 R002T4221J RC 220 OHM 1/4W R002T4331J RC 330 OHM 1/4W
R620 R903N8124J RC 120K OHM 1/8W
R622 R903N8121J RC 120 OHM 1/8W R903N8271J RC 270 OHM 1/8W
R623 R001T6102J RC 1K OHM 1/6W R002T4182J RC 1.8K OHM 1/4W
R624 R002T4470J RC 47 OHM 1/4W DEL
!R629 R3X18A180J R,METAL OXIDE 18 OHM 2W R3X28B270J R,METAL OXIDE 27 OHM 3W
R632 R002T2560J RC 56 OHM 1/2W R002T2151J RC 150 OHM 1/2W
R639 R903N8101J RC 100 OHM 1/8W R903N8152J RC 1.5K OHM 1/8W
R643 R903N8821J RC 820 OHM 1/8W
R645 R001T6100J RC 10 OHM 1/6W DEL
R650 R903N8102J RC 1K OHM 1/8W
R707 R903N8222J RC 2.2K OHM 1/8W
R708 R903N8750J RC 75 OHM 1/8W R903N8680J RC 68 OHM 1/8W
R710 R903N8102J RC 1K OHM 1/8W R903N8152J RC 1.5K OHM 1/8W
R715 R903N8472J RC 4.7K OHM 1/8W
R716 R903N8102J RC 1K OHM 1/8W DEL
R725 R903N8182J RC 1.8K OHM 1/8W R903N8222J RC 2.2K OHM 1/8W
R726 R903N8222J RC 2.2K OHM 1/8W R903N8182J RC 1.8K OHM 1/8W
R740 R903N8680J RC 68 OHM 1/8W
R743 R00106750J RC 75 OHM 1/6W DEL
R744 R903N8683J RC 68K OHM 1/8W DEL
R745 R903N8683J RC 68K OHM 1/8W DEL
R760 R002T4102J RC 1K OHM 1/4W R002T4391J RC 390 OHM 1/4W
R809 R903N8472J RC 4.7K OHM 1/8W R903N8272J RC 2.7K OHM 1/8W
R811 R903N8472J RC 4.7K OHM 1/8W R903N8272J RC 2.7K OHM 1/8W
R813 R903N8391J RC 390 OHM 1/8W R903N8271J RC 270 OHM 1/8W
R814 R903N8472J RC 4.7K OHM 1/8W R903N8272J RC 2.7K OHM 1/8W
R815 R903N8391J RC 390 OHM 1/8W R903N8271J RC 270 OHM 1/8W
R816 R903N8391J RC 390 OHM 1/8W R903N8271J RC 270 OHM 1/8W
R901 R903N8222J RC 2.2K OHM 1/8W R002T4221J RC 220 OHM 1/4W
R902 R903N8222J RC 2.2K OHM 1/8W R002T4221J RC 220 OHM 1/4W
R904 R001T6475J RC 4.7M OHM 1/6W R002T4685J RC 6.8M OHM 1/4W
R905 R903N8563J RC 56K OHM 1/8W
R907 R903N8393J RC 39K OHM 1/8W
R908 R903N8563J RC 56K OHM 1/8W
R909 R903N8393J RC 39K OHM 1/8W
R1001 R903N8124J RC 120K OHM 1/8W DEL
R1003 R002T4103J RC 10K OHM 1/4W
R1006 R903N8272J RC 2.7K OHM 1/8W R903N8182J RC 1.8K OHM 1/8W
R1008 R903N8272J RC 2.7K OHM 1/8W R002T4182J RC 1.8K OHM 1/4W
R1010 R001T6561J
RC 560 OHM 1/6W
DEL
MT2271S DBTV2702
ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
R1011 R903N8182J RC 1.8K OHM 1/8W DEL
R1014 R903N8153J RC 15K OHM 1/8W R903N8332J RC 3.3K OHM 1/8W
R1015 R903N8153J RC 15K OHM 1/8W R903N8332J RC 3.3K OHM 1/8W
R1508 R903N8102J RC 1K OHM 1/8W DEL
R1510 R001T6102J RC 1K OHM 1/6W DEL
R1512 R903N8102J RC 1K OHM 1/8W
R1513 R903N8681J RC 680 OHM 1/8W DEL
R1518 R001T6392J RC 3.9K OHM 1/6W R903N8561J RC 560 OHM 1/8W
R1519 R001T6392J RC 3.9K OHM 1/6W R903N8561J RC 560 OHM 1/8W
R1521 R903N8821J RC 820 OHM 1/8W
R1523 R903N8102J RC 1K OHM 1/8W
R1524 R002T4102J RC 1K OHM 1/4W
C004 C0JTF04H4Z CC 0.022 UF 50V F DEL
C007 CQGTB0415K CC 0.1 UF 50V B
C106 CS0KSL412K CC 100 PF 50V SL
C107 CS0KB04H2K CC 220 PF 50V B CS0KSL4S1K CC 56 PF 50V SL
C108 CS0KB04H2K CC 220 PF 50V B CS0KSL4S1K CC 56 PF 50V SL
C109 CS0KSL412K CC 100 PF 50V SL
C110 CS0KSL412K CC 100 PF 50V SL
C112 E50HU2100M CE 10 UF 16V
C119 CQGTF0415Z CC 0.1 UF 50V F
C124 CQGTF0415Z CC 0.1 UF 50V F CQGTF0416Z CC 1 UF 50V F
C138 CQGTCH4S2J CC 560 PF 50V CH DEL
C301 E02LU1471M CE 470 UF 10V E02LU2470M CE 47 UF 16V
C327 CQGTF0415Z CC 0.1 UF 50V F
C328 E02LT2470M CE 47 UF 16V E02LU1221M CE 220 UF 10V
C329 E50HU52R2M CE 2.2 UF 50V DEL
C330 E02LU52R2M CE 2.2 UF 50V DEL
C331 E02LU2470M CE 47 UF 16V E02LU2221M CE 220 UF 16V
C401 C0JTB05H2K CC 220 PF 500V B C0JTSL5U1J CC 68 PF 500V SL
C416 P3N1F2333J CPP 0.033 UF 200V DEL
C420 C0JTB05H3K CC 0.0022UF 500V B
!C433 E02LT4471M CE 470 UF 35V E0ELF4222M CE 2200 UF 35V
C436 P6M9T0334J CMPL 0.33 UF 50V TF
!C437 P447F2474J CMPP 0.47 UF 200V FHS P6M9T0683J CMPL 0.068 UF 50V TF
C439 C0JTSL5H1J CC 22 PF 500V SL E02LU5470M CE 47 UF 50V
C440 C0JTB05H3K CC 0.0022UF 500V B P235W1103J CMP 0.01 UF 100V MKT
C441 E50HU5R47M CE 0.47 UF 50V
C442 E53FF56R8M CE 6.8 UF 50V NP
C443 P4N8FJ123H CMPP 0.012 UF 1.25KV DEL
C444 E02LU2470M CE 47 UF 16V
C446 E02LT5010M CE 1 UF 50V E02LU5220M CE 22 UF 50V
C449 P4J7F3394J CMPP 0.39 UF 250V PMS
C451 P3N1F5273J CPP 0.027 UF 630V
!C452 P4N8FJ153H CMPP 0.015 UF 1.25KV
!C453 P4N8FJ391J CMPP 390 PF 1.25KV
C455 C0JTB0512K CC 100 PF 500V B
C456 P6M9T0223J CMPL 0.022 UF 50V TF
!C501 E02L03102M CE 1000 UF 25V E02LF4102M CE 1000 UF 35V
!C504 E02LT5470M CE 47 UF 50V CQGTF0414Z CC 0.01 UF 50V F
!C505 P2472B104M CMP 0.1 UF 275V PHE840 P2472B224M CMP 0.22UF 275V PHE840
C509 P1S3T0473J CP 0.047 UF 50V P235W1473J CMP 0.047 UF 100V MKT
C511 E02LU5010M CE 1 UF 50V E02LU3470M CE 47 UF 25V
C512 P1S3T0822J CP 0.0082UF 50V P235W1103J CMP 0.01 UF 100V MKT
C513 P1S300104J CP 0.1 UF 50V E50HU5010M CE 1 UF 50V
C514 C0PLRR7U2K CC 680 PF 2KV RR C03L0R713K CC 0.001 UF 2KV R
C515 CQGTB0415K CC 0.1 UF 50V B
C516 C0JTB05H3K
CC 0.0022UF 500V B
MT2271S DBTV2702
ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
C517 C0PLRR713K CC 0.001 UF 2KV RR C03L0R7U2K CC 680 PF 2KV R
C518 CB3730M13M CC 0.001 UF 250V C0JTB05Q2K CC 470 PF 500V B
C519 C0PLRR713K CC 0.001 UF 2KV RR DEL
C520 C0JTB0413K CC 0.001 UF 50V B
C527 E5EZF2222M CE 2200 UF 16V
!C528 CC3LE0MH3M CC 0.0022UF 250V
C530 CC3LE0MH3M CC 0.0022UF 250V CC3LE0M13M CC 0.001 UF 250V
!C531 E02LT2102M CE 1000 UF 16V DEL
!C533 CC3LE0MH3M CC 0.0022UF 250V CC3LE0M13M CC 0.001 UF 250V
C561 CS0KW04U2M CC 680 PF 50V W DEL
C606 CS0KF0214Z CC 0.01 UF 16V F CS0KY0313M CC 0.001 UF 25V Y
C610 E02LU0101M CE 100 UF 6.3V
C614 CS0KB04H2K CC 220 PF 50V B
C619 E50HU2100M CE 10 UF 16V E02LU2470M CE 47 UF 16V
C623 CS0KSL412K CC 100 PF 50V SL CS0KSL4N1J CC 39 PF 50V SL
C629 CQGTCH412J CC 100 PF 50V CH DEL
C631 E50HU5010M CE 1 UF 50V
C632 E02LU50R1M CE 0.1 UF 50V E50HU5010M CE 1 UF 50V
C638 E50HU2330M CE 33 UF 16 V E00NU2100M CE 10 UF 16 V
C644 E02LT2471M CE 470 UF 16V
C648 CQGTF0415Z CC 0.1 UF 50V F
C649 E50HU52R2M CE 2.2 UF 50V DEL
C650 CS0KB04H2K CC 220 PF 50V B
C652 E50HU5R22M CE 0.22 UF 50 V E50HU54R7M CE 4.7 UF 50V
C705 E50HU54R7M CE 4.7 UF 50V E50HU5010M CE 1 UF 50V
C707 CQGTF0415Z CC 0.1 UF 50V F
C720 E02LU2470M CE 47 UF 16V
C722 CQGTB0415K CC 0.1 UF 50V B
C725 CQGTF0415Z CC 0.1 UF 50V F
C727 CS0KF0214Z CC 0.01 UF 16V F E50HU50R1M CE 0.1 UF 50 V
C809 CS0KB04N2K CC 390 PF 50V B CS0KW04S2M CC 560 PF 50V W
C810 CS0KB04N2K CC 390 PF 50V B CS0KW04S2M CC 560 PF 50V W
C811 CS0KB04N2K CC 390 PF 50V B CS0KW04S2M CC 560 PF 50V W
C901 E50HU5010M CE 1 UF 50V
C902 E50HU5010M CE 1 UF 50V
C910 E02LU2470M CE 47 UF 16V E02LU2221M CE 220 UF 16V
C912 CQGTB04Q4K CC 0.047 UF 50V B CQGTB04S4K CC 0.056 UF 50V B
C1001 CQGTB0415K CC 0.1 UF 50V B E50HU52R2M CE 2.2 UF 50V
C1003 CQGTB0415K CC 0.1 UF 50V B E50HU52R2M CE 2.2 UF 50V
C1005 E02LU1101M CE 100 UF 10V DEL
C1006 E02LU54R7M CE 4.7 UF 50V DEL
C1007 E02LT2102M CE 1000 UF 16V E0ELF4222M CE 2200 UF 35V
C1008 E02LT2102M CE 1000 UF 16V E02LF3102M CE 1000 UF 25V
C1009 E50HU0470M CE 47 UF 6.3V E50HU2100M CE 10 UF 16V
C1010 P6M9T0105J CMPL 1 UF 50V TF DEL
C1011 E02LF3102M CE 1000 UF 25V
C1013 E02LU3101M CE 100 UF 25V
C1014 E02LU2470M CE 47 UF 16V
C1505 E02LT5010M CE 1 UF 50V E50HU54R7M CE 4.7 UF 50V
C1520 CS0KSL4S1K CC 56 PF 50V SL
C1524 CS0KF0214Z CC 0.01 UF 16V F E50HU2100M CE 10 UF 16V
C1528 CS0KB04H2K CC 220 PF 50V B DEL
D101 D1VT001330 DIODE,SILICON 1SS133T-77
D102 D1VT001330 DIODE,SILICON 1SS133T-77
D104 D97U06R81B DIODE,ZENER MTZJ6.8B T-77
!D405 D97U06R21B DIODE,ZENER MTZJ6.2B T-77 D97U09R11B DIODE,ZENER MTZJ9.1B T-77
D406 D1VT001330 DIODE,SILICON 1SS133T-77
D409 D1VT001330
DIODE,SILICON 1SS133T-77
DEL
MT2271S DBTV2702
ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
D413 D2WT011E10 DIODE SILICON 11E1-EIC DEL
D414 D97U01201B DIODE,ZENER MTZJ12B T-77 D2LTP10JE0 DIODE,RECTIFIER RGP10JE-G3
D415 D2LTP10JE0 DIODE,RECTIFIER RGP10JE-G3
D417 D1VT001330 DIODE,SILICON 1SS133T-77
D418 D97U03001B DIODE,ZENER MTZJ30B T-77
D419 D97U03001B DIODE,ZENER MTZJ30B T-77
D451 D2BFRU4AM0 DIODE,SILICON RU-4AM
D452 D2BFRS4FS0 DIODE,SILICON RS-4FS
D505 D2WXB290S0 DIODE SILICON SB290S D28F30DF60 DIODE RECTIFIER 30DF6-FC
!D506 D97U02401B DIODE,ZENER MTZJ24B T-77 D97U01801B DIODE,ZENER MTZJ18B T-77
D507 D1VT001330 DIODE,SILICON 1SS133T-77 D2WT011E10 DIODE SILICON 11E1-EIC
D508 D1VT001330 DIODE,SILICON 1SS133T-77
!D510 D2WXRU2AM0 DIODE SILICON RU2AM-EIC D2BFRU4AM0 DIODE,SILICON RU-4AM
D511 D97U01201B DIODE,ZENER MTZJ12B T-77
D512 D2WXB290S0 DIODE SILICON SB290S
!D514 D2WXSB1400 DIODE SCHOTTKY SB140-EIC D1VT001330 DIODE,SILICON 1SS133T-77
D517 D1VT001330 DIODE,SILICON 1SS133T-77
!D518 D2WTAU02A0 DIODE SILICON AU02A-EIC D1VT001330 DIODE,SILICON 1SS133T-77
D519 D2WXB290S0 DIODE SILICON SB290S DEL
D520 D1VT001330 DIODE,SILICON 1SS133T-77 DEL
D523 D1VT001330 DIODE,SILICON 1SS133T-77 D2WXN49370 DIODE SILICON 1N4937
D525 D97U08R21B DIODE,ZENER MTZJ8.2B T-77
D607 D97U01501B DIODE,ZENER MTZJ15B T-77
D706 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 DEL
D709 D97U06R81B DIODE,ZENER MTZJ6.8B T-77 DEL
IC199 A3L519H015 IC S-24C02BDP-1A A3L535M015 IC S-24C08ADPA-01
IC302 I06DF62420 IC M62420SP I06F062420 IC M62420FP
IC402 I0QT98L050 IC NJM78L05A(T3) I1KJ98L090 IC KIA78L09BP-AT
!IC1001 I03SP46000 IC LA4600 I0FSP52760 IC AN5276
Q101 TNATA03002 COMPOUND TRANSISTOR KRC101MAT
Q102 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
Q103 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
!Q402 TCAT032070 TRANSISTOR SILICON KTC3207-AT TCAT03227Y TRANSISTOR SILICON KTC3227_Y-AT
Q405 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) TCATC3199Y TRANSISTOR SILICON KTC3199_Y-AT
Q406 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q407 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q408 TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
Q409 TC30041590 TRANSISTOR,SILICON 2SC4159(D,E)
Q604 TCAT032034 TRANSISTOR, SILICON KTC3203_Y-AT TCAT03209Y TRANSISTOR SILICON KTC3209_Y-AT
Q605 TCAT032034 TRANSISTOR, SILICON KTC3203_Y-AT TCAT03209Y TRANSISTOR SILICON KTC3209_Y-AT
Q606 TCAT032034 TRANSISTOR, SILICON KTC3203_Y-AT TCAT03209Y TRANSISTOR SILICON KTC3209_Y-AT
Q608 TCAT032034 TRANSISTOR, SILICON KTC3203_Y-AT TCAT03209Y TRANSISTOR SILICON KTC3209_Y-AT
Q703 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR)
Q901 TAST007330 TRANSISTOR,SILICON 2SA733(C)-T(P,Q) TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
Q902 TAST007330 TRANSISTOR,SILICON 2SA733(C)-T(P,Q) TAATA12660 TRANSISTOR,SILICON KTA1266-AT(Y,GR)
Q1001 TCATC31980 TRANSISTOR,SILICON KTC3198-AT(Y,GR) DEL
L401 022100027A COIL,LINEARITY ELH5L4113 022100034A COIL,LINEARITY ELH5L4132N
L402 02A6A8A0A1 CORE,FERRITE HF57T18.5*10*10
L403 02DK000058 COIL CHOKE 02DK000058
L406 021U6D180K COIL 18 UH DEL
!L501 029L000103 COIL,LINE FILTER VRKET24-W074 029T000101 COIL,LINE FILTER 2R2A752F28Y
!L503 028R270009 COIL,DEGAUSS 8R270009 028R270010 COIL,DEGAUSS 8R270010
L601 021LA61R0M COIL 1 UH
L602 02167F101J COIL 100 UH
L603 02167F101J COIL 100 UH
L606 021LA62R2K COIL 2.2 UH
L607 021LA6150K COIL 15 UH 021LA6120K COIL 12 UH
L608 021LA66R8K
COIL 6.8 UH
MT2271S DBTV2702
ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
L701 021LA6270K COIL 27 UH
L901 02167D101K COIL 100 UH
T401 045013002J TRANS,HORIZONTAL DRIVE ETH14Y46AY 450190161 TRANS,HORIZONTAL DRIVE ETH19Y203AY
!T501 048135075S TRANSFORMER,SWITCHING 8135075S 048140066S TRANSFORMER,SWITCHING 8140066S
J702 602431013 RCA JACK JPJ1187-010010 DEL
J710 060G401047 RCA JACK HTJ-032-03AY
J711 060G401046 RCA JACK HTJ-032-03AW
J712 060G401039 RCA JACK HTJ-032-03AR
J801 066F130020 SOCKET,CATHODE RAY,TUBE ISHS53S 066C130015 SOCKET,CATHODE RAY TUBE CVT3275-5102
VR403 V1163H4BTC VOLUME,SEMI FIXED EVNCYAA03BE4
VR404 V1163H4BTC VOLUME,SEMI FIXED EVNCYAA03BE4
VR502 V116313BTC VOLUME,SEMI FIXED EVNCYAA03B13 V1163H4BTC VOLUME,SEMI FIXED EVNCYAA03BE4
B502 024HT03553 CORE,BEADS W5RH3.5X5X1.0 DEL
B503 024HT03553 CORE,BEADS W5RH3.5X5X1.0 DEL
B1002 024HT03553 CORE,BEADS W5RH3.5X5X1.0 DEL
!CD501 1207415905 CORD AC BUSH 07415905 120R414903 CORD AC BUSH 0R414903
CD701 06CU243501 CORD CONNECTOR CU243501 DEL
CD801 06CU823001 CORD CONNECTOR CU823001 06CU822501 CORD CONNECTOR CU822501
!CD804 06CU344001 CORD CONNECTOR SM1198-002-1B DEL
CD807 06CH012102 CORD CONNECTOR CH012102 DEL
CF602 1012T04702 FILTER,CERAMIC TRAP MKT47.3MC110P-TF
!CP401 069S340010 CONNECTOR PCB SIDE A2361WV2-4P 069X460029 CONNECTOR PCB SIDE B06B-DVS
CP701A 067U004029 WIRE HOLDER B2013H02-4P DEL
CP701B 069S240629 CONNECTOR PCB SIDE A2001WV2-4P DEL
CP802A 067U010049 WIRE HOLDER B2013H02-10P 067U005049 WIRE HOLDER B2013H02-5P
CP802B 067U010049 WIRE HOLDER B2013H02-10P 067U005049 WIRE HOLDER B2013H02-5P
CP803A 067U006049 WIRE HOLDER B2013H02-6P
CP803B 067U006049 WIRE HOLDER B2013H02-6P
CP806 069W010010 CONNECTOR PCB SIDE DEL
!FB401 043225010F TRANSFORMER,FLYBACK 322501 0F 043227010F TRANSFORMER,FLYBACK 3227010F
OS101 077Q037003 REMOTE RECEIVER PIC-37143SY 773071001 REMOTE RECEIVER RPM7138-H5
!SP1001 070Y435001 SPEAKER S0509F12 070Y435006 SPEAKER S0509F12-E
TP501 069D01001A CONNECTOR PCB SIDE 003P-2100 DEL
!TU001 145100059 TUNER,VHF-UHF ENV56DB6G3 145100059 TUNER,VHF-UHF ENV56DB6G3
!V801 984270706 CRT W/DY A68ADT25X01 0981270B01 CRT W/DY M68LWF088X
PCB010 A3L519G010K TV MT PCB ASS'Y TMA529A A3L535M010 TV MT PCB ASS'Y TMB544A
PCB110 A3L504G110K CRT PCB ASS'Y TCA338A A3L530M110 CRT PCB ASS'Y TCB403A
PCB250 A3L504G250K AV PCB ASS'Y TEAA90A DEL
MT2271S DBTV2702
ELECTRICAL REPLACEMENT PARTS LIST

REF. NO. PART NO. DESCRIPTION PART NO. DESCRIPTION
102 701APJA106 CABINET,FRONT 701WPJB933 CABINET,FRONT
103 702APAA005 CABINET,BACK 702WPA0937 CABINET,BACK(1/6)
104 711WPCA043 BADGE,BRAND 723552A002 BADGE,BRAND
105 722A08A114 SHEET,RATING 722552A026 SHEET,RATING
106 723000B550 FILM,DECORATION 723000C068 FILM,DECORATION
108 713WPA0098 GUIDE,REMOCON 713WPA0230 GUIDE,REMOCON
109 7260000306 SHEET,CAUTION 724000A002 SHEET,CSA
110 735WPA0565 BUTTON,ASS'Y 735WPA0696 BUTTON,BASE
112 8995034000 CORD CLIP UL CO. 800WQ00026 FELT,SHEET 10x145xT0.3
113 800WB0A009 FIBER WASHER 800WQ0A013 FELT,SHEET 5x30xT0.5
114 735WPBA385 BUTTON,FRAME
115 A3L538M740 CABINET,BACK ASS'Y
116 800WQ00045 FELT,SHEET 5x150xT0.5
117 800WQ0A020 FELT,SHEET 18x400xT=1
118 A3L538M720 CABINET,FRONT ASS'Y
202 8111J50D05 SCREW,TAPPING(A) GW22 5*35 CH HEXAGO 8111J50D04 SCREW,TAPPING(A) GW22 5*40 CH HEXAGON
206 8107630804 SCREW,TAP TITE(S) BRAZIER 3x8
--- 7230007398 SECURITY TAG
--- 793ACDA155 GIFT BOX 793WCDB480 GIFT BOX
--- 792AHA0077 PACKAGE,TOP 792WHA0394 PACKAGE,TOP
--- 792AHA0078 PACKAGE,BOTTOM 792WHA0395 PACKAGE,BOTTOM
--- 791AHA0021 FILM,BAG 791WHA0026 LAMIFILM BAG
--- JB5L0200 POLYBAG,INSTRUCTION JB5U0200 POLYBAG,INSTRUCTION
--- J3L40901 INSTRUCTION BOOK J3L53801A INSTRUCTION BOOK
--- J3K00502 WARRANTY SHEET J5A34002B WARRANTY SHEET
--- A3L409I975 INSTRUCTION BOOK KIT A3L538M975 INSTRUCTION BOOK KIT
REF. NO.
01
02
03
05
07
08
09
0A
0B
0C
0D
0E
0F
3D
36
08
0C
MT2271S DBTV2702
3A
C0
3D
36
0A
3B
03
00
00
44
89
00
83
02
8B
B3
B7
1B
DATA DATA
60
30
MECHANICAL REPLACEMENT PARTS LIST
MT2271S DBTV2702
A5
0A
WHEN REPLACING EEPROM (MEMORY) IC

C652
R626
CF601
R630
R631
R627
D616
D615
D613
R610
C603
R614
D611
D612
D610
C612
Q603
C625
C604
L606
C605
C610 C601
C634
X602
R608
R638
W089
C647
C613
C635
CF604
L607
Q607
R617 C632
J710 J711 J712
C701
C702
W016
R404
R607
C646
Q609
R613
C639_1
W020
W013 W014
CP802A
L601
R637
W055
C911
C915
C916
C904
C905
C907
C910
C903
Q902
Q901
R312 R308
C317 C328_1
W078
W076
CP1001
W863
W864
W011
W012
W006
W005
W007
W009
W048
C124_1
IC199
C122
W801
L101
W845
R114
C115
C120
R111
R107
C128
SW105
W169
SW102 SW101 SW104 SW103
W122
R140
D104
C123
R131
W121
W120
W054
C119
W066
W128
W053
W067
W068
W069
W127
W130
W056
W070
C137
C129
C125
W117
W133
W134
W131
W051
W129
D405
R422
R417
R407
R446
W144
R421_1
R450
VR502
Q507
B504
C521
R410
R434
IC401
FH502
F501
FH501
CP502
D504
D502
C420
C448
R424
R402
D503
D501
W162
C507
Q403
Q404
C427 R433
R412
TH501
R435
R436
HS501
C412
R502
C511_1
R542
D528
C453_1
R535
D404
R418
R500
R515
D411
D418
D419
W167
R439
R503
W848
R427
Q502
Q504
D407
D509
IC501
Q401
VR401
VR402
D410
Q501
Q805
Q806Q804
Q801 Q802 Q803
D802
D803
D801
W151
D408
R419
R806
CP801
RY501
D521
R803
R805
R807
J801
C506
R520
R511
C502
C503
S501A
C403
R501
R514
CP401
FB401
T501
D512
D525
R547
R554 R555
R536
W149
D518
R512
CP803A
CP802B
CP803B
D452
C449
D451
C451
R461
HS402
W160
W157
W156
R415
W163
C434
R409
W146
VR404
VR403
R441
R438
Q408
R455
W165
W166
R456
R458
D415
R457
R454
R447_1
R445
C441
W164
R430
R141
R142
W104
R902
W095
C445
Q407
C430
R406
C437
R444
R420
R440
R460
R431
R443
R411
W161
W159
W158
C730
C729
C704
C703
C705 C728
C726
R720
R721
Q705
Q707
J707
J701
J705
D001
W106
W111
W029
TU001
W023
R623
R606
R760
W040
C719 R749
D705
W025
Q706 R632
R629_1 Q608
Q606
W026
C628
Q604
Q605
C624
D601
D602
W027
IC702
HS1001
C1011
R1009 R1004
C1003
C1001
W031
D605
W114
C1008
W024
R621
W034
C1014
C003
C002
TP001
W107 W108 W109 C721
C706
C717
W093
W099
C712
C707
W030
W037
W041
W112
W105
W110
W088
W137
W082
C1505
D1502
W092
R1522
C1527
R1520
W090
W049 Q1508
D1501
W050
C620
C645
W039
W102
W152
W171
R1003
W044
C630 C1009
R504
R1008
R702
C435
W075
R901
W010
W047
W036
W032
C732
C501
C527
C118
C446
C718
W035
C1013
W172
D510
C504
C648
W154
W136
R804
W168
W147
R802
OS101
R106
R105
C104
W074
C007
C303
C918
C917 C912
C914
C327
C301
C727
C316
C323
C401_1
C402
W142
W143
C436
C440
C452_1
C509_1
C802
D414
D505
Q409
Q701
Q702
T401
D417
Q402_1
C442
L401
C322
Q405
R904
D508
R507
D506
D523
L501
C518
C505
C444
CP601
R408
R459
IC402
C515
W079
W113
W043
W085
C1524
HS401
W091
W021
L603
L602
W017
W019
W072
W071
W064
W065
W063
D507
C513
R513
W086
W084
W132
D511
Q101
D101
R138
W115
W077
R137
C325
W018
W002
D102
C621
W004
W001
R405
W003
TP022
TP023
TP024
C512
C520
C447
L901
Q406
R517_1
B501
D516
W042 C720
W175
W073
L403_1
W174
W176
R429
W177
W813
W185
R641
W140
R543_1
W045
W180
W057
C418
W828
W822
C331
C722
C631
W150
D607
W096
W061
W829
C901
C902
W052
W181
R113
Q103
R516
D514
D517
C433
C1007
W080
W081
D412
C439
L801
Q703
C414
C725
C417
W083
W100
W101
W097
W098
W153
C644
C517
Q102
W183
IC1001
C514_1
W184
R508
D515
C530
C533
C528
R1524
C619
S801Y
W186
S801X
W103
D406
C638
CF603
C112
W844
W867
W849
W823
W821
W807
C607_1
CD501
CF602
W806
L608
L701
C455
S104Y
S104X
S102X
S102Y
S103Y
S103X
C516
W182
C626
W847
W851
R521
CP806_1
C456
6.3A125VOR250V
S501B
PRINTED CIRCUIT BOARDS
MAIN/CRT (INSERTED PARTS)
SOLDER SIDE

17
33
49
1
R636
R605
R619 R625
R642R646
C616
R633
R628
C655
C623
R609
C618
C606
R601
R602
C622
R639
R734
R733
IC601
C913
C908
R903
IC901
R306
C324
R307
C332 R310
C315
R309
IC302
R311
R118
R109
C108_1
C107_1
R108
C103
R127
C113 C121
C114
R134
R129
C609
R119
R104
R121
IC101
R122
R103R120
R124
R123
C140
R101
R128
R126
R112
R115
R635
R130
IC1502
R532R533
R437
R534
R814
R816
R811
R815
R809 R813
C810
C809
C811
R808
R801
R810
C801
R817
R818
R819
C408
R722
R725
R726
R728
R723
R711
R709
R703
R704
R729
R727
R731
R710
C708
R622
R615
C602 R611
R004
C1004
R1014
R1015
C1002
R719
R1523
R1521
R1519
R1518
R110
R1002
R1006
R708
R505
R125 R133
R139
R102
R136
R643 C614
C1520
R143
R403
C110
C106
C109
R1512
R620
C1521
R724
R707
R907
R909
R905
R908
R145
R144
R146
R715
R650
C650
R740
PRINTED CIRCUIT BOARDS
MAIN/CRT (CHIP MOUNTED PARTS)
SOLDER SIDE

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
DEFLECTION SIGNAL
B.SIGNAL
G.SIGNAL
R.SIGNAL
TUNER VIDEO SIGNAL
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
TU001 ENV56DB6G3
1
10
11
12 13 14 15
2 3 4 5 6
7
8 9
C118
4706.3V YK
C128
1006.3V YK
C140
0.001 Y
C104 0.01 F
C108_1 56P SL
C114
15P CH
C113
15P CH
C107_1
56P SL
C106
100P SL
C109
100P SL
C110
100P SL
C007
0.1 B
C124_1
1F
C119
0.1 F
C121
220P B
C103
470P B
C120
0.001 CH
C003
4.750V KA
C002 4706.3V YK
C112
1016V KA
C115
0.4750V KA
C137
0.150V KA C129
0.150V KA C125
0.150V KA
C122
150V KA
C123
1050V YK
R146
10K
R143
10K
R111
47K 1/4W
R140
47 1/4W
R004
100K
R102 560
R124
4.7K
R104
560
R103 560
R105 3.3K 1/4W
R106
3.3K 1/4W
R118
680
R128
560
R101
560
R126
2.7K
R108 1K
R119
1K
R123
4.7K
R122
4.7K
R121
4.7K
R120
4.7K
R131
100 1/4W
R114
10K 1/4W
R112
2.2K
R113
2.2K 1/4W
R107
47K 1/4W
R130
1K
R109
47K
R110
1K
R125 100
R133 100
R139 100
R138
4.7K 1/4W
R136
10K
R137
56K 1/4W
R141
270 1/4W
R142
270 1/4W
R129
1M
R134
10
R144
1K
R145
1.8K
R127 2.7K
R115
47K
D102
1SS133
D101
1SS133
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARESINCE THESE PARTS MARKED BYCAUTION:
D001
MTZJ30B
D104
MTZJ6.8B
Q103
KTC3198
BUFFER
W801
TP001
W828
W845
TM101
RC-DW040
Q102
KTA1266
BUFFER
L101
2.7uH
Q101
KRC101MAT
PROTECT SW
IC199
S-24C08ADPA-01
MEMORY IC
1234
5678
SW101
SKHVBED010
27 CH UP
SW103
SKHVBED010
27 VOL UP
SW104
SKHVBED010
27 VOL DOWN
SW105
SKHVBED010
27 POWER
SW102
SKHVBED010
27 CH DOWN
IC101 OEC7072A
MICON IC
110111213141516171819 22021
22 23 24 25 26 27 28 29
3
30 31 32 33 34 35 36 37 38 39
4
40 41 42
56789
CAUTION: DIGITAL TRANSISTOR
S102X S102Y
Vout B+ GND
OS101
RPM7138-H5
1 2 3
+30V
PROTECT_A
GND
DEGAUSS_H
AGC
IF
TUNER+5V
PROTECT
AFT
SYNC
VD
I2C_OFF
X-RAY OSD_B
X-RAY_TEST OSD_G
POWER
OSD_R
H_SYNC
OSD_BLK
AV2 SDA
EXT_MUTE
AV1 SCL
CLOCK_CONT
POWER
FSC
RESET
AV1
ON_TIMER
AT+5V
Y_VIDEO
SDA
SCL
AUDIO_MUTE
(DBTV2702)
(MAIN PCB)
0
5.0
5.0
4.9
5.05.0
5.0 5.0
1.20 1.2
1.2
5.0
G-2
04.9
G-1
TO COMB/FILTER
TO AV
FROM/TO DEFLECTION/CRT
FROM/TO POWER
NC
6.2
NC
1.3
0 0
NC
NC
0
NC
ACCESSORY
PCB010
TMB544
FORM/TO SOUND
FROM/TO CHROMA
0
0
NC
NC
IF
BTL BPL V.S SDA SCL
ADRES
AGC
30.0
4.6
0
000
4.9

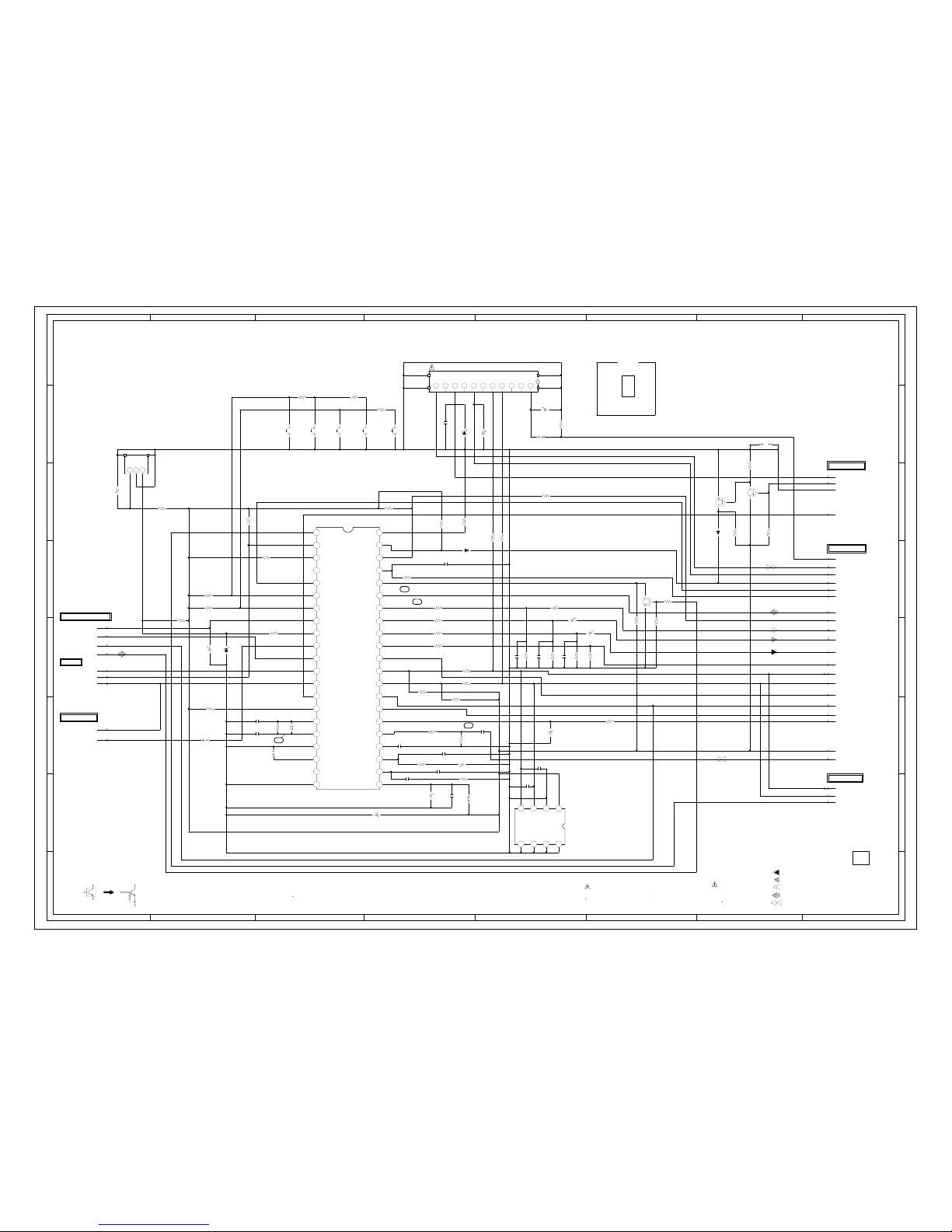

MICON/TUNER SCHEMATIC DIAGRAM
VSS E2 E1
E0 VCC
MODE
SCL SDA
VCC
0
Xout
VSS
CNVSS
Xin
OSC2
OSC1
P.FAIL
REMOCON
X-RAY
BLUE B
GREEN G
RED R
BLANK
RESET
CVIN
V.HOLD
HLF
SCL1
SDA1
FSC IN
POWER
CLOCK CONT
V.SYNC
H.SYNC
I2C_OFF
STANDBY_H
SYNC
AV1
AV2
X-RAY_TEST
KEY2
KEY1
FILT
H_CTL
PROTECT
AUDIO MUTE
AFT
VOLUME
ON_TIMER
DEGAUSS_H
EXT_MUTE
0
3
4
2
5.0
5.0
2.3
5.0
5.0
5.0
4.9
4.9
4.9
0
0
5.0
0
0
0
4.9
0
0
0
0
0
0
0
5.0
5.0
4.6
3.2
4.9
2.9
0.8
2.1
1.6
5.1
0
5.0
5.0
0
5.0
5.0 0
1
4.9
0
4.8

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
X602
3.579545MHz

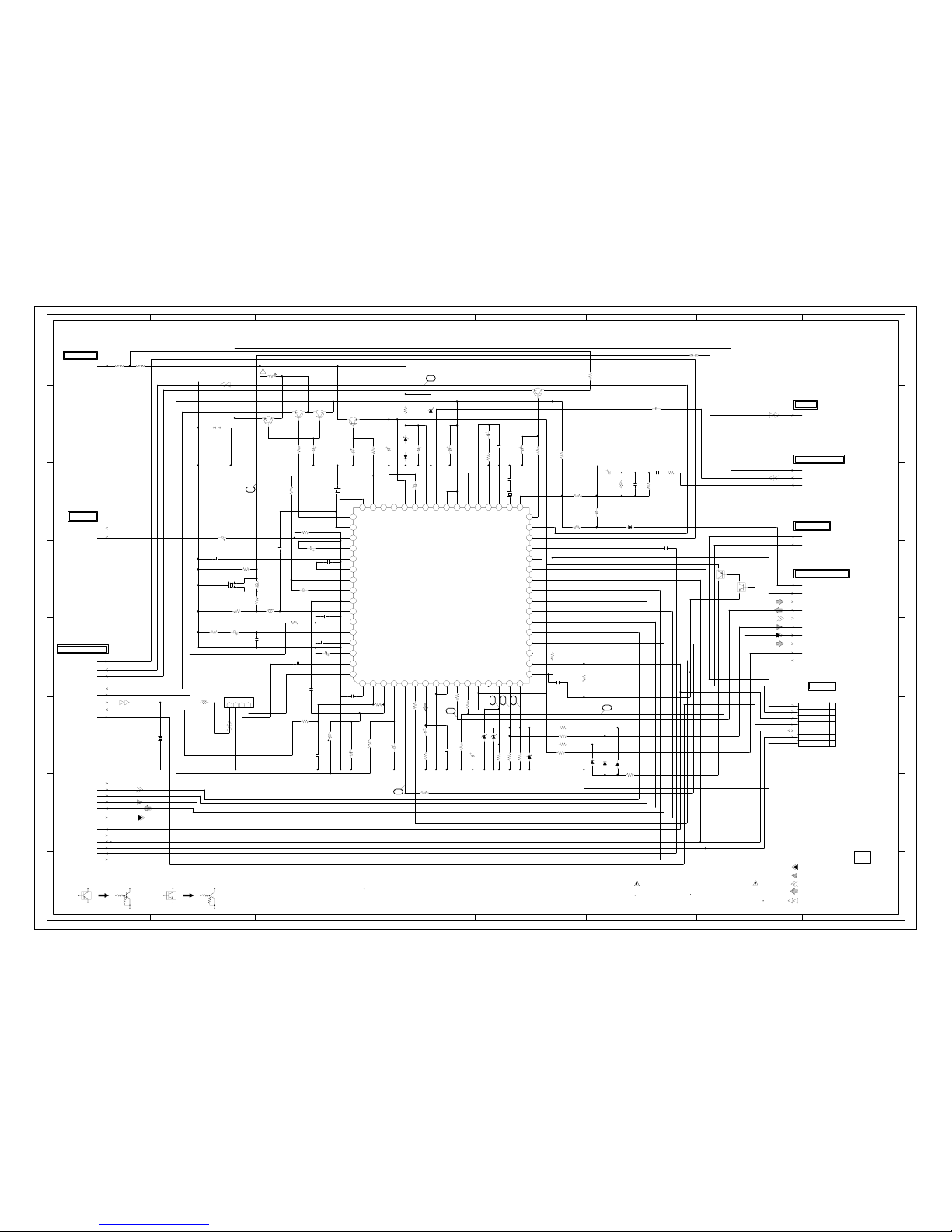

C638
1016V KANP
R629_1
27 3W
CAUTION: DIGITAL TRANSISTOR
Q607
KRA104MAT
SWITCHING
IC601
M61250FP
CHROMA IC
1101112
13 14 15 16
17 18 19
2
20 21 22 23 24 25 26 27 28 29
3
30 31 32
33343536373839
4
404142434445464748
49
5
50515253545556575859
6
6061626364
789
CF603
SFSRA4M50CF00-A0
CF604
TPSRA4M50C00-A0
L602
100uH 0305
L603
100uH 0305
GNDOUTOUTIN
CF601
TSF5229P3
SAW FILTER
1234
CP601
TKC-M07X-A1
1
2
3
4
5
6
7
CF602
MKT47.3MC110P-TF
DEFLECTION SIGNAL
B.SIGNAL
G.SIGNAL
R.SIGNAL
TUNER VIDEO SIGNAL
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
C604
150V KA
C620
4.750V KA
C602 0.01 F
C606 0.001 Y
C650
220P B
C621
0.01 B
C607_1
0.01 B
C616
15P CH
C618
100P SL
C613
163V MKT
C609
0.01 F
C639_1
0.01 B
C622
0.022 F
C634
0.01 B
C614
220P B
C623
39P SL
C626
100P CH
C648
0.1 F
C655
0.0068 Y
C610
1006.3V YK
C646
150V YK
C612
100010V YK
C625
150V KA
C619
4716V YK
C605
0.4750V KA
C628
0.2250V KA
C635 4716V YK
C652
4.750V KA
C601
1006.3V YK
C647
150V YK
C603
150V KA
C632
150V KA
C630
4716V YK
C624
4716V YK
C645
4716V YK
C644
47016V YK
R650
1K
R617 330 1/4W
R613
390 1/4W
R632
150 1/2W
R614 2.2K
1/4W
R619 2.2K R625 2.2K
R646
27K
R630 100 1/4W
R627 100 1/4W
R631 100 1/4W
R601
1K
R602
1K
R635
100
R638
8.2K 1/4W
R639
1.5K
R628
100
R609
220
R615
470
R633 8.2K
R636
33K
R626
22K 1/4W
R641
22K 1/4W
R605 4.7K
R622
270
R608
120 1/2W
R607
1M 1/4W
R623
1.8K 1/4W
R621
1.5K 1/4W
R610
27K 1/4W
R611 10K
R620
120K
R642
5.6K
R643
820
R637
10M 1/4W
R606
10K 1/4W
D613
1SS133
D615
1SS133
D616
1SS133
D605
11E1-EIC
D601
1SS133
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARESINCE THESE PARTS MARKED BYCAUTION:
D612
MTZJ12B
D611 MTZJ12B
D610 MTZJ12B
D602
MTZJ8.2B
D607
MTZJ15B
Q608
KTC3209_Y
REG
Q603
KTC3203_Y
REG
Q606
KTC3209_Y
REG
Q605
KTC3209_Y
REG
Q604
KTC3209_Y
REG
W806
W847W851
W829
L608
6.8uH
L607
12uH
L606
2.2uH
L601
1uH
Q609
KRC102MAT
SWITCHING
CAUTION: DIGITAL TRANSISTOR
UNREG+12V
GND
TU_VIDEO
STEREO+5V
Y_IN
C_IN
STEREO+5V
AUDIO_OUT_R
TU_AUDIO_OUT
AUDIO_OUT_L
ABCL
CLOCK_CONT
P.CON+5V
H_OUT
H_SYNC
B.OUT
G.OUT
R.OUT
VD V_OUT
OSD_BLK
CLAMP
V_FEEDBACK
RESET SYNC
Y_VIDEO GND
AT+5V
OSD_G OSD_R
OSD_B
TUNER+5V
AGC
IF
AFT
PROTECT
POWER
OSD_B
OSD_BLK
OSD_G
VD
OSD_R
SYNC
I2C_OFF
SDA
SCL
FSC
CLOCK_CONT
(DBTV2702)
(MAIN PCB)
4.9
4.9
4.9 4.912
5.0
5.0
0
5.5
3.3
7.9
7.9
7.9
8.8
G-4G-3

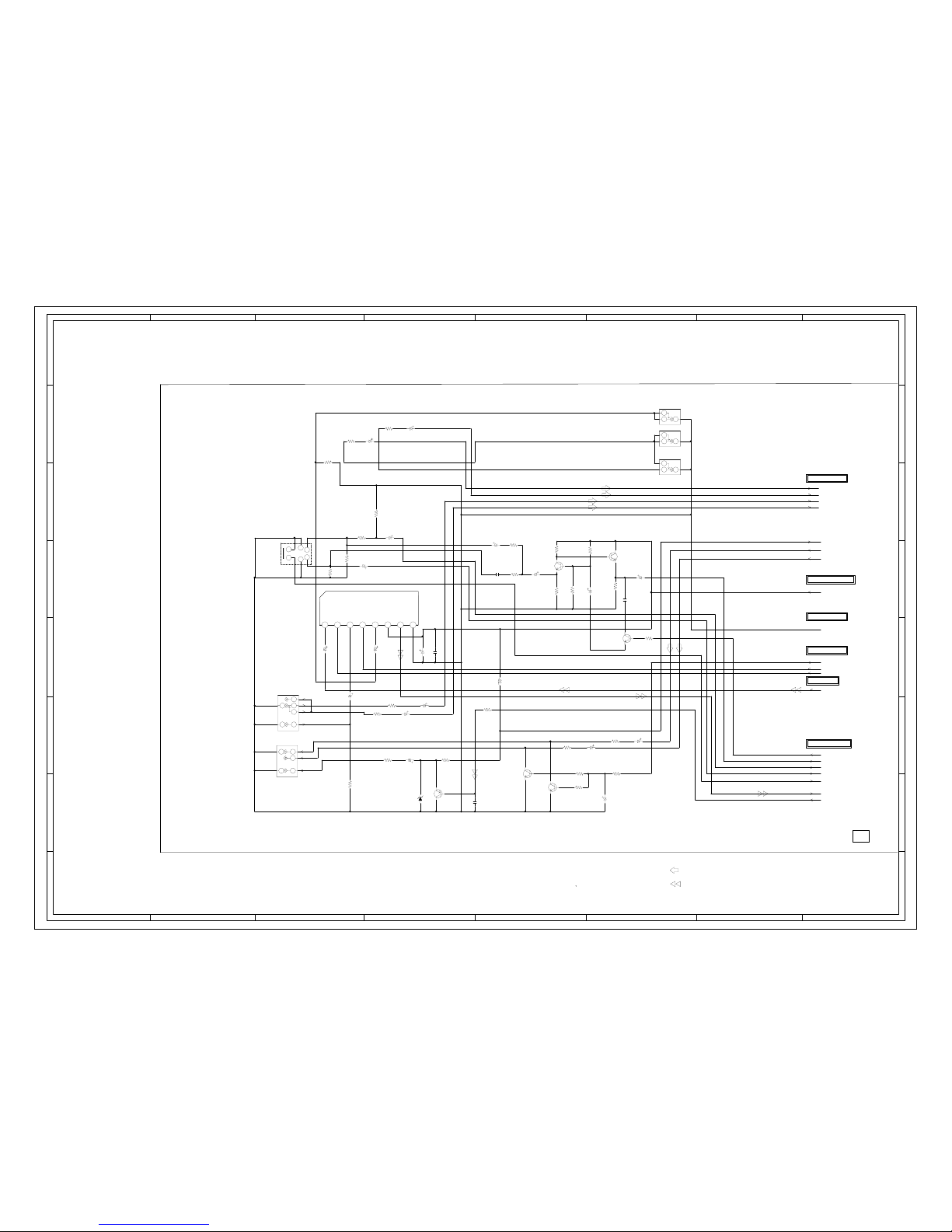

CHROMA SCHEMATIC DIAGRAM
NC
4.97.27.24.9
10
NCNC
AUDIO_OUT_L
TEST POINT
GND
SDA
INT.MONI
SCL
IIC_OFF
AUDIO_OUT_R
FROM SOUND
TO AV
NC
TO SOUND
FROM POWER
FROM/TO MICON/TUNER
FROM/TO DEFLECTION/CRT
FROM/TO COMB FILTER
PCB010
TMB544
4.9
5.5
7.2
R OUT
4.9 4.9 2.0
5.7
11 12
0
000
13
G OUT
VIF Vcc VIF Vcc
V OUT
V RAMP FEEDBACK
AFC FILTER DEF GND DEF GND
FBP IN
H OUT
STRAT UP Vcc
INTELLIGENT MONI
B IN
R IN
G IN
FAST BLK
CLOCK CONT
SDA
SCL
POWER ON CONT
MCU RESET
Y SW OUT
VIDEO/CHROMA GND VIDEO/CHROMA GND
CHROMA APC FILTER
EXT C in
VIDEO CHROMA Vcc VIDEO CHROMA Vcc
TV/Y IN
33 ACL/ABCL
34 X’TAL
VREG Vcc
fsc OUT 1
fsc OUT 2
Hi Vcc
NC NC
32 AT5.7V REG OUT
QIF OUT
AUDIO OUT
AUDIO BYPASS
EXT AUDIO IN
FM DIRECT OUT
VIF VCO F/B
VIF GND
VIF GND
VIF VIDEO OUT
RF AGC OUT
VIF APC FILTER
VIF IN (1)
IF AGC FILTER1
IF AGC FILTER2
64 VIF IN (2)
1 V RAMP CAP
2 AFT OUT
47 8.7V REG OUT
48 LIMITER IN
49 P.Con5.7V REG
16 B OUT
17 H VCO F/B
NC
2.02.0
7.911.3
5.5 5.5
6
8.8
4.9
89
V PULSE OUT
INV FBP OUT
0
00
6.0 3.6 7.8 6.4 8.2 0
3.5
4.9
4.6
2.9
2.9
2.9
3.0
4.9
4.6
4.9
3.6
2.6
3.3
2.92.0 0 0 3.3 3.88.2008.81.6
1.5
1.5
2.3
2.3
2.1
2.1
2.1
0
0
3.0
4.0
3.0
2.4
2.4
2.2
7

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
R408
3.9K +-1%
R424
18K +-1%
R409
15K +-1%
VR403
22K
SIDE PCC
VR404
22K
H SIZE
VR401
2.2K
V-POSI
VR402
470
V-LINER
T401
ETH19Y203AY
12
345
CD801
CU822501
CP801
A2361WV2-2P
1
2
B
G
R
11
6
8
10
9
175
V801
M68LWF088X
Q401
2SD2499(LBOEC1)
H.OUTPUT
R457
10 1/2W
R461
11W
R429
2.2 2W
IC401 LA78041V-OUT IC
1234567
TP024 TP023
TP022
HS402
763WAE0110
IS NON POLAR ONE.
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
L401
ELH5L4132N
VIDEO
8
E8
E25
E12
GND
TER
HEA
AFC
B+
GND
ABL
GND
COL HV
F
S
FB401 3227010F
1
10
11
2
3
4
5
6
7
8
9
CP806_1
IC402
KIA78L09BP-AT
9V REG. IC
123
CP401
B06B-DVS
1
2
3
4
5
6
CP802B
B2013H02-5P
1
2
3
4
5
CP802A
B2013H02-5P
1
2
3
4
5
CP803B B2013H02-6P
1
2
3
4
5
6
CP803A B2013H02-6P
1
2
3
4
5
6
F
J801
CVT3275-5102
1
10
11
5
6
789
HS401
763WAA0214
L403_1
02DK000058
L402
HF57T18.5*10*10
C442
6.850V UHT
R402
1K 1W
R805
12K 2W
R807
12K 2W
R803
12K 2W
R439
68 1W
CAUTION: DIGITAL TRANSISTOR
Q403
KRA104MAT
X-RAY TEST SW.
L801
100uH 0607
DEFLECTION SIGNAL
B.SIGNAL
G.SIGNAL
R.SIGNAL
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
C434
22100V YK
C427
1050V YK
C402
0.0012KV RR
C440
0.01100V MKT
C452_1
0.0151.25KV
MPP
C449
0.39250V PMS
C810 560P W
C802
0.0012KV R
C401_1
68P500V SL
C455
100P500V B
C412
0.033 M
C451 0.027630V
PP
C801
100P SL
C453_1
390P1.25KV MPP
C435
0.1100V MKT
C403
0.22100V
MKT
C437
0.068 TF
C436
0.33 TF
C430
0.068100V
MKT
C408
150P SL
C811 560P W
C809
560P W
C420
0.0022500V B
C456
0.022 TF
C439 4750V YK
C444
4716V YK
C631
150V KA
C414
10035V
YK
C448
10250V YK
C446
2250V YK
C445
1050V YK
C441
0.4750V KA
C418
1000
25V YK
C433
220035V YK
C417
4.750V
KA
C447
33016V YK
R460 1K 1/4W
R417
12K 1/4W
R446
470 1/2W
R431
47K 1/4W
R815
270
R421_1
68K 1/2W
R422
8.2K 1/2W
R404
220 1/4W
R447_1
1.8K 1/4W
R418
27K 1/4W
R437
2.7K
R804
2.7K 1/4W
R819 68
R810
220
R816
270
R818 68
R808
220
R813
270
R817 68
R806
2.7K 1/4W
R801
220
R802
2.7K 1/4W
R450
100K 1/2W
R427
100 1/4W
R443 4.7K 1/4W
R445
22K 1/4W
R441
27K 1/4W
R438
10K 1/4W
R458
1.5K 1/2W
R419
1K
1/4W
R434
1 1/2W R407
1 1/2W
R456
15K
1/4W
R430
6.8K 1/4W
R412
270 1/2W
R433
270 1/2W
R436
1 1/2W
R435
1 1/2W
R406
1 1/2W
R444
22K 1/4W
R440
220K 1/4W
R411 1K 1/2W
R415
560 1/2W
R410
560 1/2W
R420
6.8K 1/4W
R455
2.7K 1/4W
R454
2.2K 1/2W
R809 2.7K
R814 2.7K
R811
2.7K
R405
1K 1/4W R403
10K
R459
820 1/2W
D407
AU02A-EIC
D417
1SS133
D803
1SS133
D802
1SS133
D801
1SS133
D410
AU02A-EIC
D408
AU02A-EIC
D406
1SS133
D451
RU-4AM
D411
AU02A-EIC
D452
RS-4FS
D414
RGP10JE
D415
RGP10JE
D412
11E1-EIC
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARESINCE THESE PARTS MARKED BYCAUTION:
D404 MTZJ5.1B
D418
MTZJ30B
D419
MTZJ30B
D405
MTZJ9.1B
Q806
KTC4217
BLUE OUT
Q805
KTC4217
GREEN OUT
Q804
KTC4217
RED OUT
Q407
KTC3198
PIN SW
Q402_1
KTC3227_Y
H.DRIVE
Q802
KTC3199_Y
BLUE OUT
Q803
KTC3199_Y
GREEN OUT
Q801
KTC3199_Y
RED OUT
Q406
KTC3198
PROTECT
Q409
2SC4159
PIN DRIVE
Q405
KTC3199_Y
PROTECT
W867
W844
Q408
KTA1266
PIN DRIVE
Q404
KRC102MAT
X-RAY TEST SW
CAUTION: DIGITAL TRANSISTOR
S103Y S103X
GND
CLAMP CLAMP
G.OUT G.OUT
B.OUT B.OUT
R.OUT R.OUT
V_OUT 180V
ABCL
H_OUT
V_FEEDBACK
H_SYNC HEATER
P.CON+5V
GND
H_SYNC
X-RAY
X-RAY_TEST
POWER
P.CON+9V
P.CON+9V
UNREG+18V
+B
GND
(DBTV2702)(MAIN PCB)

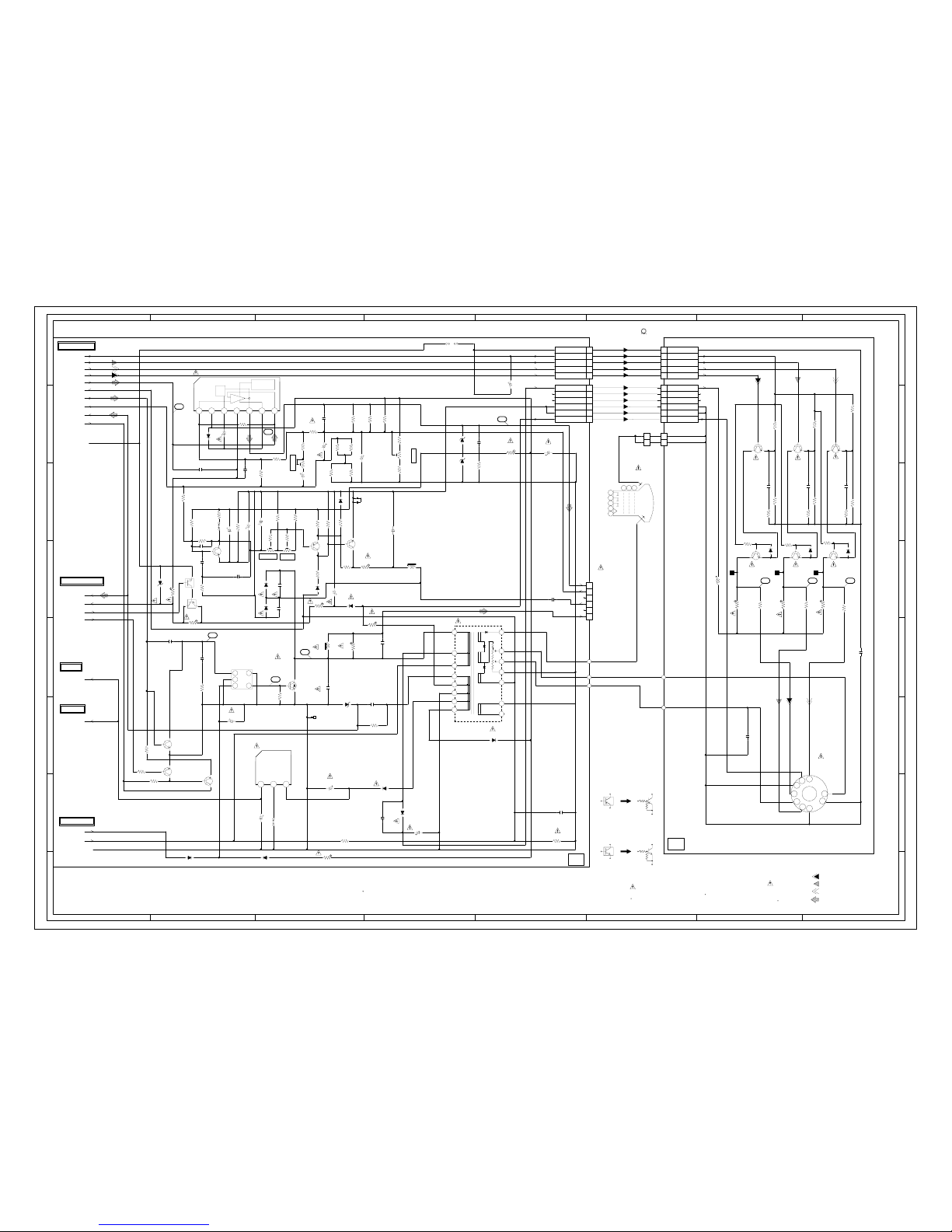

DEFLECTION/CRT SCHEMATIC DIAGRAM
100.6100.6100.6
100.6
100.6
100.6
13
123.0
123.0
100.6
100.6
112.0
G-6G-5
0
0
NC
0.2
0
0
TO SOUND
TO AV
FROM/TO MICON/TUNER
NC
NC
TCB403
FROM POWER
SCREEN
FOCUS
3.23.2
3.2
100.6
FROM/TO CHROMA
03.9 26.1 2.2 13 26
AMP
+
-
UP
PUMP PROTECTION
THERMAL
GNDVCC
3.9
18
6.4
0
0
212220
R.OUT
B.OUT
CLAMP
GND
G.OUT
180V
HEATER
GND
GND
HEATER
180V
R.OUT
B.OUT
G.OUT
CLAMP
GND
PCB110
2
1
180V
HEATER
GND
GND
NC
NC
B.OUT
GND
CLAMP
G.OUT
R.OUT
NC
NC
-27.0
112.0
128.0
128.0
0
0
0
0.3
INGNDOUT
17
16
9.6
16.0
16.1
16.0
0
0
8.7
0.6
0
3.8
7.8
3.2
15
19
0
8.1
0
PCB010
TMB544
NC
NC
NC
NC
2.7
2.7
2.7
0
0
0.6
0.6 8.2 7.4
123.0
7.4 7.4
14
27.0
0.3
0
5.0 9.0 13.0

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
6.3A 125V
6.3A 125V
N’UTOLISER QUE DES FUSIBLE DE MEME TYPE
ATTENTION:POUR UNE PROTECTION CONTINUE LES RISQUES D’INCEIE
REPLACE ONLY WITH THE SAME TYPE FUSE
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
IS THE LIVE CONNECTIONCAUTION:
L501
2R2A752F28Y
COIL,LINE FILTER
12
34
21
L503
8R270010
DEGAUSS COIL
RY501
ALKS321 12
34
FH502
EYF-52BC
FH501
EYF-52BC
F501
6.3A125V
R501
1.2 7W
IC501
LTV-817M-VB
FEED BACK
1
2 34
B501
W5RH3.5X5X1.0
B504
W5RH3.5X5X1.0
TH501
ZPB45BL3R0A
BLACK
WHITE
BLADE
WIDE
CD501
0R414903
AC120V_60Hz
S
D
G
Q501
2SK3326(2)
SWTCHING
T501 8140066S
1
10
11
12
13
14
15
16
2
3
5
6
7
89
VR502
22K
+B ADJ
CP502
A1561WV2-2P
1
2
R502
0.22 1W
HS501
763WAA0023
S501B
S501A
R517_1
0.39 2W
R543_1
330 2W
R521
150 2W
R542
0.15 1W
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
C511_1
4725V YK
C521
220160V YXF
C513
150V KA
C507
470200V UP
C505
0.22275V PHE840
C506
0.1275V PHE840
C503
0.0012KV B
C502
0.0012KV B
C517
680P2KV R
C520
0.001 B
C504
0.01 F
C518
470P500V B
C516
0.0022500V B
C509_1
0.047100V MKT
C512 0.01100V MKT
C514_1
0.0012KV R
C530
0.001250V KY
C533
0.001250V KY
C528
0.0022250V KY
C515
0.1 B
C501
100035V YK
C527
220016V MHE
R508
100 1/4W
R512
270 1/4W
R515
10K 1/4W
R533
1K
R532
820
R534
100
R514
6.8K 1/4W
R505
10K
R547
100 1/4W
R516
100 1/4W
R520
1.5M 1/2W
R500
2.7M 1/2W
+-10%
R503
1.2M 1/4W
R511
1.2M 1/4W
R507
150 1/4W
R504
10K 1/2W
R513
1K 1/2W
R555
100K 1/4W
R554
6.8K 1/4W
R535
68K 1/2W
R536
68K 1/2W
D518
1SS133
D523
1N4937
D516
1SS133
D505
30DF6-FC
D502
RM11C-EIC
D503
RM11C-EIC
D510
RU-4AM
D512
SB290S
D507
11E1-EIC
D515
1SS133
D521
1SS133
D501
RM11C-EIC
D504
RM11C-EIC
D508
1SS133
D517
1SS133
D514
1SS133
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARESINCE THESE PARTS MARKED BYCAUTION:
D506
MTZJ18B
D525
MTZJ8.2B
D509
MTZJ18B
D528
MTZJ5.6B
D511
MTZJ12B
Q504
KTC3198
RELAY DRIVE
Q507
KTC3198
FEED BACK
SWITCHING
Q502
KTC3203_Y
BUFFER
W848
W849
W822
W821
W823
UNREG+12V
GND
UNREG+18V
+B
GND
SOUND+B
GND
SOUND_GND
GND
GND
DEGAUSS_H
PROTECT_A
+30V
GND
(DBTV2702)
(MAIN PCB)
144.0
6.0
8.8
0.3
G-8G-7
0
0
11.61
0
POWER SCHEMATIC DIAGRAM
FROM/TO COMB FILTER
0.1
4.8
144.0
0.6
140.5
15.66
95.4
0
011.80
0
11.74
140.5
126
TO SOUND
TO DEFLECTION/CRT
FROM CHROMA
FROM/TO MICON/TUNER
FROM/TO AV
6.3A 125V(F501).
6.3A 125V(F501).
NC
0.2
0
4.8
00.3 8.8
PCB010
P1
P2
NC
5.4
TMB544
9.8 9.8
NC

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
AUDIO SIGNAL
CP1001
A2502WV2-4P
1
2
3
4
IC901 AN5829S
SOUND DECORDER IC
1 101112
13141516171819
2
2021222324
3456789
SPEAKER
SP1001
S0509F12-E
8OHM 2.5Wx2
IC302 M62420FP
TONE CONTROL IC
110
111213141516171819
2
20
3456789
IC1001 AN5276SOUND AMP IC
1 10111223456789
HS1001
763WAA0215
L901
100uH 0607
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
C904
4.750V KA
C907
1016V KA
C328_1
22010V YK
C903
4.750V KA
C905
4.750V KA
C911 0.3350V KA
C915
3.350V KA
C910
22016V YK
C331 22016V YK
C912 0.056 B
C914 0.1 B
C917 0.1 B
C1002
0.01 F
C908
0.001 Y
C913
0.022 F
C916 0.1 B
C918 0.1 B
C327
0.1 F
C322
0.033 B
C332
0.001 Y
C303
0.033 B
C323
0.47 TF
C324
0.022 F
C315
0.022
F
C316
0.47
TF
C1004
0.01 F
C1009
1016V KA
C1003
2.250V KA
C1013
10025V YK
C1001
2.250V KA
C325
2.250V KA
C901
150V KA
C1007
220035V YK
C301
4716V YK
C1011
100025V YK
C1014
4716V YK
C1008
100025V YK
C902
150V KA
C317
2.250V YK
R907
39K
R904
6.8M 1/4W
R1009
1K
1/4W
R1008
1.8K 1/4W
R1004
1K 1/4W
R905
56K
R312
1K 1/4W
R903
220K
R1002
4.7K
R908
56K
R909
39K
R310
100K
R308
1K 1/4W
R307
4.7K
R306
4.7K
R311
1.8K
R309
1.8K
R1003
10K 1/4W
R1006
1.8K
R1015
3.3K
R1014
3.3K
R902
220 1/4W
R901
220 1/4W
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARESINCE THESE PARTS MARKED BYCAUTION:
W813
W864
W863
Q901
KTA1266
BUFFER
Q902
KTA1266
BUFFER
S104Y S104X
S801X
S801Y
SCL
SDA
AUDIO_MUTE
P.CON+9V
SOUND_R
P.CON+9V_1
REAR_AUDIO_R
REAR_AUDIO_L
FRONT_AUDIO_R
SOUND_L
FRONT_AUDIO_L
AUDIO_OUT_R
AUDIO_OUT_L
SOUND+B
GND
SOUND_GND
TU_AUDIO_OUT
STEREO+5V
AUDIO_OUT_L
AUDIO_OUT_R
(DBTV2702)(MAIN PCB)
5.0 5.0
4.2
G-10G-9
NC
0
NC
FROM/TO MICON/TUNER
FROM DEFLECTION/CRT
FROM/TO AV
FROM/TO CHROMA
FROM POWER
30
29
4.4 4.2 4.2 4.4 3.4 3.3 4.4 0
5.05.004.43.33.44.44.24.28.9
SOUND SCHEMATIC DIAGRAM
Noise
Det
Spectral
RMS Det
SAP
Filter
Noise
Filter
Spectral
Filter
SAP
Det
Stereo
Filter
GND
Input
VCA
Pilot
Det
St.PLL
Cancel
Pilot
Vcc
Spectral
Expand
dbx De-Emph
SAP
Demod
Wide Band
RMS Det
Wide Band
Filter
L+R Filter L+R Demod
IIC Decoder
L-R DemodL-R Filter
fH.2fH Trap Filter
OUT SW
AGC
Matrix
Offset
Cancel
Offset
Cancel
Wide Band
Expand
ZAPDAC
(L-R)/SAP
Switch
De-Emph
75us
SAPout
Filter
0 2.3 0.4 5.1 2.4 2.4 0.4 2.3 3.4
3.7
2.63.63.705.05.002.32.32.3
2.3 2.3
2.3
2.22.2
26
25
27
3.2
0
2.3
0
3.2 INTERFACE
I2C BUS
CONTROL
LOGIC
+
-
-
+
+
-
+
-
+
-
+
-
136K
136K
SIMAMP1
VOLAMP1
SIMAMP2
VOLAMP2 6.5K
6.5K
6.5K
VR4
1.8K
1.8K
S2 S1
VR3 VR5
S7
S4
S6
S3 S5
6.5K
TONE
AMP2
AMP1
TONE
S8
VR6
REF
REF
REF
VR2
VR1
28
31
1
2
3
4
SP OUT L+
SP OUT L-
SP OUT R+
SP OUT R- SPEAKER
NC
+
RIPPLE
FILTER
+
-
-
+
+ATT.
VCCGND STAND
-BY OUT
MUTE
OUT
ATT.CONT.
NC CH2 CH1 GND CH2
ININ
CH1 RF
0.6 17.6 0 1.0 0 16.8 0.3 0 18.9 8.7 16.8
33
32
PCB010
TMB544

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
IC702 NJM2245LVIDEO AMP IC
12345678
J705
YKF51-5503
S_VIDEO
12
34
56
HNC
E
J710
HTJ-032-03AY
AV (FRONT)
1 23
HNC
E
J712
HTJ-032-03AR
AV (FRONT)
1 23 HNC
E
J711
HTJ-032-03AW
AV (FRONT)
1 23
EE
H1 NC H1 H2
J701
MSP-213V2-432_PBSN
REAR_AV-IN (STEREO)
1 234
5 6
H1 H1H2
EE
J707
MSP-213V1-432_PBSN
REAR_AV_OUT (STEREO)
1 23
4 5
AUDIO SIGNAL
TUNER VIDEO SIGNAL
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
C721
47010V YK
C728
1016V KA
C717
1016V KA
C712
47010V YK
C706
1016V KA
C726
1016V KA
C708 33P SL
C725
0.1 F
C722
0.1 B
C707
0.1 F
C702
1016V KA
C705
150V KA
C729
1050V YK
C732
1050V YK
C704
1016V KA
C703
1016V KA
C701
1016V KA
C727
0.150V KA
C720
4716V YK
C730
4716V YK
C719
4716V YK
C718
1050V YK
R715
4.7K
R711
1K
R709
1K
R760
390 1/4W
R702
10 1/4W
R749
2.2K 1/4W
R722 75
R723
75
R724
470
R731
2.2K
R733
1K
R719
75
R707
2.2K
R734
1K
R703
1K
R704
1K
R708
68
R725
2.2K
R727
4.7K
R729
8.2K
R726
1.8K
R720
1K 1/4W
R721
1K 1/4W
R710
1.5K
R728
1K
R740
68
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
D705
MTZJ12B
Q703
KTC3198
SW
Q705
KTC3198
MUTE
Q707
KTC3198
MUTE
Q701
KTC3198
BUFFER Q702
KTC3198
BUFFER
Q706
KTA1266
BUFFER
L701
27uH
FRONT_AUDIO_L
FRONT_AUDIO_R
REAR_AUDIO_R
REAR_AUDIO_L
P.CON+9V_1
AUDIO_OUT_R
AUDIO_OUT_L
P.CON+9V
GND
EXT_MUTE
AV2
AV1
TU_VIDEO
ON_TIMER
S_VIDEO
VI_Y_IN
VI_C_IN
V1_SW
VIDEO_IN
VIDEO_OUT
(DBTV2702)
0
1.6 0
0
9.0
0
G-12G-11
V_OUT
A_OUT_L
A_OUT_R
A_IN_L
A_IN_R
V_IN
1.6
2.5
FROM/TO COMB FILTER
FROM CHROMA
FROM MICON/TUNER
FROM/TO POWER
FROM DEFLECTION/CRT
FROM/TO SOUND
(MAIN PCB)
5.2
4.5
0
VIDEO_3_IN
L3_IN
R3_IN
0
0
0
0
00
2.5
Vin1 SW1 SW2Vin2 GNDVoutV+Vin3
5.9 5.0 5.9 5.0 4.0 05.9 9.0
PCB010
TMB544
AV SCHEMATIC DIAGRAM

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
IC1502 NJM2283M
AV/S SW IC
1
10 11 12 13 14 15 16
2345678
9
TUNER VIDEO SIGNAL
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
NOTE:THE DC VOLTAGE AT EACH PART WAS MEASURED
C1520
56P SL
C1521
10P CH
C1505
4.750V KA
C1524
1016V KA
C1527
1050V YK
R1522
1K 1/4W
R1521
820
R1523
1K
R1512
1K
R1519
560
R1518
560
R1520
1K 1/4W
R1524
1K 1/4W
D1502
1SS133
D1501
1SS133
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
W807
Q1508
KRC102MAT
S_VIDEO SW
CAUTION: DIGITAL TRANSISTOR
STEREO+5V
C_IN
Y_IN
VIDEO_IN
V1_SW
VI_C_IN
VIDEO_OUT
VI_Y_IN
S_VIDEO
ON_TIMER
AV1
ON_TIMER
GND
(DBTV2702)
0
0
4.9
G-14G-13
FROM/TO POWER
FROM MICON/TUNER
FROM/TO CHROMA
FROM/TO AV
(MAIN PCB)
NL
N
L
LN
4.5
4.5
0
0
0
4.5
4.5
7.5
7.5
7.5
4.5
4.5
3.8
3.8
3.8
4.9
PCB010
TMB544
COMB/FILTER SCHEMATIC DIAGRAM

MECHANICAL EXPLODED VIEW
I-1
J801
PCB110
(CRT PCB ASS'Y)
111
V801 FB401
TU001
205
112
113
PCB010
(MAIN PCB ASS'Y)
101
103
117
115
117
117
111
111
111














































102 116
116
118
116
109
114
110
CHANGE 112, 113
202
202
202
202
206
206

M3L5-38M
O/R NO.
SPEC.NO. W283044
