Duratech HEAT DURA+i Series User manual

DURA+10i
DURA+13i
DURA+18i
DURA+20i
DURA+25i
DURA+28Ti
Manual
+i

2
Dimensions.....................................................................................................................
1. Specications .............................................................................................................
1.1 Performance Data Dura+i .............................................................................
2. Preface .......................................................................................................................
3. Installation and Connection ........................................................................................
3.1 Installation Illustration....................................................................................
3.2 Swimming Pool Heat Pumps Location ..........................................................
3.3 How Close To Your Pool?..............................................................................
3.4 Swimming Pool Heat Pumps Plumbing.........................................................
3.5 Filter Pump Connection.................................................................................
3.6 Swimming Pool Heat Pumps Electrical Wiring..............................................
3.7 Initial Start-up of the Unit...............................................................................
3.8 Commisioning the LinkDongleTM ...................................................................
3.9 Connecting the Wi module ..........................................................................
3.10 Connecting the LinkTouchTM ........................................................................
4. Use and Operation Instruction....................................................................................
4.1 Interface Display ...........................................................................................
4.2 Time setting...................................................................................................
4.3 Setting the On/Off timer ................................................................................
4.4 Adjust setpoint...............................................................................................
4.5 Mode selection ..............................................................................................
4.6 Locking and unlocking the touch screen .......................................................
4.7 Silent function settings ..................................................................................
4.8 Troubleshooting guide...................................................................................
4.9 Parameter menu............................................................................................
4.10 Fault table....................................................................................................
4.11 Interface drawing.........................................................................................
5. Maintenance and Inspection.......................................................................................
6. Appendix.....................................................................................................................
6.1 Caution & Warning ........................................................................................
6.2 Cable Specication .......................................................................................
3
5
5
8
10
10
11
11
12
12
13
13
14
15
18
19
19
21
22
24
25
26
27
30
32
35
37
41
47
47
48
Table of Contents

3
ENG
DURA+10i / DURA+13i
Dimensions
DURA+18i

4
DURA+20i / DURA+25i / DURA+28Ti

5
ENG
1.1 Performance Data Dura+i
UNIT DURA+10i DURA+13i
Advised Pool Volume* m330 - 55 40 - 70
Operating Air Temperature °C -10 ~ 43
Available Operation Mode Heating & Cooling
Air 27°C / Water 26°C / Humidity 80%
Heating Capacity kW 1,9 - 9,5 2,4 - 13
Btu 6483 - 32415 8189 - 44358
Consumed Power kW 0,118 - 1,39 0,145 - 1,96
COP 16,1 - 6,8 16,5 - 6,6
Air 15°C / Water 26°C / Humidity 70%
Heating Capacity kW 1,4 - 7,0 1,6 - 9,1
Btu 4777 - 23885 5459 - 31050
Consumed Power kW 0,205 - 1,48 0,238 - 1,89
COP 6,8 - 4,7 6,7 - 4,8
Air 10°C / Water 26°C / Humidity 64%
Heating Capacity kW 1,2 - 5,5 1,6 - 7,2
Btu 4095 - 18767 5459 - 24567
Consumed Power kW 0,27 - 1,72 0,33 - 2,18
COP 4,5 - 3,2 4,8 - 3,3
Power Supply 230V / 50Hz / 1 Phase
Casing Type Aluminium-alloy
Electronic Controller DuralinkTM ready with colour LCD
Nominal Running Current A 6,86 7,52
Max. Current A 9,46 9,98
Condensor Titanium Heat Exchanger
Compressor Quantity 1
Compressor Type Rotary - Mitsubishi DC Inverter
Refrigerant R32 (HFK-32)
Refrigerant weight kg 0,45 0,50
GWP 675
CO2 equivalent ton 0,304 0,338
Fan Quantity 1
Fan Motor Type DC Brushless
Fan Power Input W 40 40
Fan Rotary Speed RPM 500 - 800 500 - 800
Air Flow m3/h 2000 - 2300 2000 - 2300
Fan Direction Horizontal both sides
Noise at 10m dB(A) 16,5 - 27 19 - 28,5
Water Connection mm 50
Nominal Water Flow m3/h 3,2 4,2
Water Pressure Drop (max): kPa 5 6
Unit Net Dimensions (L*W*H) mm See the drawing of the units
Unit Shipping Dimensions (L*W*H) mm See package label
Net Weight kg See nameplate
Shipping Weight kg See package label
1. Specications
Additional information:
This product contains a uorinated greenhouse gas. The refrigerant in the product is hermetically
sealed. * Advised pool volume for an entirely insulated pool, with cover, free from wind and exposed to the sun.

6
* Advised pool volume for an entirely insulated pool, with cover, free from wind and exposed to the sun.
UNIT DURA+18i DURA+20i
Advised Pool Volume* m350 - 85 60 - 100
Operating Air Temperature °C -10 ~ 43
Available Operation Mode Heating & Cooling
Air 27°C / Water 26°C / Humidity 80%
Heating Capacity kW 2,5 - 17,8 3,5 - 20
Btu 8530 - 60736 11942 - 68243
Consumed Power kW 0,151 - 2,78 0,214 - 3,07
COP 16,5 - 6,4 16,3 - 6,5
Air 15°C / Water 26°C / Humidity 70%
Heating Capacity kW 2,3 - 12,8 2,5 - 14,7
Btu 7848 - 43675 8530 - 50158
Consumed Power kW 0,353 -2,66 0,357 - 3,19
COP 6,5 - 4,8 7 - 4,6
Air 10°C / Water 26°C / Humidity 64%
Heating Capacity kW 2,0 - 9,8 2,6 - 11,3
Btu 6824 - 33439 8872 - 38557
Consumed Power kW 0,40 - 2,80 0,58 - 3,32
COP 4,9 - 3,5 4,5 - 3,4
Power Supply 230V / 50Hz / 1 Phase
Casing Type Aluminium-alloy
Electronic Controller DuralinkTM ready with colour LCD
Nominal Running Current A 12,94 13,2
Max. Current A 13,13 13,5
Condensor Titanium Heat Exchanger
Compressor Quantity 1
Compressor Type Rotary - Mitsubishi DC Inverter
Refrigerant R32 (HFK-32)
Refrigerant weight kg 0,65 0,80
GWP 675
CO2 equivalent 0,439 0,54
Fan Quantity 1
Fan Motor Type DC Brushless
Fan Power Input W 75 75
Fan Rotary Speed RPM 500 - 750 500 - 750
Air Flow m3/h 2700 - 3200 4300 - 5000
Fan Direction Horizontal both sides
Noise at 10m dB(A) 20 - 30 21 - 31
Water Connection mm 50
Nominal Water Flow m3/h 5,3 6,6
Water Pressure Drop (max): kPa 3 4
Unit Net Dimensions (L*W*H) mm See the drawing of the units
Unit Shipping Dimensions (L*W*H) mm See package label
Net Weight kg See nameplate
Shipping Weight kg See package label
Additional information:
This product contains a uorinated greenhouse gas.
The refrigerant in the product is hermetically sealed.

7
ENG
* Advised pool volume for an entirely insulated pool, with cover, free from wind and exposed to the sun.
UNIT DURA+25i DURA+28Ti
Advised Pool Volume* m370 - 120 90 - 160
Operating Air Temperature °C -10 ~ 43
Available Operation Mode Heating & Cooling
Air 27°C / Water 26°C / Humidity 80%
Heating Capacity kW 6,0 - 24 7,8 - 27,8
Btu 20473 - 81892 26615 - 93834
Consumed Power kW 0,375 - 3,99 0,488 - 4,71
COP 16,0 - 6,0 16,0 - 5,9
Air 15°C / Water 26°C / Humidity 70%
Heating Capacity kW 4,3 - 18,2 5,0 - 21,2
Btu 14672 - 62101 17061 - 72338
Consumed Power kW 0,661 - 4,04 0,769 - 4,81
COP 6,5 - 4,5 6,5 - 4,4
Air 10°C / Water 26°C / Humidity 64%
Heating Capacity kW 3,1 - 13,7 3,7 - 15,9
Btu 10578 - 46746 12625 - 54253
Consumed Power kW 0,69 - 3,91 0,82 - 4,68
COP 4,5 - 3,5 4,5 - 3,4
Power Supply 230V / 50Hz / 1 Phase 380V / 3N / 3Phase
Casing Type Aluminium-alloy
Electronic Controller DuralinkTM ready with colour LCD
Nominal Running Current A 13,34 8,26
Max. Current A 15,3 10,84
Condensor Titanium Heat Exchanger
Compressor Quantity 1
Compressor Type Rotary - Panasonic DC Inverter
Refrigerant R32 (HFK-32)
Refrigerant weight kg 1,2 1,3
GWP 675
CO2 equivalent ton 0,81 0,878
Fan Quantity 1
Fan Motor Type DC Brushless
Fan Power Input W 150 150
Fan Rotary Speed RPM 500 - 600 400 - 750
Air Flow m3/h 4000 - 4800 4200 - 5000
Fan Direction Horizontal
Noise at 10m dB(A) 23 - 33 25 - 34
Water Connection mm 50
Nominal Water Flow m3/h 7,8 9,1
Water Pressure Drop (max): kPa 7 8
Unit Net Dimensions (L*W*H) mm See the drawing of the units
Unit Shipping Dimensions (L*W*H) mm See package label
Net Weight kg See nameplate
Shipping Weight kg See package label
Additional information:
This product contains a uorinated greenhouse gas.
The refrigerant in the product is hermetically sealed.

8
- In order to provide our customers with quality, reliability and versatility, this product has been
made to strict production standards. This manual includes all the necessary information about
installation, debugging, discharging and maintenance. Please read this manual carefully before
you open or maintain the unit. The manufacturer of this product will not be held responsible if
someone is injured or the unit is damaged, as a result of improper installation, debugging, or
unnecessary maintenance. It is vital that the instructions within this manual are adhered to at all
times. The unit must be installed by qualied personnel.
2. Preface
Please read these instructions carefully before using the heat pump and keep them for future
reference:
1. Always keep the unit upright. If the unit has been tilted or put on its side, wait 24h before
starting the heat pump.
2. Put the unit on a at, solid base. Tilting the heat pump for max 3° is accepted.
3. Do not drop the heat pump.
4. The heat pump must always be installed outdoors.
5. Check if the voltage indicated on the heat pump corresponds to the local mains voltage before
you connect the unit. Please nd more information about the electrical connection in section 3.5
6. Do not pull any electrical cable, sensor or tubing with unnecessary force.
7. Do not wrap any cable around the heat pump.
8. Do not use the heat pump in combination with a transformer.
9. If the heat pump is damaged during transportation, it must be replaced, please contact your
service centre or similarly qualied persons in order to avoid a hazard.
10. Always make sure the water connections of the heat pump are properly locked before you
start using the machine.
11. Make sure the ow sensor is installed properly after maintenance.
12. Use supply wires suitable for 75°C.
13. The evaporator ns must not be damaged.
The heat pump will always perform very well, provided the following elements are present
1. Fresh air 2. Electricity 3. Swimming pool water

9
ENG
14. This heat pump is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the heat pump by a person responsible for their safety.
15. Children should always be supervised to ensure that they do not play with the heat pump.
16. Disconnect electricity when the heat pump is not in use and before cleaning.
17. The heat pump should be serviced only by qualied service personnel. Contact your nearest
authorized service facility for examination, repair or adjustment.
18. If the supply cord is damaged, it must be replaced by the manufacturer or your service agent
or similarly qualied person in order to avoid a hazard.
19. Please contact your dealer if your swimming pool heat pump is not working properly. There
might be a leakage when the heat pump does not heat the swimming pool water. The R32
refrigerant gas is safe when there is a leakage although re can occure when a ame, heating
device or stove gets in contact with the gas. Stop using your swimming pool heat pump until a
qualied service technician has conrmed that the leak has been repaired.
20.Make sure that there is a circuit breaker for the unit, lack of a circuit breaker can lead to
electrical shock or re.
21. The heat pump is equipped with an over-load protection system. It does not allow for the unit
to start for at least 3 minutes from a previous stoppage.
22. The condens water is not suitable for a potable water connection.

10
3. Installation and Connection
3.1 Installation Illustration
Attention:
Please follow these steps when using for the rst time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been lled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
Put the heat pump on a at, solid base. Tilting the heat pump for max 3° is allowed.
Install silent blocks in order to avoid vibrations and noise.
All feeding of water treatment to the pool water has to be done downstream of the heat pump.
It is normal for condens water to come out of the heat pump. This is not a leak or fault with the
unit. If the humidity is very high, the condens water could be a number of liters a day.
Always keep the heat pump in upright position. If the unit has been tilted, then wait 24h before
starting the heat pump.
It is recommended to install a by-pass for easy maintenance.

11
ENG
When using automatic chlorine and pH dosage systems, it is of uttermost importance to protect
the heat pump from high concentrations of these chemicals that could corrode the heat exchanger
after long term use. Therefore, such systems should add the chemicals in the conduits located
DOWNSTREAM of the heat pump and it is recommended to install a check-valve in order to
prevent backow when there is no water circulation.
Damage to the heat pump caused by disregarding any of these recommendations will invalidate
the warranty.
3.2 Swimming Pool Heat Pumps Location
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. DO NOT place the unit in an enclosed area with a limited air volume, where the units
discharge air will be re-circulated.
DO NOT place the unit next to shrubs which can block air inlet. These locations prevent the unit of
having a continuous source of fresh air which reduces its efciency and may prevent adequate
heat delivery.
The heat pump should be located maximum 7,5m away from the swimming pool. The longer the
distance from the pool, the greater the heat loss from the piping. For longer distances it is highly
recommended to insulate the piping to avoid excessive heat loss.
3.3 How Close To Your Pool?

12
It is recommended to install a by-pass for easy maintenance.All feeding of water treatment to the
pool water has to be done downstream of the heat pump. Give serious consideration to adding a
quick coupler tting at the unit inlet and outlet to allow easy draining of unit for winterizing and to
provide easier access should servicing be required.
Condensation: Since the Heat pump cools down the air about 4 -5°C, water may condense on the
ns of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as
much as several litres an hour. The water will run down the ns into the basepan and drain out
through the barbed plastic condensation drain tting on the side of the basepan. This tting is
designed to accept 20mm clear vinyl tubing which can be pushed on by hand and run to a suitable
drain. It is easy to mistake the condensation for a water leak inside the unit.
Before the installation, remove the top panel as shown in
3.9. Push the lter pump connection cables through the
cable glant. Afterwards connect the cable to the connector
clamps one and two. The lter pump will be regulated
automaticly after this installation.
3.4 Swimming Pool Heat Pumps Plumbing
3.5 Filter Pump Connection
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the
pool pump running. If the water stops running out of the basepan, it is condensation. AN EVEN
QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine present,
then it’s condensation.
NOTE: Power off the heat pump and disconnect from mains (230 VAC), prior to the installation.

13
ENG
Check if the electrical mains voltage corresponds with the operating voltage of the heat pump
prior to hooking up the unit. It is recommended to use a separate fuse as well as adequate wiring.
The unit has a separate molded-in junction box with a standard electrical conduit nipple already in
place. Just remove the screws and the front panel, feed your supply lines in through the conduit
nipple and wire-nut the electric supply wires to the three connections already in the junction box.
To complete electrical hookup, connect Heat Pump by electrical conduit, UF cable or other
suitable means as specied (as permitted by local electrical authorities) to a dedicated AC power
supply branch circuit equipped with the proper circuit breaker, disconnect or time delay fuse
protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be located
within sight of and readily accessible from the unit, This is common practice on commercial and
residential air conditioners and heat pumps. It prevents remotely-energizing unattended
equipment and permits turning off power at the unit while the unit is being serviced.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your lter pump. Check for water leaks and verify ow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF on the wire
controller, It should start in several seconds.
3. After running a few minutes make sure the air leaving the side of the unit is cooler.
4. With the unit operating turn the lter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water temperature is
reached. When the water-in temperature reaches this setting, the unit will slow down for a period
of time, if the temperature is maintained for 45 minutes the unit will turn off. The unit will now
automatically restart (as long as your pool pump is running)when the pool temperature drops
more than 0.2 below set temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to
protect control circuit components and to eliminate restart cycling and contactor chatter. This
time delay will automatically restart the unit approximately 3 minutes after each control circuit
interruption. Even a brief power interruption will activate the solid state 3 minute restart delay and
prevent the unit from starting until the 3 minute countdown is completed.
3.6 Swimming Pool Heat Pumps Electrical Wiring
3.7 Initial Start-up of the Unit
NOTE: Although the heat pump is electrically isolated from the rest of the pool equipment, this
only prevents the passage of electricity to or from the pool water. Grounding the unit is still
required to protect yourself from short circuits inside the unit. Provide an adequate ground
connection.
NOTE: In order for the unit to heat the pool or spa, the lter pump must be running to
circulate water through the heat exchanger.

14

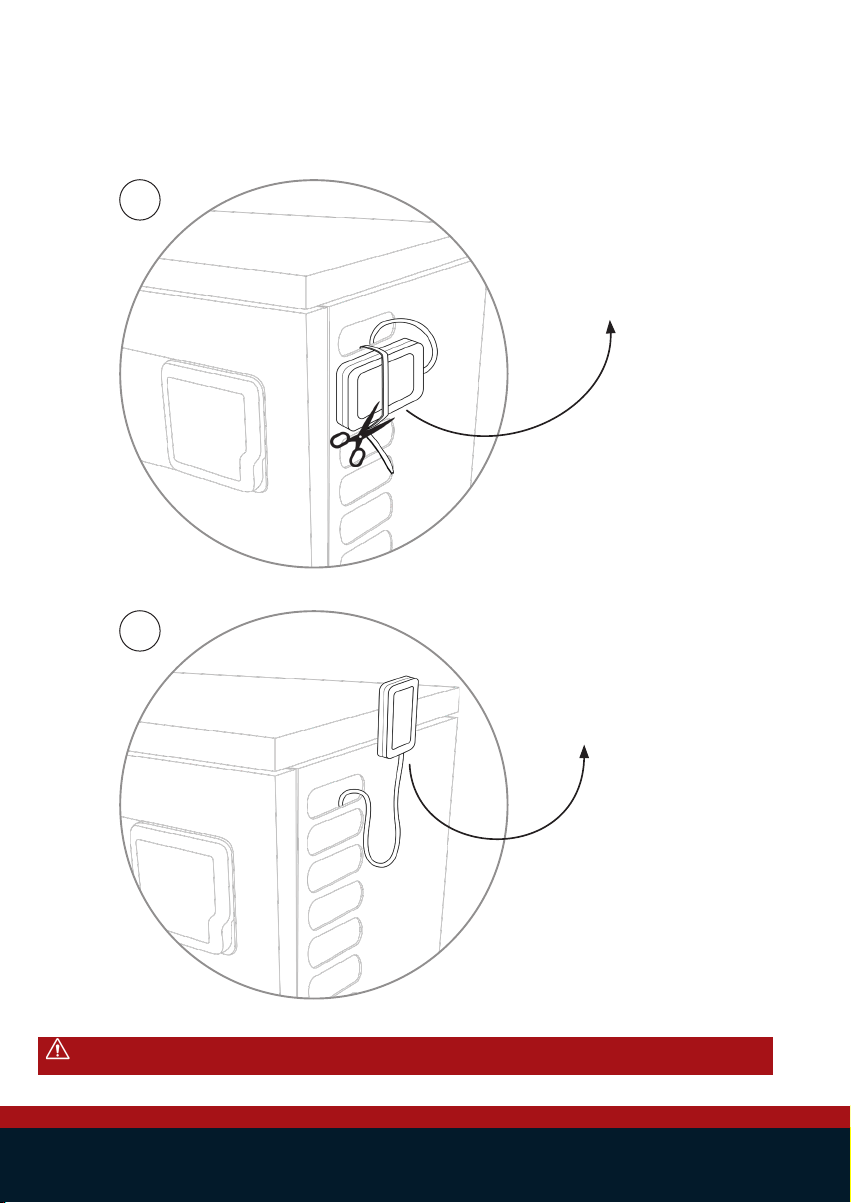

3.8 Commissioning the LinkDongleTM
Remove the cable tie
Place the LinkDongleTM on the
pump using the magnet so
that it sticks above the pump.
Note the ‘this side up’ sticker
so that the LinkDongleTM is
correctly positioned
NOTE: Correct positioning of the LinkDongleTM is necessary for the LinkTouch to function properly.
This chapter explains which steps are necessary to make the LinkDongleTM ready for use.
1
2

15
ENG
3.9 Installing the Wi module
This chapter explains which steps are necessary to instal the Wi module.
Remove the three screws on the back of
the heat pump. Then remove the top lid by
a sliding and pulling motion.
Remove the screws at the top and bottom
of the front of the heat pump. Then remove
the front panel.
NOTE: Power off the heat pump and disconnect from mains (230 VAC), prior to the installation.
1
2

16
Remove the screws and open the
electronics lid.
Insert the wi module through the grill on
the right side of the pump. Mount the wi
module on the outside.
Push the connector
through the plug.
3
4

17
ENG
Connect the wi module with one half of the
splitter, reconnect the display cable with the
other half.
Wi module
Display cable
Display cable
Splitter Circuit
board
Circuit
board
NOTE: Reconnect the heat pump to mains (230 VAC), after the installation.
NOTE: For connecting the WiFi module to your device see Wi module manual.
5
6
Disconnect the display cable from the
circuit board.

18
3.10 Connecting the LinkTouchTM
To operate the pump with the LinkTouchTM, perform the following steps:
Select “Pair Start”-mode from the
settings menu, on your LinkTouchTM.
Touch the screen once to put the
LinkTouchTM in pairing mode.
Make sure the LinkTouchTM is in close proximity (<2m) of the device which you would like to pair with
wirelessly. Select “Pair Start” on the LinkTouchTM. Power on the device.
The device will be in pairing mode for about 2 minutes after switched on.
The LinkTouchTM will now be pairing with the device.
SETTINGS
Pair
start
Pairing

19
ENG
4.Use and Operation Instruction
4.1 General presentation
Number Function
1Auto mode
2Cooling mode
3Heating mode
4Compressor’s ON indicator
5Fan
6Timer
7Defrost mode
8Alarm
9Lock screen
10 Water input temperature
11 Water output temperature
12 On/Off/Back
13 Main screen
14 Setpoint temperature
15 System time
16 Operating mode selection
17 Adjust setpoint
18 Setting silent mode timer
19 Activate silent mode
20 Set On/Off timers
21 Parameter menu
22 Acces list of faults
23 Set data and time
24 Conrm
25 Back (changes not conrmed)
The heat pump is equipped with a digital control panel with a touch screen, electronically connected
and pre-set at the factory in heating mode.
123456789
15 10
19
16 17
18
2425
11
12
2022
2123
14
13

20
To switch from OFF to ON mode and vice versa, press the button.
OFF mode
When the heat pump is idle (in stand by mode),
OFF is displayed as shown on the screen.
The black screen indicates that the heat pump
is idle; settings can be adjusted in this mode.
ON mode
When the heat pump is running or priming
(setpoint reached), the screen turns blue.
