DURKOPP ADLER 838 User manual

838
Spezialnähmaschine
Betriebsanleitung
Instruction manual
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 521 / 9 25-00 • Telefax +49 (0) 521 / 9 25 24 35 • www.duerkopp-adler.com
Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:
10/2008 Rev. index: 00.0 Printed in Federal Republic of Germany 0791 838740
D
GB

Alle Rechte vorbehalten.
Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise
Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG
verboten.
All rights reserved.
Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner,
even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.
Copyright ©Dürkopp Adler AG - 2008

Foreword
This instruction manual is intended to help the user to become familiar
with the machine and take advantage of its application possibilities in
accordance with the recommendations.
The instruction manual contains important information on how to
operate the machine securely, properly and economically. Observation
of the instructions eliminates danger, reduces costs for repair and
down-times, and increases the reliability and life of the machine.
The instruction manual is intended to complement existing national
accident prevention and environment protection regulations.
The instruction manual must always be available at the machine/sewing
unit.
The instruction manual must be read and applied by any person that is
authorized to work on the machine/sewing unit. This means:
–Operation, including equipping, troubleshooting during the work
cycle, removing of fabric waste,
–Service (maintenance, inspection, repair) and/or
–Transport.
The user also has to assure that only authorized personnel work on the
machine.
The user is obliged to check the machine at least once per shift for
apparent damages and to immediatly report any changes (including the
performance in service), which impair the safety.
The user company must ensure that the machine is only operated in
perfect working order.
Never remove or disable any safety devices.
If safety devices need to be removed for equipping, repairing or
maintaining, the safety devices must be remounted directly after
completion of the maintenance and repair work.
Unauthorized modification of the machine rules out liability of the
manufacturer for damage resulting from this.
Observe all safety and danger recommendations on the machine/unit!
The yellow-and-black striped surfaces designate permanend danger
areas, eg danger of squashing, cutting, shearing or collision.
Besides the recommendations in this instruction manual also observe
the general safety and accident prevention regulations!

General safety instructions
The non-observance of the following safety instructions can cause
bodily injuries or damages to the machine.
1. The machine must only be commissioned in full knowledge of the
instruction book and operated by persons with appropriate training.
2. Before putting into service also read the safety rules and
instructions of the motor supplier.
3. The machine must be used only for the purpose intended. Use of
the machine without the safety devices is not permitted. Observe all
the relevant safety regulations.
4. When gauge parts are exchanged (e.g. needle, presser foot, needle
plate, feed dog and bobbin) when threading, when the workplace is
left, and during service work, the machine must be disconnected
from the mains by switching off the master switch or disconnecting
the mains plug.
5. Daily servicing work must be carried out only by appropriately
trained persons.
6. Repairs, conversion and special maintenance work must only be
carried out by technicians or persons with appropriate training.
7. For service or repair work on pneumatic systems, disconnect the
machine from the compressed air supply system (max. 7-10 bar).
Before disconnecting, reduce the pressure of the maintenance unit.
Exceptions to this are only adjustments and functions checks made
by appropriately trained technicians.
8. Work on the electrical equipment must be carried out only by
electricians or appropriately trained persons.
9. Work on parts and systems under electric current is not permitted,
except as specified in regulations DIN VDE 0105.
10. Conversion or changes to the machine must be authorized by us
and made only in adherence to all safety regulations.
11. For repairs, only replacement parts approved by us must be used.
12. Commissioning of the sewing head is prohibited until such time as
the entire sewing unit is found to comply with EC directives.
13. The line cord should be equipped with a country-specific mains
plug. This work must be carried out by appropriately trained
technicians (see paragraph 8).
It is absolutely necessary to respect the safety
instructions marked by these signs.
Danger of bodily injuries !
Please note also the general safety instructions.

GB
Contents Page:
Preface and general safety instructions
Part 1: Operating instructions - Class 838
(Edition 10/2008)
1. Product description ............................................ 5
2. Designated use ............................................... 5
3. Subclasses and sewing equipment
3.1 Subclasses.................................................. 6
3.2 Sewing equipment ............................................. 6
4. Optional equipment ............................................ 7
5. Technical data
5.1 Class-specifictechnicaldata ....................................... 8
5.2 Subclass-specifictechnicaldata..................................... 8
6. Operations
6.1 Threading the needle thread ....................................... 9
6.2 Winding on the hook thread ........................................ 10
6.3 Changing the hook thread bobbin .................................... 10
6.4 Adjustingthethreadtension ....................................... 11
6.4.1 Adjusting the hook thread tension .................................... 11
6.4.2 Adjusting the needle thread tension ................................... 12
6.5 Switching the thread tensioners on/off ................................. 13
6.5.1 The functioning of the main thread tension and the supplementary thread tension
inrelationtothesewingfootlift...................................... 14
6.6 Adjusting the thread regulator ...................................... 14
6.7 Changing the needle for single-needle machines ........................... 15
6.8 Changing the needle for double-needle machines .......................... 16
6.9 Liftingandfoldingthetoproller...................................... 17
6.10 Sewingfootpressure............................................ 18
6.11 Sewinginreverse(back-tacking) .................................... 19
6.12 Adjusting the stitch length ......................................... 20
6.13 Engaging the safety clutch for hook blockages............................. 21
6.14 Operatingthemachinewiththepositioningdrive ........................... 23
6.14.1 With the pedal ................................................ 23
6.14.2 With the buttons (key panel) ....................................... 24
7. Positioning drive on the Efka DC 1550/DA321G .......................... 25
8. Sewing on a machine with positioning drive
8.1 Automaticmachinefunctions ....................................... 26
8.2 Example - operating the machine while sewing ............................ 27

Contents Page:
9. Maintenance
9.1 Cleaning and testing ............................................ 28
9.2 Lubrication .................................................. 30

1. Product description
The Dürkopp Adler 838 is a special all-purpose sewing machine.
·It is a post-bed double-lockstitch machine.
·It has a bottom drop (feed) mechanism and a drive-powered top
roller.
·There are two setting wheels (knobs) which allow the selection of
two stitch lengths. There is also a pneumatically-controlled device
with a button for toggling between the two stitch lengths during
sewing.
·Depending on if the subclass is a single-needle or double-needle
sewing machine, the following automatic functions are featured: an
electro-magnetic thread trimmer, pneumatically-controlled
bartacking, a sewing foot lift, and a switchable upper thread
tensioner.
·The machine is equipped with a large double-sectioned vertical
hook.
·The maximum lift for the sewing foot is 12 mm.
·There is a safety clutch to avoid displacing or damaging the hook if
the thread gets jammed in the shuttle track.
·Depending on the width of the needle, swappable throat plate
inserts with corresponding stitching holes can be swapped out at
the throat plate.
·The machine features automatic wick lubrication and a viewing
window in the arm for watching the machine and hook lubrication.
Some of the oil is lost during the hook lubrication. The remaining oil
is redirected by the pump back to the central reservoir.
·Integrated bobbin winder.
2. Designated use
The 838 machines are suitable for use in producing shoes, decorative
ornamental work, and upholstery. The typical sewing material is leather
(either natural or synthetic). The sewing machine can also be used for
sewing shoe textiles.
The setup of the machine depends on the material to be sewed and
whether it is heavy or extra heavy.
Generally only dry material may be sewn with this sewing unit. The
material may be no thicker than 7 mm when compressed by the
lowered top roller.
The sewing material must not contain any hard objects since the
sewing machine is not equipped with any form of eye protection.
This sewing machine may be set up and operated only in dry,
well-maintained premises. If the sewing machine is used in other
premises which are not dry and well-maintained it may be necessary to
take further precautions which should be agreed in advance (see
EN 60204-31: 1999).
As manufacturers of industrial sewing machines, we proceed on the
assumption that personnel who work on our products will have
received training at least sufficient to acquaint them with all normal
operations and with any hazards which these may involve.
5
GB

3. Subclasses and sewing equipment
3.1 Subclasses
Class and
Subclass
Number of
needles
Stitch length Machine-
control
Hook Trimming and
seam tacking
one needle, hook to right of needle
two needles
up to 8 mm autom. foot lift pneumatic seam tacking large two-section with thread trimming, autom. seam tacking
0838 170522 X X X X X
0838 270522 X X X X X
3.2 Sewing equipment
0,01
mm 0,01 mm - - mm 1/min 1/min mm mm mm dB (A)
838-E1 1 heavy 120-160 120 25-10 20 8 2000 1600 35 1,5 -
838-E2 1 extra
heavy 180-230 180 10-8 10 8 1600 1600 35 1,5 -
838-E3/1,6 2 heavy 120-180 180 25-10 10 8 2000 1600 35 1,5 1,6
838-E4/2,0 2 heavy 120-180 180 25-10 10 8 2000 1600 35 1,5 2,0
838-E5/2,4 2 heavy 120-180 180 25-10 10 8 2000 1600 35 1,5 2,4
838-E6/3,2 2 heavy 120-180 180 25-10 10 8 2000 1600 35 1,5 3,2
* You must reduce the sewing speed significantly when sewing through very thick materials.
** Noise level of the special sewing machine at the work place, as measured for the maximum stitch length and
the maximum sewing speed in compliance with DIN 45635-48-A-1-KL2.
6
Sewing equipment Class and sub-class Number of neeles Sewing type Range Needle width:
Nm
Standard Range
Label number of
Standard polyester thread max. stitch length Max.
Sewing speed
Standard * Top roller diameter Gearing gap for the feed dog Seam clearance gap Noise intensity level of machine **
0838 1705220838 270522

4. Optional equipment
Order No. Optional equipment
0888 220334 Top roller Æ25 mm, knurled
0888 220344 Top roller Æ25 mm, smooth
0888 220354 Top roller Æ25 mm, rubber coating
0888 220364 Top roller Æ35 mm, knurled (thoroughly)
0888 220374 Top roller Æ35 mm, smooth
0888 220384 Top roller Æ35 mm, rubber coating
0888 220394 Top roller Æ45 mm, width: 3.8 mm
0888 220404 Top roller Æ45 mm, width: 2.0 mm
9880 888100 Sewing lamp LED
MG55-3 400324 Stand set for machines powered by drive belts
(contains frame, pedal, drawer and table top 1060 x 50 mm)
0700 088804 Table top for drive belt
N800 080030 Edge-guide, swivelling
N800 080004 Edge-guide with roller, swivelling
9780 000108 Compressed air unit
0797 003031 Complete compressed air hose
9805 791113 USB memory key for transferring data with the Efka DA321G control unit
0867 490010 Holder bracket for the Efka V810 or V820 control panel
0688 130384 Knee level for mechanical foot lift
9880 002001 Knee switch
7
GB

5. Technical data
5.1 Class-specific technical data
Type of stitch Lockstitch 301
Needle system 134LR, 134 KKLR, 134, 134 D
Foot lift with hand lever 6 mm
Foot lift with knee lever or automatic 12 mm
Remaining thread length after thread trimming max. 15 mm
Clearance height of machine head 300 mm
Clearance width of machine head 280 mm
Dimensions of footprint of the machine bed plate 178 x 518 mm
Dimensions of footprint of table plate 1060 x 500 mm
Min. height of the table plate 740 mm
Max. height of the table plate 900 mm
Height of machine max. 1630 mm
Max. (short-term) power consumption 0.8 kW
Compressed air feed 6 bar
5.2 Subclass-specific technical data
Class and
subclass
Number of needles Column length Column heigth in sewing direction Column width perpendicular to sewing direction Weight of machine head Weight of frame Weight of Efka DC1550 motor
mm mm mm kg kg kg
0838 170522 1 170 52 59 55 30 10
0838 270522 2 170 52 59 56 30 10
More detail about the technical data are given in the chapter 3.2.
8

6. Operations
6.1 Threading the needle thread
Caution: danger of injury!
Turn off the main switch.
The needle must be threaded only when the machine is turned off.
–Follow illustration A when threading single-needle sewing
machines. If the sewing machine is outfitted for the sewing of
heavy-duty materials, then wind the thread around the pin (1).
–Follow the illustration B (right side) when threading double-needle
sewing machines. Insert the thread (2) for the left needle into the
left thread tension device and then in the upper eyelet of the thread
lever (4).
–When needles are situated side-by-side, thread the needle eye
according to illustration B.
–When the needles are situated diagonally to each other, thread the
needle according to the illustration C (right needle) and
illustration D (left needle).
–If the sewing machine is intended for the sewing of heavy-duty
materials, then wind the thread around the pin (5).
9
GB
C
D
1235 2
3
234
AB

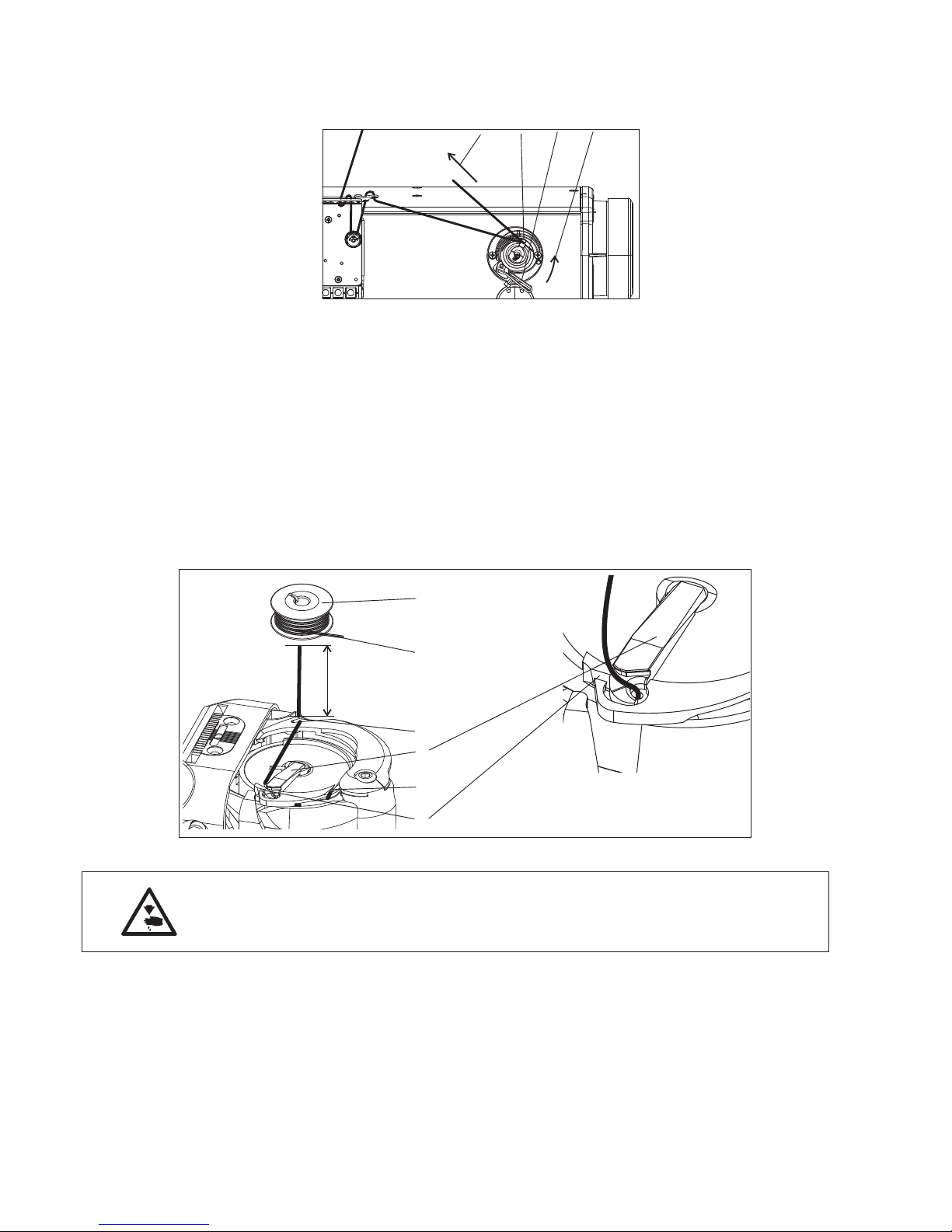

6.2 Winding on the hook thread
–Insert the thread as shown in the illustration.
–Stick the thread behind the knife blade (1). Then cut by pulling in
the direction of arrow (2).
–Put the bobbin on the bobbin shaft and move the bobbin lever (3) in
direction (4).
–Start up the machine.
–After the thread is wound around the bobbin, stick the thread once
again behind the knife blade (1) and cut off.
–Put an empty bobbin on the bobbin shaft for the next winding
process and move the bobbin lever.
6.3 Changing the hook thread bobbin
Caution: danger of injury!
Be sure to turn off the main switch and wait until the motor has
completely stopped.
–Raise up the flap cover (1).
–Insert the bobbin (2) with the thread end (3) positioned as shown in
the illustration.
–Pull the thread through slit (4) and slit (5). Then close the flap and
secure the thread under the spring (6).
–Trim off the thread end as show in the illustration.
–The threading and bobbin insertion for the hook to the left of the
needle should be carried out similarly.
10
1234
2
3
6
1
4
5
10

6.4 Adjusting the thread tension
6.4.1 Adjusting the hook thread tension
Caution: danger of injury!
Turn off the main switch.
Adjust the shuttle thread tension only when the sewing machine is
turned off.
–Adjust the shuttle thread tension by turning the screw (1) with a
screwdriver. The screwdriver should be inserted through the
opening (2). The tension is increased by tightening the screw.
–The thread tension should then be checked with a thread tension
gauge (dynamometer). Insert the thread as shown in the illustration
and pull in the direction of arrow (3).
The thread tension set at the factory depends on the selected
machine configuration (see table below). This tension setting is
suitable for typical sewing processes. You should lower the tension
when working with materials which are soft and thin. If the seam
must be tightly sewn, then you should increase the tension while
simultaneously lowering the sewing speed.
Average values for hook thread tension
Type of sewing Width of needle used
Nm
Thread tension in
grams
heavy 120-160 90
extra heavy 180-230 90
11
GB
1
2
3

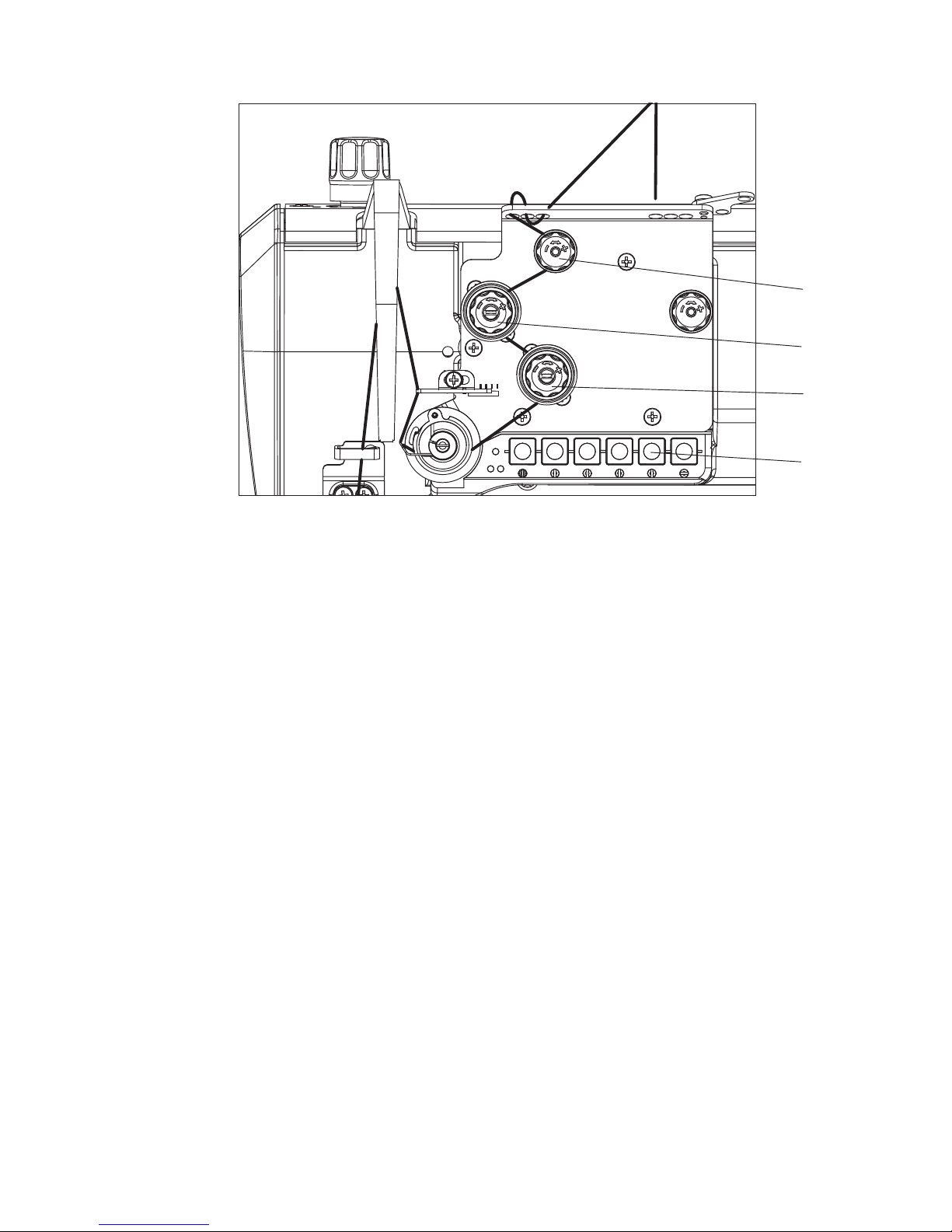

6.4.2 Adjusting the needle thread tension
Adjusting the pre-tensioner (1)
–When the main thread tensioner (3) and the supplementary
tensioner (2) are open, there must still be a slight tension
remaining on the needle thread. This residual tension is created by
the pre-tensioner (1). The pre-tensioner (1) influences both the
length of the cut needle thread and the starter thread for the next
seam. (The pre-tensioner (1) is not deactivated with the sewing
foot lift.)
Adjusting the thread tension (2) and (3)
–You can switch off the supplementary tensioner (2) by pressing the
button (4). You can switch the supplementary tensioner (2) back on
by pressing the button (4) again. The switchable supplementary
tensioner (2) is helpful for quickly altering the needle thread
tension. For example, it can be used to attain a good stitch draw
and consistent stitch pattern when working with different textile
materials within a single seam.
–Press the button (4).
–Make a seam on a few layers of materials and regulate the thread
tension by means of the main tensioner (3) until the proper
cross-over point is attained (see illustration).
–Extend the material layers and press button (4) to activate the
supplementary tensioner (2). Control until the proper cross-over
point (thread binding) has been attained.
12
3
2
1
4

Correct thread interlacing in the center
of the sewing material
Needle thread tension too weak
or
Hook thread tension too strong.
Needle thread tension too strong
or
Hook thread tension too weak.
6.5 Activating and deactivating the thread tension
–The pre-tensioner (1) should never be deactivated.
–The main tensioner (3) and supplementary tensioner (2) are
switched off using an electro-pneumatic cylinder.
Deactivation can result from:
·Pressing the button (4) (see chapter 6.4.2).
·Trimming cycle: during the cutting process, the main tensioner (3)
and the supplementary tensioner (2) are temporarily turned off.
·The sewing foot lift (see chapter 6.5.1).
13
GB
4
1
2
3

14
6.5.1 The influence of the sewing foot lift on the main thread tensioner and supplementary thread
tensioner Button 4 (see chapter 6.5) on the machine’s key pad can be used to
activate or deactivate the supplementary thread tension at any time.
The parameter F-147 must be set to “1" for this to work.
Sewing foot Sewing foot lift After thelift
in the seam thread has been cut
Parameter Thread Thread Thread Thread
setting main supplementary main supplementary
tension setting tension setting
F-196=0 0 0 0 0
F-196=1 1 1 0 0
F-196=2 0 0 1 1
F-196=3 1 1 1 1
1 = Thread tension opened mechanically
0 = Thread tension closed mechanically
·If the supplementary thread tensioner is open, the state of the
sewing foot lift does not change.
·If the machine is turned off, the supplementary thread tension
remains at its previously set state.
6.6 Adjusting the thread regulator
The thread regulator (2) is used to control the quantity of needle thread
required by the stitch formation.
The best sewing results can only be ensured when using a precisely
adjusted thread regulator.
–Loosen the screw (1). Move the thread regulator (2). Then tighten
the screw (1).
–For most sewing jobs, the thread regulator is best positioned when
the right edge of the regulator is aligned with the number 3.
–The setting at position 4 is appropriate when using a thin sewing
material with a very short stitch.
21
1234

6.7 Changing the needle for a single-needle machine
Caution: danger of injury!
Turnthemainswitchoff.
Change the needle only when the sewing machine is switched off.
–Move the lever (1) forward in order to loosen the screw which is
used to fasten the needle.
–Pull the needle under and out from the needle bar. Insert a new
needle with the needle scarf (2) positioned on the right, according
to section cuts (3) or (4). Push in until the needle has reached the
end stop located in the needle bar hole. The needle should not be
positioned as shown in section cut (5).
–Then tighten the needle attachment screw and turn the lever
back (1) to the rear.
CAUTION Danger of breakage!
A bad positioned needle can cause damage to the hook tip.
When changing to a needle with a different thickness, the clearance
between the hook and the needle, as well as the position of the stitch
plate in relation to the post bed, must both be adjusted accordingly
(check the service instructions).
15
GB
1
2
3
4
5
MAX. 3°

6.8 Changing the needle for double-needle machines
Caution: danger of injury!
Only change the needle when the main tensioner is turned off and the
motor has come to a stop.
–Loosen screws (1).
–Pull the needles under and out from the needle bar. Insert the new
needles with the needle scarf (2) according to section cuts (3)
or (4). Push in until the needles have reached the end stop located
in the needle bar holes. The needles should not be positioned as
shown in section cut (5).
–Tighten the needle attachment screws.
CAUTION Danger of breakage!
Poorly positioned needles can cause damage to the hook tips.
When changing to needles with a different thickness, the clearance
between the hook and the needle, as well as the position of the stitch
plate in relation to the post bed, must both be adjusted accordingly
(check the service instructions).
16
MAX. 3°
5
4
3
1
2

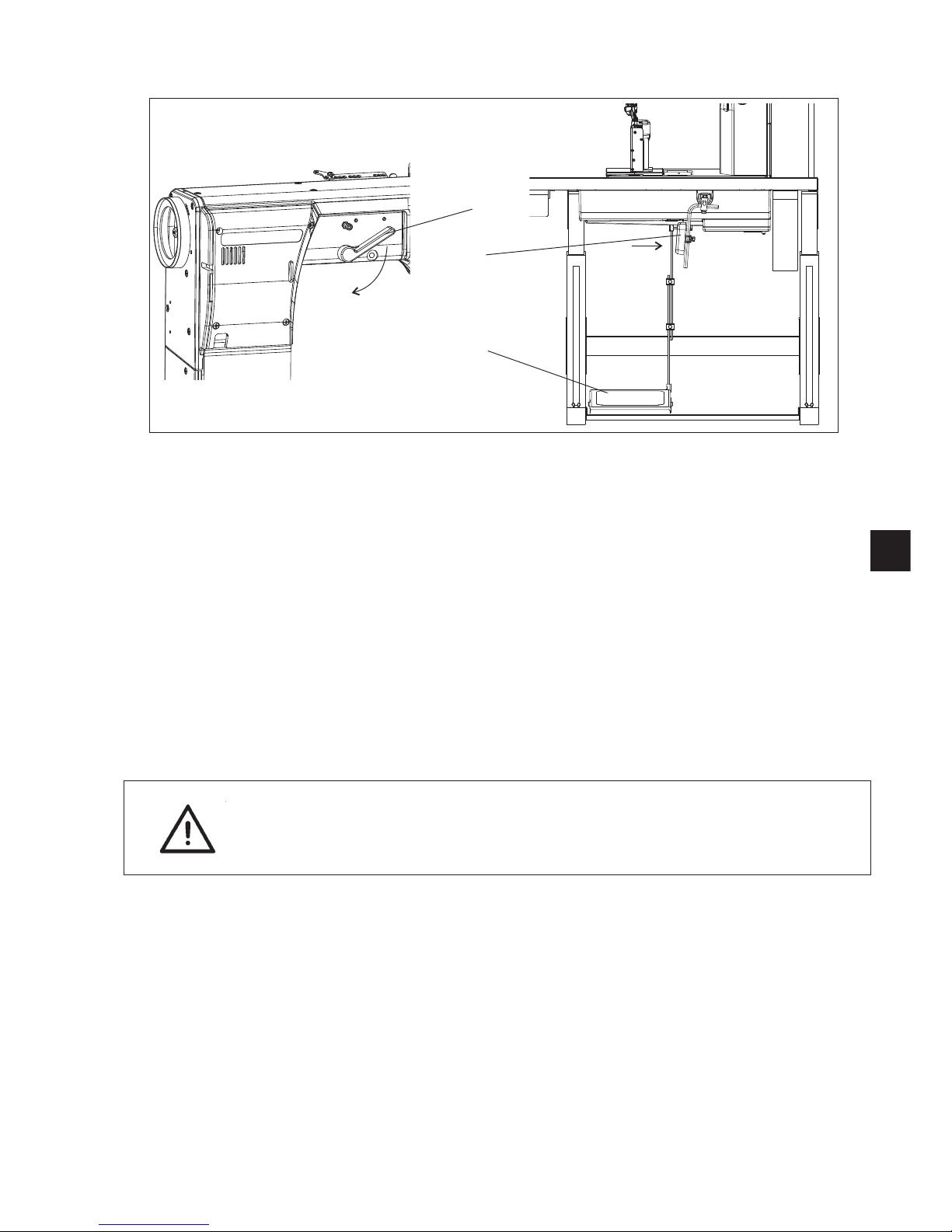

6.9 Swiveling and lifting the top roller
Using the hand lever to lift the top roller
–Lift the top roller by turning the lever (1) in the direction of the
arrow until the end stop. The top roller is secured in the upper
position by the lever.
–In order to lower the top roller, turn the lever (1) back to the starting
position.
Or:
–Lift the top roller pneumatically or with the knee lever (3). The lever
then moves back to its starting position.
–The machine can be kept on after the hand lever is used to raise
the top roller (for example, when winding the lower looper thread).
Using the knee lever to lift the sewing foot
Press the knee lever (3) to raise the sewing foot. Release the knee
lever to lower the sewing foot.
Caution!
The machine should not be running when the sewing foot is raised
more than 6 mm over the stitch plate. On a running machine, the
needle bar with the needle holder could collide with the sewing foot or
in the press pad with the double-needle machines.
Automatic and pedal lifting of the sewing foot
–For sewing machines equipped with position drives, the sewing
foot lifting process can be triggered by pressing the pedal (4) down
backwards to position -1. The sewing foot is raised to its top dead
centre point using either the integrated electro-magnet or the
pneumatic cylinder. The sewing foot is lowered after the pedal is
released.
–The machine can be set so that the sewing foot is automatically
raised after each machine stop and no backwards pedal press is
required. In this case, after pressing the pedal the sewing foot is
lowered to position +1. After the seam is completed, the sewing
foot remains permanently raised (see chapter 8). This setting is
described in chapters 6, 7, 8, and 9.
17
GB
1
3
4

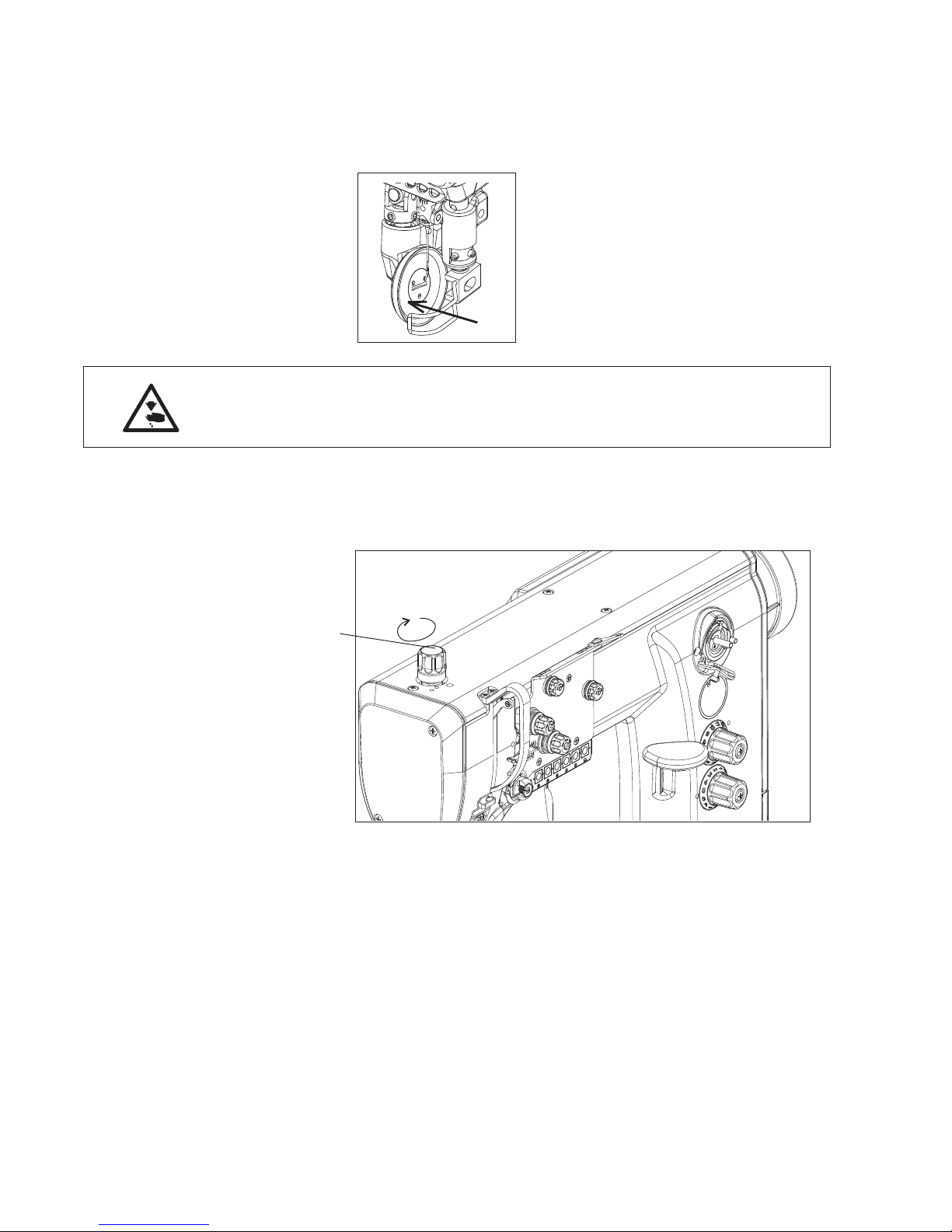

Swiveling the top roller
–Turn the hand lever (1) downwards. The top roller is then secured
in the upper position.
–Swivel the top roller to the side by pressing in the direction of
arrow.
Caution: danger of injury!
Only swivel the top roller after first turning off the main switch and
waiting for the motor to stop.
6.10 Sewing foot pressure
–The top roller pressure is adjusted with the setting wheel (1).
–Increasing the top roller pressure = Turn the setting wheel (1)
clockwise.
Decrease the top roller pressure = Turn the setting wheel (1)
counterclockwise.
–The pressing force of the top roller should be set just high enough
so that the sewing material is not lifted when the needle pulls out.
You should also verify that the pressure does not prevent the
material from moving properly.
–For machines equipped with electric magnets, the maximum
pressing force for the top roller is 100 N. For pneumatic-cylinder
machines, the maximum force is 160 N.
18
1+
