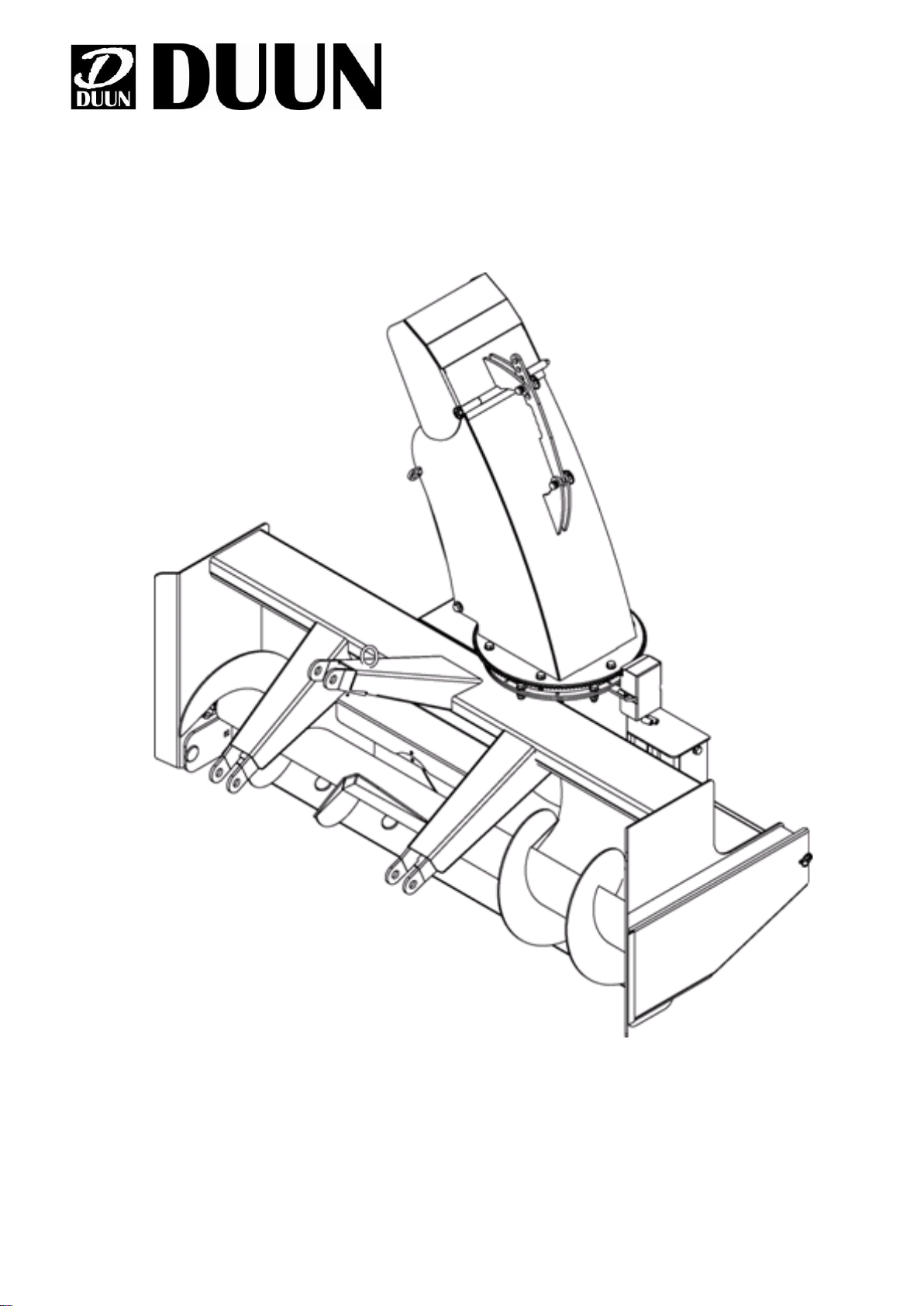

DUUN TF220 User manual
TF220 Instruction manual
Serial number: from 04001
Duun Industrier as
7630 Åsen, Norway
www.duun.no
2
Congratulations on your Duun TF220 snow blower.
All Duun tractor operated machines have been engineered and tested in close cooperation with
representative users to produce functionally safe and user-friendly machines.
Please read this instruction manual before using the machine.
Good luck!
Machine identification
Serial number and manufacturer are indicated on badge (A)
Register serial number and delivery time as indicated.
Always specify serial number when requesting service for the machine.
The machine is CE-marked (B). This marking confirms that the machine has been manufactured
in conformity with EU Directive Machinery.
Serial number
Time of delivery (month/year)
4
SAFETY
All operators, mechanics and the owner must always work carefully with agricultural machinery.
Read and observe safety instructions in this instruction book.
Be particularly aware of warning signs with this symbol, it marks
measures that must be carried out in order to avoid accidents. The
symbol appears in the instruction manual and on warning signs on the
machine.
Instruction manual
All operators, mechanics and the owner must be well
acquainted with the instruction in this instruction manual
before the machine is taken into use.
Safety of the surroundings
Be very careful when other people or animals are near the
machine or tractor. Never start the machine when there are
people or animals close to it, also never stand between the
tractor wheels and the machine!
Safe connection and use
Do not allow anyone to stay between the machine and the
tractor when the machine is connected to the tractor. The
same applies during the use of the machine. Make sure that
the connection is carried out in a safe manner. By
automatically connecting with a triangle or HMV, the
hydraulic hoses are connected before the start of work.
Connecting with draw bolts, secure the drawbar connection
with lunch pins before the hydraulic connection and start
operation.
Safety in case of interruptions and maintenance
Remember always to stop the tractor’s engine and remove
the ignition key before you lubricate, adjust, clean, or carry
out repairs. This is to secure that the tractor does not start
before you have completed the operation.
5
Power transmission shaft
The tractor is disengaged and the handbrake is applied
before the shaft is connected to the tractor's PTO.
The maximum power output speed is 540 rpm. The drive
shafts are always to be equipped with original protection
covers.
Damaged and worn covers are to be replaced
immediately!
Make sure that all covers for the shaft are in good condition
and correctly fitted. Never start the machine when this is not
in order. The locking chains for the plastic covers are
always to be fixed to the appropriate brackets in order to
prevent the covers to rotate. The covers must be lubricated
according to the specified interval.
Rotating parts –high risk of injury
The rotating parts of the machine can cause major damage
to body parts that come into contact with them. Do not allow
anybody to stay in the work area when a machine is in
operation.
Hydraulic high fluid pressure
Be careful when you work with hydraulics. Wear eye
protection and gloves. Hydraulic oil under high pressure
may penetrate the skin and cause serious infections. See a
doctor if you have sustained an injury. Make sure no one is
close by when performing hydraulic functions.
Risk of crushing
Case covers and moving parts are preferably marked in
yellow.
All covers must always be used except when necessary
maintenance, and always with a stopped engine as
mentioned in safety in case of interruptions and
maintenance. Pay special attention to clamping risk at
points marked for this. Avoid hydraulic movement of the
ejection spout when there are people nearby.
Never drive with open covers for chains and sprockets.
Chains and sprockets can cause major damage to body
parts that come into contact with them during operation.
Clamping risk when adjusting
When adjusting the support wheels, make sure that you do
not stand with your feet under the wear steel.
6
Always lower the machine to safety rest at ground level when it needs to be parked.
Never work under a lifted device unless it is mechanically secured against coming down.
Before startup after servicing make sure all tools have been removed and brought into place.
Do not work in clothing that can be retracted into moving parts of the machine (e.g. scarves, wide
coats).
Wear hearing protection if the machine has annoying or damaging noise levels.
Before the machine is raised or lowered, make sure that no person is near or touching the
machine.
If warning signs are removed during repairs or service, new signs should be installed
immediately!
7
Warranty terms
Duun TF220 has 12 months guarantee against defects in materials and workmanship.
Parts that are not originally manufactured by Duun Industrier as, for example, wheels, hydraulic
parts, etc. are subject to these suppliers’ guarantees and terms.
In cases where a repair is considered to be covered by the guarantee, the representative must
inform the supplier’s representatives that the repair is intended executed based on the guarantee.
In this context, the following information must be recorded:
•Product name
•The product’s serial no. (see the machine identification)
•Date of sale
•The product owner’s address, telephone no.
In case of such a repair, the supplier is presented with a claim within 3 weeks after the repair date.
Replaced parts are to be kept until a decision has been made with reference to the claim and the
replaced parts are to be forwarded to Duun Industrier as for assessment if so required.
As the employment of the product is beyond our control, we may only guarantee the quality and
do not accept liability for the product's general performance.
Duun Industrier as reserves the right to modify the design and specifications and/or make
alterations and improvements without notification.
What is not included in the guarantee:
•The guarantee does not cover economic loss as a consequence of interruptions.
•The guarantee does not cover consequential loss due to defects.
•The guarantee does not cover defects or damage caused by misuse and uses that are not
in accordance with the instruction manual’s specifications and guidelines.
8
Technical data
9
Features:
TF220
Weight
620 kg
Width (a)
2200 mm
Inner width
2025 mm
Max length (b)
1240 mm
Side length (c )
940 mm
Three-point linkage (d)
540 mm
Working height of chassis (e)
800 mm
Inner height
720 mm
Inner width
475 mm
Feed screw diameter
410 mm
Height to center of feed screw
255 mm
Max height of outlet spout (f)
2050 mm
Speed of PTO shaft
540 rpm
Bolt fasteners connections are
standard
Yes
Diameter of fan
700 mm
Diameter of wear steel
10x200x2000mm
Power requirement PTO 540 rpm
60 hk
Hole spacing for wear steel
305 mm
Asseccories:
Triangle coupling
1252637
HMV coupling
1252638
Side extension of right side
1252215
Wear steel side extension
1252018
Hydraulically operated outlet flap
TF220
1252218
PTO
2962161
10
Transportation and
management before use
Snow blower housing is
always lifted with strap
attachments as illustrated.
Please note that a single
snow blower weigh is
approx. 620 kg. Use lifting
equipment suitable for this
weight!!
Installation of the ejector
spout and drive motor
for this
The bracket with the oil
motor is unscrewed by
loosening 2 pieces of M10.
The ejector spout is
attached to the hull with 6
m10 screws, washer and
lock nut for this. The
bracket with the oil motor is
fixed in place, the
adaptation of this to the
"tooth ring" is adjusted with
the fastening screw A. It is
adjusted so that the spout
can rotate easily
(clearance approx. 1mm).
11
Preparation for use
Adjustment of skid pads
The snow blower is placed on a level surface and the skid pads are adjusted so that the wear
steels on both sides + the infeed steel in front of the fan housing have clearance above ground
level. Too small distance here will cause abnormal wear on both wear steel and feed steel.
Power transmission shafts
Make sure that the PTO shaft is of sufficient length. After any length adjustment, the profile pipes
in the shaft must overlap each other by half the pipe length. Any cutting of the shaft is carried out
accordance to the instructions for this –the cut point is chamfered inside and out, and the profile
tubes are lubricated with grease. Too short a telescopic length on the axle entails a risk of
overloading the tractor's power take-off and the snow blower's bearings. On the other hand, the
shaft must not be too long so that it presses on the front and rear bearings and destroys
them.
Please lubricate the power transmission shaft before use.
The shear bolt coupling on the shaft is mounted against the implement. The coupling has a
capacity of 2920 nm and in the event of a break in this, a hexagonal screw dim 10 mm qual 8.8
must be used as a breaking pin. The locking chains for the protective covers must always be
attached to suitable fasteners to prevent the covers from rotating.
The power transmission shafts are maintained and used according to the attached instruction
manual.
Save control of greasing (lubrication)
Check that the warehouses (front and back) are lubricated. Lack of lubrication entails a risk of
breakdown. Also, be careful not to "over-lubricate" the bearings as this entails the risk of heat
build-up and overheating in the bearing itself. In the case of too little lubrication, water can
penetrate (infiltrate) the bearings.
Lubrication of ball bearing
Check that this is lubricated and make sure it is lubricated before use if this is not the case. Too
little lubrication causes abnormal wear on the gears and chain.
Lubrication of chains
Check that chains are lubricated with chain spray or thin oil with good lubricating properties.
Ensure that chains are lubricated before using if this is not the case.
Tightening of chains
Check chains at regular intervals. They must have slack corresponding to the height of the links.
Chains will stretch when being used, so it is important to retighten them. Especially important
when the chain is new, because it stretches the most at the start. Avoid tightening the chains too
much as this will cause unnecessary wear on them and bearings.
Protection of hydraulic hoses
Check the hose connections and that they are not stretched or cut during use. Tighten loose hose
connections and secure/fasten the advance of the fittings. Failure to secure hydraulic hoses can
lead to leaks and consequential damage to tractors and components.
12
Connection
Make sure no one is standing between the tractor and the machine during connection. Back the
tractor up to the snow blower and stop the engine before the lifting arms are mounted in the three-
point linkage.
Stabilization struts/support struts on tractors must be used.
This is to ensure that the snow blower does not get uncontrolled lateral movements while driving –
i.e. goes in the same direction as the tractor all the times.
Hydraulic hoses installation. At the same time, check that all hoses are tight and undamaged
before starting hydraulic functions. When the tractor engine is stopped, you should ensure that
there is no pressure in the hoses by activating the tractor's hydraulic valves.
Pay special attention to the dangers of hydraulic oil under pressure.
Install the power transmission shaft on the PTO with the shear - bolt coupling against the snow
blower. A safety chain is attached to the snow blower to prevent the rotation of protective covers.
The power transmission shaft must always have a shear bolt coupling max 2920 nm.
Make sure that the protective covers for the power transmission shaft are unaffected(undamaged)
and replace them if they are damaged.
Before connecting the power transmission shaft, secure the following points.
Make sure that the shaft's protective tubes are unaffected (undamaged) and that the two halves of
the shaft fit freely into each other. The length of the power transmission shafts must be adjusted
carefully, if it is too long it can damage the bearing in the tractor's PTO or the snow blower’s
bearings. Also ensure good lubrication of the profile pipes. See also the instruction manual for the
power transmission shaft.
Check that the power transmission shaft can be rotated by hand to ensure that it is not buckling
anywhere.
Check that the power transmission shaft will not be tensioned when the machine is lifted to max.
or min. height. Driving on very hilly relief, a rear-mounted snow blower can work lower or higher
than the tractor itself. Please also note that the angle of the axle can be too large when using very
short axles - contact the supplier - importer.
13
Service and maintenance
14
Lubrication and maintenance
Before cleaning, lubricating, repairing or adjusting the machine, stop the engine and activate the
handbrake, and remove the key during work.
Pay special attention to safety during maintenance work, park the machine in according with
specified safety rules.
Inspection after screw connections
Screws - nuts - fittings and bolts on the machine should be re-tensioned after two hours of
operation. All moving parts should be lubricated with grease.
The ejector spout's swivel is exposed to both cold and heavy wear - therefore use cold-resistant
grease that can handle up to -40 degrees. Points 4 og 5.
Wear steel and skid pads are exposed to heavy wear - check and carry out the replacement or
reversal of wear steel before damage occurs to the hull itself and mounting brackets.
Remove snow after use so that icing does not cause any problems at start-up later.
To extend the life of the machine, cleaning after use is recommended.
Do not flush water directly into the bearing. For long-term storage, it is recommended to lubricate
the machine in acid-free oil.
Interval of lubrication and grease quality
1,2. Bearings for front and rear fan
Interval: Every 100 hours and when parking in the spring.
Avoid pushing in too much grease as this can cause sealing rings to squeeze out +
contribute to overheating of the entire bearing.
The recommended amount of 7-8 grams per time.
The bearing in front of the fan wheel is equipped with a plug that must be dismantled
before inserting grease nozzles M8 to carry out lubrication. After lubrication the plug
is installed - this is to secure the lubrication nozzles against external pressures and
deformations.
1,2. Bearing for the feed screw (3 pcs.)
Interval: Every 100 hours and when parking in the spring.
Avoid pushing in too much grease as this can cause sealing rings to squeeze
out + contribute to overheating of the entire bearing.
The recommended amount of 7-8 grams per time.
The bearings are equipped with plugs that must be dismantled before
inserting grease nozzles M8 in order to carry out lubrication. After lubrication,
plugs are installed - this is to secure the lubrication nozzles against external
pressures and deformations.
3. Expiration spout for ball bearing
Interval: Every 50 hours. Use low temperature grease Statoil uniwai LIX 42 or equivalent.
4. Chains for fan wheel and feed screw (2 pcs.)
Interval: Every 20 hours. The chains are lubricated with chain spray, or with grease. Ideally,
lubricate the chains immediately after use when they are warm, lubrication will absorb well into the
chain.
5. Sprocket on outlet spout
Interval: When needed
Power transmission shafts –universal joint + telescopic tube
Interval: Every 8 –10 operating hour.
Maintained according to the attached instruction book. Please contact the supplier if this is
missing.
15
Gearbox

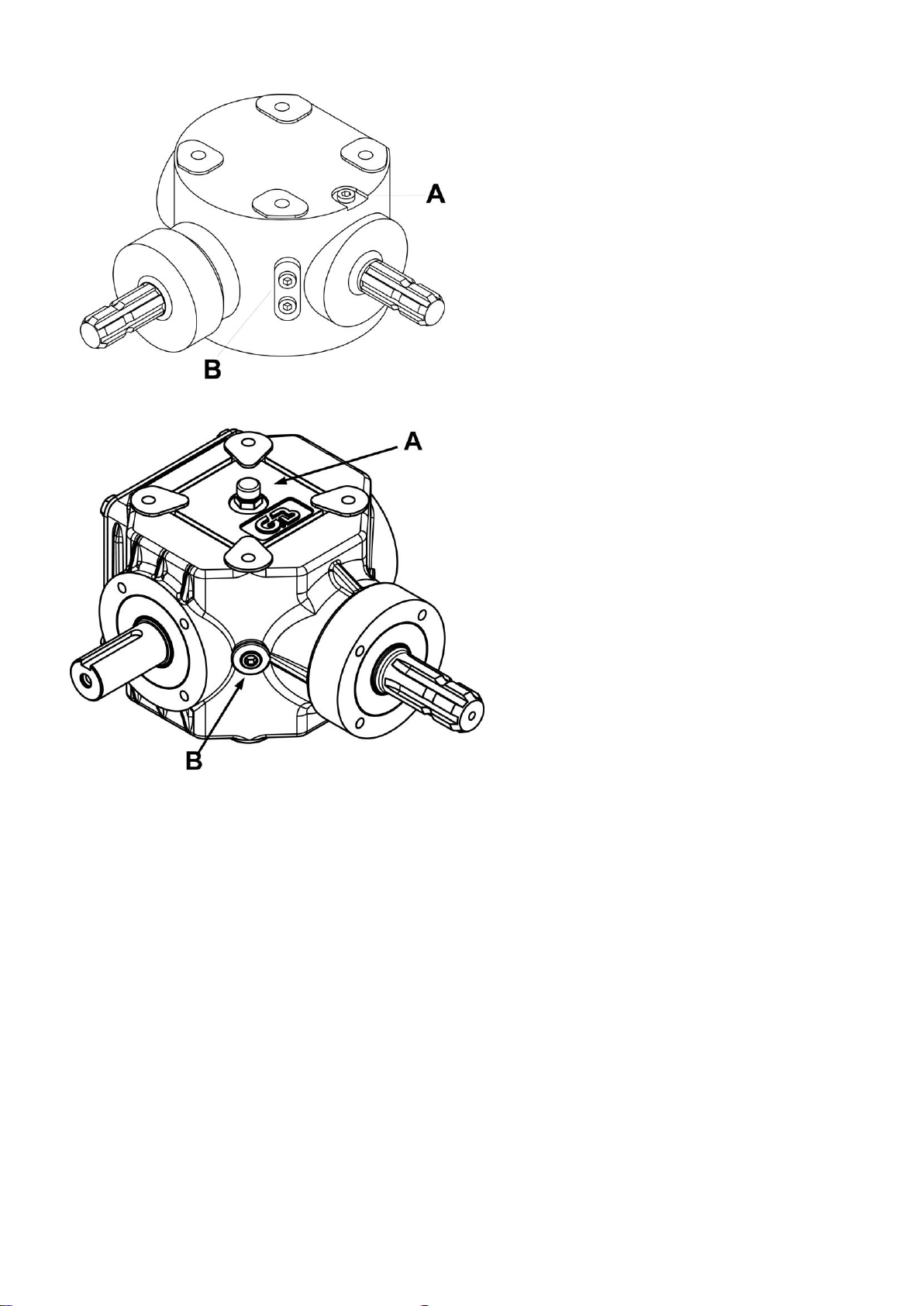

The TF 220 has been delivered with two
gearbox versions.
The top one (BYPY) has been delivered to
serial number 10040.
The bottom one (GB) has been delivered from
serial number 10041.
Recommended oil: Gearbox oil Mereta 150
synthetic oil (Statoil) or Esso Syntetic EP150.
Other oil must fit to the standard SAE90EP or
GL5
Mereta 150 - 2.5 ltr. has item no. 531 0 110
Check the oil level after 50 operating hours or
after each season by loosening the level
screw marked B (bottom) as illustrated in the
sketch (oil should leak out at a sufficient
level).
If the oil level requires refilling, if necessary,
refill with semi-synthetic oil Statoil Gearway
S5 75W-90 up to the indicated level or with
Mereta 150.
Refilling is carried out through screw opening
B.
The first oil change is recommended after 50
hours of use, and then every second season,
or after 500 operating hours - i.e. if 500
operating hours occur before the end of the
2nd season, an oil change with Mereta 150
should be carried out as indicated.
Gearbox BYPY contains 1.2 liters of oil.
Gearbox GB contains 1.1 liters of oil.
Gearbox Bondioli contains 0.9 liters oil.
It is an advantage to change the oil when the
gearbox is warm.
Draining of oil takes place at the opposite plug
to the plug marked A.
NB During this operation, the snowblower
must be raised using fall protection
equipment. An alternative would be to do this
operation in the grease pit.
It is very important to fill the gearbox with
the correct amount of oil .
Too much oil will lead to a higher operating
temperature and risk of breakdown.
The oil level is checked by loosening screw B
when the gearbox is in a horizontal position.
16
Shear - bolt couplings
Remember to lower the machine and stop the tractor's engine and disconnect the power PTO
before fitting a new cutting bolt. The machine is equipped with a cutting bolt coupling:
- Power transmission shaft bolt M10x60 qual. 8.8 item no.2422310
- Joint coupling bolt M 8x50 qual. 8.8 item no.2422256
Operational risks
It is the driver's responsibility not to expose himself or others to danger during the use of the snow
blower. Attention should be paid to people and animals located near the machine. Since other
objects occur in the snow (rocks and similar things), the throwing route must be set so that the
draft snow would not be danger to other road users. Since there are more objects in the snow
(stones), the ejection nozzle must be adjusted so that the ejected snow does not pose a danger to
other road users.
No one should ever stand on the machine while it is driving or moving. Protective covers must
always be on when it is used.
Practical use
The Norwegian Labor Inspection Authority has listed snow blowers among machines that must be
used with particular care and must therefore not be operated by people without documented
training. The user must have a driving license for a tractor (aged 16) and have a certificate that he
has received training in the use of the machine/tool.
The machine requires skilled operation, the user manual must be read before connecting to the
tractor and putting it into operation, even if the user had previous experience with a similar
machine –this is for user’s safety.
The top brace is adjusted so that the snow blower is parallel to the ground in working position.
Skid pads must always be used and adjusted according to the instructions in user manual.
The maximum power of PTO speed is 540 rpm. The throw length can be set by adjusting the
speed.
The direct-coupled PTO must not be switched on at high rpm.
If the snow blower is pulled forward without displacing snow (punhed drive shaft), you must back
up a little before re-engaging PTO shaft.
Driving in packed snow, it is important to keep the rpm. high from the time you enter the snow until
the fan is empty.
Disconnection
This happens in the reverse order of connection.
The tractor's PTO must be disconnected when working with the machine and the PTO shaft.
Place the machine on the even ground.
Disconnect hydraulic hoses.
Disconnect the power transmission shaft and hang it on a hook attachment.
Locking bolts for drawbars are released.
Now the machine is disconnected and can be left.
17
This manual suits for next models
1
Table of contents
Other DUUN Snow Blower manuals
