1Introduction
The DV Signage 10.2” VideoFlyer is a self-contained LCD display and digital media player for
continuous (looped) play of video stored on a CF (Compact Flash) memory card. The unit
comprises a widescreen 10.2” color TFT LCD, a built in speaker and optional touch screen. A
range of other accessories and factory installed customization options are also available,
these are not be covered in this manual.
Please note that a certain level technical knowledge and experience is assumed, if you have
difficulties please contact your sales representative or DV Signage support, contact details
are available on www.dvsignage.com/contact-us
IMPORTANT USAGE NOTE
This equipment is for use by system developers and integrators. The manufacturer accepts
no liability for damage or injury caused by the use of this product. It is the responsibility of the
developer, integrators or other users of this product to:
Ensure that all necessary and appropriate safety measures are taken.
Obtain suitable regulatory approvals as may be required.
Check power settings to all component parts before connection.
DISCLAIMER
There is no implied or expressed warranty regarding this material.
Page 5 of 14
2 System
10.2” VideoFlyer (VF-100W)
A robust metal housing with powder coating:
CF Card compartment
USB port
RS-232 port
L1 (Button 8) + power up - Config menu
L1 (Button 8) - Select
L2 (Button 7) - + / Save and exit
L3 (Button 6) - - / Save and exit
Reserved (480p/720p)
Remote Ext.
(#1 - #8)
Power LED
On/Off switch
Stereo phone
jack
IR sensorVolume Control
Power in
(DC 12V)
Page 6 of 14
3 Instructions
CAUTION: Never connect or disconnect parts of the system when the system is powered up
as this may cause serious damage.
3.1 Preparation
DV Signage VideoFlyers are designed to be as plug and play as possible requiring the
minimum of setup for use. The following describes the operation of the standard version,
there are however a number of options available and these may affect the preparation
required.
Main components:
VideoFlyer unit
AC power supply
Compact Flash card – see following note
3.2 Compact Flash
The DV Signage VideoFlyer uses standard Compact Flash cards to store the media (video,
still images, audio) for playback. The following are key points to note:
The format of the digital media stored on the Compact Flash needs to meet certain
standards as per the specifications for this device as summarized in section 6.
Media files can be stored on the Compact Flash in two ways:
oPlaylist mode: Using Digital View’s DV Studio software which enables
creation of a playlist with a number of options for controlling media playback.
oSimple play mode: Using a PC copy function to transfer files onto the
Compact Flash.
All content files must be stored within a folder name MEDIA. (i.e. /Media/)
Additional notes regarding the playback modes are shown below.
Page 7 of 14
3.3 Powering On
Install the Compact Flash card, however to reduce the risk of errors it is advised to
have the power off when removing or installing a Compact Flash card.
Connect the provided external AC power supply unit.
Power on the unit using the on/off switch, the power LED should come on. (Note: In
Openframe version (VF-100W-OF), the power is default to “Auto on”.)
See the following section for Power On options.
3.4 Autoplay / Manual Playback at power startup
The VideoFlyer supports AutoPlay or manual playback modes at power startup
AutoPlay: This is the default mode for the unit. This means that upon power-on video will start
playing in accordance with a playlist (if DV Studio was used to transfer the media files to the
Compact Flash card) or in alpha-numeric order (if the media files were simply copied to the
Compact Flash card).
Manual Playback: Only available as a setting in DV Studio. In Manual Playback mode, after
power up press any button and the first track in the Playlist set in DV Studio will play.
3.5 Playback modes
Playlist mode, i.e. using DV Studio:
When operating in playlist mode, both project file (*.prj) and playlist file (*.pll) must be
present on the Compact Flash card. These are used to control the sequence for all
video tracks. If playback does not run as expected please check that these files are
present on the Compact Flash card.
The project and playlist file are created using DV Studio software. Using this software,
you can set simple sequences or complex sequences including “jump track“ or “next
track” actions. The software can also program buttons with different functions like
“play”, “stop”, “pause”, “mute”, “previous”, “next” and “volume”.
Page 8 of 14
Simple play mode, i.e. files copied to Compact Flash without using DV Studio:
In simple play mode, the user just copies all video files (.mpg) or JPEG files (.jpg)
onto the Compact Flash card. The VideoFlyer will play these files in alphabetical
sequence.
For JPEG files, the play time is determined by the last digit of the filename. (For
example: APPLE5.mpg, where “5” means the track will be displayed for 5 seconds.)
Note: Do not use the same filename on both MPEG and JPEG.
Note: Make sure all capital letters in a filename defined in playlist are consistent with the
filename on CompactFlash card. All filenames should be in 8+3 format (i.e. xxxxxxxx.xxx) and
avoid using any characters like “~”, “_”, “-“, etc. All content files must be stored within a folder
name MEDIA. (i.e. /Media/)
3.6 Configuration mode
In Configuration mode, you may set Master volume level, Unit ID, Date, Time and options for
Datalog/OSD, etc.
To enter the Configuration Mode, holding L1 key and power up.
The volume setting can be adjusted when the configuration mode is enabled.
Press L1 key + power up : Config. mode enable.
Press L1 key : Select
Press L2 key : Increase / Save and Exit
Press L3 key : Decrease / Save and Exit
VOLUME 14 VER 4.10
Y M D H M S
2004 .10 .12 15 : 48 : 44
ID NO: 0712
DATA LOGGING: ON
OSD: ON
SAVE AND EXIT
Button 8
Power on
Holding the button Config. Mode menu
Page 9 of 14
4 Touch Screen Operation
(only applicable in touch screen option)
4.1 Touch segments
The VideoFlyer’s button control can be performed via touch screen for panel sizes of 10”

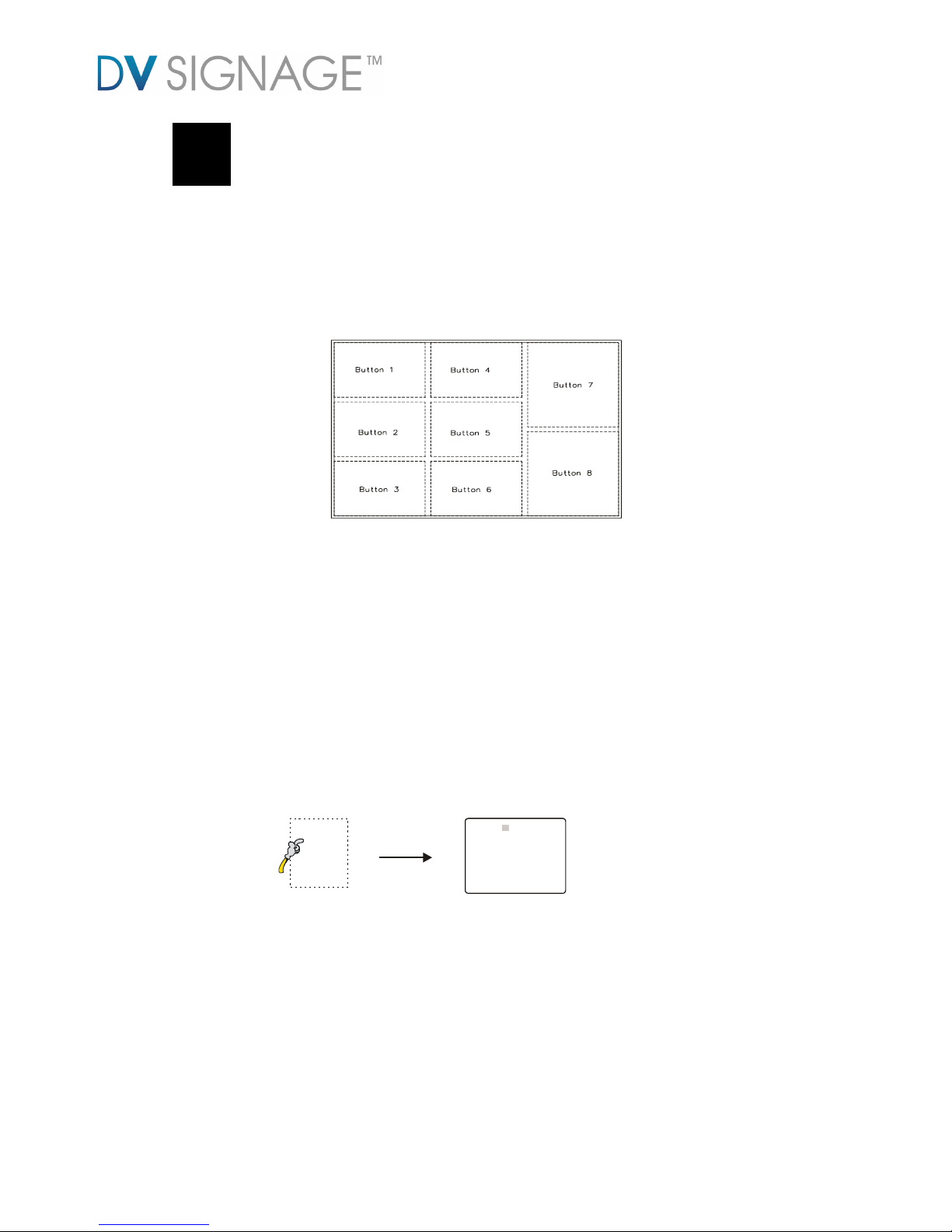

(Fig. 1)
Fig.1 8-buttons for LCD screen sizes 10”
Button function settings
Each button function can be programmed with the DV Studio software to perform a DVD type
player mode function or specific track select function.
The DV Studio software is available separately.
4.2 Configuration mode
To enter the Configuration Mode, holding the button 8 and power up.
The volume setting can be adjusted when the config. mode is enabled.
Press button 8 + power up : Configuration mode enable.
Press button 8 : Select
Press button 7 : Increase / Save and Exit
Press button 6 : Decrease / Save and Exit
VOLUME 14 VER 4.10
Y M D H M S
2004 .10 .12 15 : 48 : 44
ID NO: 0712
DATA LOGGING: ON
OSD: ON
SAVE AND EXIT
Button 8
Power on
Holding the button Config. Mode menu
Page 10 of 14
5 Dimensions

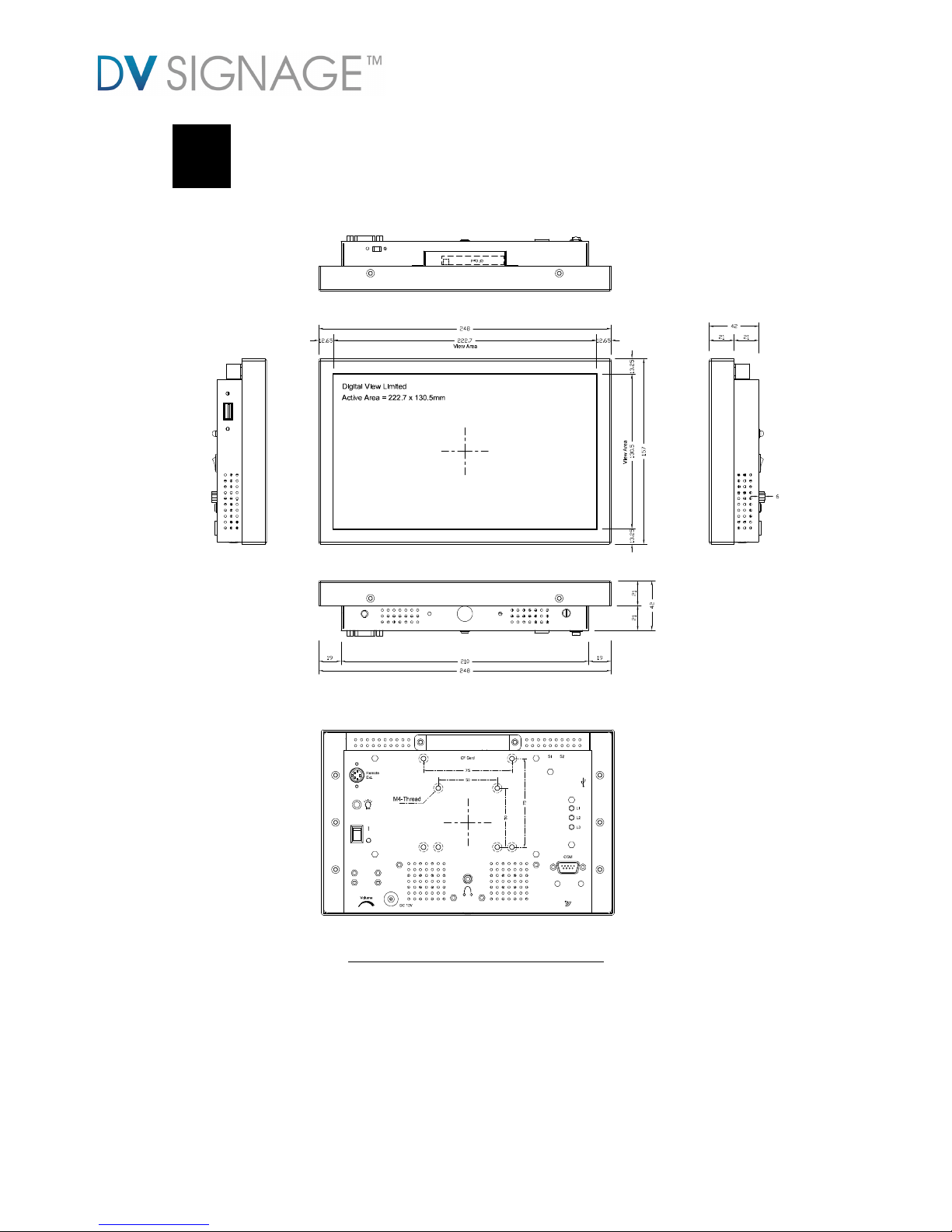

VideoFlyer 10.2” (VF-100W)
Page 11 of 14
6 Specification
Playback video format
1. MPEG-1 video (Video-CD), MPEG-2 video (DVD), MPEG-
4 (DivX, XivD)
2. MPEG still picture, MP3 audio, JPEG picture
Video storage
CompactFlash memory cards
LCD display
Color TFT
Screen size
10.2” (Diagonal)
Screen active area
222.7(H) x 130.5(V) mm
Panel resolution
1024(H) x 600(V)
Brightness
400 cd/m2
Contrast ratio
400 : 1
Viewing angle
120/140 (Vertical/Horizontal)
Audio output
Internal speakers x 2 (2W)
Stereo phone jack
Playback Functions
Standard playback :
Play, Stop, Pause, Repeat, Previous, Next Track, Volume
Programmable playback :
Loop, Auto and Program mode
I/O
USB port – Content update
RS-232 port – 9600, n81
IR remote control – Playback control
Remote Ext. – External button connection (#1 - #8)
Volume control
Power input
DC 12V
Ordering information
587010000-3 VF-100W, Black
587011000-3 VF-100W-T, Black
587010090-3 VF-100W-OF
587011090-3 VF-100W-OFT
Dimensions
248(W) x 43(D) x 157(H) mm
Weight
2.5kg
Environmental
Operating temperature : 0oC to 50oC
Relative humidity : 5%-95% relative humidity
(Non-condensing)
Page 12 of 14
WARRANTY
The products are warranted against defects in workmanship and material for a period of one (1) year from the date of
purchase provided no modifications are made to it and it is operated under normal conditions and in compliance with
the instruction manual.
The warranty does not apply to:
Product that has been installed incorrectly, this specifically includes but is not limited to cases where
electrical short circuit is caused.
Product that has been altered or repaired except by the manufacturer (or with the manufacturer’s consent).
Product that has subjected to misuse, accidents, abuse, negligence or unusual stress whether physical or
electrical.
Ordinary wear and tear.
Except for the above express warranties, the manufacturer disclaims all warranties on products furnished hereunder,
including all implied warranties of merchantability and fitness for a particular application or purpose. The stated
express warranties are in lieu of all obligations or liabilities on the part of the manufacturer for damages, including but
not limited to special, indirect consequential damages arising out of or in connection with the use of or performance of
the products.
CAUTION
Whilst care has been taken to provide as much detail as possible for use of this product it cannot be relied upon as
an exhaustive source of information. This product is for use by suitably qualified persons who understand the nature
of the work they are doing and are able to take suitable precautions and design and produce a product that is safe
and meets regulatory requirements.
SAFETY INSTRUCTION
Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet
basement or near a swimming pool.
LIMITATION OF LIABILITY
The manufacturer’s liability for damages to customer or others resulting from the use of any product supplied
hereunder shall in no event exceed the purchase price of said product.
TRADEMARKS
The following are trademarks of Digital View Ltd:
Digital View
DV Signage
Video Flyer
Page 13 of 14
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment. Shielded cables must be used with this unit to ensure compliance
with the Class B FCC limits.
Page 14 of 14
Contact Details
USA: 18440 Technology Drive
Building 130
Morgan Hill, CA 95037
Tel: (1) 408-782 7773 Fax: (1) 408-782 7883
Sales: info@dvsignage.com
EUROPE: The Lake House,
Knebworth Park,
Hertfordshire, SG3 6PY
UK
Tel: +44 (0)20 7631 2150 Fax: +44 (0)20 7631 2156
Sales: info@dvsignage.com
ASIA: 16th floor Millennium City 3
370 Kwun Tong Road
Kwun Tong
Hong Kong
Tel: (852) 2861 3615 Fax: (852) 2520 2987
www.dvsignage.com
All rights reserved: The concepts, designs, specifications and commands presented in this document
are proprietary to DV Signage and are only made available for use with DV Signage products.
Specifications subject to change without notice
Document No. 9169900-10 © DV Signage 2012
Table of contents
