DVTECH Solution DVXTREME VC-701MF User manual

Multi-Format to
HDMI Conversion
Box
(VC-701MF)
USER MANUAL V1.0
VC-701MF
Package Contents-
1 VC-701MF
1 user manual
1 power adapter DC 12V with lock
1 remote controller
1 RS-232 1.8M cable (DB-9 Male to Female)
1 RS-232 control software CD
2 rack rails, 6 screws for VC-701MF only
Any thing missed, please contact with your vendor.
Introduction
The VC-701MF is a multi-format to HDMI convertor for
digital and analog video input. It combines five
independent switchers in a single compact enclosure: 3x1
HDMI with embedded audio, 1x VGA, 1x YPbPr video, 1x
CVBS, 1x S-Video, and 4x1 analog stereo audio. The
VC-701MF features three selectable switching modes,
including the ability to route all and HDMI sources to the
display using a single HDMI cable. Continuous EDID
communications between the HDMI and VGA sources and
the display device ensures the reliable display of video.
HDMI inputs and outputs are HDCP compliant, ensuring
display of content protected media. The VC-701MF is ideal
for use in single-display applications that require a hybrid
switcher for integration of digital and analog video sources
and associated audio signals.
Features
Deep Color video up to 12-bits, 1080p@60Hz (when
HDMI input to HDMI output)
Compliant with HDMI 1.3a and DVI 1.0 standards
Fully HDCP compliant
Video Inputs: 3 x HDMI, 1 x VGA, 1x YPbPr, 1 x
CVBS, 1 x S-Video
Audio Inputs: 3 x HDMI, 3 x 2-chn RCA(work with
YPbPr/ CVBS/ S-Video), 1*x3.5mm (work with VGA)
Video Output: 1 x HDMI
Audio Output: 1x 2-chn analog RCA
IR Remote controller for operation.
Computer can be used RS 232 to control the
VC-701MF
1U rack design
Specifications
Function
VC-701MF
HDMI Input Connector
3
VGA Input Connector
1
YPbPr Input Connector
1
CVBS Input Connector
1
S-Video Input Connector
1
HDMI Output Connector
1
Max. Resolution
UXGA, 1080p
Remote control port
RS232, 9600, 8 data bit,
no parity, 1 stop bit
Power Adapter (Min.)
DC 12V with lock
Housing
Metal
Weight
1800g
Dimensions (LxWxH)
384x173x45mm

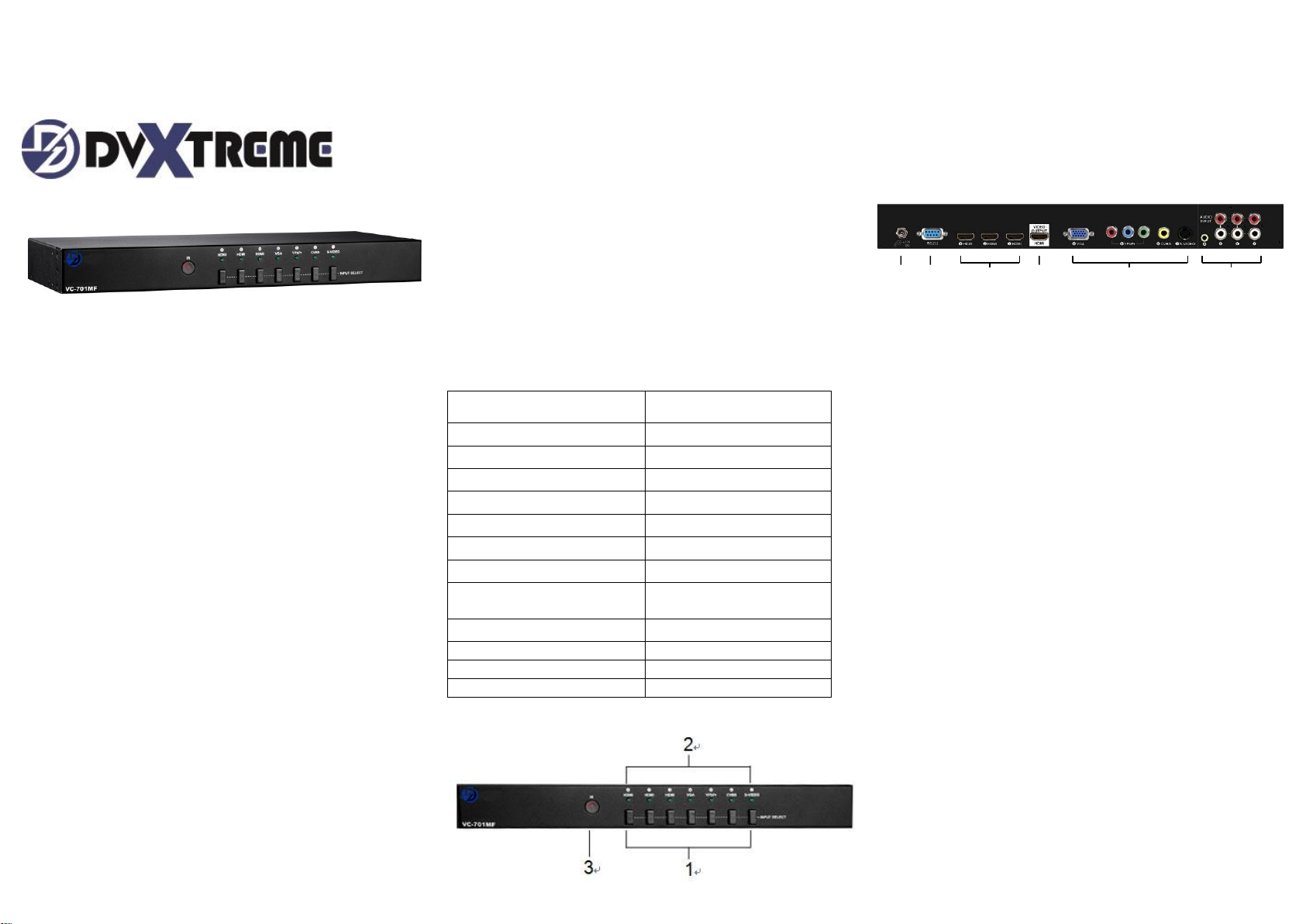

FRONT VIEW
-1-
1. Input port selection switch
Press the switch to access the selected video source.
2. Port LEDs
LED lights up when the input port has been
successfully selected.
3. IR receiver
Take aim at IR receiver with remote controller.
REAR VIEW
1. Power Supply
Plug the power adapter.
2. RS232 port
Use a 9-pin RS-232 cable to connect both computer
serial port and VC-701MF’s RS-232 port, refer to”
Matrix Application Software“
3. Video Input port
3 x HDMI, 1 x VGA, 1x YPbPr, 1 x CVBS, 1 x S-Video
4. HDMI out port
5. Audio input port
Work with input port: VGA, YPbPr, CVBS, S-Video
Installation
Before the installation, making sure the VC-701MF and
monitor are turning off.
1. Making sure all equipments are turned off.
2. Plug the monitor cable into the HDMI OUT port
connector.
3. Plug the extension cables from video source device
(DVD player, PC, Digital camera) into the Video IN port
connectors.
4. Plug the power adapter into the wall socket.
5. Connect the power adapter with the HDMI selector.
6. Turn on the monitor first.
7. Turn on the DVD player/TV receiver.
Operation
1. Port selection
Press the button of “port selection switch” for
accessing the wanted DVD player/TV receiver.
The selected corresponding port will light on for the
LEDs which indicating the port is actived.
-2-
1
2
3
4
3
5

2. IR remote control
Use “1” ~”7” key to select video input port.
Use “◄”, “►” key to select another video input port.
Use ” ” key to power on/off VC-701MF.
Support HDMI mode
Max resolution: UXGA(1600x1200@60), 1080p@60, 12-bit.
Support VGA mode
Analog
Resolution
Frequency(Hz)
VGA
640x480
60 / 72 / 75 / 85
VGA
720x400
70 / 85
SVGA
800x600
56 / 60 / 72 / 75 / 85
WVGA
848x480
60
XGA
1024x768
60 / 70 / 75 / 85
SXGA
1152x864
75
SXGA
1280x768
60RB/ 60 / 75 / 85
WXGA
1280x800
60
SXGA
1280x960
60 / 85
SXGA
1280x1024
60 / 75 / 85
WXGA
1360x768
60
SXGA+
1400x1050
60RB / 75
WXGA+
1440x900
60
SXGA+
1440x1050
60
UXGA
1600x1200
60
WSXGA+
1680x1050
60
1080p
1920x1080
60
WUXGA
1920x1200
60RB
720p
1280x720
60
Support YPbPr mode
Analog
Resolution
Frequency(Hz)
480i
720x480
60
576i
720x576
50
480p
720x480
60
576p
720x576
50
720p
1280x720
50 / 60
1080i
1920x1080
50 / 60
1080p
1920x1080
50 / 60
-3-
Support CVBS/ S-Video mode
Analog
Resolution
Frequency(Hz)
480i
720x480
60
576i
720x576
50
Matrix Application Software
Software Introduction
The 《AV Matrix》Matrix control software applies to
different input/output matrixes.
Software Activation
Power on the computer: Implement the AV Matrix.msi to
activate installation screen as below, click “Next”. And
follow the instructions on screen to finish the installation.
Connect VC-701MF and PC
You must power off the VC-701MF. Then, connect the
VC-701MF’s RS-232 port to the PC’s RS-232 port.
Matrix Configuration
After finishing installation, click to active
AV Matrix Application. In the “Options” screen, select the
connected PC Port number and Baud rate, and then click
“OK”.
-4-
Press the “Scan” and found the connected VC-701MF first.
Then use mouse cursor to select which input port to switch,
and press the left button
Communication Protocol/Control Command Code
Communication Protocol: Baud rate 9600bps, no odd or
even calibration bit address, 8bit transmission address,
1bit stop address. Please refer to the “Command list.pdf”
in the CD-ROM for more relative Command Code
information.
