Dynacord MXE Series User manual

MXE DSP Matrix Mix Engine Series
MXE5
en Installation manual

MXE DSP Matrix Mix Engine Series Table of contents | en 3
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
Table of contents
1Safety 4
1.1 Safety messages explained 4
1.2 Important safety instructions 4
1.3 High frequency interference - FCC/EN55032 7
1.4 RoHS statement 8
1.5 Notices 8
2About this manual 10
2.1 Manual purpose and intended audience 10
2.2 Digital document 10
2.3 Unpacking and inspection 10
2.4 Scope and delivery 10
3System overview 11
3.1 Application 11
3.2 Features 11
4Installation 12
4.1 Mains power connection 12
4.2 Mounting 12
4.3 Ventilation 12
5Controls, indicators, and connections 13

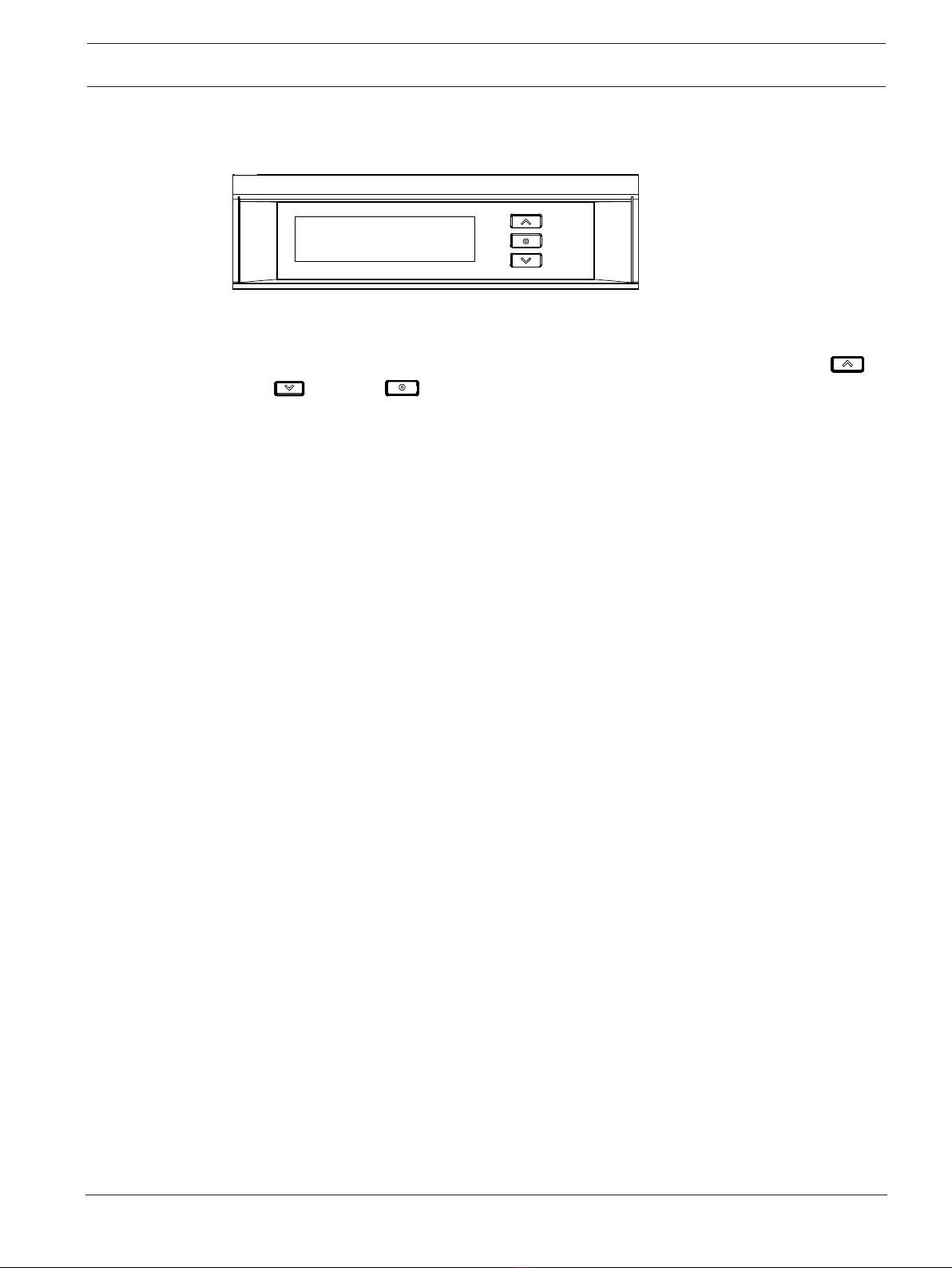

5.1 Front panel 13

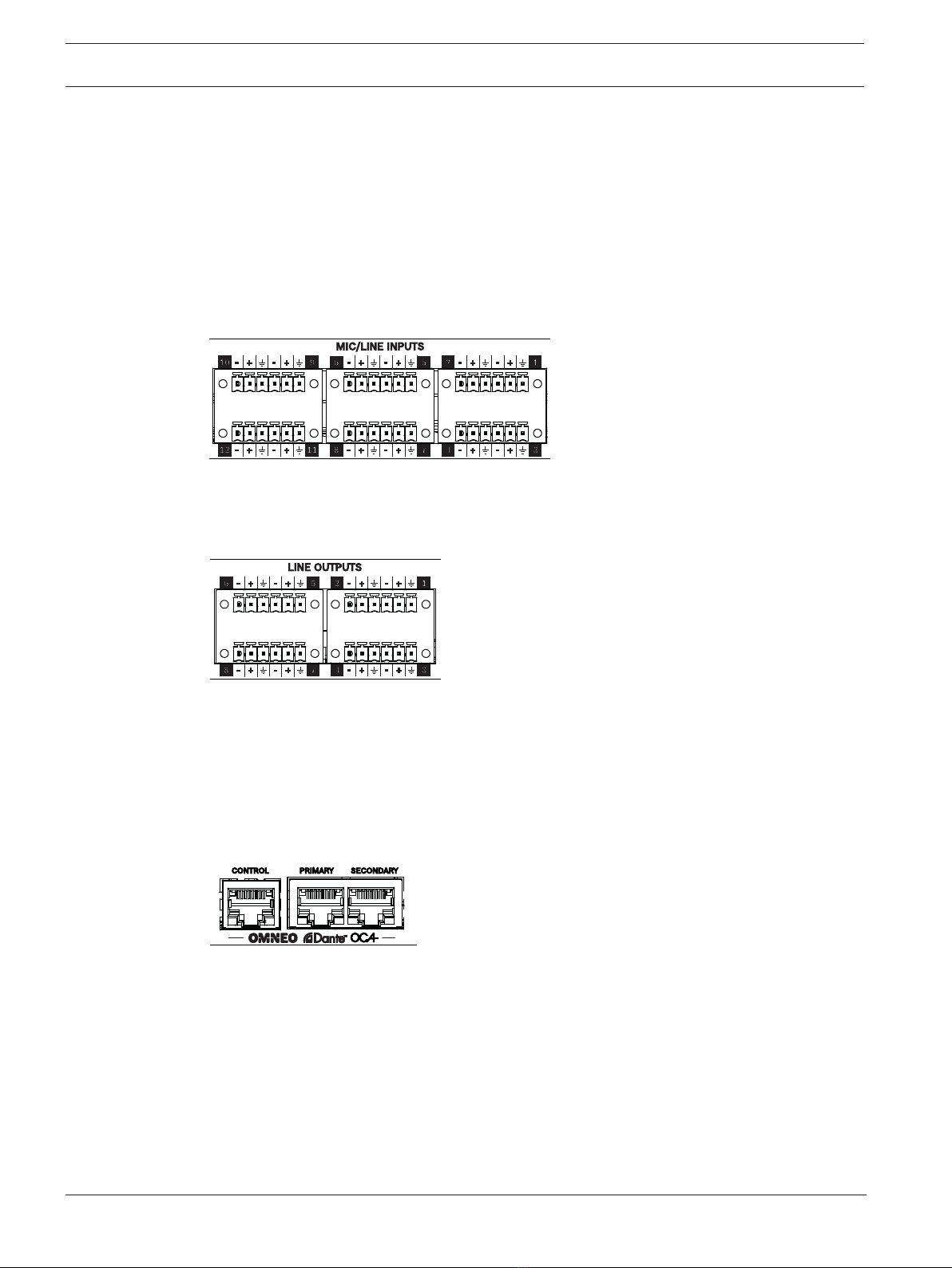

5.2 Rear panel 13
5.3 Control port 13
5.4 Audio connections 14
6Menu navigation 15
6.1 Display 15
6.2 Front panel control 15
6.3 Remote control via software 15
7Technical data 16
7.1 MXE5 16
7.2 Dimensions 20

4en | Safety MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
1 Safety

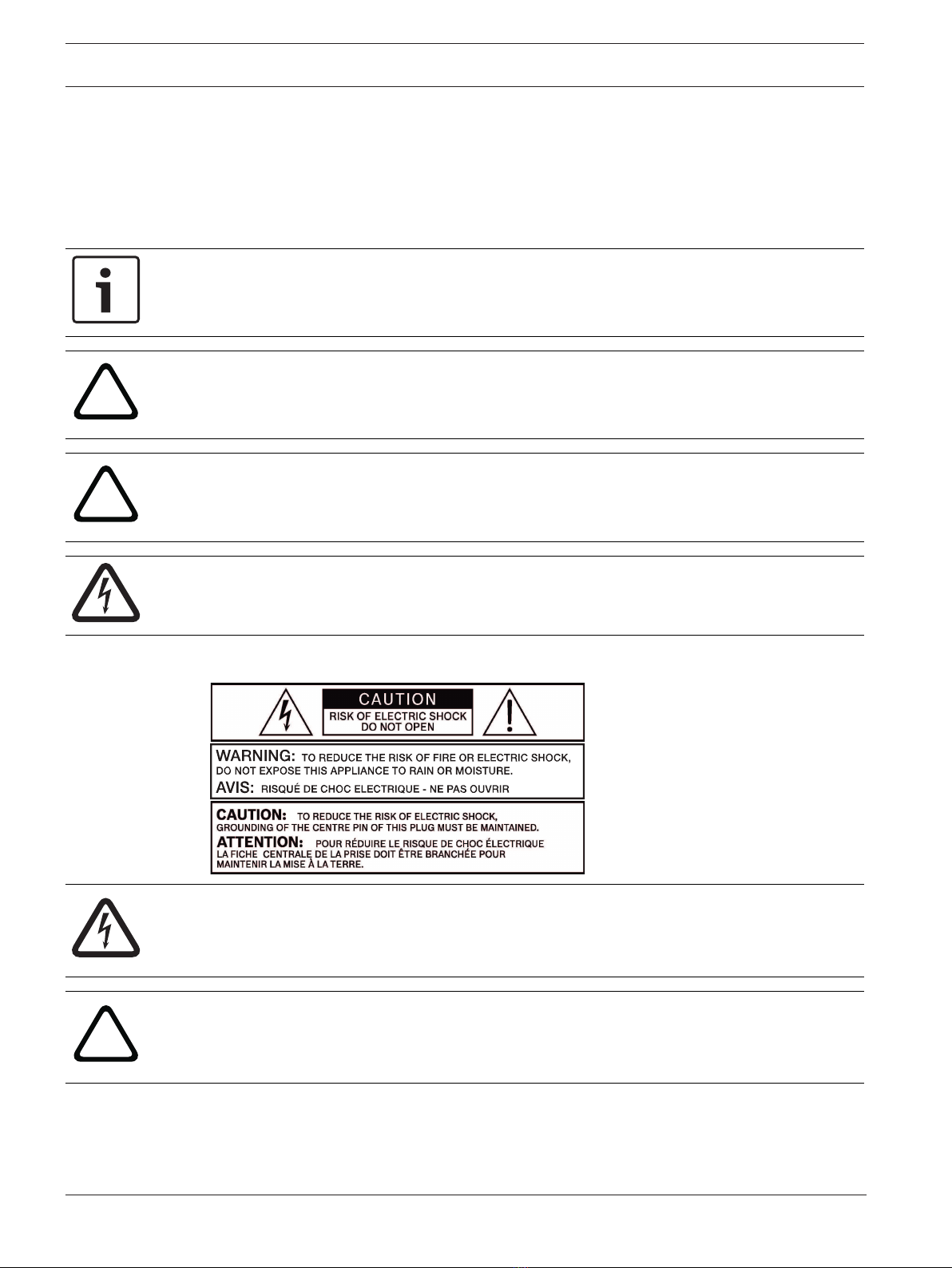

1.1 Safety messages explained
Four types of signs can be used in this manual. The type is closely related to the effect that
may be caused if it is not observed. These signs - from least severe effect to most severe
effect - are:
Notice!
Containing additional information. Usually, not observing a ‘notice’ does not result in damage
to the equipment or personal injuries.
!
Caution!
The equipment or the property can be damaged, or persons can be lightly injured if the alert
is not observed.
!
Warning!
The equipment or the property can be seriously damaged, or persons can be severely injured
if the alert is not observed.
Danger!
Not observing the alert can lead to severe injuries or death.
1.2 Important safety instructions
Danger!
The lightning symbol inside a triangle is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product enclosure that may be of sufficient
magnitude to constitute a risk of shock to persons.
!
Warning!
The exclamation mark inside a triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the product.
1. Read these instructions.
2. Keep these safety notes in a safe place.
3. Heed all warnings.
4. Follow all instructions.

MXE DSP Matrix Mix Engine Series Safety | en 5
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. This PROTECTION CLASS I device must only be connected to a mains socket with a safety
ground connection. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified or approved by the manufacturer.
Caution!
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
However, this does not apply if the device is to be used as part of an evacuation system.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
14. Do not place any sources of open flame, such as lit candles, on top of the device.
!
Warning!
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
!
Warning!
Do not expose this apparatus to dripping or splashing and ensure that no objects filled with
liquids, such as vases, are placed on the apparatus. Ne pas exposer cet appareil à des
éclaboussures ou gouttelettes d’un liquide. Aucun objet remplie de liquide comme par
exemple un vase ne doit etre place sur l’appareil.
!
Warning!
To completely disconnect this apparatus from the ac mains, disconnect the power supply
cord plug from the ac receptacle. Pour deconnecter completement l’appareil du reseau
d’alimentation, deconnecter le cordon d’alimentation de la prise murale.
!
Warning!
The mains plug of the power supply cord shall remain readily accessible. La prise du reseau
d’alimentation doit demeurer aisement accessible.

6en | Safety MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
Danger!
To prevent electric shock do not remove top cover. No user serviceable parts inside. Refer
servicing to qualified service personnel.
!
Warning!
Apparatet må tilkoples jordet stikkontakt.
Apparaten skall anslutas till jordat uttag.
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.
Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til
stikproppens jord.
Important service information
!
Caution!
This service information is for use by qualified service personnel only. To avoid the risk of
electric shock, do not perform any maintenance work that is not described in the operating
instructions unless you are qualified to do so. Have all service work and repairs performed by
a trained customer service technician.
1. Repair work on the device must comply with the safety standards specified in EN 60065
(VDE 0860) and IEC 62368.
2. A mains isolating transformer must be used during any work for which the opened device
is connected to and operated with mains voltage.
3. The device must be free of any voltage before performing any alterations with upgrade
sets, switching the mains voltage, or performing any other modifications.
4. The minimum distance between voltage-carrying parts and metal parts that can be
touched (such as the metal housing) or between mains poles is 3mm, and must be
observed at all times.
5. The minimum distance between voltage-carrying parts and circuit parts that are not
connected to the mains (secondary) is 6mm, and must be observed at all times.
6. Special components that are marked with the safety symbol in the circuit diagram (note)
must only be replaced with original parts.
7. Unauthorized changes to the circuitry are prohibited.
8. The protective measures issued by the relevant trade organizations and applicable at the
place of repair must be observed. This includes the properties and configuration of the
workplace.
9. Observe the guidelines with respect to handling MOS components.
Danger!
SAFETY COMPONENT (MUST BE REPLACED BY ORIGINAL PART)
!
Warning!
This equipment contains a non-rechargeable lithium battery, which is containing perchlorate.
The non-rechargeable lithium battery may explode if it is exposed to fire or extreme heat. Do
not short circuit the battery. Do not attempt to recharge the non-rechargeable lithium battery.
The battery may only be replaced by qualified service personnel. There is a risk of explosion if
the battery is replaced by an incorrect type. For battery disposal use the return and collection
systems put in place in the country concerned.

MXE DSP Matrix Mix Engine Series Safety | en 7
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
IT security disclaimer
In order to offer maximum compatibility with all networked audio devices and to allow for fast
and easy setup and maintenance, our OMNEO-enabled products:
– do not verify the authenticity of any Dante or OCA controllers (or any other node) on the
network
This means that these devices do not take any special precautions against malicious or
accidental attacks via their network interfaces. Such attacks happen every day on the public
internet. It is strongly recommended to set up the system in a safe, isolated network, meaning
a network where all hardware components are known and physically owned and none of them
is connected to the public internet.
Voice evacuation systems disclaimer
While capable of being used for announcements, MXE series products have not been certified
as components of voice evacuation systems according to EN54-16. Voice evacuation systems
for life safety applications must not be designed and built using MXE DSP Matrix Mix Engines.
1.3 High frequency interference - FCC/EN55032
IMPORTANT: Do not modify this unit! Changes or modifications not expressly approved by the
manufacturer could void the user’s authority, granted by the FCC, to operate the equipment.
Notice!
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV/communications equipment technician.
FCC suppliers Declaration of Conformity
Product(s):
Material Commercial code Material description
F.01U.335.530 MXE5 DSP matrix mix engine 24x24 channels
Compliance statement
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and

8en | Safety MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
2. This device must accept any interference received, including interference that may cause
undesired operation.
Responsible party
Bosch Security Systems, Inc.
130 Perinton Parkway
14450 Fairport, NY, USA
www.boschsecurity.us
1.4 RoHS statement
The MXE DSP Matrix Mix Engine Series is in compliance with European Directive 2011/65/EU -
Restriction of Hazardous Substances (RoHS3).

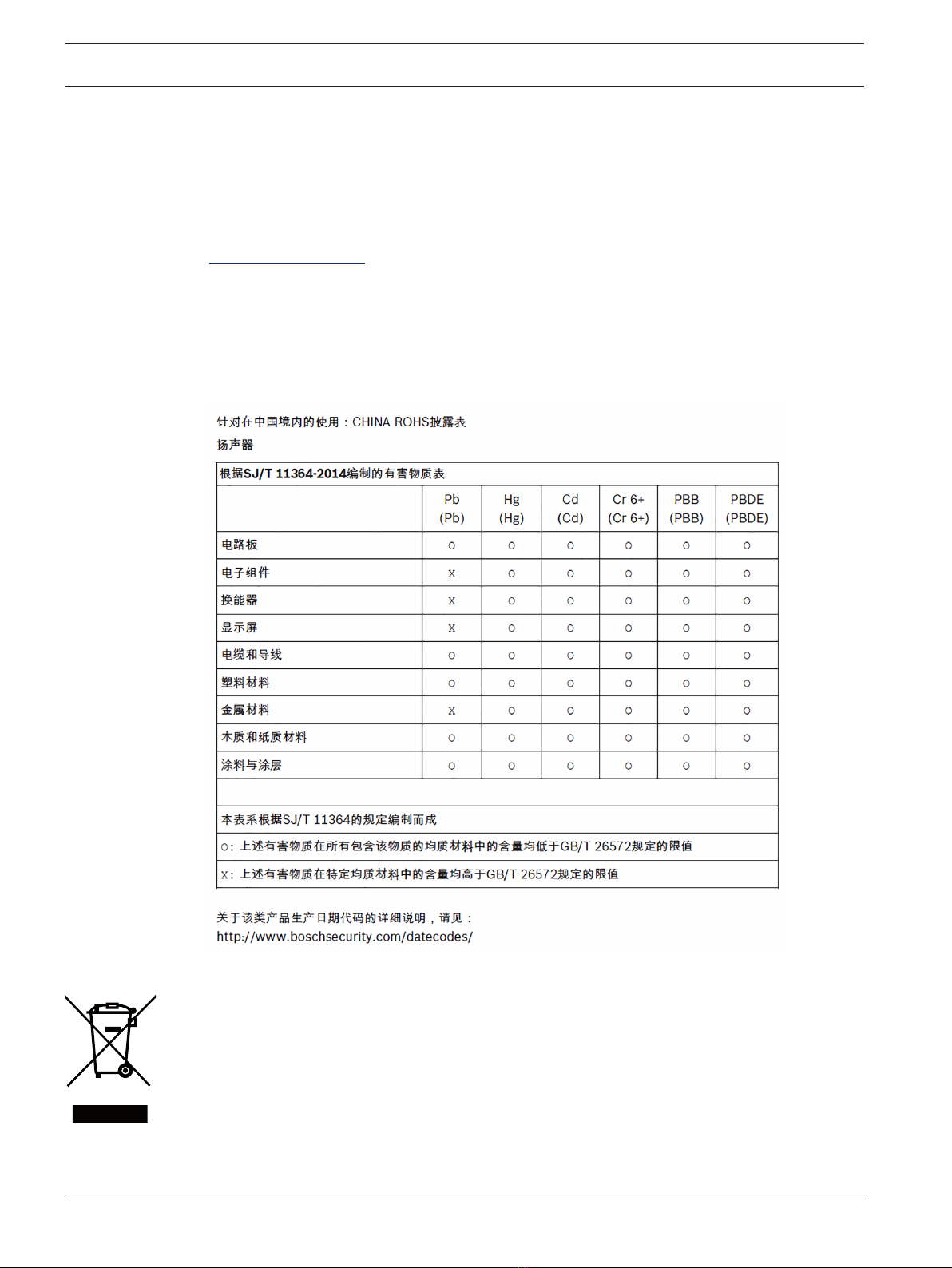

The MXE DSP Matrix Mix Engine Series is in compliance with “China RoHS” directives. The
following chart is provided for product use in China and its territories:
1.5 Notices
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.

MXE DSP Matrix Mix Engine Series Safety | en 9
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
Network cabling
The OMNEO network comprises audio transport using the Dante protocol as well as OCA
control commands. In order to guarantee the product performance according to
specifications, network cabling has to be shielded, fulfilling the requirements of CAT 5e as a
minimum.
For integration in networks, the network switches require a dedicated configuration. Further
details will be explained in the documentation of the related network control software.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Dynacord.
All content including specifications, data, and illustrations in this manual are subject to change
without prior notice.
The overview for global service and spare parts is available on www.dynacord.com

10 en | About this manual MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
2 About this manual
2.1 Manual purpose and intended audience
The purpose of this manual is to provide information required for installing, configuring,
operating, and maintaining the MXE DSP Matrix Mix Engine Series.
Read through this manual to familiarize yourself with the safety information, features, and
applications before you use these products.
This manual is intended for installers, operators, and users of MXE series products.
2.2 Digital document
This manual is available as a digital document in the Adobe Portable Document Format (PDF).
You can find information about Dynacord products on the product related information at
www.dynacord.com.
2.3 Unpacking and inspection
Carefully open the packaging and take out the device. Inspect the enclosure for damages that
might have happened during transportation. Each product is examined and tested in detail
before leaving the manufacturing site to make sure it arrives in perfect condition at your place.
Please inform the transport company immediately, if the device shows any damage. Being the
addressee, you are the only person who can claim damages in transit. Keep the cardboard box
and all packaging materials for inspection by the transport company.
Keeping the cardboard box including all packing materials is also recommended, even if the
device shows no external damages.
!
Caution!
Do not ship products in anything other than its original packaging.
When shipping the products, make sure to always use its original box and packaging materials.
Packing the products like it was packed by the manufacturer guarantees optimum protection
from transport damage.
2.4 Scope and delivery
Quantity Component
1 MXE5 DSP Matrix Mix Engine
10 6-pin Euroblock-type connector, inputs/outputs
1 15-pin Euroblock-type connector, control port/GPIO
2 Mains input AC power cables, US- and EU-types
1 Installation manual
1 Safety instruction booklet
Keep the original invoice that states the purchase/delivery date in a safe place.

MXE DSP Matrix Mix Engine Series System overview | en 11
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
3 System overview
3.1 Application
The MXE DSP Matrix Mix Engine series are designed to control, mix, and route audio signals
through professional audio systems in fix installed and live audio applications, for example
stadiums, arenas, houses of worship, concert halls, theaters, and other applications that
require high-performance multichannel audio system controllers with sophisticated signal
processing and networking.
3.2 Features
MXE5
– 24 x 24 Dante IO via the OMNEO networking interface
– 12 mic/line inputs, 8 line outputs, 8 x GPIO control ports
– 3 Dante/OCA/OMNEO control ports
– Sample rate 48 kHz / 96 kHz

12 en | Installation MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
4 Installation
4.1 Mains power connection
The MXE series products receive their power supply via the IEC MAINS inlet connector that
will accept voltages from 100 to 240 volts AC, 50-60 Hz. Only use the included AC cable or AC
cables approved for your country of use. During installation, always separate the device from
the mains. Connect the device only to a mains network once the device is ready for operation.
4.2 Mounting
MXE series has been designed for installation in a conventional 19-inch rack or case.
Attach the device with its frontal rack mount ears using four 20mm screws and washers.
4.3 Ventilation
Attention should be given to provide sufficient ventilation. MXE products will often be
installed in cases or racks with other equipment, such as amplifiers, consideration should be
given to accumulated heat from those devices within the rack space. An air duct of at least 50
mm between the rear panel of the MXE products and the inner wall of the cabinet/rack case is
recommended. Make sure that the duct reaches up to the cabinets or the rack case’s top
ventilation louvers. Since temperatures inside many cabinet/rack case can easily rise up to 40
°C during operation, it is mandatory to bear in mind the maximum allowable ambient
temperature for all other appliances installed in the same cabinet/rack case.
!
Caution!
Blocking/closing the devices ventilation louvers is not permissible. Keep ventilation louvers
free from dust to ensure unhindered airflow.
Without sufficient cooling/ventilation, the device may enter protect mode.
Notice!
Do not use these devices in direct sunlight or near heat sources, like heater blowers, stoves,
or any other heat radiating devices.
Notice!
Do not use these devices in an environment where temperatures are below -5 °C (+23 °F) or
exceed +45 °C (+113 °F).

MXE DSP Matrix Mix Engine Series Controls, indicators, and connections | en 13
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860

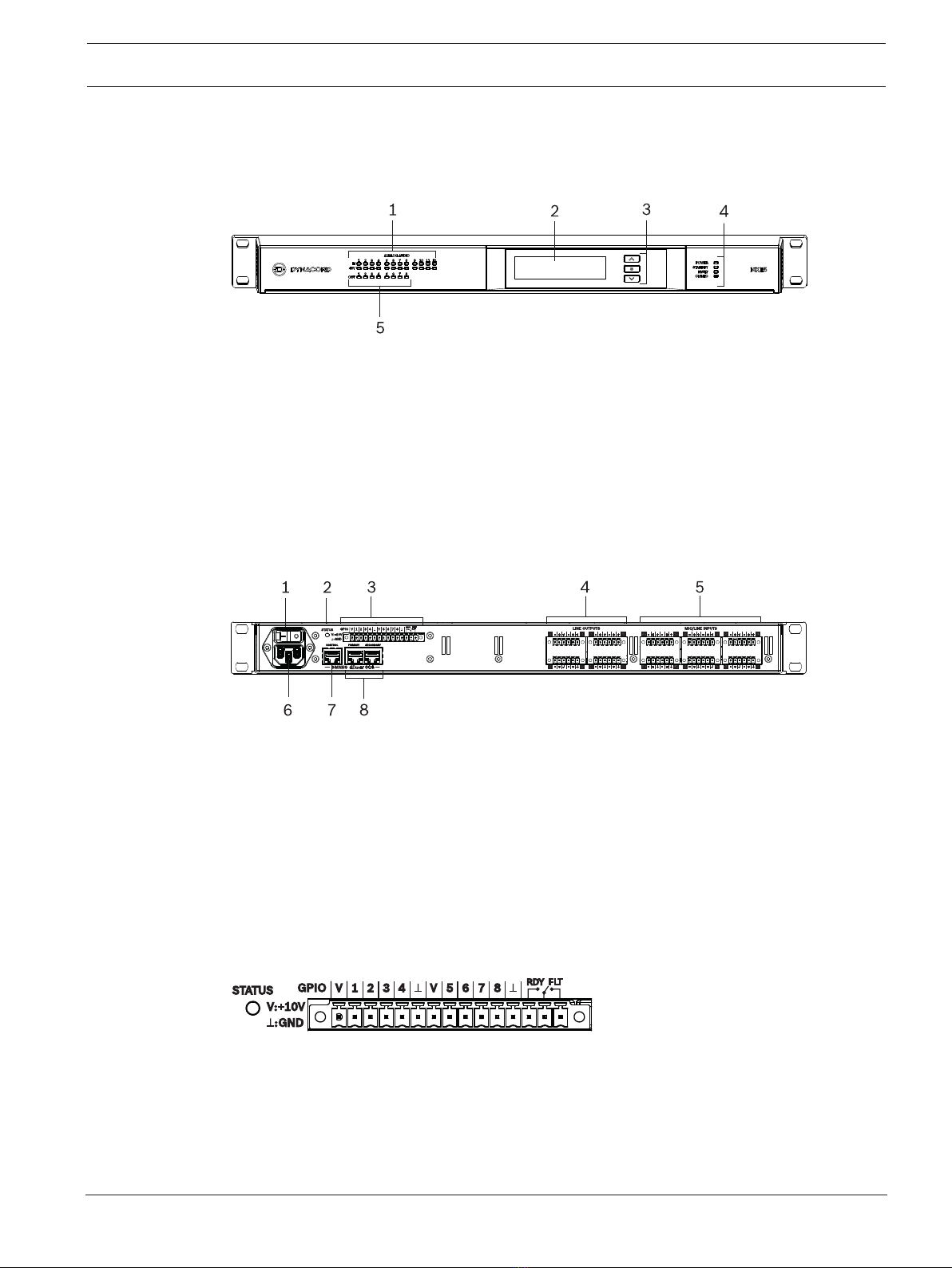

5 Controls, indicators, and connections
5.1 Front panel
MXE5
1. Audio inputs 1-12 metering (green = signal present, red = clip) and phantom power (+48
V) indication
2. OLED display
3. Navigation buttons: up, enter, and down for menu navigation and parameter editing
4. MXE status information: POWER, STANDBY, FAULT, OMNEO present
5. Audio outputs 1-8 metering (green = signal present, red = clip/limit)
5.2 Rear panel
MXE5
1. Power switch
2. Status LED
3. Control ports (GPIO)
4. Line outputs 1-8
5. Mic/line inputs 1-12
6. Mains power connector
7. OMNEO/OCA control port (no multicast audio)
8. OMNEO/Dante/OCA primary and secondary ports
5.3 Control port
The control port features eight GPIOs (general purpose inputs & outputs), ready/fault
contacts, and ground/+10 V reference pins. It is equipped with a 15-pin Euroblock-type
connector. The eight GPIOs are configurable for either control inputs or control outputs.
Control inputs can be defined by the user to change device and system parameters, for

14 en | Controls, indicators, and connections MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
example, channel mute, preset selection, and others. Control outputs can be used to send
parameter and status indication to external devices. The other ports are potential free relay
toggle contacts for READY or FAULT indication.
5.4 Audio connections
All audio connectors are Euroblock-type. The pinouts are labeled on the rear of the device. It is
highly recommended to use a balanced cabling configuration whenever possible. Using
unbalanced cabling can result in poor audio quality.
Input connections
MXE5 has 12 Mic/Line input connections.
Figure5.1: Analog input connections
Output connections
MXE5 has eight line output connections.
Figure5.2: Analog output connections
Dante/OCA and OMNEO connections
The MXE5 has three RJ45 network ports for receiving and transmitting control data, as well as
audio via an OMNEO or Dante network. The primary and secondary ports provide Dante and
OCA networking for glitch free, transparent, and RSTP configurations. The control port
provides a direct network connection for control data - no multicast audio.
Figure5.3: MXE5 network ports
In SONICUE the primary / secondary ports can be configured for three different modes:
–Glitch-free: The two ports are used for parallel, fully redundant audio transmission via
two independent networks (primary, secondary)
–Transparent: The two ports can be used for daisy-chaining of up to 20 devices without
additional external switches.
–RSTP: The two ports can be used for daisy-chaining of up to 20 devices in a loop. A single
network failure (e.g. broken cable) is corrected automatically by the Rapid Spanning Tree
Protocol.
For more details please refer to the SONICUE help documentation.

MXE DSP Matrix Mix Engine Series Menu navigation | en 15
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
6 Menu navigation
6.1 Display
Figure6.1: OLED display
The MXE series uses an OLED display to show information such as status, temperatures, IP
address, and other useful information. The navigation is provided by three buttons: up ,
down , and enter .
6.2 Front panel control
The OLED display and the three navigation buttons allow basic operation of the MXE series on
the front panel, as well as the monitoring of important parameters.
The main screen shows important device information (e.g. device ID, device name, IP address,
status), the active preset with number and name, and the panel locked/unlocked state. It also
provides a menu icon for navigating to the menu list with additional functions and parameters.
Via the menu list you have access to the following features:
– Find function activation
– Power/Standby switching
– Network settings
– Display settings
– Front panel lock/unlock
– Preset selection
– Device status
– Device restart
– Device reset to factory settings
6.3 Remote control via software
MXE DSP Matrix Mix Engines can be completely remote controlled and supervised via
SONICUE remote control software. For further instructions, refer to the SONICUE dynamic
help and tutorials available in the download section of www.dynacord.com.

16 en | Technical data MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
7 Technical data
7.1 MXE5
DESCRIPTION AND FEATURES
MXE5 DSP Matrix Mix Engine Audio system manager with integrated matrix
mixing, signal processing, network routing,
system control and supervision
Audio 24 x 24 channel audio mix matrix
12 analog inputs, 8 analog outputs
24 OMNEO / Dante network inputs and
outputs
Safety / Redundancy Internal supervision, system monitoring,
watchdog, fault output
Redundant audio networking supported
Configuration and Control Software SONICUE audio system design and control
application
Integration of MXE series, remote amplifiers,
loudspeakers, peripheral devices
Configuration, control, and monitoring for
complete audio systems
Programmable user control panels and
access levels
AUDIO SPECIFICATIONS
Frequency Response
ref. 1 kHz, analog in to analog out, 48 kHz 20 Hz to 20 kHz (±0.5 dB)
ref. 1 kHz, analog in to analog out, 96 kHz 20 Hz to 40 kHz (±0.5 dB)
Signal to Noise Ratio
A-weighted, analog input > 118 dB
A-weighted, analog output > 118 dB
A-weighted, analog input to analog output > 115 dB
EIN Equivalent Input Noise < -128 dB
20 Hz to 20 kHz, A-weighted
THD+N < 0.002 %
1 dB below max., @ 1 kHz
Crosstalk < -105 dB
1 dB below max., @ 1 kHz
Common Mode Rejection > 70 dB
@ 1 kHz, nominal Level
Phantom Power +48 V / 10 mA, switchable per analog input

MXE DSP Matrix Mix Engine Series Technical data | en 17
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
Voltage @ Current
Input gain 0 dB to +60 dB
Analog inputs
DIGITAL SIGNAL PROCESSING
Sampling rate 48 kHz / 96 kHz, OMNEO / Dante
synchronized
Signal Delay / Latency
Analog In to Analog Out, 48 kHz / 96 kHz < 0.45 ms / < 0.22 ms
Signal Processing 32/40 bit, floating point
Filter PEQ, Lopass, Hipass, Loshelv, Hishelv, X-
Over, FIR
Dynamics Ducker, Compressor, Noisegate
Limiter Peak (PA) limiter, RMS / TEMP limiter
Pilot tone Generator, Detector with Notch
Generators Sine, Pink noise, White noise
Mixer/Router Router, Mixer, Matrix Mixer
Misc VU Meter, Level, Polarity, Mute, Delay
Special Algorithms Speaker Processing
Memory
DSP Presets 60
CONNECTIVITY
Analog Audio Input / Output
Type 12 mic/line level inputs, 8 line level outputs,
electronically symmetric
Connectors 10 x 6-pole Euroblock connectors, 2 channels
each
Nominal Input / Output Level +6 dBu / 1.55 V
Maximum Input / Output Level +22 dBu / 9.7 V
Reference level equal to digital input +22 dBu for 0 dBFS
Input Impedance, active balanced 2.2 kΩ
Output Impedance, active balanced 47 Ω
Min. Load Impedance 600 Ω
Network
Type 3 x RJ45
Standards 1000base-T / 100base-TX, integrated switch

18 en | Technical data MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
Network Audio Inputs 24 channels, 48 kHz / 96 kHz, OMNEO/Dante
format
Network Audio Outputs 24 channels, 48 kHz / 96 kHz, OMNEO/Dante
format
GPIO Control Port
Type 15-pole Euroblock connector
Ports and Operating Modes 8 x GPIO, switchable Analog In / Digital In /
Digital Out
Analog Input Range 0 V to +11 V, 110 kΩ input resistance
Digital Inputs ON: < 1.5 V
OFF: > 2.0V, internal pull-up (10 kΩ)
Digital Outputs ON: Output switched to GND, max. 200 mA
OFF: Open Collector (110 kΩ to GND)
Reference Voltage Output +10 V, max. 200 mA, supervised, short circuit
protected
READY / FAULT contact Galvanic isolated relay, max. 30 VDC / 500
mA
Mains Input 1 x IEC appliance inlet
USER INTERFACE
Display Black/white OLED 256 x 64 pixel
Front panel indicators 12 x Input LEDs (Signal/Clip)
12 x Phantom Power LEDs (+48 V)
8 x Output LEDs (Signal/Clip)
4 x status LEDs (POWER, STANDBY, FAULT,
OMNEO)
Front panel operating elements 3 push buttons (UP, ENTER, DOWN)
Rear panel indicators 1 x status LED (STATUS)
Rear panel operating elements Mains Switch
GENERAL SPECIFICATIONS
Power Requirements 100 V to 240 V, 50 Hz to 60 Hz AC
Power Consumption
Operating Mode 50 W typical, 55 W max
Protections High Temperature, Mains Over-/Undervoltage
Protection
Cooling Front-to-rear, temperature controlled fan
Ambient Temperature Limits -5 °C to +45 °C (+23 °F to +113 °F)
Operating Altitude 2000 m
IEC Protection Class Class I (grounded)

MXE DSP Matrix Mix Engine Series Technical data | en 19
Bosch Security Systems, LLC Installation manual 2020-08 | V04 | F.01U.352.860
Electromagnetic Environment E1, E2, E3
Certifications CE, IEC 62368, IEC 60065, CAN/CSA
60065:16, UL Std No. 60065-2015, EN55032,
EN61000-3-2, EN61000-3-3, EN55103-2, FCC
Part 15 Class B, ICES-003, RoHS/WEEE
compliant
Color Black
Dimensions (W x H x D) 483 x 43.5 x 471 mm (19", 1 RU)
Weight 6.0 kg (13.2 lb)
Shipping Weight 8.1 kg (17.9 lb)

20 en | Technical data MXE DSP Matrix Mix Engine Series
2020-08 | V04 | F.01U.352.860 Installation manual Bosch Security Systems, LLC
7.2 Dimensions
Figure7.1: Dimensions: MXE5
