Dynex DX-15L150A11 User manual

15”/19“/22” LCD TV
QUICK SETUP GUIDE
DX-15L150A11/DX-19L150A11/DX-22L150A11
HDMI cable
(not included)
HDMI device
AUDIO IN
Component video device
Component
video cable
Video device S-video cable
Remote
control and 2
AAA batteries
Component
video cable
AC power
cord
TV stand and 4 M4 screws
Quick Setup Guide
L/R Audio cable
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
ANT/CABLE IN
Front and side features
Installing the stand
1Remove the stand from the box and place it on a table or bench.
2 Lay the TV on a at, cushioned surface.
3Carefully align and insert the base into the stand until the locking
mechanism clicks into place.
Installing a wall-mount bracket
1Carefully place yourTV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2Remove the three screws holding theTV to its stand column, then remove
the stand column.
3 Insert and lock the stando screws (provided) into into the 4 holes on the
back of theTV..
4Secure the wall-mount bracket to the back of your TV by screwing four M4
screws provided with the bracket into the stando screws you just
installed.
Setting up your remote control
1While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover o the remote.
2Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3Replace the cover.
To program your existing universal remote control to work with your new
DynexTV, see the table below for common codes. If you have problems
programming your remote or need a dierent remote control code, visit
www.dynexproducts.com for the latest remote control code information.
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver or game station
Using HDMI (best)
Connecting an antenna
Connect a 75 ohm cable (not included) to RF jack on the back of yourTV and
the RF OUT jack on the antenna.
Connecting a home theater system
Using analog audio cable:
Note: Cable connectors and jacks are often color-coded.
Match the colors when you connect the AV cable.
Using digital audio cable:
Note: The DIGITAL OUTPUT jack only works with digitalTV channels.
Remote
control sensor
Power
indicator
Universal remote control TV codes (for all Dynex TVs manufactured after Jan. 1, 2007)
Philips
PHDVD5, PH5DSS,
PMDVR8, PDVR8
115
DirectTV
RC23
10463
RCA
RCU807
135
One for All
URC-6690
0464
Sony
RM-VL600
8043
Comcast
M1057
0463
Dish Network
VIP508, VIP622
720
Motorola
DRC800
0463
TIVO
Series 3, HD
0091
Universal remote control makers and models Set-top box makers and models
Using S-video (fair)
Connecting a Computer
Using component (better)
Back of TV
Audio Cable
Audio Cable
AUDIO IN
Back of TV
Back of TV
Back of TV
Back of TV
Back of TV
Back of TV
Locating grooves

ENTER
ENTER
Press to move the cursor
on the screen or to
adjust a selected icon.
Press to open the
on-screen menu.
Press to return to the
previous menu.
Press to select
menu options.
Press to conrm a
selection or to enter
a sub-menu.
Press to close the menu.
ME N U E X I T
ENTER
15” • 19” • 22” LCD TV I QUICK SETUP GUIDE I DX-15L150A11/DX-19L150A11 /DX-22L150A11
M E N U

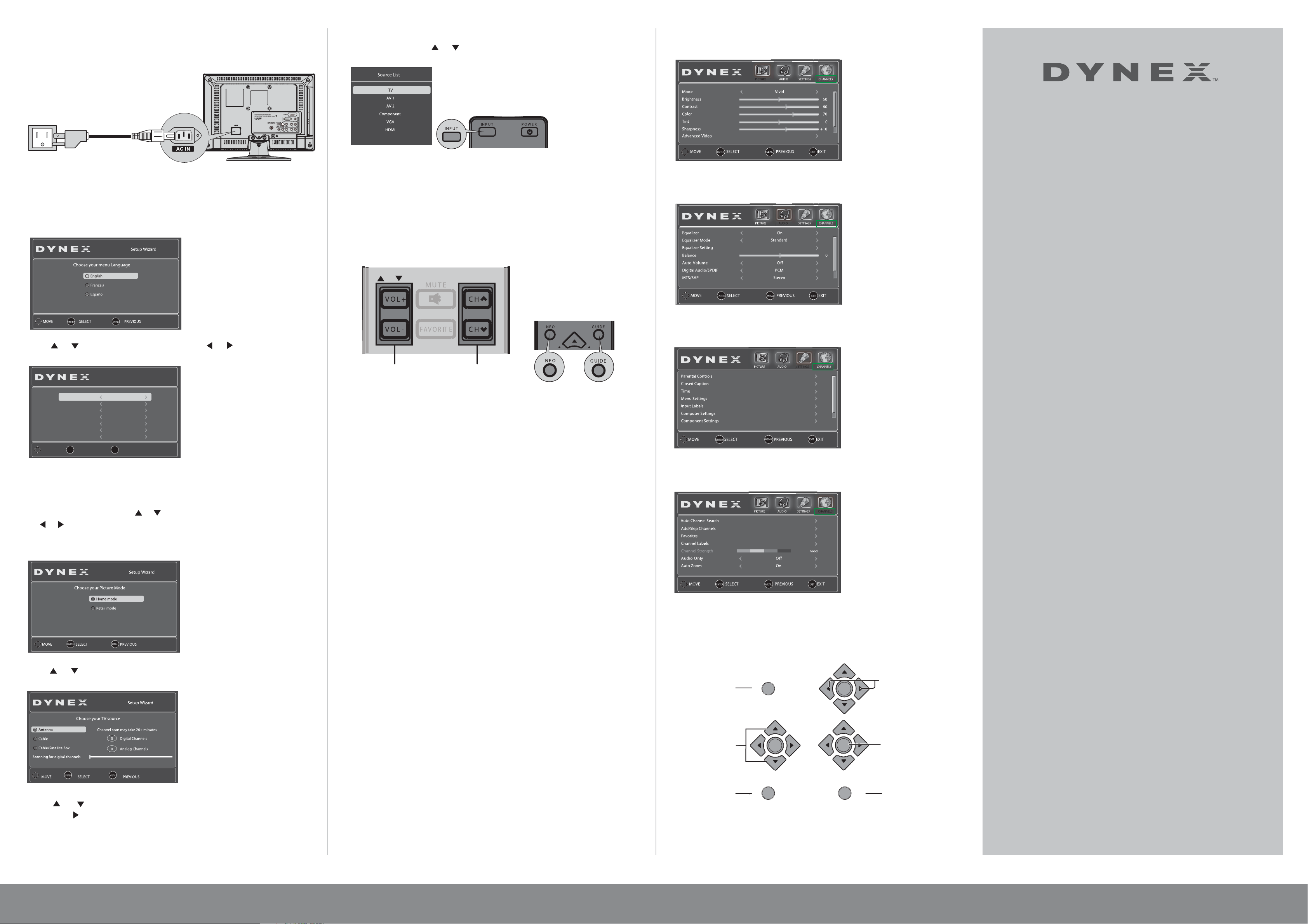

Connecting power
Connect the power cable to the AC IN jack on the back of theTV, then
connect the other end to a power outlet.
Turning on yourTV for the rst time
1Plug in your TV and turn it on. The initial Setup Wizard opens.
2 Press or to highlight an option and press or to change the
setting. Options include:
Mode-Select Manual to set date/time manually or
Auto to have them set automatically.
Time Zone-Select your time zone
Daylight Savings-If your area uses daylight savings
If you select Manual, press or to highlight an option, then press
or to change the setting.
3When you are done, press ENTER to move to the next screen.
The Choose your Picture Mode screen opens.
4Press or to highlight Home Mode (recommended) or Retail Mode.
If you selected Home Mode, the Choose your TV source screen opens.
5 Press or to highlight Antenna, Cable, or Cable/Satellite Box,
then press . If you selected Antenna or Cable, your TV automatically
scans for available channels. If you selected Cable/Satellite Box, you are
asked to select the correct input source for your set top box.
6 Press EXIT to close the menu, then select the input source through
the INPUT SOURCE menu.
Selecting the video input source
1Press INPUT, press or to highlight a source, then press ENTER.You
can also press any of the video source buttons directly.
Adjusting the volume
• Press VOL+ or VOL- to change the volume.
• Press MUTE to turn o the sound.
Selecting a channel
• To move to a different channel in the channel list, press CH^ or CHv.
OR
• Enter the channel number directly using the number buttons.
Viewing channel information
• Press INFOtoviewaninformationbanner.Theinformationbannershowsthecurrent
programinformationsuchaschannelnumber,videoinputsource,andresolution.
• Digital mode information—Displays the channel number, station name, channel
label,broadcastprogramname,TVrating,signaltype,audioinformation,
resolution,CCmode,currenttime,andcurrentprogramstartandendtimes.
• Analog mode information—Displays channel number, channel label (if present),
signaltype,audioinformation,andresolution.
• Press GUIDEtoshowthedigitalprogramguide,whichmaydisplay available
programs,programtimes,andprogramsummaries,dependingontheinformation
providedbythebroadcaster.
On-screen menu overview
PICTURE menu
AUDIO menu
SETTINGS menu
CHANNELS menu
Navigating menus with your remote control
Press to
change the volume.
Press to change
the channel.
09-0xxx
One-year limited warranty
Visit www.dynexproducts.com for details.
Need additional help?
See your User Guide! This comprehensive guide includes
everything from basic how-to steps to more advanced
features.
We’re here for you
www.dynexproducts.com
For customer service, call:
1 800-305-2204 (U.S./Canada markets)
01 800-926-3020 (Mexico market)
Distributed by Best Buy Purchasing,LLC
7601 Penn Avenue South, Richeld, MN USA 55423-3645
Best Buy Imports, S. de R.L. de C.V. Av. Santa Fe 485, Segundo Piso, Colonia
Cruz Manca, Programa Parcial de Desarrollo Santa Fe, Delegación
Cuajimalpa, Distrito Federal, México 05349
RFC#BBI0802114Q2
© 2009 BBY Solutions, Inc.
All rights reserved. DYNEX is a trademark of BBY Solutions, Inc.
Registered in some countries. All other products and brand names are
trademarks of their respective owners.
English 09-1037
ENTER MENU
Setup Wizard
MOVE SELECT PREVIOUS
Time
Mode
Time Zone
Daylight Savings
Year
Month Jan
1Day
12 : 04 AMTime
On
2010
Pacitic
Auto
