Dynex DX-32L221A12 User manual

WE ARE GOING GREEN!
A copy of your User Guide is not provided
in the box but is available online.
Go to www.dynexproducts.com, click
Support & Service. Enter your model number
in the Search field, then press Enter.
Click Support/Downloads.
Connecting a DVD or Blu-ray DVD player,
cable box, satellite receiver, or game station
Using HDMI (best)
Using component cables (better)
Using composite cables
(good)
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the back of
yourTV and to the Antenna/Cable wall jack.
Connecting a HomeTheater System
Using Digital audio
Using Analog audio
Front features
Installing the stand
1Carefully place yourTV screen face-down on a cushioned, clean surface to
protect the screen from damage and scratches.
2 Secure the stand to theTV with the four provided screws.
Installing a wall-mount bracket
1 Carefully place yourTV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the base to the stand, then remove the base.
3 Remove the four screws that secure the stand column, then remove the column.
4 Attach the wall-mount bracket to yourTV using the mounting holes on the back
of yourTV. See the instructions that came with the wall-mount bracket for
information about how to correctly hang yourTV.
Antenna or
cableTV
(no box)
Blu-ray player/DVD player/VCR Cable or satelliteTV box
AV receiver
Game console
or camera
Computer
Connecting a home theater system with multiple devices
We recommend that you connect
the AV receiver’s HDMI OUT jack to
your TV’s HDMI 1/DVI IN jack and
AV receiver’s Audio IN to yourTV’s
Digital output jack.
• Have a game console connect to
your TV’s HDMI 2 IN jacks.
• When you watch a program
through an antenna or cableTV
connected to the ANT/CABLE
IN jack.
This apparatus is intended to
be supported by a UL Listed
wall mount bracket.
Warning
Compositevideo
andanalogaudio
Identifying cables
YourTV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connectiontype Videoquality Cableconnector
HDMIvideo/audio Best
Componentvideo
andanalogaudio
Better
Good
OR
OR
Remote control
and
2 AAA batteries
AC power cord
TV stand and four screws
32"/40" LCD TV
QUICK SETUP GUIDE
DX-32L221A12 / DX-40L260A12
You can use an HDMI 1 jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Remote
control
sensor
Power
indicator
Volume +/-
Menu
Channel /
Power button
Input
AUDIO/VIDEO
OUT
* Cables are often color-coded to match
color-coded jacks.
In this case connect yellow to green (Y),
red to red, and white to white.
AUDIO/VIDEO
OUT
CABLE
OPTICAL
AUDIO IN
AUDIO IN
Composite cable
C
M
Y
CM
MY
CY
CMY
K
DX-32L221A12_DX-40L260A12_11-0111_QSG_V4_EN_Final Press.pdf 1 3/2/2011 11:19:14 AM

WE ARE GOING GREEN!
A copy of your User Guide is not
provided in the box but is available
online.
Go to www.dynexproducts.com,
click Support & Service. Enter your
model number in the Search field,
then press Enter.
Click Support/Downloads.
One-year limited warranty
Visit www.dynexproducts.com for details.
Need additional help?
See your User Guide!This comprehensive guide
includes everything from basic how-to steps to
more advanced features. Go to
www.dynexproducts.com, click Support &
Service. Enter your model number in the Search
field, then press Enter. Click Support/Downloads.
We’re here for you
www.dynexproducts.com
For customer service, call:
800-305-2204 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
© 2011 BBY Solutions, Inc., All Rights Reserved.
DYNEX is a trademark of BBY Solutions, Inc. Registered in some
countries. All other products and brand names are trademarks of
their respective owners.
ENGLISH 11-0103
Exit
Choose Your TV Source
Exit
Channel scan may take 20+ minutes
Setup Wizard
Cable/Satellite Box
Scaning for digital channels
Cable
Antenna Digital Channels
Analog Channels
0
0
Menu
Choose Your Picture Mode
Move Select Back
Reduces total power consumption
Setup Wizard
Retail Mode
Home Mode
Menu
Choose Your Menu Language
Español
Move Select Back
Set menu language to English, Français or Español
Français
English
Setup Wizard
Menu
Choose Your Time Setting
Move Select Back
If Automatic, options are automatically set by TV source
Setup Wizard
AutoMode
Time
Day
Month
Year
Daylight Savings
Time Zone
12 : 07 AM
13
Jan
2000

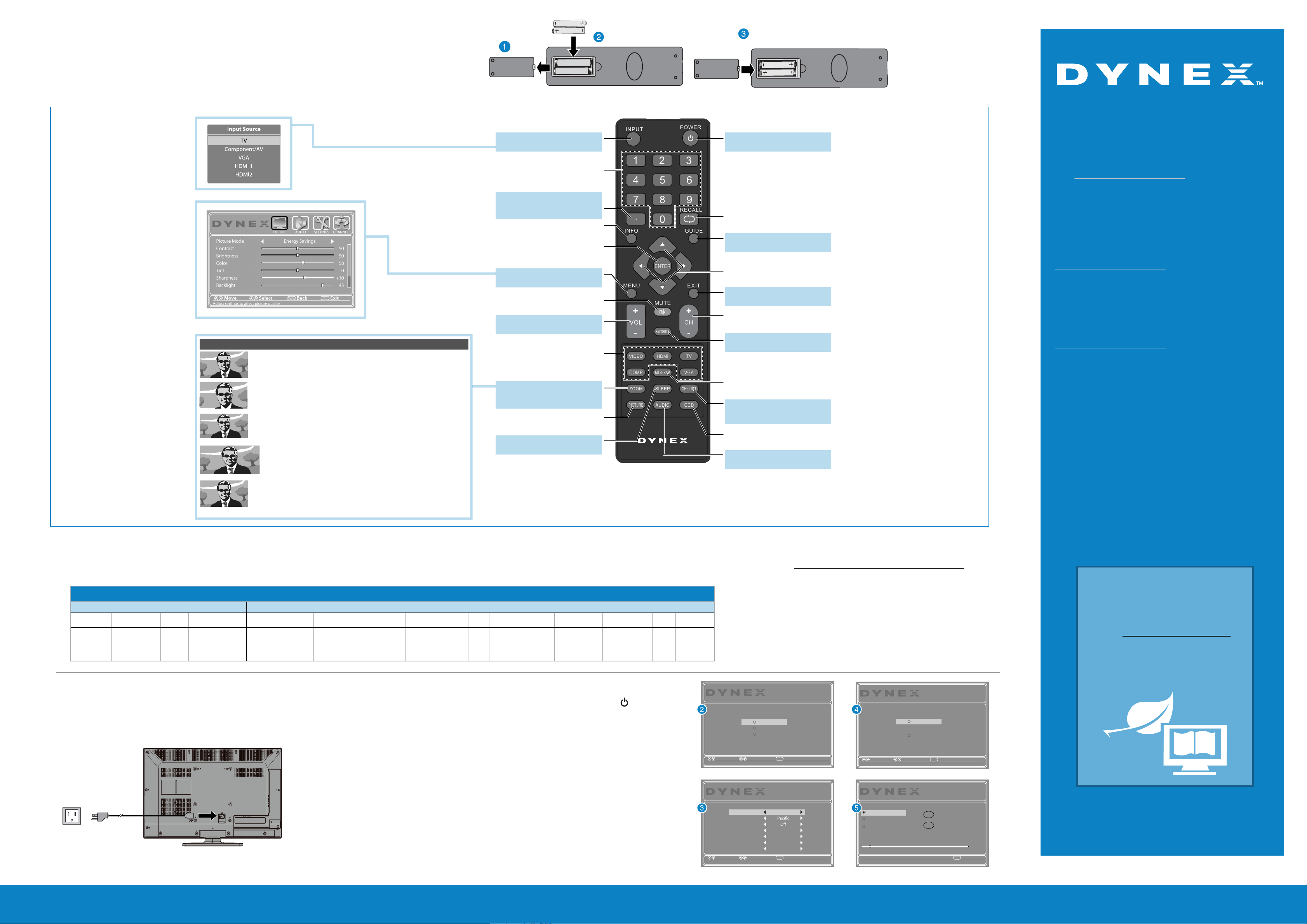

Setting up and using your remote control
1Press the release button on the back of the remote control to remove the battery compartment cover.
2 Insert two AAA batteries into the battery compartment. Make sure that the + and – symbols on the
batteries match the + and – symbols in the battery compartment.
3Replace the cover.
Connecting power
Plug the AC power cord into the AC IN jack on the back of yourTV,
then plug the other end of the cord into a power outlet.
Turning on yourTV for the first time
1Connect the power cord to yourTV and to a power outlet, then press (power).
The power indicator turns off and the Choose Your Menu Language screen opens.
2Press ▲or ▼to highlight a language, then press ENTER. The Choose Your Time Setting
screen opens with Mode highlighted.
3Press ◄or ►to select Auto or Manual. If you select Auto, the date and time are set
automatically from a digitalTV signal. If you select Manual, you can manually set the
date and time. Press ENTER.
4Press ▲or ▼to highlight Home mode or Retail mode, then press ENTER. If you select
Retail mode, a message asks you to confirm your selection. Select Yes or No. Retail
mode is not an energy-saving mode.The Choose Your TV Source screen opens.
5Press ▲or ▼to highlight Antenna, Cable, or Cable/Satellite box. If you select
Antenna or Cable, yourTV scans for available channels. The scan may take several
minutes. If you select Cable/Satellite box, yourTV does not scan for channels.
Programming your remote control
To program your universal remote control to work with your new Dynex TV, see the table for common codes. If you have problems programming your remote or need a different remote control code, visit http://www.dynexproducts.com/remotecodes for the
latest remote control code information.
32"/40" LCD T V I QUICK SETUP GUIDE I DX32L221A12/DX40L260A12
Normal:
Displays the original aspect ratio with black bars vertical on the left and
right hand side of the screen.
Zoom:
Expands the image to fill the screen.The top and bottom of the image
may be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect
ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and theTV
program. Note:Auto is only available when Auto Zoom in the
CHANNELS menu is set to On.
Aspect ratio options
CCD
Turns closed captioning on or off.
MTS/SAP
Cycles through mono, stereo,
and SAP for analog programs.
SLEEP
Sets the sleep timer.
ZOOM
Changes how the picture displays
on the screen.
Channel
Changes the TV channels.
EXIT
Closes the on-screen menu.
INFO
Opens a TV status banner.
RECALL
Returns to the previous channel.
Input
Opens the Source list.
GUIDE
Displays the program guide.
MUTE
Mutes the sound.
Selects the video modes.
Quick Launch Inputs
Selects another source
connected to yourTV.
CH-LIST
Opens the channel list.
Power
Turns yourTV on or off.
ENTER
Confirms selections or changes.
MENU
Opens the on-screen menu.
Volume
Changes the volume.
Arrows
Navigates in on-screen menus.
.
Enter a digital sub-channel number.
(Example: 4.1)
Numbers
Enter channel numbers.
FAVORITE
Opens the Favorite Channel List.
AUDIO
Selects the audio modes.
Verizon
0198, 0490
Universal remote controls Cable/Satellite/Set-top box
Universal remote TV codes
TiVo
0091
Time Warner
400, 450, 461,
456, 10463,
1463, 0463
Dish Network
720
Cox
1326,
1463
DirectTV
10171, 11204, 11326,
11517, 11564, 11641,
11963, 12002
Comcast
10171, 11204, 11326,
11463, 11517, 11641,
11780, 11785, 11892,
11963, 12002
Charter
2002, 1204, 1423, 1517, 0171,
1963, 0463, 1463, 0842, 1326,
167, 415, 424, 450, 456, 461,
507, 523, 567, 577, 586
Cablevision
068, 069, 078, 096,
100, 164, 168, 229, 026
Sony
068, 069, 078, 096,
100, 164, 168, 229,
026
One for All
0054
RCA
135
Philips
0198, 0490
Power cord
Power outlet
Back of TV
C
M
Y
CM
MY
CY
CMY
K
