E-Pen InMotion E-Pen User manual

User's Guide
Natural Writing in a Digital WorldTM

10 11
Copyright © 2001 E-Pen InMotion Inc. or its subsidiaries. All rights reserved. E-Pen InMotion, the E-Pen InMotion logo,
E-Pen, DigiWrite and InkSoft are trademarks of E-Pen InMotion, Inc. or its subsidiaries.
Other product and brand names may be trademarks or registered trademarks of their respective owners.
Patent Pending
E-Pen InMotion, Inc.
P.O. Box 261548
Plano, Texas 75026-1548
E-Pen USB Version EP100
Tested to Comply with FCC Standards
FOR HOME OR OFFICE USE

i
TABLE OF CONTENTS
Chapter 1: Introducing the E-PenTM...................................................1
Package Contents........................................................................ 2
Chapter 2: Getting Started..................................................................3
Installing the DigiWriteTM Software..................................................3
Uninstalling the DigiWriteTM Software..............................................5
Connecting the Receiver to your Computer......................................6
Before Using the E-PenTM...............................................................6
Attaching the Clip to the Paper .................................................6
Page Position...........................................................................8
Writing Area............................................................................9
Possible Sources of Signal Interference.......................................9
Chapter 3: Using the E-PenTM............................................................10
Starting the DigiWriteTM Application...............................................10
The Main Window .................................................................10

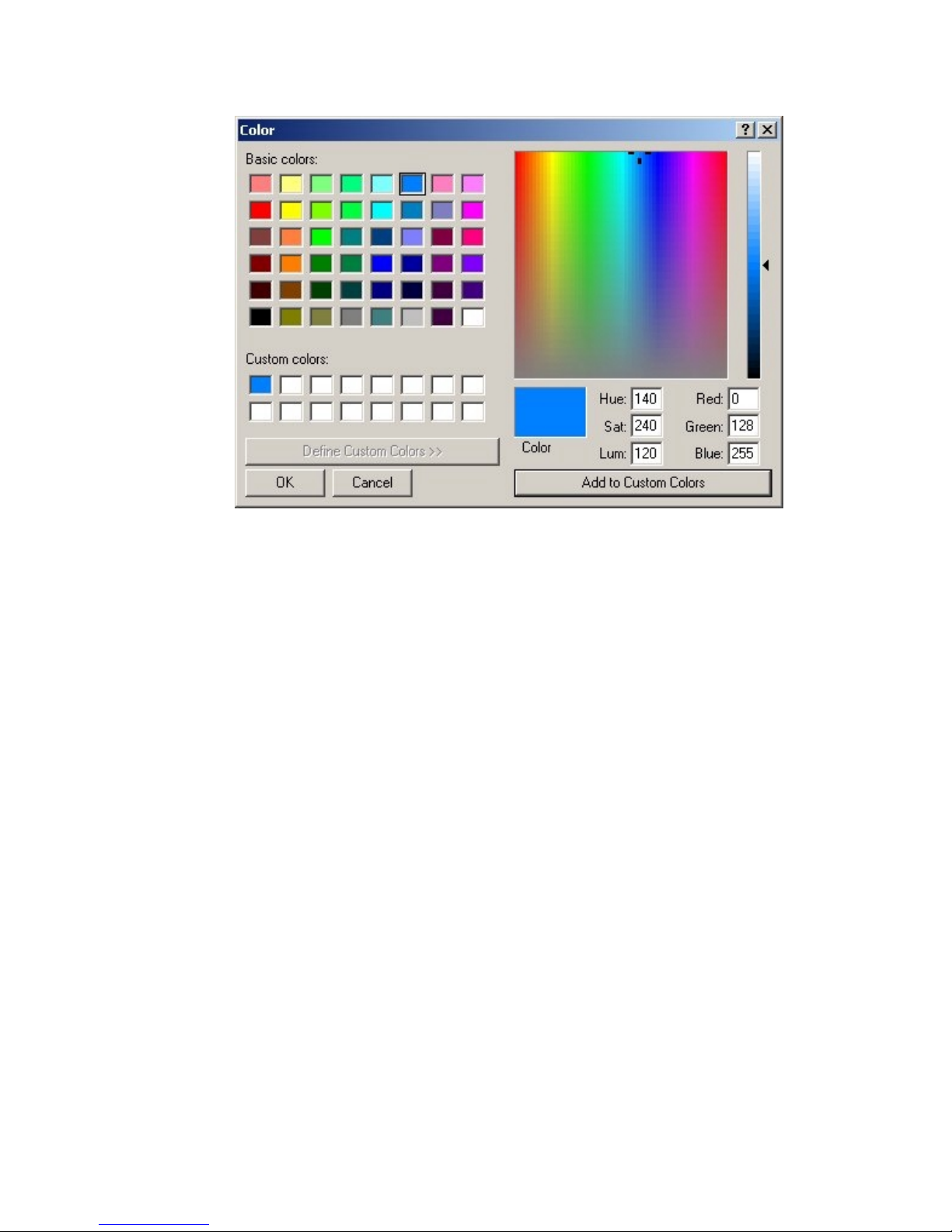

Defining the Page (Background) Color...........................................13

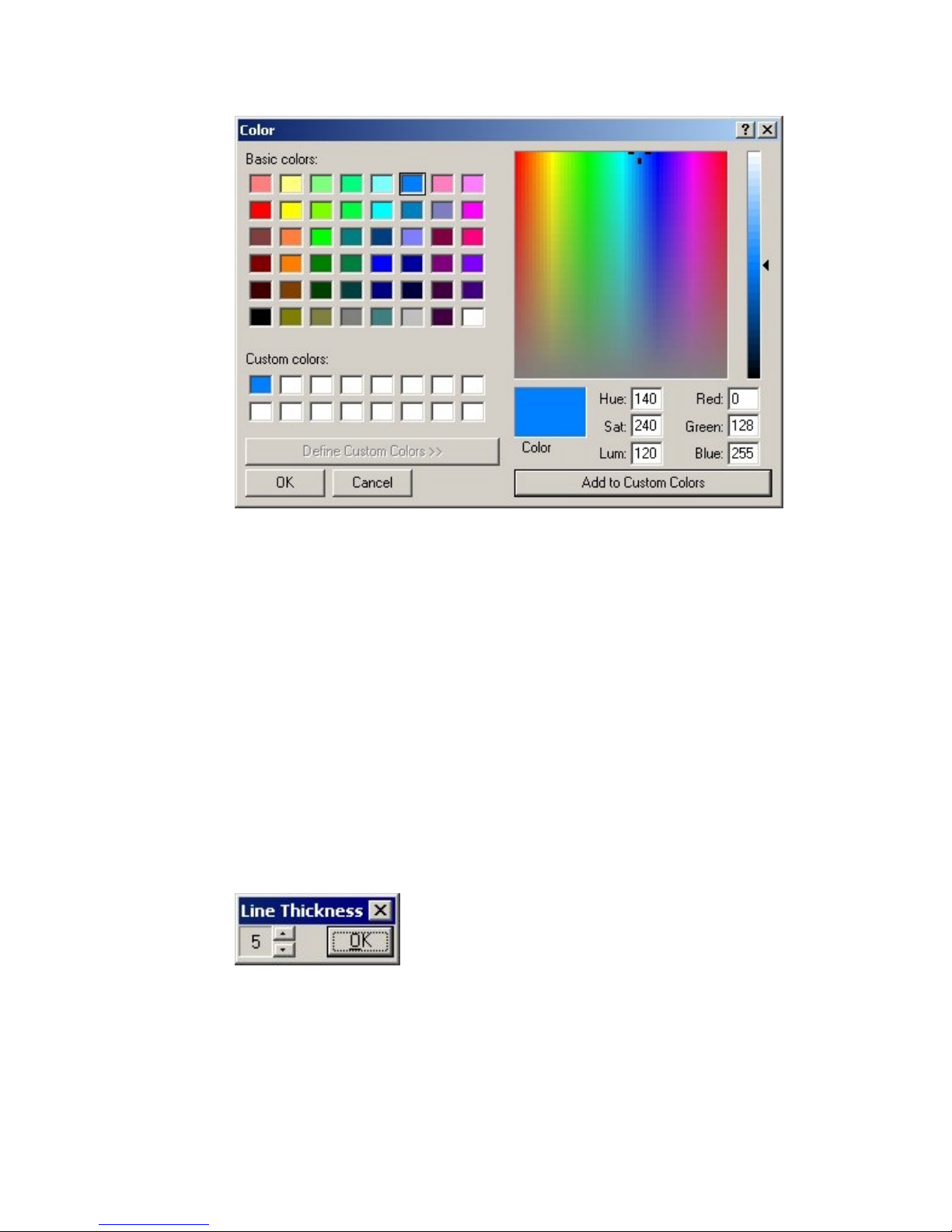

Defining the Line (Ink) Color and Thickness ....................................14
Page View Options......................................................................16
Chapter 4: Writing and Drawing with the E-PenTM.......................17
Creating a New Page...................................................................17
Saving the Page..........................................................................17
Editing an Existing File.................................................................18
Undo/Redo.................................................................................18
Printing the Page........................................................................18
Sending the Page by Fax or E-mail...............................................18
Chapter 5: E-PenTM Maintenance....................................................20
Replacing the battery..................................................................20

ii
Replacing the Refill ...................................................................21
Storing the E-Pen.......................................................................21
Chapter 6: Troubleshooting..............................................................22

1
CHAPTER 1: INTRODUCING THE E-PEN
Congratulations on your purchase of the E-PenTM — a unique wireless digital
pen that can be used to write on just about any surface, including plain paper.
This guide will help you get maximum performance from your E-Pen system.
The E-Pen system captures your handwriting and converts it into "digital ink."
With the E-Pen you can:
n
Take notes in meetings
nDraw charts, maps and diagrams
n
Secure digital transactions with your E-Pen signature
n
Send a fax from virtually anywhere
n
Add a personal touch to emails by handwriting them
n
Capture technical drawings on the spot
You can then send the text or drawing by fax or email, save the file,
or print the image.
This guide will take you through the necessary steps to install the
software, connect the Receiver unit, use and maintain the E-Pen.
This guide assumes you are familiar with basic Windows procedures
and your computer’s hardware.
1
Note: When printing this document, you will receive best results if you
select "Print as image" from the Print dialog box.
.

2
PACKAGE CONTENTS
This package contains an E-Pen, Receiver, photo lithium battery, E-Pen
DigiWrite software installation CD and a printed Guide to Getting Started.
E-Pen. The E-Pen is a natural input device that provides enhanced
usability for mobile, wireless devices, by allowing you to write on just
about any surface and have that information captured for use in a
variety of applications.
Receiver. The E-Pen communicates with your computer through the
Receiver, by sending ultrasonic radio waves to the Receiver.
Photo Lithium Battery. The E-Pen requires a 3-volt photo lithium
battery. When replacing the battery, you can use a Duracell DL 1/3N,
E-Pen w/cap Receiver Photo Lithium Battery DigiWrite CD-ROM
(EP100P) (EP100R) (EP100B) (EP100CD)
Energizer 2L76 or two (2) "button" batteries LR44.
DigiWriteTM Installation CD. The DigiWrite program helps you use your
E-Pen more efficiently with your other computer applications.
Figure 1
Ultrasonic and Infrared transmission and receiving technology

3
CHAPTER 2: GETTING STARTED
This chapter describes:
n
Installing the battery
n
Installing and Uninstalling the DigiWrite software
n
Connecting the Receiver to your computer
n
Attaching the clip to paper
n
Page position and Writing area
INSTALLING THE BATTERY
The E-Pen cannot transmit a signal until the battery is installed.
Follow these steps to install the battery for the first time:
1. Remove the battery cover by placing a finger on the end of the pen,
applying light pressure and turning the cap counter-clockwise.
2. When you feel the inner clips fit into the grooves on the inside of the
pen; pull the battery cover away from the pen.
3. Insert the battery with the positive sign (+) facing up. See Figure 8,
Chapter 5: E-Pen Maintenance
4. Replace the battery cover by matching the clips in the cover with
the grooves on the inside of the pen and then turn the cover in a
clockwise direction to secure it.
7
INSTALLING THE SOFTWARE
Before installing the software, make sure that your computer complies
with the following System Requirements:
n
USB port
n
Windows 98/ME/2000/NT 4.0 operating system
n
PentiumTM II or higher processor
n
CD-ROM drive or Internet access
Note: The E-Pen DigiWrite software is provided on CD-ROM. If you do
not have a CD-ROM drive; you can download the files from the E-Pen
website at: www.e-pen.com.

To install the DigiWriteTM software:
1. Start Windows.
2. Insert the DigiWrite CD-ROM into your computer's CD-ROM drive.
If your CD-ROM drive has Auto Insert Notification enabled, it
automatically recognizes the setup.exe file and starts the DigiWrite
installation. Continue with step 4. If it does not, go to step 3.
3. From the Windows Start menu, select Run and type d:Setup.exe (where "d"
is the letter of your CD-ROM drive.) The Installation Wizard appears.
4. Follow the instructions of the Installation Wizard to install the
software.
5. At the end of the installation, restart your computer.
8
Note:After installing the software you must connect the Receiver
to the computer's USB port, before you can start using the pen.
the software.
4

5
UNINSTALLING THE SOFTWARE
WARNING: This procedure will permanently remove the E-Pen application
from your computer. The uninstall procedure will remove the E-Pen software
ONLY. It will NOT remove your E-Pen digital ink files. If you are using NT 4.0,
log in as an Administrator or another user with Administrator privileges.
To uninstall the DigiWrite software:
1.From the Windows Start menu select
Settings > Control Panel.
The Control Panel dialog box appears.
2. Double-click the Add/Remove Programsicon
The Add/Remove Programs screen appears.
3. From the list of currently installed programs, choose E-Pen DigiWrite
and click the Change/Remove button (for Windows
2000) or the Add/Remove button (for Windows 98).
The E-Pen DigiWrite Setup screen appears.
4. Select the Remove option and click Next.
The Select Components screen appears with the DigiWrite
components selected by default.
5. Click Next.Windows automatically removes the DigiWrite application
and all associated files from your hard drive.
At the end of the unistall process, the Maintenance Complete screen appears.
6. Click Finish to return to the Control Panel.
If you want to use your E-Pen system again, you must re-install
the software.

6
CONNECTING THE RECEIVER TO YOUR COMPUTER
The Receiver connects to your computer via a USB port.
To connect the Receiver to the computer:
1. Locate the computer’s USB port. If you are not familiar with the
computer’s setup, please refer to the computer’s hardware
manual.
2. Connect the E-Pen to the computer by inserting the USB
connector into the USB port on the computer. The LED on the
Receiver unit lights up when the connector is properly connected.
3. Start the E-Pen DigiWrite application.
Refer to Using the DigiWrite Application, later in this guide, for
instructions on how to use the software.
BEFORE USING THE E-PEN
This section highlights some of the operating requirements you should
follow to enable optimal performance of your E-Pen system.
WARNING: The tip of the pen (see Figure 1) contains ultrasonic and infrared
technology. This part of the pen, consisting of the "transducer" (flat silver ring) and
"light pipe" (clear plastic tip), must be handled with care and must not be subjected
to excessive moisture, pressure or banging. Do NOT place your fingers on this part of
the pen to hold it; Do NOT cover this part of the pen at any point in time as it
transmits and receives information to/from the Receiver.
Attention should also be taken NOT to drop the pen as it could damage the tip.
Attaching the Clip to the Paper
For best results when using the E-Pen, you should use A4 (8,268” x
11,693” / 21cm x 29,7cm) or Letter (8,5” x 11” / 21,59cm x
27,94cm) sized paper.
The clip is designed to hold up to ten (10) standard weight pages/sheets.

7

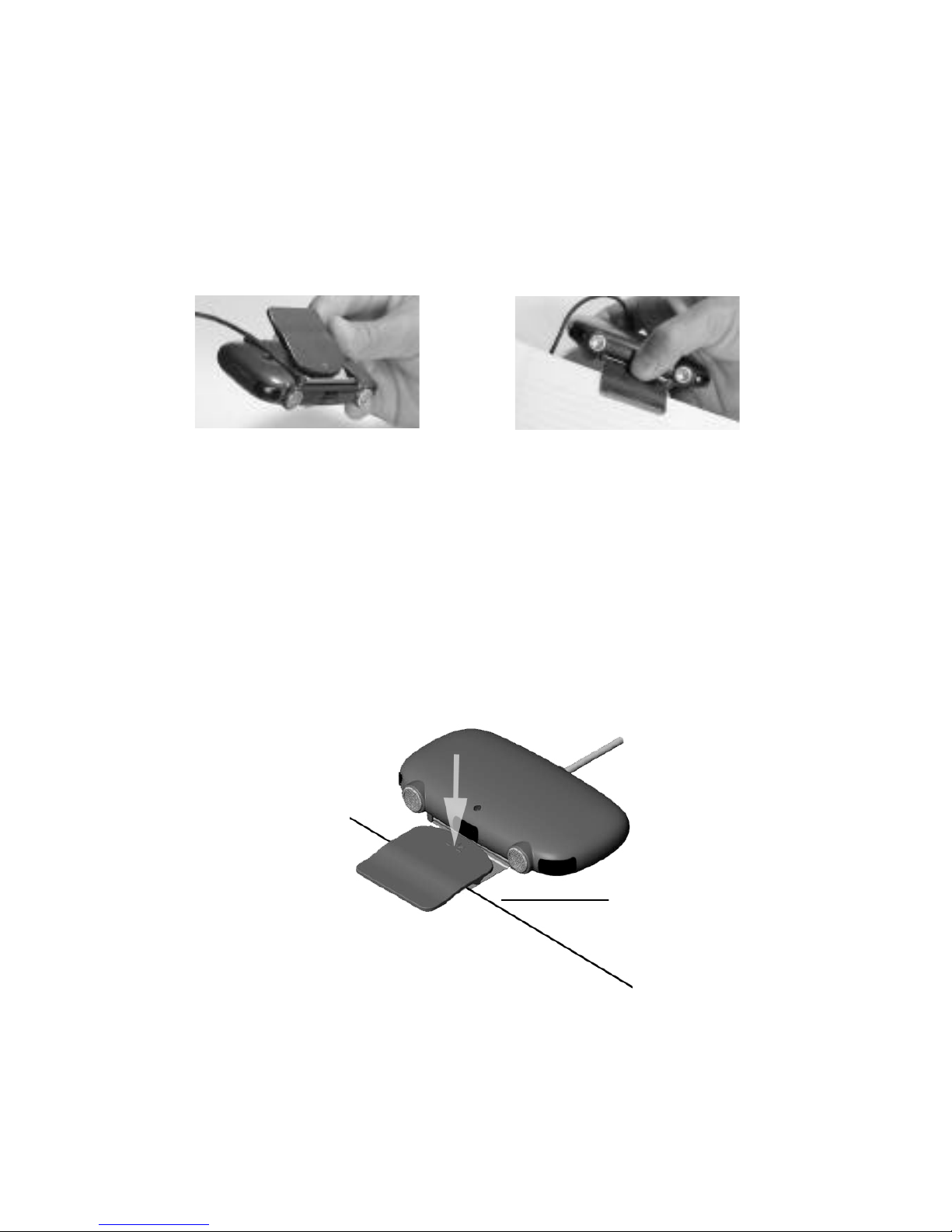

To insert the pages into the clip:
1. Release the "paper clip" at the bottom of the Receiver and flip it to the
front as illustrated in Figure 2 below.
Figure 2
2. Place the Receiver on a flat surface with the paper clip to the
front.
3. Insert up to ten (10) pieces of any type of paper, up to A4 size into the clip
by pressing down on the raised area at the back of the clip and sliding the
paper into the clip, more-or-less in the center as illustrated in Figure 6.
4. When the paper touches the back of the clip, release pressure on
the clip and allow it to grip the paper.
Figure 3
Page is centered and
placed at a 90° angle with
the Receive
r
Note:Do not insert
more than the
recommended
number of
pages in the clip.

8
Page Position
After attaching the clip to the top of the paper, place the page and
Receiver at any angle comfortable for writing, provided that:
n
The Receiver is kept perpendicular to the page.
n
The Receiver is placed in the center of the page.
n
The pages are inserted all the way into the clip.
Figure 4
While writing, hold the pen at a consistent angle as you write across the page
and do NOT block or create a barrier between the E-Pen and Receiver as it will


Figure 5
interfere with ink capture.

9
Writing Area
The active writing area begins approximately 8cm from the edge of
the Receiver, and includes an area of approximately 9cm on the left
and right side of the center axis of the Receiver.
Figure 6
Possible Sources of Signal Interference
Operation of the pen in areas of extreme and/or sudden noise can
interrupt transmission from the E-Pen to the Receiver and can result
in interruptions in the text/drawing on the computer screen.
If you are using the pen with a laptop that has an infrared component,
turn off the infrared function while using the E-Pen.
If you are using the pen in a room with IR motion detectors ("occupancy detectors"),
Receiver and can result in interruptions in the text/drawing on the Pocket PC's screen.
the signals generated by these may interrupt transmission from the E-Pen to the
One possible solution to this problem is to cover the detector while using the pen.

10
CHAPTER 3: USING THE E-PEN
This chapter describes:
n
Starting the DigiWrite application
n
Main menu icons and their functions
n
How to use the DigiWrite application
STARTING THE DIGIWRITETM APPLICATION
n
From the Windows Start menu select
Programs > E-Pen InMotion Inc > DigiWrite Application
The DigiWrite main window appears. A detailed description of the
main window follows.
The Main Window
When you start the DigiWrite program, the main window appears with
the entire page displayed onscreen. Whatever you write/draw
appears onscreen, proportionally scaled to fit the available area.
For further details on the view options, see Page View Options, later in
this chapter.

11
The application task menu provides quick access to menu options. A
description of the menu options and toolbar buttons follows.
FILE Menu Toolbar Description
New Opens a new page.
Open Opens an existing file.
Save Saves the current page. If this page
has not been previously saved, you
are prompted to assign a name to
the file.
Save As Allows you to save the page in jpg,
Menu
bar Toolbar

12
bmp, or epn format.
Send Automatically attaches the page to
an email message in jpg format.
Use Pen Activates the E-Pen.
Print Prints the current page.
Print Preview Displays each page as it will look
when printed.
Print Setup Allows you to set up your printer.
Exit Exits the DigiWrite application.
EDIT Menu
Undo Undoes prior actions in a file.
You can also use the Undo option to
undo actions in an existing file that
has been reopened.
Redo Redoes the action you undid using
the Undo button. Also repeats a
prior action.
Set Line
Color Defines the line (ink) color
Set
Background
Color
Defines the background color of the
page onscreen.
Set Line
ThicknessAdjusts the thickness of the line (ink)

13
VIEW Menu
Toolbar Displays the toolbar.
Fit in
Window Fits the page to the DigiWrite main
window.
Actual Size Scales the page while saving the
proportions of what is actually
written and what is displayed. Scroll
bars appear to allow you to view the
entire page.
HELP Menu Displays the online help.
DEFINING THE PAGE (BACKGROUND) COLOR
You can choose the background color of the page in the main window
from a list of predefined colors, or define a custom color for the page
background.
To define the page color:
1. From the Edit menu, select the Set Page Color option, or click
the Page Color button on the toolbar.
The Color dialog box appears.

14
2. You can do one of the following:
n
Select one of the basic colors and click OK to apply the
change.
Or,
n
Click theDefine Custom Colors >> button to define a
custom color from the palette. Select the color and
then click the Add to Custom Colors button. Click OK
to apply the new color.
DEFINING THE LINE COLOR AND THICKNESS
You can change the color and the thickness of the line that appears on
the page in the DigiWrite main screen.
To change the line color:
1. From the Edit menu, select the Set Line Color option, or click
the Line Color button on the toolbar. The Color dialog box
appears.

15
2. You can do one of the following:
n
Select one of the basic colors and click OK to apply the
change.
Or,
n
Click the Define Custom Colors >> button to define a
custom color from the palette. Select the color and
then click the Add to Custom Color button. Click OK
to apply the new color.
To define the line thickness:
1. From the Edit menu, select the Set Line Thickness option, or
click the Line Thickness button on the toolbar.
2. In the scroll-box that appears, use the arrows to scroll to the
required thickness.
3. Click OK to save the settings.

16
PAGE VIEW OPTIONS
When the DigiWrite main screen appears, the entire page is displayed
onscreen and anything you write or draw will be scaled to fit the page
You can also view the page in its natural size and maintain the actual
size of the text/drawing onscreen. To accommodate this 1:1
ratio, scrolling bars are added to the page to allow viewing the entire
page.
n
To view the actual size of the page, select the Actual size
option in the View menu, or click on the toolbar.
n
To view the entire page onscreen, select the Fit in
Window option in the View menu, or click on the toolbar.
