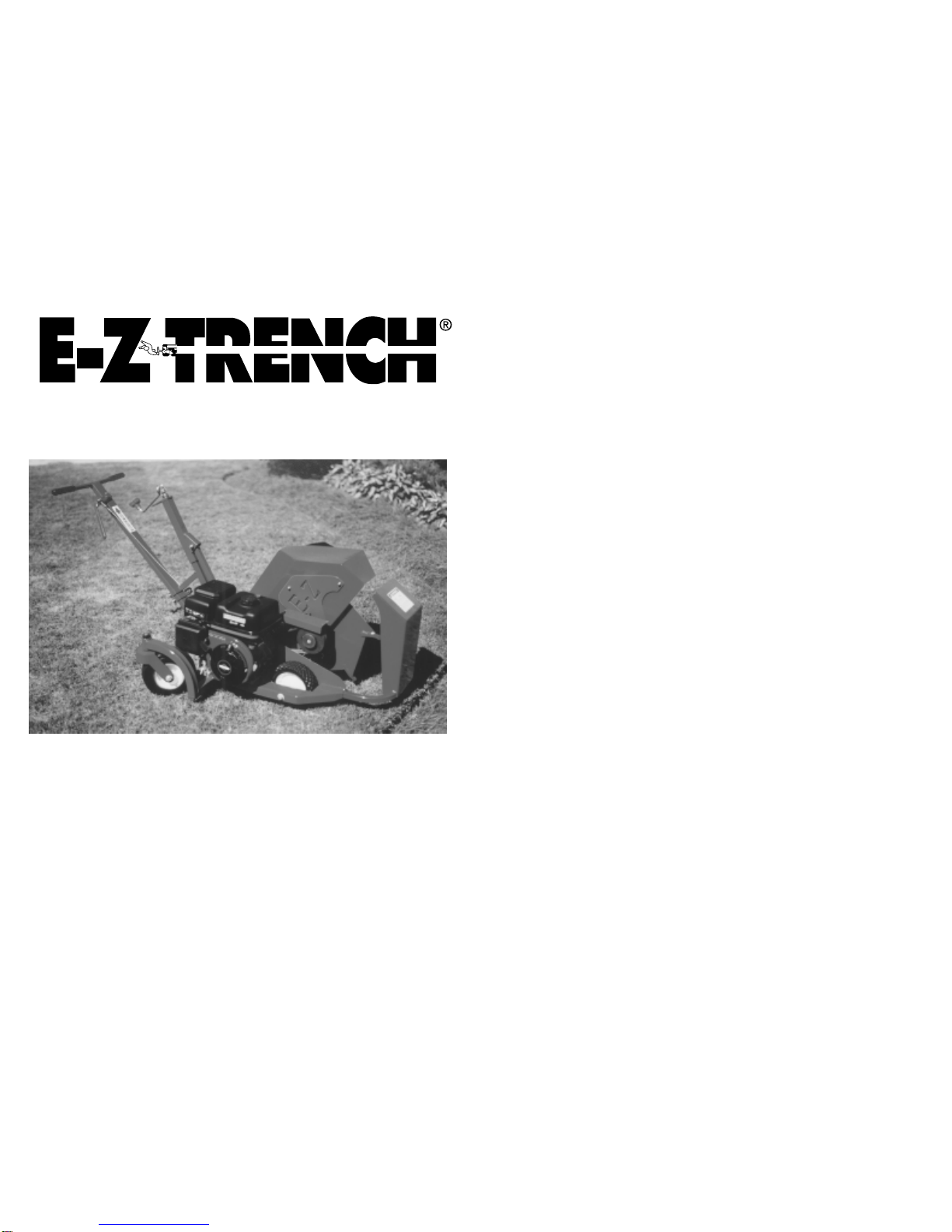

E-Z Trench Bedscaper EZ-8000 User manual

Owners Manual
BedscaperTM EZ-8000
E-Z Trench Manufacturing Co., Inc.
2315 S. Hwy. 701 • Loris, S.C. 29569
[phone]
Fax [phone]
1.
A WORD TO E-Z TRENCH OWNERS . . .
THIS MANUAL HAS BEEN PREPARED TOACQUAINT YOU WITH THE
ASSEMBLY, OPERATION AND MAINTENANCE OF YOUR E-Z
TRENCH TRENCHING MACHINE,AND TO PROVIDE SAFETY INFOR-
MATION. WE URGE YOU TO READ IT CAREFULLY AND FOLLOW
THE RECOMMENDATIONS CONTAINED TO HELP ASSURE THE
MOST TROUBLE-FREE OPERATION.
WE WOULD LIKE TO TAKE THIS OPPORTUNITYTO THANK YOU FOR
CHOOSING E-Z TRENCH, AND TO ASSURE YOU OF OUR
CONTINUING INTEREST IN YOUR NEEDS.
INDEX
1. A WORD TO E-Z TRENCH OWNERS
2. OPERATING INSTRUCTIONS.
3. BOLT SIZES
4. PARTS DRAWING
5. PARTS LIST
6. TERMS AND WARRANTY
7. WARRANTY REGISTRATION
8. TROUBLE SHOOTING
9. MAINTENANCE
WARNINGS! & SAFETY PRECAUTIONS
1. ALWAYS WEAR EYE PROTECTION.
2. STAY CLEAR FROM CUTTING BLADES.
3. KEEP HANDS AND FEET AWAY FROM PULLEYS AND BELTS
WHEN ENGINE IS RUNNING.
4. LOCATE ALL UNDERGROUND POWER LINES, GAS LINES,
AND WATER LINES BEFORE USING MACHINE.
5. ENGINE R.P.M SHOULD REMAIN AT 3800 R.P.M.

2.
E-Z 8000 OPERATION INSTRUCTIONS
1. INSTALL HANDLE (8160) WITH 2 BOLTS.
2. FILL CRANKCASE WITH OIL. FOLLOW INSTRUCTIONS OF
ENGINE MANUFACTURER.
3. START ENGINE.
4. ENGAGE BELT DRIVE UNIT WITH HAND LEVER TO ROTATE
DIGGING BLADE.
5. SLOWLY LOWER THE BLADE BY TURNING DEPTH ADJUST
CRANK (8012) UNTIL DESIRED DEPTH IS REACHED.
6. PULL THE MACHINE BACKWARD. BEGIN TRENCHING SLOWLY
UNTIL FAMILIAR WITH THE MACHINE AND SOIL CONDITIONS.
7. TO PREVENT CLOGGING, KEEP INSIDE OF HOUSING CLEAN.

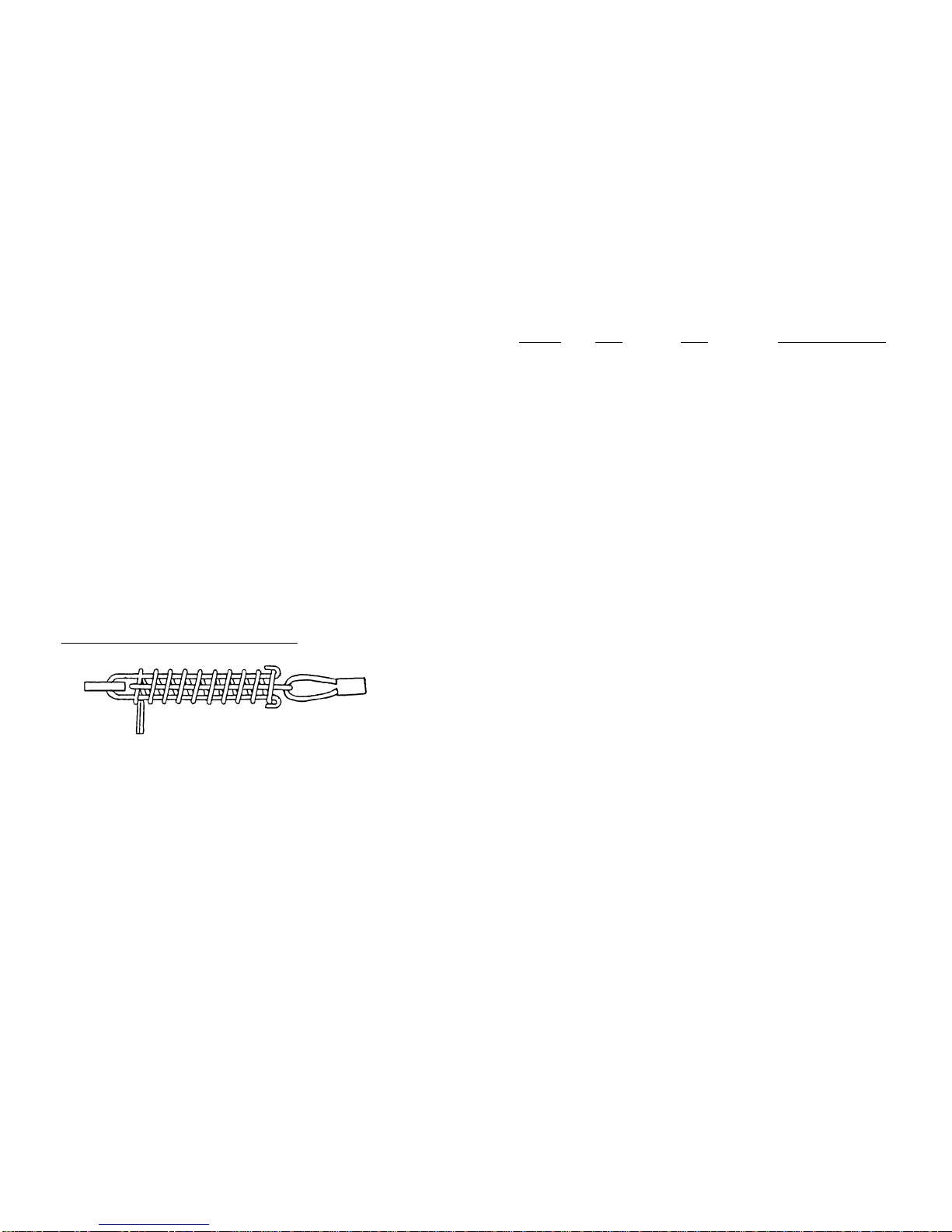

8. NOTE: PROPER BELT TENSION, 1/8” OR WHEN A DIME
WILL FIT SNUGLY BETWEEN COIL SPRING.
CAUTION: DO NOT OVER TIGHTEN BELT. (See Illustration.)
ADJUST BELT TENSION WITH (8180) QUICK ADJ. ASSY.
➧
DIME
3.
BOLT SIZES FOR EZ8000 BEDSCAPER
PART # QTY.SIZE ATTACHES PART...
516134 2 5⁄16 x 13⁄48160 to frame
14234 1 1⁄4x 23⁄48048A to 8160
14234 1 1⁄4x 23⁄48180 to 8160
382 1 3⁄8x 2 8048B to 8013
51634 1 5⁄16 x 3⁄4EZ20 to EZ15
516134 1 5⁄16 x 13⁄4EZ15 to 8160
38214 1 3⁄8x 21⁄48048A to 9001
125 2 1⁄2x 5 8200 to EZ317
516134 4 5⁄16 x 13⁄4engine to frame
51612C 2 5⁄16 x 1⁄2(carriage bolt) 8051
1458 6 1⁄4x 5⁄88120
516134 2 5⁄16 x 13⁄48125
1434 8 1⁄4x 3⁄48250
38134 1 3⁄8x 13⁄4EZ43
38112 1 3⁄8x 11⁄2EZ70
14114 1 1⁄4x 11⁄48012 to 8014
1438ss 2 1⁄4x 3⁄8set screws for 385
14516ss 2 1⁄4x 5⁄16 set screws for EZ40

4. 5.
307
EZ90
EZ91
EZ22
EZ380
306
EZ317
EZ329
8220
EZ89
385
EZ70
8201
EZ40
EZ6833 EZ43
8013A
EZ10
309
EZ15 EZ20
EZ16
EZ365
9019
843-756-6444
BedscaperTM EZ-8000

6.
TERMS AND CONDITIONS OF SALE
USE:
E-Z TRENCHER IS DESIGNED TO TRENCH IN SOIL ONLY. ANY
OTHER USE IS AT THE RISK OF THE OWNER.
PRICES:
Prices are subject to change without notice and will be invoiced at prices
in effect on date of order.
CHANGES:
E-Z TRENCH MANUFACTURING, Inc. reserves the right to discontinue
items, change specification, design, or prices at any time, without notice
and without incurring any obligation whatsoever.
FREIGHT POLICY:
All orders are F.O.B., Loris, South Carolina, USA. Title to goods and risk
of loss passed in Loris, South Carolina.
DAMAGED OR LOST SHIPMENTS:
All shipments must be carefully inspected. In case of damaged or loss,
accept the shipment, but have carrier note damages or loss on delivery
receipt. If it is concealed damage, call carrier for inspection. Make claim
for damage with carrier.
LIMITED WARRANTY:
The E-Z Trencher is warranted against defects in workmanship or mate-
rials for a period of one year. Blades, bits, belts and bearings, which are
normal wear items, are not warranted. This warranty covers replacement
of parts only, no consequential damages are covered. In the event of a
warranty claim contact E-Z Trench Manufacturing Company, Inc. This war-
ranty does not include products which have been subject to improper use,
or application, or misuse, neglect or accident; nor does it attend to prod-
ucts which have been repaired or altered by other than E-Z Trench
Manufacturing Company, Inc. All warranty repairs are F.O.B., Loris, S.C,
U.S.A. E-Z Trench Manufacturing Company, Inc. will not be responsible for
any transportation charges.
THERE IS NO OTHER EXPRESS WARRANTY. TO THE EXTENT
PERMITTED BY LAW ALL IMPLIED WARRANTIES INCLUDED THOSE
OF MERCHANTABILITY AND FITNESS FOR APARTICULAR PURPOSE
ARE EXCLUDED. LIABILITY FOR CONSEQUENTIAL DAMAGES
UNDER ANY AND ALL WARRANTIES ARE EXCLUDED TO THE
EXTENT THATEXCLUSION IS PERMITTED BY LAW. Some states do
not allow limitation on how long an implied warranty lasts, and some
Model EZ- 8000
PARTS LIST
Part# Description
EZ10 BELT TENSION SPRING
EZ15 IDLER LEVER
EZ16 HANDLE GRIPS
EZ20 CLEVIS FOR CABLE
EZ22 SEALED BEARING
EZ40 6”BLADE PULLEY
EZ43 BELT IDLER
EZ70 21/2”IDLER PULLEY
EZ89 3/16”X 1”SQUARE ENGINE KEY
EZ90 3/16”X 1”OUTPUT SHAFT KEY
EZ91 CONCENTRIC LOCK COLLAR
EZ317 CASTER
EZ329 CASTER SHIMS
EZ365 LANDSCAPE BLADE
EZ380 3/4”SAE NUT
EZ6833 1/2”x 33”POWERATED BELT
306 REAR WHEELS
307 PUSH CAP
309 NYLON CABLE PULLEY
385 21/4”ENGINE PULLEY
8001 DANGER STICKER
8012 DEPTH CONTROL LEVER
8013 DEPTH LINKAGE ROD
8013A 3/8”x 2”BOLTAND BUSHING
FOR JACK LINKAGE
8014 DEPTH CONTROL ROD
8014A CASTLE NUT
8014B BRASS BUSHING
8014C JACK SHIM
8015 LINKAGE PIN
8016 SPACER PLATE
8048 COMPLETE JACK
8048A BOTTOM JACK ASSEMBLY
8048B TOP JACK ASSEMBLY
8051 BELT GUARD
8061 CARBIDE BLADE
8110 OUTPUT SHAFT
8120 BLADE SHIELD
8125 BLADE GUARD
8150 COMPLETE CABLE
8160 HANDLE BAR
8180 QUICK BELT ADJ. ASSY.
8201 FRONT WHEEL
8220 LOCKING CAP
8230 FRONT AXLE
8240 FRAME DEBRIS DEFLECTOR
8250 SHIELD DEBRIS DEFLECTOR
8450 ENGINE
9019 HANDLE COVER

8.
TROUBLE SHOOTING
PROBLEM SOLUTION
IRREGULAR OR 1. ENGINE PULLEY WORN OUT.
EXCESSIVE BELT WEAR 2. BELT TENSION TOO TIGHT.
3. RATE OF DIG IS TOO FAST FOR
SOIL CONDITION.
4. CHECK FOR PULLEY
MISALIGNMENT.
5. USING OTHER THAN FACTORY
BELTS.
EXCESSIVE VIBRATION 1. LOOSE, BENT, OR BROKEN
DIGGING BAR OR BIT.
2. LOOSE ENGINE MOUNT BOLTS.
3. ENGINE R.P.M. SHOULD BE
3800 R.P.M.
HOUSING CLOGGING 1. HOUSING BLOCKED BY FOREIGN
OBJECT.
2. SOIL IS TOO WET.
DAMAGED DIGGING BLADE 1. STRIKING HARD OBJECTS, SUCH
AS BRICKS, LARGE ROCKS, AND
STEEL OBJECTS.
MAINTENANCE SCHEDULE
Perform at every indicated month or
operating hour interval, whichever
comes first.
Check blade and bits* y
Check belt tension y
Check engine oil & air filter y
Tighten loose bolts y
Change engine oil yy
Snug castle nut on top of jack yy
Grease casters y
Check tire pressure y
Clean air filter or replace y
Every
Use
First
month
or
20 Hrs.
Every
3months
or
50 Hrs.
Every
6months
or
100 Hrs.
7.
TERMS AND CONDITIONS OF SALE CONTINUED
states do not allow the exclusion or limitation or incidental or consequential
damages, so the above limitation and exclusion may not apply to you. This
warranty gives you specific legal rights and you may also have other rights
which may vary from state to state.
E-Z Trench Manufacturing Company, Inc. does not warrant the engine but
the purchaser must look to engine manufacturer for the warranty of the
engine.
NORMAL WEAR:
Warranty will not cover repair where normal use has exhausted the life of a
part. Trenchers, like all mechanical devices, need periodic parts replace-
ment and service to perform well. It should be remembered that the service
life of any trencher is dependent on the care it receives and the conditions
under which it has to operate. Trenchers operate in harsh conditions, which
can cause what appears to be premature wear. Such wear, when caused
by rocks or other abrasive material, is not covered by warranty.
E-Z TRENCH WARRANTY DOES NOT COVER ABUSE OR NEGLECT:
1. Bent or broken parts; Such damage is normally the result of abuse,
such as striking a solid object with the cutting blade.
2. Broken parts, which results from excessive vibration caused by loose
engine mounting, loose cutting blades, unbalanced blades, improperly
attaching equipment to trencher, overspeeding or abuse in operation.
3. Misuse, neglect, improper operation, damage or abuse.
4. Alteration or removal of name plates or serial numbers.
5. Modification or change of this product outside the factory.
STANDARD TERMS:
1. C.O.D./F.O.B., Loris, SC, USA
2. Cash, money order, certified check, or wire transfer with order.
3. 30 day with approved credit.
All sales are final with no right to return, price protection or implied con-
signment. No person, including agent, representative, or employee of E-Z
TRENCH MANUFACTURING, Inc. is authorized to assume for E-Z
TRENCH MANUFACTURING, Inc. any obligation or liability concerning
terms or conditions of sale other than that expressly stated herein.
EFFECTIVE MARCH 1, 1985
