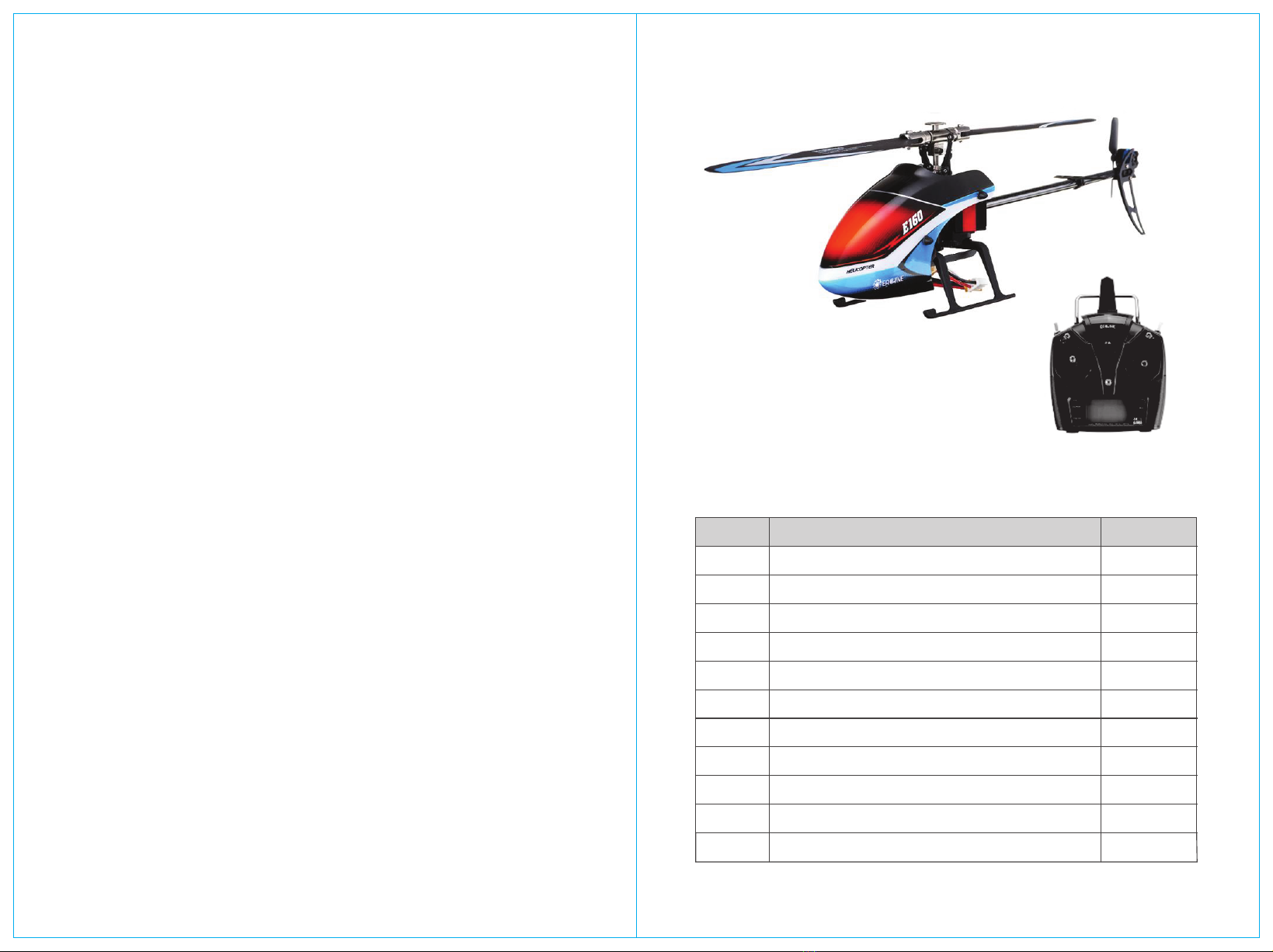

Eachine E160 User manual

E160
User Manual
This product is compatible with FUTABA 2.4GHZ S-FHSS
regulations.
Brushless motor, super power, compatible with 3-axis
gyroscope and 6-axis gyroscope modes, 3-axis for ultra-stable
flight and 6-axis for beginners.

Gift Box
Sports backpack
User Manual
Helicopter
Transmitter
Charger
Battery 7.4v 700mah 25C
Cross Screwdriver / Hex Wrench
Main Blade
Tail Blade
Main Gear
1
2
3
4
5
6
7
8
9
10
11
1
1
1
1
1
1
1
1
2
1
1
NO. PARTS QUANTITY
ITEM LIST
- 1 -

Item List
Notice
Warning
Aditional Safety Precautions and Wamings
Introduction
Table of Contents
Helicopter Parameters
Warning and the Guide of Battery Usage
Battery Charging
Notice Before Flight
Pair the Transmitter with the Receiver
Throte Curve and Pitch Curve Seting Reference Table
Initial Flight
Receiver Interface Diagram
About Remote Controller
Flight Battery Installment
Troubleshooting
Exploded View
Accessory List
Accessories List
TABLE OF CONTENTS
1
2
2
2
2
3
4
4
4
5
5
6
7
7
8
9
9
11
12
13
NOTICE
WARNING
All instructions, warranties and other collateral documents are subject to change at the sole
discretion of our company. For up-to-date product literature, please visit www.eachine.com
Read the ENTIRE user manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product,
personal property and cause serious injury. This is a sophisticated hobby product. It must
be operated with caution and common sense and requires some basic mechanical ability.
Failure to operate this product in a safe and responsible manner could result in injury or
damage to the product or other properties. This product is not intended for use by children
without direct adult supervision. This manual contains instructions for safety, operation and
maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious
injury.
1. Age Recommendation: Not for children under 14 years. This is not a toy.
2. Always operate your model in open spaces away from full-size vehicles,traffic and people.
3. Follow the operation notice, warmning and any support equipment (charger, battery, etc)
carefully.
4. Keep away from any chemicals; keep children away from any small parts and electrical
equipment.
5. Always keep away from water, especially for this product don't have waterproof function;
It will be damaged by moisture.
6. Never place any portion of the model in your mouth as it could cause serious injury or
even death.
7. Never operate your model with low voltage transmitter batteries.
ADDITIONAL SAFETY PRECAUTIONS AND WARNINGS
This is a super classic helicopter with exellent fight performance. Flybarless design,
decrease resistance of rotor head. Quote to aerodynamics, the blades can supply strong
power and keep stability. Using new type gyro, compatble with 3D and 6G modes. You
can make a variety of stunts by 3D mode; 6G mode is suitable for beginners especially.
After flying this mini helicopter, you will find other mini helicopters which you have flying
are eclipsed, This is a incomparable and popularization hellcopter. Beginners will find it is
easy to fly, masters will find it is interesting. It is worth to be possessed.
This manual with detalild instruction ,will help you leam more about the product Please
read it before your flying
INT TRODUCTION
- 2 - - 3 -

1. The user should connect to the power adapter with a USB
port or connect to the USB port of computer.
2. Connect the USB cable to the power adapter, at the same
time the USB charger red light flashes.
3. The partial voltage charging head of the battery is connected
with the USB cable. At this time, the USB charger's red light
always on and charging is in progress.
4. When the USB charger red light is off, charging is completed.
HELICOPTER PARAMETERS
Length
Height
Weight
Length of Main Propeller
Diameter of Tail Propeller
Battery Specification
Flight Time
Main Brushless Motor
Brushless Tail Motor
345 MM
108MM
156g
350MM
62.5MM
7.4v 700mah 25C
5-6 Min
1312
1103
WARNING AND THE GUIDE OF BATTERY USAGE
To ensure safety, please use the icluded standard charger
WARNING: It is recommended to use the original power supply charger when charging,
otherwise property damage and injury will occur.
Notice: When it is lower than 7.4V, the lithium battery may be damaged, or it may no longer
be charged. When the battery voltage is lower than 7.4V when the aircraft is flying,
the power of the aircraft drops significantly. Please immediately land and charge the
battery in time.
BATTERY CHARGING
7.4 700mAh
Warning
1. To ensure safety, please charge under the supervision of someone.
2. Children cannot charge alone, they should charge with the assistance of an adult.
3. Please use the original standard charger of this product for charging. The charger of
unknown origin may cause a fire and explosion accident.
4. It is recommended that users prepare their own 2A current adapter, which will shorten
the charging time.
1. Make sure the battery power is full both for TX and helicopter.
2. Before open the power of TX, please make sure the TH. Stick at the bottom and the
switch of TH.HOLD and 3D mode in back position (back cover direction).
3. Make sure the TX has paired with helicopter ,or please pair them again.
4. Please open TX first, then connect the battery with the RX board on helicopter to pair
with TX. When close, please cut the power of helicopter first, and then turn off the TX.
5. Keep away from crowd, cars, high-tension towers and pond. Then you can start your
flying.
NOTICE BEFORE FLIGHT
You buy the original model The pairing has been reset before factory. If you need to pair
again, please comply with the following steps.
1. First open the remote control, make sure the throttle joystick is in the bottom position,
3D1 IDLE switch in the OFF position
2. Take down the canopy for touching the code switch.
3. Charge the helicopter, the red lamp flashes slowly, press the code button for 1 second,
then the red lamp will go out and get ready for pairing.
4. When the red and blue lights turn solid, the pairing has been successful.
5. Ensure there are no other remote controllers of the same type at work to avoid
interference.
Tips: This product is compatible with all FUTABA 2.4GHZ S-FHSS remote controller.
Notice: If the throttle of the transmitter has not been positioned at the lowest position
with the throttle switch and 3D mode switch turned on, the transmitter will beep
to prompt you that it fails to proceed to pair.
PAIR THE TRANSMITTER WITH THE RECEIVER
- 4 - - 5 -

Notice:
1. When the remote control is turned on, the throttle hold switch is in the ON state, and
the remote control beeps . The switch should be turned back to the OFF position.
2. When the remote control is turned on, the 3D switch is in the ON state, and the remote
control will beep. The switch should be turned back to the OFF position.
3. When the remote control is turned on, the throttle stick is not in the lowest position,
and the remote control will beep. The throttle stick should be pulled down to the
lowest position.
THROTTLE CURVE AND PITCH CURVE
The above information is for your reference only, you can set the parameters to your
demand.
INITIAL FLIGHT
If you are not familiar with the control of the E160 , take a few minutes to get familiar
with them and then try your first flight.
RECEIVER INTERFACE DIAGRAM
Aileron Servo
Elevator
Rear Steering Gear Pitch
5V SUBS/PPM
3.3V DSM2/DSMX
Notes: 3.3V is suitable for DSM receiver and 5V is suitable for FUTABA (S-BUS) J receiver.
- 6 - - 7 -

Right hand throttle Left hand throttle
This remote control supports CCPM 120 degree helicopter dedicated remote control,
with 3D 6G switching high/low rudder capacity for two joystick modes, flameout switch
(TH.HOLD) and other modes, large screenLCD display multi-function remote control.
FLIGHT BATTERY INSTALLMENT
1. Put the throttle joystick to the bottom position.
2. Turn on the transmitter.
3. Install the battery into the rack and connect it properly with the receiving power.
4. Once the battery is connected, the signal starts to blink. Keep it still and wait until the
signal light stops blinking, which means the receiver has completed self-inspection and
gets ready for flight.
TROUBLESHOOTING
Problem
LED on receiver flashes
constantly with no responses
after connecting batteries to
transmitter.
The helicopter has no
response after connecting
batteries to receiver.
When push the throttle
pole, the rotor do not
rotate and the LED on
Receiver flashes
cons tantly.
Helicopter takes off
immediately, once
the batteries and
receiver connected.
Cause Solution
Put the throttle pole at
the lowest position
before open the
transmitter.
Didn't put the throttle to
the lowest
Low battery voltage;
batteries connection
is not good.
Check whether the
transmitter and
receiver connecting
to power; check the
voltage of transmitter
and receiver; Battery
pole flake contact is
not good.
Transmitter is not bound
to receiver.
Pairing of the transmitter
and receiver failed.
Replace and charge the
batteries, reconnect the
batteries to the receiver
board.
Open the transmitter,
make sure the batteries
connecting is good
Replace and charge
transmitter batteries
Make sure the battery
pole flake contact is good.
Re-pair (Refer to P.5,
Programming your
Transmitter)
1
2
3
4
ABOUT REMOTE CONTROLLER
- 8 - - 9 -

Turn on the helicopter after
binding successfully, the
propeller rotate constantly
but the helicopter can not
take off.
Problem Cause Solution
Low charge in aircraft
batteries or main
gear loose.
Replace and charge the
batteries ; press the
spindle with gear tightly.
5
6
7
8
9
10
11
12
13
Helicopter power is turned
supreme speed govermor
electric sound
Damaged frotor blades
and lateral axis
blade grips too tight
causing the movement
of the main rotor isn't
smooth.
Reference helicopter 6G
mode setting
Helicopter vibrates or
shakes in flight.
Main rotor blades are
shaking in flying.
The sound of the main
rotor becomes smaller.
Helicopter has no
reaction or can not
fly smoothly.
3D/6G model helicopter
appeared yaw
Helicopter yaw occurs in 6G
mode,
Helicopter took off spin
to the left.
Check the connectors replace
speed governor
Brushless speed governor
fault or poor contact
Check with the tail rotor blades
and the motor shaft,If loose
replacement tail rotor blade.
Motor damage Replace the
tail motor.
Tail motor power shortage
loose blades
Tail motor damage
Helicopters hover need to
reconfigure
Swashplate servos not back
in to mid-position or damage
Failure of binding
Low battery voltage
of helicopter.
Lateral axis is bent
Latreral axis screw is not
tight .There are some
debris in the servo,
causing shakes .
The loose between the
swashplates.
Deformed or damaged t
ail rotor blades.
Change the main rotor
blades, and lateral axis
Loosen the blade grips
properly.
Replace the lateral axis.
Tighten the lateral axis
screw. Change the
Bearing.
Remove the servo, and
clear debris.
Compress the
swash plates.
change the tail rotor
blades.
Charge the battery or
change a fully charged
battery.
Rebind the helicopter
and transmitter, make
sure you place the
helicopter static level
next to the transmitter.
Length adjustment rod,
so thatthe vertical spindle
swashplate
Replace the servo

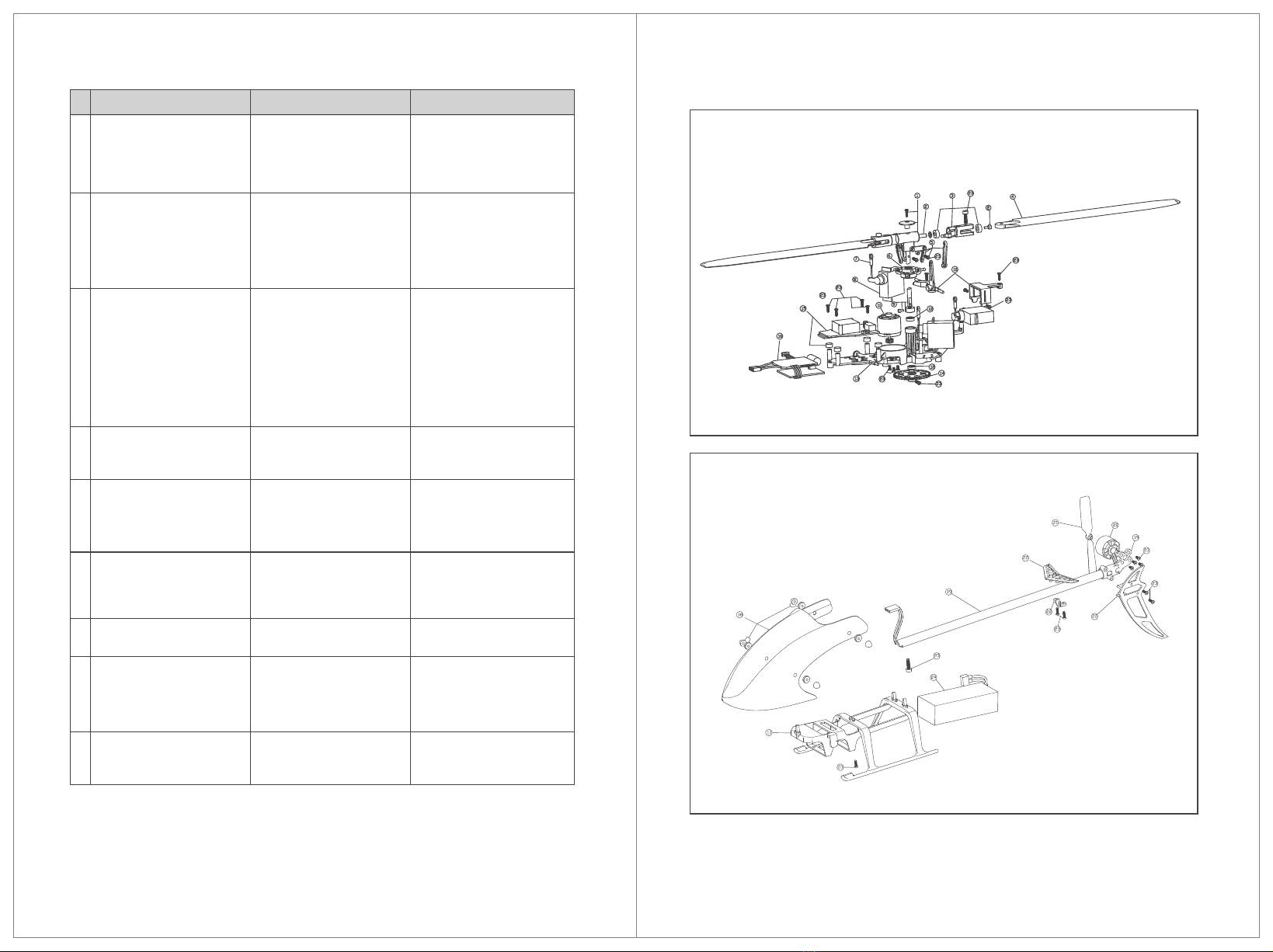

EXPLODED VIEW
- 10 - - 11 -

Rotor Head Set
Horizontal Axis Group
Rotor Clip Set
Paddle Group
Link Group
Swash Plate Group
Lower Link Group
Rudder Unit
Spindle Group
Servo Pressure Plate Group
Main Motor Unit
Bearing Set
Main Rack Group
Big Gear Set
Flight Control Motherboard
Governor Group
Landing Gear Group
Chassis Group
Tailstock Group
Tail Motor Unit
Chassis Group
Rear Wing
Screw Set
Battery
USB Charger Set
Remote Control Unit
NO. PARA NAME QUANTITY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
2
1
2
1
1
2
1
2
1
2
1
1
1
2
1
2
1
1
2
1
1
1
1
1
1
ACCESSORY LIST
Notice for beginners:
1. Please fly you models with guidance in the first time.
2. Before fly the models, you need to understand all the function of the transmitter and reaction cause
by the rockers.
3. Don't use 3D mode hurried. Practice flying and hovering flight under 6G mode until you are familiar
with it. Then you can practice flying and hovering flight under 3D mode. When you are familiar with
these two modes you can practice| inverted flight with guidance.
4. Practice hovering flight of inverted flight to lay a foundation for making more brilliant flying.
5. This model is not a toy. To avoid damage, please take a simulated flight through computing before
3D flying.
2.E160.001 2.E160.002 2.E160.003 2.E160.004
2.E160.005 2.E160.006 2.E160.007 2.E160.008
2.E160.009 2.E160.010 2.E160.011 2.E160.012
2.E160.013 2.E160.014 2.E160.015 2.E160.016
2.E160.017 2.E160.018 2.E160.019 2.E160.020
2.E160.021 2.E160.022 2.E160.023 2.E160.024
2.E160.025 2.E160.026
ACCESSORIES LIST
- 12 - - 13 -
Table of contents
Other Eachine Toy manuals
Popular Toy manuals by other brands

Fisher-Price
Fisher-Price FGY72 quick guide

LGB
LGB 21671 manual

Pilot Communications
Pilot Communications 30cc Assembly manual

Hachette
Hachette Agora Models BISMARCK Build instructions

Seagull Models
Seagull Models T-34 Mentor Assembly manual

Hasbro
Hasbro MARVEL STUDIOS THE INFINITY SAGA AVENGERS ENDGAME LEGENDS... quick start guide
