Eagle Bay Woodbox User manual

woodbox
installation
manual
EAGLE BAY®
Beautifully Placed Confidence™

EAGLE BAY®QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141.
PIECES INCLUDED IN KIT
DUBLIN™ BLOCKS
*Please note — the dimensions listed below are approximate (have been rounded up / down) and may vary by a few fractions of an inch.
FLAT CAP (unlabeled)
PRODUCT USAGE / DISCLAIMER
COPINGSTONES: With kits that contain CopingStone, please see pages 18-19 for CopingStone item list and Courses 3, 12 and 22. CopingStones are available
upon request. CopingStones are not included in standard kits.
This fireplace is designed to burn solid wood, plumbed propane or natural gas only. Gas log appliances must be approved for outdoor use. Please obtain the proper
permits in your local jurisdiction and make sure to comply with all building codes. This fireplace is not designed to be used indoors or in any framed wooden
structure. It should not be placed next to or on any combustible materials. Do not fill voids with insulation or any other materials. This fireplace is not intended
to be used for cooking food. Eagle Bay recommends using a grate centered in Burning Box for optimum burning performance. Do not stack wood against block
walls while burning. Be aware that sparks can escape and ignite combustible surroundings. Do not over pack with wood.
(2) 46 x 21
STEEPLECREST CAPS (unlabeled)
(5) 14 x 12
(2) 7 x 12 cut pieces
LINTEL (unlabeled)
(1) Lintel
❑ Adhesive (included)
❑ Work Gloves (included)
❑ Tape Measure
❑ Rubber Mallet
WHAT YOU WILL NEED
ank you for purchasing an Eagle Bay Woodbox. If you have any questions or need installation
support, please contact our customer service line toll free at 1.800.321.9141.
EAGLE BAY®
A: (86) Full Block, 4 x 8 x 12
(Full Block pieces (A) are not labeled. All other paver
pieces are labeled with their corresponding letters.)
B: (24) 4 x 8 x 8
C: (10) 4 x 8 x 4
D: (2) L-shape Block, 8 x 8
E: (4) C-shape Block 8 x 12
2

QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141. EAGLE BAY®
COURSE 1
Lay full block units (A) as shown below. Square up your base so that it is 40 inches deep and 44 inches wide.
•Have a tape measure handy at all times.
•Lay block left-to-right or back-to-front instead of outside-to-in. Laying block outside to in will make it difficult
to place the inner blocks.
•When unloading the pallet, place the removed block at two to three feet from the pallet, leaving a clear path
on all sides of the pallet. This will ensure easy access to the pallet at all times. And if you want to make it
extra easy on yourself, group alike blocks together for quick reference — A’s together, B’s together, etc.
•Make sure the letters on each block face a connecting block so they are hidden.
•Once each course has been placed, make sure you tighten it up by using a rubber mallet on the edges.
•Please contact our customer service team for questions and installation support. Toll Free: 1-800-321-9141
HELPFUL TIPS BEFORE YOU GET STARTED
BACK OF WOODBOX
FRONT OF WOODBOX
3

EAGLE BAY®QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141.
COURSE 2
Lay on top of C1 and make sure it is square to the base.
Lay block as shown below, starting in the top left corner (back left of base) making sure it is flush to the edges of the
previous course.
COURSE 3
BACK OF WOODBOX
FRONT OF WOODBOX
BACK OF WOODBOX
FRONT OF WOODBOX
4

EAGLE BAY®QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141.
COURSE 3 (STEEPLECREST CAP)
*Please note — See page 10 for CopingStone instructions.
Once the Course 3 block is placed, the SteepleCrest Cap should be placed inside the block as shown below. This will allow you
to tighten up the complete 3rd course (block and SteepleCrest Cap) to ensure a tight fit before moving on to the 4th Course. It
is recommended to lay all block and SteepleCrest Cap to ensure proper placement before applying adhesive.
Follow the diagram below paying close attention to the various sizes of SteepleCrest Cap. Start by placing the SteepleCrest Cap
in the back left corner, inside the “U”. Once the SteepleCrest Cap has been placed, be sure to tighten up the all the edges of
the block to remove any gaps / spaces in the SteepleCrest Cap inside the Course 3 Block.
BACK OF WOODBOX
FRONT OF WOODBOX
After laying Course 11, insert the
lintel into the grooves and then place
the cap on top of the unit.
Course 3 (SteepleCrest Cap):
5 Full Piece: 14 X 12
2 Cuts: 7 X 12
A
A
C
B
B AA
C
A
LINTEL
46 X 21
46 X 21
22
5

EAGLE BAY®QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141.
COURSE 4
BACK OF WOODBOX
FRONT OF WOODBOX
Repeats Course 3
BACK OF WOODBOX
COURSE 5
FRONT OF WOODBOX
6

EAGLE BAY®QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141.
COURSE 6
Repeats Course 4
Repeats Course 3
COURSE 7
BACK OF WOODBOX
FRONT OF WOODBOX
BACK OF WOODBOX
FRONT OF WOODBOX
7

EAGLE BAY®QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141.
COURSE 8
Repeats Course 4
COURSE 9
BACK OF WOODBOX
FRONT OF WOODBOX
BACK OF WOODBOX
FRONT OF WOODBOX
D D
8

QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141. EAGLE BAY®
After laying Course 11, insert the
lintel into the grooves and then place
the cap on top of the unit.
Course 3 (SteepleCrest Cap):
5 Full Piece: 14 X 12
2 Cuts: 7 X 12
A
A
C
B
B AA
C
A
LINTEL
46 X 21
46 X 21
22
After laying Course 11, insert the
lintel into the grooves and then place
the cap on top of the unit.
Course 3 (SteepleCrest Cap):
5 Full Piece: 14 X 12
2 Cuts: 7 X 12
A
A
C
B
B AA
C
A
LINTEL
46 X 21
46 X 21
22
COURSE 10 (FINAL COURSE)
After laying the block in Course 10, insert the lintel into the grooves of the C-Shaped block (E) and then place the (2) 46 x 21
caps on top of the unit.
Congratulations! Enjoy your Eagle Bay Woodbox!
BACK OF WOODBOX
FRONT OF WOODBOX
BACK OF WOODBOX
FRONT OF WOODBOX
9

QUESTIONS OR INSTALLATION SUPPORT? CALL 1.800.321.9141. EAGLE BAY®
COPINGSTONES (unlabeled)
(2) 3.5 x 10.5
(7) 7 x 10.5
(4) 7 x 12 With Rounded End
PIECES INCLUDED IN KIT
*Please note — the dimensions listed below are approximate (have been rounded up / down) and may vary by a few fractions of an inch.
from Page 2 of original manual
from Page 5 of original manual
WOODBOX WITH COPINGSTONE
INSTALLATION INSTRUCTIONS

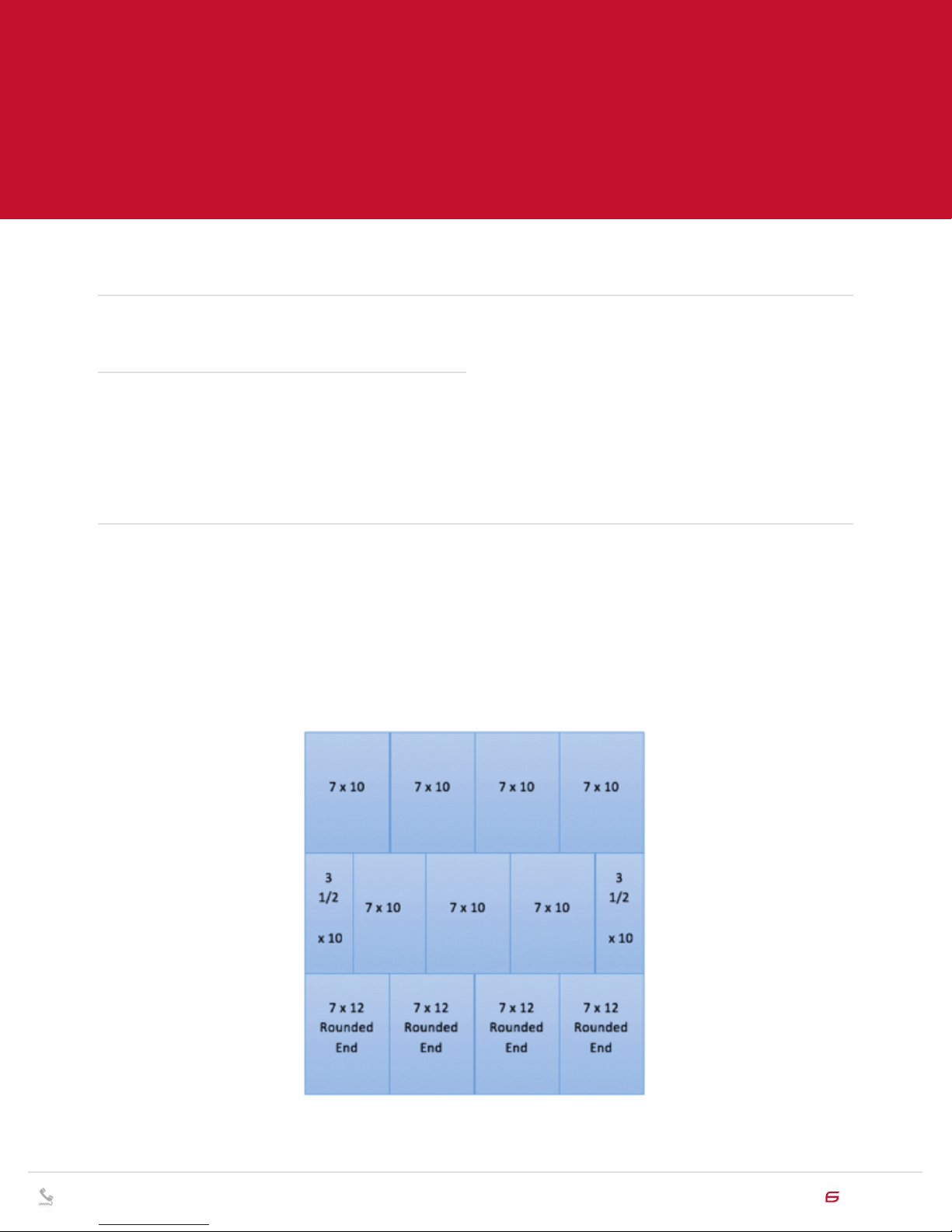

COURSE 3 (COPINGSTONE)
Once the Course 3 block is placed, the CopingStone should be placed inside the block as shown below. This will allow you
to tighten up the complete 3rd course (block and CopingStone) to ensure a tight fit before moving on to the 4th Course. It is
recommended to lay all block and CopingStone to ensure proper placement before applying adhesive.
Follow the diagram below paying close attention to the various sizes of CopingStone. Start by placing the CopingStone in the
back left corner, inside the “U”. Once the CopingStone has been placed, be sure to tighten up the all the edges of the block to
remove any gaps / spaces in the CopingStone inside the Course 3 Block.
BACK OF WOODBOX
FRONT OF WOODBOX
10
