Eagle Equipment TB9000 User manual

IMPORTANT!
The Emission Control System for this generator is warranted for standards set by the Environment Protection Agency.
It is extremely important to read and understand the entire contents of this
Operator’s Manual for the Model TB9000 before attempting to operate the
generator. This is a gas engine powered, industrial strength generating
unit of electrical power. The gas engine and the generator are both
potentially extremely hazardous and could cause physical injury or even
death if improperly used.
!!! WARNING !!!
DO NOT OPERATE EQUIPMENT UNTIL READING & UNDERSTANDING OPERATOR’S
MANUAL! DISCONNECT ALL LOADS BEFORE STARTING OR STOPPING GENERATOR.
ALLOW TO RUN FOR A FEW MINUTES WITH NO LOAD BEFORE STOPPING.
OPERATOR’S MANUAL
MODEL TB9000 INDUSTRIAL GENERATOR
Industrial
Gasoline Generator

Manufacturer shall not be responsible for any consequences resulting from improper use of this
equipment. The operator is required to read the entire contents of this manual before attempting to
operate the unit. If the operator does not completely understand the instructions and all of the hazards
of operating this unit after reading this manual, operator must call the factory to answer these questions
to operator’s complete satisfaction before proceeding.
READ AND COMPLETELY UNDERSTAND entire contents of this operator’s manual and become familiar
with the unit before attempting to start using this equipment! It is your responsibility to know its applications,
limitations, and hazards! Call the factory with any questions.
FOR OUTDOOR USE ONLY! Never use this unit inside any enclosure including
the generator compartment of a recreation vehicle (RV) or inside any building. No
modications will eliminate the danger of possible carbon monoxide poisoning,
re, or explosion.
THREE (3) FEET OF CLEARANCE on all sides is required even while using outdoors.
This unit is sold solely for the purpose of portable power. Other applications could void warranty.
User accepts responsibility for injuries and/or damage resulting from other applications.
IMPORTANT !
READ FIRST
2
DESCRIPTION
MODEL TB9000 is a gas engine driven, revolving eld,
alternating current (AC) generator designed to supply
electrical power for compatible electrical tools, motors,
appliances, and lighting (see wattage reference guide
on page 8).
The Model TB9000 operates at 120 volt and/or 240 volt,
single phase, 60 Hz and will operate devices that require
up to 7200 watts continuous and 8400 watts surge.
GROUNDING THE GENERATOR
It is required by The National Electrical Code to have the
frame and all external conductive parts of the generator
connected to an earth ground. Proper grounding also
satises most local electrical codes.
Connect a No. 12 AWG standard copper wire to the
Grounding Lug Block (See Figure 1). The grounding
lug can be found on the control panel. Connect the
other end of the wire to an earth driven copper or brass
grounding rod (electrode).
CAUTION! Do not connect ground to a pre-existing
ground rod, water pipe, or building frame.
Consult with a licensed electrician in your area because
local codes vary. Properly grounding the generator helps
prevent electrical shock if a ground fault condition exists
in the generator or in connected electrical devices. This
will also help to dissipate static electricity resulting from
ungrounded devices.

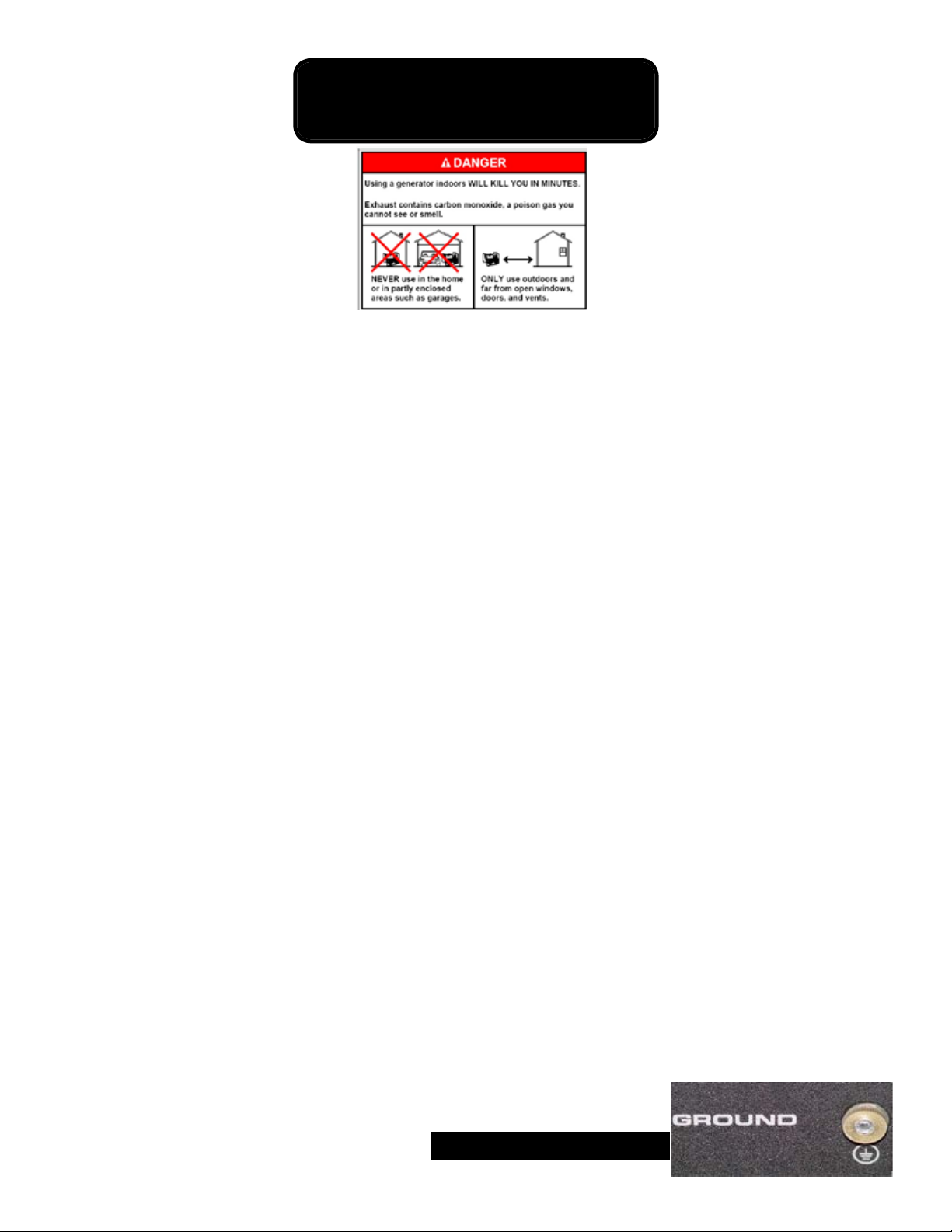

Figure #1 - Grounding Lug Block
CAUTION! Do not tamper with engine
governed speed. The GENERATOR
supplies correct rated frequency
and voltage when running at the
proper governed speed. Incorrect
frequency and/or voltage could
damage connected electrical devices.

SAFETY
This generator was designed for specic applications. DO NOT attempt to modify the unit in any way or
use it for any application that it was not designed to do. Ask the dealer or contact the factory if you have
any questions concerning the generator’s application.
Warnings and cautions in this manual and on decals and tags on the unit are not all inclusive. It would be
impossible to anticipate every circumstance that might involve a hazard. Handling, operating, or servicing
this unit by any procedure not recommended by the manufacturer may render this equipment unsafe and
may pose a threat to you or to others.
CAUTION! The engine exhaust contains chemicals
known to the State of California to cause cancer,
birth defects, or other reproductive harm.
The generator produces a very powerful voltage
that can cause extremely dangerous electrical
shock. Avoid contact with bare wires, terminals,
etc. Never permit an unqualified person to
operate or service the generator.
Never handle any kind of electrical cord or
device while standing in water, while barefoot or
with wet hands or when feet are wet. Dangerous
electrical shock could result.
The National Electric Code requires that the
frame and external conductive parts be properly
connected to an approved earth ground. Local
electrical codes may vary. Check with an
electrician for local grounding requirements.
Use a ground fault circuit interrupter in any damp
or highly conductive area such as metal decking
or steel work.
Do not use worn, bare, frayed or otherwise
damaged electrical cords or wiring with the
generator. A defective cord may result in
electrical shock or may cause damage to
equipment.
Do not expose unit to excessive moisture, dirt
or corrosive vapors. Unit must be operated on
a level surface.
Do not overll the fuel tank. Always allow room
for fuel expansion. Fuel could overow and
cause re or explosion if tank is overlled. Allow
for a 20 minute cool down before refueling.
Only operate this unit outside with adequate
ventilation. This generator’s exhaust produces carbon
monoxide gas that can cause unconsciousness or
even death.
Never store a generator with fuel in the tank where
fuel vapors could be ignited by a ame, spark, or
pilot light from an appliance such as a furnace,
water heater, or clothes dryer.
Always allow a minimum of 3 feet of clearance on
all sides for ventilation while unit is operating. Allow
3 feet of clearance from all combustibles.
Generator must always be stopped or started with
all loads unconnected. Start the engine and let it
stabilize before connecting any loads. Disconnect
all loads before shutting down the generator.
Never insert any object through the cooling slots of
the engine. You could damage the unit or cause
injury.
NEVER OPERATE THE GENERATOR:
In rain
In an enclosed compartment
If connected devices overheat
If electrical output is lost
If engine or generator sparks
If ame or smoke is observed
If unit vibrates excessively
CAUTION! If it is your first time starting the
generator, allow it to run for 30 minutes before
connecting electrical loads. This is for wet seating
purposes
Caution: Customer takes full responsibility for
use of this unit as a home generation system.
3

OPERATION OF THE GENERATOR
1. Check oil and Gas for proper levels
2. Turn fuel valve to the ON position
3. Turn stop switch to the ON position
4. Pull choke lever to the ON position
5. Grip recoil starter and pull briskly
6. Once started return choke lever to the OFF
position.
7. Let engine settle before hooking up any electrical
appliances.
1. Let engine stabilize and warm up for at least 3
minutes.
2. Make sure devices to be connected are in good
working order and in the “OFF” position before
connecting to the generator.
3. Make sure to plug in desired devices into the correct
receptacle.
4. DO NOT connect 240 Volt loads to the 120 Volt
duplex receptacles.
5. DO NOT connect 3 phase loads to the generator.
6. DO NOT connect 50 Hz loads to the generator.
7. This is a 60Hz system.
8. DO NOT overload the generator. Add up the rated
Watts of all loads to be connected. This total should
not exceed the total watts of the generator.
Stopping the engine
1. Turn off all electrical devices connected to the
generator.
2. WARNING: DO NOT start or stop generator with
electrical devices plugged in.
3. Allow the generator engine to run at a ‘No Load’
condition for several minutes to stabilize internal
engine temperature before stopping.
4. Turn the On\Off Switch on the Control Panel to the
“off” position.
5. Turn Fuel Valve to the “Off” position.
Generator maintenance
(See maintenance table for list below).
1. Keep the generator clean and dry. Use a damp cloth
to clean exterior surfaces. Remove caked on dirt
with a soft brush.
2. Never spray with water. Water can contaminate the
engine fuel system and cause serious problems in
the generator.
3. Damage may occur if engine or carburetor cleaning
products are used.
Starting the engine
4
Connecting electrical loads
*First oil change should be after 5 hours. After initial break-in period change oil every (30) hours.
DAILY EVERY MONTH/ 30 HRS EVERY 3 MONTHS/ 100 HRS EVERY 6 MONTHS/ 500
Check Oil Levels X
Check Air Filter X
Check For Oil Leaks X
Replace Air Filter X
Change Oil X*
Maintenance Schedule

5
Engine is running but no power
output is available.
Engine runs good until loads
are connected, then bogs
down.
Engine will not start or engine
starts but runs rough.
Engine shuts down during
operation.
Engine lacks power
1. Circuit breaker is open.
2. Poor connection or defective
cord set.
3. Connected device is bad.
4. Fault in generator.
1. Short circuit in a connected
load.
2. Overloaded generator.
3. Engine speed is too slow.
4. Short in generator circuit.
1. On/Off Switch is turned ‘OFF’.
2. Battery is dead
3. Dirty air cleaner.
4. Out of fuel.
5. Stale fuel.
6. Not enough speed or force is
used for recoil start.
7. Water in fuel.
8. Speed control is not set to
“RUN”.
9. Low oil level.
10. Oil nozzle is dirty.
11. Engine has lost compression.
1. Out of fuel.
2. Fault in engine.
1. Load is too high.
2. Dirty air lter.
3. Engine needs to be serviced.
TROUBLESHOOTING
Problem Cause Solution
1. Reset the circuit breaker.
2. Check & repair.
3. Connect another device
that is in good condition.
4. Contact service center.
1. Disconnect shorted load.
2. See ‘Connecting Electrical
Loads’ section of manual.
3. Contact service center.
4. Contact service center.
1. Turn On/Off Switch to ‘ON’.
2. Charge or replace it.
3. Clean air lter
4. Fill fuel tank.
5. Drain fuel tank and rell.
6. Read and follow directions.
7. Drain and rell tank.
8. Move speed control to “RUN”
position.
9. Add oil to proper level.
10. Clean oil nozzle.
11. Contact service center.
1. Fill fuel tank.
2. Contact service center
1. See ‘Connecting Electrical
Loads’ section of manual.
2. Replace the air lter.
3. Contact service center.

Engine oil is a major factor affecting engine performance and service life. Non detergent and 2-stroke
engine oils will damage the engine and are not recommended.
Check the oil level BEFORE EACH USE with the
generator on a level surface and the engine stopped.
Use 4-stroke motor oil that meets or exceeds the
requirements for API service classication SJ.
Always check the oil container for the SJ classication.
SAE 10W-30 is recommended for general, all-temperature use. Other
viscosities shown in the chart may be used when the average temperature in your area is within the
indicated range.
1. Remove the oil ller cap and wipe the dipstick clean.
2. Check the oil level by inserting the dipstick into the ller neck without screwing it in.
3. If the level is low, ll to the top of the oil ller neck with the recommended oil.
Engine Oil Change
Drain the oil while the engine is warm to assure rapid and complete draining.
1. Remove the drain plug and sealing washer, remove the oil ller cap, and drain the oil.
2. Reinstall the drain plug and sealing washer. Tighten the plug securely.
3. Rell with the recommended oil and check the oil level to ensure it is full.
OIL CAPACITY: 32 oz.
Wash your hands with soap and water after handling used oil.
Please dispose of used motor oil in a manner that is compatible with the environment. We
suggest you take it in a sealed container to your local service station or recycling center for
reclaimation. Do not throw it in the trash, pour it on the ground, or down a drain.
6

Wattage Reference Guide
*Air Conditioner (12,000 BTU) 1700
Battery Charger (20 Amp) 500
Belt Sander (3”) 1000
Chain Saw 1200
Circular Saw (6-1/2”) 800 to 1000
Coffee Maker 1000
Compressor (1 HP) 2000
Compressor (3/4 HP) 1800
Compressor (1/2 HP) 1400
Curling Iron 700
*Freezer 500
Disc Sander (9”) 1200
Edge Trimmer 500
Electric Nail Gun 1200
Electric Range (one element) 1500
Electric Skillet 1250
*Furnace Fan (1/3 HP) 1200
Hair Dryer 1200
Hand Drill (1”) 1100
Hand Drill (1/2”) 750 to 1000
Hand Drill (3/8”) 500
Hand Drill (1/4”) 250
Device Running Device Watts
Impact Wrench 500
*Jet Pump 800
Lawn Mower 1200
Light Bulb 100
Microwave Oven 700
*Milk Cooler 1100
Oil Burner on Furnace 300
Oil Fired Space Heater (140,000 BTU) 400
Oil Fired Space Heater (85,000 BTU) 225
Oil Fired Space Heater (30,000 BTU) 150
*Airless Paint Sprayer (1/3 HP) 600
Handheld Airless Paint Sprayer 150
Radio 50 to 200
Refrigerator 600
Slow Cooker 200
*Submersible Pump (1-1/2 HP) 2800
*Submersible Pump (1 HP) 2000
*Submersible Pump (1/2 HP) 1500
Sump Pump 600
*Table Saw (10”) 1750 to 2000
Television 200 to 500
Weed Trimmer 500
*Allow 3 times the listed Watts for starting these devices
These wattages shown are approximate and may vary with each specic device
7

8
Industrial Gasoline
Generator
Before storing the unit for an extended period:
1 Be sure the storage area is free of excessive humidity and dust.
2. Service according to the table below
STORAGE TIME RECOMMENDED SERVICE PROCEDURE
TO PREVENT HARD STARTING
Less than one month No preparation required
1 to 2 months Fill with fresh gasoline, add gasoline conditioner
2 months to 1 year Fill with fresh gasoline, add gasoline conditioner
Drain carburetor bowl
Drain fuel sediment cup
1 year or more Remove Spark Plus put a tablespoon of engine oil
into all cylinders.
Turn the engine slowly with the pull rope to dis-
tribute the oil.
Reinstall spark plugs, change the engine oil.
Aer removal from storage, drain the stored gaso-
line into a suitable container, and ll with fresh
gasoline before starting.
STORAGE

9
NOTES
This product is warranted to be free from defects in material and workmanship for a period of two
years on th engine after date of purchase, and one year on all parts and components after date of
purchase Normal wear and tear on items which have exhausted their useful life is not covered.
LIMITED WARRANTY

Output 8400 watts Surge
2- L5-20 Receptacles (20amps.)
1- L5-30 Receptacle (30amps)
1- L14-30 Receptacle (30amps)
1- L14-30 AUX Plug (30amps)
Circuit Breaker Protection
74 Decibel’s @ 10’
Electric\Manual Start
420cc Gasoline Engine
Steel Sleeve Cylinder
12.3 Gallon Fuel Tank
Approx. Run Time 24hrs
@50% Load

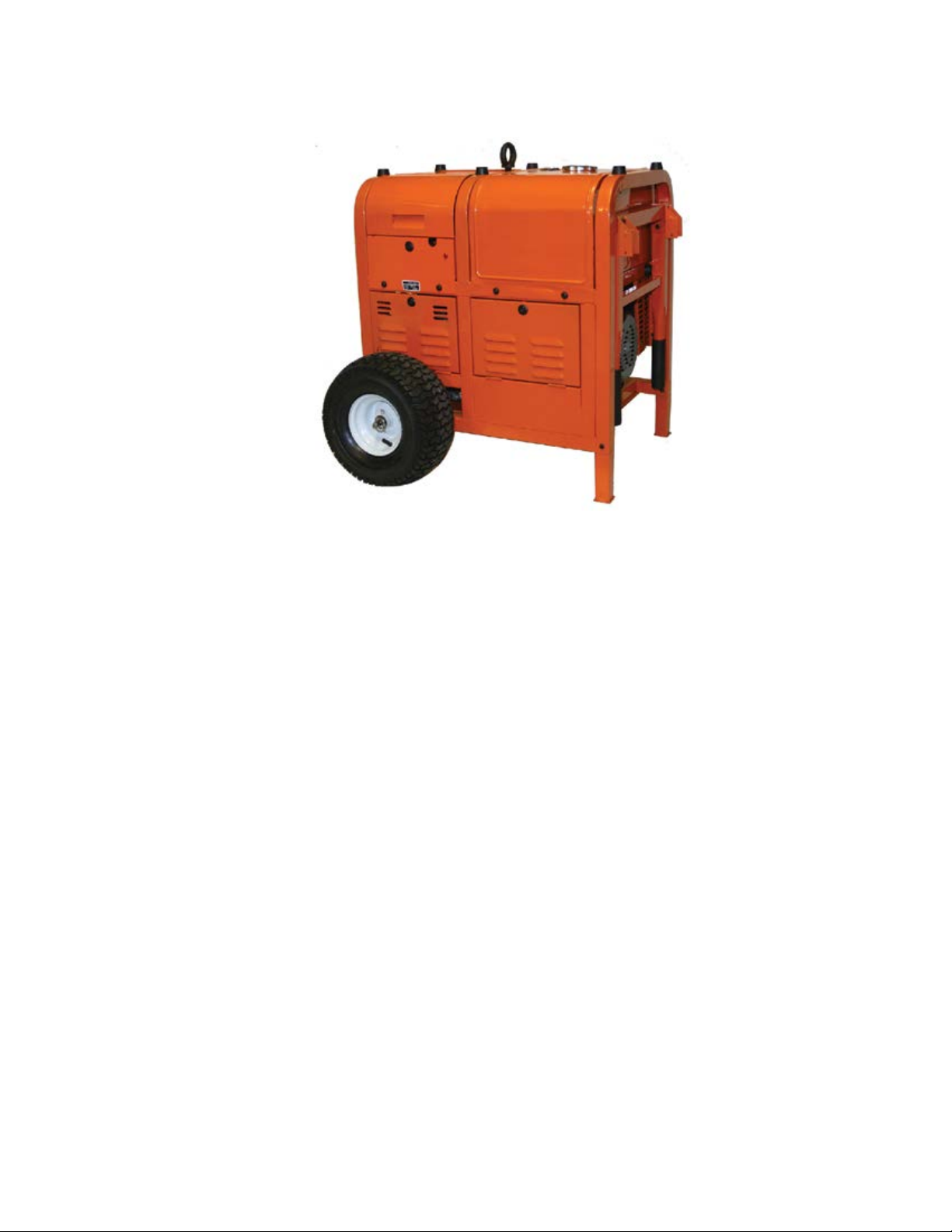

Model TB9000
10
THIS UNIT IS NOT FOR USE IN THE STATE OF CALIFORNIA
RPM- 3720
Brushless Generator Head
Copper Windings
Low Oil Shut Down
Oil Capacity 32oz. (10w-30)
Size: L-32” W-28” H-26”
Net. Weight 360LBS.
12v DC Connector
One Year Equipment Warranty
Two Year Engine Warranty
SPECIFICATIONS
Manufactured by:
American Fab Inc.
P.O. Box 1027 Travelers Rest, SC 29690
Customer Service: 1-800-845-4141
