2 - Assemble top and bottom sections of the tent frame as shown below.
Layout a square with poles C and D opposite each other and insert onto connectors A as shown.
Layout a square with poles E and F opposite each other and insert onto connectors B as shown.
3 - Connect the upper and lower tent frames to each other as shown, you may require assistance or need to lay
the frame halves on oor.
Tent
Tent Bottom
Grow Tent Assembly Instructions
Parts:
1 - Lay tent canvas at on oor
and unzip all zippers as shown.
Connector A x 4
Connector B x 4
Pole C x 2
Pole D x 2
Pole E x 2
Pole F x 2
Straight Support G x 1
Support Pole H x 2
Copyright 2011 DTX International
www.earthworth.com
TM 1851 EW-32x32x63 Mylar Hydro Shanty
C
C
D
D
A
A
A
A
E
F
BB
BB
C
C
D
D
A
A
A
A
E
E
F
FB
B
B
B
F
E

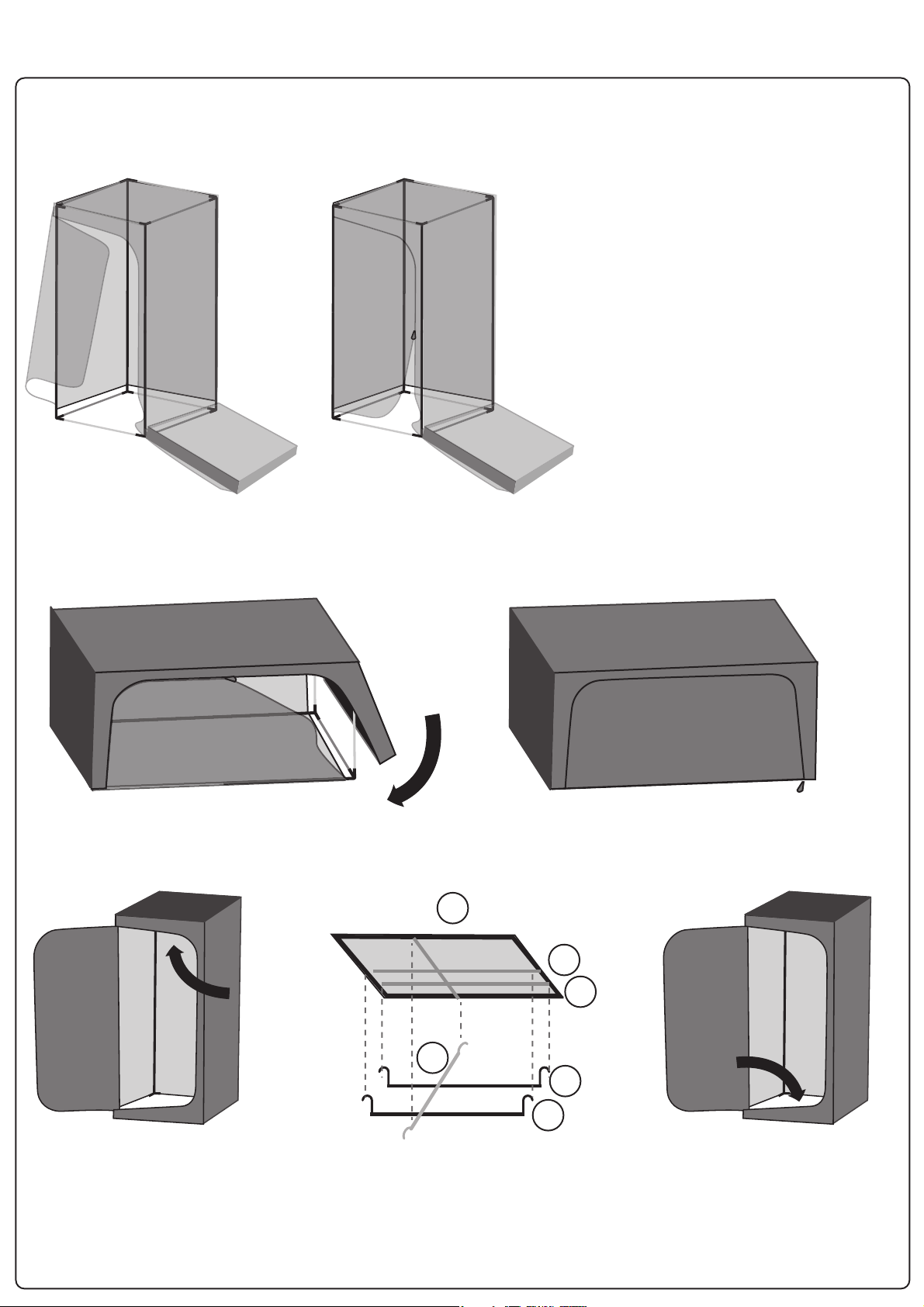

4 - Drape upper portion of the unzipped tent canvas onto the frame.
5 - Zip the tent halfway closed to partially secure the tent from slipping.
6 - Lay the semi-assembled grow tent on its side.
7 - Fold down the bottom panel until it covers the bottom section of the tent frame.
8 - Close the zipper all the way to align all corners of the tent properly.
9 - Return the assembled tent to an upright position and open the zipper fully to install supports.
G Straight support is to be installed from front to back, H supports span the width of the top.
Instructions - continued
Back
Front
Front
10 - Insert liner tray into the bottom of the tent fastening the ties around the connector poles.
11 - Assembly is now complete. Close zipper, make any small adjustments needed to ensure the best
t on the frame and your grow tent is ready to use!
