Eastech Badger Vantage 4000 User manual

Vantage 4000
SCOPE
This manual contains information concerning the installation, operation and
maintenance of the Vantage 4000. To ensure proper performance of the unit, the
instructions should be thoroughly understood and followed.
Keep the manual in a readily accessible location for future reference.
Changes and additions to the original edition of this manual will be covered by a “CHANGE
NOTICE” supplied with the manual. The change notice will identify the sections in this manual
where the changes have occurred.
Vantage 4000
Table of Contents
Scope............................................................................................................................ 1-1
General Specifications ................................................................................................... 1-2
Installation Procedure ................................................................................................. 2-1
Enclosure Mounting....................................................................................................... 2-1
System Diagram............................................................................................................ 2-2
Wiring Connections ....................................................................................................... 2-3
Splice Procedure............................................................................................................ 2-5
Programming............................................................................................................... 3-1
QuikCal Menu Functions ............................................................................................... 3-1
Main Flow Screen..................................................................................................... 3-2
Review Meter............................................................................................................ 3-2
Program.................................................................................................................... 3-2
Measure Units......................................................................................................... 3-2
Sensor Install........................................................................................................... 3-3
Totalizer ................................................................................................................. 3-5
4-20 Output............................................................................................................. 3-6
Damping................................................................................................................. 3-6
Lost Signal.............................................................................................................. 3-7
Flow Simulation ...................................................................................................... 3-7
Integrator ................................................................................................................ 3-7
Setpoints................................................................................................................. 3-8
Relays..................................................................................................................... 3-8
Daily Sum ................................................................................................................. 3-8
Data Logger.............................................................................................................. 3-9
System Setup............................................................................................................. 3-9
Section
1
1-1
942000
12/02

Vantage 4000
GENERAL SPECIFICATIONS
Pipe Size Range
Strap On Sensors: 1” to 120” (Larger pipe ranges available, consult factory)
Hotshot Style Sensors: 8” to 120” (using tapping saddles >15”)
Windowed Spool Sensors: 3”to 48”
Internal Wetted Sensors: 12” to 120”
Output
Two 4-20 mADC isolated; 800 ohms max. (Model 4600)
One 4-20 mADC isolated, 800 ohms max (Model 4400)
Three programmable relays, SPDT .25 amp @ 120 VAC, .5 amp @ 24 VDC (Model 4600)
One programmable relay, SPDT .25 amp @ 120 VAC, .5 amp @ 24 VDC (Model 4400)
RS-232 Serial Port, 9600 –36500 Baud, Modbus™ Protocol
RS-485 Serial Port optically isolated, Modbus™ Protocol (Model 4600 Only)
12VDC, 100ma Maximum
Data Logger & Software CD
Display Backlit LCD, 128x64 Graphic Module
Programming Front panel mounted 16 button keypad., Computer or Palm Pilot
Power 80/240 VAC, 50/60 Hz, or 12-28 VDC @ 350 mA continuous.
Accuracy
+/-1% of actual flow
Sensor
Strap On:
Temperature Range: -20° to 160° F (-30° to 70° C)
-20° to 300° F, High Temperature option
Operating Frequency: 640 or 1280 KHz
Housing: Anodized aluminum, Ultem plastic
Cable: 50 feet of Triaxial PVC coated Std.
(1000 ft maximum) Belden 9222 or equal
Hotshot Wetted:
Temperature Range: -40° to 160° F (-40° to 90° C) 30 kHz
Operating Frequency: 640 or 1280 KHz
Pressure: 0-300 PSI
Housing: 316s/s, PVC tip
Cable: 50 feet of Triaxial PVC coated Std
(1000 ft maximum) Belden 9222 or equal
Electronic
Enclosure IP66/NEMA 4X standard, temperature range: -4° to 158° F (-20° to 70° C) Optional with heater, temperatures down to -40° F (-40°C)
1-2

Vantage 4000
Installation
Enclosure Mounting
The enclosure is rated IP 66 (NEMA 4X) and can be mounted indoors or out. A sunshade is recommended
for outdoor installation. Openings used for the sensor and power must be properly prepared and sealed to
maintain the rating. There are two stainless steel mounting brackets factory assembled to the enclosure. The
5.50"
8.25"
9.32"
8.92"
9.50"
Section
2
2-1
mounting feet have slots for ¼" bolts (4 places).
The electronics should be mounted with the display
at eye level or lower. There are three ½" holes in
the bottom of the enclosure for conduit fittings.
These holes have rubber plugs installed at the
fac
tory. If you do not use all three holes for
conduit, leave the rubber plugs in the holes to
protect the enclosure ratings.
Opening the Enclosure:
There are two hinged door clasps on the front cover
of the enclosure. To open, put thumb on one of the
hinge
s, pull toward the outside of the enclosure.
Once the hinge pops to the outside it will lower
allowing the clasp at the bottom of the hinge to
release. Swing the cover towards the front to open.
The opposite side will act as a hinge to swing the
door freel
y. To close, clasp the bottom side of the
hinge and push the top of the hinge toward the
enclosure until it locks.
Hinge Lock and Optional Door Lock
There are two plastic gray plugs supplied with the Vantage 4000. These plugs may be used to
permanently d
isable one side of the hinged handles. If an optional door lock was supplied with the
unit then one side of the hinge handle should be plugged and the other side will have the key lock
used. Either side hinge handle may be disabled. Insert the gray plug into the keyhole.
Warning:
This will permanently disable the hinge handle.
The other side can be used for the key provided
for the optional lock.

Vantage 4000

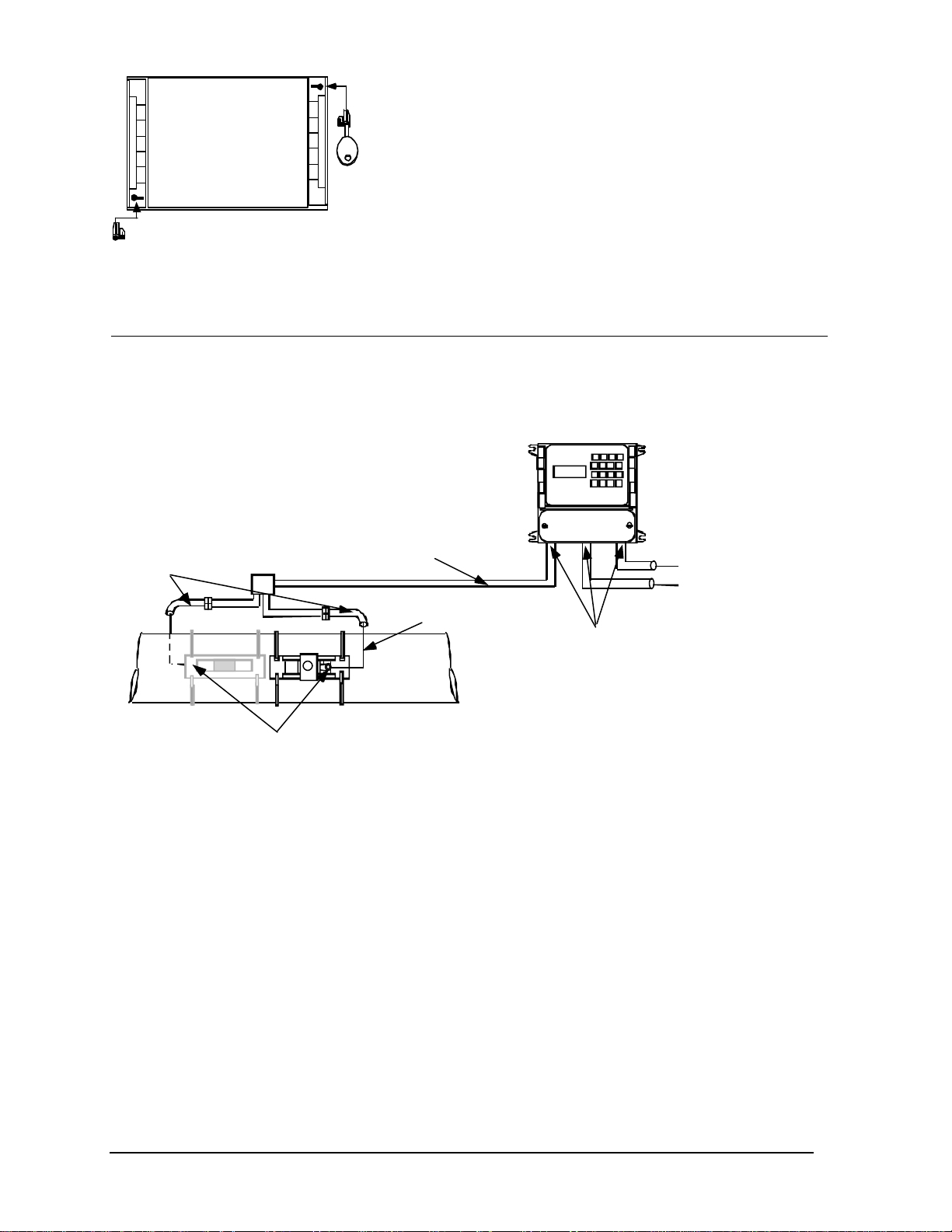

Vantage 4000 Recommended System Diagram
Input Power
4-20madc outp
ut
MetallicConduit
(by others)
Pull Box
(by others)
FlexConduit
(by others)
Sensor Cable (1000ft max.)
NEMA 4X/IP66
Enclosure
Se
ns
or
c
on
ne
ct
io
ns
:
1/
2"
-1
4
N
PT
7/8" entranceholes
(3 places)
2-2
Note:
The key will have to be left in the hinge handle
if the door is to remain unlocked. The only way the
key can be removed is if the hinge handle is locked.

Vantage 4000
GND LO
HI
TB1 90-240VAC 50/60 HZ
Heater
Connection
4-20maDc Out #1
Relay#1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Battery (DC) In
DC Power Out
+
+-
-
AMR
TX
RX RTS
CTS
GND
A
B
RS-232
RS-485
-
+ + +-
-
4-20maDc Out #2
Relay#2
Relay#3
NO
C
NC
NC
NC
NO NO
C
C
SENSOR CONNECTIONS UPSTREAM
DOWNSTREAM
Sensor Cable Preparation
2
-
3
Wiring Diagram

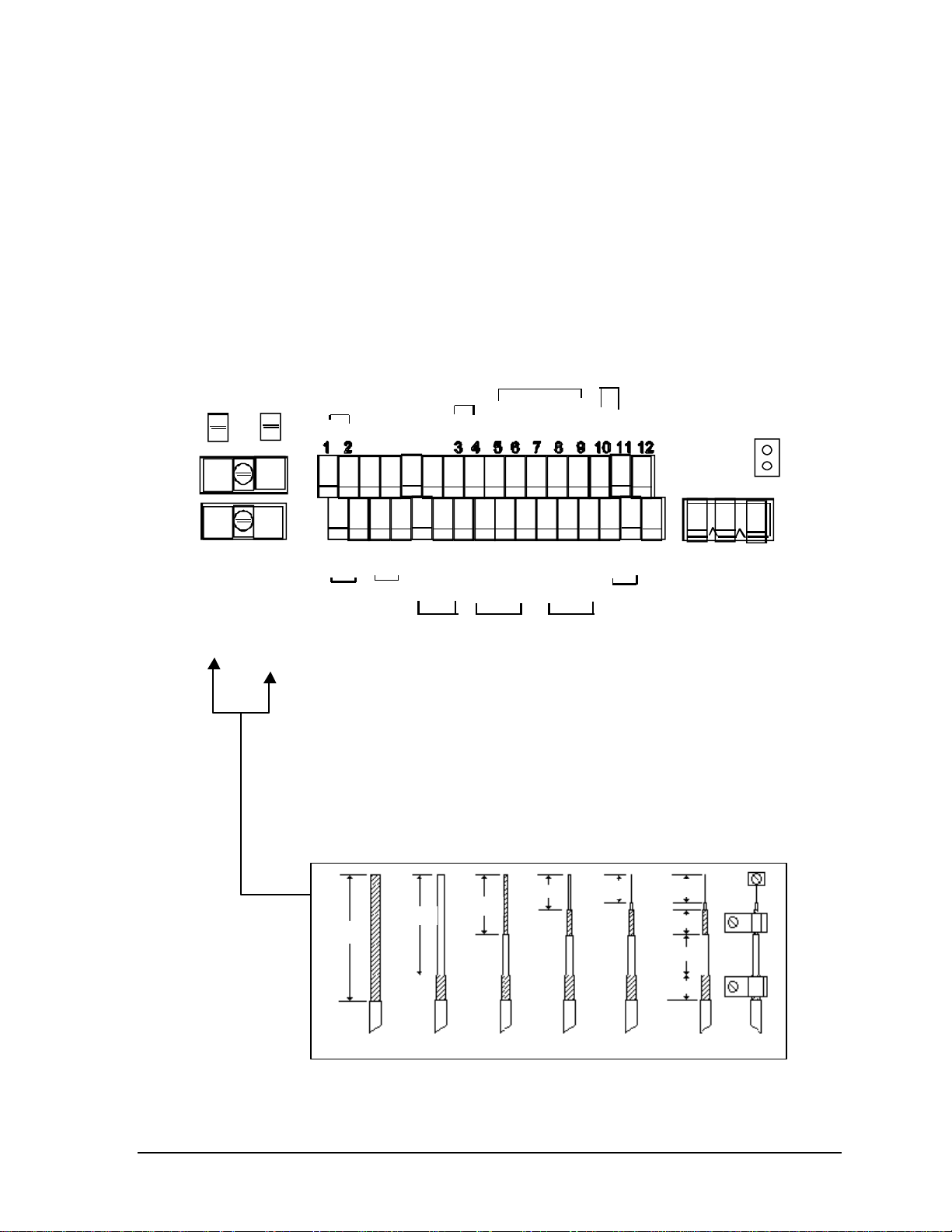

There are three terminal strips provided for all wiring of the Vantage 4000. The AC power terminal
is separate from the other two terminal strips. The power terminal strip has three connecti
ons for
High, Low and Ground for AC voltage only. Refer to the wiring diagram below for all internal
wiring connections. The specifications for the load requirements for each input are on Page 1-
2
General Specifications. The unit may also be powered with 12-24 VDC at TBA Terminals 18 (-
)
and 19 (+).
*Model 4600 Only
*
1-3/4" 1-3/8" 1-1/8" 3/4" 1/2" 1/2"
3/8"
1/4"
3/8"
1/4"
Remove
outer
cover
Remove
outer
shield
Remove
middle
cover
Remove
middle
shield
Remove
inner
cover
Completed
cable
1 2 3 4 5 6
*
1-5/8"
1-1/4"
1"
5/8"
3/8"
3/8"

Vantage 4000
Sensor Cable Preparation
Sensor cable connections. Before pulling the sensor cables through the conduit, mark the ends of the cables to
indicate which is the upstream and downstream sensor cable. Leave approximately 8 inches of cable
extending from the conduit in the enclosure. Prepare the cable ends in the following manner.
1. Remove outer cable cover. Measure 1-5/8" from the end of the cable. With a cutting tool,
carefully cut through the outer covering completely around the cable making sure not to cut into the
outer shield. Make another cut from the first cut to the end of the cable and remove the outer cover.
2. Remove outer shield. Measure 1-1/4" from the end of the cable with a pair of small cutters, cut
the shield around the cable at the measured point and remove the cut off shield.
3. Remove middle cover. Measure 1" from the end of the cable. With a cutting tool, carefully cut
through the middle covering completely around the cable making sure not to cut into the middle
shield. Make another cut from the first cut to the end of the cable and remove the middle cover.
4. Remove middle shield. Measure 5/8" from the end of the cable. With a pair of small cutters, cut
the shield around the cable at the measured point and remove the cut off shield.
5. Remove inner cover. Measure 3/8" from the end of the cable. With a cutting tool or pair of wire
strippers, carefully cut the inner covering completely around the cable, making sure not to cut into the
center conductor and remove the inner cover.
After the ends of the cables have been prepared, loosen the screws on the sensor inputs at the lower
left corner of the PCB and remove the two pairs of clamps. Take the upstream cable and insert the
center conductor into the top terminal of the upstream sensor and tighten the screw. Slightly pull on
the cable to ensure the wire is secured to the terminal. Take the downstream cable and insert the
center conductor into the top terminal of the downstream sensor and tighten the screw. Slightly pull
on the cable to ensure the wire is secured to the terminal.
Place the two pair of clamps over the middle and outer shields and secure them into place. Verify
that the clamps are making good contact with the shields and that no wires of the shie lds are
extending beyond their own clamp down area.
2-4

Vantage 4000
Materials Required
* 4 pigtail cap crimps (wire size 18-12)
* 2 center conductor cap crimps (wire size 22-14)
* Strips of splice wrap
Crimp tool (customer supplied)
Knife (customer supplied)
Pointed tool (customer supplied)
Junction box (customer supplied)
A cable connection kit may be purchased through Eastech Badger that will include the * items above
(Part # 541874).
Trim each of the four cables at the junction box to 9 inches in length. Each of the four cables can now be
prepared as described in the sequence following:

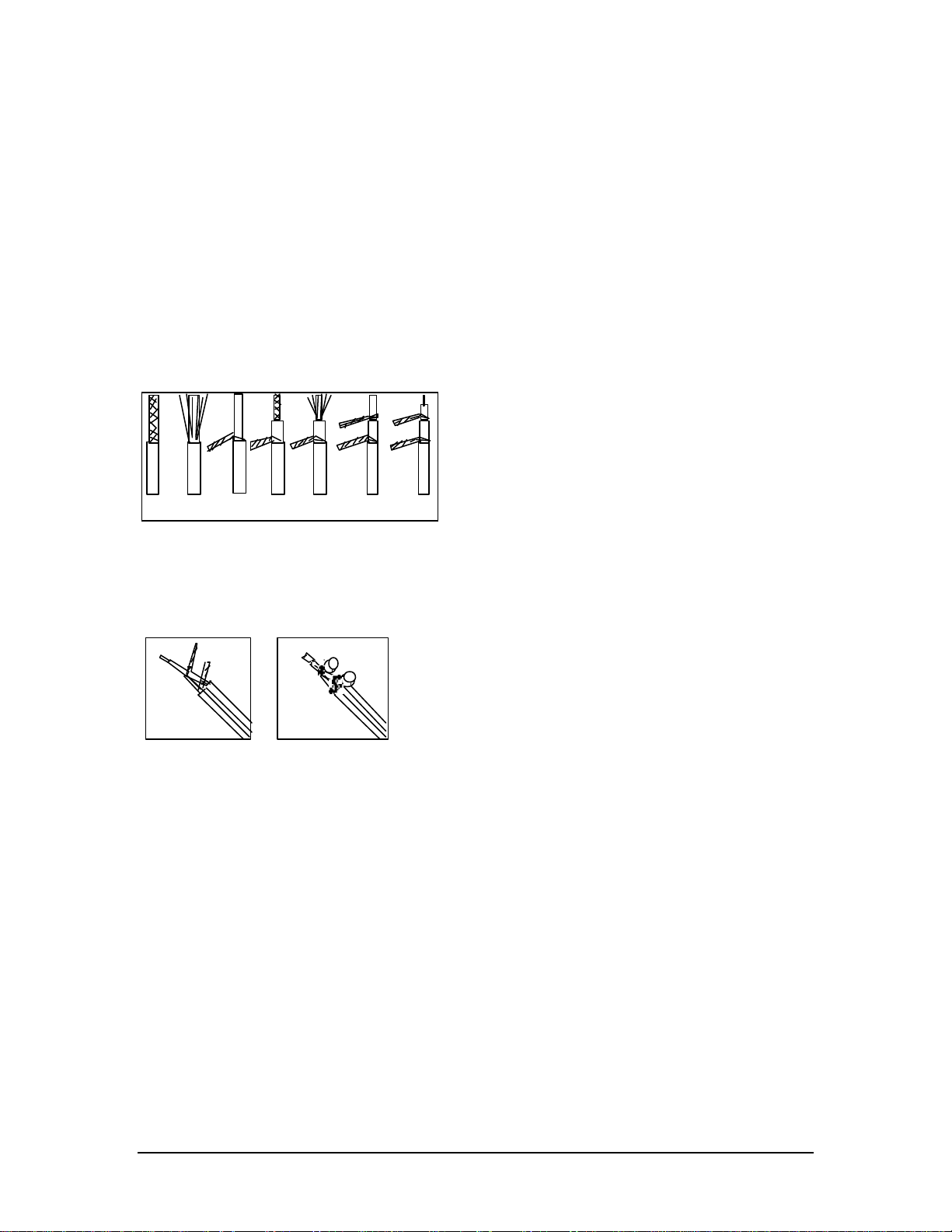

Using a knife, trim two inches of the outer jacket from each cable. The wire braid beneath the outer
jacket must not be cut. See "A".
Using a pointed tool, carefully comb out the outer braid of each cable as shown in "B". Form the combed
braid into a pigtail dressed to the side of the cable as
shown in "C".
Trim 1 inch of the inner jacket from each of the cables
as shown in "D". Again, use care not to cut the inner
braid beneath the inner jacket.
Using a pointed tool, carefully comb out the inner
braid "E" and form into a pigtail dressed to the same side
of the cable as outer pigtail in "F".
Remove 1/2 inch of insulation from the inner conductor of each cable. Cut the outer pigtail to the same
length as the inner pigtail on each cable. "G" depicts the completed preparation.
Cable Termination
Pull cables approximately 18 inches outside of junction box. Select one sensor cable and one cable from
the electronic enclosure and place them side by side as shown in Fig. 1. Twist each cable's outer pigtails
together, then the inner pigtails together and finally the center
conductors together to form the cable splice. In similar fashion,
connect the remaining sensor cable and the cable from the
electronic enclosure.
Identification of upstream and downstream sensor cables must
now be made. Connect a short wire from the center conductor
splice to the inner shield pigtail splice on the upstream sensor
cable. Using a multimeter determine the upstream sensor cable at
the electronic enclosure end by continuity measurement. Identify the upstream cable for later termination.
Remove the shorting wire and using the cap crimps supplied, crimp the larger caps on each spliced
pigtail and the small cap on the center conductor splice as shown in Fig. 2. Repeat this procedure for the
second cable.
At this point turn power on at the electronics and verify that an OK signal condition appears on the
display.
Turn power "OFF".
Using Splice Strips
1. Remove cover off of strips
2. Totally wrap strips tightly around all of the splice connections.
The finished splices should be coiled inside the junction box. When properly placed, the splices should
be clear of the junction box cover area. Proper sealing of the junction box is necessary for watertight
integrity.
This completes the triax cable splice connection.
Triax Cable Splice Procedure
A B C D E F G
FIG 1 FIG 2
2-5

Vantage 4000
Section
3
3-1
Flow
00
GPM
Vel. 00 FPS
FwdT 00 GAL
X1
Status -Okay
The screen to the left represents the main screen. However
, the
user may select the desired lines to be displayed on the main
screen. Programming of the main display will be explained later
in the manual. To program, recalibrate or change any function
in the Vantage 4000, press the “MENU
” key. This will display
t
he Main Menu for all of the functions of the Vantage 4000
QuikCal firmware. Below is a quick reference for the main
menu and a brief description of each to allow the user to
navigate to the required locations.
MENU
>01) Review Meter
Selection of this wi
ll display the application set up parameters and sensor orientation
(V, Z and W shot)) and the sensor separation that the meter is programmed.
>02) Program
0
1) Measure Units To assign engineering units for flow, velocity and
measurement.
02) Sensor InstallTo calibrate pipe parameters. (pipe size, pipe material &
schedule, fluid, sensor type and mounting style (V, Z and W
shot) and Sensor installed cable lengths.
03) Totalizer To select totalizer engineering units and multiplier.
04) 4-20 Outputs To adjust, assign and set full scale of the 4-20ma output and
to assign low flow shutdown.
05) Damping To adjust damping time.
06) Lost Signal To adjust Lost signal time and Fail to zero or span.
07) Flow Sim Flow simulation
08) Integrator To assign closure for contact integrator.
09) Setpoints To assign setpoints. (e.g. Hi or Lo alarms)
10) Relays Relay assignment for all relays.
11) Meter Factor
Zero Offset Adjustments
>03) Daily Sum
01) Daily Sum To review daily average, minimum and maximum
parameters
>04) Data
logger
0
1) Set Time/date To set the time and date
02) Storage Rate To set logger storage intervals.
03) Secondary To set secondary trip point and time intervals.
04) Log Channels To set channels to log and values to log.
05) View Data To review logged channel history.
06) Amount Stored To review time, amount of data stored and amount left.
07) Clear Data To clear all stored logger data.
>05) System Setup
0
1) Language To set unit to display language to be used.
02) Display To set display contrast and backlighting.
03) Comm. Ports To set RS-232 & 485 communications and baud rates.
04) Display Modes To select display lines to be viewed on main screen.
05) Options To select additional relays and Isolated 485.
06) Totals Reset To reset the totalizer.
07) New Password To change password.
08) Summary Reset To clear daily summary.
09) Sensor Option To set sensor power from Normal to High or to change
polarity of sensors.
10) Meter reset To reset to factory defaults.
11) New Firmware To upload new firmware into meter.
QuickCal Menu Functions

Vantage 4000
Flow Units
01) GPM
02) GPD
03) MGD
04) CFS
05) CFM
06) CFD
Main Flow Screen: The main flow screen will have four pages: Main Flow screen (to
view flow and totals, Alarms Tripped screen (to review alarms tripped and relays energized),
Sensor Signal and Gain screen (to view the transmit and receive signal and the gain strengths)
and the Phase and Reynolds #screen (internal timing). To view these screens press the UP key.
>01) Review Meter: To review the application parameters and the sensor orientation (vee
shot, zee shot, or W shot) that the meter is programmed for press the Menu key and then the 01
key. The first screen will allow the user to review the sensor separation that is required for the
application and the sensor orientation (V, Z, or W Shot). Press the Enter key and the next screen
(Program Parameters ) will appear.
These are the parameters that the meter has been calibrated to. This
will allow the user to use a quick check for pipe size, sensor type and
frequency and the maximum flow rate for the 4-20 mADC output.
Press the Enter key.
Press the Enter key to return to the main menu.
>02) Program
01) Measure Units:
From the main screen press the MENU key, number 02. Enter Security ID (00000000 from the
factory), press ENTER key and number 01.
Flow Units:
Select the flow engineering unit desired by pressing the number in front of the selection. Units available
are:
01) GPM, gallons/minute 09) LPD, liters/day
02) GPD, gallons/day 10) MLD, million liters/day
03) MGD, million gallons/day 11) MS3, cubic meters/second
04) CFS, cubic foot/second 12) M3H, cubic meter/hour
05) CMF, cubic foot/minute 13) M3D, cubic meter/day
06) CFD, cubic foot/day 14) IGM, imperial gallons/minute
07) LPS, liters/second 15) BPH, barrels/hour
08) LPM, liters/minute
After pressing the selected flow units number desiredthe next screen will automatically appear:
Flow Display Format:
The Flow Display Format screen simply asks how many digits you want to show to the right of the
decimal point. Press the number that corresponds to your selected value: 01) #, 02) #.#, 03) #.##.
Example: GPM, #, will show a direct flow reading (e.g. 100 GPM).
Enter the number in front of the desired Flow Display format and the program will automatically
display the Dimension Units screen.
Dimension Units:
The dimesion units will allow the user to select the engineering measuring units desired to be selected.
Available dimesional units are: 01) Inches, 02) Feet, 03) Meters, 04) Centimeters and 05) Millimeters.
After pressing the selected dimension units number desired the program will automatically take you
back to the Program/Cal. Screen.
3-2
PIPEMTL
xxxxxxxxxxx
WALLTHK ****
PIPEOD ****
SENSOR TYP
****-****(FREQ)
FLOW @ 20 MA *****
LINER MTL ****
LINER THK *****

Vantage 4000
>02) Program (Continued)
>02) Sensor Install:
The sensor install functions will allow the user to select pipe size, pipe material, fluid parameters and
sensor type selections. From the main screen press MENU, 2, press Enter, pass the password screen
and press 2. The first screen to appear is for programming the unit for the sensor type to be used.
Sensor Type:
01) Strap On style sensors. This style of sensor is the sensor that will be
associated with outside the pipe mounting.
02) Wetted Sensor style is associated with the hotshot style and the
internal wetted type sensors.
03) Windowed style sensor is associated with the fabricated windowed
spool type sensor.
After pressing the number desired the program will automatically take you to the screen for selection of
the associated sensor model.
NOTE: The Sensor Model numbers and operating frequencies are designated on the sensor itself. If
you do not know the sensor type look on the sensor tag.
Sensor Model:
01) Strap On Sensor:
01) V30S-1280 is the small new style strap on sensor and is 1280KHZ operating frequency.
02) V30ST-1280 is the small new style strap on sensor for high temperature applications and is
1280KHZ operating frequency.
03) V30L-1280 is the large new style strap on sensor and is 1280KHZ operating frequency.
04) V30LT-1280 is the large new style strap on sensor for high temperature applications and is
1280KHZ operating frequency.
05) V30S-640 is the small new style strap on sensor and is 640KHZ operating frequency.
06) V30ST-640 is the small new style strap on sensor for high temperature applications and is
640KHZ operating frequency.
07) V30L-640 is the large new style strap on sensor and is 640KHZ operating frequency.
08) V30LT-640 is the large new style strap on sensor for high temperature applications and is
640KHZ operating frequency.
09) V52S-1280 is the small new style strap on sensor used on thin wall and copper/brass pipe
applications and is 1280KHZ operating frequency.
10) V52ST-1280 is the small new style high temperature strap on sensor used on thin wall and
copper/brass pipe applications and is 1280KHZ operating frequency.
11) V52L-1280 is the large new style strap on sensor used on thin wall and copper/brass pipe
applications and is 1280KHZ operating frequency.
12) V52LT-1280 is the large new style high temperature strap on sensor used on thin wall and
copper/brass pipe applications and is 1280KHZ operating frequency.
13) SO30-1280 is the old style strap on sensor used with the older Model 4500 and is 1280KHZ
operating frequency.
14) ST30-1280 is the old style high temperature strap on sensor used with the older Model 4500
and is 1280KHZ operating frequency.
15) SO30-640 is the old style strap on sensor used with the older Model 4500 and is 640KHZ
operating frequency.
16) ST30-640 is the old style high temperature strap on sensor used with the older Model 4500 and
is 640KHZ operating frequency.
17) SO52-1280 is the old style strap on sensor used with the older Model 4500 on thin wall or
copper/brass pipes and is 1280KHZ operating frequency.
3-3
Sensor Type:
01) Strap On
02) Wetted
03) Windowed

Vantage 4000
>02) Program (Continued)
18) ST52-1280 is the old style high temperature strap on sensor used with the older Model 4500 on
thin wall or copper/brass pipes and is 1280KHZ operating frequency.
02) Wetted Sensor:
01) V20WT1-12 is the new style hotshot wet tap style sensor and is 1280KHZ operating frequency.
02) V20WT1-64 is the new style hotshot wet tap style sensor and is 640KHZ operating frequency.
03) WFF-2 is the internal wetted sensor for pipe sizes 12" –36" and is 1280 KHZ operating frequency.
04) WFF-2 is the internal wetted sensor for pipe sizes 12" –36" and is 640 KHZ operating frequency.
05) WR-2 is the internal wetted sensor for pipe sizes > 36" and is 1280 KHZ operating frequency.
06) WR-2 is the internal wetted sensor for pipe sizes > 36" and is 640 KHZ operating frequency.
07) WFG-1 is the wetted 2" flanged sensor and is 1280 KHZ operating frequency.
08) WFG-1 is the wetted 2" flanged sensor and is 640 KHZ operating frequency.
09) HS3-1280 is the hotshot style sensor and is 1280 KHZ operating frequency.
10) HS3-640 is the hotshot style sensor and is 640 KHZ operating frequency.
03) Windowed:
01) WD-1-12 is the windowed sensor and is 1280KHZ operating frequency.
02) WD-1-64 is the windowed sensor and is 640KHZ operating frequency.
After pressing the selected sensor style number desired, the program will automatically take you to the
Pipe Material screen.
PipeMaterial:
The pipe material screen will allow you to select the pipe material for the
unit. Selections are:
Carbon Steel, Stainless Steel, PVC, Cast Iron, Ductile Iron, Asbestos
Cement, Copper, Brass and Other. If Other is selected you will need to
enter the Sonic Velocity of the material.
After pressing the selected pipe material number desired, the program will
automatically take you to the Pipe Schedules screen.
Pipe Schedules:
The Pipe Schedules screen will allow the user to select the pipe schedule of the pipe material chosen. If
the pipe schedule is not known select “Other” and the program will allow the user to enter the Pipe
O.D. and the Wall Thickness for the application.
After pressing the selected pipe schedule number or entering the O.D. and wall thickness desired, the
program will automatically take you to the Pipe Size screen.
Pipe Size:
Press the appropriate number in front of the pipe size desired if the O.D. and pipe wall thickness has not
already been entered.
After pressing the selected pipe size number desired the program will automatically take you to the
Liner Material screen.
Liner Material:
Selections are: 01) None, 02) Epoxy, 03) Glass, 04) Bitumastic, 05) Rubber, 06) Mortar, and 07) Other.
After pressing the selected pipe liner number desired the program will automatically take you to the
Liner Thickness screen. If 01) None was selected the next screen will be the Fluid Type screen.
3-4
Pipe Material
1) Carbon Stl
2) Stainless Stl
3) PVC
4) Cast Iron
5) Ductile Iron
6) Asbestos Cmnt
7) Copper
8) Brass
9)
Other

Vantage 4000
>02) Program (Continued)
Liner Thickness:
If a pipe liner has been selected enter the thickness of the pipe liner in the engineering units designated
and press the Enter key. This will automatically take you to the Fluid Type Screen.
Fluid Type:
The Fluid Type screen will allow you to select the fluid type of the media to be measured.
For water, wastewater and sewage select “01) Water”. This selection will automatically take you to the
Sensor shot type screen.
If the fluid is other than water select “02) Other”. When using this screen you will need to enter the
following fluid media information:
Sonic Velocity of fluid in FPS (feet per second)
Fluid Viscosity in Centipoise (Cp)
Specific gravity of fluid
If the sonic velocity of the fluid is not known you may call Eastech Badger at 1-800-226-3569. We
have a library of various fluids and the associated sonic velocities.
After entering the fluid parameters the next screen will be the Sensor Shot Type screen.
Sensor Shot Type:
The Sensor Shot Type screen will allow the user to program for the sensor placement on the pipe.
Selections are:
01) Z Shot, sensors are mounted on opposite sides of pipe
02) V Shot, sensors are mounted on the same side of pipe
03) W Shot, sensors are mounted on the same side of pipe (usually 1" –3" pipe sizes).
Sensor Cable Length:
There will be two screens to enter sensor cable length. The first screen will be for Sensor #1 and the
second screen will be for Sensor #2. Simply type in the cable length used for each sensor.
This completes the 02) Sensor Install selection. To review the sensor separation go to Review Meter.
>03 Totalizer Totalizer Units:
Select the Totalizer Units desired by pressing the number designation in
front of the selection. Available totalizer units are:
GAL (gallons) MET3 (cubic meters) LTRS (liters)
IGAL (imperial gallons) BARR (barrels) CUFT (cubic feet)
ACFG (acre feet)
After pressing the selected totalizer engineering units desired the displayed
totalizer multiplier screen will appear.
Totalizer Multiplier:
The Totalizer Multiplier screen will allow the user to select the multiplier for the totalizer that is to be
displayed on the main screen. The multiplier choices are:
01) x .01 05) x 100
02) x .02 06) x 1000
03) x 1 07) x 10k
04) x 10
3-5
Totalizer Units:
01) GAL
02) MET3
03) LTRS
04) IGAL
05) BARR
06) CUFT
07)
ACFT

Vantage 4000
>02) Program (Continued)
>04) 4-20 Outputs:
This section will allow the user to:
01) Adjust Fwd (adjust forward flow)
02) Adjust Rev (adjust reverse flow)
03) Fullscale (assign maximum flow and low flow shutdown)
4-20 Output Assignment and Adjustment
Selection 4 in the programming menu is the 4-20mA output and assignment
adjustment. Press the 4 key to adjust or assign the 4-20mADC output.
1) Adjustment: To adjust or calibrate the 4-20mADC for the forward
flow output press the 01 key. To adjust or calibrate the 4-20 mADC for
the reverse flow press 02 (Model 2600 only). To program the full scale
of the 4-20 mADC output press 03.
To adjust Zero: Press the 5 key, the cursor arrow will appear before the 5)
4 mA line. Press the 3 key for coarse adjustment or the 4 key for fine
adjustment. Now press the 1 key to adjust the mA upwards or the 2 key to
adjust downwards.
To adjust Span: Press the 6 key, the cursor arrow will appear before the 6) 20 mA line. Press the 3 key
for coarse adjustment or the 4 key for fine adjustment. Now press the 1 key to adjust the mA. upwards
or the 2 key to adjust downwards.
To assign the 4-20mA loop press the 02) Assignment key.
To assign the 20mADC full scale value press 03) Fullscale. The
following screen will appear: Type in the desired full scale flow rate that
is desired for the 20mADC. Press the Enter key. The next screen is the
Application Flow Rate Shutdown screen. This screen will allow the
user to select a low flow shutoff for the display and the 4-20mADC
output. Type in the low flow shutdown in the flow engineering units
displayed. Press the enter key to return to the main menu.
>05) Damping:
This option will allow the user to select the damping or response time
of the flow meter. Press the 05 on the keypad.
3-6
Application
Fullscale Flowrate
xxxx.x GPM
>1) Up
2) Down
. . . . . . . . . . . . . . . . .
>3) Coarse 4) Fine
>5) 4 mA 6) 20 mA
4
-
20 Loop Output
01) Adjust Fwd
02) Adjust Rev
03) Fullscale
>05) Damping
04) 4-20 Out

Vantage 4000
>02) Program (Continued)
Output Damping Adjustment
To adjust the 4-20mA output damping press the 7 key. This will allow the user to adjust the damping
time. The damping times available are:
01) None 04) 60 Seconds
02) 10 Seconds 05) 120 Seconds
03) 30 Seconds
Enter the number in front of the desired damping time.
>06) Lost Signal:
Lost Signal Setting
To adjust the Lost Signal Time. (This is how long the meter will hold the last value after losing the
signal until failing to the Lost Signal 4-20 mADC assignment).
To set the Lost Signal time press the 06) key. The lost signal times
available are:
01) 5 Seconds 05) 2 Minutes
02) 15 Seconds 06) 4 Minutes
03) 30 Seconds 07) 8 Minutes
04) 60 Seconds 08) 16 Minutes
After pressing the desired number, or ENTER key, the next screen to appear is the Lost Signal Action
assignment. In this screen the user will select the default for the 4-20mADC output during a lost signal
condition. The selections are:
01) Fail to Zero
02) Fail to Span
03) Hold last value
Press the number desired, this will return to the main program screen.
>07) Flow Simulation:
Flow Simulation
The flow simulation screen will allow the user to check the user to
simulate flow. Press the MENU key to return to the main program
screen.
>08) Integrator:
Integrator Setup
The next option in the program menu is the Integrator screen. To
select this, press the 08. This screen will allow the user to assign the
contact closure time for a contact integrator. The cursor will appear
on the most significant digit. Use the number keys to enter the
totalized flow value you want to have for a contact output. Press the
ENTER key to return to the main program screen.
3-7
06) Lost Signal
>07) Flow Sim.
>08) Integrator

Vantage 4000
>02) Program (Continued)
>09) Setpoints:
Programming Setpoints
This selection will allow the user to assign up to two setpoints for High or
Low alarm conditions. Press the 09 key to enter the setpoint selections.
Press the 01) key for Setpoint #1. Press the 02) key for Setpoint #2. The
next screen allows the user to assign the setpoint selected to velocity or
flow. Press the 01) key for Velocity and the 02) key for Flow. The velocity
selection will be in the engineering units selected for velocity. The flow selection will be in engineering
units selected for flow. The next screen will allow the user to input ON and OFF points for the setpoint
selected. For Low alarm the ON value will be less than the OFF value. For High alarm the ON value
will be greater than the OFF value. To program move the cursor to the left most significant digit by
using the DOWN/LEFT arrow key. Enter the number desired by using the keypad. The cursor will
advance to the right after the selection is entered. Press the ENTER key. The Setpoints must be
assigned to a Relay.
>10) Relays:
Relay Assignment
The next option in the program menu is the Relays screen. To select
this press 10) on the keypad. This option will allow the user to assign
each of the three relays to the following selections:
01) None 04) Setpoint #3 07) Reverse Flow 10) Cont In
02) Setpoint #1 05) Lost Signal 08) Fwd Total
03) Setpoint #2 06) 4-20 Loop 09) Rev Total
Press the number in front of the selection desired on the keypad.
>11) Meter Factor: The meter factor screen will allow the user to either manually, or automatically set
zero offset.
01) Manual zero. To set zero offsets while fluid is flowing.
02) Auto zero. to set zero offset while at zero flow.
This concludes >02) Program menu functions.
>03) Daily Sum
This function will allow the user to review the daily Sum of the Logger. To access the Daily Sum
screen, press the 03) key on the keypad.
Daily Sum: View the Average, Minimum and Maximum flows and the time of the event for the last
eight days of flow.
Press the ENTER key to return to the main program menu.
This concludes the Daily Sum selections.
3-8
>10) Relays
>09) Setpoints

Vantage 4000
>04) Data Logger
The next selection in the program menu is the data logger selection. There
are five selections in the data logger menu.
01) Set Time/Date:Press the UP key to move the arrow to the date
or time that is to be changed. Press the number value on the key pad to
change. Note the time is entered and viewed as military time.
02) Storage Rate:This will allow the user to select the storage rate for the logging. Selections
are:
01) 1 minute 03) 10 minute 05) 30 minute
02) 5 minute 04) 15 minute 06) 60 minute
03)Secondary:This will allow the user to select a secondary log rate to store logging at a different
interval than the main interval. This may be used to store at faster intervals during storms or flow
events. The selections available are:
01)Not active 02)Setpoint #1 03)Setpoint #2 04)Setpoint #3
If set points are selected then the next screen will be storage rate times available.
04) Log Channels:There are up to 8 channels available for logging. The selections for each
channel are:
01) Not Used 04) Flow 1 07) Total 2 10) Flow1+Flow2
02) Velocity 1 05) Flow 2 08) Alarms 11)Vel1-Vel2
03) Velocity 2 06) Total 1 09) Flow1-Flow2
05) View Data: View logged data in graphic form for each of the eight channels available to log.
Select the channel to be viewed by pressing the number on the keypad. Press the UP or DOWN key to
scroll through the data.
06) Amount Stored:View the logger time and time to store, amount of logging stored and the
amount of free space to store.
07) Clear Data:Press the 5 key to clear all stored data.
This completes the Data Logger selections.
>05) System Setup
The system setup option will allow the user to set up the Vantage 4000
for the following options:
3-9
>04) Data Logger
>05) System Setup

Vantage 4000
>05) System Setup (Continued)
01) Language:This will allow the user to select the language displayed in the Vantage 4000. The
options are: 01) English, 02) German, 03) Spanish.
02) Display: Choosing this feature allows the user to select the contrast of the display from 01)
Highest to 08) Lowest. This feature also allows to display the back light, to turn it off or to program for
a timed “off” of the display if the key pad is not touched in a selected time interval.
03)Communications:This option will allow the user to set the baud rate, flow control and slave
I.Ds of the RS-232 and RS-485 communications. The Comm. Objects is not utilized.
04) Display Modes:This option will allow the user to select the four display lines to be viewed
on the main screen during operation. The options for the display lines are:
Model 4600:
01) Display Mode 1: Flow, Forward and Reverse Totalizer and Status
02) Display Mode 2: N/A
03) Display Mode 3: N/A
04) Display Mode 4: N/A
Model 4400:
01) Display Mode 1: Flow, Velocity, Totalizer and Status
02) Display Mode 2: N/A
03) Display Mode 3: N/A
04) Display Mode 4: N/A
05) Options:N/A
06) Totals Reset:This option will reset the totalizer to zero. Press 5 to begin.
07) New Password: This option will allow the user to change the password to enter into the
QuikCal programming.
08) Summary Reset:This clears the Daily Summary memory.
09) Sensor Option:01) Sensor Power. This screen will allow the user to use Normal or a High
tranmit power. Most strap on sensor will use high power and the windowed spool sensor will use low
power.
02) Sensor Polarity: This screen will allow the user to change the polarity of the sensors. If the wiring
of the upstream and downstream sensor have been inadvertently reverse during installation choose the
Reversed sensor polarity in this screen instead of rewiring the sensors.
10) Meter Reset:This option will reset all parameters to the factory defaults.
11) New firmware:This option will allow the user to upload any new firmware to the latest
revision.
This completes the System Setup function menus in the 4000 structure.
3-10

WARRANTY
Eastech Badger warrants meters and parts manufactured by it and
supplied hereunder to be free from defects in materials and workmanship
for a period of 3 years from date of shipment. If within such period any
meters or parts shall be proved to Seller's satisfaction to be defective,
such meters or parts shall be repaired or replaced at Seller's option.
Seller's obligation hereunder shall be limited to such repair and
replacement and shall be conditioned upon Seller's receiving written
notice of any alleged defect within 10 days after its discovery and, at
Seller's option, return of such meters or parts f.o.b. to Seller's factory.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL
OTHER EXPRESS OR IMPLIED WARRANTIES WHATSOEVER
INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES (EXCEPT
OF TITLE) OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Eastech Badger shall not be liable for any defects attributable
to acts or omissions of others after shipment, nor any consequential,
incidental or contingent damage whatsoever.
A claim for equipment damaged in transit is the sole responsibility of the
customer.
NUCLEAR DISCLAIMER
Equipment sold by Eastech Badger is not intended for use in connection
with any nuclear facility or activity unless covered by a specific
quotation where the conditions of such usage will be detailed. If
equipment is used in a nuclear facility or activity without a supporting
quotation, Eastech Badger disclaims all liability for any damage, injury
or contamination, and the buyer shall indemnify and hold Eastech
Badger, its officers, agents, employees, successors, assigns and
customers, whether direct or indirect, harmless from and against any and
all losses, damages or expenses of whatever form or nature (including
attorney's fees and other costs of defending any action) which they, or
any of them, may sustain or incur, whether as a result of breach of
contract, warranty, tort (including negligence), strict liability or other
theories of law, by reason of such use.
All rights reserved. All data subject to change without notice.
