Easypix HD-DV User manual

HD-DV Camcorder
User’s Manual

i
Table of Contents
Preface ..............................................................................v
About this manual.............................................................v
Copyright...........................................................................v
Precautions ......................................................................vi
Before You Start .............................................................viii
1Introducing the camera ............................. 1
1.1 System requirements...............................................1
1.2 Features..................................................................1

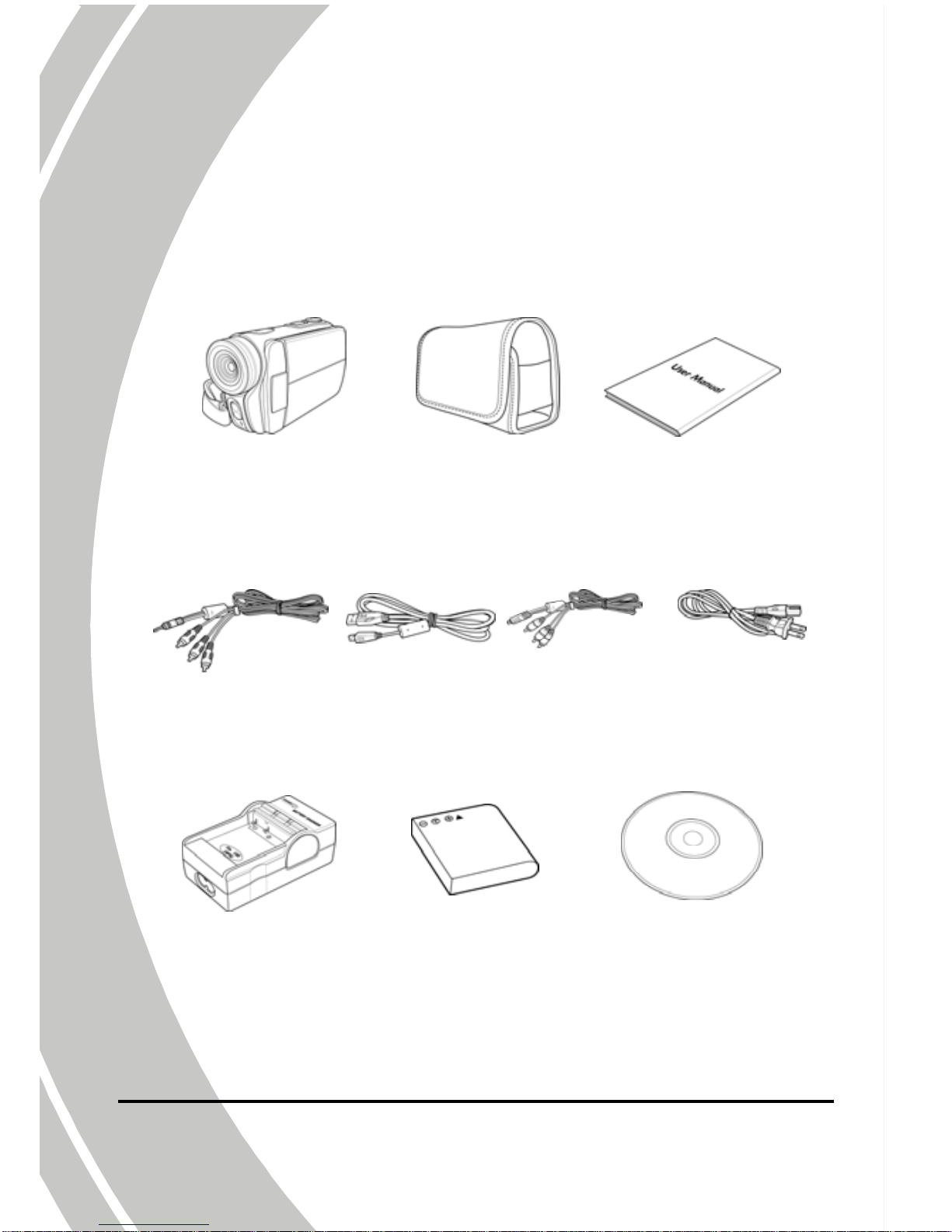

1.3 Unpacking the video camera..................................2
1.4 About the camera ...................................................3
1.4.1 Front view...................................................3
1.4.2 Top view .....................................................3
1.4.3 Bottom view ...............................................4
1.4.4 Right view...................................................4
1.4.5 Left view .....................................................5
1.4.6 Back view....................................................5

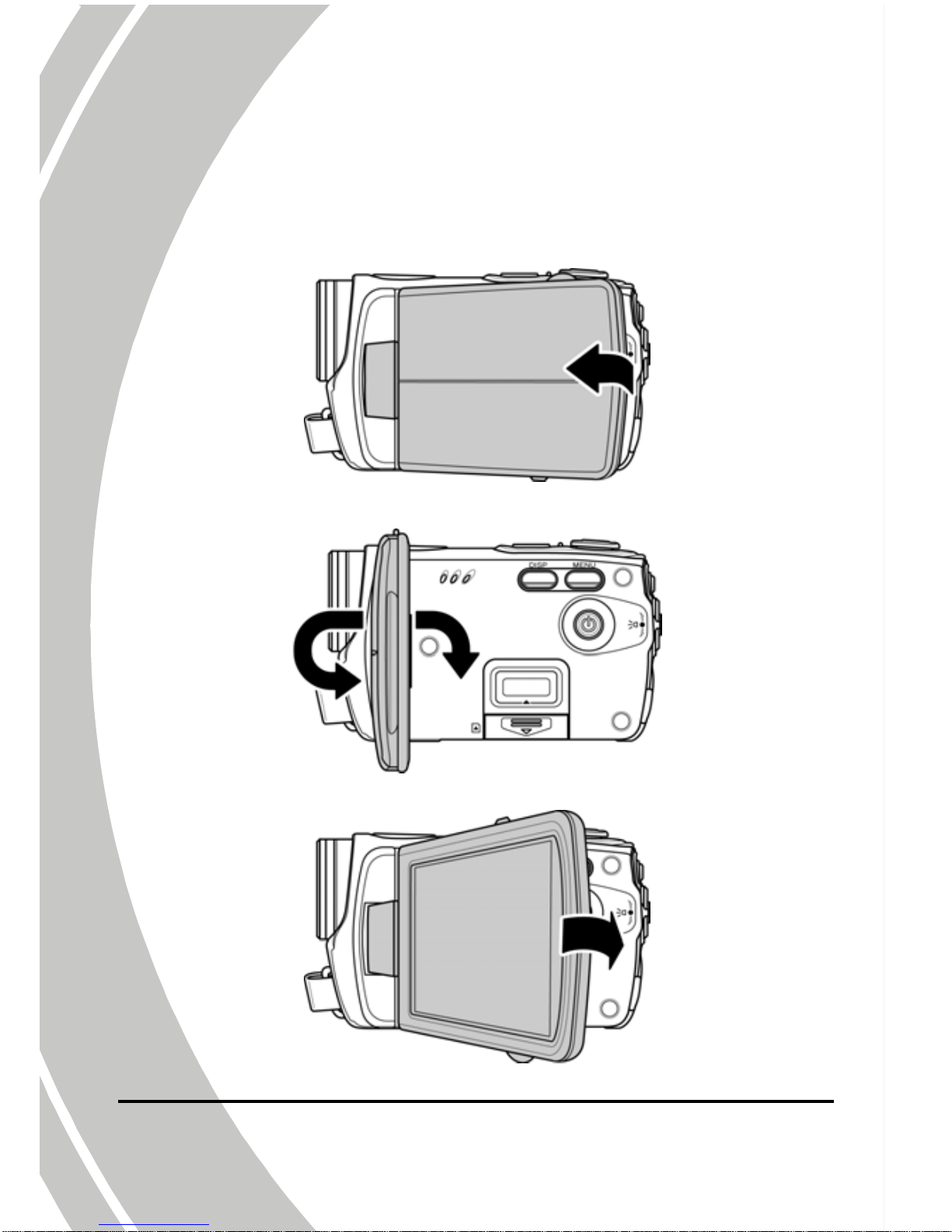

1.4.7 Adjusting the LCD display.......................6
1.4.8 About the LEDs........................................10
2Getting started...........................................11
2.1 Inserting an SD card............................................11
2.2 Inserting the batteries...........................................13
2.3 Charging the battery ............................................14
2.4 Turning on the video camera...............................14

i
i
2.5 Changing modes...................................................14
2.6 Before you start ....................................................15
2.6.1 Setting the date and time ........................15
2.6.2 Setting the language ................................16
2.6.3 Setting the beep........................................17
2.7 Shoot/Playback video...........................................18
2.7.1 Shooting a video clip...............................18
2.7.2 Playing the video clip..............................20
2.8 Taking/viewing pictures........................................21
2.8.1 Taking a still picture................................21
2.8.2 Viewing images........................................22
2.9 Connecting to a computer....................................23
2.10 Connecting to a standard TV...............................23
2.11 Connecting to a HDTV ........................................24
3Using the camera...................................... 25
3.1 Movie and voice recorder mode ...........................25
3.1.1 Movie and voice recorder mode ............25
3.1.2 Using the macro function .......................27
3.1.3 Using the zoom function.........................27
3.1.4 Using the LED flash light........................27
3.1.5 Quick access controls ..............................28
3.2 Photo mode...........................................................29
3.2.1 Photo mode icons.....................................29
3.2.2 Using the macro function .......................30
3.2.3 Using the zoom function.........................30

ii
i
3.2.4 Using the LED flash light........................30
3.2.5 Quick access controls ..............................30
3.3 Movie Playback mode...........................................31
3.3.1 Movie Playback mode icons...................31
3.4 Photo Playback mode...........................................34
3.4.1 Photo Playback mode icons....................34
3.5 Thumbnail mode ..................................................36
3.6 USB mode.............................................................36
4Using the menus ....................................... 37
4.1 Movie menu..........................................................37
4.1.1. White balance...........................................37
4.1.2. Video resolution.......................................38
4.1.3. Color effect ...............................................39
4.1.4. Night mode...............................................40
4.1.5. Capture mode...........................................41
4.2 Movie playback menu...........................................42
4.2.1 Delete.........................................................42
4.2.2 Protect .......................................................44
4.3 Photo menu ..........................................................45
4.3.1 White balance...........................................45
4.3.2 Resolution.................................................46
4.3.3 Color effect ...............................................47
4.3.4 Night mode...............................................48
4.3.5 Self timer...................................................49
4.4 Photo playback menu...........................................50

iv
4.4.1 Delete.........................................................50
4.4.2 Protect .......................................................52
4.4.3 Slide show.................................................53
4.4.4 DPOF.........................................................54
4.5 System menu.........................................................55
4.5.1 Setting the beep........................................55
4.5.2 Histogram Mode......................................55
4.5.3 Auto power off.........................................56
4.5.4 TV standard..............................................57
4.5.5 Format .......................................................58
4.5.6 Default.......................................................59
4.5.7 Language ..................................................59
4.5.8 Frequency .................................................60
4.5.9 Date/time .................................................60
5Installing the software ............................. 61
5.1 Presto! Video Works.............................................61
5.2 Presto! Mr. Photo.................................................62
5.3 Quick Time ...........................................................63
Appendix............................................................ 64
Specifications..................................................................64
Troubleshooting..............................................................67

v
Preface
Congratulations on your purchase of this advanced video camera.
Ensure that you read this manual carefully and keep it in a safe
place for future reference.
About this manual
Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. If the contents of this
manual do not tally with the camera, please take the camera as a
criterion, and our company reserves the right to change the
contents or technical rules without notice in advance. Also, the
manufacturer reserves the right to change the technical specification
in advance without notice.
If the accessories do not tally with the actual package, please take
the actual package as a criterion.
Copyright
© Copyright 2007.
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.

v
i
Precautions
General precautions
• Do not use or store the product in dusty, dirty, or sandy areas,
as its components may be damaged.
• Do not store the product in a hot environment. High
temperatures can shorten the life of electronic devices, damage
batteries and warp or melt certain plastics.
• Do not store the product in cold areas. When the product
warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.
• Do not attempt to open the casing or attempt your own repairs.
High-voltage internal components create the risk of electric
shock when exposed.
• Do not drop or knock the product. Rough handling may
damage the internal components.
• Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the product. Wipe the product with a
slightly damp soft cloth.
• Do not fire the flash while it is too close to the subject's eyes.
Intense light from the flash can cause eye damage if it is fired
too close to the eyes. When using the flash, the camera should
be at least one meter from the eyes of the subject.
• Do not open battery cover while an image is being recorded.
Doing so will not only make storage of the current image
impossible, it can also corrupt other image data already stored
in file.
• If the product or any of its accessories are not working
properly, take them to your nearest qualified service center.
The personnel there will assist you and if necessary, arrange
for the product to be repaired.

vii
• Test for proper operation before using the camera.
Notes on the LCD Screen
Be very careful to ensure the fluid contained in the LCD screen does
not escape if the screen becomes cracked or damaged. If this occurs,
follow these steps:
• If the fluids make contact with skin, wipe it with a clean cloth
then rinse with a large amount of water.
• If the fluid makes contact with eyes, wash eyes with clean
water for at least 15 minutes and go to the hospital as soon as
possible.
• If the fluid is swallowed, first rinse mouth with water, then
drink a large amount of water and induce vomiting. Go to the
hospital as soon as possible.
Operation conditions
• This camera is designed for use in temperatures ranging from
0°C to 40°C (32°F to 104°F).
• Do not use or keep the camera in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to
temperature extremes
- Inside of a closed vehicle, especially one parked in the sun.
- In areas subject to strong vibration
Power supply
• Use only the type of battery that came with your camera.
Using any other type of battery may damage the equipment
and invalidate the warranty.

vii
i
• Ensure the battery is inserted correctly. Inserting the battery
incorrectly can cause damage to the product and possibly start
a fire.
• Remove the battery to avoid the fluid leakage if the camera is
not going to be used for a long time.
• If the battery is crushed or damaged, remove it immediately to
avoid the battery fluid leakage and abnormal expansion.
• The camera can be used with either a Li-ion or four AAA size
batteries. Li-ion battery is recommended to use for longer
operation time.
Before You Start
Take some test shots before performing a formal
recording.
Before taking pictures with this DV camera in any important
occasion (such as a wedding ceremony or an overseas trip), do test
the DV camera beforehand to ensure that it functions properly. Any
additional loss caused by the malfunction of this product (such as
costs of photography or any loss of benefit generated by the
photography) is not the responsibility of the manufacturer and no
compensation will be given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation or exhibits, even for personal purposes. Any transfer
of pictures or memory card data must be conducted under the
constraints of copyright law.

1
1 Introducing the camera
Read this section to learn about the features and functions of the
video camera. This chapter also covers system requirements,
package contents, and descriptions of the hardware components.
1.1 System requirements
The video camera requires a PC with the following specifications:
• Windows® Vista / XP / 2000 operating system
• Intel® Pentium 4 2.8GHz CPU or higher
• At least 512 MB of RAM or higher
• Standard USB 1.1 port or higher
• At least 64MB or greater video card
• Note: A USB 1.1 port will enable you to transfer files to and
from your host PC, but transfer speeds will be much
faster with a USB 2.0 port.
1.2 Features
The video camera offers a variety of features and functions
including:
• HD Digital camcorder
• Digital camera (max. 8 Megapixels)
Additionally, the camera also features 2X digital zoom, USB mass
storage, and an SD card reader.

1.3 Unpacking the video camera
The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.
Battery charger
AV cable
CD-ROM
(Driver and application
software)
Power coreComponent
Video cable
Video camera Pouch
USB cable
User manual
Casio NP-40
2

1.4 About the camera
Refer to the following illustrations to familiarize yourself with the
buttons and controls of this video camera.
1.4.1 Front view
Lens
LED Flash light
Microphone
Self-timer LED
1.4.2 Top view
Macro button
Shutter button Zoom / Volume button
3

1.4.3 Bottom view
Battery compartment
Tripod mount
1.4.4 Right view
4

1.4.5 Left view
Hand strap
Macro switch
1.4.6 Back view
Mode dial
Pla
y
back button
Scroll wheel
USB / AV Output
REC. / Power LED
REC.STOP button
HD Output
5

1.4.7 Adjusting the LCD display
Flip and twist the LCD screen as shown while capturing a still
image or recording a video clip.
6

See the table below for a description of each button’s function.
Button Name Function
Power
button Press and hold to turn power on/off.
Menu
button Press to display main OSD menus.
Mode dial
Use to toggle Movie, Photo, and SET
modes. In Movie mode, press the
REC.STOP button to start and stop
recording. In Movie Playback mode,
press the REC.STOP to pause/restart
playing.
Scroll
wheel

In Photo and Movie modes, press
the up and down to adjust the
exposure setting, and inwards to
adjust the flashlight setting.
 In Photo Playback mode:
1. Press up and down to scroll
through stored images.
2. When the image is zoomed in,
you can move the image
up/down or left/right. Then,
press inwards the scroll wheel,
you can switch the moving
directions (up/down ↔
left/right).
7

3. In the thumbnail mode, press the
up and down to select the
thumbnail images and then press
inwards to view the image in full
screen mode.
 In Movie Playback mode:
1. Press up and down to scroll
through stored movies, and
inwards to play/stop movie
playback.
2. In the thumbnail mode, press the
up and down to select the video
clip and then press inwards to
show the video clip.
 In SET mode, press up and down to
highlight menu items, and inwards
to select.
Shutter
button

In Photo mode, press to take a
photo.
 In Movie mode, you can also press
to take a photo before recording a
video clip.
Macro
switch
Move the switch to the position to
enable Macro mode.
Playback
button
In Movie and Photo mode, press to
enter playback mode.
Display
button
Press once to display all OSD icons.
Press again to turn all OSD icons off.
8

Zoom
button

In Photo and Movie modes, press
to zoom in and out.
 In Photo Playback mode:
1. Press the button right to
zoom in your photo.
2. Press the button left to
show all stored files in a
3x2 matrix
thumbnail view.
 In Movie Playback mode:
1. Press the button left to
show all stored video clips
in a 3x2 matrix thumbnail
view.
2. During video playback,
press the button to
increase or decrease the
playback volume.
9

10
1.4.8 About the LEDs
The following table describes the camera LEDs:
LED Color Definition
Green Power-on
Green Blinking Recording
Red Camera busy
Red Blinking Self-timer is activated
Power /
Rec.
Red Blinking
Rapidly
2 seconds self-timer
remaining.
Red Blinking Self-timer is activated.
Self-timer
Red Blinking
Rapidly
2 seconds self-timer
remaining.
