Product introduction
This action cam is a high-definition digital motion video recording device.
It uses class leading components to deliver a broad range of high end features including:
high frame rate 4K video recording, image capture, colour display and built-in WiFi.
The camera includes various mounting accessories including an underwater housing,
waterproof up to 40m.

EN
Notes on MicroSD card
• Please ensure your memory card is formatted in the camera before using the card for
the first time (Menu mode > Camera Settings).
• The maximum capacity memory card supported is 64GB.
Use of memory cards exceeding the maximum recommended capacity may result in file
errors.
• For best results, we recommend using high quality Micro SD cards Class 10 with U3
High Speed or higher.
Ensure a U3 rated memory card is used when recording 4K video.
Using a lower rated card may present data transfer speed issues due to the large file size
produced by a 4K video recording.
• The recording time depends on the selected resolution.

EN
Notes on charging the battery
• Ensure the camera is charged completely before using it for the first time.
• Keep the device away from children while charging.
• Ensure the camera is switched off when charging. If the camera turns on automatically
when connected to a power source please turn it off to complete charging.
A camera plugged into a power source while switched on will not charge.
• The camera should only be charged via the USB port of a computer or a USB power
adapter with a maximum capacity of 1000mAh.
• Unplug the USB cable connected to the camera before using the camera.
• Battery life is up to 90 minutes in optimal conditions (i.e. depending on the settings
and resolution selected and the outside temperature )
Notes on WiFi connection
• Ensure you have downloaded the correct companion app for your camera model.
• Please note that wireless transfer of files using the app is not possible for video with
resolution higher than 1080p. Files using any resolution higher then 1080p can only be
accessed via your computer using a card reader.

EN
Safety instructions
This product is not suitable for children under 36 months because of choking hazard.
Always protect your camera from impact with hard surfaces.
• Keep a sufficient distance from objects that generate strong magnetic fields or radio
waves, such as electrical appliances to prevent them from damaging the product or
affecting the sound and image quality.
• Store the device at room temperature in a dry and dust-free location and never
expose the product to high temperatures or direct sunlight for prolonged periods.
• In the unlikely event of overheating, smokes or unpleasant odors coming out of the
unit, disconnect it immediately from the charging cable and remove the battery.

EN
Before using the camera in the water, ensure that all lids and latches on the camera
and underwater housing are closed and sealed.
• Following use in salty or chlorinated water, clean the case and let it dry naturally.
• To prevent condensation inside the case or behind the lens, avoid exposing the
camera to high temperature and humidity differences.
• Following use under water, the housing must be left open to avoid condensation or
rusting.

EN

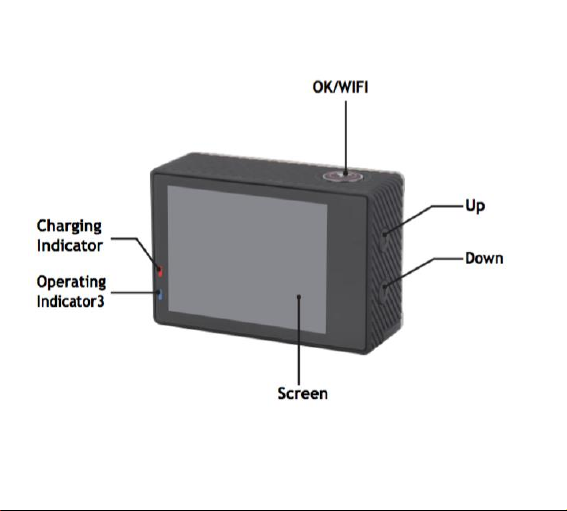

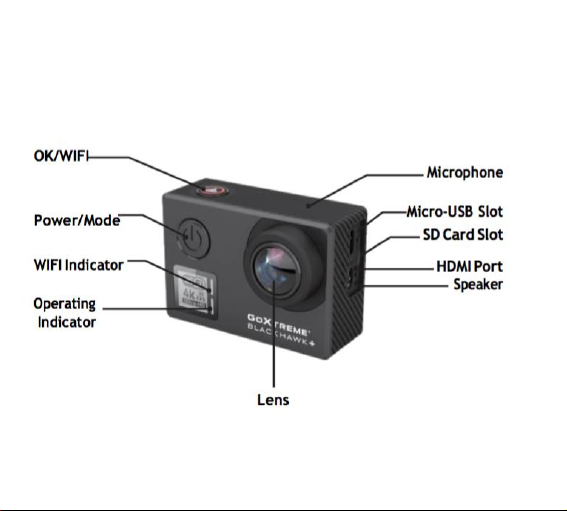

Product description

EN

EN
Waterproof case description

EN
Inserting micro SD Card
Note: Please choose a branded U3 micro SD card and format the memory card in the
camera using the ‘Format Card’ option in the camera settings menu before using the
card for the first time (Menu mode > Camera settings).
Installing and removing the battery
The battery compartment features a sliding lock.
To open the battery compartment, unlock it and slide it in the direction shown on the
cover.
Install the battery into the camera ensuring that the pins inside the camera and the slots
on the battery are aligned before closing and securing the battery compartment.
Removing the battery
Open the battery cover and remove the battery using the tag attached to the battery.
Note: Please engage the lock on the battery compartment cover before each use.
Charging the battery
The battery can be charged by connecting it to a computer or a power adapter.
The camera can record videos while charging (switch into vehicle-mounted mode in the
Menu). The camera can also be charged while the camera is turned off.

EN
Switching the camera on and off
Press and hold the power button for 3-5 seconds to turn the device on/off.
Mode switching
Short pressing the power button changes the camera operating modes in the following
sequence: Video mode / Photo mode / Menu mode.
Inside the Menu you will find: Video settings, Photo settings, Playback mode and
Camera settings (various camera system settings or format a memory card).
Video mode
Switch to video recording mode by repeated pressing the Mode button to select
“Video Mode”.
Press the WiFi/OK/Shutter button to start recording and the icon will start to flash.
Press WiFi/OK/Shutter button again to stop recording and the icon will disappear.
Photo mode
Switch to video recording mode by repeated pressing the Mode button to select
“Photo Mode”. The icon in the upper left corner of the screen shows, that the camera is
in the photo mode. Press OK/Shutter/WiFi button to take photos.

EN
Menu mode
Switch to video recording mode by repeated pressing the Mode button to select
“Menu Mode”.
Use the ‘Up’ and ‘Down’ buttons on the camera to navigate between the 4 options
•Video Setting: Enter to adjust various setting related to video recording
•Photo Setting: Enter to adjust various settings related to photos
•Playback: Enter to review your files (see below for more details)
•Camera Setting: Enter to adjust various camera system settings or format a
memory card.
File storage & Playback
Switch the camera to the Menu mode by repeated pressing the Mode button
and click on "Playback".
“ ”is shown on the top left corner of video preview mode,
and“ ”is shown on the top left corner of photo preview mode.
Use the UP and DOWN buttons to slect between video or photo preview modes.
Press the OK/Shutter/WiFi button to confirm your selection.
Select the individual files for review by using the UP and DOWN arrows, then replay and
stop videos or review photos by pressing the OK/Shutter/WiFi button again.
Remember you can always press the ‘Mode’ button to go back a step.

EN
You can also review your files on your smartphone via WiFi.
Note: In the unlikely event that the camera freezes during use, please remove and
re-insert the battery.
WiFi control
Before using the WiFi function, please install the iSmart DV app on your smartphone or
tablet PC. After turning the camera on, press the WiFi/OK/Shutter button for 2 seconds
to activate WiFi function. When the WiFi is turned on, the camera displays the SSID and
password (PWD) for pairing your camera and smartphone.
Pairing your camera and smartphone
Open the WiFi settings on your smartphone and search for the camera SSID as displayed
on the camera display.
The password to complete the pairing is 1234567890. (This should only be required the
first time your camera is paired with your smartphone)
When the WiFi connection is confirmed on your smartphone, exit the WiFi settings
screen and open the iSmartDV app.
Follow the app instructions to complete the connection.

EN
Webcam function
Your action cam also features a webcam function.
To use your cam as a webcam please follow the following steps:
1. Remove the battery and memory card.
2. Connect the camera to your computer using the USB cable provided.
3. If prompted, select the PC-Cam or Web Cam option.
4. If you are using Windows, driver installation will be automatic and complete within 2
minutes.
PLEASE NOTE:
Please note that the web cam function provides video only and does not include audio.
A headset or earphones with in-line mic as provided with many smartphones is required
for audio.
Please note you may need to enter the settings of any app or program you use (e.g.
Skype) so you can select your action cam as the preferred web cam option.

EN
Box contents
•Action Cam
•Waterproof case
•Bike mount
•Helmet mounts
•Orientation arms
•Tripod adaptor
•Monopod adaptor
•Battery
•USB Cable

EN
Specifications
Image Sensor
Type
12MP CMOS
Lens
Focal Length
Lens f= 3.21mm
F No.
F= 2.8
F.O.V(D)
170°
LCD Display
2” 320x240 TFT LCD
Focusing
Type
Fixed
Exposure
Control
Programmed AE
Compensation
± 2EV (0,33 EV) -2,0 / -1,0 / + 0,0 / + 1,0 / 2,0
ISO Equivalent
Auto, 100, 200, 400, 800, 1600
White Balance
Auto /Daylight / Shade/Tungsten Light /
Fluorescent/ Underwater

EN
Video resolution
4K 3840x2160 60fps / EIS 30fps
2.7K 2704x1520 60fps / 30fps
1920x1080 120fps / EIS 60fps / EIS 30fps
1280x720 240fps / 200fps / 120fps / 60fps / 30fps
Image Stabilization
On/Off
Memory
External memory: supporting U3 micro SDHC cards up to
64GB (not included)
Video Encoder
H.264
Image Size
14M (4320x3240) interpolated
12M (4032x3024), 10MP(3648x2736)
8M (3840x2160)
5M (2592x1944)
2M (1920x1080)
Video Output
HDMI: Support 1920x1080 P60, output With CEC
Composite: NTSC/PAL
Time Lapse Function
OFF / 1 sec. / 3 sec. / 5 sec. / 10 sec. / 30 sec./ 60 sec.

EN
Photo Functions
Self Timer: OFF / 3 sec. / 5 sec. / 10 sec. / 20 sec.
Burst Rate: OFF / 3 P/s / 7 P/s / 15 P/s /30P/s Time Lapse
Photo Interval: OFF / 3 sec. / 5 sec. / 10 sec. / 30 sec. /
60 sec.
Time Lapse photo shooting time: 5Min/10Min/15Min/
20Min
Default Mode
Video
EIS
On / OFF
Motion Detection
Off / Low / Medium / High
TV Mode
NTSC / PAL
Light Freq.
50HZ / 60HZ
Screen-Off
OFF / 30 Seconds / 1 Min. / 2Min
WiFi LED
ON / OFF
Sharpness
Strong / Normal / Soft
Scene Mode
Normal/Indoor/Outdoor/Landscape/Portrait/Night
ISO
Auto / 100 / 200 / 400 / 800 / 1600 / 3200
EV : 0.0
EV ：-2.0 / -1.0 / +0.0 / +1.0 / +2.0

EN
Date Format
Y/M/D,D/M/Y,M/D/Y
Wi-Fi
ON / OFF
WiFi SSID
GOXTREME
WiFi Password
1234567890
Format
YES/NO
Default Setting
YES/NO
Version
GOXTREME V1.0
Interface
USB 2.0: Recharging/File Transfer
Power Source
Li-ion rechargeable battery 1050mAH
Dimensions (W*H*D)
L: 61mm, W:42mm, H:23 mm
(with lens part will be 33mm)
Weight
about 78.5g (with battery)
Support
Mass Storage Driver
Windows XP (Service pack 2) or later Mac OS X 10.5.11
or later
