Eaton Network-MS User manual

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card
– User Manual 34003991XT_EN/JC Page 1/143

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 2/143
Contents
1 EATON NETWORK SOLUTION 6
1.1 G ENERAL P RESENTATION 6
1.1.1 Connecting the UPS to the Ethernet network 7
1.1.2 Protection of the computers/servers 7
1.1.3 Supervision of the UPSs over the network 8
1.1.4 Connection 8
1.2 P RESENTATION OF THE N ETWORK M ANAGEMENT C ARD (NMC) 10
1.2.1 Compatibility with UPSs 10
1.2.2 Direct sending of E-mail 11
1.2.3 Sending text messages (SMS) 11
1.2.4 Compatibility with the Network Management Systems (NMS) – Trap sending 11
1.2.5 Environment Sensor (option) 11
1.3 T ECHNICAL DATA 12
1.3.1 Hardware characteristics 12
1.3.2 EMC Compatibility 12
1.3.3 Configuration 12
1.3.4 Administration 13
1.3.5 Network 13
1.3.6 Environment sensor 14
1.3.7 MIB (Management Information Base) 14
1.3.8 Default parameters 15
2 INSTALLATION 17

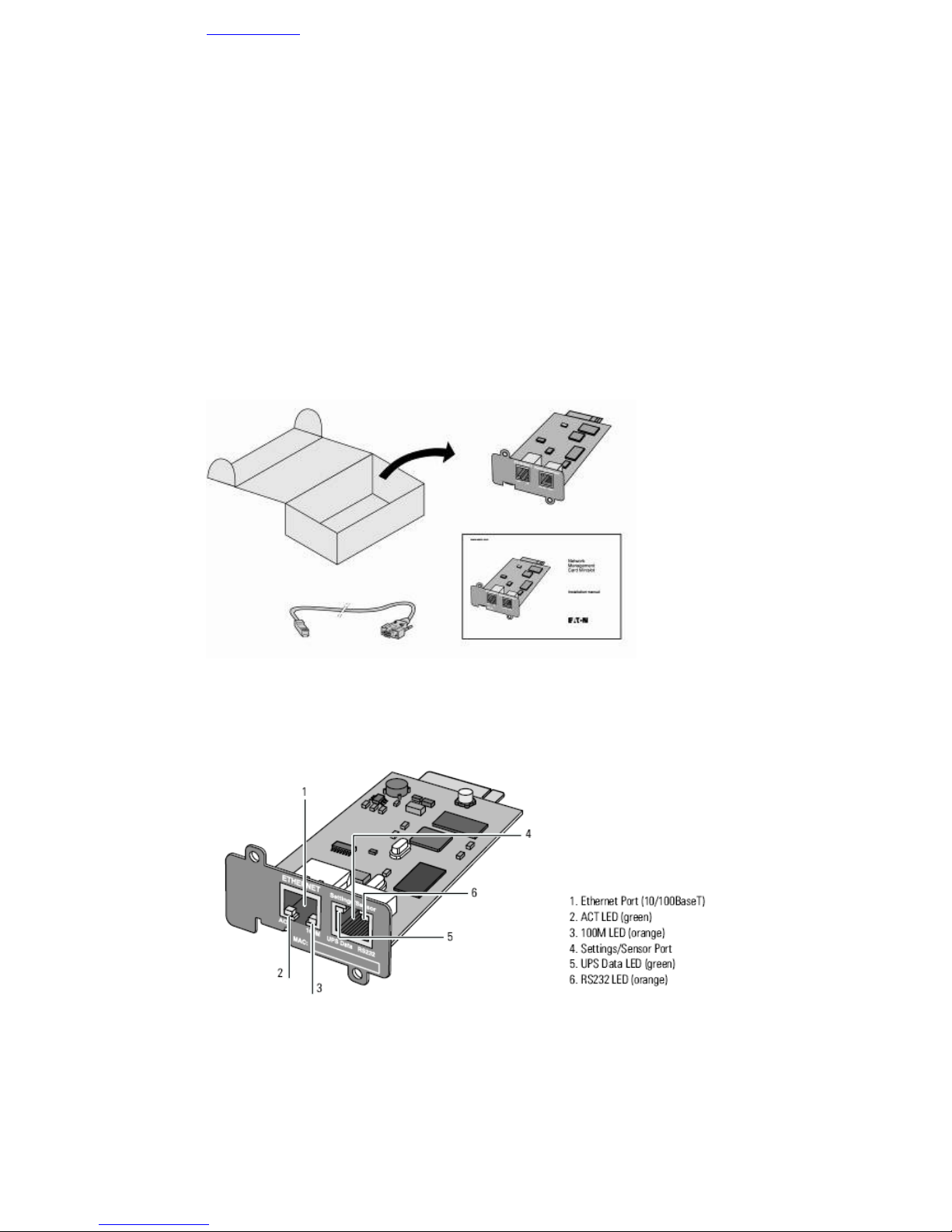

2.1 U NPACKING AND CHECK ON CONTENTS 17
2.2 I NDICATIONS 17
2.3 I NSTALLATION IN THE UPS 18
2.4 S ENSOR INSTALLATION ( OPTION ) 19
3 CONFIGURATION 20
3.1 C ONFIGURE IP PARAMETERS 20
3.1.1 Your network is equipped with a DHCPv4 server 21
3.1.2 Your network is not equipped with a DHCPv4 server 22
3.1.3 IPv6 Parameters 22
3.2 T EST AFTER CONFIGURATION 22
4 SUPERVISION AND ADMINISTRATION BY BROWSER 23
4.1 O PTIMISING THE PERFORMANCE OF YOUR BROWSER 23
4.2 UPS 24
4.2.1 UPS properties page 24

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 3/143
4.2.2
On-line help 37
4.2.3 Logging In 38
4.2.4 UPS control 39
4.2.5 UPS weekly schedule programming 41
4.2.6 Shutdown parameters 42
4.2.7 Measurements 44
4.2.8 Event log 45
4.2.9 System log 46
4.3 N OTIFICATION 47
4.3.1 Email Notification 47
4.3.2 E-mail Message Settings 49
4.4 C ONFIGURATION 51
4.4.1 Network settings 51
4.4.2 RADIUS 54
4.4.3 LDAP 56
4.4.4 System 59
4.4.5 Notified Applications 60
4.4.6 Central shutdown configuration 63
4.4.7 Access control 64
4.4.8 SNMP Setting 66
4.4.9 Date and time 68
4.4.10 Firmware upload 70
4.5 E NVIRONMENT S ENSOR ( OPTION ) 71
4.5.1 Characteristics 71
4.5.2 Environment Status 72
4.5.3 Environment Settings 73
4.5.4 Log 75
5 SERVER PROTECTION 76
5.1 S ET - UP OF THE SHUTDOWN PARAMETERS 76
5.1.1 Shutdown criteria managed by the Network Management Card 76
5.1.2 Controlled outlets 79
5.1.3 Protection of a server connected to a controlled outlet 79
5.2 T HE DIFFERENT SERVER AND UPS SHUTDOWN SEQUENCES 81
5.2.1 Extended power outage, shutdown initiated by the Shutdown Timer (Shutdown after) 81
5.2.2 Extended power outage, shutdown initiated by the "Low battery power" message 81
5.2.3 Case of power restoration before the end of the "shutdown duration" counter 82
5.3 S HUTDOWN MANAGEMENT WITH 2 NMC BOARDS 83
5.3.1 Shutdown Duration 83
5.3.2 Settings 83
6 TELNET/SSH/CLI INTERFACES 84

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 4/143
6.1
I NTRODUCTION 84
6.2 S ETTINGS LIST 84
6.2.1 Network settings 84
6.2.2 System settings 85
6.2.3 Trap receivers 85
6.2.4 Access control 85
6.2.5 Shutdown settings 85
6.2.6 Authentication settings 86
6.2.7 RADIUS settings 86
6.2.8 LDAP settings 86
6.2.9 SNMP settings 87
6.2.10 Date and time 87
6.2.11 Environment settings 87
6.3 M ENU INTERFACE 88
6.3.1 Tree description 89
6.3.2 Main menu 90
6.3.3 Reset item 91
6.3.4 Network menu 91
6.3.5 Trap receivers menu 93
6.3.6 System menu 94
6.3.7 Shutdown menu 94
6.3.8 Access Control menu 95
6.3.9 Date and time menu 96
6.3.10 Environment menu 96
6.3.11 Authentication settings 98
6.3.12 Return to default Login/Password 100
6.3.13 Return to default configuration 100
6.4 C OMMAND L INE I NTERFACE 100
6.4.1 Generic command 101
6.4.2 Network settings 102
6.4.3 Trap receivers 105
6.4.4 System settings 106
6.4.5 Shutdown settings 107
6.4.6 Access control settings 108
6.4.7 Authentication settings 109
6.4.8 Date and time settings 113
6.4.9 Environment settings 114
6.5 C ONSTRAINTS /L IMITATIONS 117
7 CONFIGURATION VIA RS232 118
7.1 C HOICE 1: R ESTART / R ESET 119

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 5/143
7.2
C HOICE 2: N ETWORK C ONFIGURATION 119
7.2.1 Choice 1: Read IPv4&IPv6 Network settings 119
7.2.2 Choice 2: Modify IPv4 Network settings 120
7.2.3 Choice 3: Set Ethernet speed 120
7.3 C HOICE 3: L OST PASSWORD / S ET L OGIN P ASSWORD TO D EFAULT 121
7.4 C HOICE 4: R ETURN TO D EFAULT C ONFIGURATION 122
8 APPENDIX 123
8.1 T ABLES OF ALARMS AND EVENTS 123
8.1.1 Table of alarms 123
8.1.2 Table of UPS events 126
8.1.3 Table of system alarms 129
8.2 SNMP OBJECTS 130
8.2.1 IETF MIB 130
8.2.2 EATON Pulsar MIB (ex MGE) 130
8.2.3 TRAPS table: (1.3.6.1.4.1.705.1.11) 134
8.2.4 EATON Powerware MIB 135
8.3 A UTHENTICATION C ONFIGURATION E XAMPLE 138
8.3.1 RADIUS 138
8.3.2 LDAP 139
9 GLOSSARY 141

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 6/143
1 EATON Network Solution
1.1 General Presentation
EATON Network Solution:
•Provides information on events concerning the supply of power to the computers connected to your
network,
•Carries out automatic shutdown of computer systems,
•Monitors and controls all the UPSs connected to the network.
EATON Network Solution provides 3 main functions:
•Supervision of the UPSs over the Network: Web browser, Intelligent Power Manager, or SNMP Network
Management System (NMS).
•Protection of the computers (multi-platform) with Intelligent Power Protector
•Connexion of the UPS to the Network.

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 7/143
1.1.1 Connecting the UPS to the Ethernet network
This function can be performed through network Cards inserted in the UPS (Network Management Card).
Also a software "agent" running on a nearby PC that is called the IPP Shutdown controller feature can be used.
IPP Shutdown controller feature allows USB or Serial connected UPS to be seen on the network through the PC.
The Network Management Card or Shutdown Controller:
•Manages communication with the UPS (as well as local protection of the machine on which Proxy is
installed).
•Periodically accesses the information concerning the UPS.
•Makes this information available to the connected applications (Intelligent Power Protector, Web
Browser, Network Management Systems, Intelligent Power Manager).
•Sends notifications on certain events.
Operation may be in standard secure mode (the default mode) or in SSL secured mode (Secure Socket Layer
SSL).
1.1.2 Protection of the computers/servers
This function is performed by Intelligent Power Protector installed on each of the computers to be protected.
Note that Intelligent Power Protector are available on several Operating Systems.
Protection applications:
•Continuously gets information from the Network Management Card/Proxy connected to the UPS.
•Warns administrators and users if AC power fails and proceeds to a graceful system shutdown before
the end of battery backup power is reached.

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 8/143
1.1.3 Supervision of the UPSs over the network
Depending on your needs, you can either use:
•Internet browser to monitor each UPS, as IPP Shutdown Controller and Management Card includes a
Web server
•Company’s standard Network Management System (HP-Openview, CA Unicenter, HP Insight Manager,
IBM Tivoli Netview)
To simplify integration of EATON UPSs, use one of the Network Management System Kits for EATON
devices. These kits are available on the Software Suite CD-ROM or on the http://powerquality.eaton.com
website.
•The supervisor "Intelligent Power Manager".
1.1.4 Connection
Before installing the Network Solution, the UPS must be set up as indicated in the steps below.
Shut down the computers to be protected by the UPS.
Connect the UPS to a wall outlet. (For UPSs above 3kVA, please refer to the UPS installation manual).
Connect the power cord of each computer to an outlet on the UPS. (For more details, please refer to the UPS
installation manual)

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 9/143
1.1.4.1 How to connect UPS / agent / network:
Insert the optional NMC communication card in the UPS and connect the UPS to the computer network.
Start the UPS, then the computers.
1.1.4.2 Setting up the protection:
Set up the Network Management Card (see user manual).
Install and configure the protection application on all machines that are to be protected by the UPS:
•Intelligent Power Protector for EATON Pulsar series UPS: The software components for each platform
and the user manuals are on the Software Suite CD or available at http://powerquality.eaton.com

www.eaton.com
Network
Management Card
(Network-MS)
User Manual
Network Management Card – User Manual 34003991XT_EN/JC Page 10/143
1.2 Presentation of the Network Management Card (NMC)
1.2.1 Compatibility with UPSs
The Minislot Network Management Card is compatible with the UPS listed into the compatibility list:
Pulsar MX All models
MX, MX frame All models
Pulsar M 2200 / 3000 All models
Pulsar 700 / 1000 / 1500 All models
EX 700 / 1000 / 1500 / 2200 / 3000 All models
Evolution 650 / 850 / 1150 / 1550 / 2000 All models
Evolution S 1250 / 1750 / 2500 / 3000 All models
Pulsar Evolution 500 / 800 / 1100 Technical level 06 or higher
Pulsar Evolution 2200 / 3000 Technical level 05 or higher
Pulsar Evolution 1500 Technical level 05 or higher
EXtreme C 700 / 1000 / 1500 Technical level B2 or higher
EXtreme C 2200 - 3200 Technical level 02 or higher
Pulsar EX 700 / 1000 / 1500 RT (US°) Technical level 03 or higher
Pulsar EX 2200 / 3200 (US°) Technical level 09 or higher
EX 5 / 7 / 11 RT Equiped with Minislot port.
Powerware 5130 All models
9120 All models
9130 All models
9135 All models
9170 All models
9E 20000 / 30000 / 40000 / 60000 / 80000 / 100000 / 120000 / 160000 / 200000 All models
9P 50000 / 100000 / 150000 / 200000 All models
5PX 1000 / 1500 / 2000 / 2200 / 3000 All models
5P 550 / 650 / 750 / 850 / 1000 / 1150 / 1500 / 1550 / 2200 / 3000 All models
93PM 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400 / 450 /500 / 550 / 600 / 650 / 700 / 750 All models
9SX 5000 / 6000 / 8000 / 11000 All models
9PX 5000 / 6000 / 8000 / 11000 All models
9PX 6000 SP / 8000 SP / 10000 SP All models
9PX 6000i 3 :1 / 8000i 3 :1 / 11000i 3:1 All models
Network Management Card acquires information regarding the operation status of the UPS systems and provides
remote control of the system through the ETHERNET network from any SNMP administration station or Web
browser.
