The Network Management Card & Modbus/Jbus (66103) is recommended for central UPSs
protecting entire networks or for UPS units backing up critical loads. With the card installed, the UPS
has its own IP address and uses the local computer capabilities to:
●Supply web pages (http or https (SSL)) with information on status conditions and measurements/
settings/alarms,
●Integrate an SNMP-based NMS such as HP OpenView, IBM Tivoli Netview and Computer Associates
Unicenter,
●Communicate with shutdown modules installed on the protected servers (Network Shutdown
Module),
●Send e-mail and SMS messages,
●Control the ON/OFF function of the UPS and the outlets,
●Monitor the Environment Sensor (optional, cat. no. 66846).
●One Network Management Card & Modbus/Jbus (66103)
●One serial cable for configuration (34003918),
●One installation manual (34003906).
The Network Management Card & Modbus/Jbus (66103) is compatible with the
Pulsar range UPSs
available since 2006.Note.
●If the technical level of the UPS is lower than that indicated in the table, contact EATON.
UNPACKING AND CHECKS
CHECK ON UPS VERSION
Important. Before installing the card, check that the UPS technical level (NT) is at least
equal to that indicated in the table below.
UPS Type Technical level (NT)
Pulsar 700/1000/1500 02
Pulsar M 2200/3000 03
Pulsar MX 4000/5000/10000 04
Pulsar MX Frame 15/20 kVA 01
34003906EN_AE.fm Page 3 Vendredi, 19. décembre 2008 1:49 13

4 - 34003906EN/AE
.
ETHERNET port
Service port (Settings/Sensor)
OVERVIEW
INDICATIONS
LED Colour Status Description
ACT Green ●OFF
●ON
●Flashing
●Card not connected to network
●Card connected to network, but no activity
●Port is sending/receiving
100M Orange ●OFF
●ON
●Port operating at 10 Mbits/s
●Port operating at 100 Mbits/s
LED Colour Status Description
UPS Data Green ●OFF
●ON
●Flashing
●Card starting
●Communicating with UPS
●Normal operation
Communication with UPS is operational
RS232 Orange ●OFF
●ON
●Flashing
●Configuration menu activated
●Normal operation
Configuration menu not activated
●Communication with Environment Sensor (option)
Settings/Sensor
66103
UPS data RS232
100M 10M
000623001C07
ETHERNET 10/100BT port
Service port (Settings/Sensor)
Orange LED: RS232 activity
Green LED: communication
with the UPS
Catalogue number
Orange LED: 10/100M
Green LED: connection +
activity
MAC address
Jbus/modbus port
34003906EN_AE.fm Page 4 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE - 5
The Network Management Card & Modbus/Jbus (66103) can be hot-plugged on all UPSs from
EATON equipped with a Minislot. It is not necessary to shutdown the UPS, disconnect the load or restart
the UPS.
●Remove the plastic cover of the Minislot.
●Note the MAC address of the card before inserting it.
●Insert and secure the card with the screws.
●Connect the ETHERNET cable.
●Check the ETHERNET port indications.
●Wait until the UPS Data LED flashes regularly (approx. two minutes), indicating that card start-up has
terminated correctly.
Note. Connection detection continues until the card has been connected to the network. Once
connection is made, card start-up continues.
Once the card has started, proceed as indicated below.
●Connect the serial cable to card’s service port and PC’s COM port
●Use a terminal emulator such as HyperTerminalTM with these settings
"Echo typed characters locally" option: disabled
●Type EATON (or eaton).
The main configuration menu is displayed:
IP SETTINGS
Bits per second Data bits Stop bits Parity Flow control
9600 8 1 none none
EATON
NETWORK MANAGEMENT CARD
1 : Reset
2 : Network configuration
3 : Set Login Password to Default
4 : Return to Default Configuration
5 : Jbus configuration
6 : Sensor configuration
0 : Exit
ETHERNET
ASI
Settings/Sensor
66103
UPS data RS232
100M 10M
34003906EN_AE.fm Page 5 Vendredi, 19. décembre 2008 1:49 13

6 - 34003906EN/AE
The card is configured by default with this service enabled. No manual configuration is required.The IP
parameters are automatically collected by the card.
From the main configuration menu: (see above)
●Press the 2 key (Network configuration).
●Press the 1 key(Read Network settings).
The settings supplied by the server are displayed:
●Note the IP address.
●Press the 0 key (Exit).
●Press the 0 key (Exit).
You can also use NMC Tool software utility to view the card IP adress
Provided on the Solution-Pac 2 CD-ROM or at www.eaton.com. It must be installed on a network
connected PC.
Manual configuration is required.
To set the network configuration, use terminal emulation (see above)
From the main configuration menu:
●Press the 2 key (Network configuration).
●Press the 2 key (Modify Network settings).
●Follow the instructions and enter the IP parameters:
Wait until "Done" is displayed, indicating that the IP parameters have been saved.
●Press the 0 key (Exit).
●Press the 1 key (Reset).
●Press the 2 key (Restart).
The card restarts with the new IP settings (after approx. one minute).
Your network is equipped with a BOOTP/DHCP server (default)
Network configuration :
MAC address : 00:06:23:00:1C:07
Mode : DHCP
IP address : 172.17.23.18
Subnet mask : 255.255.248.0
Gateway : 172.17.17
Your network is not equipped with a BOOTP/DHCP server
1 : Read Network settings
2 : Modify Network settings
3 : Set ethernet speed
0 : Exit
For each of the following questions, you can press "Return" to
select
the value shown in braces, or you can enter a new value
Should this target obtain IP settings from the network?[N]N
Static IP address [172.17.16.16]?172.16.1.82
Subnet mask IP address [255.255.0.0]? 255.255.255.0
Gateway address IP address [0.0.0.0]? 172.17.17.1
Done
34003906EN_AE.fm Page 6 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE - 7
To check whether the
Network Management Card & Modbus/Jbus (66103) is operational after
installation and configuration, proceed as follows.

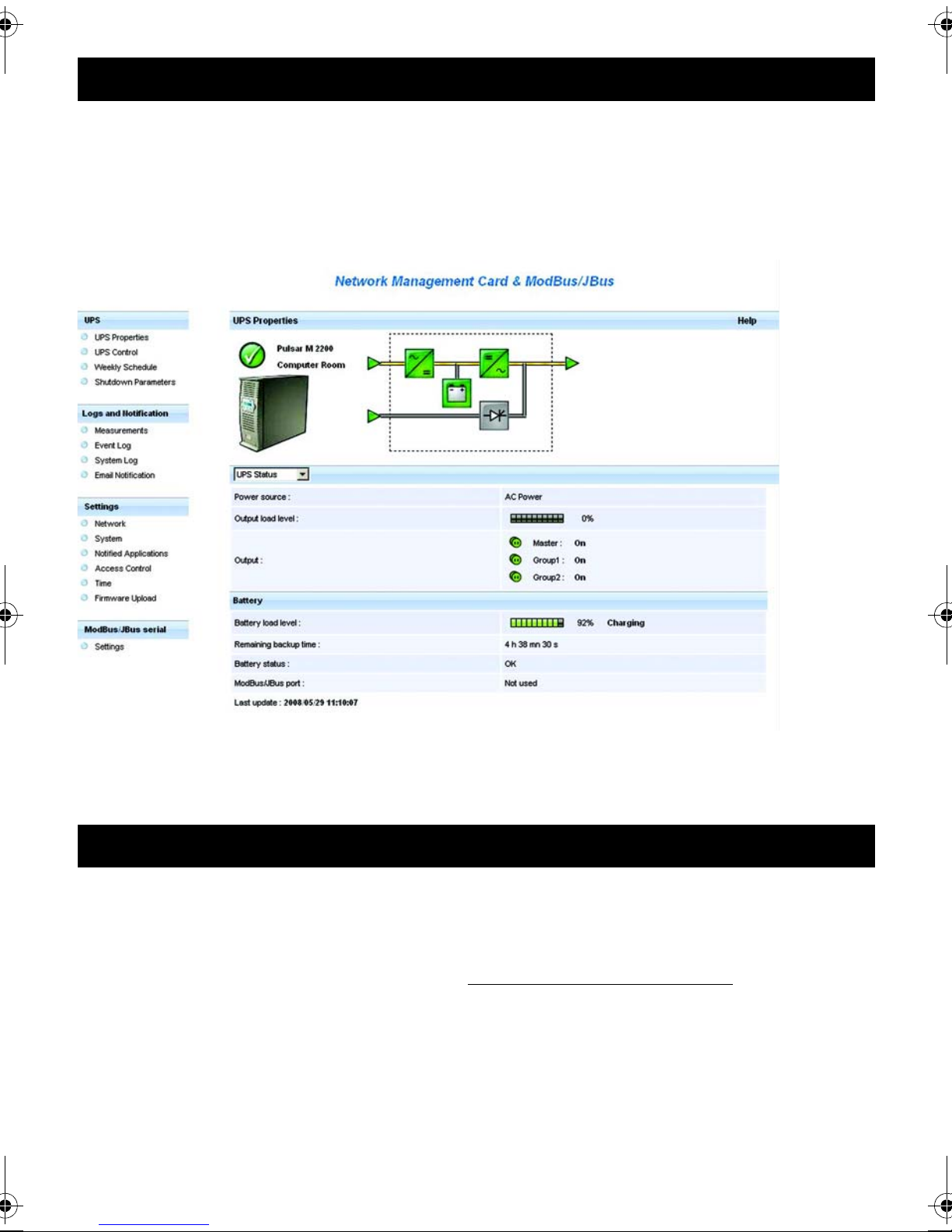

●Run a browser
●Enter in the address bar:
http://IP address/ (e.g. http://172.16.1.82/)
●The home page is displayed
●Set the time by clicking the Time command.
●Continue configuration via the sections in the Settings menu.
This manual provides all the information required to install and configure the
Network Management
Card
& Modbus/Jbus (66103).
For more information on the supervision, control and configuration functions offered by the Network
Management Card
& Modbus/Jbus (66103), see the user manual on the Solution-Pac 2 CD-ROM or
in the Products/Power Management section of the
www.eaton.com/powerquality site.
ACCESS TO SUPERVISION
USER MANUAL
34003906EN_AE.fm Page 7 Vendredi, 19. décembre 2008 1:49 13

8 - 34003906EN/AE
The Environment sensor is a Network Management Card & Modbus/Jbus option. It is available
from EATON (cat. no 66846).
The sensor remotely monitors the UPS environment by regularly measuring the temperature and
humidity, and checking the states of two external contacts. It can also send alarms (e-mail, SNMP trap)
tripped by pre-set thresholds.
Connection is made via the Service port (Settings/Sensor) on the Network Management Card &
Modbus/Jbus. The sensor is detected automatically. Configuration and supervision use a menu that
may be accessed directly from the home page. For more information, see the user manual of the
Network Management Card & Modbus/Jbus.
SENSOR CONNECTION (option)
66102
Settings/Sensor
ETHERNET
100M 10MUPS data RS232
On = ink
Blink = Act
ETHERNET
66103
UPS data RS232
100M 10M
34003906EN_AE.fm Page 8 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE - 9
RS232 link configuration and connection
RS485 link configuration and connection
For proper operation, the polarity of EIA RS485 2-wire and 4-wire lines must be set at only one point
and the lines terminated at the end.
Polarity
Normally, the master of the network sets the polarity of the line. The receiver inputs have a true failsafe
feature wich eliminates the need for external bias resistors and ensures a logic high output level when
the inputs are open or shorted. This guarantees that the receiver outputs are in a known state before
communication begins and when communication ceases.
Termination
Termination is used to match impedance of a node to the impedance of the transmission line being
used. When impedance are mismatched, the transmitted signal is not completely absorbed by the load
and a portion is reflected back into the transmission line. The termination line is not necessary if the
speed on the line is much less than 115Kbauds
The default setting of the RS485 is a 4 wires configuration without polarity and without termination.
SA1 switches are used to make the termination and the topology of the line (2 or 4 wires). The
termination resistance value is 166 Ω.
SA1 description:
1: reserved
2: reserved
3: link termination between T- to R- (2 wires configuration) if set to ON
4: connection T- to R- (2 wires configuration ) if set to ON
5: connection T+ to R+ (2 wires configuration ) if set to ON
6: reserved
7: reserved
8: link termination between R+ and R- if set to ON
JBUS/MODBUS
5
Txd RxdSG
43 2 1
SA1
SA2
SA2
Pin Function
1 Received data (input)
2 Not connected
3 Transmitted data (output)
4 Not connected
5 Signa ground
SA2
OFF
ON
1
8
RD = (A')
TD = (B)
TD = (A)
0 V
1
2
3
4
5
RS485
RD = (B') R-
R+
T-
T+
0 V
SA1
SA2
SA1
OFF
ON
1
8
SA2
OFF
ON
1
8
SA2
SA2
SA2
SA1
SA1
SA1
34003906EN_AE.fm Page 9 Vendredi, 19. décembre 2008 1:49 13

10 - 34003906EN/AE

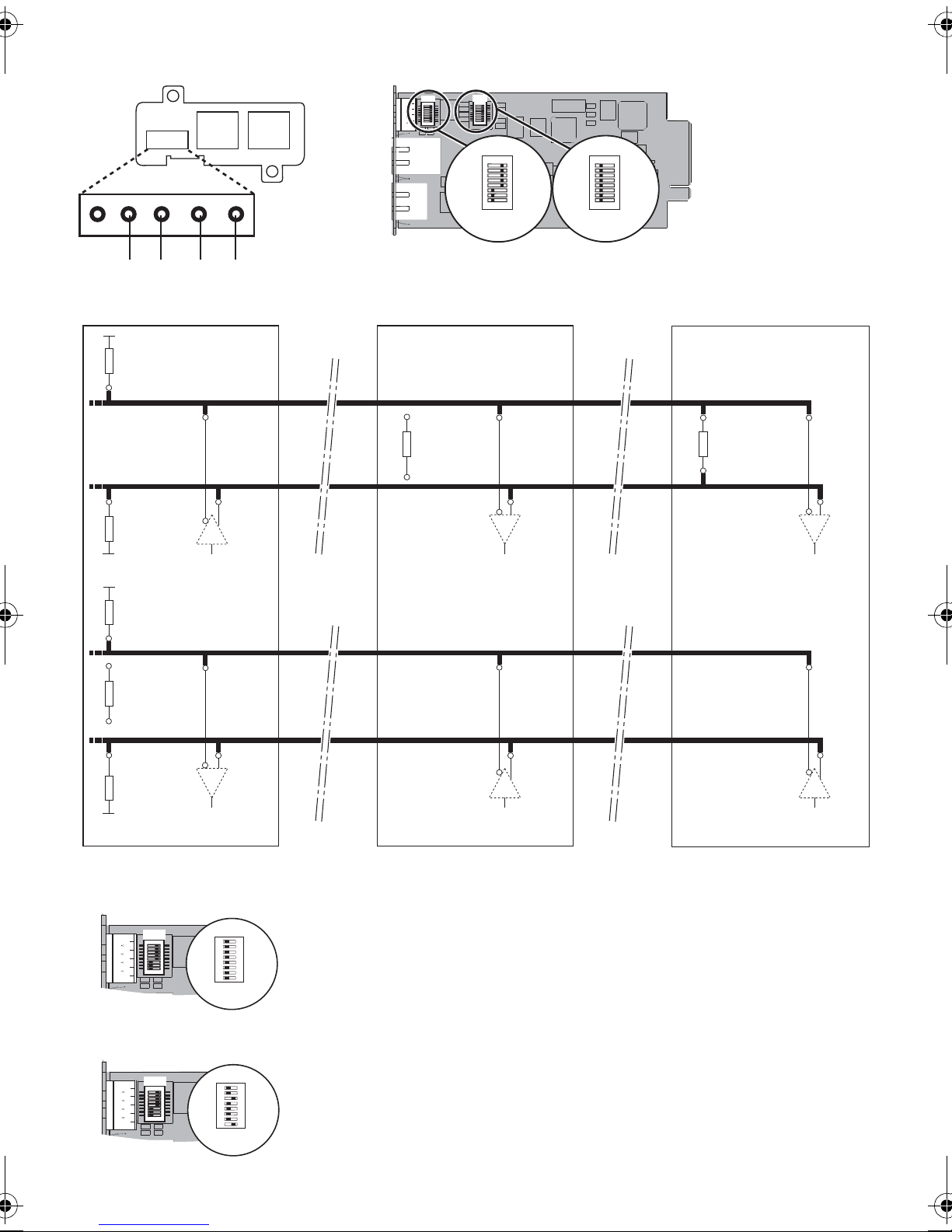

2 wires connection
Card settings of an intermediate cubicle
Others settings
SA1
SA2
SA1
OFF
ON
1
8
SA2
OFF
ON
1
8
SA2
SA2
SA2
SA1
SA1
SA1
5
L +
43 2 1
L -
5V
Rp
Ra
Rp
0V
Ra
0V
Ra
0V
L- L-
L+ L+
L- L-
L+ L+
3
24
13
24
13
polarity
connection
if end
of the line
polarity
transmit/receive
data
transmit/receive
data
transmit/receive
data
termination
termination
Master unit Card of an end-of-line cubicle
connection
if end
of the line
3V3
SA1-3
3V3
SA1-3
Card of an intermediate cubicle
SA2
OFF
ON
8 6 5 4 3 2 1
SA1
SA1
OFF
ON
8 6 5 4 3 2 1
SA1
Link without polarity and without termination.
SA2
OFF
ON
8 6 5 4 3 2 1
SA1
SA1
OFF
ON
8 6 5 4 3 2 1
SA1
Link with termination.
34003906EN_AE.fm Page 10 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE - 11

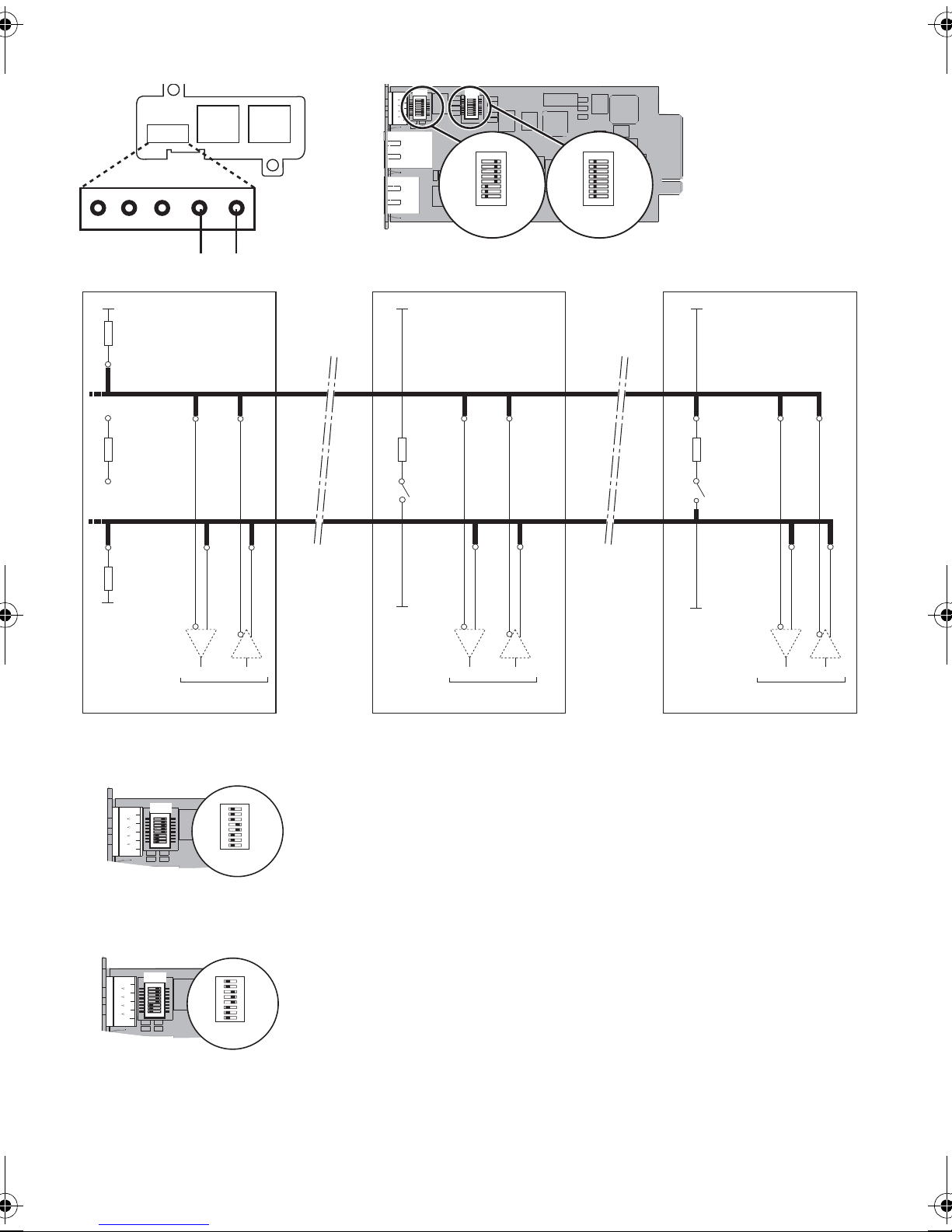

4 wires connection
Card settings of an intermediate cubicle
Others settings
SA1
SA2
5
R-
43 2 1
R +T -T +
SA1
OFF
ON
1
8
SA2
OFF
ON
1
8
SA2
SA2
SA2
SA1
SA1
SA1
5V
Rp
Rp
0V
Ra Ra
T- R-
T+ R+
R- R-
R+ R+
2
1
2
1
5V
Rp
Ra
Rp
0V
R- T-
R+ T+
T- T-
T+ T+
4
3
4
3
master
transmitt
slave
receiver
slave
receiver
termination
termination
receive data
slave
transmitt
receive data
slave
transmitt
transmit datatransmit data
transmit data
slave
receiver
receive data
polarity
connection if
end of the line
polarity
connection if
end of the line
Master unit Card of an intermediate cubicle Card of an end-of-line cubicle
SA2
OFF
ON
8 6 5 4 3 2 1
SA1
SA1
OFF
ON
8 6 5 4 3 2 1
SA1
Link without polarity and without termination.
SA2
OFF
ON
8 6 5 4 3 2 1
SA1
SA1
OFF
ON
8 6 5 4 3 2 1
SA1
Link with termination.
34003906EN_AE.fm Page 11 Vendredi, 19. décembre 2008 1:49 13

12 - 34003906EN/AE
Configuration of the JBUS/MODBUS communication parameters
●Use the cord supplied with the card
●Connect the card to a computer
●Use a terminal emulator such as HyperTerminalTM with these settings
"Echo typed characters locally" option: disabled
●Check that UPS power is on.
●Type EATON (or eaton).
The main configuration menu is displayed:
●Press the 5 key (Jbus configuration).
The Jbus configuration menu is displayed:
Through settings port
Bits per second Data bits Stop bits Parity Flow control
9600 8 1 none none
EATON
NETWORK MANAGEMENT CARD
1 : Reset
2 : Network configuration
3 : Set Login Password to Default
4 : Return to Default Configuration
5 : Jbus configuration
6 : Sensor configuration
0 : Exit
Jbus settings
1 : Display Jbus settings
2 : Modify Jbus settings
3 : Display Jbus diagnostics
4 : Reset Jbus diagnostics
5 : Return to Jbus Default Configuration
6 : Display Jbus frames
0 : Exit
66102
Settings/Sensor
ETHERNET
100M 10MUPS data RS232
On = ink
Blink = Act
ETHERNET
66103
UPS data RS232
100M 10M
Connect the RS232 link to a
terminal
(Microsoft Hyper terminal)
34003906EN_AE.fm Page 12 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE - 13
●Press the 2 key (Modifiy Jbus settings)
●Press «Return» key to modify the Jbus settings
* Hex format.
●Press the 0 key (Exit).
●Press the 0 key (Exit).
●Run a browser
●Enter in the address bar:
http://IP address/ (e.g. http://172.16.1.82/)
●The home page is displayed
●Select the setting menu
●Set the parameters.
●Select the «Save» button to save the new parameters.
Setting Jbus configutration
Set Slave number : 0x1*
Set the Baud Rate [1:38400,2: 19200, 3:9600, 4: 4800, 5: 2400,
6: 1200] :3
Set data format[1: 8 bits, 2: 7 bits] :1
Set stop bit[1: 1 bits, 2: 2 bits] :1
Set parity [1: None, 2: Even, 3: Odd] :1
Wait during the new setting is saved ...
TLS/Slave JBUS initialized
The Jbus configuration is now updated.
Through a web browser
34003906EN_AE.fm Page 13 Vendredi, 19. décembre 2008 1:49 13

14 - 34003906EN/AE
TECHNICAL CHARACTERISTICS
Physical characteristics
Dimensions (W x D x H) 132 x 66 x 42 mm
Weight 70 g
RoHS 100% compatible
Storage
Storage temperature range -10°C to 70°C
Ambient conditions
Operating temperature range 0°C to 40°C
Relative humidity 90% RH max. without condensation
Card performance
Supply voltage 5V ±5%
Supply current (all LEDs ON and
Environment Sensor connected)
300 mA max.
Functions
Web supervision 5 browsers max. (http),
3 browsers max. (https)
Languages English, French, German, Italian, Spanish
Alarms E-mail, SNMP TRAP, Web page
Log 400 measurements or events
Server protection Up to 100 servers protected
Network Fast ETHERNET, 10/100 Mbits, auto-negotiation
HTTP 1.1, SNMP V1, NTP, TFTP, SMTP, BOOTP/DHCP
Identification User name and password
Security SSL 3.0, TLS 1.0
Browsers Microsoft Internet Explorer 6.x or higher
NMS Enterprise Power Manager (EPM)
Management-Pac 2
MIB MIB II standard - UPS EATON MIB V1.7
Settings (default values)
IP network BOOTP/DHCP enabled
IP address: 172.17.16.16 (manual configuration)
Subnet mask: 255.255.0.0
Gateway: 0.0.0.0
NTP server: pool.ntp.org
Web-page access control User name: EATON
Password: EATON
Service-port menu access control Password: EATON or eaton (not modifiable)
Date and time Synchronise with an NTP server (GMT)
Service port 9600 bits/s, 8 bits, 1 bit stop, no parity
RS485 port Slave nb:0x01, 9600 bits/s, 8 bits, 1 bit stop, no parity
34003906EN_AE.fm Page 14 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE - 15
When correctly installed and used in accordance with manufacturer instructions, the card complies with
the following standards:
●ITE (Information Technology Equipment) safety: IEC/EN 60950-1 2002
●EMC: EN 61000-6-2 (2002), EN 61000-6-3 (2002), IEC/EN 62040-2 (2002)
In compliance with European directives:
●Low voltage: 73/23/EEC and 93/68/EEC.
●EMC: 89/336/EEC and 93/68/EEC.
Federal Communication Commission (FCC) statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment.
The information presented in this manual is also available in other languages in the download section
of the EATON site (www.eaton.com/powerquality).
ELECTROMAGNETIC COMPATIBILITY
WEB SITE
34003906EN_AE.fm Page 15 Vendredi, 19. décembre 2008 1:49 13

34003906EN/AE
www.eaton.com
34003906EN_AE.fm Page 16 Vendredi, 19. décembre 2008 1:49 13
