EAW DSA230i User manual

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0384 (A) DSA230i SPEC February 2007
DSA230i Specifications
Features
•1-way loudspeaker for voice and BGM applications
•Supplement to DSA250i for increased LF output & pattern control
•Vertical coverage pattern adjustable to fit the audience area
•Integral signal processing and amplification
•Built-in electronic driver protection
•Wall mounting hardware included
Description
The DSA 230i is a unique, column-type loudspeaker for voice-only
and voice/BGM (background music) applications. It also functions
with additional DSA Series loudspeakers to provide increased
performance. For example, used with a DSA250i, the DSA230i
extends directivity to and increases the output at lower frequencies.
The DSA230i has the remarkable versatility of a user-adjustable,
vertical beamwidth. This is made possible because each transducer
has its own DSP (digital signal processing) and power amplifier.
Built-in networking provides for remote PC operation and control.
Intended to be flat-mounted to a wall, the user directs the DSA230i’s
output from this position to the desired coverage area using the
supplied DSAPilot software. Pattern asymmetry provides similar
sound levels to both near and far listeners. Each of the two inputs
has user-adjustable EQ, delay, and compression.
DSA loudspeakers are engineered as a solution for applications with
difficult acoustics, physical mounting limitations, precise vertical
coverage requirements, and difficult aesthetic requirements. They can
replace typical horn or column-type loudspeakers in small to medium
venues. These include houses of worship, auditoriums, theaters,
concert halls, conference rooms, transportation centers, athletic
facilities, classrooms, museums, shopping malls, and theme parks.
The enclosure profile and appearance reduces architectural impact.
Warranty: five years loudspeaker components; two years electronics.
1-WAY DIGITALLY STEERABLE ARRAY
See TABULAR DATA notes for details
CONFIGURATION
Subsystem
Transducer Loading
LF 8x 4 in cone Direct radiating
Operating Mode
Amplifier Channels External Signal Proc.
Self-powered 8x high efficiency None
ACOUSTICAL PERFORMANCE
Operating Range 78 Hz to 10 kHz
Nominal Beawidth Horz 120°
Vert Digitally variable
ELECTRONIC PERFORMANCE
Analog
Amplifier Output (ea) 28.3 V 50 W @ 16 ohm
Input (Audio A and B):
Configuration Balanced differential
Nominal Sensitivity 0.9 V / 1.25 dBu For full output
Maximum Signal 12.2 V / 24 dBu
Input Routing A + B, A or B, priority B over A
DigitalA to D/ D to A 48 kHz, 24 bit
Processor 32 bit dual SHARC (Super Harvard Architecture Computer)
Propagation Time 4.3 ms
INPUT SIGNAL PROCESSING
Filters
Frequency Boost/Cut Q
Parametric 10 to 24000 Hz +15/-15 dB 0.25 to 64
6 or 12 dB Lo Shelf 10 to 24000 Hz +15/-15 dB
6 or 12 dB Hi Shelf 10 to 24000 Hz +15/-15 dB
HPF and LPF 10 to 24000 Hz 12/18/24 dB/oct L-R, BW, Bessel
Compression
Threshold -40 to +24 dBu
Ratio 1.2:1 to inf:1
Attack (ms) slow (64)/med (16)/fast (2)
Release (ms) slow (256)/med (64)/fast (8)
Gain -40 dB to +10 dB
Mute on/off
Signal Delay 300 ms maximum
Meters
Input -40 to +20 dBu
Output -30 to 0 dB ref 0 dB = full output
Gain Reduction 0 dB to -60 dB (compression)
CONNECTIONS
Computer Network
Standard EIA-485
Optional CobraNet (requires EAW CM-1 Interface Card accessory)
Fault Supervision Form C dry contact relay
AC Mains
Voltage / Frequency Maximum Current
DSA230i (115 V) 100 to 120 V / 50 to 60 Hz 4 A
DSA230i (230 V) 220 to 240 V / 50 to 60 Hz 4 A
ORDERING DATA
Description Part Number
DSA230i White 115 V 0015159-00
DSA230i White 230 V 0015159-01
Optional Accessories
CM-1 CobraNet Interface Card 0005987
DSA Fly-Bar Kit 0007445
DSA Enclosure Connecting Kit 0007446
COMPLIANCES
Part 15 EN 60065:2002, EN 55103-1:1997, EN 55103-2:1997, EN55103-1, EN55103-2, EN60065
CM
CUS

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0384 (A) DSA230i SPEC February 2007
DSA230i Specifications
ENCLOSURE
Material Rear: extruded aluminum, Front baffle: PVC
Finish Powder-coated white
Grille Powder-coated perforated steel

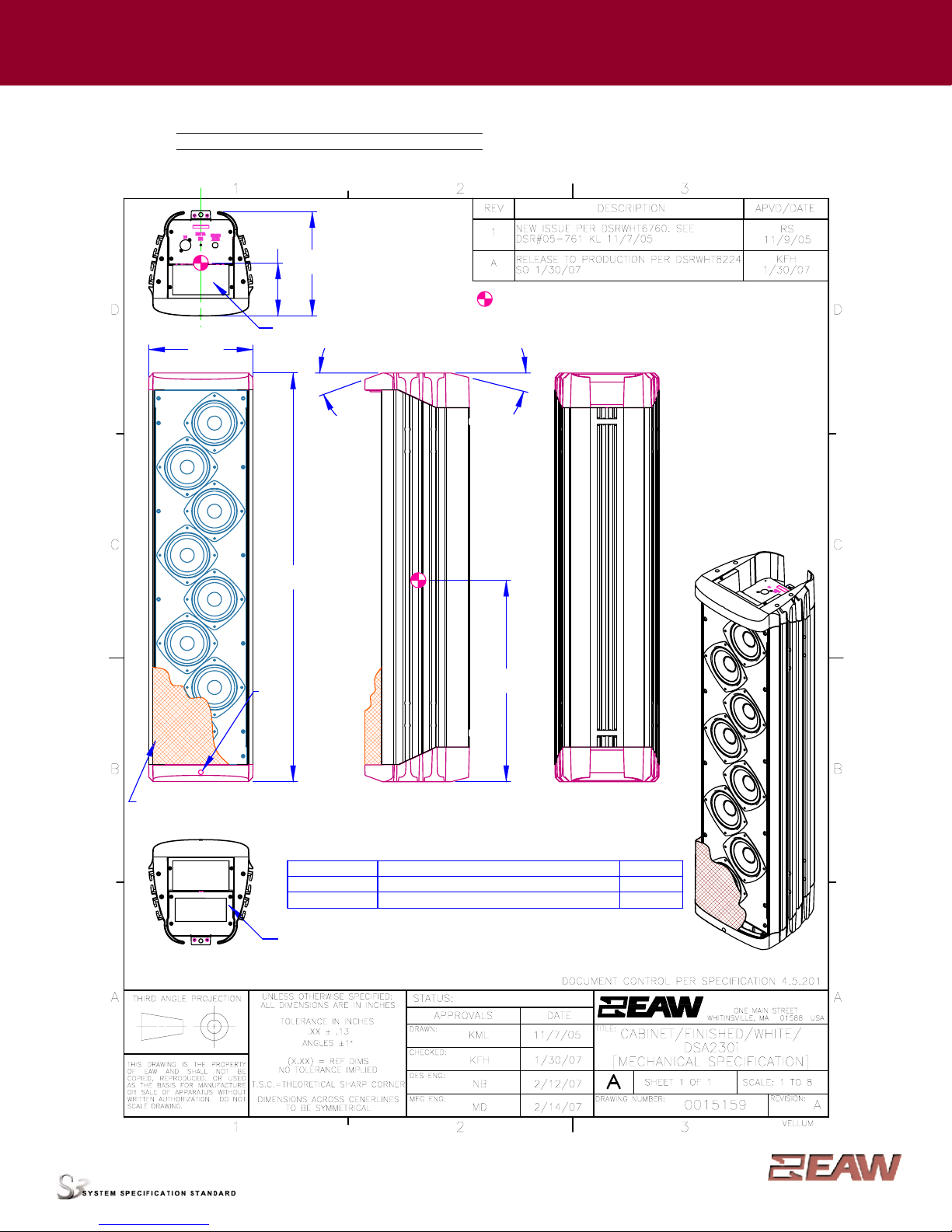

NOTE: This drawing has been reduced. Do not scale.
36.51
18.00
DESCRIPTION
PRODUCTION
DIMENSIONS APPLY
TO BOTH SIDES
RIGHT SIDE
CABINET/FINISHED/WHITE/DSA230i/230 V
CABINET/FINISHED/WHITE/DSA230i/115 V
0015159-01
SIGNAL END
INPUT PANEL
BOTTOM
0015159-00
DRAWING NO.
GRILLE PARTIALLY SHOWN
FRONT
LED
230 V
DSA230i
EASTERN ACOUSTIC WORKS
115 V
VOLTAGE
BACK
NOTES:
1. SYMBOL INDICATES CENTER OF BALANCE.
2. WEIGHT APPROX. 62 LB.
3. SHIPPING WEIGHT APPROX. 76 LB.
2X 14°
POWER END
INPUT PANEL
9.34
4.75
TOP
9.32
2X 20°

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0384 (A) DSA230i SPEC February 2007
DSA230i Specifications
NOTE: The DSA230i’s acoustical performance varies with the steering and beamwidth settings as well as whether it is used
singly or in clusters with other DSAi loudspeakers. The above graphs are only an example of the wide range of steering possibilities.
HORIZONTAL
VERTICAL
STEERING ANGLES
+15°
0°
-15°
-30°
-45°
Referenced to 20 m, 1/3 octave smoothing, 5° resolution, 1 dB / division
DSA230i 1/3 OCTAVE POLAR RESPONSES: 40° Vertical Beamwidth
315 / 400 / 500 / 630 Hz 800 / 1000 / 1250 / 1500 Hz 2000 / 2500 / 3150 / 4000 Hz 5000 / 6300 / 8000 / 10000 Hz
(brown / blue / green / red)

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0384 (A) DSA230i SPEC February 2007
DSA230i Specifications

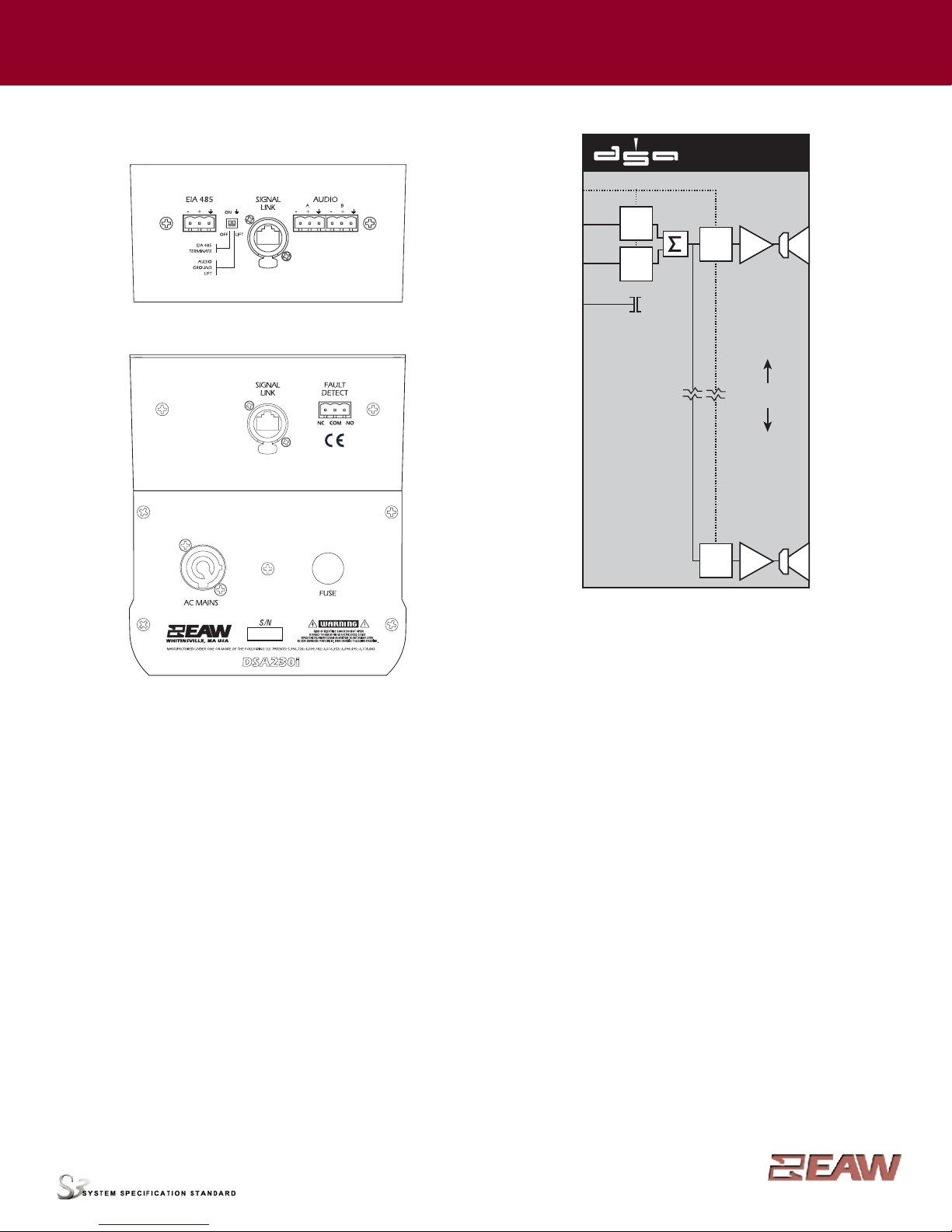

INPUT PANEL
POWER END
SIGNAL END
F
U
S
E
F
U
S
E
~100-120VAC / 50-60Hz / 200W
T4A 250V
NOTES
TABULAR DATA
1. Measurement/Data Processing Systems: Primary - FChart: proprietary EAW software; Secondary - Brüel & Kjær 2012.
2. Microphone Systems: Earthworks M30; Brüel & Kjær 4133
3. Measurements: Dual channel FFT; length: 32 768 samples; sample rate: 48 kHz; logarithmic sine wave sweep.
4. Measurement System Qualification (includes all uncertainties):SPL: accuracy +/-0.2 dB @ 1 kHz, precision +/-0.5 dB 20 Hz to 20 kHz, resolution 0.05 dB; Frequency: accuracy +/-1 %,
precision +/-0.1 Hz, resolution the larger of 1.5 Hz or 1/48 octave; Time: accuracy +/-10.4 µs, precision +/-0.5 µs, resolution 10.4 µs; Angular: accuracy +/-1°, precision +/-0.5°, resolution 0.5°.
5. Environment: Measurements time-widowed and processed to eliminate room effects, approximating an anechoic environment. Data processed as anechoic or fractional space, as noted.
6. Measurement Distance: 7.46 m. Acoustic responses represent complex summation of the subsystems at 20 m. SPL is referenced to other distances using the Inverse Square Law.
7. Enclosure Orientation: For beamwidth and polar specifications, as shown in Mechanical Specification drawing.
8. Volts: Measured rms value of the test signal.
9. Watts: Per audio industry practice, “loudspeaker watts” are calculated as voltage squared divided by rated nominal impedance. Thus, these are not True Watt units of energy as defined by
International Standard.
10. SPL: (Sound Pressure Level) Equivalent to the average level of a signal referenced to 0 dB SPL = 20 microPascals.
11. Subsystem: This lists the transducer(s) and their acoustic loading for each passband. Sub = Subwoofer, LF = Low Frequency, MF = Mid Frequency, HF = High Frequency.
12. Operating Mode: User selectable configurations. Between system elements, a comma (,) = separate amplifier channels; a slash (/) = single amplifier channel. DSP = Digital Signal Processor.
IMPORTANT: To achieve the specified performance, the listed external signal processing must be used with EAW-provided settings.
13. Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band
dips are excepted.
14. Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.
15. Axial Sensitivity: Power averaged SPL over the Operating Range with an input voltage that would produce 1 W at the nominal impedance; measured with no external processing on the
geometric axis, referenced to 1 m.
16. Nominal Impedance: Selected 4, 8, or 16 ohm resistance such that the minimum impedance point is no more than 20% below this resistance over the Operating Range.
17. Accelerated Life Test: Maximum test input voltage applied with an EIA-426B defined spectrum; measured with recommended signal processing and Recommended Protection Filter.
18. Calculated Axial Output Limit: Highest average and peak SPLs possible during the Accelerated Life Test. The Peak SPL represents the 2:1 (6 dB) crest factor of the Life Test signal.
19. High Pass Filter: This helps protect the loudspeaker from excessive input signal levels at frequencies below the Operating Range.
GRAPHIC DATA
1. Resolution: To remove insignificant fine details, 1/12 octave cepstral smoothing was applied to acoustic frequency responses and 1/3 octave cepstral smoothing was applied to the
beamwidth and impedance data. Other graphs are plotted using raw data.
2. Frequency Responses: Variation in acoustic output level with frequency for a constant input signal. Processed: normalized to 0 dB SPL. Unprocessed inputs: 2 V (4 ohm nominal impedance),
2.83 V (8 ohm nominal impedance), or 4 V (16 ohm nominal impedance) referenced to a distance of 1 m.
3. Processor Response: The variation in output level with frequency for a constant input signal of 0.775 V = 0 dB reference.
4. Beamwidth: Average angle for each 1/3 octave frequency band where, starting from the rear of the loudspeaker, the output first reaches -6 dB SPL referenced to 0 dB SPL as the highest
level. This method means the output may drop below -6 dB SPL within the beamwidth angle.
5. Impedance: Variation in impedance magnitude, in ohms, with frequency without regard to voltage/current phase. This means the impedance values may not
be used to calculate True Watts (see 9 above).
6. Polar Data: Horizontal and vertical polar responses for each 1/3 octave frequency band 100 Hz to 16 kHz or Operating Range.
USER
DSP
INPUT A
INPUT B USER
DSP
AMP LF
DSP
AMP LF
DSP
EIA-485
AC MAINS
1-WAY SELF-POWERED
6 ADDITIONAL
DSP/AMP/LF
SIGNAL DIAGRAM
LEGEND
DSP: Digital Signal Processing for EQ, limiting, and delay.
LF/MF/HF: Low Frequency / Mid Frequency / High Frequency.
PWR AMP: Power Amplifier.
ΣΣ:Summing Amplifier

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0384 (A) DSA230i SPEC February 2007
DSA230i Specifications
Cluster
Height (in/mm)
Width (in/mm)
Depth (in/mm)
Weight (in/mm)
Nominal Horizontal Beamwidth
Beamwidth Range
Beamwidth Range
Frequency Range (+/- 3 dB tolerance)
Operating Range (-10 dB frequencies)
SPL Limit (avg)
SPL Limit (peak)
Beamwidth Range
Frequency Range (+/- 3 dB tolerance)
Operating Range (-10 dB frequencies)
SPL Limit (avg)
SPL Limit (peak)
Beamwidth Range
Frequency Range (+/- 3 dB tolerance)
Operating Range (-10 dB frequencies)
SPL Limit (avg)
SPL Limit (peak)
Beamwidth Range
Frequency Range (+/- 3 dB tolerance)
Operating Range (-10 dB frequencies)
SPL Limit (avg)
SPL Limit (peak)
DSA230i
36.5/927
9.3/237
9.3/237
62/28.1
120
800 Hz to 4.5 kHz
1 kHz to 8 kHz
90 Hz to 6.5 kHz
78 Hz to 10 kHz
116.0
122.0
500 Hz to 10 kHz
90 Hz to 6.5 kHz
78 Hz to 10 kHz
115.6
121.6
300 Hz to 10 kHz
90 Hz to 8.2 kHz
78 Hz to 10 kHz
114.2
120.2
225 Hz to 5.5 kHz
90 Hz to 8.2 kHz
78 Hz to 10 kHz
113.1
119.1
DSA250i
50.8/1290
9.3/237
9.3/237
84/38.1
120
800 Hz to 10 kHz
1 kHz to 15 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
117.2
123.2
500 Hz to 15 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
116.2
122.2
300 Hz to 15 kHz
90 Hz to 13 kHz
78 Hz 15 kHz
115.5
121.5
225 Hz to 10 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
114.1
120.1
DSA230i / DSA250i
87.6/2224
9.3/237
9.3/237
146/66.2
120
800 Hz to 10 kHz
400 Hz to 15 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
123.4
129.4
200 Hz to 15 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
121.7
127.7
135 Hz to 10 kHz
90 Hz to 10 kHz
78 Hz to 15 kHz
119.9
125.9
110 Hz to 10 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
118.3
124.3
DSA230i / DSA230i / DSA250i
124.3/3158
9.3/237
9.3/237
208/94.3
120
800 Hz to 10 kHz
270 Hz to 15 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
126.5
132.5
130 Hz to 15 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
124.1
130.1
90 Hz to 10 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
120.8
126.8
80 Hz to 10 kHz
90 Hz to 13 kHz
78 Hz to 15 kHz
119.7
125.7
20° NOMINAL VERTICAL BEAMWIDTH
40° NOMINAL VERTICAL BEAMWIDTH
60° NOMINAL VERTICAL BEAMWIDTH
80° NOMINAL VERTICAL BEAMWIDTH
NOTES
1. Beamwidth and Frequency data is referenced to 20 m on axis, including air losses; steering at 0 degrees.
2. Beamwith Range is where the pattern widens to more than 1.5 times nominal below the low frequency and narrows to less than 0.67 times nominal
above the high frequency.
3. Avg SPL Limits are referenced to 1 m at an output equivalent to 0.5 times rated amplifier power at nominal impedance.
4. Peak SPL Limits are reference to 1 m at an output equivalent to maximum peak amplifier power at nominal impedance.
DSA SERIES PERFORMANCE MATRIX
