SM129zi Specifications group · G
DESCRIPTION
•Compact 2-way 12-inch Stage Monitor / PA
•Less than 15 inches high for low profile applications
•Rubber feet included for floor mounting
•PassiveEQandcrossoverforeconomicalsingleamplifieroperation
•Foam-backed steel grille for physical and dirt protection
(foamnotshownin photo)
The SM129zi is a compact, professional loudspeaker designed for
dual-purpose stage monitor and PA use. Its 12-inch low frequency
transducer provides strong LF performance while keeping a small
enclosure size for situations with limited space. The smooth HF
response and high output capability cuts through stage sound for
qualitymonitoringandprovides goodprojectionforPAuse.
The low profile and compact size are ideal for situations where small
physical size is needed, without sacrificing professional
performance. Integral mounting points accept a third-party, external,
stand adapter for pole mounting, such as the K&M™ 195/8 or
UltimateSupport™BMB-200K.
Portable usage is enhanced by the heavy-duty enclosure
construction, foam-backed steel grille, and integral handles. The
connector panels on each side have dual jacks for reliable input and
loopthroughconnections.
Applications include use as a stage monitor or as a PAloudspeaker
for band PA, TV productions, corporate events, theatres, houses of
worship,andlivemusic clubs.
Sixyearwarranty.
2-WAY FULL-RANGE MONITOR
See NOTES TABULAR DATAfor details
CONFIGURATION
Subsystem Transducer Loading
LF 1x 12in cone Vented
HF 1x 1in exit, 1.75 in voice Constantdirectivityhorn
coilcompression driver
Operating Mode AmplifierChannels ExternalSignalProcessing
Single-amp LF/HF HPF
PERFORMANCE 1
Operating Range 73Hz to 20 kHz
Nominal Beamwidth
Horz 90°
Vert 45°
Axial Sensitivity (wholespaceSPL)
LF/HF 96dB 73Hz to 20 kHz
Input Impedance (ohms)
Nominal Minimum
LF/HF 8 6.5@ 170 Hz
High Pass Filter
HighPass =>65 Hz, 12 dB/octave Butterworth
Accelerated Life Test 2
LF/HF 60V 450W @ 8 ohm
CalculatedAxial Output Limit (whole spaceSPL)
Average Peak
LF/HF 123dB 129dB
ORDERING DATA
Description Part Number
SM129zi2-WayFull-Range Monitor Black 0008926
OptionalAccessories
None
1Toachieve specifiedperformance, thelisted externalsignal processingwith EAW-providedsettings is required.
2Forrecommendations toselect poweramplifier sizerefer to : “HOW MUCHAMPLIFIERPOWER DOI NEED?”on theEAWwebsite.

EasternAcoustic Works One Main Street Whitinsville, MA01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0305 (A) SM129zi May 2005
SM129zi Specifications group · G

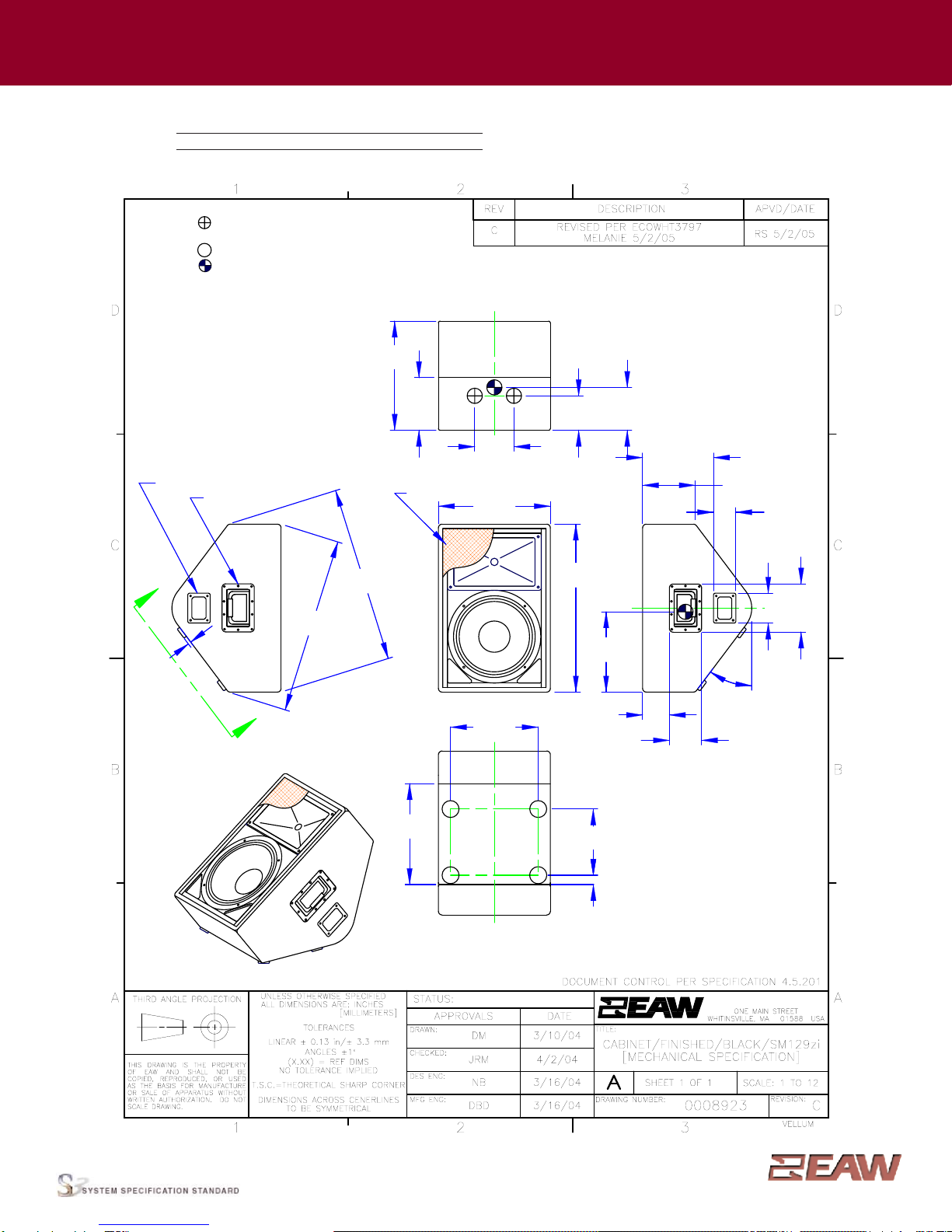

ENCLOSURE
Material Balticbirch plywood
Finish Wearresistanttexturedblack paint
Grille Powder-coatedperforated steel
6.44
3.59
4.31
10.75
22.50
23.58
2X 37°
4X .40 [273.1]
23.58
VIEW B-B
11.75
[298.5]
FRONT
PRODUCTION
SM129zi
LEFT SIDE
[10.2]
B
13.51
[343.2]
1.25
[31.7]
L
C
EASTERN ACOUSTIC WORKS
DIMENSIONS APPLY
TO BOTH SIDES
RIGHT SIDE
[91.3]
[109.5]
8.87
[225.2]
[133.4]
TOP
5.25
15.00
[381.0]
GRILLE PARTIALLY SHOWN
(7.06)
14.62
[599.0]
B
2X HANDLE
2X INPUT
[599.0]
NOTES:
1. SYMBOL INDICATES MOUNTING POINT
5/16-18 T-NUT FOR ULTIMATE BRAND STAND.
2. SYMBOL INDICATES FEET.
3. SYMBOL INDICATES CENTER OF BALANCE.
4. WEIGHT APPROX. 41 lbs [18.6 kgs]
5. SHIPPING WEIGHT APPROX. 50 lbs [22.7 kgs]
6. FEET ADD APPROX. 0.4 IN [10.2 mm] TO HEIGHT
OF ENCLOSURE.
[371.5]
[179.3]
[117.3]
5.75
4.62
[241.3]
9.50
2X 7.06
[571.5]
L
C
[76.2]
4.00
[101.6]
[163.6]
3.00
[179.3]
[146.1]
L
C
NOTE: Thisdrawinghas beenreduced.Donot scale.

EasternAcoustic Works One Main Street Whitinsville, MA01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0305 (A) SM129zi May 2005
SM129zi Specifications group · G
PERFORMANCE DATA
See NOTES GRAPHIC DATA for details
Frequency Response: Processed
Complete = blue
SPL(dB)
Frequency Response: Unprocessed
Single-amp = blue
SPL(dB)
Frequency Response: Digital Signal Processor
Single-amp = blue
dB re 0.775 V
Beamwidth (-6 dB SPL Points)
Horizontal = orange Vertical = black
Degrees
Impedance Magnitude
Single-amp = blue
Ohms
120
110
100
90
80
70
60
100
10
1
400
100
10
1100 1000 20000
Frequency(Hz)
10 100 1000 20000
Frequency (Hz)
10
0
-10
-20
-30
-40
-50
20
10
0
-10
-20
-30
-40
10 100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)
10 100 1000 20000
Frequency (Hz)

EasternAcoustic Works One Main Street Whitinsville, MA01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0305 (A) SM129zi May 2005
SM129zi Specifications group · G
0
-45
-90
-135
180
135
90
45
100 Hz
125 Hz
160 Hz
200 Hz
0
-45
-90
-135
180
135
90
45
250 Hz
315 Hz
400 Hz
500 Hz
0
-45
-90
-135
180
135
90
45
630 Hz
800 Hz
1000 Hz
1250 Hz
0
-45
-90
-135
180
135
90
45
1600 Hz
2000 Hz
2500 Hz
3150 Hz
0
-45
-90
-135
180
135
90
45
4000 Hz
5000 Hz
6300 Hz
8000 Hz
0
-45
-90
-135
180
135
90
45
10000 Hz
12000 Hz
16000 Hz
HORIZONTAL POLAR DATA(Gridlines: 6 dB axial / 15 degree radial)
See NOTES GRAPHIC DATA for details

EasternAcoustic Works One Main Street Whitinsville, MA01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0305 (A) SM129zi May 2005
SM129zi Specifications group · G
VERTICAL POLAR DATA (Gridlines: 6 dB axial / 15 degree radial)
See NOTES GRAPHIC DATA for details
0
-45
-90
-135
180
135
90
45
100 Hz
125 Hz
160 Hz
200 Hz
0
-45
-90
-135
180
135
90
45
250 Hz
315 Hz
400 Hz
500 Hz
0
-45
-90
-135
180
135
90
45
630 Hz
800 Hz
1000 Hz
1250 Hz
0
-45
-90
-135
180
135
90
45
4000 Hz
5000 Hz
6300 Hz
8000 Hz
0
-45
-90
-135
180
135
90
45
10000 Hz
12000 Hz
16000 Hz
0
-45
-90
-135
180
135
90
45
1600 Hz
2000 Hz
2500 Hz
3150 Hz

EasternAcoustic Works One Main Street Whitinsville, MA01588 tel [phone] fax [phone] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0305 (A) SM129zi May 2005
SM129zi Specifications group · G

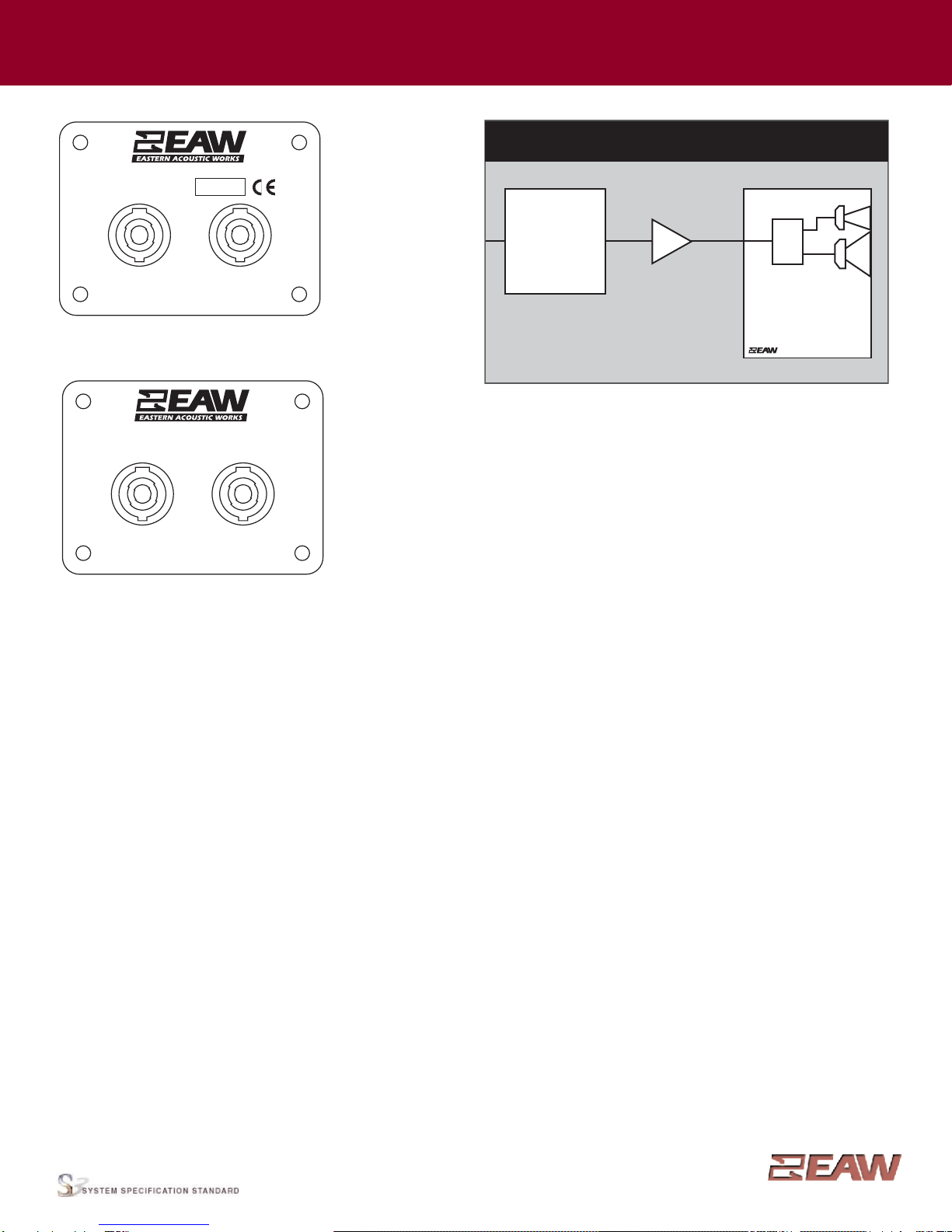

INPUT PANEL
PIN 1--...--
PIN 1+...+
PIN 2--...NC
PIN 2+...NC
WHITINSVILLE, MA USA
S/N
SM129zi
PIN 1--...--
PIN 1+...+
PIN 2--...NC
PIN 2+...NC
WHITINSVILLE, MA USA
SM129zi
NOTES
TABULAR DATA
1. Measurement/DataProcessingSystems: Primary-FChart: proprietaryEAWsoftware;Secondary - Brüel &Kjær2012.
2. MicrophoneSystems: EarthworksM30; Brüel&Kjær4133
3. Measurements: DualchannelFFT;length: 32 768samples;sample rate: 48kHz;logarithmic sinewavesweep.
4.Measurement System Qualification(includesalluncertainties):SPL: accuracy +/-0.2dB@ 1 kHz,precision+/-0.5 dB 20Hzto 20kHz,resolution0.05 dB;Frequency:accuracy+/-1 %,
precision+/-0.1Hz,resolution the largerof1.5Hzor 1/48 octave;Time:accuracy+/-10.4µs,precision+/-0.5µs, resolution10.4µs;Angular:accuracy+/-1°,precision+/-0.5°,resolution0.5°.
5. Environment: Measurementstime-widowedandprocessed toeliminateroomeffects,approximatingan anechoicenvironment.Dataprocessedas anechoicorfractional space,asnoted.
6. MeasurementDistance: 7.46m.Acousticresponsesrepresentcomplexsummationofthesubsystems at20m. SPLisreferencedtootherdistancesusingtheInverseSquareLaw.
7. Volts: Measuredrmsvalue ofthetest signal.
8. Watts: Peraudioindustrypractice, “loudspeakerwatts”arecalculated as voltagesquareddividedby rated nominalimpedance. Thus,these arenotTrueWattunitsofenergy as definedby
InternationalStandard.
9. SPL: (SoundPressureLevel) Equivalenttothe average levelofa signal referencedto0 dB SPL= 20microPascals.
10.Subsystem: Thisliststhe transducer(s)andtheiracoustic loadingforeach passband. Sub =Subwoofer,LF = LowFrequency,MF=Mid Frequency, HF=High Frequency.
11.Operating Mode: Userselectableconfigurations.Betweensystemelements,acomma(,)=separateamplifierchannels;aslash (/) = singleamplifierchannel.DSP=DigitalSignal Processor.
IMPORTANT:To achievethespecifiedperformance, thelistedexternal signal processingmustbe used withEAW-providedsettings.
12.Operating Range: Range wheretheprocessedFrequency Responsestayswithin-10 dB SPLof thepoweraveraged SPLwithinthis range;measuredonthe geometricaxis.Narrow band
dipsareexcepted.
13.Nominal Beamwidth: Designanglefor the-6dB SPLpoints,referencedto 0 dBSPLasthehighestlevel.
14.AxialSensitivity: PoweraveragedSPLovertheOperating Rangewithaninput voltagethatwouldproduce 1 Watthe nominal impedance;measuredwith noexternalprocessingon the
geometricaxis,referenced to1m.
15.Nominal Impedance: Selected 4,8,or16 ohmresistancesuchthat the minimumimpedancepoint is nomorethan 20%belowthisresistanceover theOperatingRange.
16.AcceleratedLifeTest: Maximumtestinputvoltageapplied withanEIA-426Bdefined spectrum;measuredwith recommended signalprocessingand RecommendedProtectionFilter.
17.CalculatedAxialOutput Limit: Highest average andpeakSPLs possible duringtheAccelerated LifeTest. ThePeakSPLrepresentsthe2:1(6 dB)crestfactorof theLifeTestsignal.
18.High Pass Filter: Thishelpsprotecttheloudspeaker fromexcessiveinput signal levelsatfrequencies below theOperatingRange.
GRAPHICDATA
1.Resolution:Toremove insignificantfinedetails,1/12octavecepstral smoothing wasappliedto acoustic frequencyresponsesand 1/3 octavecepstralsmoothingwasapplied tothe
beamwidthandimpedancedata. Othergraphs areplottedusingraw data.
2.Frequency Responses: Variation in acoustic outputlevelwithfrequencyforaconstantinputsignal.Processed:normalizedto0dBSPL.Unprocessedinputs:2V(4ohmnominalimpedance),
2.83V(8 ohmnominalimpedance),or 4V(16 ohm nominalimpedance)referenced to adistanceof1 m.
3.Processor Response: The variationinoutputlevel withfrequencyfora constantinputsignalof 0.775 V=0 dB reference.
4.Beamwidth:Averageanglefor each 1/3octavefrequencyband where, startingfromtherear of theloudspeaker,the output firstreaches-6 dBSPLreferenced to0dB SPLas the highest
level.Thismethodmeans theoutputmaydrop below-6dBSPLwithinthe beamwidth angle.
5.Impedance: Variationin impedance magnitude,inohms, with frequencywithoutregard tovoltage/currentphase.Thismeansthe impedance valuesmaynot
beusedto calculateTrueWatts(see 9above).
6.Polar Data:Horizontalandvertical polarresponsesfor each 1/3octavefrequencyband 100 Hzto16 kHz orOperatingRange.
AMP
2-Way, Single-Amp (LF/HF)
XVR
LF
HF
HPF
SIGNAL DIAGRAM
LEGEND
DSP: User-supplied Digital Signal Processor.
HPF: High Pass Filter for crossover or Recommended High Pass Filter.
LPF: Low Pass Filter for crossover.
LF/MF/HF: Low Frequency / Mid Frequency / High Frequency.
AMP: User-supplied PowerAmplifier.
XVR: Passive LPFs, HPFs, and EQ integral to the loudspeaker.
