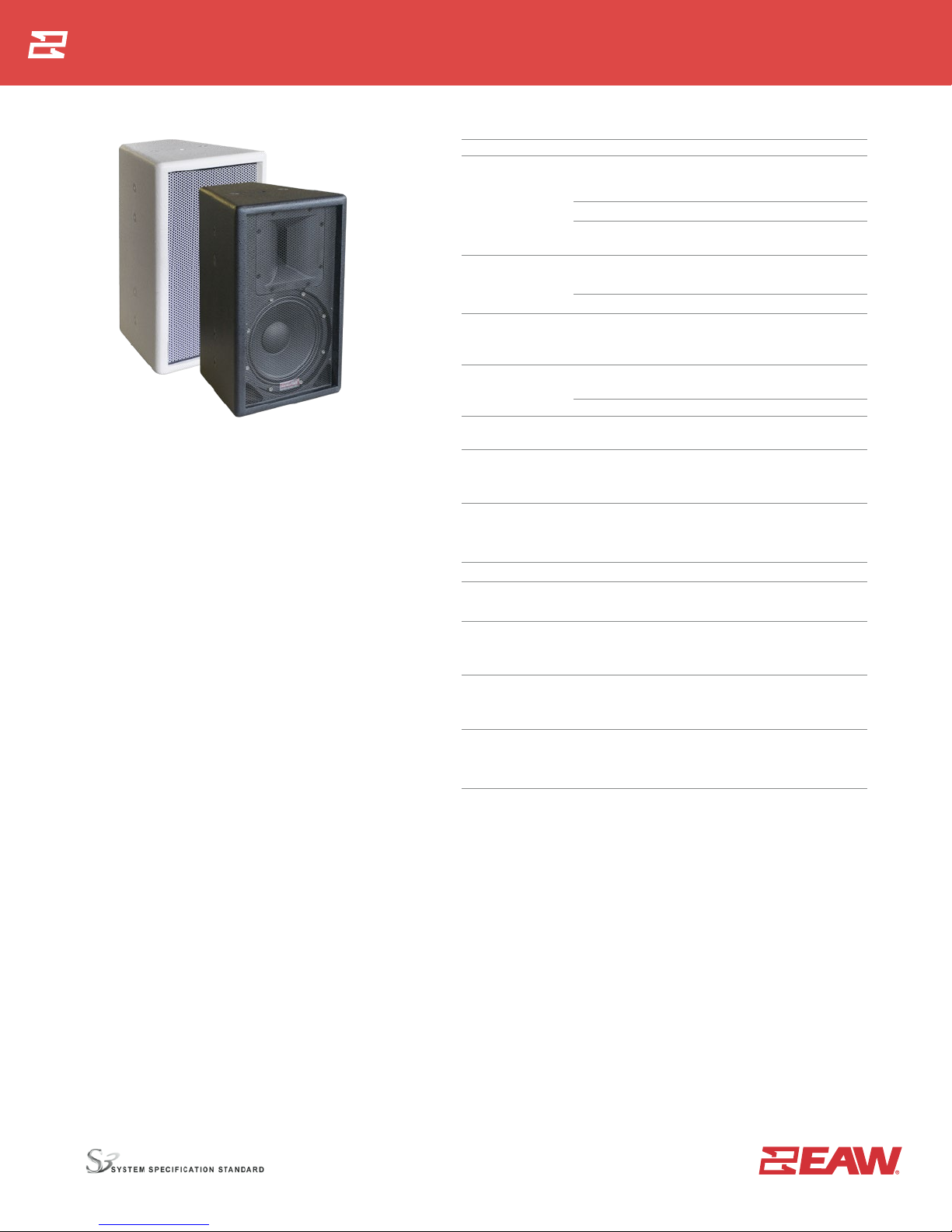

EAW VFR89i User manual

2WAY FULLRANGE LOUDSPEAKER 90° × 50°
See NOTES TABULAR DATA for details
CONFIGURATION
Subsystem:
Transducer Loading
LF 1×8-in cone Vented
HF 1×1-in exit, 1.25-in voice coil Horn-loaded
compression driver
Operating Mode:
Amplifier Channels External Signal Processing
Single-amp LF/HF High pass filter
PERFORMANCE
Operating Range: 70 Hz to 20 kHz
Nominal Beamwidth: (rotatable)
Horz 90°
Vert 50°
Axial Sensitivity (whole space SPL):
LF/HF 92 dB 70 Hz to 20 kHz
Input Impedance (ohms):
Nominal Minimum
LF/HF 8 6.7 @ 197 Hz
Input Taps (With ACC-TXVFR Transformer installed):
70V 100V
LF/HF 128W / 64W / 32W / 16W 128W / 64W / 32W
High Pass Filter: High Pass =>65 Hz, 12 dB/octave Butterworth
Accelerated Life Test:
LF/HF 51 V 325 W @ 8 ohm
Calculated Axial Output Limit (whole space SPL):
Average Peak
LF/HF 118 dB 124 dB
ORDERING DATA
Description Part Number
EAW VFR89i Black 2041020-90
EAW VFR89i White 2041036-90
Optional Accessories
EAW ACC TX VFR [ACC-TXVFR] 2039034
Eye Bolt Forged Shoulder M10 X 1.5 X 37mm 0029818
EAW U-Bracket V8U BLK [UBKT-V8U] 2039250
EAW U-Bracket V8U WHT [UBKT-V8U] 2039251
FEATURES
• Two-way, full range loudspeakers
• Beamwidth-matching crossover point
• User-rotatable horn for optimized pattern control
• Easy lift handles (Black version only)
DESCRIPTION
The new VFR “i” revision brings the VF concept more fully into the
EAW product line. VFR “i” Series black versions provide a handle
designed into the rear of the cabinet. An installation only white
version comes without handles or a pole mount cup.
TheVFR89i two-way, full range loudspeaker system includes a direct-
radiating, vented, 8-in LF cone transducer and a 1-in exit / 1.25-in
voice coil HF compression driver loaded with a large, square, user-
rotatable 90x50 coverage pattern horn built on the classic MK Series
horns. These horns deliver exceptional high frequency dispersion,
and their square shape lets users “rotate the enclosure around the
horn” to maintain directivity in a horizontal conguration.
Because VF Series full range systems (VFR/VFM) use HF sections
similar to those developed for the MK Series, EAW engineers could
employ the same revolutionary “beamwidth-matching” internal
passive crossover/lter networks that set the MK Series apart from
all other two-way systems. If powered by an EAW-specied amplier
or via a UX Series digital signal processor, the VFR89i can enjoy
the benets of EAW Focusing, a technology that eliminates the
anomalies inherent in the time domain of any loudspeaker.
The VFR89i black version includes traditional portable features such
as a pole-mount cup, parallel NL4 4-terminal connector, barrier
strip connector, an optional transformer and handles that accept
accessory covers for permanent installation. The white, installation-
only versions omit handles and the pole-mount cup but include
NL4 connector, barrier strip connector, an optional transformer, and
multiple mounting points. The new design leaves the enclosure
sides completely smooth and attractive.
Six year warranty.
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications

NOTE: This drawing has been reduced. Do not scale.
Hardwood plywood
Wear resistant textured black paint
Powder-coated perforated steel
Material
Finish
Grille
ENCLOSURE
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications
123 4
1234
A
B
C
A
B
C
PRO ENGINEER
2041383-CD-B_DWG_CUST_VFR89I
THE INFORMATION CONTAINED
HEREIN IS PROPRIETARY AND
CONFIDENTIAL PROPERTY OF
LOUD TECHNOLOGIES, INC.
ALL RIGHTS RESERVED
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
DUAL [MM] DIMENSIONS
FOR REF ONLY
TOLERANCE IN INCHES
LINEAR ± 0.13 in / ± 3.3 mm
ANGLES ± 1°
(X.XX) = REF DIMS
NO TOLERANCE IMPLIED
TSC = THEORETICAL SHARP CORNER
DIMENSIONS ACROSS CENTERLINES
TO BE SYMMETRICAL
REVISION:
DRAWING NUMBER:
THIRD ANGLE PROJECTION
TITLE:
SCALE:
1 1
www.eaw.com
16.1 [410]
5.2[133] TSC
4.60 [116.7]
3.8 [96]
9.8 [249]
10.63 [270.0]
6.00 [152.4]
4.9 [125]
1.0 [26]
7.88 [200.2]
5.38 [136.5]
(NOT TO SCALE)
5.4 [137]
2.0 [51]
5.3 [133]
10.1[257]
30°
2.1 [54]
DATECHANGE NUMBERREV
5/9/13ECOWHT9431B
2041383-CD B
ASHEET OF 0.100
DWG CUSTOMER VFR89i
[MECHANICAL SPECIFICATION]
HANDLE
NOTES: 1. SYMBOL INDICATES CENTER OF BALANCE. 2. SYMBOL INDICATES MOUNTING POINT, M10 THREADED HOLE (PI ANGLE). 3. SYMBOL INDICATES MOUNTING POINT, M10 THREADED HOLE (RIVET T-NUT). 4. SYMBOL INDICATES 2.0 [51] x 4.3 [108] x M6
MOUNTING PATTERN FOR CUSTOMER SUPPLIED MOUNTING SOLUTION. 5. SYMBOL INDICATES MOUNTING POINT, M6 THREADED HOLE. 6. WEIGHT APPROX. 22 lb [10.0 kg]. 7. SHIPPING WEIGHT APPROX. 30 lb [13.6 kg].
FRONT
GRILLE NOT SHOWN
FOR CLARITY
VIEW A-A
DIMENSIONS APPLY
TO BOTH SIDES
BACK
INPUT
TOP
TOP HAT
BOTTOM
SEE NOTE 4
VFR89i
A
A
VFR89i BLACK

NOTE: This drawing has been reduced. Do not scale.
Hardwood plywood
Wear resistant textured white paint
Powder-coated perforated steel
Material
Finish
Grille
ENCLOSURE
VFR89i WHITE
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications
123 4
1234
A
B
C
A
B
C
PRO ENGINEER
2041384-CD-A_DWG_CUST_VFR89I
THE INFORMATION CONTAINED
HEREIN IS PROPRIETARY AND
CONFIDENTIAL PROPERTY OF
LOUD TECHNOLOGIES, INC.
ALL RIGHTS RESERVED
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
DUAL [MM] DIMENSIONS
FOR REF ONLY
TOLERANCE IN INCHES
LINEAR ± 0.13 in / ± 3.3 mm
ANGLES ± 1°
(X.XX) = REF DIMS
NO TOLERANCE IMPLIED
TSC = THEORETICAL SHARP CORNER
DIMENSIONS ACROSS CENTERLINES
TO BE SYMMETRICAL
REVISION:
DRAWING NUMBER:
THIRD ANGLE PROJECTION
TITLE:
SCALE:
1 1
www.eaw.com
16.1 [410]
5.2 [133] TSC
4.60 [116.7]
9.8 [249]
10.63 [270.0]
6.00 [152.4]
4.9 [125]
1.0 [26]
7.88 [200.2]
5.38 [136.5]
(NOT TO SCALE)
5.4 [137]
2.0 [51]
5.3 [133]
10.1 [257]
30°
5.9 [150]
DATECHANGE NUMBERREV
2/22/13ECOWHT9249A
2041384-CD A
ASHEET OF 0.100
DWG CUSTOMER VFR89i
[NO HANDLES]
[MECHANICAL SPECIFICATION]
NOTES: 1. SYMBOL INDICATES CENTER OF BALANCE. 2. SYMBOL INDICATES MOUNTING POINT, M10 THREADED HOLE (PI ANGLE). 3. SYMBOL INDICATES MOUNTING POINT, M10 THREADED HOLE (RIVET T-NUT). 4. SYMBOL INDICATES 2.00 [50.8] x 4.25 [108.0] x M6 MOUNTING PATTERN FOR CUSTOMER SUPPLIED MOUNTING SOLUTION 5. SYMBOL INDICATES MOUNTING POINT, M6 THREADED HOLE. 6. WEIGHT APPROX. 22 lb [10.0 kg]. 7. SHIPPING WEIGHT APPROX. 30 lb [13.6 kg].
FRONT
GRILLE NOT SHOWN
FOR CLARITY
VIEW A-A
DIMENSIONS APPLY
TO BOTH SIDES
BACK
INPUT
TOP
BOTTOM
SEE NOTE 4
VFR89i
A
A

Beamwidth
Horizontal = orange Vertical = black
PERFORMANCE DATA
See NOTES GRAPHIC DATA for details
Frequency Response: Processed
Complete = blue
Frequency Response: Unprocessed
Complete = blue
SPL (dB) SPL (dB)
Frequency (Hz) Frequency (Hz)
Impedance
Complete = blue
Phase Linearity
Complete = blue
Ohms
Degrees
Frequency (Hz) Frequency (Hz)
Degrees
Frequency (Hz)
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications
100
10
1
10 100 1000 20000
360
100
10
1
100 1000 20000
10 100 1000 20000
100
60
70
80
90
120
110
10 100 1000 20000
-10
-50
-40
-30
-20
10
0
180
-0
-180
-90
90
10 100 1000 20000

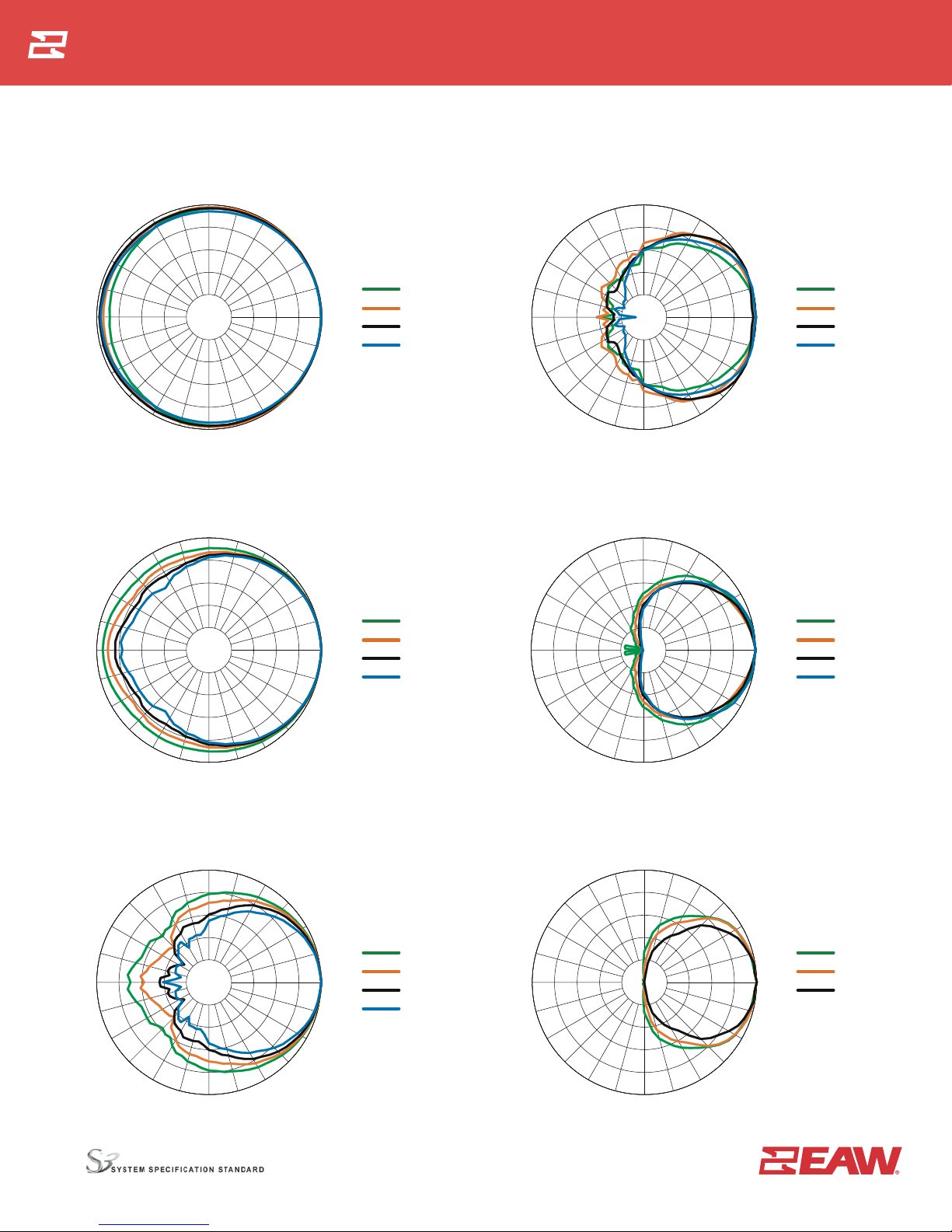

HORIZONTAL POLAR DATA
See NOTES GRAPHIC DATA for details
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
100Hz
125Hz
160Hz
200Hz
250Hz
315Hz
400Hz
500Hz
630Hz
800Hz
1000Hz
1250Hz
1600Hz
2000Hz
2500Hz
3150Hz
4000Hz
5000Hz
6300Hz
8000Hz
10000H
z
12500H
z
16000H
z

VERTICAL POLAR DATA
See NOTES GRAPHIC DATA for details
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
100Hz
125Hz
160Hz
200Hz
250Hz
315Hz
400Hz
500Hz
630Hz
800Hz
1000Hz
1250Hz
1600Hz
2000Hz
2500Hz
3150Hz
4000Hz
5000Hz
6300Hz
8000Hz
10000Hz
12500Hz
16000Hz

NOTES
TABULAR DATA
1. Measurement/Data Processing Systems: Primary - FChart: proprietary EAW software; Secondary - Brüel & Kjær 2012.
2. Microphone Systems: Earthworks M30; Brüel & Kjær 4133
3. Measurements: Dual channel FFT; length: 32 768 samples; sample rate: 48 kHz; logarithmic sine wave sweep.
4. Measurement System Qualication (includes all uncertainties):SPL: accuracy +/-0.2 dB @ 1 kHz, precision +/-0.5 dB 20 Hz to 20 kHz, resolution 0.05 dB; Frequency: accuracy +/-1 %, precision +/-0.1
  Hz,resolutionthelargerof1.5Hzor1/48octave;Time:accuracy+/-10.4μs,precision+/-0.5μs,resolution10.4μs;Angular:accuracy+/-1°,precision+/-0.5°,resolution0.5°.
5. Environment: Measurements time-windowed and processed to eliminate room effects, approximating an anechoic environment. Data processed as anechoic or fractional space, as noted.
6. Measurement Distance: 7.46 m. Acoustic responses represent complex summation of the subsystems at 20 m. SPL is referenced to other distances using the Inverse Square Law.
7. Enclosure Orientation:Forbeamwidthandpolarspecications,asshowninMechanicalSpecicationdrawing.
8. Volts: Measured rms value of the test signal.
9. Watts:Peraudioindustrypractice,“loudspeakerwatts”arecalculatedasvoltagesquareddividedbyratednominalimpedance.Thus,thesearenotTrueWattunitsofenergyasdened
by International Standard.
10. SPL: (Sound Pressure Level) Equivalent to the average level of a signal referenced to 0 dB SPL = 20 microPascals.
11. Subsystem: This lists the transducer(s) and their acoustic loading for each passband. Sub = Subwoofer, LF = Low Frequency, MF = Mid Frequency, HF = High Frequency.
12. Operating Mode:Userselectablecongurations.Betweensystemelements,acomma(,)=separateamplierchannels;aslash(/)=singleamplierchannel.DSP=DigitalSignalProcessor.
  IMPORTANT:Toachievethespeciedperformance,thelistedexternalsignalprocessingmustbeusedwithEAW-providedsettings.
13. Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band
dips are excepted.
14. Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.
15. Axial Sensitivity: Power averaged SPL over the Operating Range with an input voltage that would produce 1 W at the nominal impedance; measured with no external processing on
the geometric axis, referenced to 1 m.
16. Nominal Impedance: Selected 4, 8, or 16 ohm resistance such that the minimum impedance point is no more than 20% below this resistance over the Operating Range.
17. Accelerated Life Test:MaximumtestinputvoltageappliedwithanEIA-426Bdenedspectrum;measuredwithrecommendedsignalprocessingandRecommendedProtectionFilter.
18. Calculated Axial Output Limit: Highest average and peak SPLs possible during the Accelerated Life Test. The Peak SPL represents the 2:1 (6 dB) crest factor of the Life Test signal.
19. High Pass Filter: This helps protect the loudspeaker from excessive input signal levels at frequencies below the Operating Range.
GRAPHIC DATA
1. Resolution:Toremoveinsignicantnedetails,1/12octavecepstralsmoothingwasappliedtoacousticfrequencyresponsesand1/3octavecepstralsmoothingwasappliedtothebeamwidthand 
impedance data. Other graphs are plotted using raw data.
2. Frequency Responses: Variation in acoustic output level with frequency for a constant input signal. Processed: normalized to 0 dB SPL. Unprocessed inputs: 2 V (4 ohm nominal impedance), 2.83 V (8
ohm nominal impedance), or 4 V (16 ohm nominal impedance) referenced to a distance of 1 m.
3. Processor Response: The variation in output level with frequency for a constant input signal of 0.775 V = 0 dB reference.
4. Beamwidth:Averageangleforeach1/3octavefrequencybandwhere,startingfromtherearoftheloudspeaker,theoutputrstreaches-6dBSPLreferencedto0dBSPLasthehighestlevel.Thismethod
means the output may drop below -6 dB SPL within the beamwidth angle.
5. Impedance: Variation in impedance magnitude, in ohms, with frequency without regard to voltage/current phase. This means the impedance values may not be used to calculate True Watts (see 9 above).
6. Polar Data: Horizontal and vertical polar responses for each 1/3 octave frequency band 100 Hz to 16 kHz or Operating Range.
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel [phone] • fax [phone] • www.eaw.com
July 2013Part Number: RD0758 Rev B00EAW products are continually improved. All specications are therefore subject to change without notice.
VFR89i Specifications
INPUT PANEL SIGNAL DIAGRAM
LEGEND
HPF: High Pass Filter for crossover –or– Recommended High Pass Filter.
LPF: Low Pass Filter for crossover.
LF/MF/HF: Low Frequency / Mid Frequency / High Frequency.
AMP: User Supplied Power Amplifier –or– Integral Amplifier for NT products.
XVR: Passive LPFs, HPFs, and EQ integral to the loudspeaker.
EAW Focusing: Digital Signal Processor capable of implementing EAW Focusing.
HPF
2-Way, Single-Amp (LF/HF)
AMP XVR
HF
LF
PIN 1−...− PIN 1+...+
LOOP THRU
THIS PRODUCT HAS M10 MOUNTING POINTS. SEE OWNER’S MANUAL.
FOR USE WITH ACC-TXVFR
(PLACE LABEL HERE)
REV: DESCRIPTION:
REVISIONS
A00 NEW ISSUE PER ECOWHT8057 MJC
DWG SPEC/INPUT JETRAY
SCALE:
2037471-SD
MJC 11/1/11
DRAWING NUMBER:
DATE:
DRAWN BY:
1 of 1
1:1
REV:
A00
LOUD TECHNOLOGIES INC, ALL RIGHTS RESERVED
ONE MAIN STREET, WHITINSVILLE, MA 01588 USA
LOUD Technologies Inc.
TITLE:
SHEET:
ADOBE ILLUSTRATOR
