INSTALLATION INSTRUCTIONS
E6100-25, E6100-38, E6100-50

Complies with IAPMO IGC 195-2013a, and ASME A112.18.2/CSA B125.2-2015 Standards.
Complies with 2015, 2012, 2009 and 2006 (IRC) (IPC) (UPC) codes, and 2015 and 2010 (NPC) code.
Patents: US14626581, US15192379, US1549663
Visit www.ebbe-america.com Or go to
ebbe America on YouTube for installation videos.
801-820-7200 Hours: M-F 9AM -5PM MST
[e-mail]
IMPORTANT: Always obtain approval from local code
official before installation.
TABLE OF CONTENTS
INNI PARTS LIST....................................................................................................................... 3
INNI DRAIN TERMINOLOGY………………………………………………………………………………………………. 4
CHOOSE AND PREP THE INSTALLATION LOCATION………………………………………………………….. 5
CUTTING THE INNI TO SIZE…………………………………………………………………………………………….. 6
ASSEMBLING THE INNI…………………………………………………………………………………………………… 7-10
WATER TESTING THE INNI …………………………………………………………………………………………….. 11
INSTALLING THE INNI……………………………………………………………………………………………………… 12
CREATE SLOPE AND WATERPROOF SHOWER………………………………………………………………......... 13

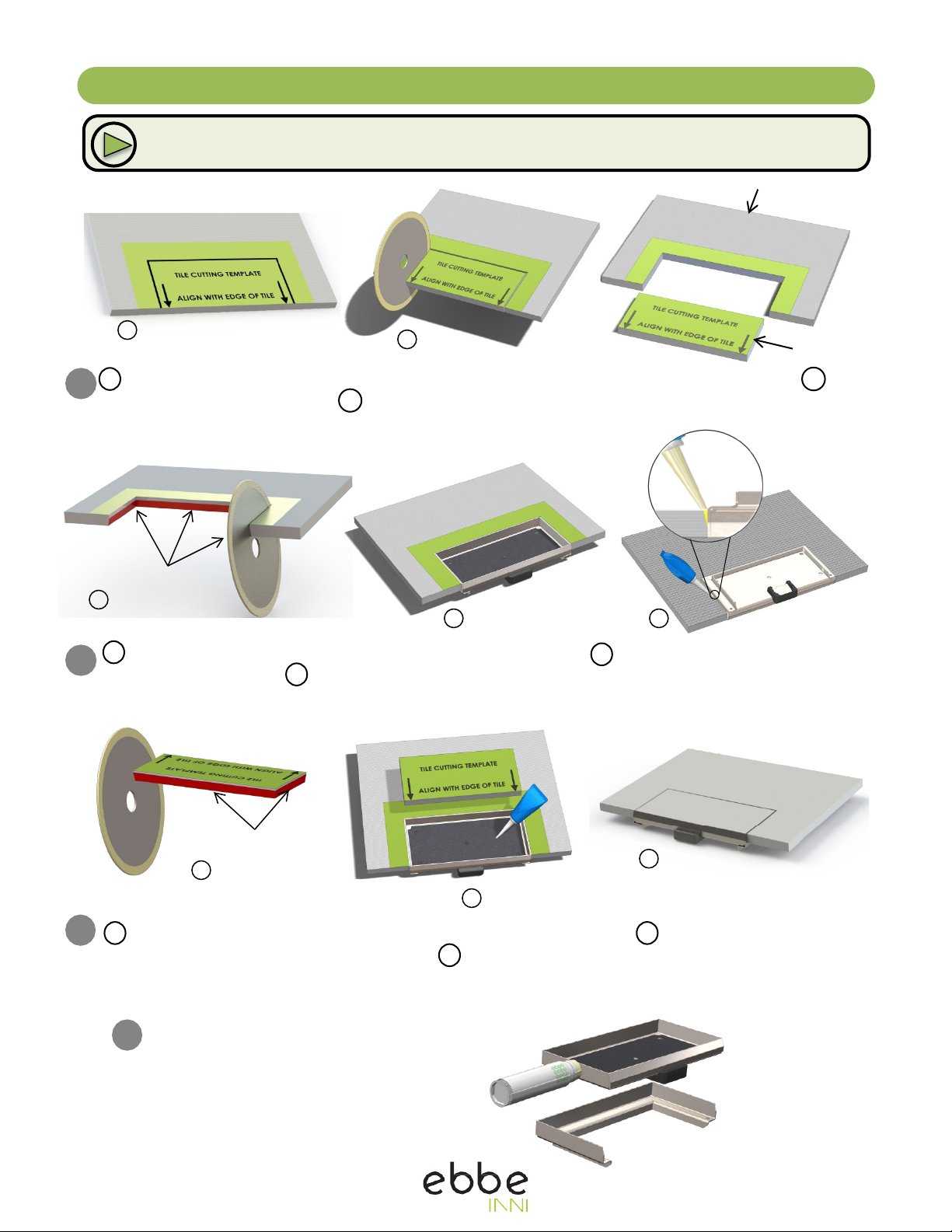

ACCESS COVER INSTALL - LARGE TILE………………………………………………………………………………….. 14
ACCESS COVER INSTALL - SMALL TILE………………………………………………………………………………….. 15
IN-SHADOW INSTALLATION DETAILS…………………………………………………………………………………. 16
AT-WALL INSTALLATION DETAILS………………………………………………………………………………………. 17
IN-SIGHT INSTALLATION DETAILS…………………………………………………………………………………….. 18
INNI ACCESSORIES……………………………………………………………………………………………………………. 19
INNI CARE AND MAINTAINENCE GUIDE…………………………………………………………………………….. 20-21
TOOLS AND SUPPLIES NEEDED FOR INSTALL……………………………………………………………………… 22
2

All Rights Rights Reserved © Ebbe America 2020

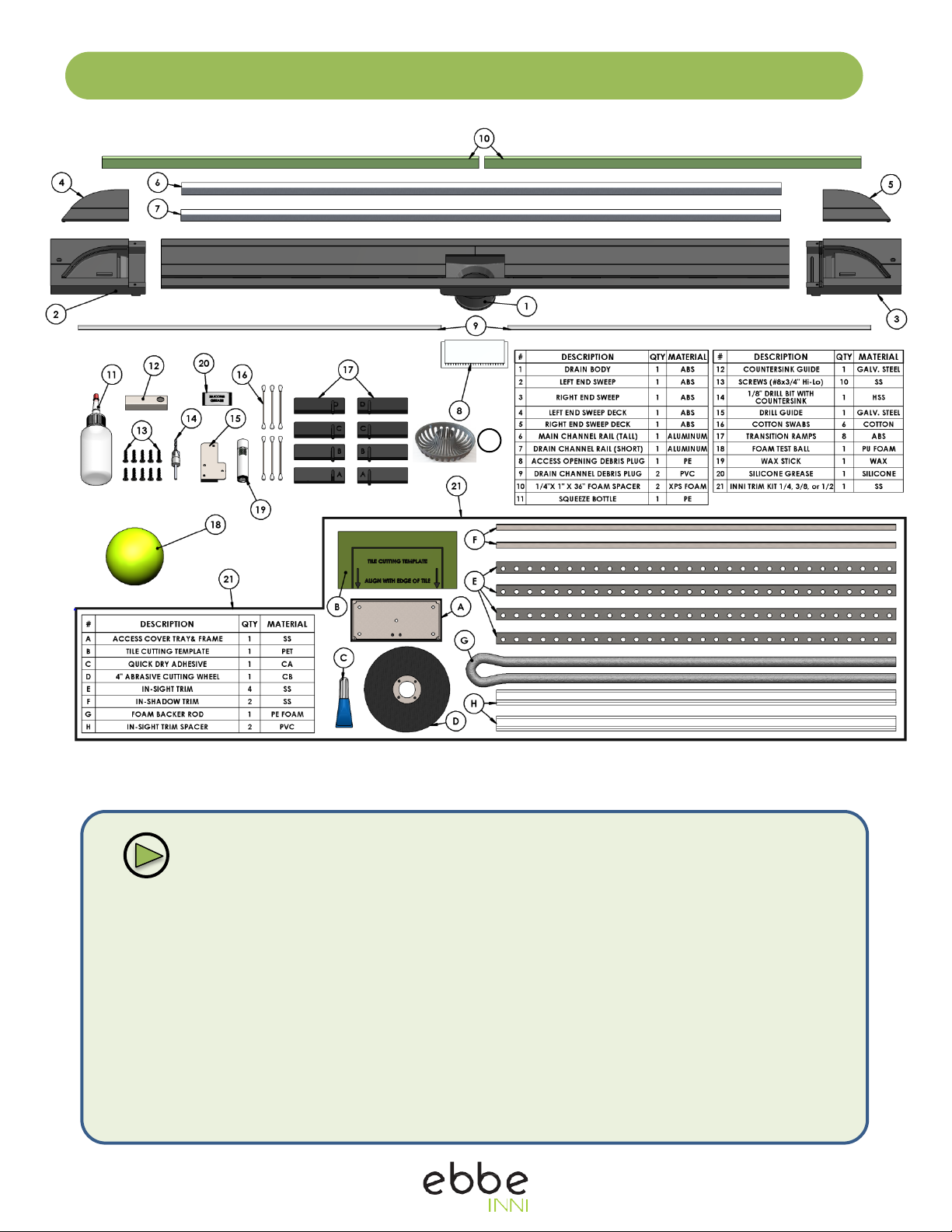

INNI PARTS LIST ( FOR KITS E6100-25 E6100-38 AND E6100-50)
TRIM KITS WILL INCLUDE ONE SET OF 14"
⁄−38" ⁄−OR 12" ⁄TRIMS
3
Congratulations on your purchase of the INNI Line Drain. We
believe you’ll find the INNI to be the best linear drain available.
The INNI drain is the perfect addition to complete your dream bathroom.
These instructions are designed to guide you through:
•Choosing the best installation location for your INNI
•Custom cutting and assembling the INNI to fit your shower.
•Water testing the assembled INNI to ensure no water leaks
•Installing the Trim to create a clean, finished look
22 INNI HAIR TRAP 1 HDPE
22

4

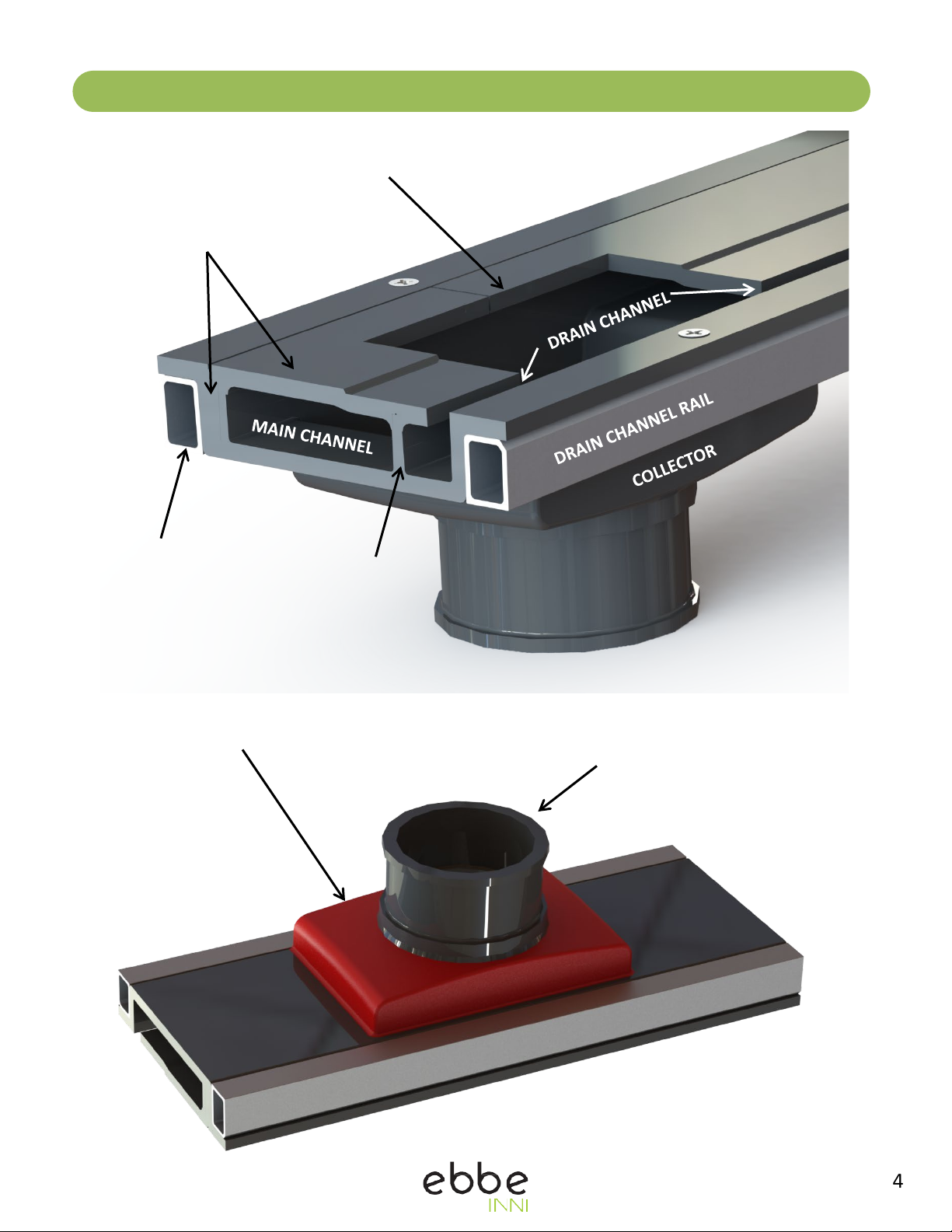

INNI DRAIN TERMINOLOGY
The area highlighted in red is the “Collector.” A 4”x6”rectangular hole needs to be made
through the subfloor so the Drain Body can sit flat on the subfloor.
DRAIN BODY
DRAIN BODY
Drain Outlet fits over 2”
ABS waste pipe
For more information visit ebbe-america.com
SUPPORT RIB
DRAIN BODY
ACCESS OPENING
DRAIN OUTLET
MAIN CHANNEL
RAIL

4” X 6” Collector
cut out (See pg. 4)
Drain pipe center based on 1/2”
Wallboard and 3/8” thick wall tile.
Adjust as needed for different tile
thickness so the face of wall tile
aligns with Drain Channel side face of
Access cover.
WALL TILE
FLOOR TILE
INNI DRAIN
WATER FLOW
AT-WALL Install
(WALL TILE FLUSH WITH DRAIN CHANNEL)
WATER FLOW
FLOOR TILE
WALL TILE
½” TILE BACKER
IN-SHADOW Install
(WALL TILE OVERHANGS DRAIN CHANNEL)
INNI DRAIN
IN-SIGHT Install
(AT ENTRANCE, CENTER OF SHOWER, ETC)
FLOOR TILE FLOOR TILE
WATER FLOW
WATER FLOW
INNI DRAIN
IN-SHADOW Plumbing Prep
IMPORTANT: At Entry install requires IN-SIGHT Trim &
shower enclosure. (See pg.18 for more information.)
IN-SIGHT Plumbing Prep
Drain pipe center based on 1/2”
Wallboard and 3/8” thick wall tile.
Adjust as needed for different tile
thickness so wall tile will be flush
with Drain Channel when completed.
Your first decision is to determine where the INNI will be installed. Will it be at the entrance
or center of the shower? Will it be against a wall or curb? Will the Drain Channel be hidden
under the wall tile? Keep in mind that your installation options may be limited by obstructions, such
as floor joists, ducting, or plumbing. After you decide where you want to install the INNI, see below
to prepare the installation location. – (See pgs. 16,17,18 for Trim installation details)
5
All Rights Rights Reserved © Ebbe America 2020
CHOOSE AND PREP THE INSTALLATION LOCATION
4” X 6”
Collector cut
out (See pg. 4)
4” X 6”
Collector cut
out (See pg. 4)
AT-WALL Plumbing Prep

With End Sweeps, the INNI is 73-3/8” long. If your shower isn’t this exact size, cut the
Drain Body to fit your shower. If a longer length is needed, the Drain Coupler kit can be
used to join two INNI’s. (See pg. 19 for information on the Drain Coupler kit).
For more information visit ebbe-america.com
Mark the Final DrainBody Cut:
•Put the Drain Body in the desired location
•Place the left and right End Sweeps against
the left and right walls respectively.
•Use a square and pen to mark the Drain
Body at the End Sweep drop down location
as shown. The Drain Body is now ready for
the final cut.
Dry Fit the Drain:
After cutting, de-burr parts, dry-fit the
Drain Body and End Sweeps together and
verify the assembly fits the space. Adjust
as needed.
a Rough Cut the Drain Body:
Measuring from the center of the waste pipe, cut the Drain Body within 4” of each wall so it fits
into the space and connects to the waste pipe. Don’t worry the Drain Body is cut short of the
walls; the End Sweeps will make up the remaining distance.
b
d
4” MAX
cFinal Cut of the Drain Body:
Cuts can be made with a variety of tools,
however, make sure cuts made to the
Drain Body are NEAT andSQUARE.
CUTTING THE INNI TO SIZE
6

All Rights Rights Reserved © Ebbe America 2020
Remove Support Rib (Only if Needed):
IF the final cut intersects a Support Rib on the Drain Body, then you will need to remove the overhung
portion of the Support Rib on the Ramp so they won’t interfere with each other when the End Sweeps
are connected.
Bond Left and Right Transition Ramps into End
Sweeps
Bond the Ramps into the End Sweeps using the
Squeeze Bottle and ABS cement. Clean off any
excess cement.

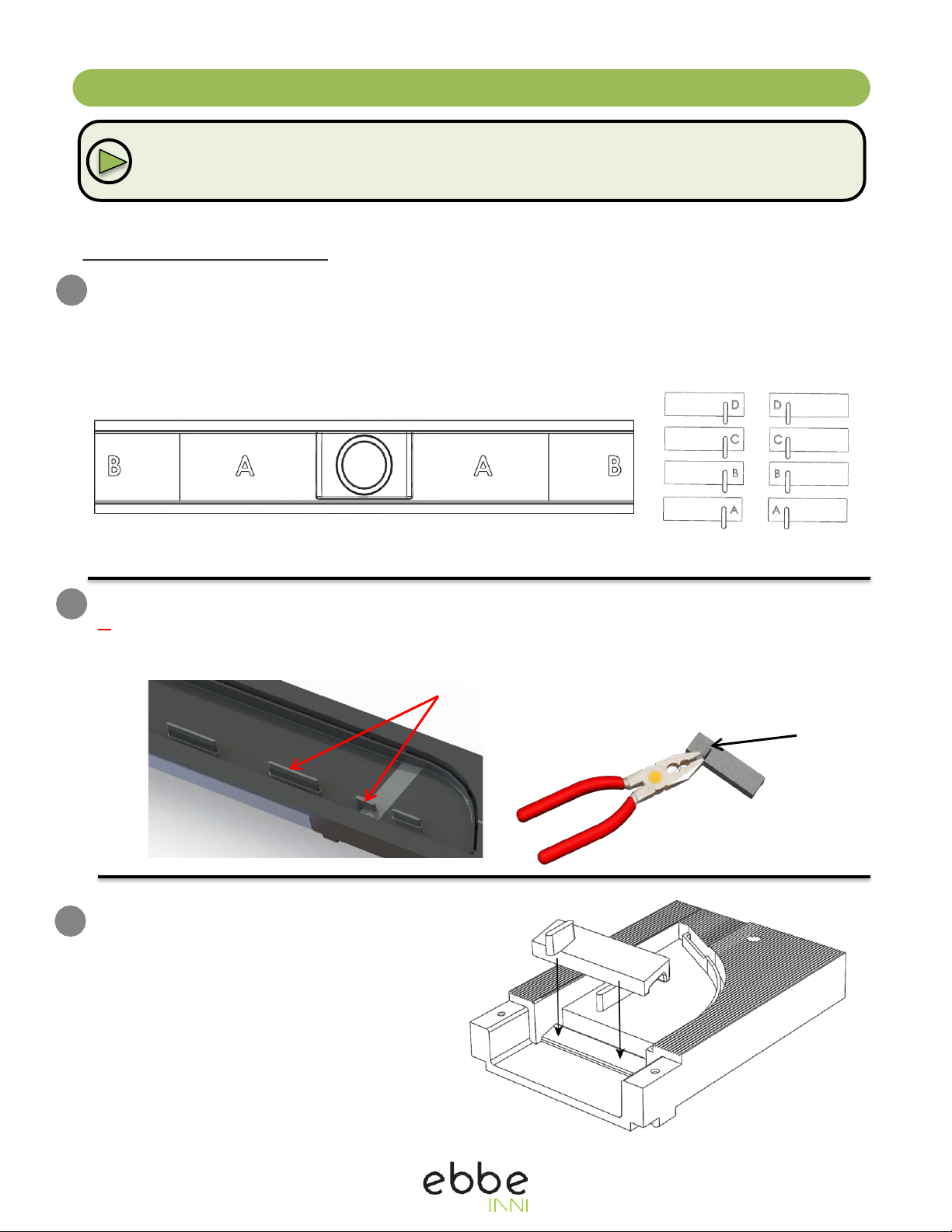

Identify the Correct Transition Ramps:
On the under-side of the Drain Body you will see zones marked A,B,C, D (1). Transition Ramps (2) are also
marked A,B,C, or D. Choose the Ramp that matches the zone where the final cut has been made. Dry fit the
Ramps to each End Sweep. Ramps provide a smooth transition between the Main Channel and the End
Sweep.
b
c
ASSEMBLING THE INNI
Install the Transition Ramps to create a smooth internal flow surface, permanently connect
the End Sweeps to the Drain Body, install the End Sweep Decks and add aluminum Rails for
strength.
(1) (2)
Support Rib
a
1. Install Transition Ramps
7
Ribs may interfere depending
on Drain Body Cut

8

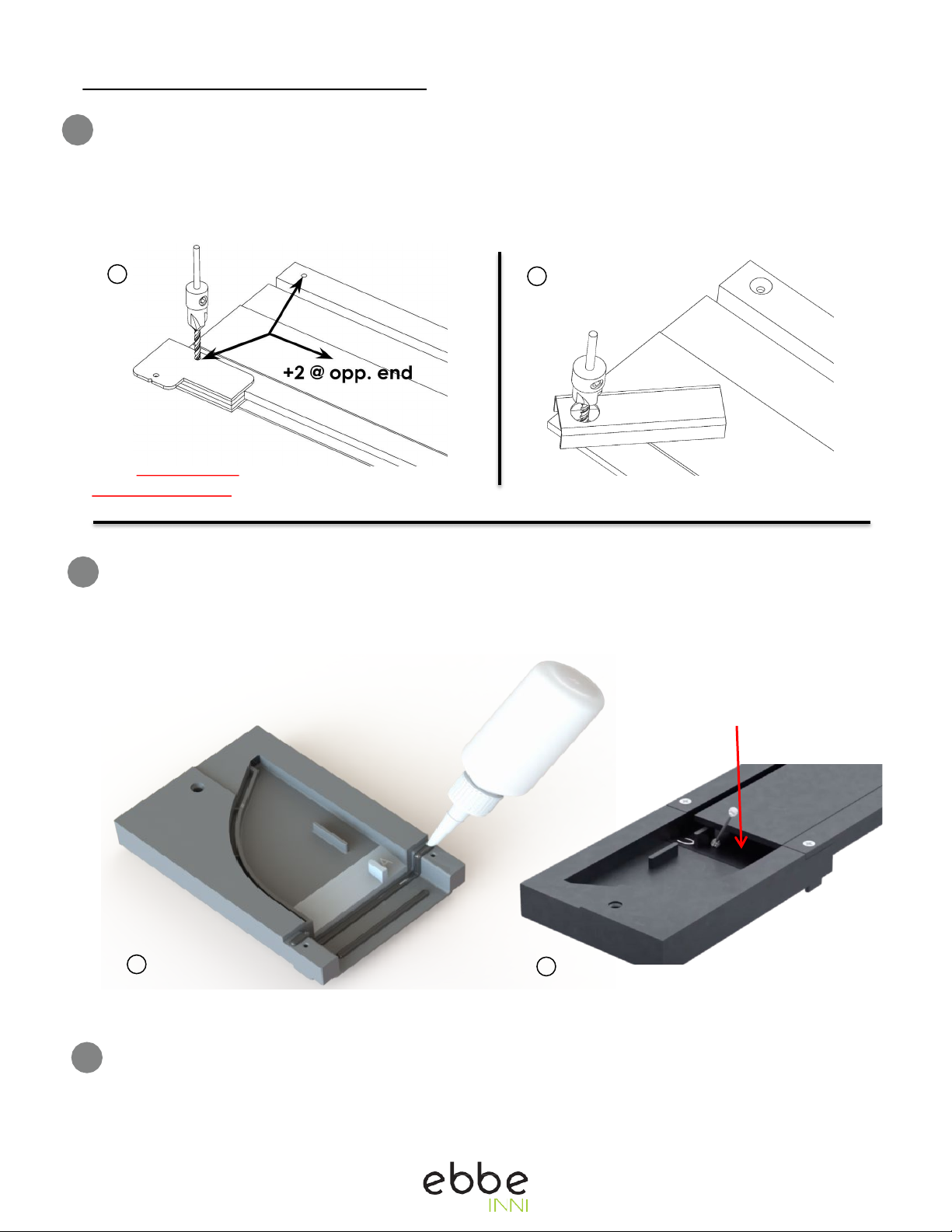

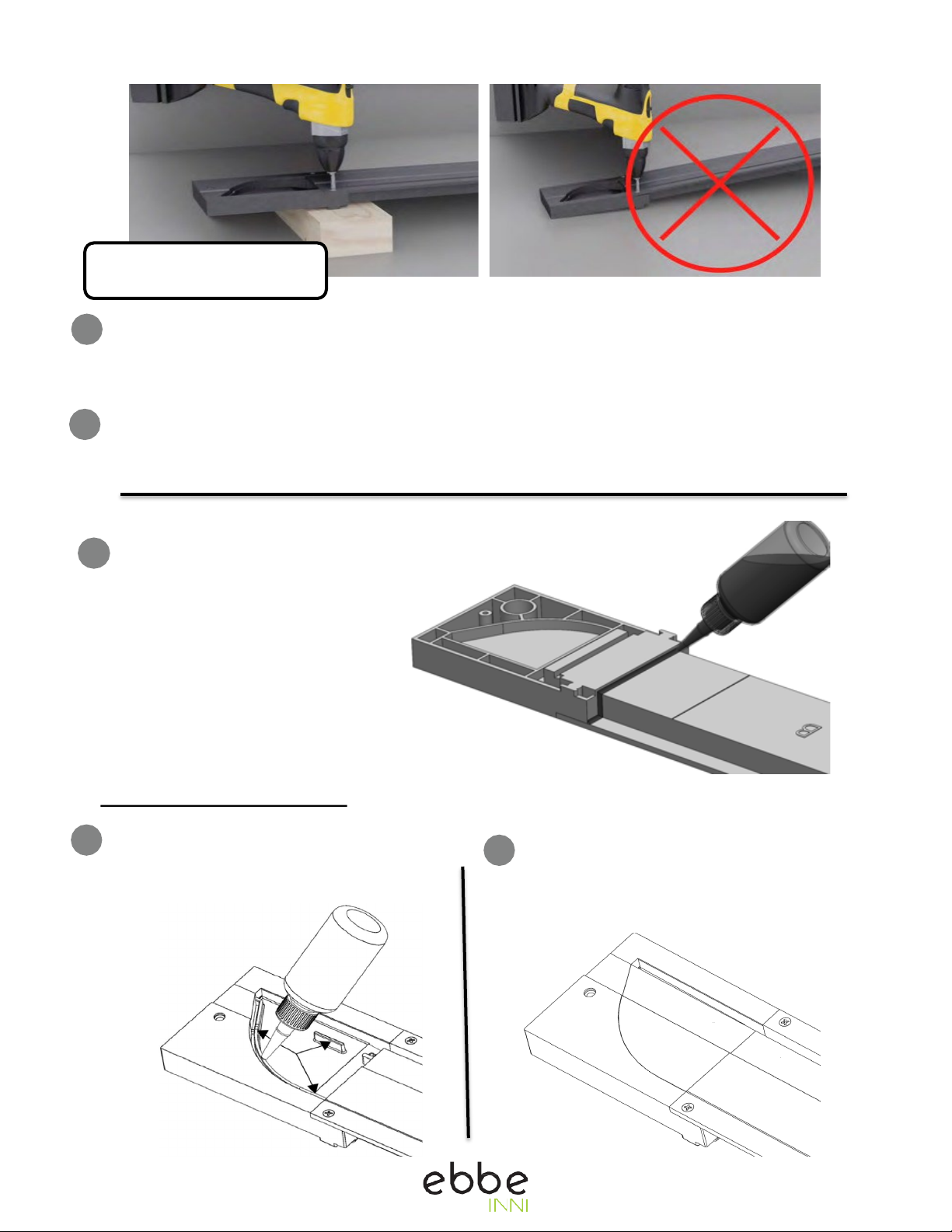

Drill First, Then Countersink for Screws
1. Use the Drill Guide and Drill Bit to create holes at the four corners of the Drain Body.The
drilled holes must align precisely with the pilot holes in the End Sweep.
2. Use the Countersink Guide to recess the holes for the Screw heads. The Countersink Guide limits
countersink depth and ensures the Screws will be flush with the Drain Body.
a
2. Attach Left and Right End Sweeps
Seat Drill Guide into
the corner of the Drain
Body. Holes Must Be
Accurately Located.
Prepare to Attach the End Sweep to the Drain Body:
1. Pour ABS cement into the Squeeze Bottle and apply two lines of ABS cement to the End
Sweep as shown below. Use sufficient cement to allow a small amount of "squeeze out."
2. Use Cotton Swabs to remove excess cement at inner drain seam.
b
IMPORTANT: Apply two lines of ABS cement as shown to provide for air escape during assembly.
If air is trapped by improper application, it can create a pathway for water escape.
!
Remove excess
cement from here.
1 2
1 2

For more information visit ebbe-america.com
Attach End Sweep to the Drain Body:
After applying ABS cement, you have approximately 30 seconds to join the End Sweep with the
Drain Body using the provided Screws. Remove any excess ABS cement from the Main Channel
flow surfaces.
Fill Gaps with ABS Cement
“Caulk”the back side of the End
Sweep and Drain Body joint with
ABS cement. Fill any visible gaps
with ABS cement and let cure.
d
c
!
Prep for End Sweep Deck:
Apply ABS cement to the top of the curved
Rib and Support Ribs as shown.
a
3. Install End Sweep Decks
Install the End Sweep Deck:
Push the Deck into position. When fully
seated, the Deck should sit flush with
the surrounding surfaces.
b
9
CAUTION: Attempting to adjust the End Sweep/Drain Body alignment after the ABS
cement has cured will cause a joint failure.
Place the INNI on a block at the
joint to prevent misalignment

All Rights Rights Reserved © Ebbe America 2020

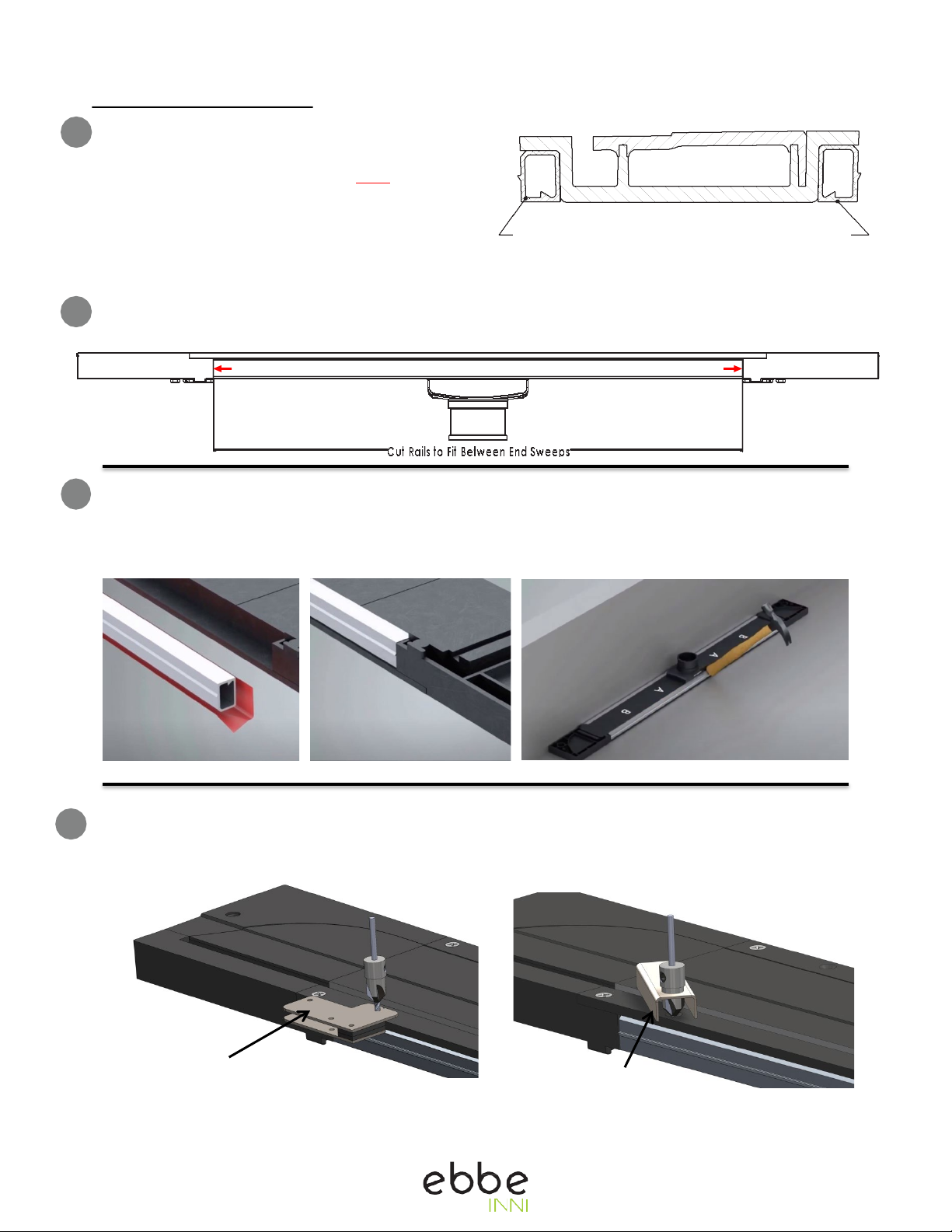

IMPORTANT: Two aluminum Rails are provided
with the INNI and will need to be shortened if the
drain has been cut. The Rails are NOT the same
height. The Drain Channel Rail (short) is labeled.
You can verify that the Rails are in the correct
locations if they are flush with the bottom of the
Drain Body.
Drill and Countersink for Rail Attachment Screws: Use the Drill Guide, Countersink Guide, and Drill Bit
to make six countersunk holes through the Drain Body and Rails. Screws should be roughly placed at
each end and center of both Rails. Do not over-tighten the Screws.
Congratulations! Assembly is complete.
a
c
!
!
3. Install Stiffening Rails
Measure and Cut Rails: Measure the distance between the End Sweeps and cut the Rails to length.
Both Rails should be the same length.
bClean Surfaces and Install Rails: Clean the surfaces where the Rails will be mounted. Remove the
pink release liner from one Rail and forcefully install the Rail into position. Use a piece of wood
to push and rub along the length of the Rail to make sure it is completely seated. Repeat this
process for the opposite rail.
10
Drill Guide Countersink
Guide
Drain Channel Rail Main Channel Rail

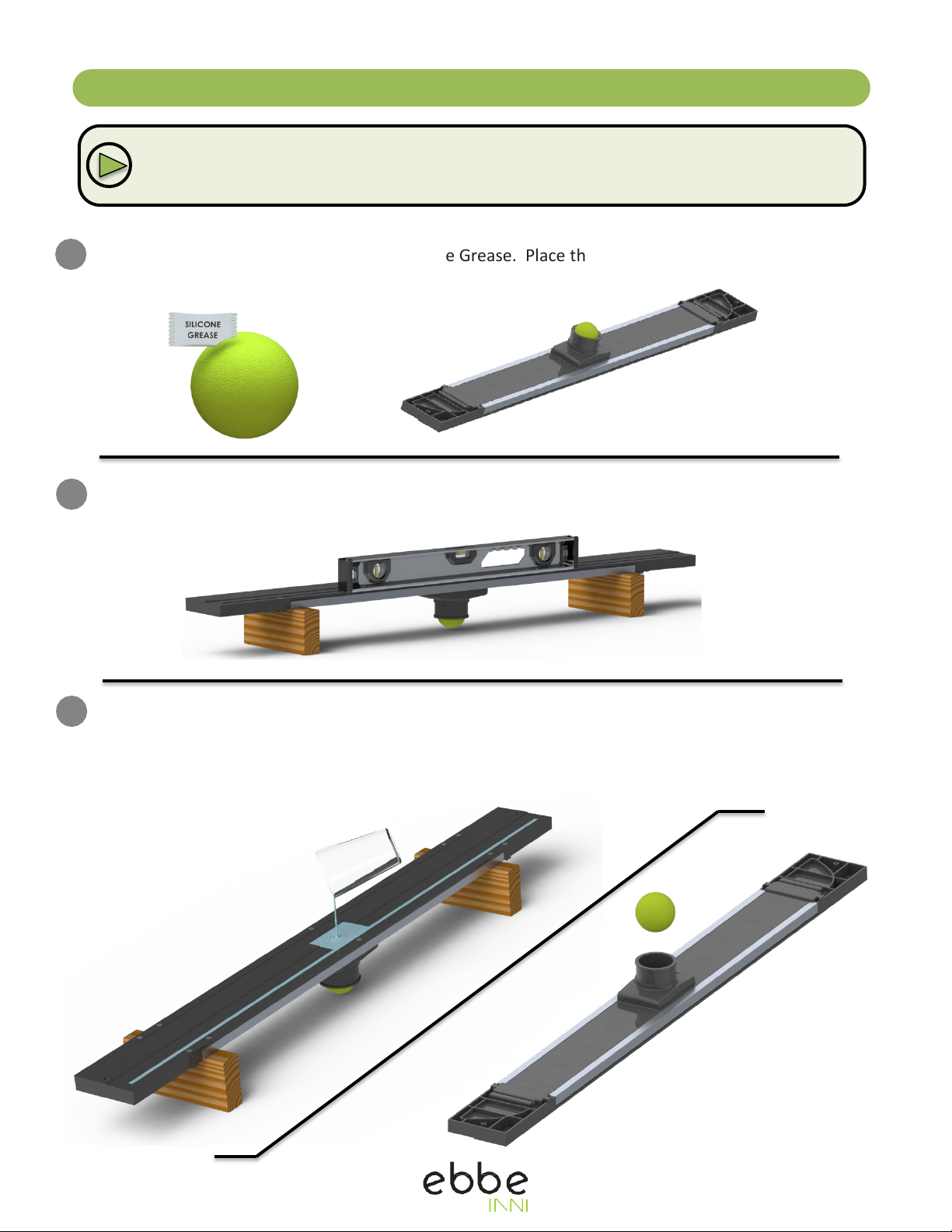

WATER TESTING THE INNI
After assembly you need to water test the assembled INNI for any leaks. The INNI should
be tested before installation and after waterproofing the shower floor to ensure that any
problems are addressed before tile installation.
aInsert Test Ball: Coat the test ball with Silicone Grease. Place the Test Ball into the Drain Outlet to
create a temporary watertight seal.
bBlock and Level the Drain: Support the INNI on blocks and make sure it’s level.
cFill with Water and Look for Leaks: Completely fill the INNI with water and verify that there are no
leaks. Best practice is to leave the INNI filled for a minimum of one hour. If any leaks are found,
repair leaking areas with ABS cement. Repeat until there are no leaks. Remove Test Ball before
installation.
11
For more information visit ebbe-america.com

All Rights Rights Reserved © Ebbe America 2020
Note: When bonding the INNI to a PVC waste pipe be sure to use the appropriate bonding cement.
!
•Cast with slab
•Installed in a recessedslab with deck mud.
If installing on top of concrete, use a minimum 3/8" x 3/8” notched trowel to apply thinset where the
INNI will be installed. Apply ABS cement to the Drain Outlet and the waste pipe and push them together.
a
a
1. Using a minimum 3/8" x 3/8" notched trowel, apply a layer of thinset or urethane sealant where
the INNI will be installed. 2. Fill the voids in the bottom of the End Sweeps with thinset.
3. Apply ABS cement to the Drain Outlet and the waste pipe and push them together.
b
The INNI can be used in concrete applications in the followingscenarios
•On top of slab for showers with curbs

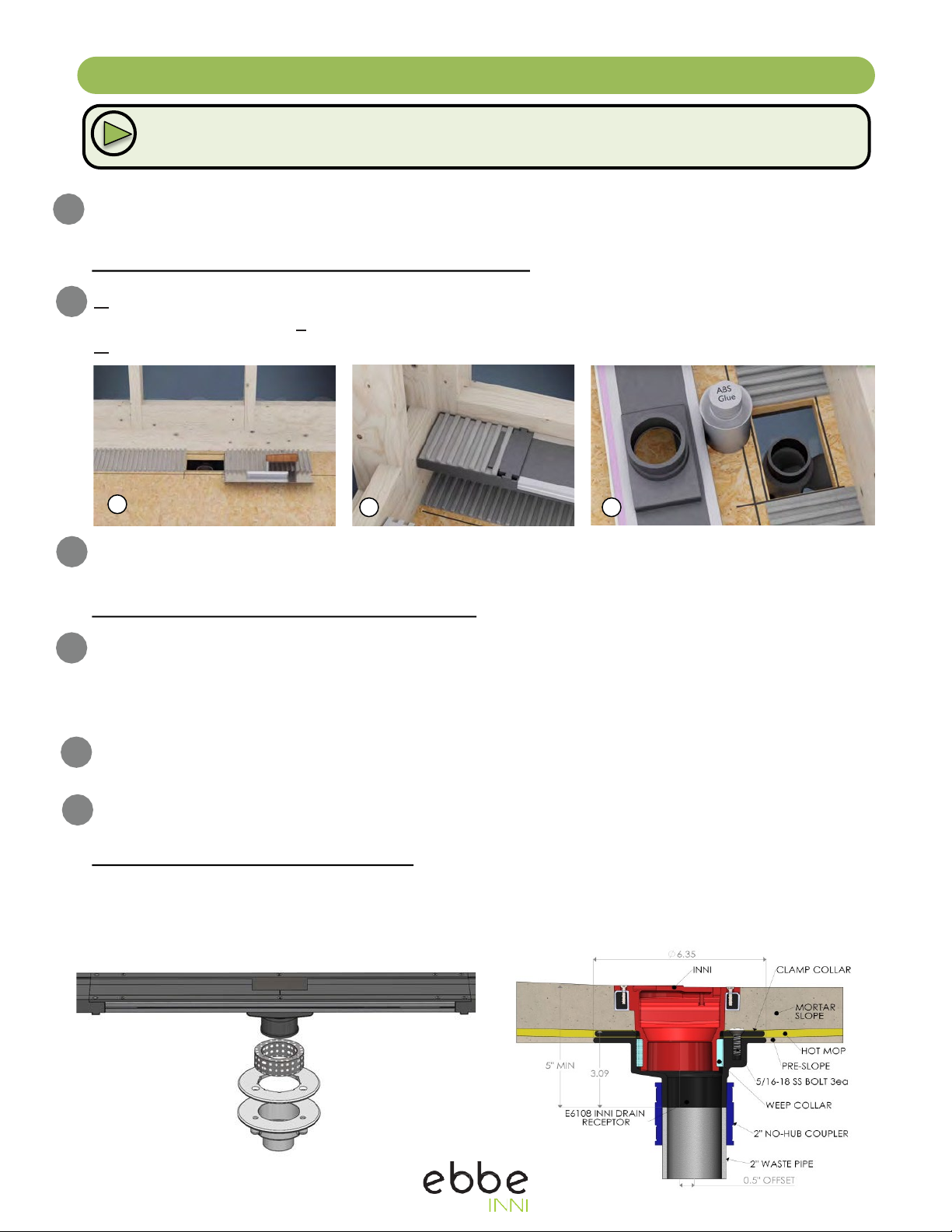

INSTALLING THE INNI
Attach the drain to the waste pipe and bond it to the floor with thinset. For a Hot Mop
application, install the INNI with the final mortar bed after tar waterproofing.
1. Installing the INNI in a Wood Framed Floor
Use a spirit level to verify that the INNI is absolutely level. Adjust the INNI as needed to ensure a
level installation. If the INNI is not leveled, it won’t drain properly.
!
2. Installing the INNI in a Concrete Floor
Before and during casting the INNI into concrete, it’s critical to keep it straight and level.
!

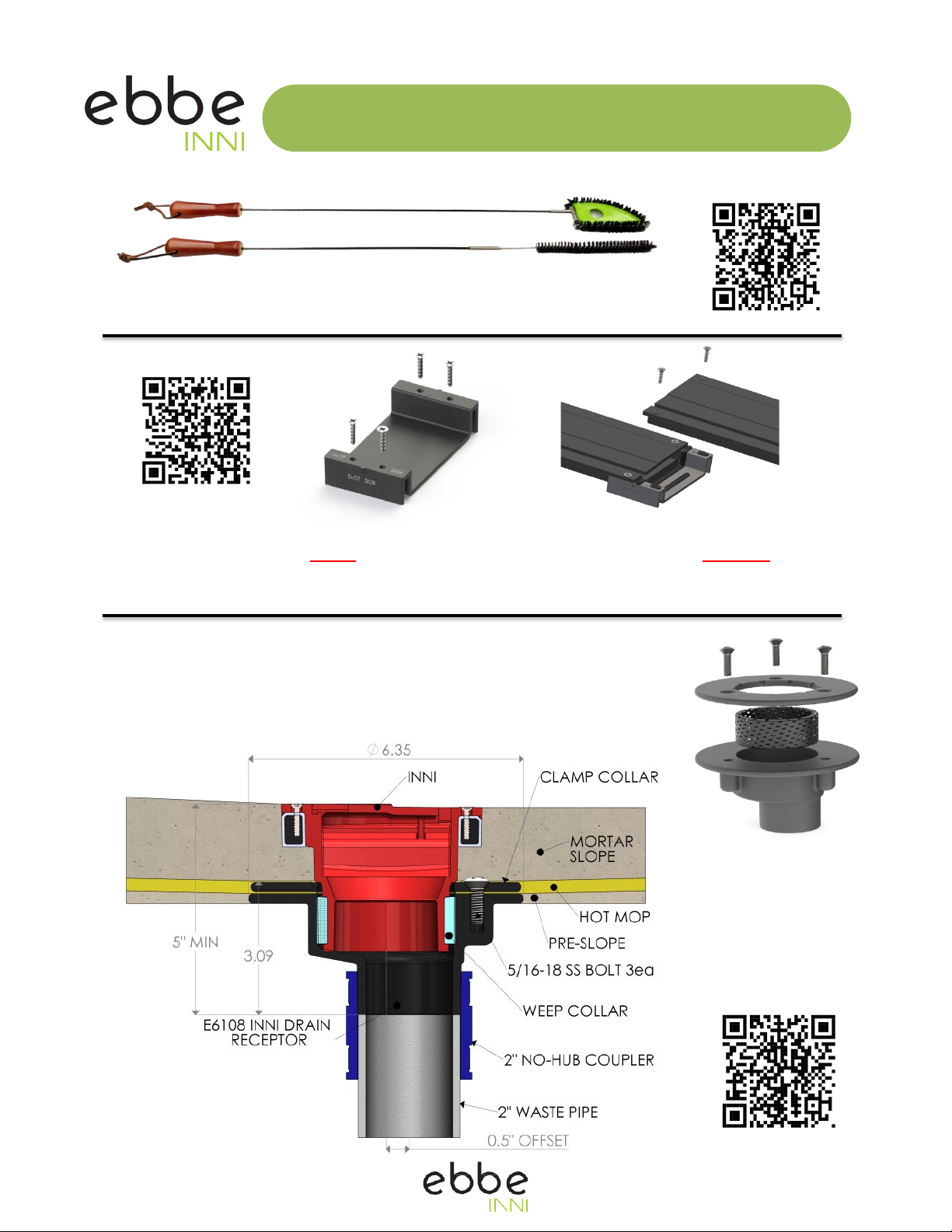

3. Installing the INNI For Hot Mop
The INNI can be used in a hot mop and mortar bed application with the addition of the Hot Mop
Receptor Kit. Install the Receptor , then simply slip the INNI and Weep Collar into the Receptor. The
mortar bed will surround and support the INNI. (See pg. 19)
12
1 2 3

For more information visit ebbe-america.com
a
b
1.Apply thinset to the subfloor. 2.Place mortar over fresh thinset. 3.Screed mortar to desired slope and let cure.
<If using a pre-fabricated shower slope follow all manufacturer’s directions>
1.Install Debris Plugs 2.Caulk all joints and prepare for surface applied waterproofing membrane. 3.Apply
waterproofing up walls/framing a minimum of 5". Follow all waterproofing manufacturer's recommendations.
After installing the wall tile backer, waterproof the entire shower with a fluid applied or sheet waterproofing
membrane per manufacturers recommendations. Water test the shower floor for several hours. Install desired
trim, and begin tile installation.
d
1.Coat all faces of wall tile backer up min of 5" with liquid waterproofing to prevent wicking. 2.Apply a generous
bead of sealant at the floor/wall transition. 3. Embed the coated tile backer into the sealant and secure to the
wall. 4. Apply sealant at the corner of the previously installed tile backer before installing the next piece.
CREATE SLOPE AND WATERPROOF SHOWER
After the INNI is installed, create a slope towards the drain, install the tile backer and
waterproof the shower assembly.
c
!If the INNI is installed In-
Shadow, you will need to
Install the In-Shadow Trim
before installing the wall tile.
2 3
13
1
2 31
2 3
1 4

ACCESS COVER INSTALL – LARGE TILE
If your tile is greater than 6”x6” follow the steps below for Access Cover installation. If your
tile is smaller than 6”x6” inches proceed to page 15.
1Adhere the Cutting Template to the edge of the tile that aligns with the Access Opening. 2 Cut
precisely along the black line. 3Remove the Access Cover Tile from the Field Tile. Cut precisely to
the template. The Quick Dry Adhesive will not span large gaps. The Access Cover Frame should fit
tightly to the Field Tile.
a
1Lightly bevel the bottom edges of the Field Tile 1-5 degrees. 2 Install the Access Cover Tray and
Frame into the cutout. 3Turn over onto a flat surface, making sure the rim of the Access Cover Frame
and Field Tile are flush. Apply Quick Dry Adhesive between the Field Tile and Access Cover Frame.
b
1Lightly bevel the bottom edges of the Access Cover Tile until it fits. 2 Use thinset mortar or Quick
Dry Adhesive to bond the tile into the Tray. 3Remove the Cutting Template as soon as possible. This
assembly can now be installed.
c
NOTICE: Use the supplied Wax Stick to
wax the Access Cover tray. Waxing the
Cover prevents accidental bonding of
mortar or adhesive. It also prevents
mineral build up and aids in future
removal.
!
14
For more information visit ebbe-america.com
1 2
1
2 3
1
2
3
Bevel lower
edge
Bevel Lower
edges
Field Tile
Access Cover
Tile

For more information visit ebbe-america.com

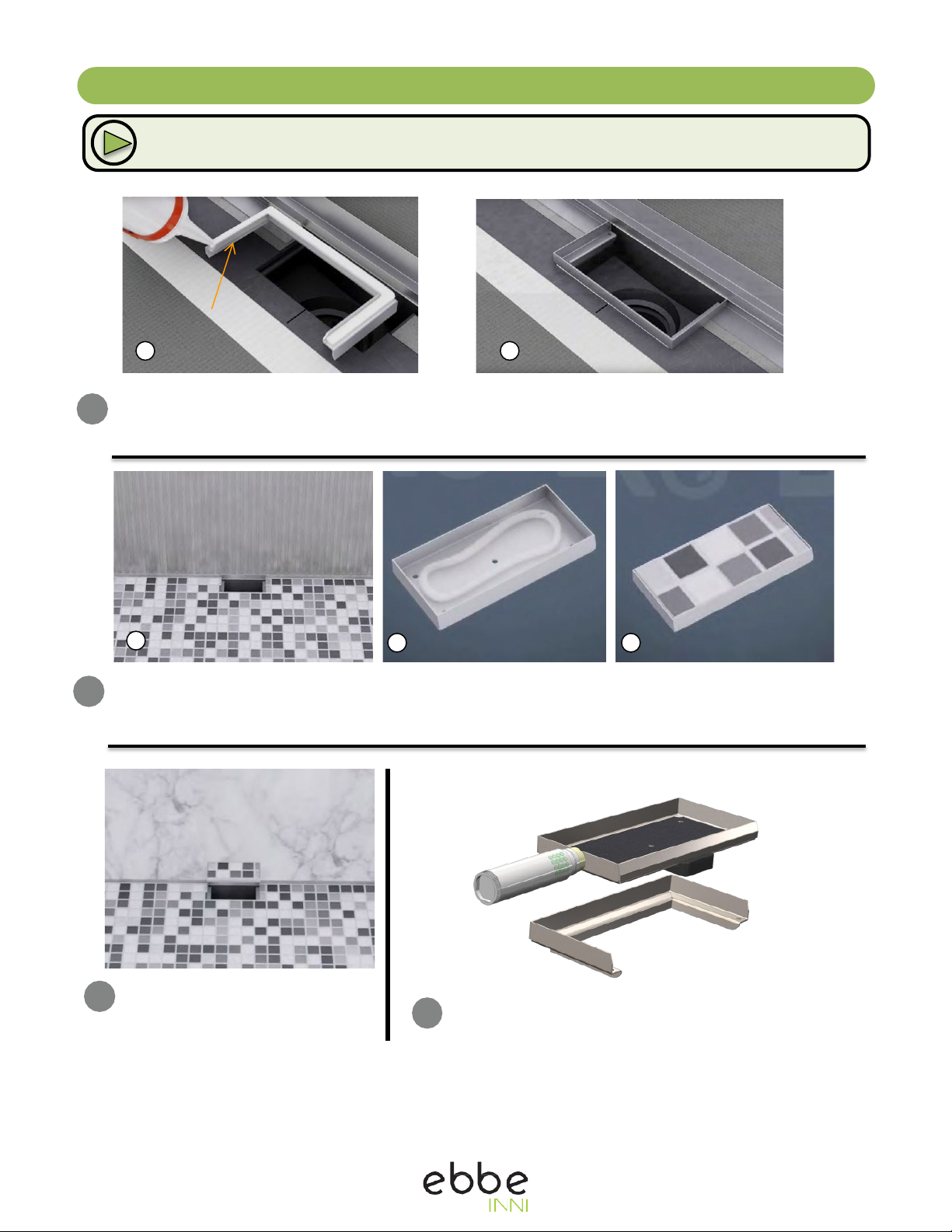

1. Apply sealant to the Access Cover Frame and set into the Access Opening.
2. Align the Frame with the Drain Channel edge or In-Sight trim.
1. Cut and install the floor tile around the Access Cover Frame.
2. Apply sealant, thinset, or quick dry adhesive to Access Cover Tray 3. Cut and install Access
Cover tile flush with Tray perimeter.
b
Re-Install the Access Cover Tray
by angling the cover down to
the Drain Channel until the ball
detents catch the Access Cover
Frame. Push the cover down
until flush.
ACCESS COVER INSTALL – SMALL TILE
If your tile is smaller than 6” follow the steps below to install the Access Tray. If your tile is
6” or larger, see page 14
a
cNOTICE: Use the supplied Wax Stick to wax the
Access Cover Tray. Waxing the cover prevents
accidental bonding of mortar or adhesive. It also
prevents mineral build up and aids in future
removal.
!
15
1 2 3
1 2
Access Cover Frame

All Rights Rights Reserved © Ebbe America 2020
IN-SHADOW INSTALLATION DETAILS
•The In-Shadow trim is asymmetrical and can be flipped 180 degrees to suit the
height of the tile above the Drain Channel. The bottom of the wall tile above the
Drain Channel should be a minimum of 0.3” above the installed floor tile. Thicker
tile requires a larger gap so the Access Cover can be removed.
•Use the included Abrasive Cut-Off Wheel to cut the Trim to length as needed. **
•Run a heavy continuous bead of urethane sealant along the Tile Backer face that will
receive the In-Shadow Trim. Firmly press the Trim piece into the sealant bead and
adjust into final position before sealant cures. TheTrim pieces should run the entire
length of the drain.
In-Shadow installations hide the Drain Channel in the shadow of the overhanging wall tile.
As the water reaches the wall, it surprisingly disappears before your eyes.
Two pieces of In-shadow Trim are included with the E6100-25, E6100-38, E6100-50 kits.
SUBFLOOR
WALL TILE
SEALANT
IN-SHADOW TRIM
FOAM BACKER ROD
DRAIN CHANNEL
½” TILE
BACKER
IN-SHADOW INSTALLATION DETAILS
16
•Insert the supplied Foam Backer Rod into the Drain Channel. This is temporary and will keep debris
out of the Drain Channel during tiling. It also holds the In-Sight Trim in place during tile installation.
•Apply thinset over the face of the In-Shadow Trim and onto the Tile Backer for setting tile. The
bottom edge of tile should rest on the horizontal ledge of the Trim piece. Don’t use sealant on this
bottom edge of tile. This will allow for any water to weep under the tile and down the drain if
necessary.
** PLEASE NOTE: When cutting Trim to desired length it is best practice to place all cut edges at the
outer ends of the INNI. This will allow factory edges to butt together when using multiple Trim pieces.
In-Shadow
Trim

17
IN-SHADOW INSTALLATION DETAILS
•Using In-Sight Trim for an At-Wall installation is optional. If Trims are used, they will widen
the Drain Channel opening and align more properly with the angled front of the Access Cover.
•Install the wall tile so it rests on the back flange of the INNI and aligns with the back face of
the Drain Channel.
•Use the Abrasive Cut-Off Wheel to cut the Trim to length as needed. **
•If using urethane sealant to adhere the Trim, use intermittent beads so weep water can
escape under the Trim to the Drain Channel. Trim can also be adhered to the drain with
thinset in a continuous layer as water will be able to slowly drain through the thinset.
•Insert supplied Foam Backer Rod into Drain Channel between the In-Sight trim and wall tile. In
certain circumstances, it is better to use pieces of the Backer Rod to wedge between the wall
tile and Trim so it stays firmly in place.
•Install floor tile. Remove Backer Rod after tile and grout have cured.
** PLEASE NOTE: When cutting Trim to desired length it is best practice to place all cut edges
at the outer ends of line drain. This will allow factory edges to butt together when using
multiple Trim pieces.
At-Wall installation leaves the Drain Channel visible from above. The wall tile extends down
to meet the top of the drain and aligns with the back face of the Drain Channel.
Four pieces of In-Sight Trim are included with E6100-25, E6100-38, E6100-50 kits.
AT-WALL INSTALLATION DETAILS
SLOPE
TILE FLUSH WITH
DRAIN CHANNEL
IN-SIGHT TRIM
FOAM BACKER ROD
¼ X 1” Foam Spacer
(included)

All Rights Rights Reserved © Ebbe America 2020
IN-SIGHT INSTALLATION DETAILS
•Use the Abrasive Cut-Off Wheel to cut Trim to length as needed.
•On the shower/wet side of the Drain Channel use thinset along the entire length to bond Trim pieces to
the Drain Body. Firmly press the Trim into thinset and position in place. Remove any excess thinset from
Drain Channel.
•On dry side of the Drain Channel, run a continuous bead of urethane sealant along the entire length of the
INNI to bond Trim piece to the Drain Body. Firmly press the Trim into sealant and adjust as needed. Trim
pieces should run the entire length of line drain. The continuous bead of sealant stops the migration of
water under the dry side tile.
•Before the thinset and sealant sets, insert the Trim Spacer between the Trim pieces. This will properly
space the Trim pieces and hold them in position while the thinset and sealant cure. Leave this temporary
Spacer in place while tiling to keep debris out of the Drain Channel. After the grout has cured, remove the
Trim Spacer sticks.
** PLEASE NOTE: When cutting Trim to desired length it is best practice to place all cut edges at the outer
ends of the INNI. This will allow factory edges to be butt together when using multiple Trim pieces.
In-Sight Trim provides a minimal stainless steel finished edge along the length of the Drain
Channel. Four pieces of In-Sight Trim are included with E6100-25, E6100-38, E6100-50 kits.
DRY AREA
TRIM SPACER
¾” LOWERED SUBFLOOR
SEALANT
IN-SIGHT TRIM
DRAIN BODY
DRAIN
CHANNEL
SEALANT &
MESH TAPE
WET AREA
When the drain is installed at an
entry, In-Sight Trims must be
used. It is also highly
recommended that a glass
enclosure or small curb is placed
at the entry to limit water escape.
IN-SIGHT INSTALLATION DETAILS
18

19
INNI ACCESSORIES
Visit ebbe-america.com for INN accessories or scan the QR codes
INNI Cleaning Brush Kit. Specifically designed and manufactured to quickly
clean all interior surfaces of the INNI drain. Custom sized for your INNI.
INNI Drain Coupler Kit: Attach multiple INNI together. If coupling two or more INNI, an
additional waste pipe/s MUST be installed. Additional Drain Body sections CANNOT be
added to the ends of a full length INNI because it will create negative slope and water
stagnation, and cleaning problems within the Main Channel.
INNI Hot Mop Receptor Kit: Adapt the INNI drain to a hot mop
installation using the Hot Mop Receptor Kit. This sub-drain is made of
glass filled PPS plastic and can withstand the high heat of hot tar. The
Receptor is hot mopped just like a standard clamping drain and the
INNI is mortared into the final slope.
All Rights Rights Reserved © Ebbe America 2020

•Brush Kits are sold separately.
2. Using a cleaning agent as
recommended above, apply an
ample amount into the Drain
Channel from the top side and also
into the Main Channel through the
Access Opening.
1. Remove the Access Cover by pushing down on the black tab at the center of the Access Cover with a
screwdriver, putty knife, or similar tool. The Access Cover will pop up and allow you to grab and remove it.
Note: Make sure to push the D-
shaped Brush to the end of the
channel, moving any debris to the
Drain Channel. (Tile not shown for
clarity)
INNI CARE AND MAINTENANCE GUIDE
20
For more information visit ebbe-america.com
Recommended
Cleaning Agents
•Most typical
bathroom cleaners
and bleach are safe
to use.
•Avoid overly acidic
or basic cleaners.
3. Holding the D-shaped Brush with
your finger, lower the Brush into
the Access Opening with the
straight side parallel to the Drain
Channel. Push the Brush forward
into the Main Channel and pull
back and forth several times to
clean. If possible, avoid rubbing
the Brush shaft on the lower
perimeter of the Access Cover
Frame.
•To purchase the brushes, follow the QR link or go to:
ebbe-america.com. We will custom cut the brushes
to fit your INNI.
