Echomaster MRC-45DVR-CL User manual
All manuals and user guides at all-guides.com
all-guides.com
2
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
All manuals and user guides at all-guides.com
3
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide
All manuals and user guides at all-guides.com
4
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
ABC123
ABC123
All manuals and user guides at all-guides.com
5
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide

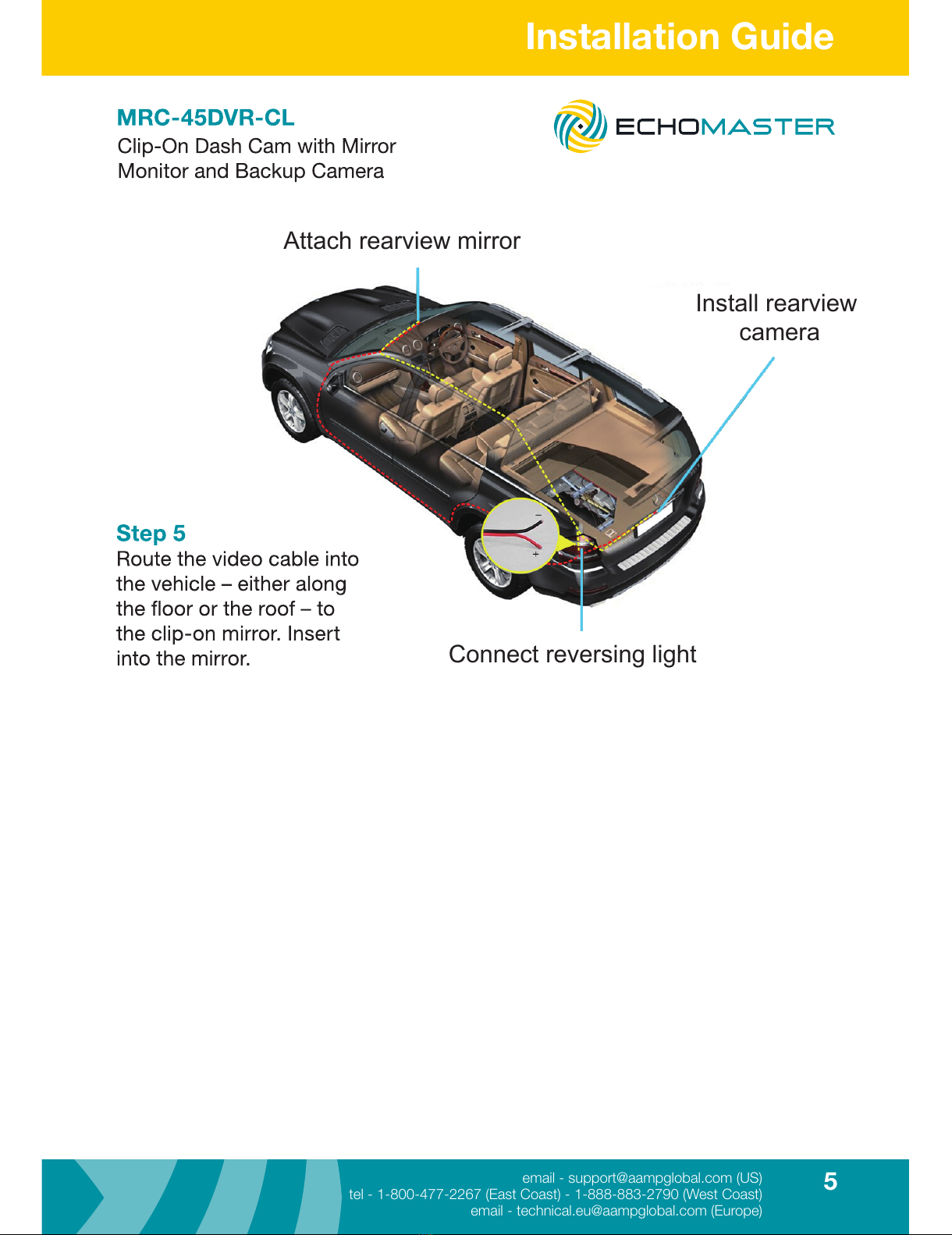

Attach rearview mirror
Install rearview
camera
Connect reversing light
All manuals and user guides at all-guides.com
6
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Recordingindicator Elapsed1me Dateand1mestamp
Recordingmode
MicroSDcard
status Ba8erystatus
Presstolock
currentvideofile Presstomute/unmute
Presstogoto
MainMenu
RearCameraimage
FrontCameraDVRimage
*Defaultscreenimageshown.
All manuals and user guides at all-guides.com
all-guides.com
7
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide
All manuals and user guides at all-guides.com

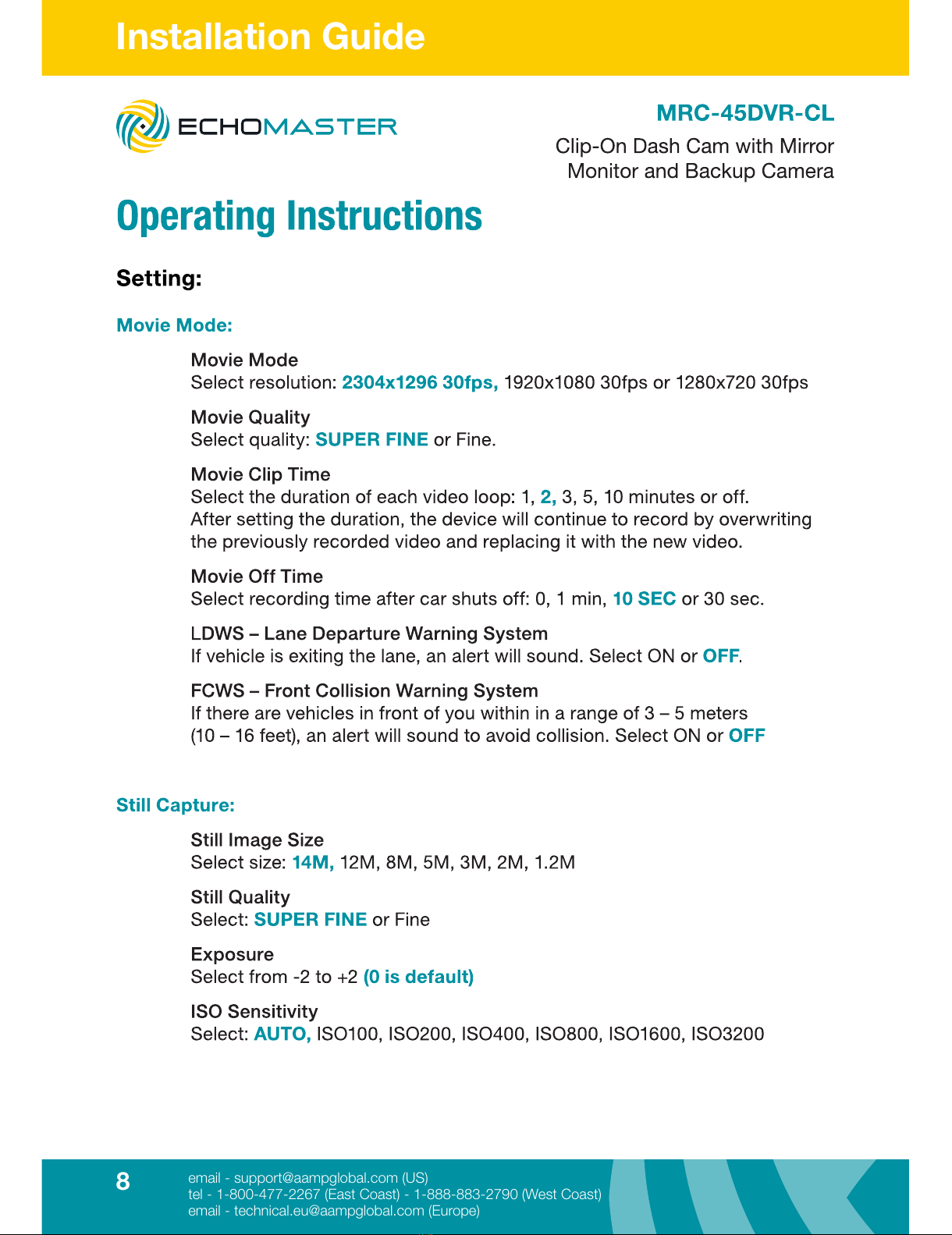

8
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
All manuals and user guides at all-guides.com

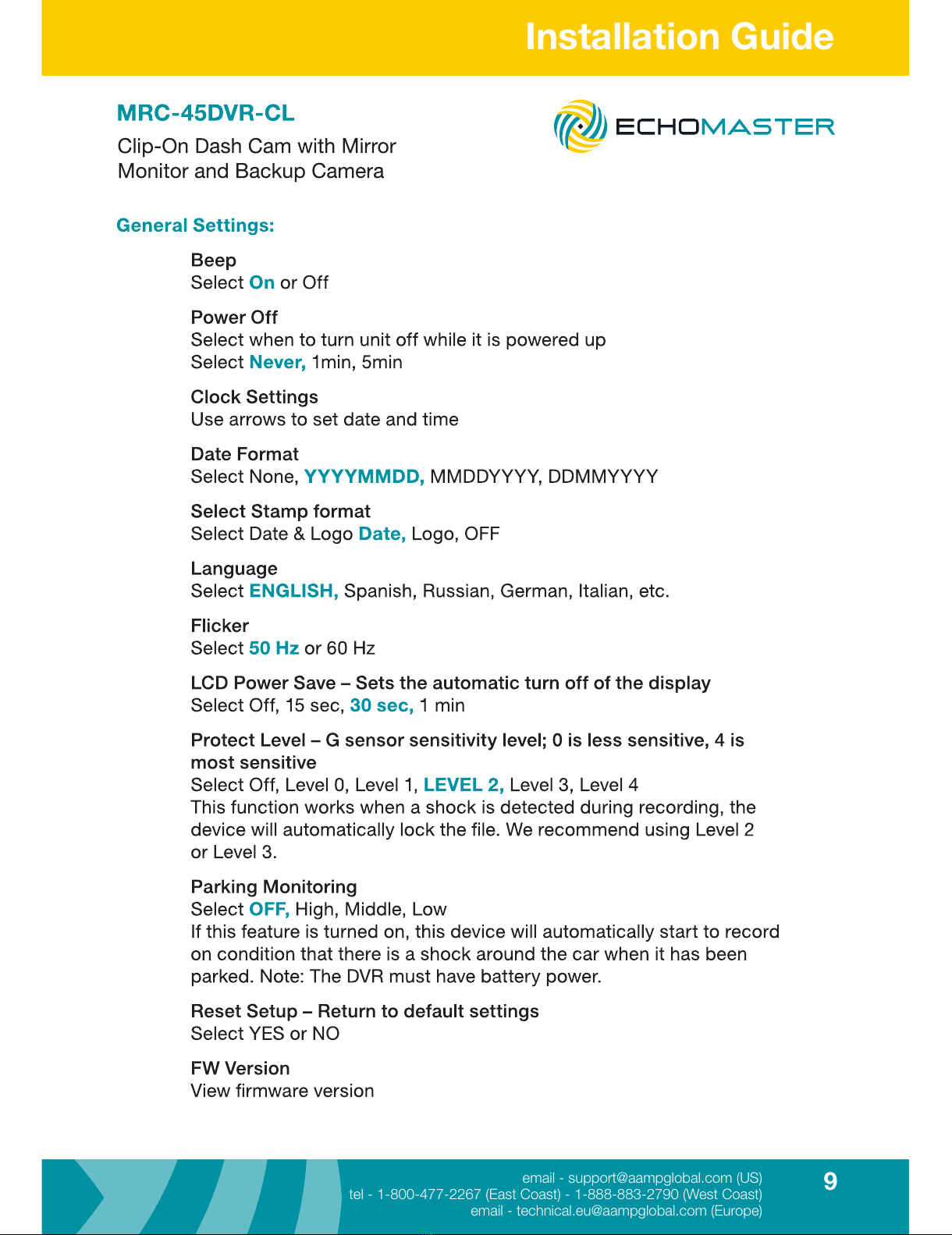

9
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide
All manuals and user guides at all-guides.com
10
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)

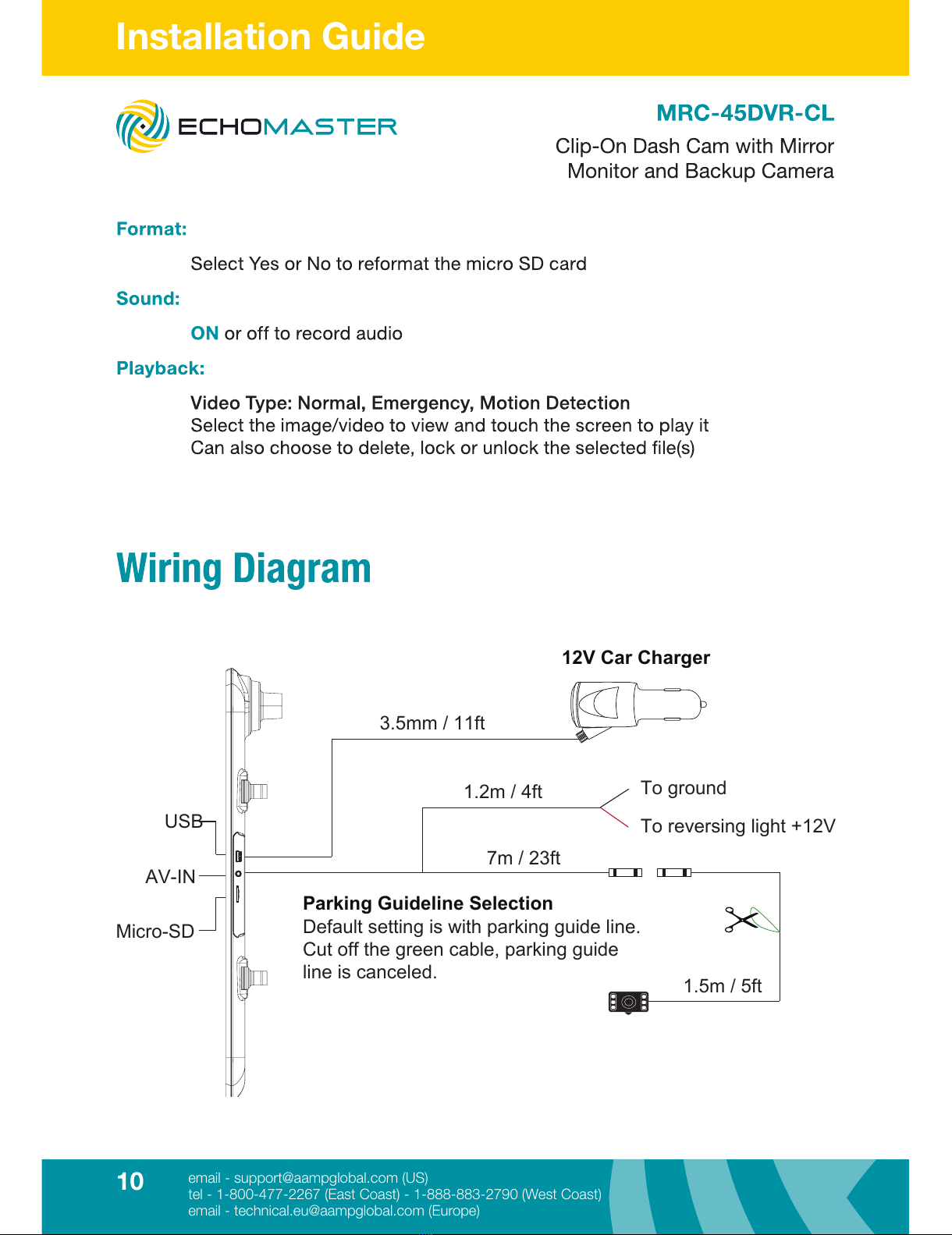

USB
To ground (iron part)
To reversing light +12V
Parking Guideline Selection
Default setting is with parking guide line.
Cut off the green cable, parking guide
line is canceled.
12V Car Charger
Micro-SD
AV-IN
3.5mm / 11ft
1.2m / 4ft
7m / 23ft
1.5m / 5ft
All manuals and user guides at all-guides.com
11
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide
AV-IN（to connect
rear view camera)
MINI USB Port Micro-SD Slot
Reset
Power Button Lens
Speaker
200.3mm / 7.89in
21mm / 0.83in
25.8mm / 1.01in
All manuals and user guides at all-guides.com
all-guides.com
12
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
CAMERA
Image device 1/3” HD CMOS sensor
Electric Shutter
PAL NTSC
625 Lines 720 Lines
Effective pixels
PAL NTSC
720 x 576 720 x 480
Minimum illumination 0.1 LUX
Viewing angle 170 degrees
Power supply DC8-12V
Additional Features Automatic White Balance, AGC & BLC
Water /Debris-proof rating IP67
Operating temperature (ºC/ºF) -30°C - 65°C (-22°F- 149°F)
Storage temperature (ºC/ºF) -35°C - 70°C (-31°F - 158°F)
MIRROR
Display Size 4.5” IPS Screen
Lens 6G, F2.0
Resolution
SHD1296P
FHD1080P
HD720P
Image Format JPG
Video Format MP4
Loop Recording Support with 1,2,3,5,10 minutes, off
Taking Photo YES
Backup Camera YES
G-Sensor YES
Parking Mode YES
All manuals and user guides at all-guides.com
13
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide
MIRROR
Microphone YES
Current Frequency 50Hz/60Hz
Working Temperature -20°C - 60°C (-4°F- 140°F)
Storage Temperature -30°C - 80°C (-22°F- 176°F)
Micro SD Class 10, FAT32 32G-64G
Working Voltage DC5V 1.5A
Battery Type Polymer Lithium Battery
Language English / Spanish / German / etc
All manuals and user guides at all-guides.com
14
Installation Guide
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)

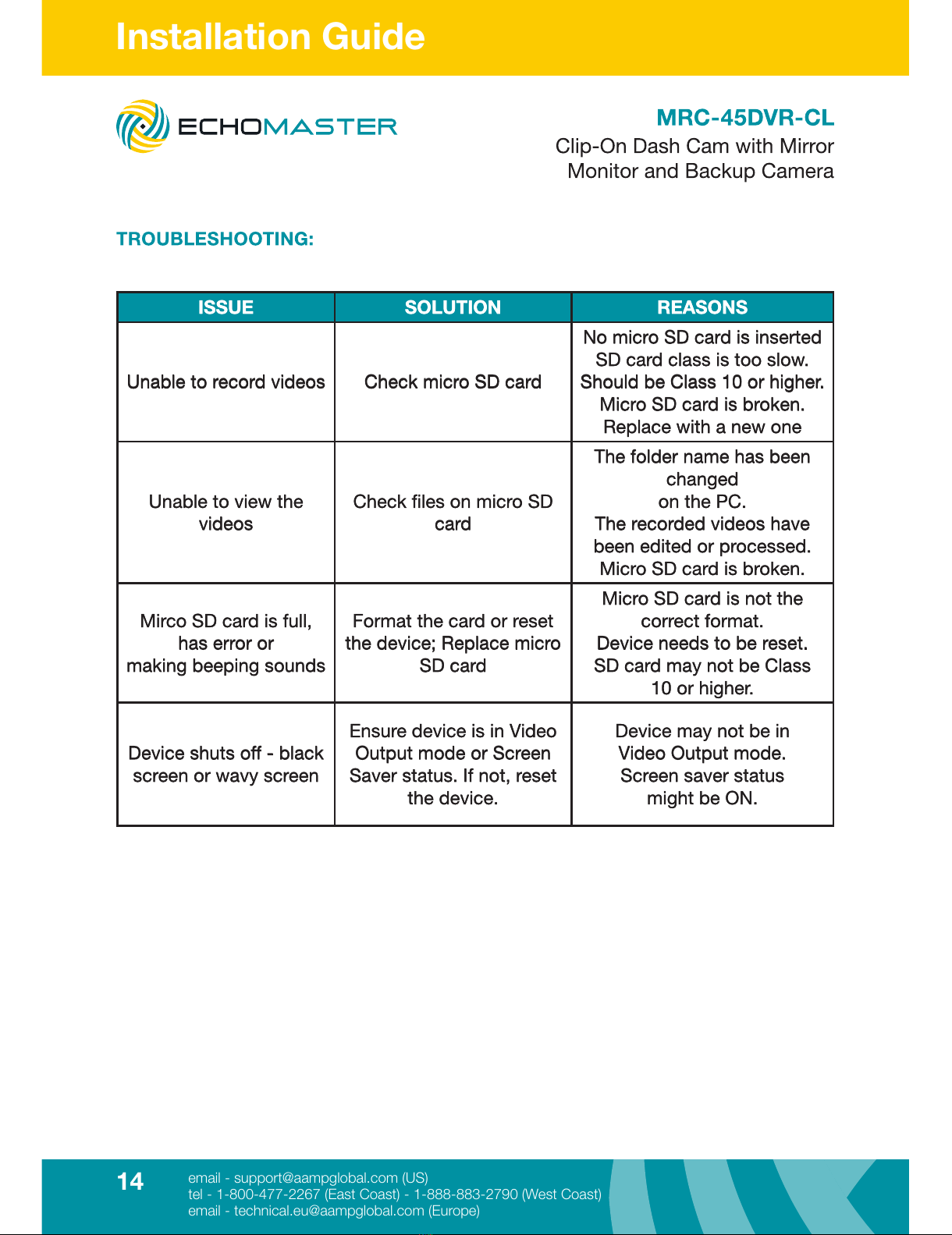

ISSUE SOLUTION REASONS
Unable to record videos Check micro SD card
No micro SD card is inserted
SD card class is too slow.
Should be Class 10 or higher.
Micro SD card is broken.
Replace with a new one
Unable to view the
videos
Check les on micro SD
card
The folder name has been
changed
on the PC.
The recorded videos have
been edited or processed.
Micro SD card is broken.
Mirco SD card is full,
has error or
making beeping sounds
Format the card or reset
the device; Replace micro
SD card
Micro SD card is not the
correct format.
Device needs to be reset.
SD card may not be Class
10 or higher.
Device shuts off - black
screen or wavy screen
Ensure device is in Video
Output mode or Screen
Saver status. If not, reset
the device.
Device may not be in
Video Output mode.
Screen saver status
might be ON.
All manuals and user guides at all-guides.com
15
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Installation Guide
