ARQIS Series
CABINET LOUDSPEAKERS
Architectural Loudspeaker Cabinets
USER MANUAL

2
INDEX
Important note 3
Precautions 3
Introduction 4
Models4
Connections 7
Recommended amplifier 8
Positioning 8
Installation 8
Technical specifications 9
Diagram 11

3
IMPORTANT NOTE
Congratulations! You are the owner of carefully designed and manufactured
equipment. We thank you for trusting in us and choosing our ARQIS Series
loudspeaker cabinets.
In order to get the optimum operation and efficiency from this unit, it is VERY
IMPORTANT - before you plug anything - to read this manual very carefully and bear
in mind all considerations specified within it. We strongly recommend that its
maintenance be carried out by our Authorised Technical services.
PRECAUTIONS
•Read these instructions
•Keep these instructions
•Heed all warnings
•Follow all instructions
•Do not use this apparatus near water
•Clean only with dry cloth
•Install in accordance with the manufacturer’s instructions
•Do not install near any heat sources such as radiators or heat registers
•Only use attachments/accessories specified by the manufacturer
•Refer all servicing to qualified personnel
Warning: an inappropriate usage of the device could cause
injury, death or damage the apparatus.

4
INTRODUCTION
Based on studying installers and interior design and system integration professionals
as well as on a permanent contact with them, the ARQIS line of speakers is designed
for fixed installation, especially in environments in need of a compact speaker offering
high output, easy installation, long-term reliability and excellent sound quality.
MODELS
ARQIS105
• Full range, 2-way architectural loudspeaker
• 70 WRMS @ 8 Ω
• 5,25" woofer
• 1" tweeter
• Double INPUT/STACK connector, Euroblock type, with security attachment
screws to avoid accidental disconnection
• Wall bracket included, allowing for pan & tilt adjustment, employing a single
screw for fastening
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black or white finish
ARQIS106
• Full range, 2-way architectural loudspeaker
• 120 WRMS @ 8 Ω
• 6,5" woofer
• 1" compression driver (rotable)
• Double INPUT/STACK connector, Euroblock type, with security attachment
screws to avoid accidental disconnection
• Wall bracket included, allowing for pan & tilt adjustment, employing a single
screw for fastening
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black or white finish

5
ARQIS108
• Full range, 2-way architectural loudspeaker
• 175 WRMS @ 8 Ω
• 8" woofer
• 1" compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
• Wall bracket included, allowing for pan & tilt adjustment, employing a single
screw for fastening
• U-bracket wall-mount accessory compatible, ARQ108UB (not included)
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black or white finish
ARQIS205
• Full range, 2-way architectural loudspeaker
• 140 WRMS @ 8 Ω
• 2 x 5,25" woofer
• 1" compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
• U-bracket wall-mount included, allowing for tilt adjustment
• 8 x M8 cabinet flying points
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black or white finish
ARQIS208
• Full range, 2-way architectural loudspeaker
• 300 WRMS @ 8 Ω
• 2 x 8" woofer
• 1" compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
• U-bracket wall-mount included, allowing for tilt adjustment
• 8 x M8 cabinet flying points

6
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black or white finish
ARQIS110
• Full range, 2-way architectural loudspeaker
• 220 WRMS @ 8 Ω
• 10” woofer
• 1" compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
• 35 mm mount socket, compatible with SR12 wall bracket (not included) &
TRIPO1 floor stand (not included)
• U-bracket wall-mount accessory compatible, ARQ110UB (not included)
• 8 x M8 cabinet flying points.
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black and white finish
ARQIS112
• Full range, 2-way architectural loudspeaker
• 340 WRMS @ 8 Ω
• 1 x 12" woofer
• 1" compression driver (rotable)
• Double INPUT/STACK connector, Euroblock + Speakon© type, with security
attachment screws to avoid accidental disconnection
• 35 mm mount socket, compatible with SR12 wall bracket (not included) &
TRIPO1 floor stand (not included)
• U-bracket wall-mount accessory compatible, ARQ112UB (not included)
• 8 x M8 cabinet flying points.
• Metal safety sling included, to avoid drops in case of accidental detachment
from the wall surface
• Available in black and white finish

7
ARQISSB10
• 1-way surface-mount subwoofer
• 150 WRMS @ 8 ohm
• 10" woofer
• Euroblock connector and spring loaded input terminals
• LPF cut-off frequency selection: OFF/ 120Hz / 150Hz
• Wall-mount hardware included
• 12 x M8 cabinet flying points
• Available in black or white finish
ARQISSB15
• 1-way architectural subwoofer
• 600 WRMS @ 8 Ω
• 15" woofer
• Double INPUT/STACK connector, Speakon© type
• 35 mm top-hat mount socket, for pole mount combinations with ARQIS10,
ARQIS12, etc.
• 8 x M8 cabinet flying points.
• Available in black finish
CONNECTIONS
The connection cables which connect the amplifiers output and the speaker should be
of good quality, have sufficient conductor area and be as short as possible. The latter
fact is especially important when the distance is long and the load impedance low (4-8
Ω). A cross-section of at least 2.5mm2is recommended for distances up to 10m; 4 or
6mm2for longer distances. Following formula gives the required section, assuming
4% losses:
Cross section in mm2=Length in m
Loudspeaker impedance in Ω
Always respect the polarity. All models have an Euroblock connector, and a
second connector (Euroblock or Speakon®, depending on model), thereby
facilitating the parallel connection of speakers.

8
RECOMMENDED AMPLIFIER
Following table shows the output power of the amplifier adequate to each acoustic
system:
•ARQIS 105: between 70 and 150W RMS
•ARQIS 106: between 120 and 250W RMS
•ARQIS 108: between 150 and 300W RMS
•ARQIS 205: between 150 and 300W RMS
•ARQIS 208: between 300 and 600W RMS
•ARQIS 110: between 220 and 450W RMS
•ARQIS 112: between 340 and 700W RMS
•ARQIS SB10: between 150 and 300W RMS
•ARQIS SB15: between 600 and 1000W RMS
POSITIONING
Consider following general rules:
Place the speakers on a solid and firm surface. Subwoofers placed directly and
horizontally on the ground have a higher output than hanged or directly on the floor,
but vertically. No obstacles should stand between the enclosures and the audience.
The high frequencies are very directive compared to the low frequencies, so that any
obstacle will impair their response. In case large audiences must be addressed, a
better long distance sound propagation will be achieved if the enclosures are flown
high enough.

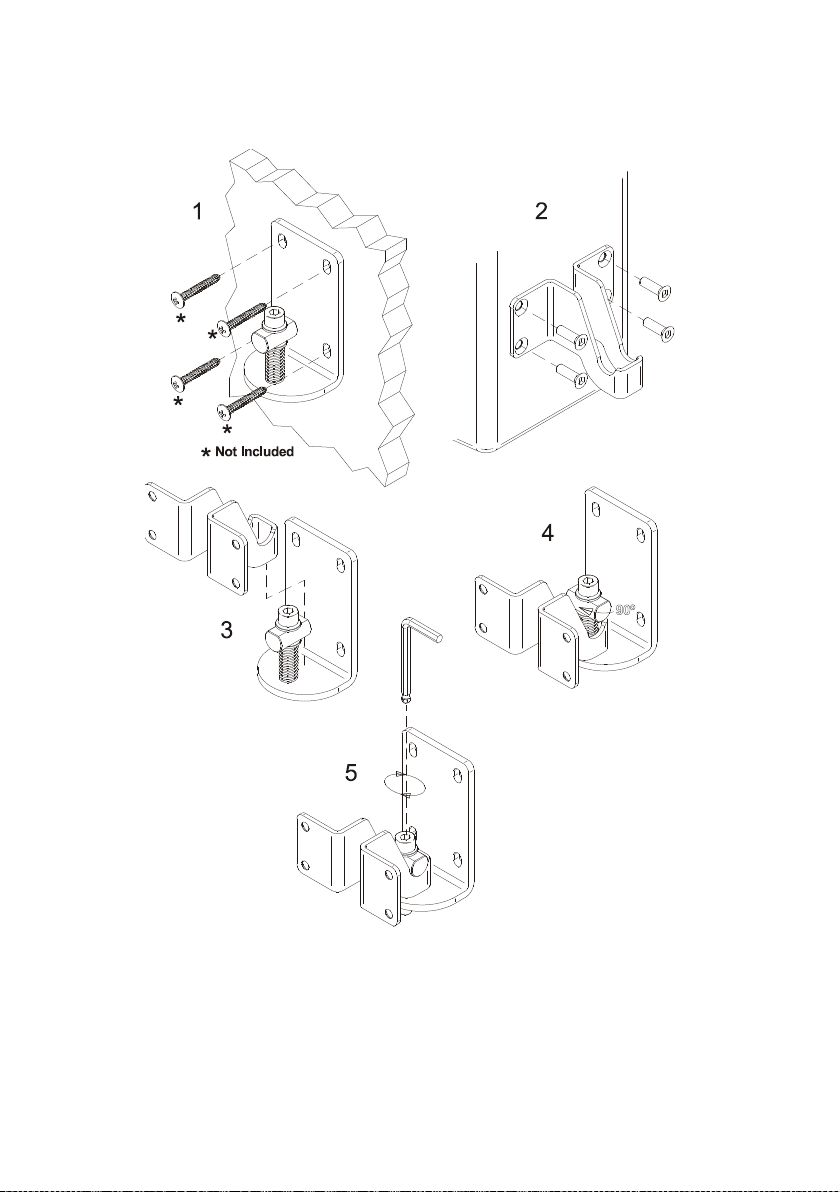

INSTALLATION
In the ARQIS series, the best way to install the enclosure was studied for each model.
Each model from the ARQIS range is supplied with the optimal installation system.
ARQIS205 / ARQIS208 / ARQIS110 / ARQIS 112 / ARQISSB10 / ARQISSB15 also have
built-in M8 rigging points for suspension from a compatible structure or "truss" using
steel cables.
IMPORTANT NOTE: The equipment must in no case be suspended using its carrying
handles (if any); use the appropriate accessories for each application. Whenever a
ceiling/wall mounting bracket is used, it is mandatory to add a redundant safety
system. Use wire ropes, slings or chains of the appropriate diameter to prevent the fall
of the speaker in case the main mounting system is pulled out.

9
TECHNICAL SPECIFICATIONS
ARQIS105
ARQIS106
ARQIS108
Ways
2
2
2
Impedance
8Ω
8Ω
8Ω
RMS power
70 WRMS
120 WRMS
175 WRMS
Program power
140 WRMS
240 WRMS
350 WRMS
SPL 1W/1m
89 dB
92dB
93dB
Max SPL @ 1m
110 dB
116dB
118dB
Frequency response (±3dB)
85Hz÷20kHz
75Hz÷19kHz
60Hz÷19kHz
Cross-over frequency
3.2kHz
3.2kHz
3.5kHz
Dispersion (HxV)
120⁰x120⁰
90⁰x60⁰
90⁰x60⁰
Driver LF/MF
5.25”
6.5”
8”
Driver HF
Dome tweeter 1”
Compression driver 1”
Compression driver 1”
Connection Euroblock 2 ways Euroblock 2 ways
Euroblock 2 ways +
Speakon© 4 ways
Dimensions (WxHxD)
186x280x210mm
216x350x240mm
244x390x280mm
Weight
3.6kg
7.4kg
8.4kg
Colour
Black / White
Black / White
Black / White
ARQIS205
ARQIS208
Ways
2
2
Impedance
8Ω
8Ω
RMS power
140 WRMS
300 WRMS
Program power
280 WRMS
600 WRMS
SPL 1W/1m
92dB
96dB
Max SPL @ 1m
116dB
124dB
Frequency response (±3dB)
85Hz÷18kHz
65Hz÷18kHz
Cross-over frequency
2.6kHz
3.5kHz
Dispersion (HxV)
90⁰x60⁰
90⁰x60⁰
Driver LF/MF
2x5.25”
2x8”
Driver HF
Compression driver 1”
Compression driver 1”
Connection
Euroblock 2 ways + Speakon© 4
ways
Euroblock 2 ways + Speakon© 4
ways
Dimensions (WxHxD)
480x186x210mm
610x244x280mm
Weight
8.4kg
14.4kg
Colour
Black / White
Black / White

10
ARQIS110
ARQIS112
Ways
2
2
Impedance
8Ω
8Ω
RMS power
220 WRMS
340 WRMS
Program power
440 WRMS
680 WRMS
SPL 1W/1m
95dB
97dB
Max SPL @ 1m
118dB
122dB
Frequency response (±3dB)
60Hz÷18kHz
60Hz÷18kHz
Cross-over frequency
3.5kHz
2.5kHz
Dispersion (HxV)
90⁰x50⁰
80⁰x40⁰
Driver LF/MF
10”
12”
Driver HF
Compression driver 1”
Compression driver 1”
Connection
Euroblock 2 ways + Speakon© 4
ways
Euroblock 2 ways + Speakon© 4
ways
Dimensions (WxHxD)
359x495x310mm
416x565x352mm
Weight
14.8kg
20.0kg
Colour
Black / White
Black / White
ARQISSB10
ARQISSB15
Ways
10” subwoofer
15” subwoofer
Impedance
8Ω
8Ω
RMS power
150W
600W
Program power
300W
1200W
SPL 1W/1m
94dB
98dB
Max SPL @ 1m
115dB
125dB
Frequency response (±3dB)
45Hz-3kHz
45Hz-3kHz
Connection
Euroblock connector and spring
loaded input terminals 2xSpeakon©
Dimensions (WxHxD)
600×442x228mm
534×460x525mm
Weight
16.5 kg
32.0 kg
Colour
Black / White
Black

11
DIAGRAM

12
All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the
design or manufacturing that may affect these product specifications.
Motors, 166-168 08038 Barcelona - Spain - ([phone] [e-mail] www.ecler.com
ARQIS205
ARQIS208
HOLES FOR SRDA
OPTIONAL ACCESSORY
DISPERSION
60º
90º
ARQIS108
ARQIS106
