Ecler NIMBO-26 User manual

50-0442-0100 NIMBO-26 EN
NIMBO-26
LOUDSPEAKERS
Top Performance Cabinet Loudspeaker
USER MANUAL
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER

2
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
TABLE OF CONTENTS
1. PRECAUTIONS ............................................................................................................................ 3
1.1 Important Notice......................................................................................................................... 3
1.2 Key Safety Directions............................................................................................................... 4
1.3 Cleaning Directions .................................................................................................................. 4
2. PACKAGE CONTENTS............................................................................................................... 5
3. DESCRIPTION & FEATURES .................................................................................................... 6
3.1 Main Features.............................................................................................................................. 6
4. CONNECTIONS............................................................................................................................ 7
4.1 Connections Diagram ............................................................................................................... 8
5. IMPEDANCE SELECTOR ........................................................................................................... 9
6. EQ SETTINGS ............................................................................................................................... 9
7. RECOMMENDED AMPLIFIER................................................................................................... 9
8. POSITIONING & INSTALLATION..........................................................................................10
8.1 Positioning..................................................................................................................................10
8.2 Installation..................................................................................................................................10
8.3 Installation Diagram................................................................................................................11
9. TECHNICAL DATA....................................................................................................................13
9.1 Technical Specifications.........................................................................................................13
9.2 Mechanical Diagram................................................................................................................14

3
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
1. PRECAUTIONS
1.1 Important Notice
The flashing light with an arrowhead symbol inside an equilateral triangle on it is
intended to alert the user of the presence of non-insulated “dangerous voltage”
within the enclosure, which might be of sufficient magnitude to pose a risk of
electric shock to users.
The exclamation mark within an equilateral triangle is intended to alert the user
of the requirement for important operating and maintenance (servicing), for which
instructions may be found in the literature accompanying the appliance.
WARNING (If applicable): Terminals marked with symbol “” may be of sufficient
magnitude to pose a risk of electric shock. The external wiring connected to terminals requires
installation by a technician, or the use of ready-made leads or cords.
WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or humidity.
WARNING: A device with Class I manufacturing ought to be connected to a mains socket
outlet with a protective earthing connection.
WARNING: Ecler products have a long lifetime of more than 10 years. This product
must never be discarded as unsorted urban waste, but must be taken to the nearest
electrical and electronic waste treatment centre.

4
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
1.2 Key Safety Directions
1. Read the following directions.
2. Keep the following directions.
3. Heed all warnings.
4. Follow all directions.
5. Do not use this device in proximity
to water.
6. Clean only with a dry cloth.
7. Do not block any ventilation
openings. Install in accordance with
the manufacturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers,
stoves, or other devices (including
amplifiers) that may release heat.
9. Do not defeat the safety purpose of
the polarized or grounding type
plug. A polarized plug has two
blades, being one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the third
prong are provided for your safety. If
the provided plug does not fit into
your outlet, contact a qualified
electrician for a replacement of the
obsolete outlet.
10. Protect the power cord from being
walked on or pinched, particularly at
the plugs, convenience receptacles,
and at the point of exit from the
device.
11. Only use attachments/accessories
specified by the manufacturer.
12. Unplug the device during lightening
sorts or when unused for long periods of
time.
13. Refer all servicing to qualified personnel.
Servicing is required when the device
has been damaged in any way, such as
power supply cord or plug damage,
liquid spillage or objects onto the device,
the device has been exposed to rain or
humidity, does not operate normally, or
has been dropped.
14. Disconnecting from mains: When
switching off the POWER switch, all the
functions and light indicators of the unit
will be stopped, but fully disconnecting
the device from mains is done by
unplugging the power cable from the
mains input socket, therefore, it should
always remain easily accessible
15. Equipment is connected to a socket-
outlet with an earthing connection by
means of a power cord.
16. The marking information is located at the
bottom of the unit.
17. The device shall not be exposed to
dripping or splashing liquids, and no
liquid-filled objects, such as a filled up
glass, shall be placed on top of the
device.
1.3 Cleaning Directions
Clean the unit with a soft, dry clean cloth or slightly wet with water and neutral liquid
soap only, then dry it with a clean cloth. Be careful that water never gets into the unit through
any hole. Never use alcohol, benzine, solvents or abrasive substances to clean this unit.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused to
people, animal, or objects due to failure to comply with the warnings above.

5
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
Thank you for choosing our Ecler NIMBO-26!
We greatly value your trust.
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connecting takes place in order to make the best use of this
equipment, as well as to get the best performance from it.
To ensure optimal operation of this device, we strongly recommend that its
maintenance be carried out by our authorised Technical Services.
All ECLER products are covered by warranty, please refer to www.ecler.com or the
warranty card included with this product for the period of validity and conditions.
Ecler is truly committed with the environment and planet sustainability,
energy saving and CO2emission reduction. Recycling materials and using
non-contaminant components are also top priorities in our green crusade.
Ecler has deeply evaluated and analyzed the environmental impacts of all the
processes involved in the production of this product, including packaging, and has
alleviated, reduced and/or compensated for them.
2. PACKAGE CONTENTS
•1 x NIMBO-26 loudspeaker.
•1 x VEASY wall bracket with vertical and horizontal adjustment (VESA compatible).
•2x Euroblock.
•First Steps Guide.
•Warranty card.

6
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
3. DESCRIPTION & FEATURES
NIMBO-26 is a premium performance 2-way passive loudspeaker with 140W RMS power, in
a compact size with extended low frequency response. Suitable for outdoor applications, with
a cloud-inspired design, result of Ecler's engineering skills and the collaboration of architects
and interior designers.
Including 2 x 6.5" woofers and a 1" silk tweeter located in the acoustic centre, acting as a single
point source to disperse the sound evenly.
The nominal impedance of the speaker can be selected to 4 ohm or 16 ohm thanks to the front
switch located behind the logo, which allows to modify its impedance without removing the
aluminium front grille.
It includes the robust VEASY wall bracket, allowing tilt and pan adjustment using a single
screw.
3.1 Main Features
•2-way passive loudspeaker for surface and ceiling mounting.
•2x 6.5" woofers with 4-layer voice coil improves power handling and low frequency
response.
•1" silk tweeter with neodymium magnet and ferrofluid.
•Glass-fibre reinforced ABS non resonant compact enclosure.
•Wide dispersion pattern.
•VEASY bracket compatible with VESA 100 included. Quick and easy to install,
including jumps and markings for repeating speaker orientation.
•Weather-protected with an IP-44 rating.
•Available in white (RAL9003), black (RAL9005) and gold colour (RAL1036, approx.)
•RAL paint customization available.

7
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
4. CONNECTIONS
The connection cables which connect the amplifiers output and the speaker should be of good
quality, have sufficient conductor area and be as short as possible. The latter fact is especially
important when the distance is long and the load impedance low (4-16 Ω). A cross-section of
at least 2.5mm2 is recommended for distances up to 10m; 4 or 6mm2 for longer distances.
Following formula gives the required section, assuming 4% losses:
Cross section in mm2=Length in m
Loudspeaker impedance in Ω
Always respect the polarity. The loudspeaker has an INPUT Euroblock connector, and a
second STACK Euroblock connector thereby facilitating the parallel connection of speaker.
See detailed connections diagram on next page.

8
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
4.1 Connections Diagram

9
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
5. IMPEDANCE SELECTOR
NIMBO-26 works in low impedance operation. In this matter, it has a 2-position switch on its
front panel (behind the logo) that allows to select its working mode without removing the
grill.
6. EQ SETTINGS
Download the Ecler Loudspeakers EQ Settings file ready to import in EclerNet Manager
software.
7. RECOMMENDED AMPLIFIER
The output power of the recommended amplifier for NIMBO-26 is 280W RMS.

10
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
8. POSITIONING & INSTALLATION
8.1 Positioning
Consider following general rules.
Place the speaker on a solid and firm surface. No obstacles should stand between the
enclosures and the audience. The high frequencies are very directive compared to the low
frequencies, so that any obstacle will impair their response. In case large audiences must be
addressed, a better long distance sound propagation will be achieved if the enclosures are
flown high enough.
Download all EASE files by clicking on the image:

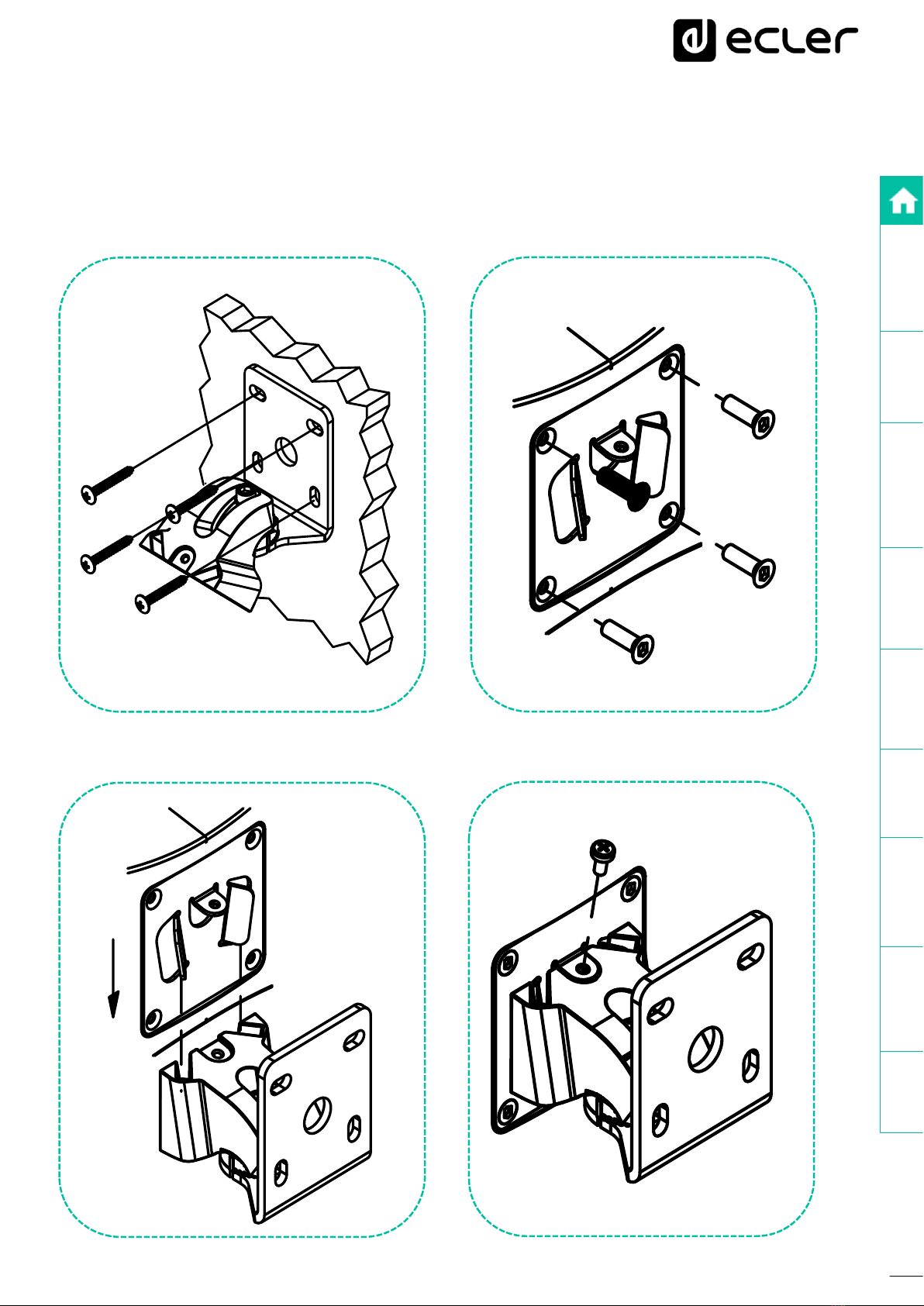

8.2 Installation
NIMBO-26 loudspeaker includes the VEASY wall bracket, VESA 100 compatible and easy
to install. The robust VEASY wall bracket, allow tilt and pan adjustment using a single screw.
Quick and easy to install, including jumps and markings for repeating speaker orientation.
See detailed installation diagram on next page.

11
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
8.3 Installation Diagram
Mounting the VEASY wall bracket.
1
2
3
4





* Not included
















12
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER




























1
4
2
3














TILT ORIENTATION
PAN ORIENTATION
REFERENCE
REFERENCE















13
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
9. TECHNICAL DATA
9.1 Technical Specifications
NIMBO-26
SYSTEM
Effective Freq. Range 1
60Hz-20kHz (-10dB)
Coverage angle 2
210°x 228°(HxV)
Power handling
140W RMS / 560 W Peak
Sensitivity 3
92 db (1W/1m)
Maximum SPL 4
113 dB continuous / 119 dB peak
Recommended amplifier power
280W RMS
TRANSDUCERS
Ways
2-ways full range
Low frequency driver
2 x 6.5" Woofer
High frecuency driver
1" Silk Dome Tweeter
Nominal impedance
4Ω / 16Ω
FILTERS
Crossover filter
1,65 KHz
PHYSICAL
Connection type
Double INPUT/LINK connector, Euroblock type
Power type selector
Front selection by toggle switch
Installation options
Surface / Wall mounting
Environmental
IP44
Enclosure material
ABS reinforced with fibreglass
Grille material
Aluminium
Grille fixing system
Pressure mount system
Mounting system
Stainless Steel VEASY bracket
Operating temperature
Min: 0°C ; 32°F
Max: 35°C ; 95°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 50°C ; 122°F
Storage humidity
<90% HR
Included accessories
Wall-mount bracket, 2x Euroblock connector
Finished colour
White (RAL9003), Black (RAL9005) or
Gold (RAL1036, approx.)
Dimensions (WxHxD)
542.5 x 261 x 269 mm / 21.36 x 10.28 x 10.59 in.
Weight
8.5 kg / 18.74 lb
Pieces per box
1
Shipping dimensions (WxHxD)
640 x 445 x 390 mm / 25.20 x 17.72 x 15.35 in.
Shipping weight
12.6 kg / 27.78 lb
1below the sound pressure level at specified sensitivity.
2 6dB below the sound pressure level than that at the direction of maximum level, Max. angle between
1 kHz and 4 kHz.
3 Measured on-axis, far field and referenced to 1 meter by inverse square law. Average from 100 Hz to
10 kHz.
4 Calculated from sensitivity and power handling specifications, exclusive of power compression.

14
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
9.2 Mechanical Diagram
All measurements are in mm.

  





15
PRECAUTIONS PACKAGE
CONTENTS
DESCRIPTION &
FEATURES
CONNECTIONS
IMPEDANCE
SELECTOR
POSITIONING &
INSTALLATION
TECHNICAL
DATA
EQ
SETTINGS
RECOMMENDED
AMPLIFIER
All product characteristics are subject to variation due to production tolerances.
NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or
manufacturing that may affect these product specifications.
For technical queries contact your supplier, distributor or complete the contact form on our website,
in
Support / Technical requests.
Motors, 166‐168 |08038 Barcelona, Spain |([phone] | [email protected] |www.ecler.com
