EcLine EC-WDS Series User manual

EC ELECTRONICS LIMITED COPYRIGHT 2020 ©
User Manual
EC-WDS / EC-FDS / EC-FSS Series
All in One Digital Signage Kiosk

Digital Signage Kiosk User Manual
1
CONTENT
1. Overview ..........................................................................................3
2. Safety Information...........................................................................3
3. Precautions In Installing The Product...........................................3
4. Precautions For Using Ac Adapter And Electrical Power...........5
5. Precautions For Moving The Product ...........................................7
6. Precautions For Using The Product..............................................8
6.1 Mounting On A Wall......................................................................................9
6.2 Handling The Remote Control .....................................................................9
7. Assembly and Preparation...........................................................10

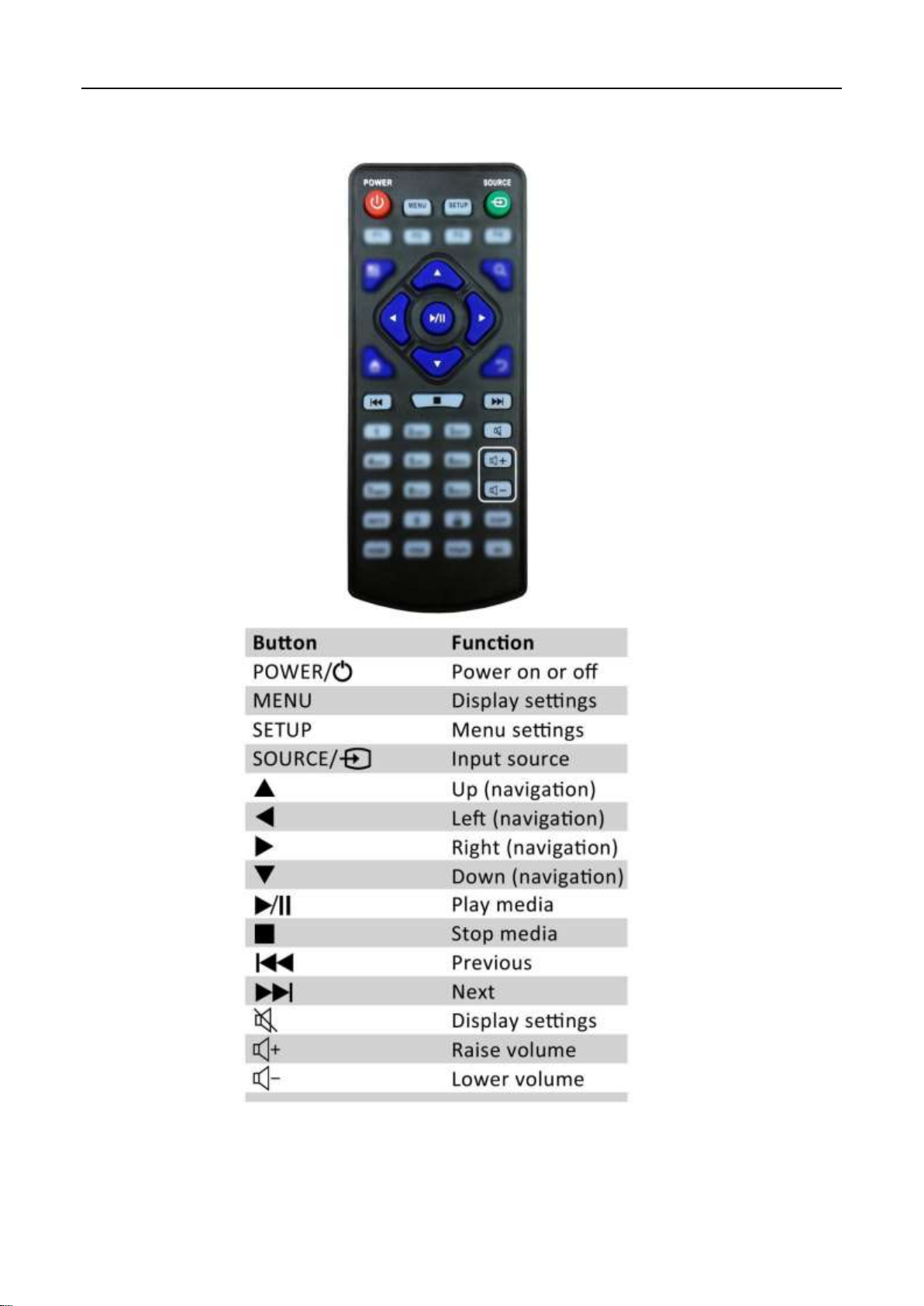

8. Remote Control .............................................................................11
8.1 Change Battery ...........................................................................................11
8.2 Function For Remote Control ....................................................................12
9. Installation Guide..........................................................................13
9.1 EC-WDS Series (32”, 43”, 49”, 55” & 65”) .................................................13
9.1.1 Appearance ..............................................................................................13

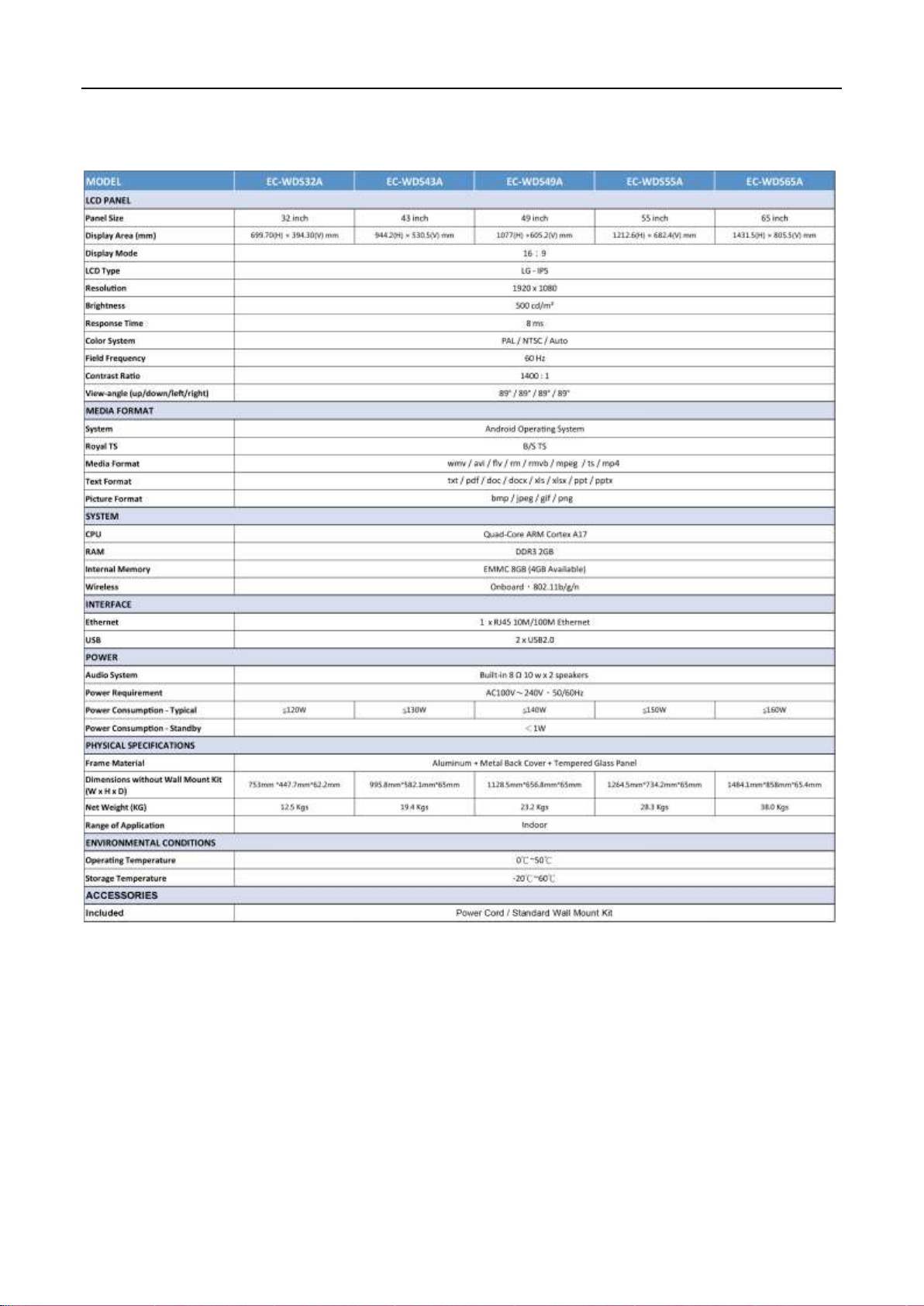

9.1.2 Specification .............................................................................................14
9.2 EC-FDS Series (43”, 49” & 55”)..................................................................15
9.2.1 Appearance ..............................................................................................15
9.2.2 Specification .............................................................................................16
9.3 EC-FSS Series (55”) ....................................................................................17
9.3.1 Appearance ..............................................................................................17
9.3.2 Specification .............................................................................................18
10. Packing Information......................................................................19
10.1 EC-WDS Series............................................................................................19
10.2 EC-FDS Series.............................................................................................19
10.3 EC-FSS Series.............................................................................................19
11. Setup and Installation...................................................................20
11.1 EC-WDS Series............................................................................................20

Digital Signage Kiosk User Manual
2
11.2 EC-FDS Series.............................................................................................21
11.2.1 Steps For Assembly With Casters......................................................22
11.3 EC-FSS Series.............................................................................................23
12. System Configuration...................................................................24
12.1 Home Screen...........................................................................................24
12.2 System Menu Operation.........................................................................24
12.3 System Settings......................................................................................25
12.3.1 Display Language.................................................................................25
12.3.2 Switch Screen Mode.............................................................................26
12.3.3 Screen Resolution ................................................................................26
12.3.4 Real Time Clock ...................................................................................27
12.3.5 Play Log................................................................................................27
12.3.6 USB......................................................................................................28
12.3.7 Scrolling Text........................................................................................28
12.3.8 Sync Settings........................................................................................29
12.3.9 Restore To Factory Settings.................................................................29
12.3.10 Auto Start..............................................................................................30
12.4 System Control .......................................................................................30
12.4.1 Work Mode...........................................................................................31
12.4.2 Play Mode.............................................................................................31
12.4.3 Current Storage....................................................................................32
12.4.4 Image Duration.....................................................................................32
12.5 Date & Time.............................................................................................33
12.6 Power On/Off...........................................................................................34
12.7 Timer Strategy.........................................................................................35
12.7.1 Volume Timer.......................................................................................35
12.7.2 Port Timer.............................................................................................36
12.8 File Management.....................................................................................37
12.9Exit...........................................................................................................37
13. Troubleshooting............................................................................38

Digital Signage Kiosk User Manual
3
1. OVERVIEW
Thank you for purchasing the EC Line all-in-one digital signage kiosk, EC-Line is committed to
continuously improve product quality and provide better after-sales service. In order to take full
advantage of our devices, we strongly recommend that you take the time to read this manual before
diving into software solution.
Note: Information in this manual may change without prior notice.
2. SAFETY INFORMATION
Please read the below safety precautions before use.
WARNING
- If you ignore the warning message, you may cause seriously personal injured or death.
CAUTION
- If you ignore the caution message, you may cause slightly injured or the product may be
damaged.
WARNING
- Indoor Use Only.
3. PRECAUTIONS IN INSTALLING THE PRODUCT
WARNING
• Keep away from extreme temperature such as in direct sunlight, near a radiator or a heating vent.
- It may cause overheat in such condition which can cause deformation of the enclosure, electrical
shock, fire or malfunction.
•Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to
vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it
out of the reach of children.
• Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, it can cause injury. Many injuries, particularly to children,
must pay particular attention.
• Do not leave the power cord or signal cable unattended on the pathway.
- The passerby can trip or fall, which may cause electrical shock, fire, product breakdown or injury.
•Install the product in a neat and dry environment.
- Dust or moisture may cause electrical shock, fire or product damage.

Digital Signage Kiosk User Manual
4
• If you smell smoke, other odors or hear a strange sound when unplug the power cord, contact the
certificated technician or service center.
- Electrical shock or fire may occur if you continue to operate without taking proper actions.
•If the product fell or the cabinet is broken, turn off the product and unplug the power cord.
- Electrical shock or fire may occur if you continue to operate without taking proper actions.
• Don’t drop an object on or apply impact to the product. Don’t throw any objects on the product
screen.
- It may cause personal injury, problem or damage to the product itself and as well as the LCD
display.
• Do not let the product fall or drop when connecting it with an external device.
- It may cause serious personal injury and/or damage to the product.
• Leaving a fixed image on the screen for a long period may cause damage to the LCD and cause
image retention, use a screen saver or utilize the residual image prevention function. When the
product is not used, turn off the power. Image retention and related problems are not covered by
the warranty on this product.
• Do NOT install this product on a wall where there is high risk of exposure to oil fumes or mist.
- It may cause it to fall.
CAUTION
• Make sure the product ventilation holes are not blocked. Install the product in a suitably wide
place (more than 100 mm from the wall) to provide adequate air circulation. It is strongly
recommended that you use a EC Line Wall-Mount Bracket in order to provide adequate air
circulation. The ventilation condition is depending on your kiosk model, please contact EC Line
service department for further information.
- If you install the product too close to the wall, it may be deformed or fire can break out due to
internal heat.
• Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
• Install the product where no EMI occurs.
• Keep the product away from direct sunlight, at the seashore, inside a vehicle, unstable locations,
near water, rain, moisture or smoke.
• If you install the product in a place that does not meet the recommended conditions, this may cause
serious damage to the product’s picture quality, life cycle, and appearance. Please check with EC
Line or a qualified installer / technician before installing. This caution applies to a place where there
is an abundance of fine dust or oil mist, chemical substances are used, the temperature is very high
or low, the humidity is very high, or the product is likely to remain turned on for a long period of time
(airport and train station), failure to do so will invalidate the warranty.
• Do not install the product in an area with poor ventilation (e.g. on a bookshelf, in a closet) or outside
and avoid placing on cushions or carpets.
• In addition, do not install it where there are heating objects such as lighting equipment, where the
insects may enter, where it may be exposed to mechanical vibration, near flammable objects
(candles, etc……).

Digital Signage Kiosk User Manual
5
4. PRECAUTIONS FOR USING AC ADAPTER AND ELECTRICAL POWER
WARNING
• If water or any foreign substance goes inside the product (Monitor, power cord, or AC
adapter), disconnect the kiosk from AC power outlet (main socket) and contact the service
center.
- Fire, electric shock due or damage to the kiosk may result.
• Do not touch the power plug or AC adapter with wet hands. If the pong of the plug are wet
or dusty, wipe and dry them before use.
- Fire, electric shock or warping may result.
• Make sure to completely insert the power cord into the AC adapter.
- If loosely connected, the poor connection may cause a fire or electric shock.
• Be sure to use power cords and AC adapters provided or approved by EC Line.
- The use of non-approved products may cause a fire or electric shock.
• When unplugging the power cord, always pull it by the plug. Do not bend the power cord
with excessive force.
- The power cord can be damaged, which may cause electric shock or fire.
• Do not to step or place heavy objects on the power cord or AC adapter. Do not to damage
the power cord or AC adapter with sharp objects.
- Fire, electric shock or warping may result.
• Never disassemble, repair or modify the power cord or AC adapter.
- Fire, electric shock or warping may result.
• Make sure to connect the power cable to the grounded current.
- It may cause electrocuted or injured.
• Use the rated voltage only.
- It may cause electrocuted and the kiosk can be damaged.
• During lightning storm, never touch the power cord and signal cable, it can be very
dangerous.
- It can cause electric shock.
• Do not connect several extension cords, electrical appliances, or electrical heaters to a single outlet.
Use a power strip with a grounding terminal designed for exclusive use with the kiosk.
- Fire may result due to overheating.
• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered
with dust, dry the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
•If you don’t intend to use the kiosk for a period of time, disconnect from the AC power
(mains) for environmental and safety reasons.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric
shock or fire.
• Fix the power cable completely.
- If the power cable is not fixed completely, fire may result.

Digital Signage Kiosk User Manual
6
• Do not insert a conductor into one end of the power cable while the other end is connected
to the input terminal on the wall. Do not touch the power cable right after plugging into the
wall input terminal.
- It may cause electrocuted.
• The appliance coupler is used as the disconnect device.
• Make sure the device is installed near the wall outlet to which it is connected and that the
outlet is easily accessible.
• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC
power source even if the kiosk is turned off.
CAUTION
• Be sure to keep the outlet, AC adapter, and pongs of the power cord are clean from dust
etc.
- It may cause a fire.
• Do not unplug the power cord while the kiosk is in use.
- Kiosk may spoil.
• Use the power cord supplied with the unit only. If you use another power cord, make sure
that it is certified by the applicable national standards. If the power cable is faulty in any
way, please contact the manufacturer or the nearest authorized repair service provider for
a replacement.

Digital Signage Kiosk User Manual
7
5. PRECAUTIONS FOR MOVING THE PRODUCT
WARNING
• The kiosk is turned off and the AC power is unplugged.
- It may cause electrocuted or the product can be damaged.
• Remove all cables before moving the product.
- It may cause electrocuted or the product can be damaged.
•The LCD panel should faces forward and hold it with both hands to move. If you drop the
product, the damaged product can cause electric shock or fire. Contact an authorized the
service center for repair.
• It may take 2 or more people to carry larger apparatus. Do not press against or put stress
on the front LCD panel of the apparatus.
CAUTION
• Do not shock the product during moving.
- It may cause electrocuted or the product can be damaged.
• Do not dispose the product-packing box. Use it whenever you move installation location.

Digital Signage Kiosk User Manual
8
6. PRECAUTIONS FOR USING THE PRODUCT
WARNING
• Do not disassemble, repair or modify the product at your own discretion.
- Fire, electric shock or warping may result.
- Contact the service center for inspection, calibration or repair.
•If the kiosk will not be using for several period, it should be disconnected form the AC
power (mains) for environmental and safety reasons.
• Keep the product away from humid or dusty space, or in a room with oily smoke or steam
(near cooking tables or humidifiers).
- Fire or electric shock may result
• Do not shock or scratch the front and sides of the screen with metal sharp objects.
- It may cause damage to the screen.
•Avoid high temperatures and humidity.
•Avoid to put the kiosk in the changing room of a public bath or hot spring
- It may cause damage by airborne, sulfur, etc……
•For best quality, do not expose the screen to direct illumination or sunlight
•Avoid moving the kiosk from a cold area to a warm area. Sudden room temperature
changes may cause moisture condensation. This may cause the kiosk to show poor
picture and/or poor color. Should this occur, allow moisture to evaporate completely
before powering the kiosk on.
CAUTION
• Do not put or store inflammable substances near the product.
- There is a danger of explosion or fire due to careless handling of the inflammable substances.
• When cleaning the product, be sure to unplug the AC (mains lead) connected to the kiosk
from AC power outlet (main socket), wipe gently with a soft cloth to prevent scratching. Do
not clean with a wet cloth or spray water or other liquids directly onto the product. An
electric shock may occur.
• Do not use any type of abrasive pad, alkaline / acid cleaner, scouring powder, or volatile
solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or
maintaining prolonged contract with rubber or vinyl materials may result in damage to the
screen surface and cabinet material.
• View the TV in moderate light, as viewing the TV in poor light or during long period of time,
strains your eyes.
• Keep the product clean as always.
• Take a comfortable and natural position when working with the kiosk to relax the muscles.
• Take a regular break when working with a product for a long time.

Digital Signage Kiosk User Manual
9
• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil, or
pen, or make a scratch on it.
• Keep the proper distance from the product.
- Your vision may be impaired if you look at the product too closely.
• Set the appropriate resolution and clock by referring to the User’s Guide.
- Your vision can be impaired.
• Use authorized detergent only when cleaning the product. (Do not use benzene, thinner, or
alcohol.)
- It may damage the screen surface and cabinet material.
•This kiosk is suitable to be used in tropical and/or moderate climate.
•Kiosk shouldn’t install at outdoors (in direct sunlight), at the seashore, inside a vehicle,
unstable locations, near water, rain, moisture or smoke.
•Kiosk shouldn’t install at the place that are hot, humid, or excessively dusty; where insects
may enter; where it might be exposed to mechanical vibration, near flammable objects
(Candles, etc.…..). The kiosk shall not be exposed to dripping or splashing and no
objects filled with Liquids, such as vases, shall be placed on the kiosk.
• When using headphones, adjust the volume so as to avoid excessive levels, as hearing
damage may result.
•To remove the dust from the screen surface / cabinet, wipe gently with a soft cloth. If dust
is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution
• Do not use high voltage electronic equipment around the kiosk. (e.g., a bug zapper)
- Monitor may have a malfunction if it receives an electrical shock.
•Risk of explosion if the battery is replaced by an incorrect type. Batteries must not be
exposed to excessive hear such as sunshine, fire or the like or extremely low air pressure
that can result in an explosion or leakage of flammable liquid or gas.
6.1 MOUNTING ON A WALL
• Do NOT install this product by yourself, injury or damage to the kiosk may cause. Please
contact service personnel authorized by manufacturer.
•It’s strongly recommended that tom use a EC Line Wall-Mount Bracket in order to provide
adequate support of the weight and air circulation.
6.2 HANDLING THE REMOTE CONTROL
•Observe the correct polarity when inserting batteries.
•Do not use different types of batteries together or mix old and new batteries.
•Dispose of batteries in an environmentally friendly way. Certain regions may regulate the
disposal of batteries. Please consult your local authority.
•Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind
onto it.
•Do not place the remote control in a location near a heat source, a place subject to direct
sunlight, or a damp room.

Digital Signage Kiosk User Manual
10
7. ASSEMBLY AND PREPARATION
CAUTION
• Always use genuine components to ensure safety and product performance.
• The product warranty will not cover damage or injury caused by the use of counterfeit
components.
• Disconnect the power cord before moving or installing the monitor to avoid risk of electric
shock.
• Make sure to fix the stand on the floor since the set may fall when pushed. EC Line is not
liable for any damages of the product or casualties due to not following this instruction.
• Do not over tighten the screws as this may damage the monitor and void your warranty.
NOTE
• The accessories provided may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due
to upgrade of product functions.
• EC Line iconnect Software & Manual - Downloading from the EC Line website. - Visit the
EC Line website (http://www.eclinepos.com / http://www.ecline.com.hk ) and download the
latest software for your model.
•The warranty will not cover any damage caused by using the product in an excessively
dusty environment.

Digital Signage Kiosk User Manual
11
8. REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read
this manual carefully to use the monitor correctly. To install batteries, open the battery
cover, place batteries (1.5 V AAA) matching + and - terminals to the labels inside the
compartment, and close the battery cover. To remove the batteries, perform the installation
actions in reverse. The illustrations may differ from the actual accessories.
CAUTION
•Use only the type of batteries specified in this manual.
•Do not install batteries of different types, or mix new and old batteries.
•Be sure to point the remote control toward the remote control sensor on the monitor.
•Be sure to point the remote control toward the remote control sensor on the monitor.
•Some features of the remote control may not be supported in certain models.
8.1 CHANGE BATTERY
1. Open the battery cover as shown.
2. Insert the batteries with the +and –ends facing as shown.

Digital Signage Kiosk User Manual
12
8.2 FUNCTION FOR REMOTE CONTROL
** Function for “Source”is nil for some models

Digital Signage Kiosk User Manual
13
9. INSTALLATION GUIDE
9.1 EC-WDS Series (32”, 43”, 49”, 55”& 65”)
9.1.1 APPEARANCE
Front View
1
Front View
2
Side View

Digital Signage Kiosk User Manual
14
9.1.2 SPECIFICATION

Digital Signage Kiosk User Manual
15
9.2 EC-FDS Series (43”, 49”& 55”)
9.2.1 APPEARANCE
Front View
1
Front View
2
Side
View

Digital Signage Kiosk User Manual
16
9.2.2 SPECIFICATION

Digital Signage Kiosk User Manual
17
9.3 EC-FSS Series (55”)
9.3.1 APPEARANCE
Front View
1
Front View
2
Side View

Digital Signage Kiosk User Manual
18
9.3.2 SPECIFICATION

Digital Signage Kiosk User Manual
19
10. PACKING INFORMATION
10.1 EC-WDS Series
- Digital Signal All in One Kiosk
- Remote Control
- Wall Mount Kit
- Operation Manual
- Power Cord
- Antenna
- 2 set of Keys
10.2 EC-FDS Series
- Digital Signage All in one Kiosk
- Base
- Casters
- Screws for casters
- Remote Control
- Power Cord
- Antenna
- 2 set of Keys
10.3 EC-FSS Series
- Digital Signage All in one Kiosk
- Base
- Casters
- Remote Control
- Power Cord
- Antenna
