Nexcom NDiS 162 User manual

NEXCOM International Co., Ltd.
Published November 2008 www.nexcom.com
NEXCOM International Co., Ltd.
Multi-Media Solutions
Digital Signage Platform
NDiS 162
User Manual

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. ii NDiS 162 User Manual
Contents
Co n t e n t s
Preface
Copyright ............................................................................................. iv
Disclaimer ............................................................................................. iv
Acknowledgements .............................................................................. iv
Regulatory Compliance Statements ....................................................... iv
Declaration of Conformity...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................vii
Installation Recommendations................................................................vii
Safety Precautions.................................................................................viii
Technical Support and Assistance........................................................... ix
Conventions Used in this Manual........................................................... ix
Global Service Contact Information......................................................... x
Package Contents..................................................................................xii
Ordering Information ............................................................................xiii
Chapter 1: Product Introduction
Overview of NDiS 162.............................................................................1
Key Features.........................................................................................1
Physical Features...................................................................................1
Hardware Specifications........................................................................2
Mechanical Dimensions...........................................................................4
Chapter 2: Jumpers And Connectors
Before You Begin ....................................................................................5
Precautions .............................................................................................5
Jumper Settings ......................................................................................6
Locations of the Jumpers and Connectors...............................................7
NEX 662...............................................................................................7
Pin Definitions ....................................................................................8
DVI / VGA Port CN3 .........................................................................8
TV-Out Jack CN1..............................................................................8
Mini PCI Slot CN10 ..........................................................................9
S-Video Port CN6...........................................................................10
S/PDIF Port CN4 .............................................................................10
Audio-Out CN2..............................................................................11
RS232 Connector: COM1 CN9, COM2 CN8...................................11
LAN CN5........................................................................................12
PCI Slot CN7 ..................................................................................12
USB CON1 .....................................................................................13
GPIO J5..........................................................................................14
DC Power Input CN11....................................................................14
DC Power CON2............................................................................15
MIC J2 ...........................................................................................15
IR J4...............................................................................................15
Keyboard/Mouse J6........................................................................16

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. iii
Contents
NDiS 162 User Manual
DVI-I Connector and Miscellaneous Signals JP2 ..............................16
SMB J1...........................................................................................17
SATA J8, J9 ....................................................................................17
Fan Connector FAN3......................................................................18
Fan Connector FAN2......................................................................18
Fan Connector FAN1......................................................................18
CMOS Input Voltage Select JP1 ......................................................18
MIO02 Module...................................................................................19
Specifications ...................................................................................19
Connectors ......................................................................................19
Pin Definitions ..................................................................................20
DVI-I Connector and Miscellaneous Signals JP2 ..............................20
Audio Out CN3..............................................................................21
DC Power CON2............................................................................21
DVI CN2.........................................................................................21
WLAN LED JP1 ...............................................................................22
Power In 12V CN4 .........................................................................22
Chapter 3: System Setup
Removing the Chassis Cover ................................................................23
Installing the CPU .................................................................................24
Installing a DIMM..................................................................................27
Installing a SATA Hard Drive ..................................................................29
Installing a CompactFlash Card (optional)..............................................30
Installing the WiFi Module ....................................................................32
Replacing the Chassis Cover..................................................................35
Chapter 4: Driver Installation
Microsoft .NET Framework 2.0..............................................................36
ATI Display Driver..................................................................................37
Realtek LAN Driver................................................................................40
IDT Audio Driver ...................................................................................41
Appendix A: Power Consumption
Power Consumption .............................................................................43

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. iv NDiS 162 User Manual
Preface
Pr e f a C e
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices
and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for
a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equip-
ment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area (domestic environment) is likely to cause harmful interfer-
ence, in which case the user will be required to correct the interference
(take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable Euro-
pean Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining
CE compliance also requires proper cable and cabling techniques.
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. No
part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written consent from
NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice
and does not represent commitment from NEXCOM International Co., Ltd.
However, users may update their knowledge of any product in use by con-
stantly checking its manual posted on our website: http://www.nexcom.
com. NEXCOM shall not be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use of any product, nor for any
infringements upon the rights of third parties, which may result from such
use. Any implied warranties of merchantability or fitness for any particular
purpose is also disclaimed.
Acknowledgements
NDiS 162 is a trademark of NEXCOM International Co., Ltd. All other prod-
uct names mentioned herein are registered trademarks of their respective
owners.

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. vNDiS 162 User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status
Update
NEXCOM is a global citizen for building the digital
infrastructure. We are committed to providing green
products and services, which are compliant with Euro-
pean Union RoHS (Restriction on Use of Hazardous Substance in Electronic
Equipment) directive 2002/95/EU, to be your trusted green partner and to
protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg)
< 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent
Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB)
< 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1%
or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established
an engineering and manufacturing task force in to implement the intro-
duction of green products. The task force will ensure that we follow the
standard NEXCOM development procedure and that all the new RoHS
components and new manufacturing processes maintain the highest
industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and
suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the
suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compli-
ant. They will use the usual NEXCOM naming convention.

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. vi NDiS 162 User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in
accordance with industry standard. NEXCOM warrants that products will
be free from defect in material and workmanship for 2 years, beginning
on the date of invoice by NEXCOM. HCP series products (Blade Server)
which are manufactured by NEXCOM are covered by a three year warranty
period.
NEXCOM Return Merchandise Authorization (RMA)
Customers shall enclose the “NEXCOM RMA Service Form” with the?
returned packages.
Customers must collect all the information about the problems encoun-?
tered and note anything abnormal or, print out any on-screen messages,
and describe the problems on the “NEXCOM RMA Service Form” for
the RMA number apply process.
Customers can send back the faulty products with or without acces-?
sories (manuals, cable, etc.) and any components from the card, such as
CPU and RAM. If the components were suspected as part of the prob-
lems, please note clearly which components are included. Otherwise,
NEXCOM is not responsible for the devices/parts.
Customers are responsible for the safe packaging of defective products,?
making sure it is durable enough to be resistant against further damage
and deterioration during transportation. In case of damages occurred
during transportation, the repair is treated as “Out of Warranty.”
Any products returned by NEXCOM to other locations besides the cus-?
tomers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one
is basic diagnostic fee and another is component (product) fee.
System Level
Component fee: NEXCOM will only charge for main components such?
as SMD chip, BGA chip, etc. Passive components will be repaired for
free, ex: resistor, capacitor.
Items will be replaced with NEXCOM products if the original one cannot?
be repaired. Ex: motherboard, power supply, etc.
Replace with 3rd party products if needed.?
If RMA goods can not be repaired, NEXCOM will return it to the cus-?
tomer without any charge.
Board Level
Component fee: NEXCOM will only charge for main components, such?
as SMD chip, BGA chip, etc. Passive components will be repaired for
free, ex: resistors, capacitors.
If RMA goods can not be repaired, NEXCOM will return it to the cus-?
tomer without any charge.

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. vii NDiS 162 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are incon-
sistent with these instructions or the instructions for accessory modules,
contact the supplier to find out how you can ensure that your computer
meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the de-
scribed procedures only at an ESD workstation. If no such station is avail-
able, you can provide some ESD protection by wearing an antistatic wrist
strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
Read all instructions carefully.
▪
Do not place the unit on an unstable surface, cart, or stand.▪
Follow all warnings and cautions in this manual.▪
When replacing parts, ensure that your service technician uses parts▪
specified by the manufacturer.
Avoid using the system near water, in direct sunlight, or near a heating
▪
device.
The load of the system unit does not solely rely for support from the
▪
rackmounts located on the sides. Firm support from the bottom is highly
necessary in order to provide balance stability.
The computer is provided with a battery-powered real-time clock circuit.
▪
There is a danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufactur-
er. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep
small components separated.
Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
A Philips screwdriver•
A flat-tipped screwdriver•
A grounding strap•
An anti-static pad•
Using your fingers can disconnect most of the connections. It is recom-
mended that you do not use needlenose pliers to disconnect connections
as these can damage the soft metal or plastic parts of the connectors.

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. viii NDiS 162 User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping
it or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40oC storage temperature as this may damage the
equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connect-
ing the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that
has been approved for use with the product and that it matches the
voltage and current marked on the product’s electrical range label.
The voltage and current rating of the cord must be greater than the
voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electri-
cal shock.
14. Never open the equipment. For safety reasons, the equipment should
be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked
by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a
third pin to ground the unit and prevent electric shock. Do not defeat
the purpose of this pin. If your outlet does not support this kind of
plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER-
IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the ap-
propriate safety standards including IEC 60825.

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. ix NDiS 162 User Manual
Preface
Conventions Used in this Manual
Warning: Information about certain situations, which if not
observed, can cause personal injury. This will prevent injury to
yourself when performing a task.
Caution: Information to avoid damaging components or losing
data.
Note: Provides additional information to complete a task easily.
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEX-
COM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team
or sales representative, please have the following information ready
before calling:
– Product name and serial number
– Detailed information of the peripheral devices
– Detailed information of the installed software (operating system,
version, application software, etc.)
– A complete description of the problem
– The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with
care.
2. Maintenance: to keep the unit clean, use only approved cleaning prod-
ucts or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a
CompactFlash storage card.
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!CAUTION!

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. x
Preface
NDiS 162 User Manual
Global Service Contact Information
Headquarters
Taiwan
18F, No. 716, Chung-Cheng Rd. Chung-Ho City,
Taipei County 235, Taiwan, R.O.C.
Tel: +886-2-8228-0606
Fax: +886-2-8228-0501
http://www.nexcom.com.tw
USA
3758 Spinnaker Court,
Fremont, CA 94538, USA
Tel: +1-510-656-2248
Fax: +1-510-656-2158
http://www.nexcom.com
France
Z.I. des Amandiers, 17, Rue des entrepreneurs
78420 Carrières sur Seine, France
Tel: +33 (0)1 71 51 10 20
Fax: +33 (0)1 71 51 10 21
http://www.nexcom.eu
Germany
Leopoldstraße Business Centre, Leopoldstraße 244 80807
Munich, Germany
Tel: +49-89-208039-278
Fax: +49-89-208039-279
http://www.nexcom.eu
Italy
Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia
Tel: +39 02 9628 0333
Fax: +39 02 9619 8846
http://www.nexcom.eu
United Kingdom
10 Vincent Avenue, Crownhill Business Centre
Milton Keynes, Buckinghamshire, MK8 0AB
United Kingdom
Tel: +44-1908-267121
Fax: +44-1908-262042
http://www.nexcom.eu

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. xi
Preface
NDiS 162 User Manual
Japan
9F, Tamachi Hara Bldg.,
4-11-5, Shiba Minato-ku Tokyo,
Japan 108-0014
Tel: +81-3-5419-7830
Fax: +81-3-5419-7832
http://www.nexcom-jp.com
China-Beijing
Room 301, Block E, Power Creative Building, No. 1
Shangdi East Rd. Haidian Dist., Beijing, 100085, China
Tel: +86-10-5885-6655
Fax: +86-10-5885-1066
http://www.nexcom.cn
China-Shanghai Office
Room 1505, Greenland He Chuang Building, No. 450
Caoyang Rd. Shanghai, 200063, China
Tel: +86-21-6150-8008
Fax: +86-21-3251-6358
http://www.nexcom.cn
China-Nanjing Office
Hall C, Block 17,TianXingCuiLang,
No. 49 Yunnan North Rd. Nanjing, 210018, China
Tel: +86-25-8315-3486
Fax: +86-25-8315-3489
http://www.nexcom.cn
China-Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place,
Futian Area, Shenzhen, China 518040
TEL: +86-755-833 27203
FAX: +86-755-833 27213
http://www.nexcom.cn

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. xii
Preface
NDiS 162 User Manual
Pa C k a g e Co n t e n t s
Before continuing, verify that the NDiS 162 package that you received is complete. Your NDiS 162 package should have all the items listed in the following
table.
Item P/N Name Specification Qty
1 6012200053X00 PE ZIPPER BAG #3 100x70mm,W/China RoHS SYMBOL 1
2 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1
3 50311F0100X00 ROUND HEAD SCREW W/SPRING+FLAT WASHER LONG FEI:P3x6L P3x6 iso/SW6x0.5 NI 4
4 60177A0121X00 (N)NEX662 QUICK REFERENCE GUIDE VER:A KRAMER 1
5 602DCD0148X00 (N)NEX662 CD DRIVER VER:1.0 1
6 5060600049X00 2.5 HDD MYLAR NORMARK:DA-P3B01-569001 96.2x70x0.1mm 1
7 5043330226X00 NDiS162 HDD BRACKET CHYUAN JYH:L10Z334 119x72.05x9.8mm SPCC T=1.0mm NI 1
8 50311F0095X00 FLAT HEAD SCREW LONG FEI:F6#32Tx5 NYLOK NIGP F6#32Tx5 NI NYLOK 4
9 60233ATA12X00 (N)SATA CABLE FOR NISE 1000 BEST 26AWG L:150mm 1
10 7400060002X00 POWER ADAPTER FSP:FSP060-1AD101C(N09001) 60W MINI DIN 4PIN W/LOCK 12V/5A 1
11 50344C0034X00 COPPER POST LONG FEI:COPPER POSTS 6.5x5xM3 WITH MALE/FEMALE
(FEMALE)6.5mmx(MALE)5mmxM3
3

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. xiii
Preface
NDiS 162 User Manual
or d e r i n g in f o r m a t i o n
The following provides ordering information for NDiS 162.
NDiS 162 (P/N: 10W00016200X0)•
- AMD Athlon™ 64/64 X2 Fan-less Barebone System
- AMD 690E/SB600 with CRT/DVI x2

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 1NDiS 162 User Manual
Chapter 1: Product Introduction
Ch a P t e r 1: Pr o d u C t in t r o d u C t i o n

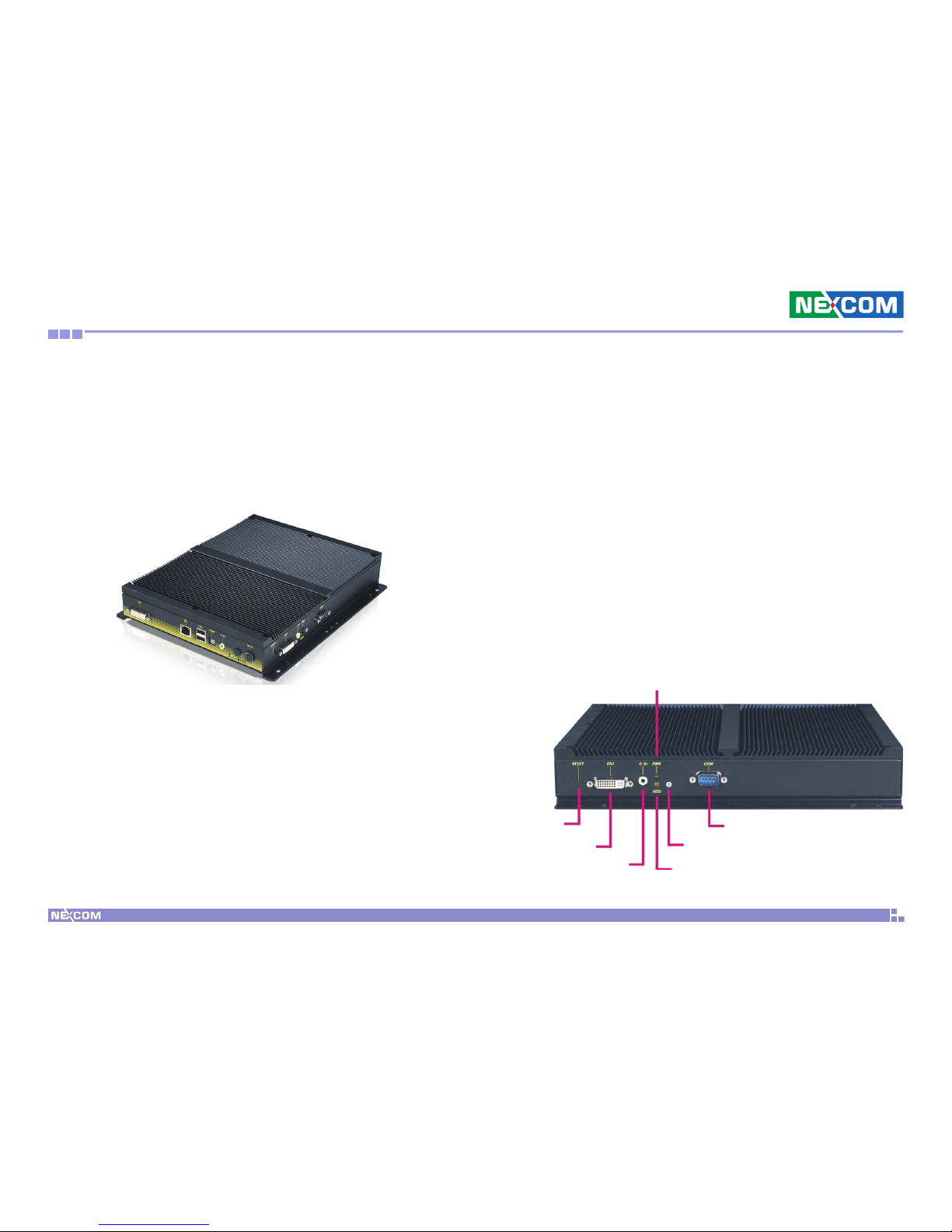

Overview of NDiS 162
NDiS 162 is designed for Digital Signage application. It provides ease of
mounting the system behind large-size display devices such as LCD TV or
PDP.
NDiS 162 operates on AMD low power Athlon™ 64/64 X2 series proces-
sors. With its fan-less thermal design, it can reduce maintainance cost and
thus guarantees stability on 24/7 nonstop operation.
NDiS 162 provides dual DVI display interface with dual independent audio
output, one GbE Ethernet with optional wireless connectivity, USB 2.0
ports and a 2.5” drive bay for a storage device.
Reset button
DVI-D
HDD LED
Power button
COM
Power LED
Front panel
Key Features
Powerful Digital Signage Player with• AMD Athlon™ 64/64 X2 AM2
processor
Fan-less thermal design•
AMD 690E/SB600 solution•
DVI / VGA / u-DOC / Audio / S/PDIF / GbE LAN / USB•
+12V DC-in / ATX support•
1 x SATA 2.5” HDD / CF (optional)•
Physical Features
Line-out

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 2NDiS 162 User Manual
Chapter 1: Product Introduction
12V
DC-in
WiFi
antenna
hole
Line-out
S/PDIF
USBLAN
Side panel
DVI-I
Main Memory
One 25° angled DIMM socket•
Supports DDR2 800MHz SDRAM with unbuffered and non-ECC memory•
module
Supports up to 2GB memory•
I/O Interface - Front
DB9 port x1 for RS232•
Power-on LED x1•
HDD LED x1•
DVI-D x1•
Phone jack x1 for line-out•
ATX Power-on button x1•
Reset button x1•
I/O Interface - Side
DVI-I x1 for CRT and DVI-D•
RJ45 with LED x1 for 10/100/1000Mbps Ethernet•
USB x2•
S/PDIF x1•
Phone jack x1 for line-out•
+12V DC-in power x1•
Antenna for WiFi x1 (optional)•
Storage
SATA 2.5” HDD storage x1•
u-DOC x1•
CF type I/II x1 (optional)•
Hardware Specifications
Main Board (NEX 662)
AMD AM2 socket•
Supports Athlon™ 64/64 X2 series processor•
AMD embedded processor list (AMD Longevity CPU)•
- Athlon™ 64 X2 3400E (FANLESS)
- Athlon™ 64 3100+(FANLESS)
- Athlon™ 64 2600+(FANLESS)
- Athlon™ 64 2000+(FANLESS)
Chipset
AMD M690E/M690T, AMD SB600•
Integrated ATI X1270 graphic controller•

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 3NDiS 162 User Manual
Chapter 1: Product Introduction
Expansion Slot
1 mini PCIe slot for optional wireless module•
Dimensions
W: 280mm; D: 210mm; H: 40.4mm (without rackmount bracket)•
Construction
Top cover made of aluminum for heat dissipation•
Chassis made of steel - in black•
Power Input
External 80W AC/DC adapter x1•
AC-in: 100~240VAC•
DC-out: DC +12V•
Environment
Operating temperature: Ambient with airflow from 0°C ~ 40°C (HDD•
inside)
Storage temperature: -20°C ~ 60°C, Humidity: 10% ~ 90% (non-con-•
densing)
Certification
CE approval•
FCC•

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 4NDiS 162 User Manual
Chapter 1: Product Introduction
Mechanical Dimensions

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 5
Chapter 2: Jumpers and Connectors
NDiS 162 User Manual
This chapter describes how to set the jumpers on the motherboard. Note
that the following procedures are generic for all NDiS 162 series.
Before You Begin
Ensure you have a stable, clean working environment. Dust and dirt can•
get into components and cause a malfunction. Use containers to keep
small components separated.
Adequate lighting and proper tools can prevent you from accidentally
•
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
A Philips screwdriver
•
A flat-tipped screwdriver•
A set of jewelers Screwdrivers•
A grounding strap•
An anti-static pad•
Using your fingers can disconnect most of the connections. It is recom-•
mended that you do not use needle-nosed pliers to disconnect connec-
tions as these can damage the soft metal or plastic parts of the connec-
tors.
Before working on internal components, make sure that the power
•
is off. Ground yourself before touching any internal components, by
touching a metal object. Static electricity can damage many of the elec-
tronic components. Humid environment tend to have less static electric-
ity than dry environments. A grounding strap is warranted whenever
danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by
discharges of static electricity. Working on the computers that are still con-
nected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or your-
self:
Always disconnect the unit from the power outlet whenever you are
•
working inside the case.
If possible, wear a grounded wrist strap when you are working inside
•
the computer case. Alternatively, discharge any static electricity by
touching the bare metal chassis of the unit case, or the bare metal body
of any other grounded appliance.
Hold electronic circuit boards by the edges only. Do not touch the com-
•
ponents on the board unless it is necessary to do so. Don’t flex or stress
the circuit board.
Leave all components inside the static-proof packaging that they
•
shipped with until they are ready for installation.
Use correct screws and do not over tighten screws.
•
Ch a P t e r 2: Ju m P e r s a n d Co n n e C t o r s

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 6
Chapter 2: Jumpers and Connectors
NDiS 162 User Manual
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal
pins and a cap. When setting the jumpers, ensure that the jumper caps are
placed on the correct pins. When the jumper cap is placed on both pins,
the jumper is short. If you remove the jumper cap, or place the jumper
cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin
jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 Are Short
1
2
3
1
2
3

Copyright © 2008 NEXCOM International Co., Ltd. All Rights Reserved. 7
Chapter 2: Jumpers and Connectors
NDiS 162 User Manual
Locations of the Jumpers and Connectors
NEX 662
The figure on the right is the NEX 662 motherboard
which is the motherboard used in the NDiS 162
system. It shows the locations of the jumpers and
connectors.
