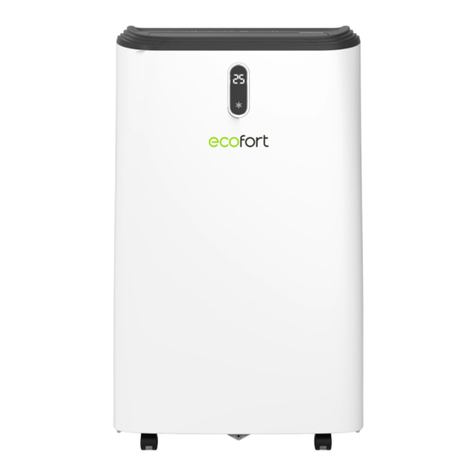

ecofort ecoQ CoolAir 10 User manual

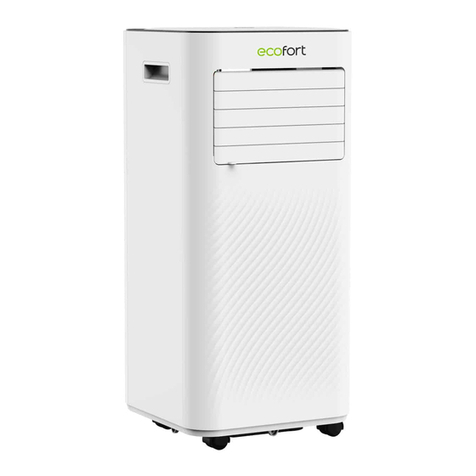

ecofort ecoQ CoolAir 10
Portable Air Conditioner
Owner’s Manual
(With environmentally friendly R290 refrigerant)
READ AND SAVE THESE INSTRUCTIONS
EN
FR
DE
IT
Owner’s Manual...........P3
Mode d'emploi...........P31
Bedienungsanleitung..P61
Manuale d’uso............P89

1
CONTENTS
1. BEFORE YOU BEGIN .................................................................... 02
2. FOR YOUR SAFETY.....................................................................06
3. PRODUCT OVERVIEW....................................................................12
4. INSTALLATION................................................................................14
5. OPERATION.................................................................................19
6. CLEANING AND CARE.................................................................... 21
7. TROUBLESHOOTING..................................................................25
8. WARRANTY..................................................................................26
9. DECOMMISSIONING.........................................................................28

2
1. BEFORE YOU BEGIN
1.1 PRODUCT DESCRIPTION
Our powerful portable air conditioners are great cooling solutions for
single rooms, creating a comfortable atmosphere in your space. It also
has ventilation and dehumidifying functions for circulating air and
removal of moisture. They are self-contained systems that do not
require any permanent installation allowing you to move it to the place
in which it is most needed. They're commonly used in kitchens,
temporary-resided, computer rooms, garages, and many other places
where installation of a Air-conditioner Outdoor Unit is limited.
The environmentally friendly R290 is used as the refrigerant. R290 has
no damaging influence on the ozone layer (ODP), a negligible
greenhouse effect (GWP) and is available worldwide. Because of its
efficient energy properties, R290 is highly suitable as a coolant for this
application. Special precautions must be taken into consideration due to
the coolant's high flammability.

3

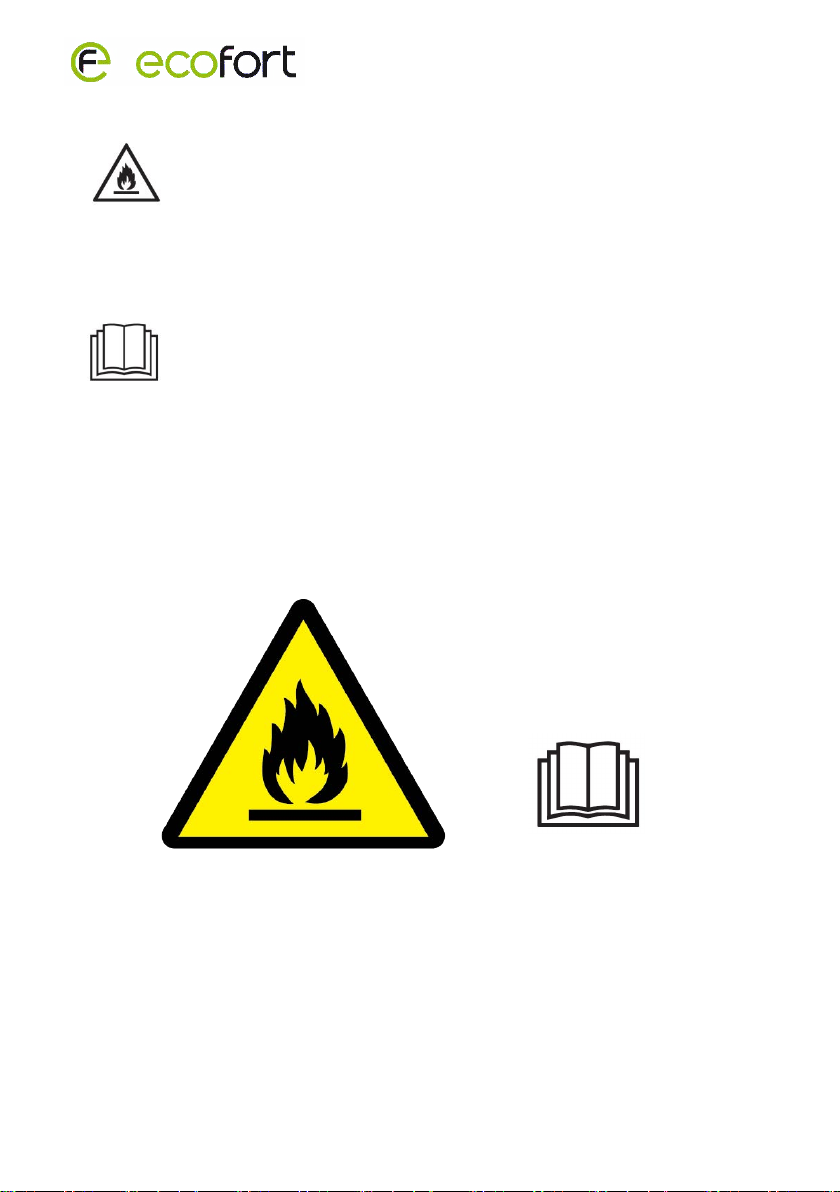

1.2 SYMBOLS FROM THE UNIT AND USER MANUAL
warning
This unit uses a flammable refrigerant.
If refrigerant leaks and comes in contact with fire or
heating part, it will create harmful gas and there is risk of
fire.
Read the USER MANUAL carefully before operation.

4
THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY
This appliance can be used by expert or trained users and also by
lay persons.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
The unit is designed only for use with R-290 (propane) gas as
the designated refrigerant.
The refrigerant loop is sealed. Only a qualified
technician should attempt to service!
Do not discharge the refrigerant into the atmosphere.
R-290 (propane) is flammable and heavier than air.
It collects first in low areas but can be circulated by fans.
If propane gas is present or even suspected, do not allow
untrained personnel to attempt to find the cause.
The propane gas used in the unit has no odor.
The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from
the area, ventilate the room and contact the local fire
department to advise them that a propane leak has occurred.
Do not let any persons back into the room until the qualified

5
service technician has arrived and that technician advises that
it is safe to return to the room.
No open flames, cigarettes or other possible sources of
ignition should be used inside or in the vicinity of the units.
Component parts are designed for propane and non-incentive
and non-sparking. Component parts shall only be replaced
with identical repair parts.
FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN
EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.

6
2. FOR YOUR SAFETY
Your safety is the most important thing!
2.1 OPERATIONAL PRECAUTIONS
WARNING- to reduce the risk of fire, electric shock or injury to
persons or property:
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
The appliance shall be disconnected from its power source during
service.
Always operate the unit from a power source of equal voltage,
frequency and rating as indicated on the product identification plate.
Always use a power outlet that is grounded.
Unplug the power cord when cleaning or when not in use.
Do not operate with wet hands. Prevent water from spilling onto the
unit.
Do not immerse or expose the unit to rain, moisture or any other
liquid.
WARNING
Please read this manual carefully and fully
understand before operating your appliance.

7
Do not leave the unit running unattended. Do not tilt or turn over the
unit.
Do not unplug while the unit is operating.
Do not unplug by pulling on the power cord.
Do not use an extension cord or an adapter plug.
Do not put objects on the unit.
Do not climb or sit on the unit.
Do not insert fingers or other objects into the air outlet.
Do not touch the air inlet or the aluminum fins of the unit.
Do not operate the unit if it is dropped, damaged or showing signs of
product malfunction.
Do not clean the appliance with any chemicals.
Ensure the unit is far away from fire, inflammable, or explosive
objects.
The unit shall be installed in accordance with national wiring
regulations.
Do not use means to accelerate the defrosting process or to clean,
other than those recommended by the manufacturer.
The appliance shall be stored in a room without continuously
operating sources (for example: open flames, an operating gas

8
appliance or an operating electric heater).
The appliance shall be stored so as to prevent mechanical damage
from occurring.
Do not piece or burn, even after use.
Pipe work shall be protected from physical damage and shall not be
installed in an unventilated space, if that space is smaller than 10 m².
Compliance with national gas regulations shall be observed.
Keep any required ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for operation.
WARNING
Any person who is involved with working on or
breaking into a refrigerant circuit should hold a current
valid certificate from an industry-accredited
assessment authority, which authorizes their
competence to handle refrigerants safely in
accordance with an industry, recognized assessment
specification.
WARNING
Servicing shall only be performed as recommended by
the equipment manufacturer. Maintenance and repair
requiring the assistance of other skilled personnel
shall be carried out under the supervision of the
person competent in the use of flammable
refrigerants.
If you don't understand something or need help, please contact the dealer
services.

9
2.2 SAFETY PRECAUTIONS ON SERVICING
Please follow these warnings when servicing an appliance with R290.
2.2.1 Checks to the Area
Prior to beginning work on systems containing flammable refrigerants,
safety checks are necessary to ensure that the risk of ignition is
minimized. For repair to the refrigerating system, the following
precautions shall be complied with prior to conducting work on the
system.
2.2.2 Work Procedure
Work shall be undertaken under a controlled procedure so as to
minimize the risk of a flammable gas or vapor being present while the
work is being performed.
2.2.3 General Work Area
All maintenance staff and others working in the local area shall be
instructed on the nature of work being carried out. Work in confined
spaces shall be avoided. The area around the workspace shall be
sectioned off. Ensure that the conditions within the area have been
made safe by control of flammable material.
2.2.4 Checking for Presence of Refrigerant
The area shall be checked with an appropriate refrigerant detector prior
to and during work, to ensure the technician is aware of potentially
flammable atmospheres. Ensure that the leak detection equipment
being used is suitable for use with flammable refrigerants, i.e. no
sparking, adequately sealed or intrinsically safe.

10
2.2.5 Presence of Fire Extinguisher
If any hot work is to be conducted on the refrigeration equipment or
any associated parts, appropriate fire extinguishing equipment shall be
available to hand. Have a dry powder or CO2 fire extinguisher adjacent
to the charging area.
2.2.6 No Ignition Sources
No person carrying out work in relation to a refrigeration system which
involves exposing any pipe work that contains or has contained
flammable refrigerant shall use any sources of ignition in such a manner
that it may lead to the risk of fire or explosion. All possible ignition
sources, including cigarette smoking, should be kept sufficiently far
away from the site of installation, repairing, removing and disposal,
during which flammable refrigerant can possibly be released to the
surrounding space. Prior to work taking place, the area around the
equipment is to be surveyed to make sure that there are no flammable
hazards or ignition risks. “No Smoking” signs shall be displayed.
2.2.7 Ventilated Area
Ensure that the area is in the open or that it is adequately ventilated
before breaking into the system or conducting any hot work. A degree
of ventilation shall continue during the period that the work is carried
out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
2.2.8 Checks to the Refrigeration Equipment
Where electrical components are being changed, they shall be fit for the
purpose and to the correct specification. At all times the manufacturer’s
maintenance and service guidelines shall be followed. If in doubt
consult the manufacturer’s technical department for assistance.
The following checks shall be applied to installations using flammable
refrigerants:

11
– The charge size is in accordance with the room size within which the
refrigerant containing parts are installed;
– The ventilation machinery and outlets are operating adequately and
are not obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit
shall be checked for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected;
– Refrigeration pipe or components are installed in a position where
they are unlikely to be exposed to any substance which may corrode
refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being
corroded or are suitably protected against being corroded.
2.2.9 Checks to Electrical Devices
Repair and maintenance to electrical components shall include initial
safety checks and component inspection procedures. If a fault exists
that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault
cannot be corrected immediately but it is necessary to continue
operation, an adequate temporary solution shall be used. This shall be
reported to the owner of the equipment, so all parties are advised.
Initial safety checks shall include:
-the capacitors are discharged: this shall be done in a safe manner to
avoid possibility of sparking;
-that there no live electrical components and wiring are exposed while
charging, recovering or purging the system;
-that there is continuity of earth bonding.

12
3. PRODUCT OVERVIEW
3.1 PRODUCT DIAGRAM
1
Control panel
4
Power cord
6
Air Exhaust
2
Air outlet with
adjustable
louver
5
Recessed
handle
7
Drain opening
with sealing
plug
3
Air outlet filter
Note: The drawing is only for reference. Please see the real product for
detailed information.

13
3.2 FEATURES
 High Capacity in a compact size with cooling, dehumidifying and
ventilating functions.
 Temperature setting and display
 LED digital display
 Electronic control with built-in timer, sleep mode
 Self-evaporating system for better efficiency
 Auto shut-off when the tank is full
 Automatic restart in the event of power outage
 Auto defrosting function at low ambient temperatures
 Remote control
 2-speed fan
 Casters for easy mobility

14
4. INSTALLATION
4.1 UNPACKING
Unpack the carton and take the appliance and accessories out.
Check the device after unpacking for any damage or scratches on it.
Accessories:
1. Exhaust hose
2. Hose connector
3. Window kit adapter
4. Remote control
5. Window kit

15
4.2 Choose your location
If tipped more than 45°, allow the unit
to sit upright for at least 24 hours
before startup.

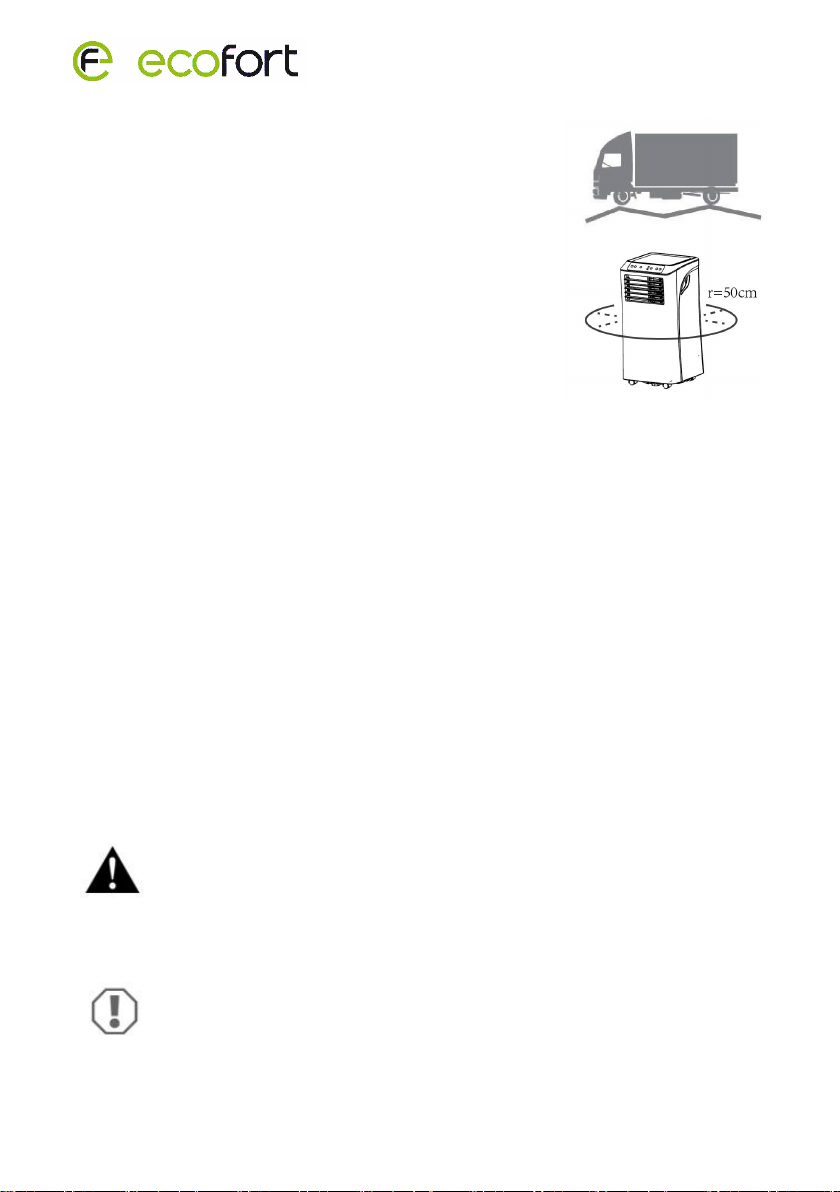

Place the unit on a firm, level surface in
an area with at least 50 cm of free
space around it to allow for proper air
circulation.
Do not operate in close proximity to
walls, curtains, or other objects that
may block air inlet and outlet. Keep the air inlet and outlet free of
obstacles.
Never install the unit where it could be subject to：
Heat sources such as radiators, heat registers, stoves or other
products that products that produce heat.
Direct sunlight
Mechanical vibration or shock
Excessive dust
Lack of ventilation, such as cabinet or bookcase
Uneven surface
WARNING!
Install the unit in rooms which exceed 10 m².
Do not install the unit in a place where inflammable gas may leak.
NOTE!
The manufacture may provide other suitable example or may provide
additional information about the refrigerant odor.

16
4.3 ATTACH THE EXHAUST HOSE
The air conditioner requires being vented outside so that the exhaust air can
escape the room coming from the appliance which contains waste heat and
moisture.
Do not replace or extend the exhaust hose which would result in decreased
efficiency, even worse shut down the unit due to low backpressure.

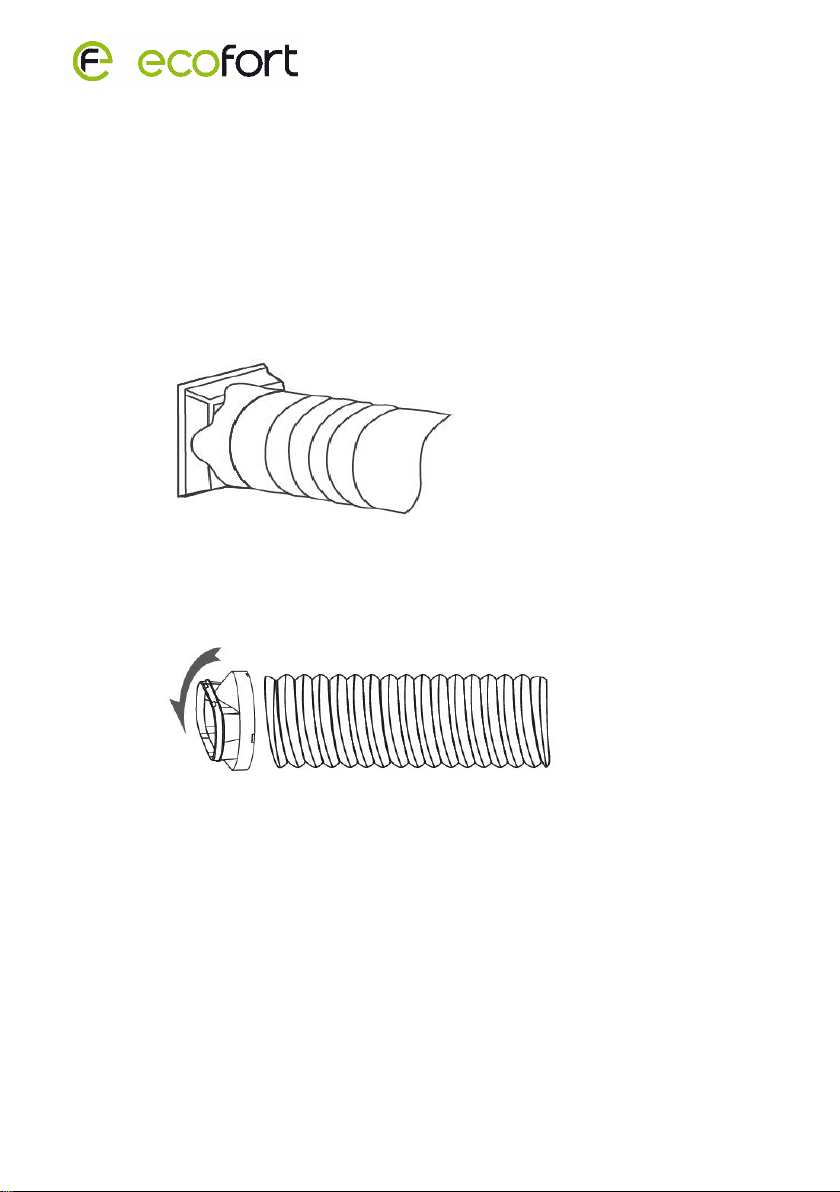

Step 1: Connect the hose connector to one end of the exhaust hose.
Step 2: Connect the windows kit adapter to the other end of the exhaust
hose.

17
Step 3: Extend the adjustable window kit the length of your window.
Connect the exhaust hose to the window kit.
Step 4: Close your window to secure the kit in place. It needs to hold the
windows kit firmly in place, secure the window kit with duct tape if required. It
is recommended that the gap between the adapter and the sides of the
window should be sealed off for maximum efficiency.

18

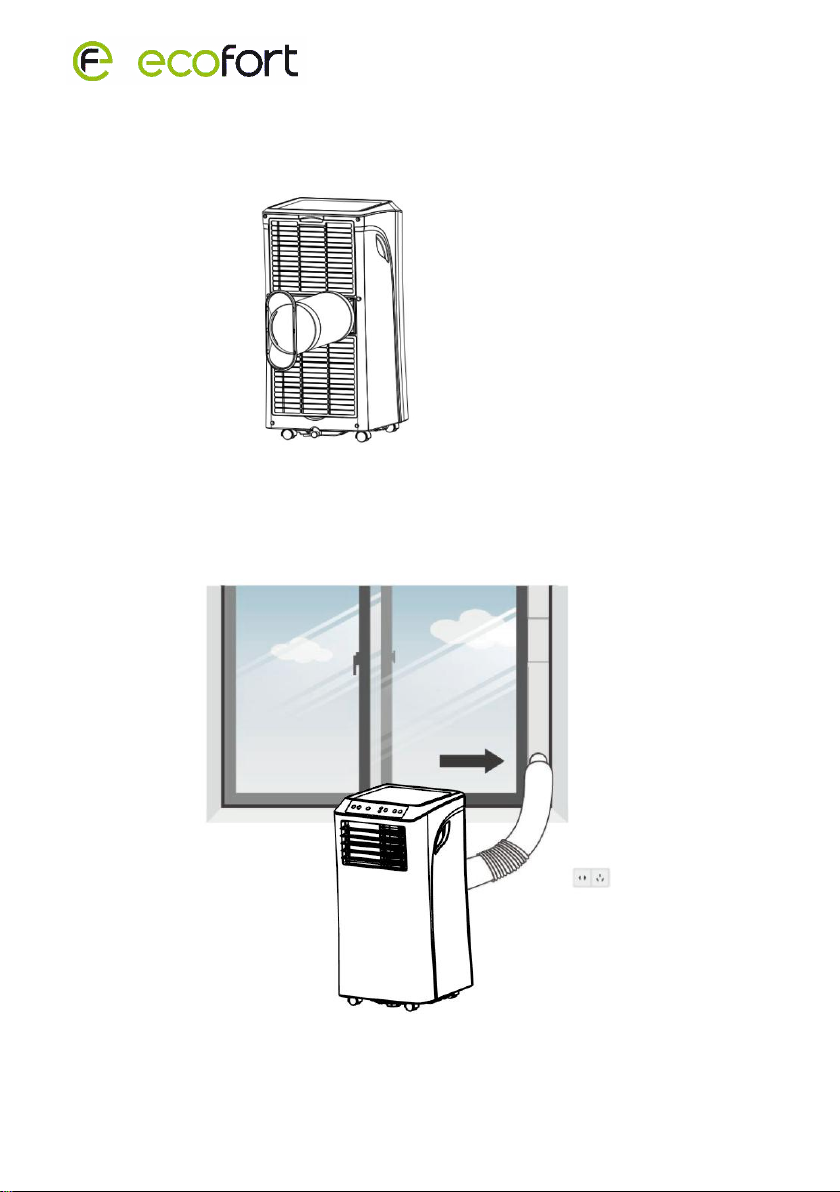

Step 5: Attach the hose connector to the exhaust air outlet of unit.
Step 6: Adjusting the length of the flexible exhaust hose and avoid bends in
the hose. Then place AC near an electrical outlet.
Step 7: Adjust the louver at the air outlet and then switch on the unit.
