ECOVACS ROBOTICS DEEBOT 500 User manual

Instruction Manual

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of
satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other
things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our
Customer Service Center where a technician will be able to help you with your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS ofcial website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing DEEBOT!

3EN
1. Important Safety Instructions...........................................................................................................................................4
2. Package Contents .............................................................................................................................................................8
3. Operating and Programming..........................................................................................................................................11
4. Maintenance.....................................................................................................................................................................16
5. Indicator Light and Alarm Sounds.................................................................................................................................20
6. Troubleshooting ..............................................................................................................................................................21
7. Technical Specications.................................................................................................................................................23
Contents

4
EN
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
2. Children should be supervised to ensure that
they do not play with the appliance.
3. Clear the area to be cleaned. Remove power
cords and small objects from the oor that could
entangle the Appliance. Tuck rug fringe under
the rug base, and lift items such as curtains and
tablecloths off the oor.
4. If there is a drop off in the cleaning area due to a
step or stairs, you should operate the Appliance
to ensure that it can detect the step without
falling over the edge. It may become necessary
to place a physical barrier at the edge to keep
the unit from falling. Make sure the physical
barrier is not a trip hazard.
5. Only use as described in this manual. Only
use attachments recommended or sold by the
manufacturer.
6. Please make sure your power supply voltage
matches the power voltage marked on the
Charging Dock.
7. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
8. Non-rechargeable batteries are prohibited.
9. Do not use without dust bin and/or filters in
place.
10. Do not operate the Appliance in an area where
there are lit candles or fragile objects.
11. Do not use in extremely hot or cold environments
(below -5˚C/23˚F or above 40˚C/104˚F).
12. Keep hair, loose clothing, ngers, and all parts of
body away from any openings and moving parts.
13. Do not operate the Appliance in a room where
an infant or child is sleeping.
When using an electrical appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
1. Important Safety Instructions

5EN
14. Do not use Appliance on wet surfaces or
surfaces with standing water.
15. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or any
item that may clog the Appliance.
16. Do not use Appliance to pick up flammable or
combustible materials such as gasoline, printer
or copier toner, or use in areas where they may
be present.
17. Do not use Appliance to pick up anything that is
burning or smoking, such as cigarettes, matches,
hot ashes, or anything that could cause a re.
18. Do not put objects into the suction intake. Do
not use if the suction intake is blocked. Keep the
intake clear of dust, lint, hair, or anything that
may reduce air ow.
19. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Charging
Dock by the power cord, use the power cord as
a handle, close a door on the power cord, or pull
power cord around sharp edges or corners. Do
not run Appliance over the power cord. Keep
power cord away from hot surfaces.
20. If the power cord is damaged, it must be
replaced by the manufacturer or its service agent
in order to avoid a hazard.
21. Do not use the Charging Dock if it is damaged.
22. Do not use with a damaged power cord
or receptacle. Do not use the Appliance or
Charging Dock if it is not working properly, has
been dropped, damaged, left outdoors, or come
in contact with water. It must be repaired by the
manufacturer or its service agent in order to
avoid a hazard.
23. Turn OFF the power switch before cleaning or
maintaining the Appliance.
24. The plug must be removed from the receptacle
before cleaning or maintaining the Charging
Dock.
25. Remove the Appliance from the Charging Dock,
and turn OFF the power switch to the Appliance
before removing the battery for disposal of the
Appliance.
26. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
1. Important Safety Instructions

6
EN
27. Please dispose of used batteries according to
local laws and regulations.
28. Do not incinerate the Appliance even if it is
severely damaged. The batteries can explode in
a re.
29. When not using the Charging Dock for a long
period of time, please unplug it.
30. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable or
responsible for any damages or injuries caused
by improper use.
31. The robot contains batteries that are only
replaceable by skilled persons. To replace or
remove the battery, please contact Customer
Service.
32. If the robot will not be used for a long time, fully
charge the robot and power OFF for storage and
unplug the Charging Dock.
33. WARNING: For the purposes of recharging
the battery, only use the detachable supply unit
DK18C-190060H-Y provided with this appliance.
1. Important Safety Instructions
34. The Remote Control requires two non-
rechargeable AAA batteries. To replace the
battery of the Remote Control, please turn
over the Remote Control, press and remove
its Battery Cover. Remove the batteries, and
insert the new batteries with the correct polarity.
Reassemble the Battery Cover.
35. Non-rechargeable batteries are not to be
recharged.
36. Different types of batteries or new and used
batteries are not to be mixed.
37. Batteries of the Remote Control are to be
inserted with the correct polarity.
38. Exhausted batteries are to be removed from the
Appliance and safely disposed of.
39. If the Remote Control is to be stored unused for
a long period, the batteries should be removed.
40. The supply terminals are not to be short-
circuited.

7EN
1. Important Safety Instructions
SAVE THESE INSTRUCTIONS
To disable Wi-Fi module on DEEBOT, power the
robot ON.
Place the robot on the Docking Station making
sure the Charging Contacts on DEEBOT and the
Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the
robot for 10 seconds until DEEBOT emits 3
beeps.
To enable Wi-Fi module on DEEBOT, power
the robot OFF and then power ON. The Wi-Fi
module is turned on when DEEBOT is restarted.
detachable supply unit

8
EN
2.1 Package Contents
Robot (2) Side Brushes Charging Dock + Power Adapter
Multi-Function Cleaning
Tool
Remote Control with
Batteries Instruction Manual Quick Start Guide
2. Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.

9EN
Anti-Collision Sensors and
Bumper

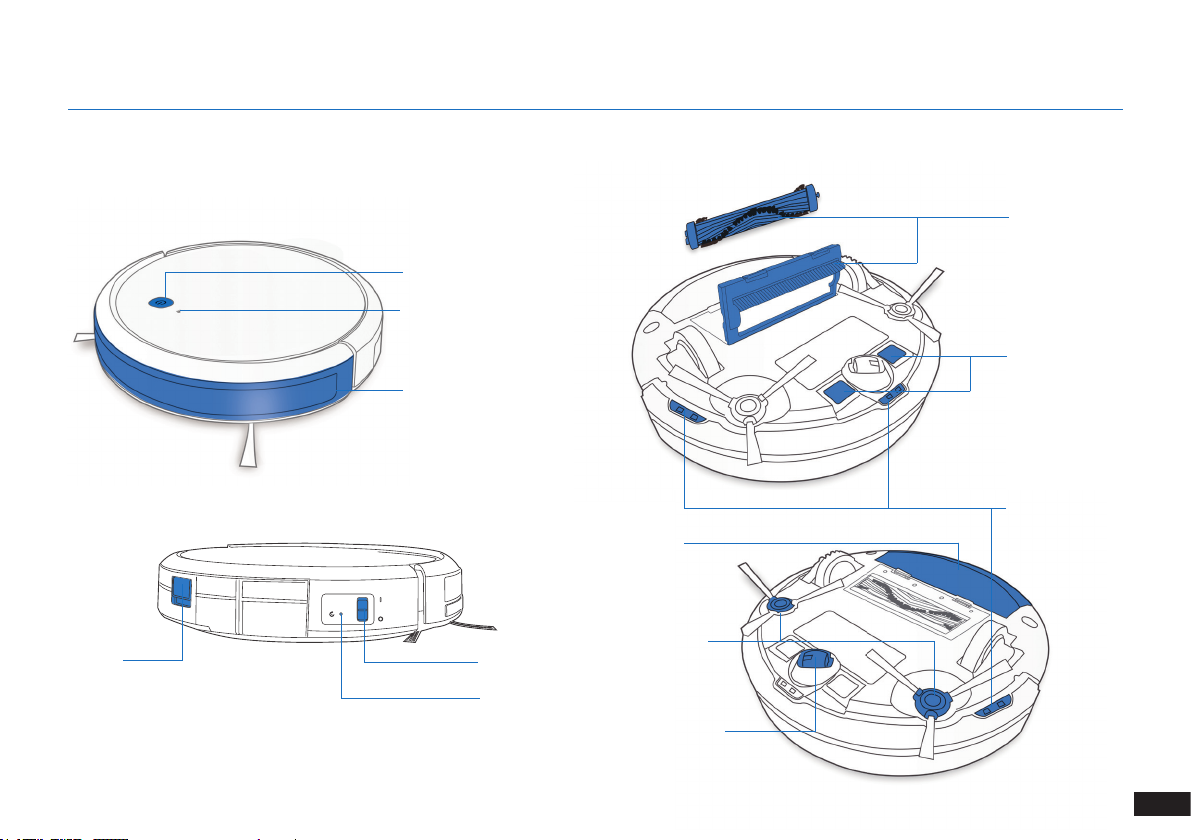

2.3 Product Diagram
Robot
AUTO Mode Button
Wi-Fi Indicator
Power Switch
Reset Button
Dust Bin
Release Button
Anti-Drop Sensors
Main Brush Option
Dust Bin
Charging Contacts
Universal Wheel
Side Brushes
Bottom View
2. Package Contents

10
EN
2. Package Contents

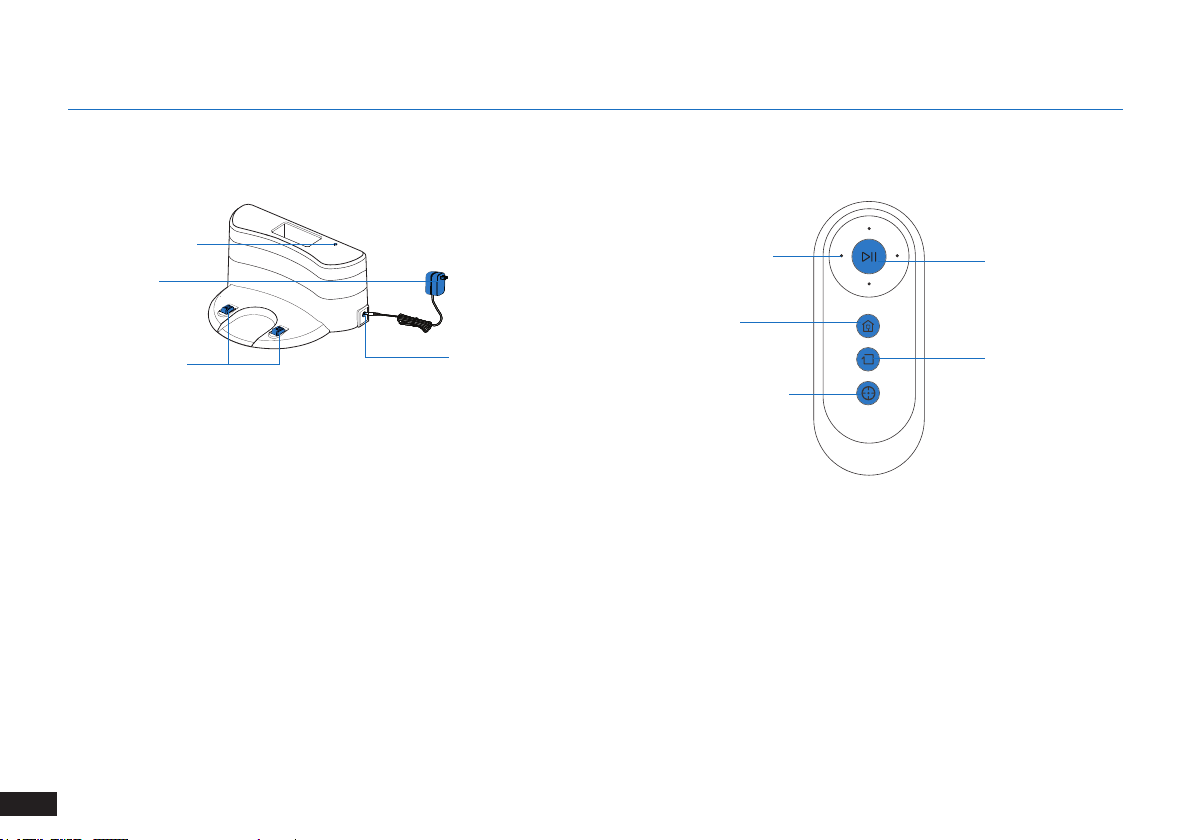

Power Indicator Light
Power Adapter
Power Adapter Port
START/PAUSE Button
Edge Cleaning Button
Charging Dock Pins
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Charging Dock Remote Control

11 EN

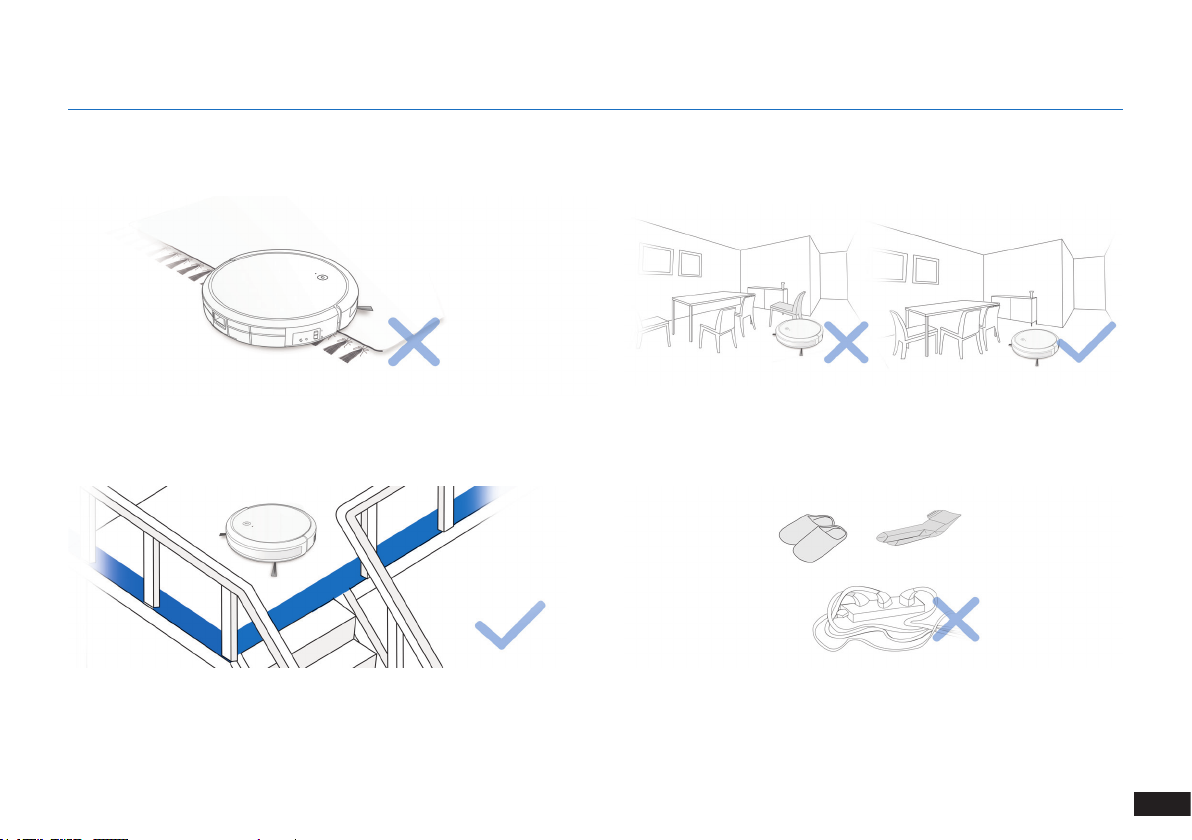

Before using the product on a rug with tasseled edges, please fold the
rug edges under.
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge.
Remove power cords and small objects from the oor that the robot
could be obstructed by.
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place.
3. Operating and Programming

12
EN
3. Operating and Programming

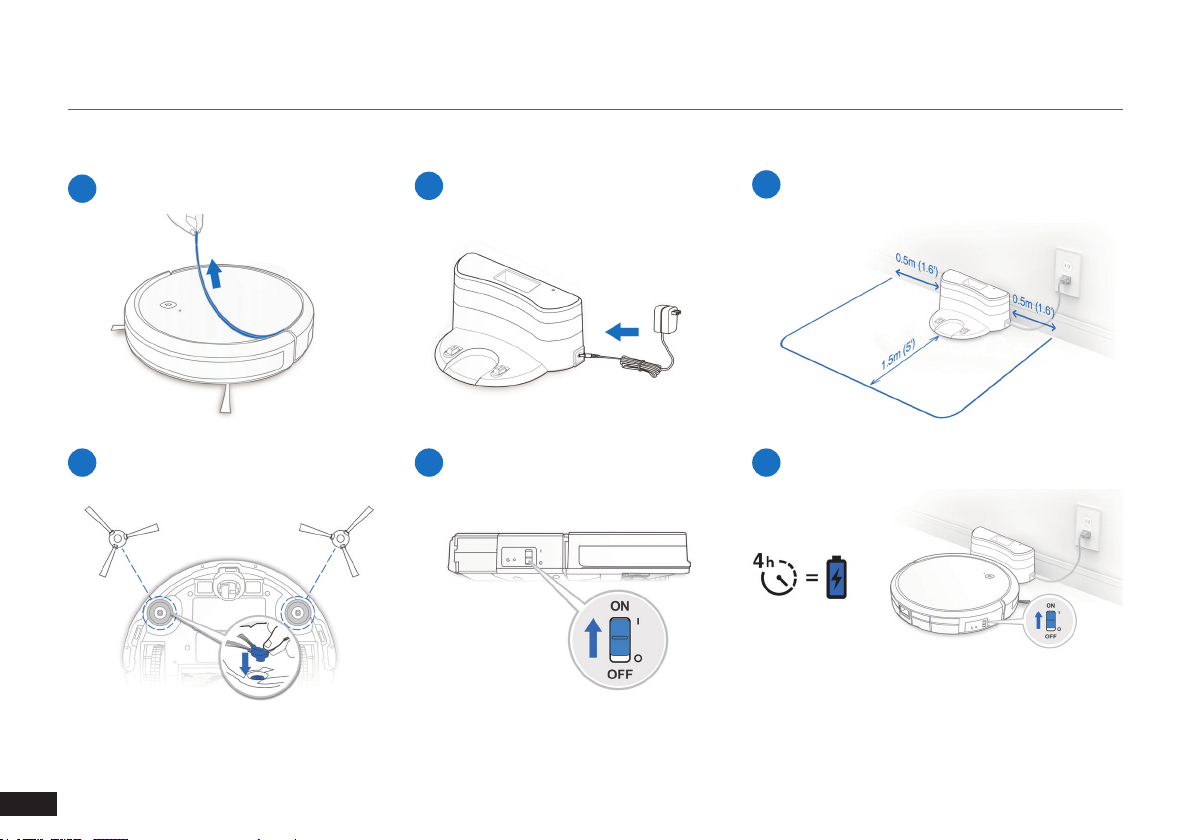

1Remove Protective Strip 2Plug in Adapter 3Charging Dock Placement
4Install Side Brushes 5Power ON
3.2 Preparation
Note: When DEEBOT completes the cleaning cycle or
when battery power gets low, DEEBOT automatically
returns to the Charging Dock to recharge itself.
6Charge DEEBOT

13 EN
6Charge DEEBOT
OR
3.3 Selecting Cleaning Mode
1AUTO Cleaning Mode
ARandom Cleaning Pattern (optimized for carpets) will be selected by
default.
3. Operating and Programming
2Spot Cleaning Mode (Less than 3 minutes)
3Edge Cleaning Mode

14
EN
3. Operating and Programming
All the functions mentioned above can be enabled on the App.
Download ECOVACS App to access more features, including Edge
Cleaning, Scheduled Cleaning, etc.
iOS 9.0 or later Android 4.0 or later
2
OR
4Return to Charging Dock
≥3s
ECOVACS HOME

15 EN
3. Operating and Programming
3.4 Pause, Wake Up, Power Off
1Pause
Note: The robot’s Control Panel stops glowing after the robot is paused
for a few minutes. Press the AUTO Mode Button on DEEBOT to wake
up the robot.
3Power OFF
Note: When DEEBOT is not working, it is recommended to keep it
switched ON and charging.
OR
2Wake Up
Press the AUTO button on DEEBOT to wake it up
OR

16
EN
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Charging Dock.
Dust Bin
4.1 Dust Bin and Filters
1
2
3
Filter Net
Sponge Filter
High Efciency Filter
Dust Bin
Dust Bin Release Button
Dust Bin Cover
4. Maintenance

17 EN
Main Brush
4.2 Main Brush and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
4
2
5
3
4. Maintenance

18
EN
4. Maintenance

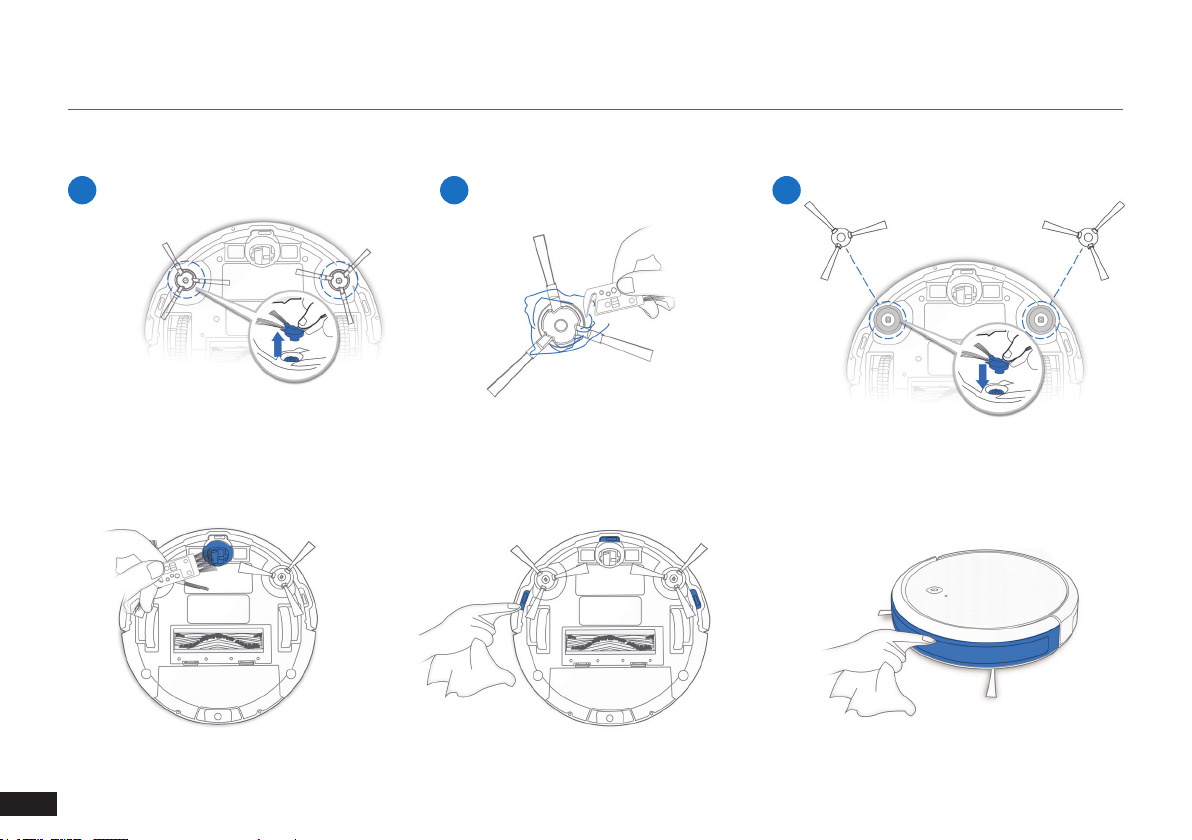

4.3 Other Components
Side Brushes
1 2 3

19 EN

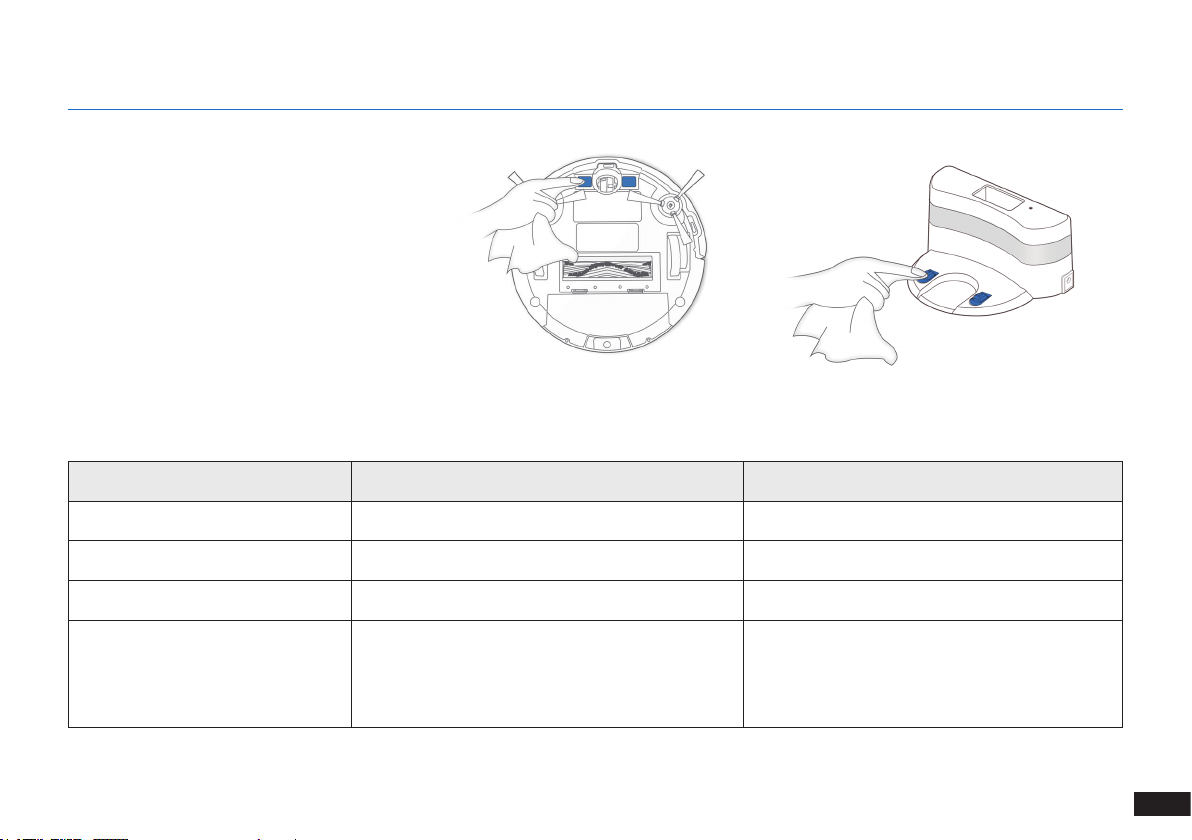

Note: Before cleaning the robot’s Charging Contacts
and Charging Dock Pins, turn the robot OFF and
unplug the Charging Dock.
4.4 Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Charging Dock Pins
Once per week /
4. Maintenance

20
EN
5. Indicator Light and Alarm Sounds
Indicator Light
Alarm Sounds
DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS App and
online website.
Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging AUTO Mode Button ashes WHITE
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem AUTO Mode Button ashes RED
Alarm Sound Problems Solution
One Beep Main Brush or Side Brush is tangled. Clean Main Brush or Side Brush as mentioned in
Section 4 Maintenance.
Continuous Beeps The Robot is suspended or the Driving Wheels are
tangled.
Put the Robot back on the ground or gently pat the
bumper and clean the Driving Wheel as mentioned in
Section 4 Maintenance.
