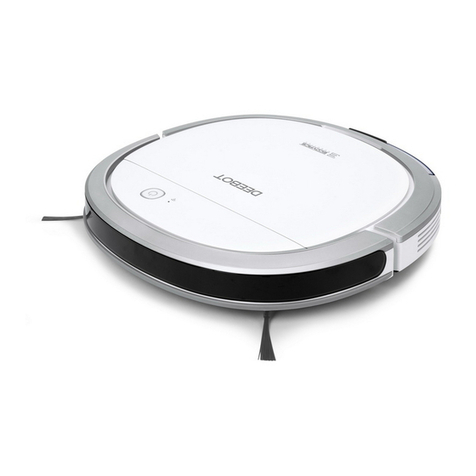

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
technician can address your specic problem or question.
For more information, please visit the ECOVACS ROBOTICS official website:
www.ecovacs.com
The Company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
Benutzerhandbuch............................................................27
DE
Manuale d'uso .................................................................109
EU-Declaration of conformity .............................................136
IT
..................................................55
Manual de instrucciones
ES
.......................................................82
Manuel d'instructions
FR
..............................................................2
Instruction Manual
EN

EN
1. Important Safety Instructions.......................................................................2
2. Package Contents and Technical Specications.......................................6
2.1 Package Contents.....................................................................................6
2.2 Specications............................................................................................6
2.3 Product Diagram........................................................................................7
3. Operating and Programming........................................................................9
3.1 Notes Before Cleaning...............................................................................9
3.2 Quick Start...............................................................................................10
3.3 Cleaning Mode Selection.........................................................................13
3.4 Programming the Robot...........................................................................15
3.5 Optional Advanced Wet/Dry Mopping System.........................................17
3.6 Alarm Indicator and Sounds.....................................................................19
4. Maintenance.................................................................................................20
4.1 Dust Bin and Filters..................................................................................20
4.2 Advanced Wet/Dry Cleaning Cloth, Advanced Wet/Dry Reservoir..........21
4.3 Main Brush and Side Brushes.................................................................22
4.4 Other Components..................................................................................23
4.5 Regular Maintenance..............................................................................24
5. Troubleshooting..........................................................................................25
Contents
.......................................................82

2EN
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the Appliance in a safe way and understand the hazards
involved. Children shall not play with the Appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
2. Clear the area to be cleaned. Remove power cords and small
objects from the oor that could entangle the Appliance. Tuck
rug fringe under the rug base, and lift items such as curtains
and tablecloths off the oor.
3. If there is a drop off in the cleaning area due to a step or
stairs, you should operate the Appliance to ensure that it can
detect the step without falling over the edge. It may become
necessary to place a physical barrier at the edge to keep the
unit from falling. Make sure the physical barrier is not a trip
hazard.
4. Only use as described in this manual. Only use attachments
recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the
power voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance
in outdoor, commercial or industrial environments.
7. Non-rechargeable batteries are prohibited. For battery
information, please refer to Specications section.
8. Do not use without dust bin and/or lters in place.
1. Important Safety Instructions

3
EN
9. Do not operate the Appliance in an area where there are lit
candles or fragile objects.
10. Do not use in extremely hot or cold environments (below
-5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, ngers, and all parts of body away
from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or
child is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with
standing water.
14. Do not allow the Appliance to pick up large objects like stones,
large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible
materials such as gasoline, printer or copier toner, or use in
areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or
smoking, such as cigarettes, matches, hot ashes, or anything
that could cause a re.
17. Do not put objects into the suction intake. Do not use if the
suction intake is blocked. Keep the intake clear of dust, lint,
hair, or anything that may reduce air ow.
18. Take care not to damage the power cord. Do not pull on or
carry the Appliance or Charging Dock by the power cord, use
the power cord as a handle, close a door on the power cord,
or pull power cord around sharp edges or corners. Do not run
Appliance over the power cord. Keep power cord away from
hot surfaces.
19. If the power cord is damaged, it must be replaced by the
manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
1. Important Safety Instructions

4EN
21. Do not use with a damaged power cord or receptacle. Do
not use the Appliance or Charging Dock if it is not working
properly, has been dropped, damaged, left outdoors, or come
in contact with water. It must be repaired by the manufacturer
or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the
Appliance.
23. The plug must be removed from the receptacle before
cleaning or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF
the power switch to the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded according to local
laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and
regulations.
27. Do not incinerate the Appliance even if it is severely damaged.
The batteries can explode in a re.
28. When not using the Charging Dock for a long period of time,
please unplug it.
29. The Appliance must be used in accordance with the directions
in this Instruction Manual. ECOVACS ROBOTICS cannot be
held liable or responsible for any damages or injuries caused
by improper use.
30. The robot contains batteries that are only replaceable by
skilled persons. To replace or remove the battery, please
contact Customer Service.
31. If the robot will not be used for a long time, fully charge the
robot and power OFF for storage and unplug the Charging
Dock.
32.WARNING: For the purposes of recharging the battery, only
use the detachable supply unit CH1465A provided with this
appliance.
1. Important Safety Instructions

5
EN
Correct Disposal of this Product
This marking indicates that this product should not be disposed of with
other household waste throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To recycle your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can safely recycle this product.
For EU Countries
33. The Remote Control pre-installs two non-rechargeable AAA
batteries. To replace the battery of the Remote Control, please
turn over the Remote Control, press and remove its Battery
Cover. Remove the batteries, and insert the new batteries with
the correct polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be recharged.
35. Different types of batteries or new and used batteries are not
to be mixed.
36. Batteries of the Remote Control are to be inserted with the
correct polarity.
37. Exhausted batteries are to be removed from the Appliance
and safely disposed of.
38. If the Remote Control is to be stored unused for a long period,
the batteries should be removed.
39. The supply terminals are not to be short-circuited.
1. Important Safety Instructions

6EN
2. Package Contents and Technical Specications
2.1 Package Contents
Robot
(4) Side Brushes
Sponge Filter and
High Efciency Filter
Main Brush Option
(Pre-installed)
Battery Pack
(2) Advanced Wet/Dry
Cleaning Cloths
Advanced Wet/Dry
Reservoir
Charging Dock Remote Control
(with batteries)
Instruction Manual+
Quick Start Guide
Model DB3G.21
Working Voltage 12V DC Rated Power 40W
Battery Model DN700-BYD Battery Specication Ni-MH 12 V DC,
3000 mAh
Charging Dock Model CH1465A
Rated Input Voltage 100-240V AC Rated Output Voltage 20V DC
Rated Output Current 1A Rated Power 20W
Remote Control Model RC1507 Remote Control Battery
Model AAA
Remote Control Battery Input
Voltage 1.5V DC Remote Control working voltage 3V DC
Frequency bands 2412-2472MHz
Maximum RF power transmitted
in the frequency band
Max PA output power at 72.2 Mbps: 17.5 dBm
Max PA output power in 11b mode: 21.5 dBm
2.2 Specications
* Technical and design specications may be changed in the course of continuous product improvement.
Measuring Cup

7
EN
2.3 Product Diagram
Robot
1. Top Cover
2. Dust Bin
3. AUTO Mode Button
4. Anti-Collision Sensors
5. Anti-Drop Sensors
6. Charging Contacts
7. Main Brush
8. Driving Wheels
9. Universal Wheel
10. Battery Pack
11. Side Brushes
12. Advanced Wet/Dry Reservoir Slots
13. Multi-Function Cleaning Tool
14. Upgrade Port (for Customer Service only)
15. Infrared Receiver for the Remote Control
1
3
2
4
5
6
7
8
13 1514 9
10
11
12
2. Package Contents and Technical Specications
Charging Dock
1
1. Infrared Signal Generators
2. Charging Dock Pins
1. AUTO Mode Button
2. Wi-Fi Indicator Light
Control Panel
1
2
2

8EN
2. Package Contents and Technical Specications
2
1
3
4
7
8
10
11
12
5
6
9

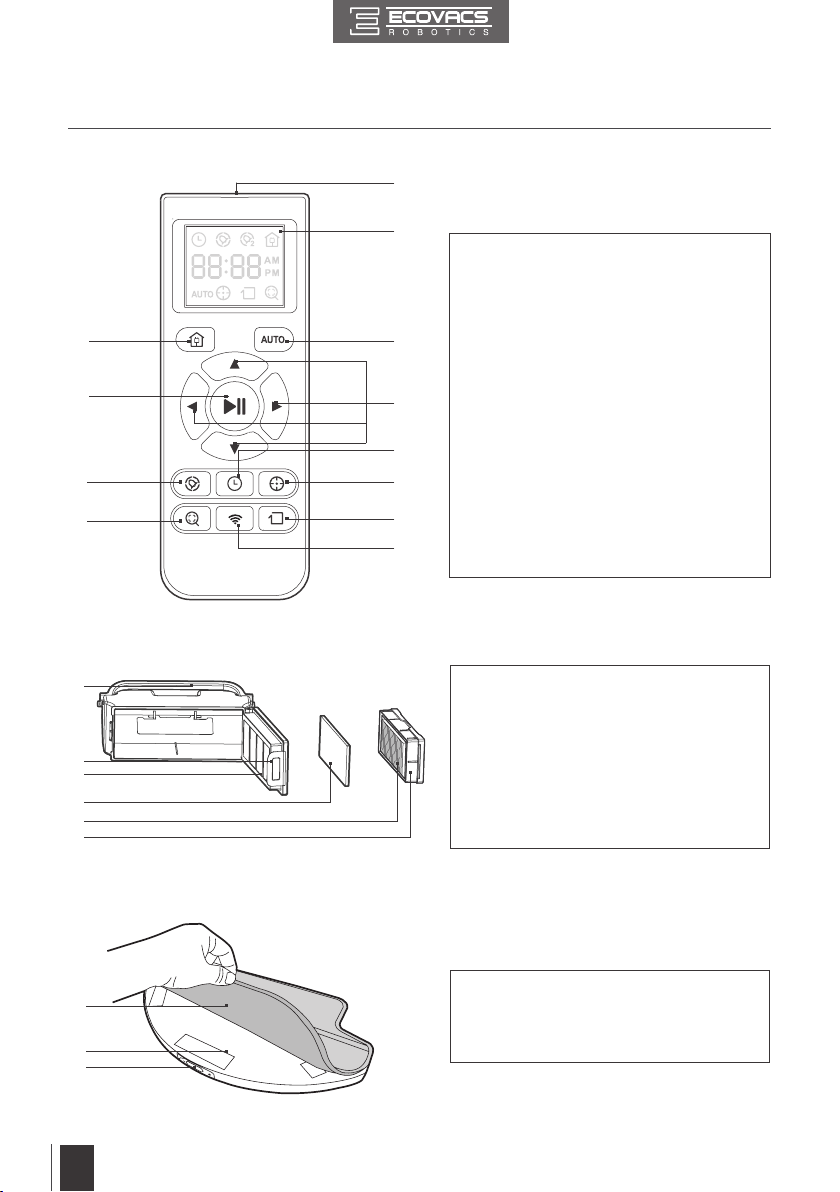

Remote Control
1. LCD Screen
2. Return to Charger Mode Button
3. AUTO Mode Button
4. Direction Control Buttons
5. START/PAUSE Button
6. Time Scheduling Button
7. Set Current Time Button
8. Spot Cleaning Mode Button
9. Intensive Cleaning Mode Button
10. Edge Cleaning Mode Button
11. Network Setup Button
12. Infrared Emitter
Dust Bin
Advanced Wet/Dry Reservoir
1. Dust Bin Handle
2. Dust Bin Lock
3. Filter Net
4. Sponge Filter
5. High Efciency Filter
6. Dust Bin Cover
1. Advanced Wet/Dry Cleaning Cloth
2. Advanced Wet/Dry Reservoir
3. Water Inlet
4
5
6
1
2
3
1
2
3

9
EN
3.1 Notes Before Cleaning
Before operating DEEBOT, take a few moments to survey the area to be
cleaned and remove any obstacles.
Remove power cords and small objects from
the oor that could entangle the product.
Please be aware that the robot needs at
least an 8 cm (3”) clearance to clean under
furniture without complications.
The product is not suitable for use on long-pile
carpet. Before using the product near an area
rug or on a short-pile area rug with tasseled
edges, please fold area rug edges under
themselves.
If there is a step or stairs in the cleaning area,
please operate DEEBOT to ensure its Anti-
Drop Sensors can detect the drop off. It may
be necessary to place a physical barrier at the
edge of the drop off to keep the unit from falling
over the edge.
3. Operating and Programming

10 EN
3.2 Quick Start

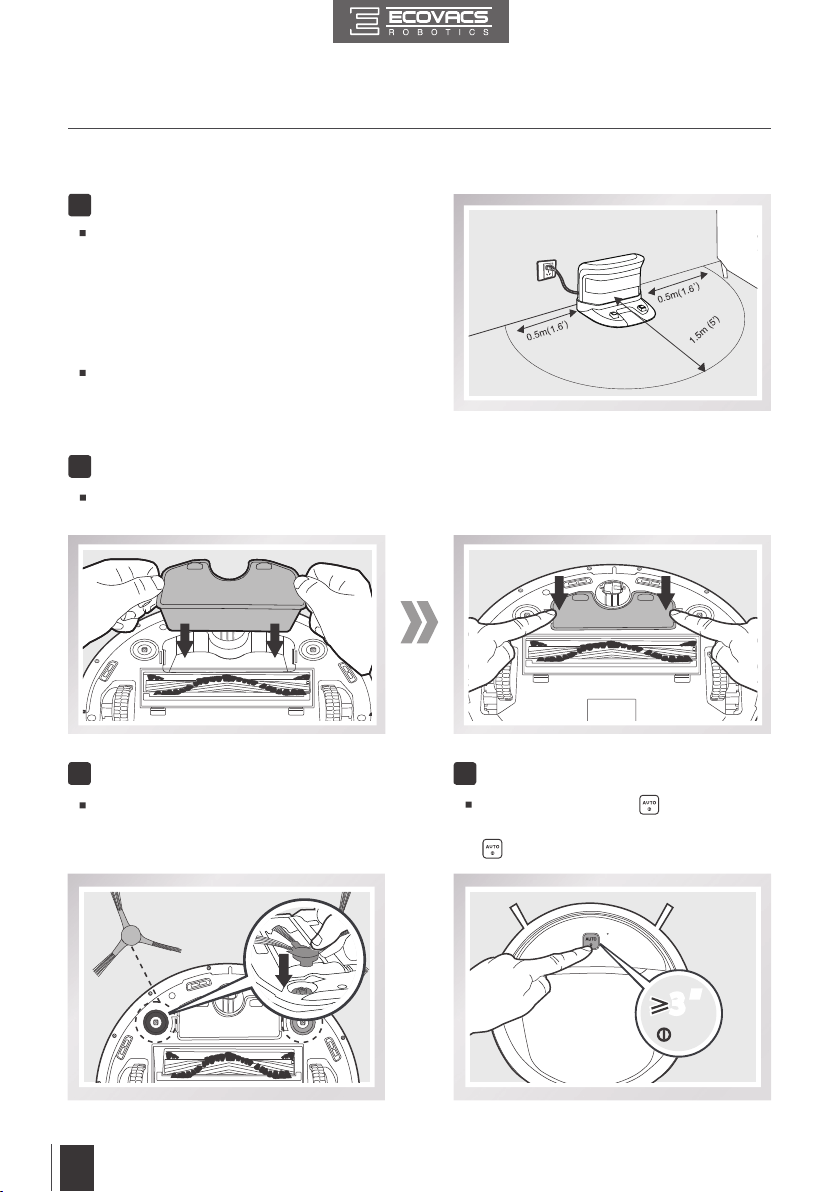

Charging Dock Placement
Place the Charging Dock on a level
floor surface against the wall with the
base perpendicular to the ground. Keep
the immediate area 1.5m (5’) in front
of the charger and 0.5m (1.6’) on both
sides of the charger clear of objects and
reective surfaces.
Plug the Charging Dock in.
1
Install the Battery Pack
Place the Battery Pack into the battery slot on the bottom of DEEBOT. Press the Battery Pack
into the slot until it clicks.
2
Install Side Brushes
Attach Side Brushes to the bottom of
DEEBOT by pressing a brush into each
slot with the matching color until it clicks.
3Power ON
Press and hold the button on the
robot. DEEBOT is powered ON when the
glows a continuous BLUE.
4
3. Operating and Programming
Ő3Ƞ
Ő3Ƞ
ON

11
EN
3. Operating and Programming
Remove the Advanced Wet/Dry Reservoir
before charging DEEBOT.
Place DEEBOT on the Charging Dock
making sure the Charging Contacts on
DEEBOT and the Charging Dock Pins make
a connection.
Charge DEEBOT for at least 4 hours before
the rst use.
5Charge DEEBOT
button blinks when DEEBOT is charging and stops glowing when DEEBOT is fully charged.
*
6Attach a Cleaning Cloth, if Desired
To use DEEBOT’s Optional Advanced Mopping System, attach the provided Cleaning Cloth.
*When using the optional mopping feature, fold area rug edges under themselves so DEEBOT will
avoid the rug.
* Please see section 3.5 Optional Advanced Wet/Dry Mopping System for complete instructions.

12 EN
Pause DEEBOT by pressing the button on
DEEBOT or the START/PAUSE Button on the
Remote Control.
*The AUTO Mode Button on the robot's Control Panel stops glowing when the robot is paused for
more than 10 minutes. Press AUTO Mode Button on the robot to wake up the robot, or press any
button on the Remote Control to start the DEEBOT immediately.

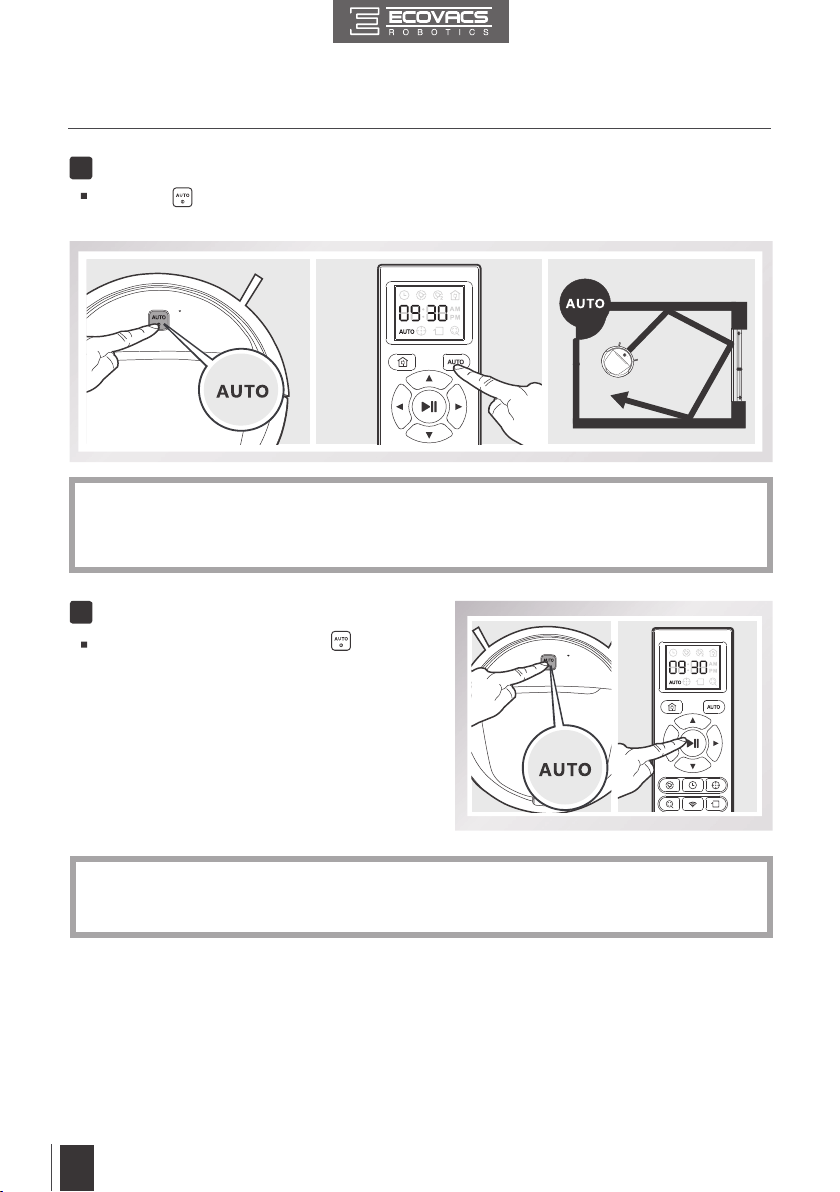

8Pause
7Start
Press the button on DEEBOT or the AUTO Mode Button on the Remote Control. DEEBOT
starts to work immediately in AUTO Cleaning Mode.
*To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for details.
*DEEBOT can be directed using the Direction Control Buttons on the Remote Control or App
when Paused.
3. Operating and Programming

13
EN
3. Operating and Programming
Pause DEEBOT. Press and hold the button on
the robot. DEEBOT is powered OFF when the
button stops glowing.
*When DEEBOT is not cleaning, it is suggested
to keep it powered ON and charging instead of
powered OFF.
*For models with app-connectivity, various functions can be performed using the ECOVACS App.
*To start AUTO Cleaning Mode, press
the AUTO Mode Button on the robot.
9Power OFF
Ő3Ƞ
Ő3Ƞ
OFF
3.3 Cleaning Mode Selection
DEEBOT has several cleaning modes to choose from to effectively clean different oors. Cleaning
modes are selected using the Remote Control.
AUTO Cleaning Mode
This is the most commonly used mode. In
AUTO Cleaning Mode, DEEBOT cleans
in a straight line and changes direction
when it meets an obstacle.
1Intensive Cleaning Mode
This mode is good for aggressive cleaning
or for extremely dirty or dusty floors. To
start Intensive Cleaning, press the Intensive
Cleaning Button on the Remote Control.
In this mode, DEEBOT follows the same
cleaning pattern as Automatic Cleaning
Mode, but with stronger suction power
and higher Main Brush rotating speed and
performs a more thorough cleaning.
2

14 EN
Spot Cleaning Mode
(2-5 minutes)
This mode is applicable for an area of highly
concentrated dirt or dust. In Spot Cleaning
Mode, DEEBOT focuses on a specific area
to clean. DEEBOT cleans the area in a spiral
pattern and stops when it completes Spot
Cleaning.
To start Spot Cleaning Mode, press the Spot
Mode Button on the Remote Control, or
on the App main screen.
3
This mode is good for cleaning the edges and
corners of a room. To start Edge Cleaning
Mode, press the Edge Cleaning Mode Button
on the Remote Control. In Edge Cleaning Mode,
DEEBOT cleans along a border (e.g. wall).
Edge Cleaning Mode
Return to Charger Mode
4
5
When battery power gets low, DEEBOT
automatically switches to Return to Charger
Mode and returns to the Charging Dock to
recharge itself.
*DEEBOT can also be sent back to the Charging
Dock at any time by pressing the Return to
Charger Button on the Remote Control.
3. Operating and Programming

15
EN
3. Operating and Programming

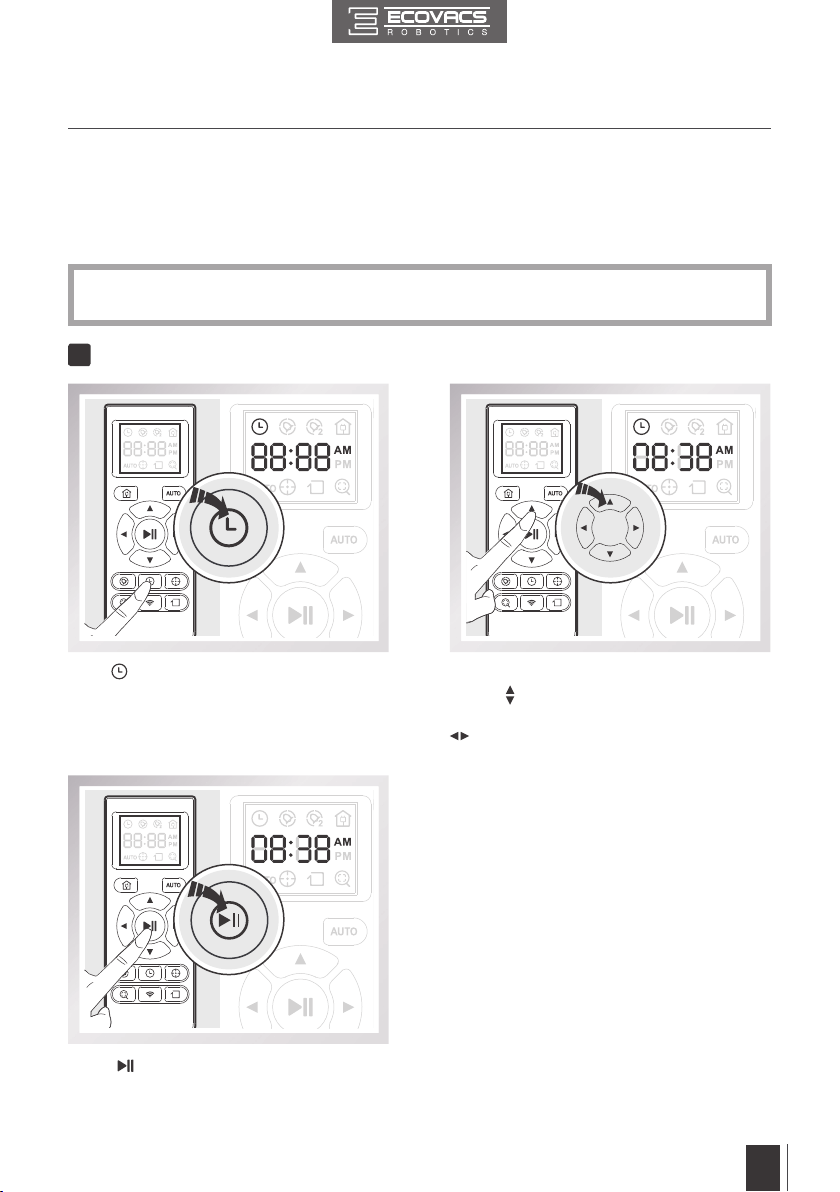

Set the Current Time of Day
1
*All scheduled cleanings are performed in AUTO Cleaning Mode.
*The Remote Control uses a 12-hour clock with “AM” and “PM” indicators.
3.4 Programming the Robot
DEEBOT has a Time Scheduling function. DEEBOT can be programmed to automatically clean
once per day, at a specic time using the Remote Control, even if nobody is at home. The current
time of day and the cleaning times are scheduled using the Remote Control.
Press button on the Remote Control to
conrm and save the current time of day.
Press the up and down Direction Control
Buttons to adjust “hour” and “minute” number.
Press the left and right Direction Control Buttons
to switch between “hour” and “minute.”
Press button on the Remote Control and the
“hour" (first two digits) flashes on the Remote
Control LCD Screen.

16 EN
3. Operating and Programming
Press button on the Remote Control and the
“hour” (first two digits) flashes on the Remote
Control Screen.
Press button on the Remote Control to
confirm and save the scheduled cleaning
time. DEEBOT emits two beeps. DEEBOT
automatically cleans at the scheduled cleaning
time every day.
To cancel the scheduled cleaning time, press
and hold button for 3 seconds until
disappears from the Remote Control LED
Screen and the robot emits three beeps. The
scheduled cleaning time is cancelled.
Press the up and down Direction Control
Buttons to adjust “hour” and “minute” number.
Press the left and right Direction Control Buttons
to switch between “hour” and “minute.”
Schedule the Cleaning Time using Remote Control
Cancel Scheduled Cleaning
Time using Remote Control
2
3

17
EN
DEEBOT has an Optional Advanced Mopping System using an Advanced Wet/Dry Cleaning
Cloth attached to a proprietary Advanced Wet/Dry Reservoir. The washable/reusable
Cleaning Cloth automatically damp mops and then dries the oor to a spotless clean.
* Do not use the mopping system on carpet.
* When using the mopping system, fold area rug edges under themselves so DEEBOT will avoid
the rug.
* When using the mopping system, do not stop the robot and allow it to stand still. This prevents
the Advanced Wet/Dry Cleaning Cloth from leaving water on the oor.
* Remove the Advanced Wet/Dry Reservoir before charging DEEBOT.
3.5 Optional Advanced Wet/Dry Mopping System
Attach Advanced Wet/Dry Cleaning
Cloth
Attach the Advanced Wet/Dry Cleaning Cloth
to the Advanced Wet/Dry Reservoir.
1
Fill the provided Measuring Cup with water. Open the lid of the Water Inlet on the Advanced Wet/Dry
Reservoir and slowly pour water from the Measuring Cup into the Reservoir. Close the Water Inlet lid.
Add Water to the Advanced Wet/Dry Reservoir
* Before adding water to the Advanced Wet/Dry Reservoir, remove the Advanced Wet/Dry
Reservoir from the bottom of the robot.
2
3. Operating and Programming

18 EN
3. Operating and Programming
Start
Select the desired Cleaning Mode. DEEBOT sweeps, lifts, vacuums, mops and dries in the
selected mode.
3
Attach the Advanced Wet/Dry Reservoir to the
bottom of the robot. Insert the tabs on the Advanced
Wet/Dry Reservoir into the Advanced Wet/Dry
Reservoir Slots on the bottom of the robot until you
hear a click.
Remove
After DEEBOT finishes cleaning, remove the
Advanced Wet/Dry Reservoir from DEEBOT,
empty any remaining water from the Reservoir,
and remove the Advanced Wet/Dry Cleaning
Cloth.
4
