ECOVACS DEEBOT T10 TURBO User manual

Instruction Manual

2
EN
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the Appliance in a safe way
and understand the hazards involved. Children
shall not play with the Appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug
fringe under the rug base, and lift items such
as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the
step without falling over the edge. It may
become necessary to place a physical barrier
at the edge to keep the unit from falling. Make
sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery
and Docking Station provided with the
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments
(below -5˚C/23˚F or above 40˚C/104˚F).

3EN
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a fire.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners. Do not run Appliance over the
power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station.

4
EN
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH2118 provided with the Appliance, or
CH2117 sold separately as an accessory.
To satisfy RF exposure requirements, a
separation distance of 20 cm or more should
be maintained between this device and persons
during device operation.
To ensure compliance, operations at closer than
this distance is not recommended. The antenna
used for this transmitter must not be co-located in
conjunction with any other antenna or transmitter.
Device Update
Typically, some devices are updated bi-monthly,
but not always so specific.
Some devices, especially those that went on sale
more than three years ago, will only be updated if
a critical vulnerability is found and fixed.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a fire.
28. When not using the Docking Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable
or responsible for any damages or injuries
caused by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace the
robot’s battery, please contact Customer Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Docking Station.

5EN
Correct Disposal of this Product
This marking indicates that this product should not be
disposed of with other household waste throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To recycle your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can safely recycle this product.
The remote surveillance is for the absolute private
use of non-public, private owned places for the pure
self-protection and single control intended only.
Please be aware of the local data protection based
legal obligations in case of use. No surveillance of
public places, especially with clandestine intent
and/or on the part of the employer without justified
reasons. Such not justified use is in the risk and
responsibility of the user only.

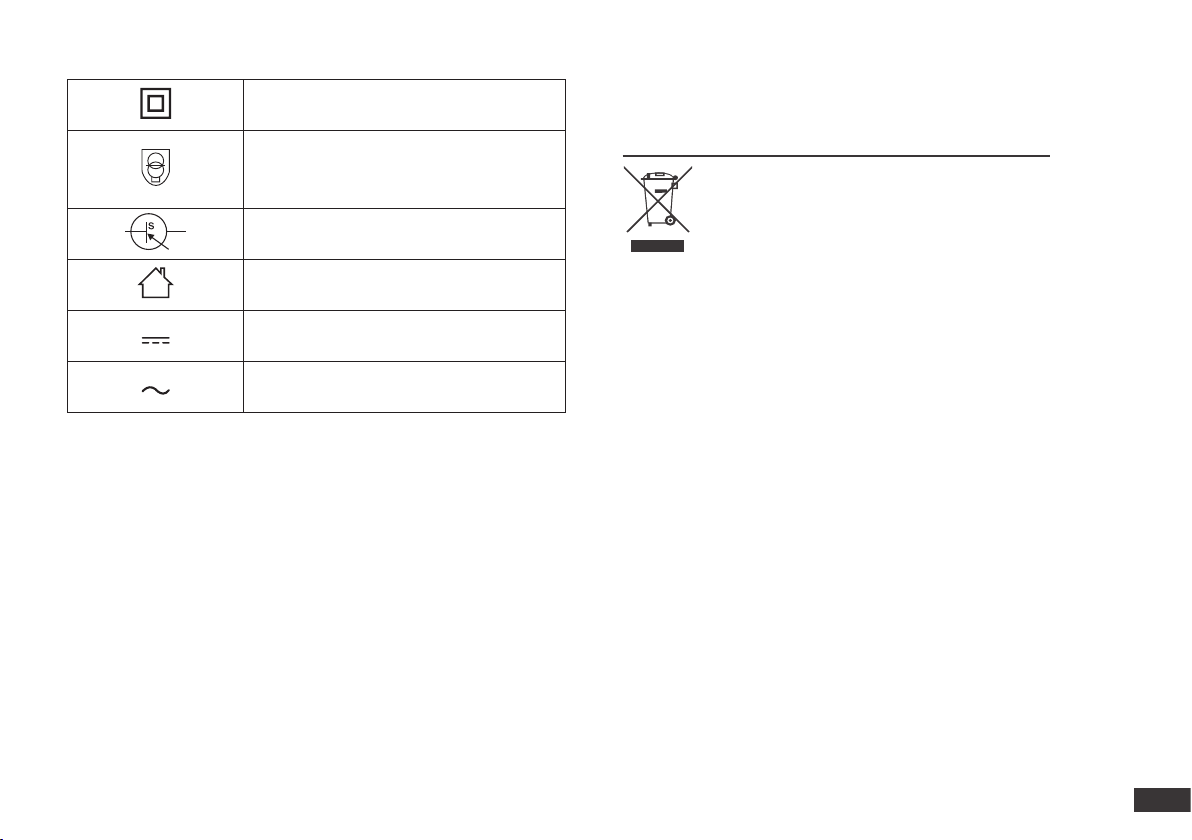

For EU Countries
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
For EU Declaration of Conformity information, visit
https://www.ecovacs.com/global/compliance.

6
EN
Package Contents
Note: Figures and illustrations are for reference only and may differ from actual
product appearance. Product design and specications are subject to changes
without notice.
*Air Freshener Capsule is sold separately that works with Air Freshener.
Explore more accessories at https://www.ecovacs.com/global.

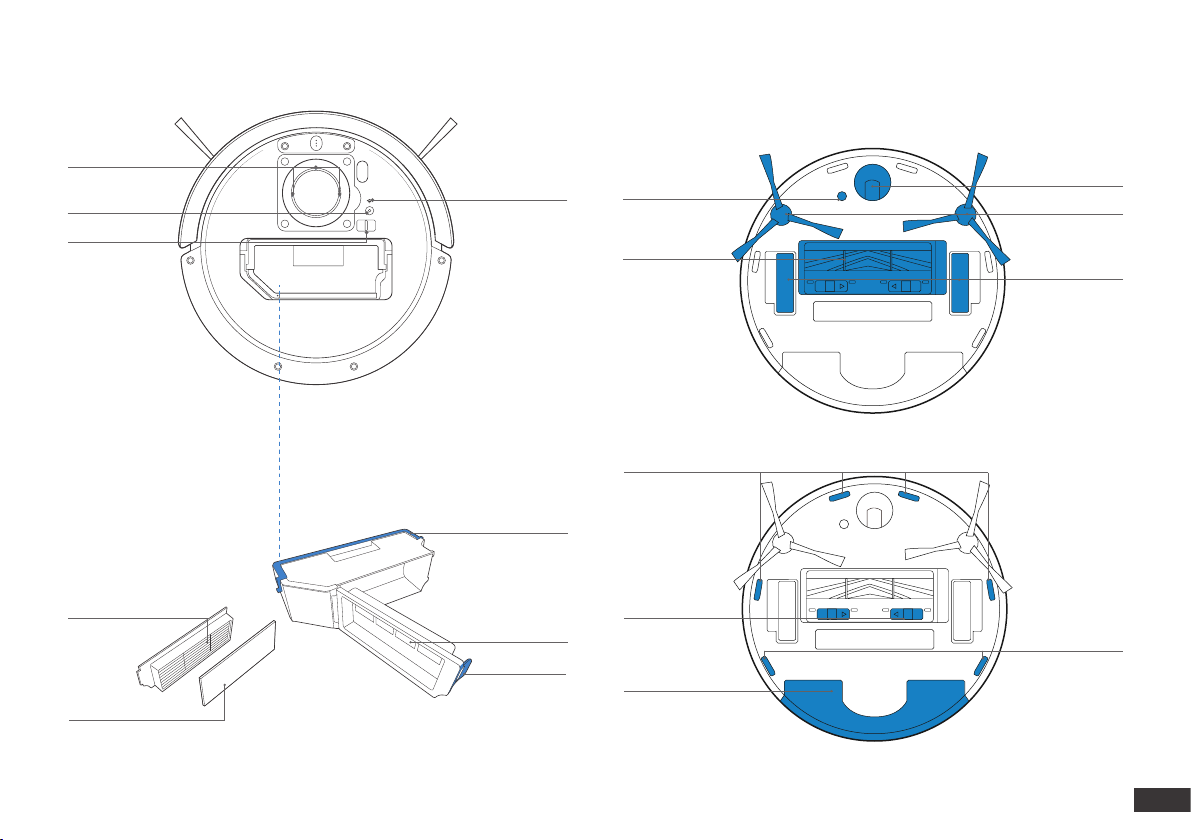

Product Diagram
Robot
Top Cover
AUTO Mode Button
AIVI Camera
Camera Indicator Light
Anti-collision
Sensors and
Bumper
TrueMapping
Distance Sensor
Robot
Instruction Manual
Docking Station Power cord
Dual Side Brushes Rubber Plugs
(1 pair)
Washable Mopping
Pad (Pre-installed)
Disposable
Mopping Pads
OZMO™ Pro 3.0
Oscillating Mopping System
Air Freshener
(Pre-installed)
Multi-Function
Cleaning Tool

7EN
Dust Bin Handle
Release Button
Filter Net
Sponge Filter
High Efciency Filter
Anti-drop Sensors
Anti-drop Sensors
Floating Main
Brush Release
Button
Universal Wheel
Dual Side Brushes
Driving Wheels
Floating Main
Brush
Carpet Detection
Sensor
Bottom View
Dust Bin
Air Freshener
(Pre-installed)
Wi-Fi Status
Indicator
RESET Button
Power Switch
Microphone

8
EN
Docking Station
Charging Contacts
Reservoir Water Inlet
Reservoir
Release Button
OZMO™ Pro 3.0 Oscillating Mopping System
Air Freshener (Pre-installed)
Power Cord Wrap
Holes for Rubber Plugs
Charging Contacts
Power Cord
Capsule Container
Air Freshener
Release Button

9EN
Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper
place.
During the rst use, make sure each room
door is open to help DEEBOT fully explore
your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the unit
from falling over the edge.
Put away objects including cables, cloths and slippers, etc. on
the oor to improve the cleaning efciency.
Before using the product on a rug with tasseled edges, please
fold the rug edges under.
Please do not stand in narrow spaces, such as hallways, and
make sure not to block the AIVI Camera.
Clean the AIVI Camera and TrueMapping Distance Sensor with
a clean cloth, and avoid using any detergent or cleaning spray.
Make sure areas to be cleaned are well
illuminated so AIVI Camera works properly.
Remove power cords and small objects from
the oor to ensure cleaning efciency.
ECOVACS HOME App
To enjoy all available features, it is recommended to control your DEEBOT via
the ECOVACS HOME app.
Make sure the color of Dual Side Brushes are consistent with that of mounting
slot.
Before using DEEBOT, please remove all protective lms or
protective strips on DEEBOT and Docking Station.
Wi-Fi Indicator Light
Before you start, make sure that:

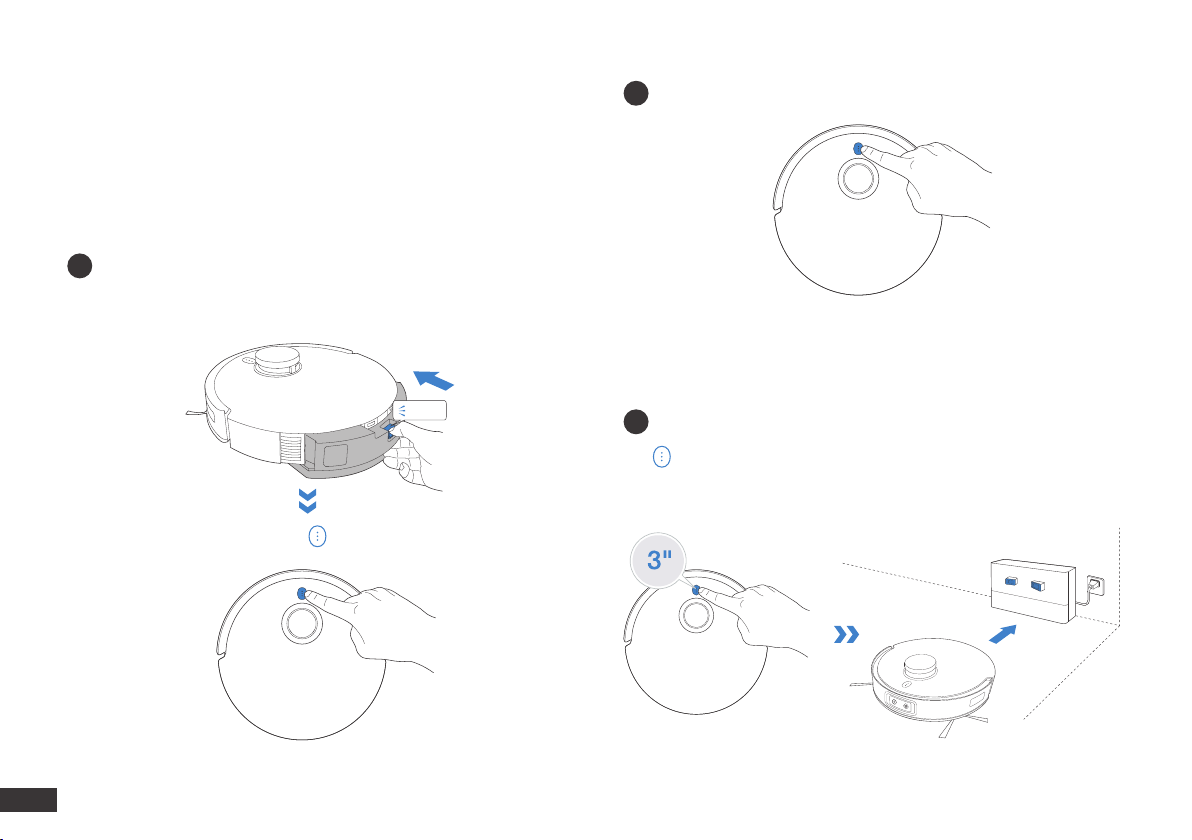

Install the Dual Side Brushes
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on DEEBOT is slowly ashing.
Slowly flashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
Quick Start
Click

10
EN
Place this Docking Station against the wall and in more rooms, so your robot
will nd its way to charge more efciently when in a larger or more complex
home environment.
Note: Please do not place the Docking Station on the carpet.
Wi-Fi Connection Charging DEEBOT
Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi
network meet the following requirements.
DEEBOT and Mobile Phone Requirements
• DEEBOT is fully charged and the power switch of DEEBOT is turned on.
• Wi-Fi status light slowly ashes.
• Turn off mobile phone’s cellular data (you can turn it back on after setup).
Wi-Fi Network Requirements
• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13
outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name
(SSID) and password are the same as your primary network.
Please be aware that the realization of intelligent functions such as
remote startup, voice interaction 2D/3D map display and control
settings, and personalized cleaning (depending on different products)
requires users to download and use ECOVACS HOME App, which
is constantly updated. You need to agree to our Privacy Policy and
User Agreement before we can process some of your basic and
necessary information and enable you to operate the product.If you
do not agree with our Privacy Policy and User Agreement, some of
the aforementioned intelligent functions cannot be realized through
ECOVACS HOME App, but you can still use the basic functions of
this product for manual operation.
After Wi-Fi connection,DEEBOT will enter into Networked Standby
mode if it has no signal input within 10 minutes.
1
2
Connect Power Cord
> 0.5m (1.64’)
> 0.5m (1.64’)
> 1.5m (4.92’)
Docking Station Placement

11 EN
5Charge DEEBOT
6.5
Please make sure that DEEBOT starts cleaning from the Station. Do not move
the Station while cleaning.
When cleaning is complete,it is recommended to remove the Mopping Pad and
manually place DEEBOT to the Station.
To prevent damage to the oor, it is recommended to use Waterproof Mat.
Explore more accessories at https://www.ecovacs.com/global.
DEEBOT cannot be charged when being powered OFF.
4Power ON
Note: I = ON, O = OFF.
Remove stickers on the end of the Rubber Plugs and insert Rubber Plugs
(adhesive side) to the holes.
3Insert Rubber Plugs(For walls with skirting line)

12
EN
1Start
For the rst-time cleaning, please ensure that DEEBOT is fully charged.
Operating DEEBOT
Install Air Freshener
Tap
During the rst cleaning:
1. Please make sure to install Air Freshener to create a home
map ,including carpet area in ECOVACS HOME App
2. Please ensure that DEEBOT is fully charged.
3. Please supervise DEEBOT and assist it should there be a problem.
Click
2Pause/Wake Up
Note: The robot’s Control Panel stops glowing after the robot is paused for a
few minutes. Tap the AUTO Mode Button on DEEBOT to wake up the robot.
3
Tap for 3 seconds to send DEEBOT back to the Docking Station.
Return to Charge

13 EN

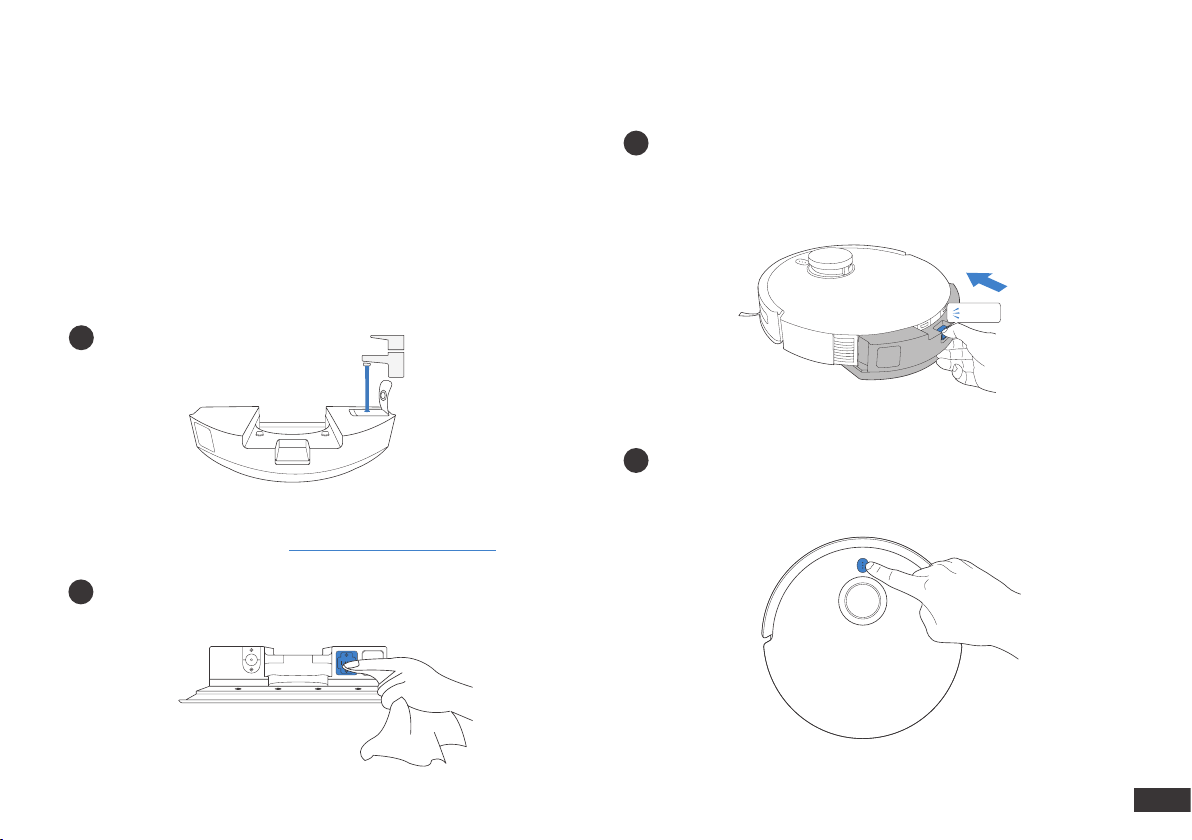

Add Water
Note:
1. Install OZMO™ Pro 3.0 Oscillating Mopping System for oor
scrubbing.
2. Before installing OZMO™ Pro 3.0 Oscillating Mopping System,
please make sure the contacts are thoroughly dry.
3. Please avoid using OZMO™ Pro 3.0 Oscillating Mopping System on
the carpet.
4. It is recommended to drench and wring out the Mopping Pad before
installing it to have a better cleaning.
1
*To prolong the service life of OZMO™ Pro 3.0 Oscillating Mopping System, it
is recommended to use puried water or ECOVACS DEEBOT Cleaning Solu-
tion. Explore more accessories at https://www.ecovacs.com/global.
*Do not soak OZMO™ Pro 3.0 Oscillating Mopping System in water.
2Dry Contacts Thoroughly
3Install OZMO™ Pro 3.0 Oscillating Mopping System
4Start Cleaning
Click
OZMO™ Pro 3.0 Oscillating Mopping System

14
EN

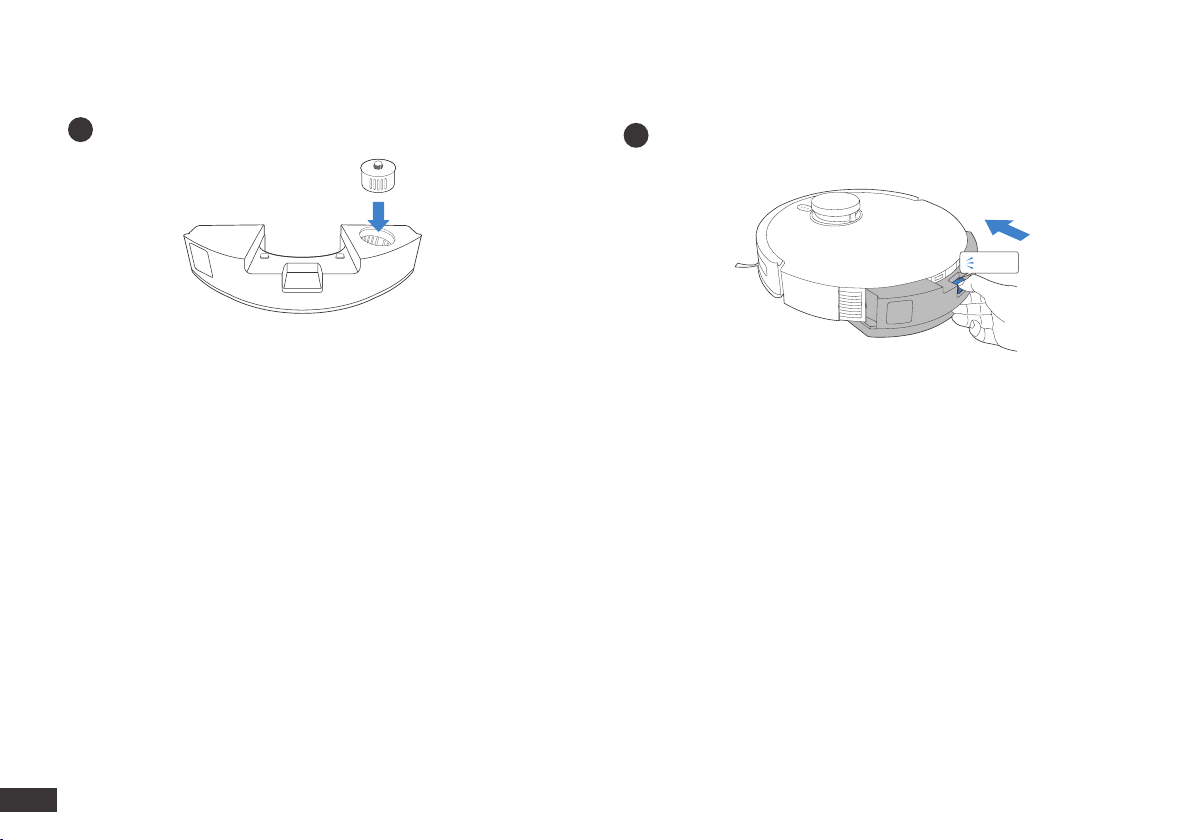

Air Freshener
1Install Air Freshener Capsule (sold separately) 2Install Air Freshener
Click

15 EN
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Air Freshener Capsule
(sold separately) / Every 2 months
Washable Mopping Pad / Every 1-2 months
Disposable Mopping Pad After each use Replace after each use
Dual Side Brushes Once every 2 weeks Every 3-6 months
Floating Main Brush Once per week Every 6-12 months
Sponge Filter/High Efciency Filter Once per week Every 3-6 months
AIVI Camera
TrueMapping Distance Sensor
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Once per week /
Dust Bin Once per month /
Docking Station Once per month /
Regular Maintenance
Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

16
EN
Maintain OZMO™ Pro 3.0 Oscillating Mopping System
*After DEEBOT nishes mopping, please empty the reservoir.
*
Wipe OZMO™ Pro 3.0 Oscillating Mopping System with a clean, dry cloth. Do not
soak into water.
Remove OZMO™ Pro 3.0 Oscillating Mopping System Washable Mopping Pad
Wipe OZMO™ Pro 3.0 Oscillating Mopping System
1 3
2Disposable Mopping Pad
4

17 EN
Maintain Dust Bin and Filters
3
1
2
4
5
Note:
1. Please rinse the lter with water as shown above.
2. Do not use nger or brush to clean the lter.

18
EN
Maintain Floating Main Brush and Dual Side Brushes
Floating Main Brush Dual Side Brushes

19 EN
Maintain Other Components
Note: Wipe the components with a clean, dry cloth. Avoid using cleaning sprays or detergents.

20
EN
No. Malfunction Possible Causes Solutions
1
DEEBOT is not able to
connect to ECOVACS
HOME App.
Incorrect home Wi-Fi username or password
entered. Enter the correct home Wi-Fi username and password.
DEEBOT is not within range of your home Wi-Fi
signal.
Make sure DEEBOT is within range of your home Wi-Fi
signal.
DEEBOT is not in the conguration state.
Make sure DEEBOT is connected to the power supply
and turned on. Open the cover, and press RESET Button.
DEEBOT will enter the confuguration state when you hear
a voice prompt.
Incorrect App installed. Please download and install ECOVACS HOME App.
Not using a 2.4GHz or 2.4/5 GHz mixed
network.
DEEBOT does not support 5GHz network. Please use a
2.4GHz or 2.4/5 GHz mixed network.
2Unable to create furniture
map on App.
DEEBOT does not start cleaning from the Station. DEEBOT must start cleaning from the Station.
Move DEEBOT when cleaning might cause the
mop lost. During cleaning, do not move DEEBOT as far as possible.
Auto cleaning is not complete. Make sure DEEBOT automatically return to the Station
after cleaning.
3
DEEBOT Dual Side
Brushes drop out of place
during use.
The Dual Side Brushes are not correctly
installed.
Make sure the Dual Side Brushes click into place when
installing.
Troubleshooting
