Ecox EDEM User manual

SPLIT-TYPE ROOM AIR CONDITIONER
• Thank you for purchasing this ecox product.
• Before using this machine, please read this manual and retain it for future reference.
INSTALLATION MANUAL
EDEM
EDEM

2EDEM SPLIT-TYPE ROOM AIR CONDITIONER
SAFETY PRECAUTIONS
ACCESSORIES
INSTALLATION SUMMARY  INDOOR UNIT
UNIT PARTS
INDOOR UNIT INSTALLATION
Select installation location
Attach mounting plate to wall
Drill wall hole for connective piping
Prepare refrigerant piping
Connect drain hose
Connect signal cable
Wrap piping and cables
Connect indoor power wire
Mount indoor unit
OUTDOOR UNIT INSTALLATION
Select installation location
Install drain joint
Anchor outdoor unit
Connect signal and power cables
REFRIGERANT PIPING CONNECTION
Note on Pipe Length
Connection Instructions – Refrigerant Piping
Cut pipe
Remove burrs
Flare pipe ends
Connect pipes
AIR EVACUATION
Evacuation Instructions
Note on Adding Refrigerant
ELECTRICAL AND GAS LEAK CHECKS
TEST RUN
EUROPEAN DISPOSAL GUIDELINES
CONTENTS
1
1
5
3
3
3
3
3
1
7
2
2
6
4
4
4
4
4
2
8
9
8
27
5
21
30
4
3
16
28
7
25

3
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
READ THIS MANUALSAFETY PRECAUTIONS
Read Safety Precautions Before Installation
Incorrect installation due to ignoring instructions can cause
serious damage or injury.
The seriousness of potential damage or injuries is classied as
either a WARNING or CAUTION.
Do not modify the length of the power supply cord or use an
extension cord to power the unit.
Do not share the electrical outlet with other appliances. Improper or
insucient power supply can cause re or electrical shock.
When connecting refrigerant piping, do not let substances or gases
other than the specied refrigerant enter the unit. The presence of
other gases or substances will lower the unit’s capacity, and can
cause abnormally high pressure in the refrigeration cycle. This can
cause explosion and injury.
Do not allow children to play with the air conditioner. Children
must be supervised around the unit at all times.
Installation must be performed by an authorized dealer or
specialist. Defective installation can cause water leakage, electrical
shock, or re.
Installation must be performed according to the installation
instructions. Improper installation can cause water leakage,
electrical shock, or re. (In North America, installation must be
performed in accordance with the requirement of NEC and CEC by
authorized personnel only).
Contact an authorized service technician for repair or maintenance
of this unit.
Only use the included accessories, parts, and specied parts for
installation. Using non-standard parts can cause water leakage,
electrical shock, re, and can cause the unit to fail.
Install the unit in a rm location that can support the unit’s weight.
If the chosen location cannot support the unit’s weight, or the
installation is not done properly, the unit may drop and cause
serious injury and damage.
For units that have an auxiliary electric heater, do not install the unit
within 1 meter (3 feet) of any combustible materials.
Do not install the unit in a location that may be exposed to
combustible gas leaks. If combustible gas accumulates around the
unit, it may cause re.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room. Too much exposure to water can cause
electrical components to short circuit.
The product must be properly grounded at the time of installation, or
electrical shock may occur.
Install drainage piping according to the instructions in this manual.
Improper drainage may cause water damage to your home and
property.
This air-conditioning unit contains uorinated gasses. For specic
information on the type of gas and the amount, please refer to the
relevant label on the unit itself.
Installation, service, maintenance and repair of this unit must be
performed by a certied technician.
Product uninstallation and recycling must be performed by a
certied technician.
If the system has a leak-detection system installed, it must be
checked for leaks at least every 12 months.
When the unit is checked for leaks, proper record-keeping of all
checks is strongly recommended.
WARNING
Indicates that ignoring instructions may cause
moderate injury to your person, or damage to your
unit or other property.
This symbol indicates that you must never perform the
action indicated.
CAUTION
This symbol indicates that ignoring instructions may
cause moderate injury to your person, or damage to
your unit or other property.
WARNING
CAUTIONS
For all electrical work, follow all local and national wiring
standards, regulations, and the Installation Manual. You must use
an independent circuit and single outlet to supply power. Do not
connect other appliances to the same outlet. Insucient electrical
capacity or defects in electrical work can cause electrical shock or
re.
For all electrical work, use the specied cables. Connect cables
tightly, and clamp them securely to prevent external forces from
damaging the terminal. Improper electrical connections can
overheat and cause re, and may also cause shock.
All wiring must be properly arranged to ensure that the control
board cover can close properly. If the control board cover is not
closed properly, it can lead to corrosion and cause the connection
points on the terminal to heat up, catch re, or cause electrical
shock.
In certain functional environments, such as kitchens, server rooms,
etc., the use of specially designed air-conditioning units is highly
recommended.
1
1
2
1
2
3
4
5
2
3
4
5
6
7
8
9
NOTE
About uorinated gasses

4EDEM SPLIT-TYPE ROOM AIR CONDITIONER
READ THIS MANUALACCESSORIES
The air conditioning system comes with the following accessories.
Use all of the installation parts and accessories to install the air
conditioner. Improper installation may result in water leakage,
electrical shock and re, or cause the equipment to fail.
NAME SHAPE QUANTITY
Mounting plate
Clip anchor
Mounting plate xing
screw ST3.9 X 25
Remote control
Fixing screw for remote
control holder ST2.9 x 10
Remote control holder
Dry battery AAA.LR03
Air freshening lter
Seal
1
(for cooling & heating
models only)
Parts you must purchase.
Consult the dealer about
the pipe size.
Optional
Parts
1
1
1
1
2
1
2
1
5
5
1
Drain joint
Owner’s manual
Installation manual
Remote control illustration
Connecting pipe assembly Liquid side
Gas side
Φ 6.35( 1/4 in)
Φ 9.52( 3/8in)
Φ 9.52( 3/8in)
Φ 12.7( 1/2in)
Φ 16( 5/8in)

5
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER

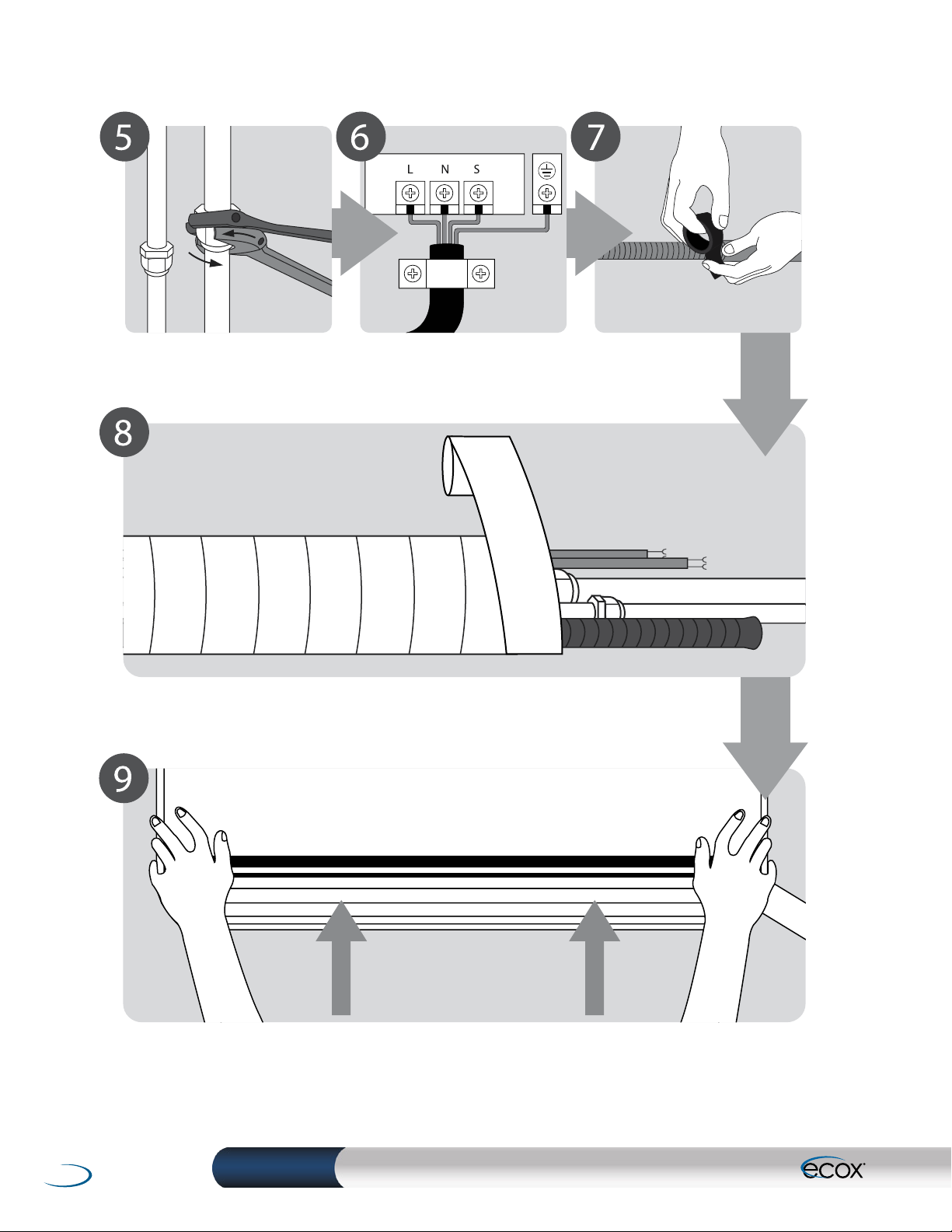

INSTALLATION INSTRUCTIONS - INDOOR UNIT
8
Attach Mounting Plate
(Page 11)
Drill Wall Hole
(Page 11)
9

6EDEM SPLIT-TYPE ROOM AIR CONDITIONER
Connect Piping
(Page 23)
Connect Wiring
(Page 14)
Prepare Drain Hose
(Page 12)
Wrap Piping and Cable
(Page 16)
Mount Indoor Unit
(Page 16)

7
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
NOTE
Illustrations in this manual are for explanatory purposes. The actual
shape of your indoor unit may be slightly dierent. The actual shape
shall prevail.

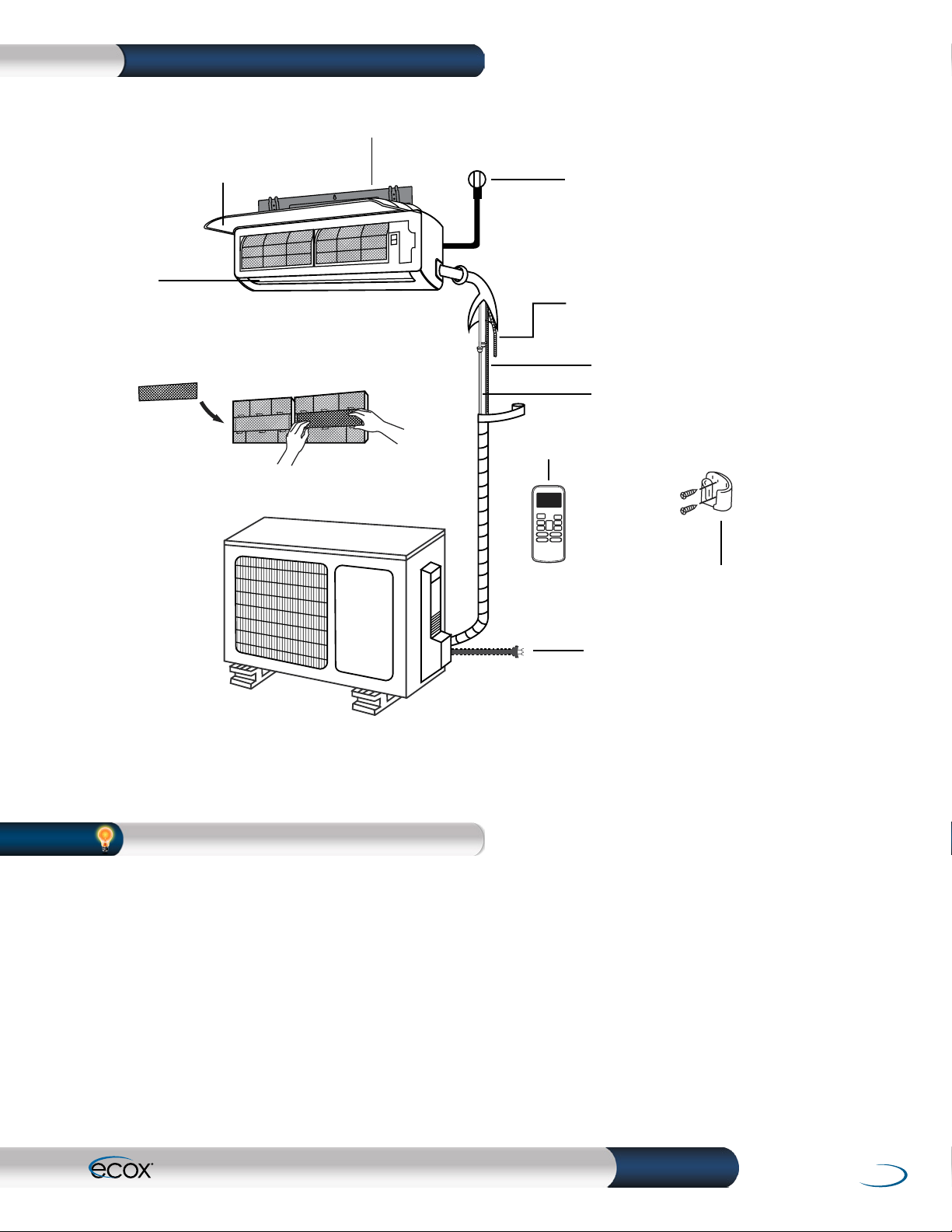

UNIT PARTS
Fig. 2.1
Wall mounting plate
Power cable (some units)
Refrigerant piping
Signal cable
Remote control (some units)
Drainage pipe
Louver
Remote holder
Functional lter
(On front of main lter - some units)
Front panel
Outdoor unit
power cable
(some units)

8EDEM SPLIT-TYPE ROOM AIR CONDITIONER

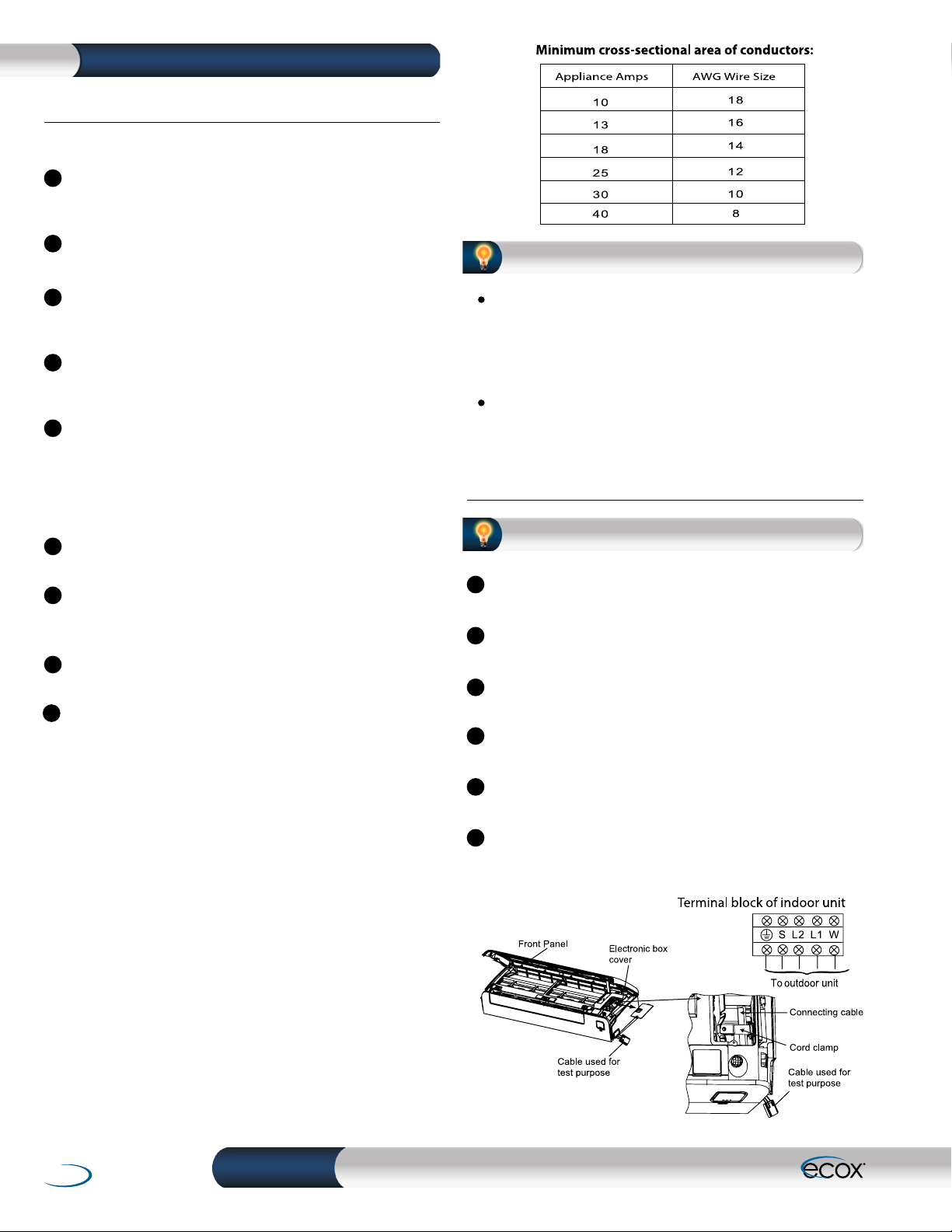

CONNECT THE CABLE TO THE INDOOR UNIT
ELECTRICAL WORK
CONNECT THE CABLE TO THE INDOOR UNIT
Electric safety regulations for the initial Installation
If there is serious safety problem about the power supply, the
technicians should refuse to install the air conditioner and
explain to the client until the problem is solved.
Power voltage should be in the range of 90%~110%of rated
voltage.
The surge protector and main power switch with a 1.5 times
capacity of Max. Current of the unit should be installed in power
circuit. Ensure the air conditioner is grounded well.
The appliance shall be installed in accordance with national
wiring regulations. Do not operate your air conditioner in a wet
room such as a bathroom or laundry room.
An all-pole disconnection device which has at least 3mm
clearances in all poles, and have a leakage current that may
exceed 10mA, the residual current device(RCD) having a
rated residual operating current not exceeding 30mA, and
disconnection must be incorporated in the xed wiring in
accordance with the wiring rules.
For the unit adopts auxiliary electric heater, keep at least 1
meter away from the nearest combustible materials.
According to the attached Electrical Connection Diagram
located on the panel of the indoor & outdoor unit to connect
the wire.
All wiring must comply with local and national electrical codes
and be installed by qualied and skilled electricians.

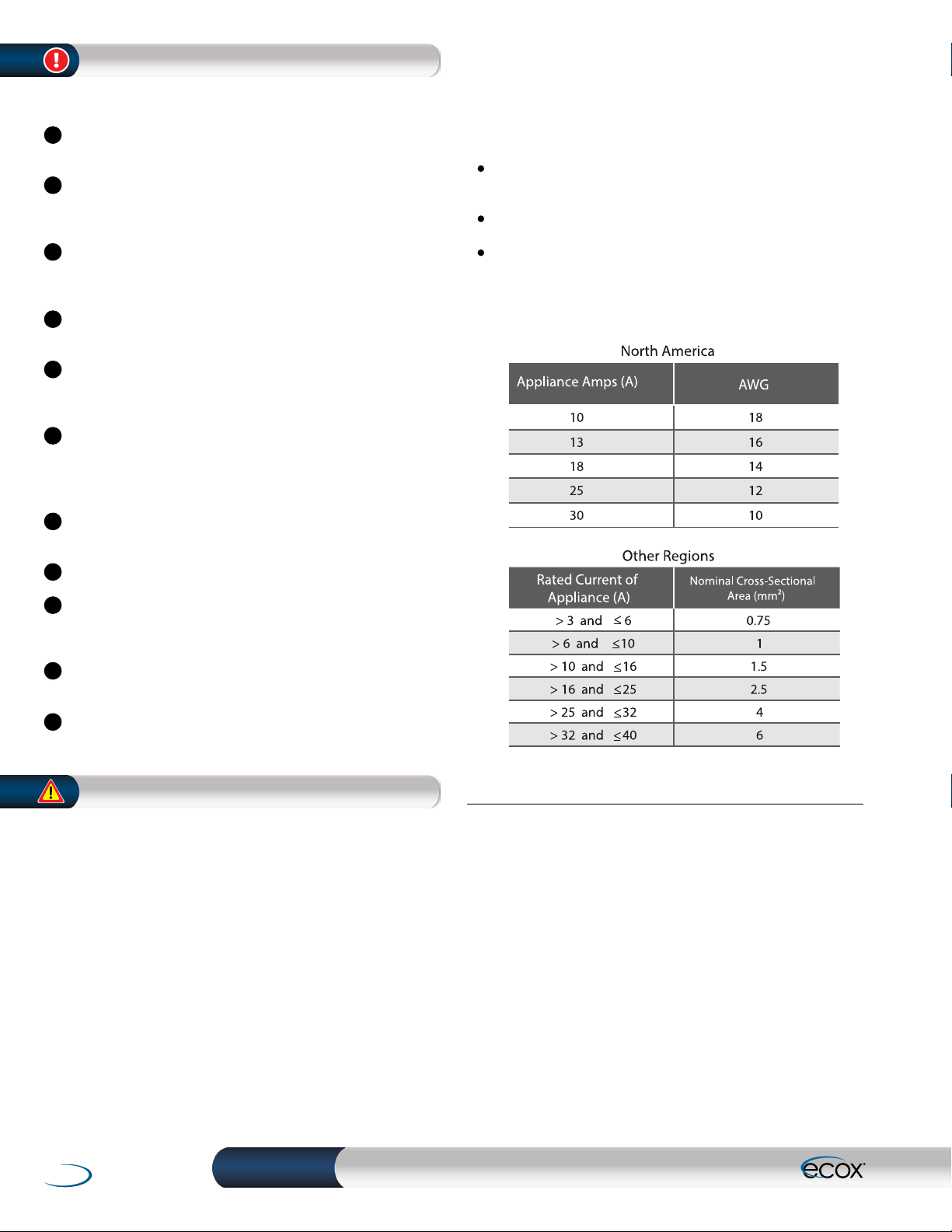

An individual branch circuit and single receptacle used only for
this air conditioner must be available. See the following table
for suggested wire sizes and fuse specications:
1
1
2
2
3
3
4
4
5
5
6
6
7
8
9
NOTE
NOTE
The wire size of power supply cord and interconnected wire and
the current of the fuse or switch are determined by the maximum
current indicated on the nameplate which located on the side
panel of the unit. Please refer to the nameplate before selecting the
wire size, fuse or switch.
The controller of the air conditioner designed with a fuse protection
function under abnormal conditions, the specications of the
fuse have printed on the circuit board, such as: 3.15A/250VAC,
T5A/250VAC, etc.
Before performing any electrical work, turn o the main power to
the system.
The inside and outside connecting cable can be connected without
removing the front grille.
The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor
power cord and interconnected cord type is H07RN-F.
Lift the indoor unit panel up, remove the electrical box cover by
loosening the screw.
Ensure the colour of wires of outdoor unit and the terminal Nos. are
the same to the indoor s respectively.
Wrap those cables not connected with terminals with insulation
tapes, so that they will not touch any electrical components. Secure
the cable onto the control board with the cord clamp.

9
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
INSTALLATION INSTRUCTIONS  INDOOR UNIT
PRIOR TO INSTALLATION
Before installing the indoor unit, refer to the label on the product
box to make sure that the model number of the indoor unit
matches the model number of the outdoor unit.

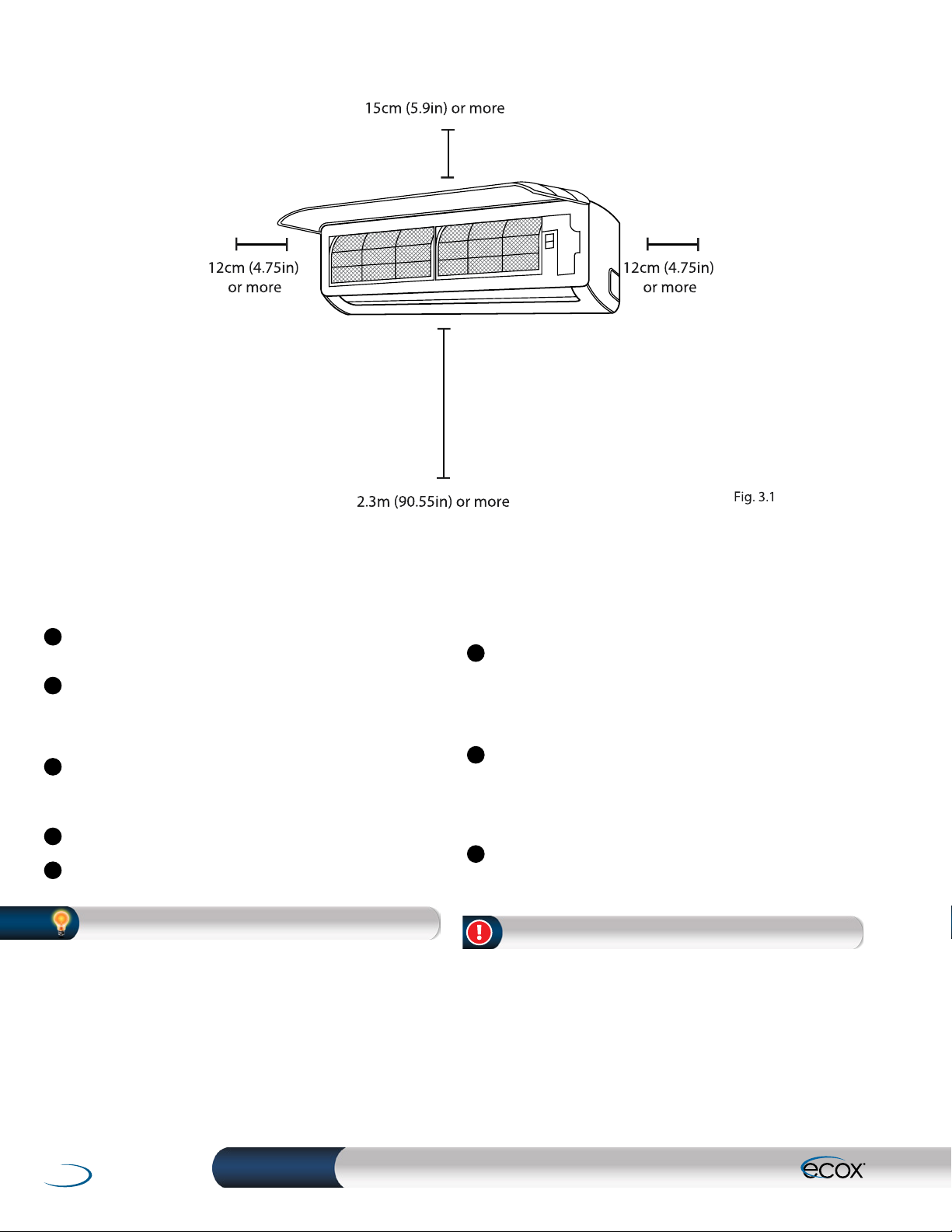

Step 1: Select installation location
Before installing the indoor unit, you must choose an appropriate
location. The following are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the following standards:
 Good air circulation

Convenient drainage
 Noise from the unit will not disturb other people

Firm and solid—the location will not vibrate
 Strong enough to support the weight of the unit
 A location at least one meter from all other electrical devices
(e.g., TV, radio, computer)
DO NOT install unit in the following locations:
Near any source of heat, steam, or combustible gas
Near ammable items such as curtains or clothing
Near any obstacle that might block air circulation
Near the doorway
In a location subject to direct sunlight
NOTE
About wall hole
If there is no xed refrigerant piping:
While choosing a location, be aware that you should leave ample
room for a wall hole (see Drill wall hole for connective piping step)
for the signal cable and refrigerant piping that connect the indoor
and outdoor units.
The default position for all piping is the right side of the indoor unit
(while facing the unit).
However, the unit can accommodate piping to both the left
and right.
INDOOR UNIT INSTALLATION

10 EDEM SPLIT-TYPE ROOM AIR CONDITIONER
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you will mount the
indoor unit.
Remove the screw that attaches the mounting plate to the back
of the indoor unit.
Place the mounting plate against the wall in a location that
meets the standards in the Select Installation Location step.
(See Mounting Plate Dimensions for detailed information on
mounting plate sizes.)
Drill holes for mounting screws in places that:
• have studs and can support the weight of the unit
• correspond to screw holes in the mounting plate
Secure the mounting plate to the wall with the screws provided.
Make sure that mounting plate is at against the wall.
Step 3: Drill wall hole for connective piping
You must drill a hole in the wall for refrigerant piping, the
drainage pipe, and the signal cable that will connect the indoor
and outdoor units.
Determine the location of the wall hole based on the position
of the mounting plate. Refer to Mounting Plate Dimensions on
the next page to help you determine the optimal position. The
wall hole should have a 65mm (2.5in) diameter at least, and at a
slightly lower angle to facilitate drainage.
Using a 65mm (2.5in) core drill, drill a hole in the wall. Make
sure that the hole is drilled at a slight downward angle, so that
the outdoor end of the hole is lower than the indoor end by
about 5mm to 7mm (0.2-0.275in). This will ensure proper water
drainage. (See Fig. 3.2 )
Place the protective wall cu in the hole. This protects the edges
of the hole and will help seal it when you nish the installation
process.
NOTE
For concrete or brick walls
If the wall is made of brick, concrete, or similar material, drill 5mm-
diameter (0.2in-diameter) holes in the wall and insert the sleeve
anchors provided. Then secure the mounting plate to the wall by
tightening the screws directly into the clip anchors.
Refer to the following diagram to ensure proper distance from walls
and ceiling:
1
1
2
2
3
3
4
5
When drilling the wall hole, make sure to avoid wires, plumbing, and
other sensitive components.
CAUTION

11
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
MOUNTING PLATE DIMENSIONS
Dierent models have dierent mounting plates.
In order to ensure that you have ample room to mount the indoor
unit, the diagrams to the right show dierent types of mounting
plates along with the following dimensions:
Width of mounting plate
Height of mounting plate
Width of indoor unit relative to plate
Height of indoor unit relative to plate
Recommended position of wall hole (both to the left and right of
mounting plate)
Relative distances between screw holes

12 EDEM SPLIT-TYPE ROOM AIR CONDITIONER
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating sleeve attached to
the back of the unit. You must prepare the piping before passing
it through the hole in the wall. Refer to the Refrigerant Piping
Connection section of this manual for detailed instructions on
pipe aring and are torque requirements, technique, etc.
Based on the position of the wall hole relative to the mounting
plate, choose the side from which the piping will exit the unit.

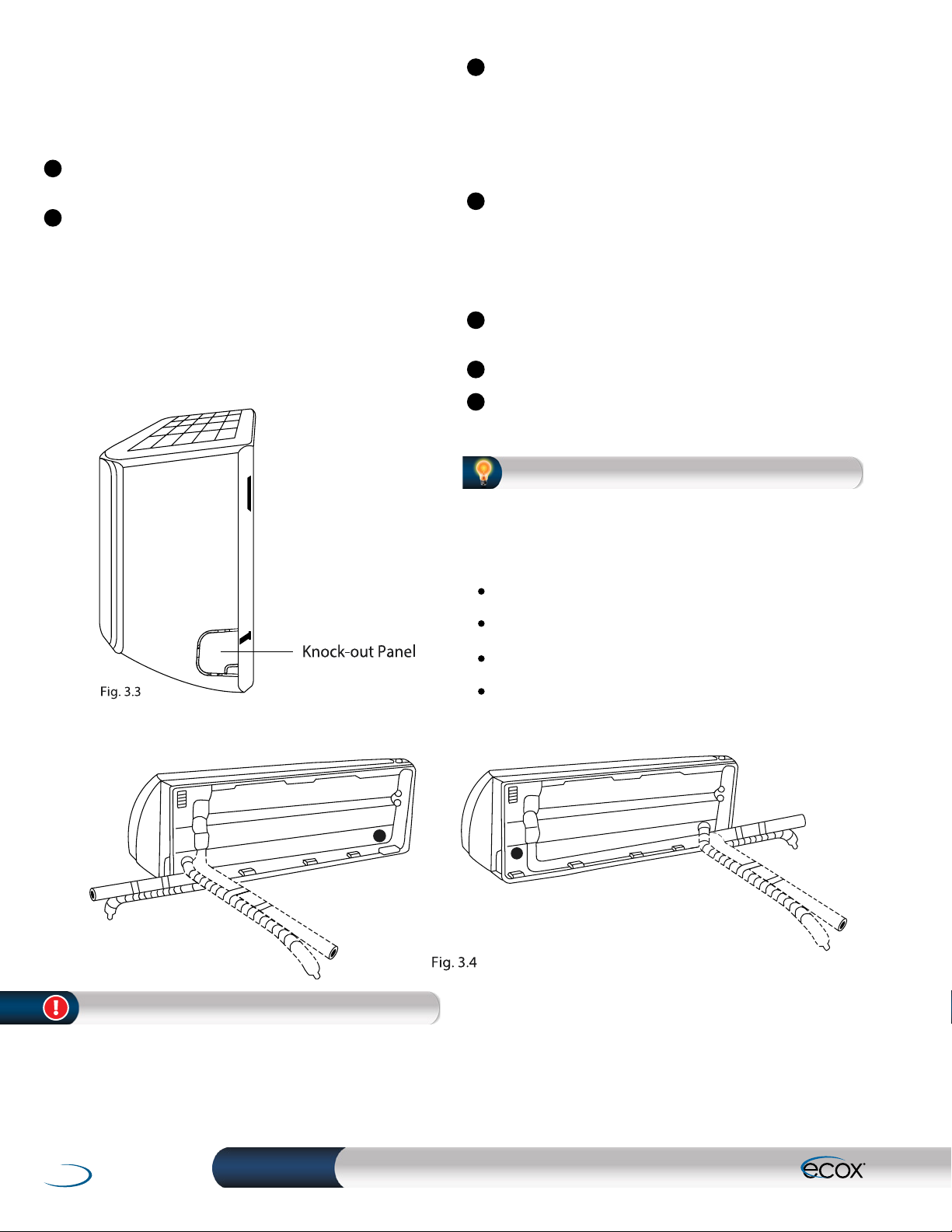

If the wall hole is behind the unit, keep the knock-out panel in
place. If the wall hole is to the side of the indoor unit, remove
the plastic knock-out panel from that side of the unit. (See Fig.
3.3). This will create a slot through which your piping can exit the
unit. Use needle nose pliers if the plastic panel is too dicult to
remove by hand.
1
2
3
4
5
6
7
Use scissors to cut down the length of the insulating sleeve to
reveal about 15cm (6in) of the refrigerant piping. This serves two
purposes:
• To facilitate the Refrigerant Piping Connection process
• To facilitate Gas Leak Checks and enable you to check for dents
If existing connective piping is already embedded in the wall,
proceed directly to the Connect Drain Hose step. If there is no
embedded piping, connect the indoor unit’s refrigerant piping to
the connective piping that will join the indoor and outdoor units.
Refer to the Refrigerant Piping Connection section of this manual
for detailed instructions.
Based on the position of the wall hole relative to the mounting
plate, determine the necessary angle of your piping.
Grip the refrigerant piping at the base of the bend.
Slowly, with even pressure, bend the piping towards the hole. Do
not dent or damage the piping during the process.
NOTE
On piping angle
Refrigerant piping can exit the indoor unit from four dierent angles:
Left-hand side
Left rear
Right-hand side
Right rear
Refer to Fig. 3.4 for details.
Be extremely careful not to dent or damage the piping while bending
them away from the unit. Any dents in the piping will aect the unit’s
performance.
CAUTION

13
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
Step 5: Connect drain hose
By default, the drain hose is attached to the left hand side of unit
(when you’re facing the back of the unit). However, it can also be
attached to the right-hand side.
To ensure proper drainage, attach the drain hose on the same
side that your refrigerant piping exits the unit.
Attach drain hose extension (purchased separately) to the end
of drain hose.
Wrap the connection point rmly with Teon tape to ensure a
good seal and to prevent leaks.
For the portion of the drain hose that will remain indoors, wrap it
with foam pipe insulation to prevent condensation.
Remove the air lter and pour a small amount of water into the
drain pan to make sure that water ows from the unit smoothly.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks you must plug the unused drain hole
with the rubber plug provided.

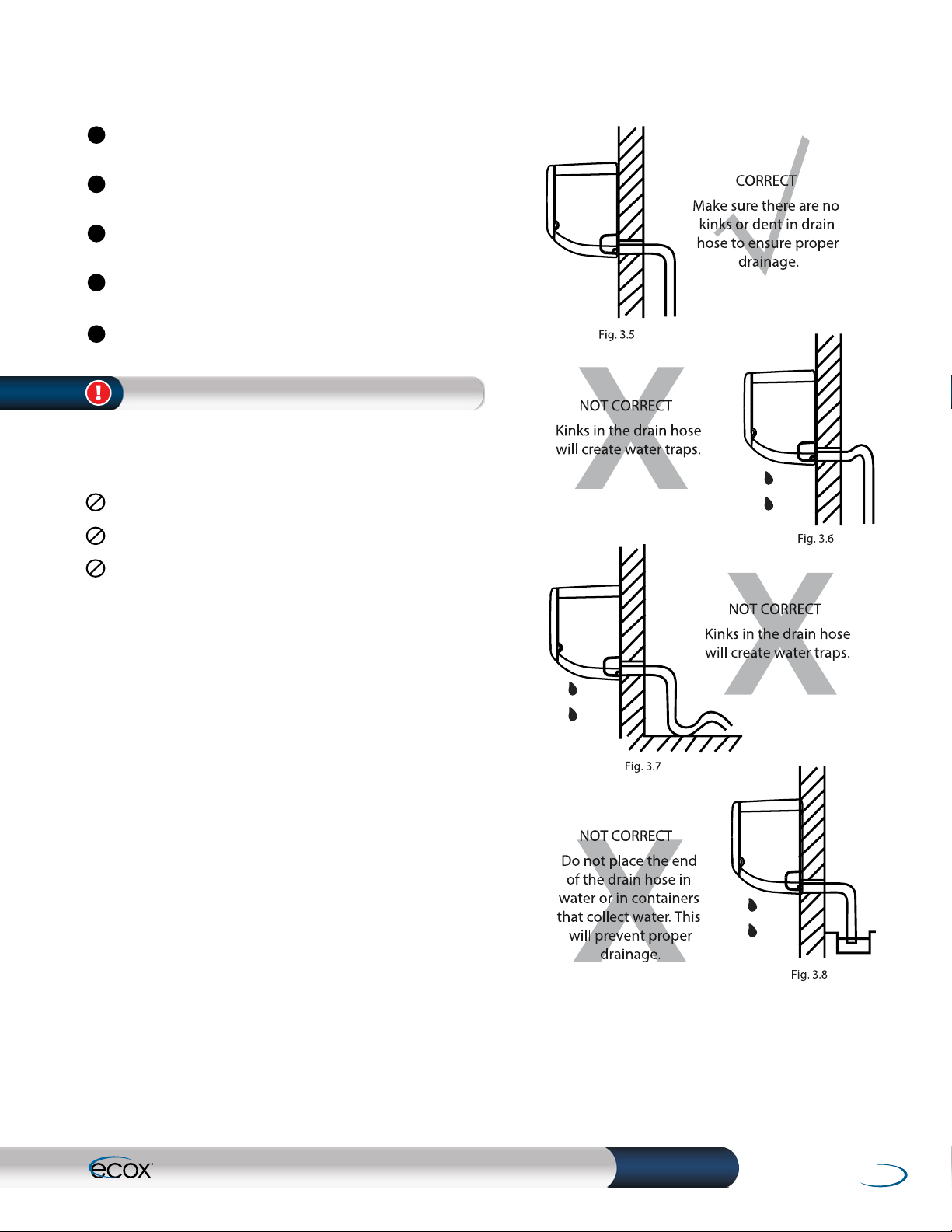

On drain hose placement
Make sure to arrange the drain hose according to Fig. 3.5 .
DO NOT kink the drain hose.
DO NOT create a water trap.
DO NOT put the end of drain hose in water or a container that will
collect water.
1
2
3
4
5
NOTE

14 EDEM SPLIT-TYPE ROOM AIR CONDITIONER
All wiring must comply with local and national electrical codes, and
must be installed by a licensed electrician.
All electrical connections must be made according to the Electrical
Connection Diagram located on the panels of the indoor and
outdoor units.
If there is a serious safety issue with the power supply, stop work
immediately. Explain your reasoning to the client, and refuse to
install the unit until the safety issue is properly resolved.
Power voltageshouldbe within90-100%of ratedvoltage.Insucient
power supply can cause malfunction, electrical shock, or re.
If connecting power to xed wiring, install a surge protector and
main power switch with a capacity of 1.5 times the maximum
current of the unit.
If connecting power to xed wiring, a switch or circuit breaker
that disconnects all poles and has a contact separation of at least
1/8in (3mm) must be incorporated in the xed wiring. The qualied
technician must use an approved circuit breaker or.
Only connect the unit to an individual branch circuit outlet. Do not
connect another appliance to that outlet.
Make sure to properly ground the air conditioner.
Every wire must be rmly connected. Loose wiring can cause the
terminal to overheat, resulting in product malfunction and possible
re.
Do not let wires touch or rest against refrigerant tubing, the
compressor, or any moving parts within the unit.
If the unit has an auxiliary electric heater, it must be installed at least
1 meter (40in) away from any combustible materials.
Before performing electrical work, read these regulations
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK , TURN
OFF THE MAIN POWER TO THE SYSTEM .
1
2
3
4
5
6
7
8
9
10
11
CAUTIONS
WARNING
Step 6: Connect signal cable
The signal cable enables communication between the indoor
and outdoor units. You must rst choose the right cable size
before preparing it for connection.
Cable Types
Indoor Power Cable (if applicable):
H05VV-F or H05V2V2-F
Outdoor Power Cable: H07RN-F
Signal Cable: H07RN-F
Minimum Cross-Sectional Area of Power and Signal Cables
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal cable, fuse, and switch
needed is determined by the maximum current of the unit. The
maximum current is indicated on the nameplate located on the
side panel of the unit. Refer to this nameplate to choose the
right cable, fuse, or switch.

15
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
TAKE NOTE OF FUSE SPECIFICATIONS
PAY ATTENTION TO LIVE WIRE
Unscrew the cable clamp below the terminal block and place
it to the side.
Facing the back of the unit, remove the plastic panel on the
bottom left-hand side.
Feed the signal wire through this slot, from the back of the unit
to the front.
Facing the front of the unit, match the wire colors with the
labels on the terminal block, connect the u-lug and and rmly
screw each wire to its corresp onding terminal.
The air conditioner’s circuit board (PCB) is designed with a fuse
to provide overcurrent protection. The specications of the
fuse are printed on the circuit board, such as: T3.15A/250VAC,
T5A/250VAC, etc.
Prepare the cable for connection:
Using wire strippers, strip the rubber jacket from both ends of
signal cable to reveal about 15cm (6in) of the wires inside.
Strip the insulation from the ends of the wires.
Using wire crimper, crimp u-type lugs on the ends of the wires.
While crimping wires, make sure you clearly distinguish the Live
(“L”) Wire from other wires.
Open front panel of the indoor unit.
Using a screwdriver, open the wire box cover on the right side of
the unit. This will reveal the terminal block.
1
2
3
4
5
6
7
a
b
c
ALL WIRING MUST PERRFORMED STRICTLY IN ACCORDANCE WITH
THE WIRING DIAGRAM LOCATED ON THE INSIDE OF THE INDOOR
UNIT´S WIRE COVER.
WARNING

16 EDEM SPLIT-TYPE ROOM AIR CONDITIONER
DRAIN HOSE MUST BE ON BOTTOM

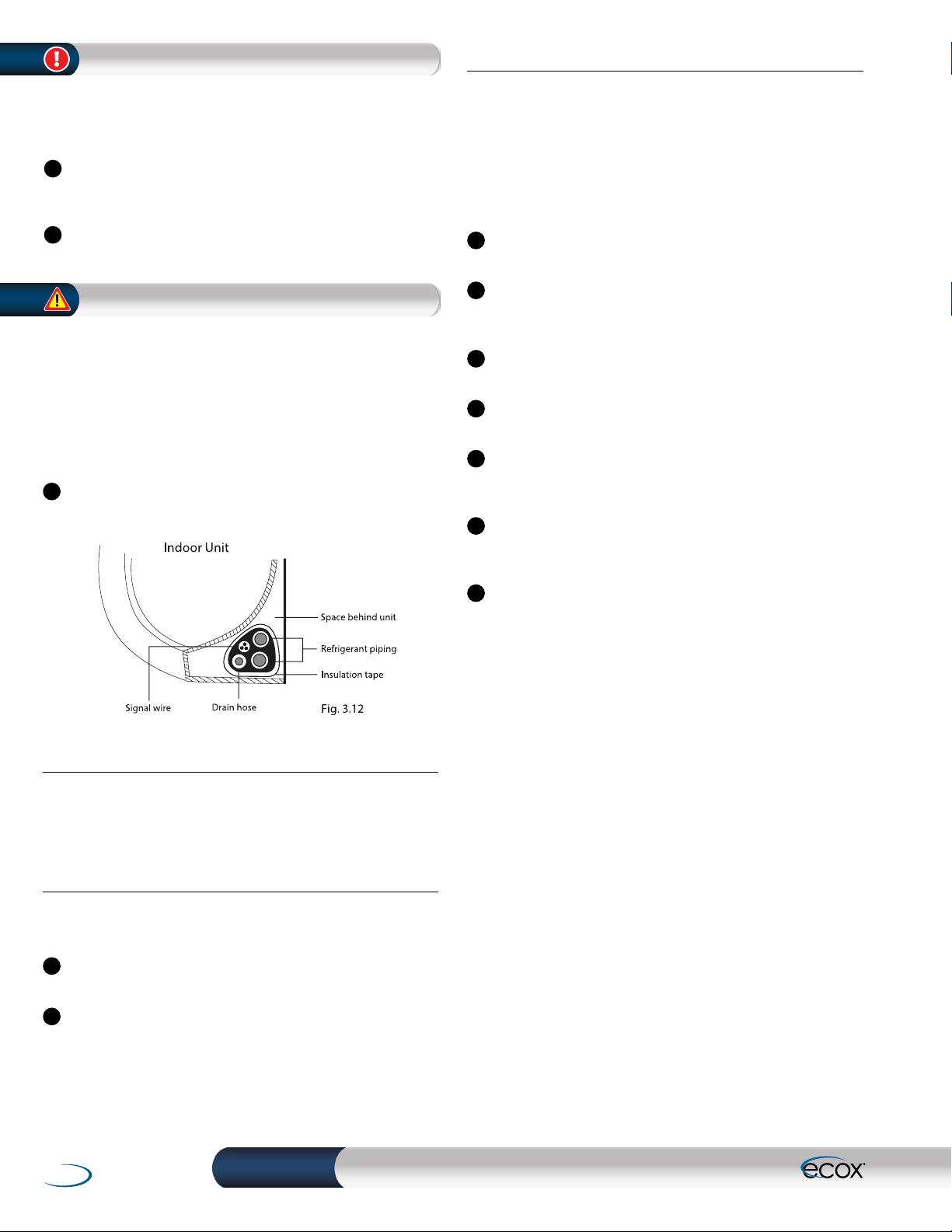

DO NOT WRAP ENDS OF PIPING
DO NOT INTERTWINE SIGNAL CABLE WITH OTHER WIRES
After checking to make sure every connection is secure, use
the cable clamp to fasten the signal cable to the unit. Screw the
cable clamp down tightly.
Replace the wire cover on the front of the unit, and the plastic
panel on the back.
Step 8: Mount indoor unit
If you installed new connective piping to the outdoor unit, do
the following:
If you have already passed the refrigerant piping through the
hole in the wall, proceed to Step 4.
Otherwise, double-check that the ends of the refrigerant pipes
are sealed to prevent dirt or foreign materials from entering the
pipes.
Slowly pass the wrapped bundle of refrigerant pipes, drain
hose, and signal wire through the hole in the wall.
Hook the top of the indoor unit on the upper hook of the
mounting plate.
Check that unit is hooked rmly on mounting by applying slight
pressure to the left and right-hand sides of the unit. The unit
should not jiggle or shift.
Using even pressure, push down on the bottom half of the unit.
Keep pushing down until the unit snaps onto the hooks along
the bottom of the mounting plate.
Again, check that the unit is rmly mounted by applying slight
pressure to the left and the right-hand sides of the unit.
ABOUT WIRING
THE WIRING CONNECTION PROCESS MAY DIFFER SLIGHTLY
BETWEEN UNITS.
DO NOT MIX UP LIVE AND NULL WIRES
This is dangerous, and can cause the air conditioning unit to
malfunction.
Step 7: Wrap piping and cables
Before passing the piping, drain hose, and the signal cable
through the wall hole, you must bundle them together to save
space, protect them, and insulate them.
Bundle the drain hose, refrigerant pipes, and signal cable
according to Fig. 3.12 .
Make sure that the drain hose is at the bottom of the bundle.
Putting the drain hose at the top of the bundle can cause the
drain pan to overow, which can lead to re or water damage.
When wrapping the bundle, keep the ends of the piping
unwrapped. You need to access them to test for leaks at the end
of the installation process (refer to Electrical Checks and Leak
Checks section of this manual).
While bundling these items together, do not intertwine or cross
the signal cable with any other wiring.
Using adhesive vinyl tape, attach the drain hose to the underside
of the refrigerant pipes.
Using insulation tape, wrap the signal wire, refrigerant pipes,
and drain hose tightly together. Double-check that all items are
bundled in accordance with Fig. 3.12 .
8
1
3
5
2
4
6
7
9
1
2
3
CAUTION
NOTE

17
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
If refrigerant piping is already embedded in the wall, do the
following:
Hook the top of the indoor unit on the upper hook of the
mounting plate.
Use a bracket or wedge to prop up the unit, giving you enough
room to connect the refrigerant piping, signal cable, and drain
hose. Refer to Fig. 3.13 for an example.
Connect drain hose and refrigerant piping (refer to Refrigerant
Piping Connection section of this manual for instructions).
Keep pipe connection point exposed to perform the leak
test (refer to Electrical Checks and Leak Checks section of this
manual).
After the leak test, wrap the connection point with insulation
tape.
Remove the bracket or wedge that is propping up the unit.
Using even pressure, push down on the bottom half of the unit.
Keep pushing down until the unit snaps onto the hooks along
the bottom of the mounting plate.
Keep in mind that the hooks on the mounting plate are smaller
than the holes on the back of the unit. If you nd that you don’t
have ample room to connect embedded pipes to the indoor
unit, the unit can be adjusted left or right by about 30-50mm
(1.25-1.95in), depending on the model. (See Fig. 3.14).
1
2
3
4
5
6
7
UNIT IS ADJUSTABLE
INSTALLATION INSTRUCTIONS  OUTDOOR UNIT
Step 1: Select installation location
Before installing the outdoor unit, you must choose an
appropriate location. The following are standards that will help
you choose an appropriate location for the unit.
Proper installation locations meet the following standards:
 Meets all spatial requirements shown in
Installation Space Requirements ( Fig. 4.1 )
 Good air circulation and ventilation
 Firm and solid—the location can support the unit and will
not vibrate
 Noise from the unit will not disturb others
 Protected from prolonged periods of direct sunlight or rain.
OUTDOOR UNIT INSTALLATION
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets and outlets
Near a public street, crowded areas, or where noise from the unit will
disturb others
Near animals or plants that will be harmed by hot air discharge
Near any source of combustible gas
In a location that is exposed to large amounts of dust
In a location exposed to a excessive amounts of salty air

18 EDEM SPLIT-TYPE ROOM AIR CONDITIONER

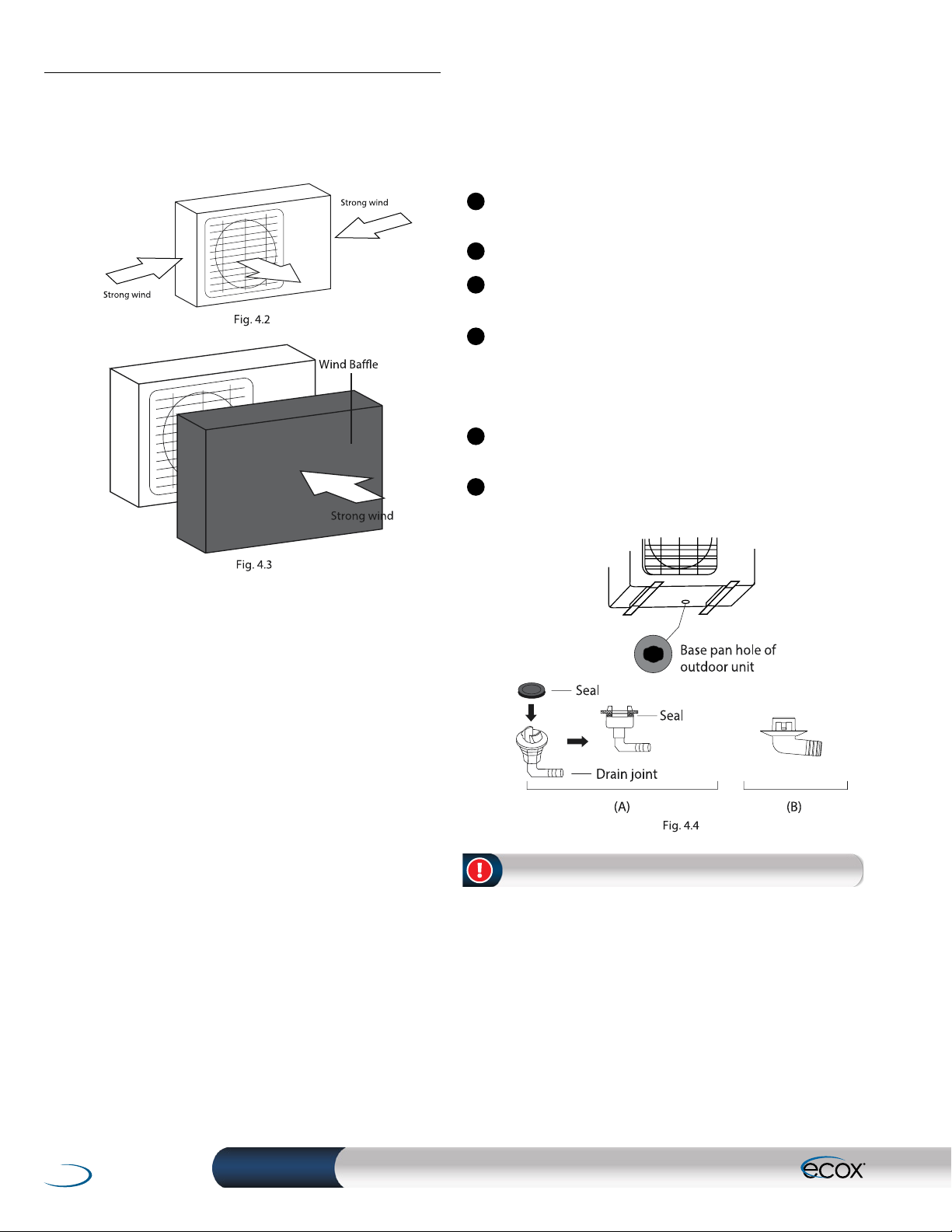

If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle to the direction
of the wind. If needed, build a barrier in front of the unit to
protect it from extremely heavy winds.
See Fig. 4.2 and Fig. 4.3 below.
Step 2: Install drain joint
Heat pump units require a drain joint. Before bolting the
outdoor unit in place, you must install the drain joint at the
bottom of the unit. Note that there are two dierent types of
drain joints depending on the type of outdoor unit.
If the drain joint comes with a rubber seal (see Fig. 4.4 - A ), do
the following:
Fit the rubber seal on the end of the drain joint that will connect
to the outdoor unit.
Insert the drain joint into the hole in the base pan of the unit.
Rotate the drain joint 90° until it clicks in place facing the front
of the unit.
Connect a drain hose extension (not included) to the drain joint
to redirect water from the unit during heating mode.
If the drain joint doesn’t come with a rubber seal (see Fig. 4.4 -
B), do the following:
Insert the drain joint into the hole in the base pan of the unit.
The drain joint will click in place.
Connect a drain hose extension (not included) to the drain joint
to redirect water from the unit during heating mode.
If the unit is frequently exposed to heavy rain or snow:
Build a shelter above the unit it to protect it from the rain or
snow. Be careful not to obstruct air ow around the unit.
If the unit is frequently exposed to salty air (seaside):
Use outdoor unit that is specially designed to resist corrosion.
In cold climates
Make sure that the drain hose is as vertical as possible to ensure
swift water drainage. If water drains too slowly, it can freeze in the
hose and ood the unit.
SPECIAL CONSIDERATIONS FOR EXTREME WEATHER
1
2
3
4
1
2
CAUTION

19
EDEM
SPLIT-TYPE ROOM AIR CONDITIONER
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the ground or to a wall-
mounted bracket.
The following is a list of dierent outdoor unit sizes and the
distance between their mounting feet.
Prepare the installation base of the unit according to the
dimensions below.
WHEN DRILLING INTO CONCRETE, EYE PROTECTION IS
RECOMMENDED AT ALL TIMES.
If you will install the unit on the ground or on a concrete
mounting platform, do the following:
Mark the positions for four expansion bolts based on dimensions
in the Unit Mounting Dimensions chart.
Pre-drill holes for expansion bolts.
Clean concrete dust away from holes.
Place a nut on the end of each expansion bolt.
Hammer expansion bolts into the pre-drilled holes.
Remove the nuts from expansion bolts, and place outdoor unit
on bolts.
Put washer on each expansion bolt, then replace the nuts.
Using a wrench, tighten each nut until snug.
UNIT MOUNTING DIMENSIONS
1
2
3
4
5
6
7
8
WARNING

20 EDEM SPLIT-TYPE ROOM AIR CONDITIONER
If allowed, you can install the wall-mounted unit with rubber
gaskets to reduce vibrations and noise.
TO REDUCE VIBRATIONS OF WALL MOUNTED UNIT
1
2
3
4
5
6
7
8
Before installing a wall-mounted unit, make sure that the wall
is made of solid brick, concrete, or of similarly strong material.
The wall must be able to support at least four times the weight
of the unit.
Step 4: Connect signal and power cables
The outside unit’s terminal block is protected by an electrical
wiring cover on the side of the unit.
A comprehensive wiring diagram is printed on the inside of the
wiring cover.
Mark the position of bracket holes based on dimensions in the Unit
Mounting Dimensions chart.
Pre-drill the holes for the expansion bolts.
Clean dust and debris away from holes.
Place a washer and nut on the end of each expansion bolt.
Thread expansion bolts through holes in mounting brackets, put
mounting brackets in position, and hammer expansion bolts into
the wall.
Check that the mounting brackets are level.
Carefully lift unit and place its mounting feet on brackets.
Bolt the unit rmly to the brackets.
If you will install the unit on a wall-mounted bracket, do the
following:
CAUTION Remove the electrical control board cover from the outdoor
unit by loosening the screw.
Connect the connective cables to the terminals as identified
with their respective matched numbers on the terminal block
of indoor and outdoor units.
Secure the cable onto the control board with the cord clamp.
To prevent the ingress of water, form a loop of the connective
cable as illustrated in the installation diagram of indoor and
outdoor units.
Insulate unused cords (conductors) with PVC-tape. Process
them so they do not touch any electrical or metal parts.
1
2
3
4
5
CONNECT THE CABLE TO THE OUTDOOR UNIT
