Ecox NPTC User manual

NPTC / EPTC
INSTALLATION MANUAL
Thank you for purchasing this ecox product.
Before using this machine, please read this manual and retain it for future reference.
NPTC / EPTC
CEILING AND FLOOR TYPE

2NPTC / EPTC CEILING AND FLOOR TYPE
PRECAUTIONS AND WARNING
INSTALLATION INFORMATION
ATTACHED FITTINGS
INSPECTING AND HANDLING THE UNIT
INDOOR UNIT INSTALLATION
OUTDOOR UNIT INSTALLATION
INSTALL THE CONNECTING PIPE
CONNECT THE DRAIN PIPE
WIRING
TEST OPERATION
CONTENT
PRECAUTIONS
5
5
2
6
6
7
11
13
14
15
keep this manual where the operator can easily nd them.
Read this manual attentively before starting up the units.
For safety reason the operator must read the following cautions
carefully.
Installation must be performed in accordance with the requirement
of NEC and CEC by authorized personnel only.
The safety precautions listed here are divided into two categories.
If you do not follow these instructions exactly, the unit may
causeproperty damage, personal injury or loss of life.
If you do not follow these instructions exactly, the unit may cause
minor or moderate property damage, personal injury.
After completing the installation, make sure that the unit operates
properly during the start-up operation. Please instruct the
customer on how to operate the unit and keep it maintained. Also,
inform customers that they should store this installation manual
along with the owner’s manual for future reference.

3
NPTC / EPTC
CEILING AND FLOOR TYPE
3
Be sure only trained and qualied service personnel to install,
repair or service the equipment.
Improper installation, repair, and maintenance may result in
electric shocks, short-circuit, leaks, re or other damage to the
equipment.
WARNING
Install according to this installation instructions strictly.
If installation is defective, it will cause water leakage, electrical
shock and re.
When installing the unit in a small room, take measures
against to keep refrigerant concentration from exceeding
allowable safety limits In the event of refrigerant leakage.
Contact the place of purchase for more information. Excessive
refrigerant in a closed ambient can lead to oxygen deciency.
Use the attached accessories parts and specified parts for
installation.
Otherwise, it will cause the set to fall, water leakage, electrical
shock and re.
Install at a strong and rm location which is able to withstand
the set’ s weight.
If the strength is not enough or installation is not properly done,
the set will drop to cause injury.
The appliance shall not be installed in the laundry.
Before obtaining access to terminals, all supply circuits must
be disconnected.
The appliance must be positioned so that the plug is accessible.
The enclosure of the appliance shall be marked by word, or by
symbols, with the direction of the uid ow.
For electrical work, follow the local national wiring standard,
regulation and this Installation Instructions. An independent
circuit and single outlet must be used.
If electrical circuit capacity is not enough or defect in electrical
work, it will cause electrical shock re.
Use the specied cable and connect tightly and clamp the
cable so that no external force will be acted on the terminal.
If connection or xing is not perfect, it will cause heat-up or re at
the connection.
Wiring routing must be properly arranged so that control
board cover is xed properly.
If control board cover is not xed perfectly, it will cause heat-up at
connection point of terminal, re or electrical shock.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualied
person in order to avoid a hazard.
An all-pole disconnection switch having a contact separation
of at least 3mm in all poles should be connected in xed
wiring.
When carrying out piping connection, take care not to let air
substances go into refrigeration cycle.
Otherwise, it will cause lower capacity, abnormal high pressure in
the refrigeration cycle, explosion and injury.
Do not modify the length of the power supply cord or use of
extension cord, and do not share the single outlet with other
electrical appliances.
Otherwise, it will cause re or electrical shock.
Carry out the specied installation work after taking into
account strong winds, typhoons or earthquakes.
Improper installation work may result in the equipment falling and
causing accidents.
If the refrigerant leaks during installation, ventilate the area
immediately.
Toxic gas may be produced if the refrigerant comes into the place
contacting with re.
The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper tube.
After completing the installation work, check that the
refrigerant does not leak.
Toxic gas may be produced if the refrigerant leaks into the room
and comes into contact with a source of re, such as a fan heater,
stove or cooker.

4NPTC / EPTC CEILING AND FLOOR TYPE
CAUTION
Ground the air conditioner.
Do not connect the ground wire to gas or water pipes,
lightning rod or a telephone ground wire. lnappropriate
grounding may result in electric shocks.
Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may result in electric
shocks.
Connect the outdoor unit wires, then connect the indoor unit wires.
You are not allowed to connect the air conditioner with the power
supply until the wiring and piping is done.
While following the instructions in this installation manual,
install drain piping in order to ensure proper drainage and
insulate piping in order to prevent condensation.
Improper drain piping may result in water leakage and property
damage.
Install the indoor and outdoor units, power supply wiring
and connecting wires should be at least 1 meter away from
televisions or radios in order to prevent image interference or
noise.
Depending on the radio waves, a distance of 1 meter may not be
sucient enough to eliminate the noise.
The appliance is not intended for use by young children or
inrm persons without supervision.
Don’t install the air conditioner in the following circumstance:
There is petrolatum existing.
There is salty air surrounding (near the coast).
There is caustic gas (the sulde, for example) existing in the air
(near a hot spring).
The Volt vibrates violently (in the factories).
In buses or cabinets.
In kitchen where it is full of oil gas.
There is strong electromagnetic wave existing.
The appliance shall be installed in accordance with national
wiring regulations.
Do not operate your air conditioner in a wet room such as a
bathroom or laundry room.
An all-pole disconnection device which has at least 3mm
clearances in all poles , and have a leakage current that may
exceed 10mA, the residual current device (RCD) having a
rated residual operating current not exceeding 30mA, and
disconnection must be incorporated in the xed wiring in
accordance with the wiring rules.
There are inammable materials or gas.
There is acid or alkaline liquid evaporating.
Other special conditions.
Keep running condition your air conditioning performing at least
every six months clean the lters, coils and fans.
Keep in good working control systems, such as the thermostat.
The comfort temperature is between 21° C and 23° C, holding the
temperature within this range will help the team save more energy.
Do not place the thermostat near spotlights, lamps or heat
producing appliances and the operation of the system may be
inadequate and / or poor.
When using the air conditioner keep doors and windows closed in
conditioned environments in order to keep out hot outside air.
If the area where the air conditioner is going to remain idle, shut
down your computer for saving energy.
In unconditioned spaces should reduce the heat load introduced
by excessive lighting or equipment remain on unnecessarily.

5
NPTC / EPTC
CEILING AND FLOOR TYPE
INSTALLATION INFORMATION2
To install properly, please read this“Installation manual”at rst.
The air conditioner must be installed by qualied persons.
When installing the indoor unit or its tubing, please follow
this manual as strictly as possible.
If the air conditioner is installed on a metal part of the
building, it must be electrically insulated according to the
relevant standards to electrical appliances.
When all the installation work is nished, please turn on the
power only after a thorough check.
Regret for no further announcement if there is any change
of this manual caused by product improvement.
INSTALLATION ORDER
Select the location;
Install the indoor unit;
Install the outdoor unit;
Install the connecting pipe ;
Connect the. drain pipe;
Wiring;
Test operation.
ATTACHED FITTINGS3
Please check whether the following ttings are of full scope. If
there are some spare ttings, please restore them carefully.
Remote controller
& Its Holder
Other
Name Shape Quantity
Remote controller
(on some models)
Remote
controller holder
(on some models)
Mounting screw
(ST2.9x1Q..C-H)
Remote controller manual
Alkaline dry
batteries (AM4)
Owner’s manual
Installation manual
1
1
2
2
1
1
1

6NPTC / EPTC CEILING AND FLOOR TYPE
INSPECTING AND HANDLING THE UNIT
INDOOR UNIT INSTALLATION
4
5
At delivery, the package should be checked and any damage
should be reported immediately to the the service agent.
When handling the unit, take into account the following:
Fragile, handle the unit with care.
Keep the unit upright in order to avoid
compressor damage.
Choose on before hand the path along which the unit is to be
brought in.
Move this unit as originally package as possible.
When lifting the unit, always use protectors to prevent belt
damage and pay attention to the position of the unit’s center
of gravity.
1
2
3
4
5.1 INSTALLATION PLACE
5.2 INSTALL THE MAIN bODy
(Refer to Fig.5-1,Fig. 5-2 and Table 5-1 for specication.)
The indoor unit should be installed in a location that meets the
following requirements:
There is enough room for installation and maintenance.
The ceiling is horizontal, and its structure can endure the
weight of the indoor unit.
The outlet and the inlet are not impeded, and the inuence of
external air is the least.
The air ow can reach throughout the room.
The connecting pipe and drainpipe could be extracted out easily.
There is no direct radiation from heaters.
CAUTION
Keep indoor unit, outdoor unit, power supply wiring and
transmission wiring at least 1 meter away from televisions and
radios. This is to prevent image interference and noise in those
electrical appliances. (Noise may be generated depending on the
conditions under which the electric wave is generated, even if 1
meter is kept.)
A
D
C
B
E
Connecting point
of refrigerant pipe
(D. gas side)
Drain point
Connecting point
of refrigerant pipe
(E. liquid side)
Hook
FIG. 52
FIG. 51
Installing 10 hanging screw bolts. (4 bolts).
Please Refer to Fig. 5-3 and Fig. 5-4 for the hanging screw bolts
distance.
Evaluate the ceiling construction and please install with 10
hanging screw bolts.
The handling to the ceiling varies from the constructions,
consult the construction person for the specic condition.
Do keep the ceiling at. Consolidate the roof beam to avoid
possible vibration.
Cut o the roof beam.
Strengthen the place that has been cut o, and consolidate the
roof beam.
After the selection of installation location, position the
refrigerant pipes, drain pipes, indoor & outdoor wires to the
connection places before hanging up the machine.
The installation of hanging screw bolts.
Put the square timber Put the square timber traversely over the
roof beam, then install, the hanging screw bolts.
Timber over the bean
Roof bean
Ceiling
Hanging screw bolts
1
WOODEN CONSTRUCTION
See the table 5-1
>1000mm
35mm 1.4 in
39 in
35mm 1.4 in 35mm 1.4 in
FIG. 53

7
NPTC / EPTC
CEILING AND FLOOR TYPE
NEW CONCRET bRICkS
FOR ORIGINAL CONCRET bRICkS
STEEL ROOF bEAM STRUCTURE
Inlaying or embedding the screw bolts.
Inlaying or embedding the screw bolts.
Install the hanging hook with expansible bolt into the concrete
deep to 45-50 mm / 1.8-2 in to prevent loose.
1
2
3
Install the indoor unit.
Remove the side board and the grille. (Referto Fig. 5-B).
Locate the hanging arm on the hanging screw bolt.
(Refer to Fig. 5-9)
Hanging arm
Hanging screw bolt Hanging screw bolt
Side board
Grille
Screw nut
Washer
Hanging screw bolt
Hanging arm
D. Connecting point of
refrigerant pipe
(D.gas side)
20mm
Drain point
Downward decllCity lower between(t-2)1100
E. Connedlng point of
refrigerant pipe
(E. Liquid side)
Ceiling Installation
Wall Mounting lnstallation
5.3 THE DIMENSION OF THE UNIT
6.1 INSTALLATION PLACE
OUTDOOR UNIT INSTALLATION6
The outdoor unit should be installed in the location that meets
the following requirements:
There is enough room for installation and maintenance.
The air outlet and the air inlet are not impeded, and cannot be
reached by strong wind.
It must be a dry and well ventilating place.
The support is at and horizontal and can stand the weight of
the outdoor unit. And will no additional noise or vibration.
Your neighborhood will not feel uncomfortable with the noise
or expelled air.
It is easy to install the connecting pipes or cables.
Determine the air outlet direction where the discharged air is
not blocked.
There is no danger of re due to leakage of inammable gas.
TABLE 51
FIG. 54 FIG. 55
FIG. 56
FIG. 57
FIG. 58
FIG. 59
FIG. 511
FIG. 510
FIG. 512
mm in mm in mm in mm in mm in
18~24 1068 42 675 26,6 235 9,3 983 38,7 220 8,7
36~48 1285 50,6 675 26,6 235 9,3 1200 47,3 220 8,7
48~60 1650 65 675 26,6 235 9,3 1565 61,6 220 8,7
60 1650 65 675 26,6 235 9,3 1565 61,6 220 8,7
MODEL A B C D E
20 ~ 25mm 0.8-1 in

8NPTC / EPTC CEILING AND FLOOR TYPE
The piping length between the outdoor unit and the indoor
unit may not exceed the allowable piping length.
In the case that the installation place is exposed to strong wind
such as a seaside, make sure the fan operating properly by
putting the unit lengthwise along the wall or using a dust or
shield.(Refer to Fig.6-1).
If possible, do not install the unit where it is exposed to direct
sunlight.
If necessary, install a blind that does not interfere with the airow.
During the heating mode, the water drained o the outdoor
unit. The condensate should be well drained away by the drain
hole to an appropriate place, so as not to interfere other people.
Select the position where it will not be subject to snow drifts,
accumulation of leaves or other seasonal debris. If unavoidable,
please cover it with a shelter.
Locate the outdoor unit as close to the indoor unit as possible.
If possible, please remove the obstacles nearby to prevent the
performance from being impeded by too little of air circulation.
The minimum distance between the outdoor unit and obstacles
described in the installation chart does not mean that the same
is applicable to the situation of an airtight room. Leave open
two of the three directions. (Refore to Fig.6-7, Fig.6-8, Fig.6-9).
NOTE
Strong wind
FIG. 61
The dimension of 12 and 24 are the same
The dimension of 30 and 36 are the same
The dimension of 48 and 60 are the same
6.2 FIGURE OF bODy SIzE
1
FIG. 62
FIG. 64
FIG. 63
A
A
H
H
B
FEC D
Split type outdoor unit
See table 6-1

9
NPTC / EPTC
CEILING AND FLOOR TYPE
6.3 SPACE OF INSTALLATION AND MAINTENANCE
1
2
1
2
Split type outdoor unit
Vertical discharge type outdoor unit
Split type outdoor unit
Vertical discharge type outdoor unit
FIG. 65 FIG. 66
FIG. 67
FIG. 68
FIG. 69
I J
C D E
F
G H
A
B
C
B
A
(Wall or obstacle)
(Wall or obstacle)
Maintain channel
Air inlet
Air inlet
Air outlet
Air outlet
P
See table 6-3
mm in mm in mm in mm in mm in mm in mm in
12 760 30 530 20,8 290 11,4 315 12,4 270 10,6 385 15,2 590 23,2 Fig. 6-2
18 760 30 530 20,8 290 11,4 315 12,4 270 10,6 385 15,2 590 23,2 Fig. 6-2
18 845 33,3 560 22 335 13,2 360 14,1 312 12,3 320 12,6 700 27,6 Fig. 6-2
24 845 33,3 560 22 335 13,2 360 14,1 312 12,3 320 12,6 700 27,6 Fig. 6-2
24 900 35,4 590 23,2 333 13,1 355 13,9 302 11,9 315 12,4 860 33,9 Fig. 6-2
24 990 39 624 24,6 366 14,4 396 15,6 340 13,4 345 13,6 965 38 Fig. 6-2
30 990 39 624 24,6 366 14,4 396 15,6 340 13,4 345 13,6 965 38 Fig. 6-2
30 900 35,4 590 23,2 333 13,1 355 13,9 302 11,9 315 12,4 860 33,9 Fig. 6-2
36 990 39 624 24,6 366 14,4 396 15,6 340 13,4 345 13,6 965 38 Fig. 6-2
36 938 37 634 24,9 404 15,9 448 17,6 368 14,5 392 15,4 1396 55 Fig. 6-3
42 990 39 624 24,6 366 14,4 396 15,6 340 13,4 345 13,6 965 38 Fig. 6-2
42 938 37 634 24,9 404 15,9 448 17,6 368 14,5 392 15,4 1369 55 Fig. 6-3
48 990 39 624 24,6 366 14,4 396 15,6 340 13,4 345 13,6 965 38 Fig. 6-2
48 938 37 634 24,9 404 15,9 448 17,6 368 14,5 392 15,4 1369 55 Fig. 6-3
48 900 35,4 590 23,2 378 14,9 400 15,7 330 13 350 13,8 1170 46 Fig. 6-3
60 938 37 634 24,9 404 15,9 448 17,6 368 14,5 392 15,4 1369 55 Fig. 6-3
60 900 35,4 590 23,2 378 14,9 400 15,7 330 13 350 13,8 1170 46 Fig. 6-3
TABLE 61
MODELO A B C D E F G REMARK
TABLE 63
mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in
12 1174 46,2 1120 44,1 680 26,8 720 28,3 750 29,5 475 18,7 300 11,8 430 17 265 10,5 393 15,5 Fig. 6-7
24 1174 46,2 1120 44,1 680 26,8 720 28,3 750 29,5 475 18,7 300 11,8 430 17 265 10,5 393 15,4 Fig. 6-7
30 1381 54,4 1328 52,3 702 27,7 740 29,1 770 30,3 520 20,5 336 13,2 500 19,7 296 11,7 443 17,4 Fig. 6-7
36 1381 54,4 1328 52,3 702 27,7 740 29,1 770 30,3 520 20,5 336 13,2 500 19,7 296 11,7 443 17,4 Fig. 6-7
48 1394 54,9 1338 52,7 783 30,8 820 32,3 850 33,5 568 22,4 398 15,7 574 22,6 342 13,5 463 18,2 Fig. 6-7
60 1394 54,9 1338 52,7 783 30,8 820 32,3 850 33,5 568 22,4 398 15,7 574 22,6 342 13,5 463 18,2 Fig. 6-7
MODELO A B C D E F G H I J REMARK
TABLE 62
mm in mm in mm in
18 633 25 554 21,8 554 21,8 Fig. 6-5 & 6-6
24 633 25 554 21,8 554 21,8 Fig. 6-5 & 6-7
36 759 30 554 21,8 554 21,8 Fig. 6-5 & 6-8
36 633 25 600 23,6 600 23,6 Fig. 6-5 & 6-9
36 759 30 600 23,6 600 23,6 Fig. 6-5 & 6-10
36/48/60 759 30 710 28 710 28 Fig. 6-5 & 6-11
60 843 33,2 710 28 710 28 Fig. 6-5 & 6-12
MODELO A B C REMARK
>30cm / >12 in
>60cm / >24 in
>200cm >79 in
>12 in
>30cm
>120cm
>47 in

10 NPTC / EPTC CEILING AND FLOOR TYPE

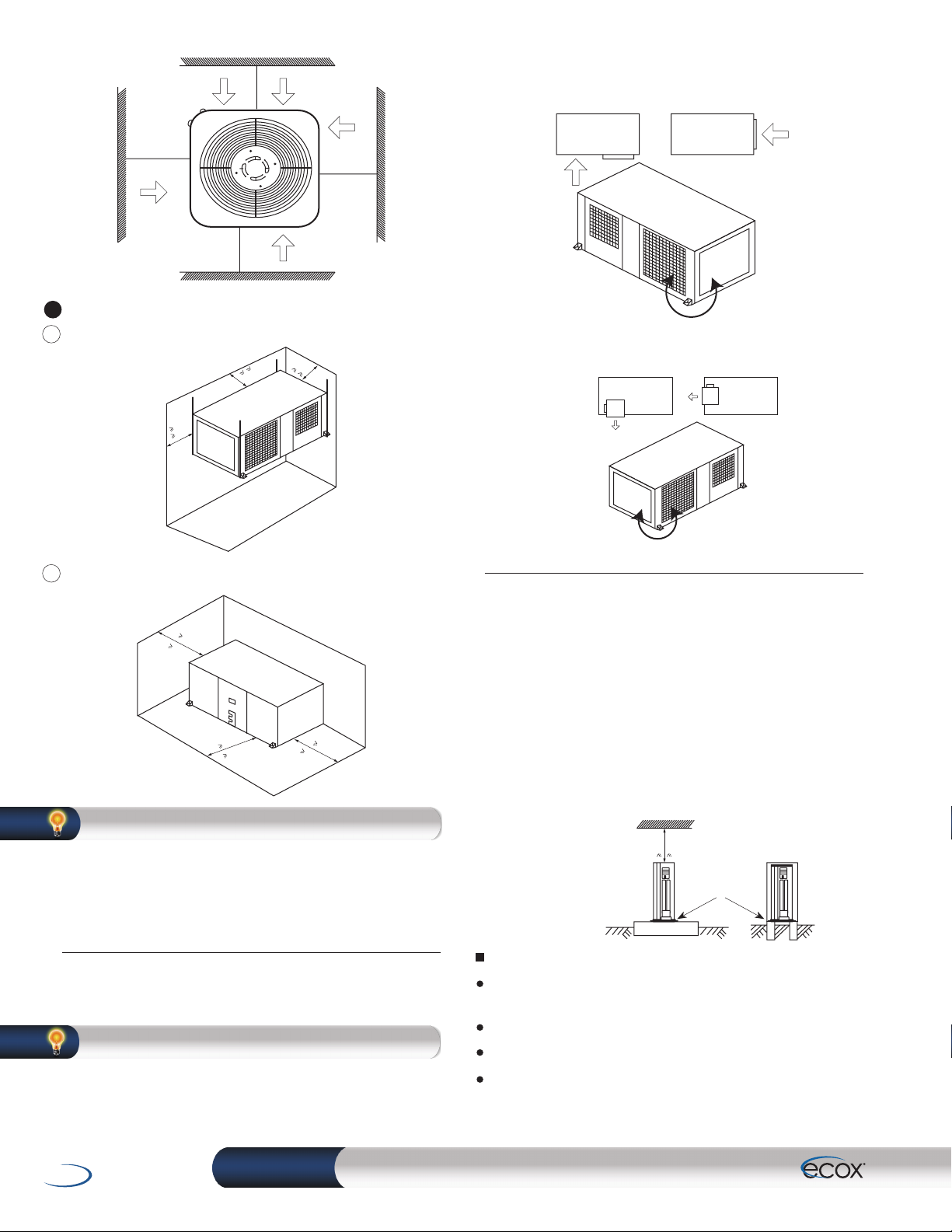

6.4 AvAILAbLE CONFIGURATION
6.5 MOvING AND INSTALLATION
3Split type outdoor unit
In case that suspending in the ceiling
ln case that installing on the oor
a
b
All the gures in this manual are for explanation purpose only. They
may be slightly dierent from the air conditioner you purchased.
The actual unit shall prevail.
Keep in mind that fan unit weight is aprox 30g, the unit as well as
relevant equipment covered with the vinyl cover during installation
work.
Four dierent conguration are available for outdoor unit only
changing the panels and fan position.
Air inlet modication
To change air inlet is only necessary to interchange the
indicated panels position. Both panels use screws to be xed
to unit chassis.
To change air outlet is necessary to interchange panels too.
Fan outlet panel is attached to fan structure, which must be
mounted as follow.
Change Panel
FIG. 610
FIG. 613
FIG. 614
FIG. 615
FIG. 611
FIG. 612
Since the gravity center of the unit is not at its physical center,
so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from
deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45; and do not lay it sidelong.
Make concrete foundation according to the specications of
the outdoor units. (Refer to Fig.6-15).
Fasten the feet of this unit with bolts rmly to prevent it from
collapsing in case of earthquake or strong wind.
(Refer to Fig.6-15).
Concrete Foundation
Foundation could be on at and is recommended be 100-300mm
higher than ground level.
Install a drainage around foundation for smooth drain.
When installing the outdoor unit x the unit by anchor bolts of M10.
When installing the unit on a roof or a veranda, drain water
sometimes turns to ice on a cold morning. Therefore, avoid
draining in an area that people often use because it is slippery.
(Wal or obstacle)
Air inlet
Air inlet
Air inlet
Air inlet
Fix with bolt
NOTE
NOTE
>12 in
>12 in
>12 in
>12 in
>30cm.
>30cm.
>30cm.
>30cm.
157 in
400
118 in
300
118 in
300
157 in
400
118 in
118 in
300
300
60cm 24in

11
NPTC / EPTC
CEILING AND FLOOR TYPE
Check whether the height drop between the indoor unit and
outdoor unit, the length of refrigerant pipe, and the number of
the bends meet the following requirements:
(The number of the bends less than 15)
INSTALL THE CONNECTING PIPE7
1
2
3
6 5 4
B
C
TABLE 64
TABLE 71
No.
The type
of model
Description
Model The lengh of
refrigerant pipe
The max
height drop
1
2
3
4
5
6
Outdoor Unit
Drainage (Wide 100x Depth 150)
Vibration - proof rubber
Drainage
Anchor Bolt M10
Mortar Hole ( 100x Depth 150)
Suspended unit
Suspend the unit as the drawing indicates.
Ensure that ceiling can resist the Outdoor unit weight indicated
in specication label plate.
Sling Bolt
Suspension
Bracket
1
1
2
All eld piping must be provided by a licensed refrigeration
technician and must comply with the relevant local and national
codes.
Do not let air, dust, or other impurities fall in the pipe system during
the time of installation.
The connecting pipe should not be installed until the indoor and
outdoor units have been xed already.
Keep the connecting pipe dry, and do not let moisture in during
installation.
Execute heat insulation work completely on both sides of the gas
piping and the liquid piping. Otherwise, this can sometimes result
in water leakage.
CAUTION
7.1 THE PROCEDURE OF CONNECTING PIPES
Drill a hole in the wall (suitable just for the size of the wall conduit),
then set on the ttings such as the wall conduit and its cover.
50Hz T1 condition/R22
Split type air conditioner
50Hz vertical discharge air
conditioner/60Hz T1 condition/
R22 Split type air conditioners
and vertical discharge air
conditioner
R410A Split type air
conditioner and
centrifugal fan outdoor
unit
R410A Inverter Split
type air conditioner and
centrifugal fan outdoor
unit
50Hz / 60Hz T3 condition
(Outdoor unit up)
50Hz / 60Hz T3 condition
(Outdoor unit down)
The unit with quick joint
FIG. 616
FIG. 617
100mm 39in
39~118 in
100~300 mm
TABLE 65
Model B C
mm in mm in
18~24 1120 44,1 720 28,3
30 1328 52,3 740 29,1
36 1328 52,3 740 29,1
48~60 1338 52,7 820 32,3
12K 15 0,6 8 0,3
18K-24K 30 1,2 10 0,4
30K-42K 50 2 20 0,8
48K-60K 50 2 25 1
12K 15 0,6 8 0,3
18K-24K 30 1,2 10 0,4
30K-60K 30 1,2 20 0,8
12K 10 0,4 5 0,2
18K-24K 25 1 12 0,5
30K 25 1 15 0,6
36K 30 1,2 20 0,8
48K-60K 50 2 25 1
12K 15 0,6 8 0,3
18K-30K 25 1 15 0,6
36K 30 1,2 20 0,8
48K-60K 50 1,2 25 1
18K-24K 25 1 10 0,4
30K 30 1,2 15 0,6
36K 30 1,2 20 0,8
42K-60K 50 2 25 1
18K-24K 25 1 10 0,4
30K 30 1,2 15 0,6
36K 30 1,2 25 1
42K 50 2 30 1,2
48K-60K 50 2 35 1,4
12K-18K 5 0,2 5 0,2
mm in mm in

12 NPTC / EPTC CEILING AND FLOOR TYPE
The type
of model Tightening torque Flare dimension A
(mm) / (in) - max (mm) / (in) Flare shape
6.35
9.52
12.7
15.9
19
FIG. 75
FIG. 76
Bend the pipe with thum.
FIG. 74
2
3
4
5
6
7
XO
90º
Lean Crude Burr
XX
FIG. 71
FIG. 72
TABLE 72
CAUTION
CAUTION
Bind the connecting pipe and the cables together tightly with
binding tapes. Pass the bound connecting pipe through the
wall conduct from outside. Be careful of the pipe allocation to
do on damage to the tubing.
Connect the pipes. Refer to“How to Connect the pipes”for details.
Expel the air with a vacuum pump. Refer to“How to expel the air
with a vacuum pump” for details.
Open the stop values of the outdoor unit to make the refrigerant
pipe connecting the indoor unit with the outdoor unit in uent
ow.
Check the leakage. Check all the joints with the leak detector
or soap water.
Cover the joints of the connecting pipe with the soundproof /
insulating sheath (ttings), and bind it well with the tapes to
prevent leakage.
Be sure to with insulating materials cover all the exposed parts of
the are pipe joints and refrigerant pipe on the liquid-side and the
gas-side. Ensure that there is no gap between them.
Incomplete insulation may cause water condensation.
How to Connect the pipes
Flaring
Cut a pipe with a pipe cutter. (Refer to Fig. 7-1)
Insert a are nut into a pipe and are the pipe.
Refer to Table 7-2 for the dimension of are nut spaces.
Cycle Services Panel
Liquid valve
Cover Board
Gas valve
1
1
1
2
3
2
3
4
90º ± 4
A
45º ± 2
RO.4 -0.8
Remove the Cycle Service Panel and the Cover Board,
unscrewing the screws which secure it to the structure
Remove the protection cover of stop valve.
Connect the indoor unit at rst, then the outdoor unit.
Bend the tubing in proper way. Do not harm to them.
The bending angle should not exceed 90º.
Bending position is preferably in the middle of the bendable
pipe. The larger the bending radius the better it is .
Do not bend the pipe more than three times.
When connecting the are nut, coat the are both inside and
outside with either oil or ester oil and initially tighten by hand 3
or 4 turns before lighting rmly.
Be sure to use both a spanner and torque wrench together
when connecting or disconnecting pipes to /from the unit.
Too large torque will harm the bellmouthing and too small will cause
leakage. Please determine the torque according to Table 7-2.
After the connecting work is nished, be sure to check that there is no
gas leak.
How to expel the air with a vacuum pump
Stop valve operation introduction
Opening stop valve
Remove the cap and tum the valve counter clock-wise with the
hexagon wrench.
Tum it until the shaft stops. Do not apply excessive force to the
stop valve. Doing so may break the valve body, as the valve is
not a backseat type. Always use the special tool.
Make sure to tighten the cap securely.
FIG. 73
15 ~ 16 N.m 8,3 0,3 8,70 0,4
(153 ~ 163 kgf.cm)
25 ~ 26 N.m 12,0 0,5 12,4 0,5
(255 ~ 265 kgf.cm)
35 ~ 36 N.m 15,4 0,6 15,8 0,6
(357 ~ 367 kgf.cm)
45 ~ 47 N.m 18,6 19,0 19,0 0,7
(459 ~ 480 kgf.cm)
65 ~ 67 N.m 22,9 23,3 23,3 0,9
(663 ~ 684 kgf.cm)

13
NPTC / EPTC
CEILING AND FLOOR TYPE
6.35 0.25 5 ~ 7
7 ~ 9
9 ~ 11
11 ~ 13
13.5 ~ 16.5
Llave
hexagonal
Llave
hexagonal
Llave
hexagonal
11.5 ~ 13.9
18 ~ 22
23 ~ 27
35 ~ 40
9.52 0.37
12.7 0.50
15.9 0.63
19 0.70
orice in the indoor unit 0.022kg/mx(L-5) 0.030kg/mx(L-5)
orice in the outdoor unit 0.011 kg/mx(L-5) 0.015kg/mxL
orice in the indoor unit 0.060kg/mx(L-5) 0.065kg/mx(L-5)
orice in the ouldoor unit 0.030kg/mx(L-5) 0.030kg/mxL
orice in the indoor unit 0.110kg/mx(L-5) 0.115kg/mx(L-5)
orice in the outdoor unit 0.060kg/mx(L-5) 0.060kg/mxL
orice in the indoor unit 0.170kg/mx(L-5) 0.190kg/mx(L-5)
orice in the outdoor unit 0.085kg/mx(L-5) 0.095kg/mxL
orice in the lndoor unit 0.250kg/mx(L-5) 0.290kg/mx(L-5)
orice in the ouldoor unit 0.125kg/mx(L-5) 0.145kg/mxL
Manifold valve
Hi-lever
Charge hose
Charge hose
Vacuum pump
Lo-lever
Lo-lever
-76 cmHg
Closing stop valve
Remove the cap and tum the valve clockwise with the hexagon
wrench.
Securely tighten the valve until the shaft contacts the main
bodyseal.
Make sure to tighten the cap securely.
For the tightening torque, refer to the table below.
2
1
1
2
2
3
4
5
6
7
Always use a charge hose for service port connection.
After tightening the cap, check that no refrigerant leaks a represent.
service port
maintenance nut
cap
hexagon hole
shaftseal
Using the vacuum pump
Loosen and remove the maintenance nuts of stop valves A and
B, and connect the charge hose of the marufold valve to the
service port of stop valve A. (Be sure that stop valves A and B
are both closed).
Connect the joint of the charge hose with the vacuum pump.
Open the Lo-lever of the manifold value completely
Tum on the vacuum pump. At the beginning of pumping,
loosen the maintenance nut of stop valve B a little to check
whether the air comes in (the sound of the pump changes,
and the indicator of compound meter turns below zero). Then
fasten the maintenance nut.
When the pumping has nished, close the Lo-lever of the
manifold valve completely and turn o the vacuum pump.
Make pumping for 15 minutes or more and check that the
compound meter indicates -76cmHg(-1X10ºPa).
Loosen and remove the cap of stop valves A and B to open stop
valve A and B completely, then fasten the cap.
Disassemble the charge hose from the service port of stop valve
A, and fasten the nut.
Outdoor unit
Stop valve
Gas side
Liquid side
Indoor unit
BD
CA
Refrigerant cannot be charged until eld wiring has been completed.
Refrigerant may only be charged after performing the leak test and
the vacuum pumping.
When charging a system, care shall be taken that its maximum
permissible charge is never exceeded, in view of the danger of
liquid hammer.
Charging with an unsuitable substance may cause explosions
and accidents, so always ensure that the appropriate refrigerant
is charged.
Refrigerant containers shall be opened slowly.
Always use protective gloves and protect your eyes when charging
refrigerant.
The outdoor unit is factory charged with refrigerant. Calculate
the added refrigerant according to the diameter and the
length of the liquid side pipe of the outdoor unit/indoor unit
connection. (Suitable for throttle outdoor unit).
7.2 ADDITIONAL REFRIGERANT CHARGE
FIG. 77
FIG. 78
FIG. 79
NOTE: The table above refer to the liquid tube.
NOTE: The number of bends is up to the length of the max height drop. Usually
for each 1Om need a bend.
If a negative result is gotten for R from Table 7-4, no refrigerant
needs to be added nor removed.
Additional refrigerant will be twice of R from Table 7-4 if the
indoor unit installed throttle assembly.
TABLE 74
Liquid tube (mm) R22R410A
NOTE
Install the drainpipe of the indoor unit
The outlet has PTI screw bread. Please use sealing materials and
pipe sheath (tting) when connecting PVC pipes.
CONNECT THE DRAIN PIPE8
TABLE 73
Stop valve size Shaft (valve body) Cap (Valve lid) Maintanence nut
Tightening torque N•M (Turn clockwise to close)
CAUTION
CAUTION
6.35 0.25
9.52 0.37
12.7 0.50
15.9 0.63
19 0.75

14 NPTC / EPTC CEILING AND FLOOR TYPE
FIG.81
FIG.82
FIG.83
FIG.81
NOTE
The drain pipe of indoor unit must be heat insulated, or it will
condense dew, as well as the connections of the indoor unit.
Hard PVC binder must be used for pipe connection, and make sure
there is no leakage.
With the connection part to the indoor unit, please be noted not to
impose pressure on the side of indoor unit pipes.
When the declivity of the drain pipe downwards is over 1/100, there
should not be any winding.
The total length of the drain pipe when pulled out transversely
shall not exceed 20m, when the pipe is over long, a prop stand
must be installed to prevent winding.
Refer to the Fig.B-1 for the installation of the pipes.
Drainage test
Check whether the drainpipe is unhindered.
New built house should have this test done before
paving the ceiling.
Install the drain joint of the outdoor unit
Fit the seal into the drain joint, then insert the drain joint into
the base pan hole of outdoor, rotate 90° to securely assemble
them. Connect the drain joint with an extension drain hose
(Locally purchased), in case of the condensate draining o the
outdoor unit during the heating mode. (Referto Fig.B-2).
Outdoor unit is equipped with a drain piping. Its position is
shown gure below.
The base hole
of outdoor unit
The base hole
of outdoor unit
Drain joint
A
B
>75
Slope 2%
Plug
Drain piping
22
Insulation material
Bend
S shape
put as deep as possible (about 10cm)
Downward declivity lower than 1/100 VP30
Downward declivity
lower than 1/100
Drain joint
Seal
Seal
Prepare a polyvinyl chloride with 21 mm / 0.8 in inner diameter
Fasten the tube to the drain hose with and adhesive and the
eld-supplied clamp. The drain piping must be performed with
a DOWN-SLOPE pitch of 1/25 to 1/100.
Connect a siphon, as shown in gure below.
All the gures in this manual are for explanation purpose only.
They may be slightly dierent from the air conditioner you
purchased. The actual unit shall prevail.
The appliance shall be installed in accordance with national wiring
regulations.
The air conditioner should use separate power supply with rated
voltage.
The external power supply to the air conditioner should have
ground wiring, which is linked to the ground wiring of the indoor
and outdoor unit.
The wiring work should be done by qualied persons according to
circuit drawing.
An all-pole disconnection device which has at least 3mm
separation distance in all pole and a residual current device (RCD)
with the rating of above 10mA shall be incorporated in the xed
wiring according to the national rule.
Be sure to locate the power wiring and the signal wring well to
avoid cross-disturbance.
Do not tum on the power until you have checked carefully after
wiring.
The power cord type designation is H07RN-F.
WIRING9
CAUTION
TABLE 81
Model A B
mm in mm in
18~24 595 23,4 1200 47,2
36 624 24,6 1381 54,4
48~60 646 25,4 1385 54,5
1.5m - 2m / 59 in - 79 in

15
NPTC / EPTC
CEILING AND FLOOR TYPE
Remark per EMC Directive 2004/108/EC.
For to prevent flicker impressions during the start of the
compressor (technical process), following installation
conditions do apply.
The power connection for the air conditioner has to be done at
the main power distribution. The distribution has to be of a low
impedance, normally the required impedance reaches at a 32 A
fusing point.
No other equipment has to be connected with this power line.
For detailed installation acceptance please refer to your power
supplier, if restrictions do apply for products like washing
machines, air conditioners or electrical ovens.
For power details of the air conditioner refer to the rating plate
of the product.
For any question contact your local dealer.
1
1
2
3
4
2
3
4
5
9.1 CONNECT THE CAbLE
9.2 THE SPECIFICATION OF POWER
9.3 WIRING FIGURE
Dissemble the bolts from the cover. (lf there isn't a cover on
the outdoor unit, disassemble the bolts from the maintenance
board, and pull it in the direction of the arrow to remove the
protection board.) (Refer to Fig.9-1, Fig.9-2, Fig.9-3).
Split type outdoor unit
Cover
Protection board
Protection board
Protection board
Vertical discharge type outdoor unit
Centrifugal fan outdoor unit
All the gures in this manual are for explanation purpose only. They
may be slightly dierent from the air conditioner you purchased.
The actual unit shall prevail.
Connect the connective cables to the terminals as identied
with their respective mached numbers on the terminal block of
indoor and outdoor units.
Re-install the cover or the protection board.
TEST OPERATION10
(Refer to Table9-1 - Table 9-15).
(Refer to Fig.9-4- Fig.9-36).
The test operation must be carried out after the entire installation
has been completed.
Please conrm the following points before the test operation:
• The indoor unit and outdoor unit are installed property.
• Tubing and wiring are correctly completed.
• The refrigerant pipe system is leakage-checked.
• The drainage is unimpeded.
• The heating insulation works well.
• The ground wiring is connected correctly.
• The length of the tubing and the added stow capacity of the
refrigerant have been recorded.
• The power voltage ts the rated voltage of the air conditioner.
• There is no obstacle at the outlet and inlet of the outdoor and
indoor units.
• The gas-side and liquid-side stop valves are both opened.
• The air conditioner is pre-heated by turning on the power.
According to the user's requirement, install the remote controller
frame where the remote controller's signal can reach the indoor
unit smoothly.
Test operation
Set the air conditioner under the mode of "COOLING" with
the remote controller, and check the following points. If there
is any malfunction, please resolve it according to the chapter
"Troubleshooting" in the "Owner's Manual".
The indoor unit
Whether the switch on the remote controller works well.
Whether the buttons on the remote controller works well.
Whether the air ow louver moves normally.
Whether the room temperature is adjusted well.
Whether the indicator lights normally.
Whether the temporary buttons works well.
Whether the drainage is normal.
Whether there is vibration or abnormal noise during operation.
Whether the air conditioner heats well in the case of the HEATING/
COOLING type.
1
FIG. 91
FIG. 92
FIG. 93
a
d
g
b
e
h
c
f
i
NOTE NOTE

16 NPTC / EPTC CEILING AND FLOOR TYPE
The outdoor unit
Whether there is vibration or abnormal noise during operation.
Whether the generated wind, noise, or condensed of by the air
conditioner have inuenced your neighborhood.
Whether any of the refrigerant is leaked.
2
A protection feature prevents the air conditioner from being
activated for approximately 3 minutes when it is restarted
immediately after shut o.
CAUTION
POWER
POWER
POWER
POWER
PHASE
PHASE
PHASE
PHASE
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
1Phase
3Phase
3Phase
1Phase
208 - 240V
380 - 420V
380 - 420V
208 - 240V
208 - 240V
380 - 420V
380 - 420V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
208 - 240V
20/16
25/20
25/20
40/30
1Phase
3Phase
3Phase
1Phase
50/30
40/25
40/25
70/55
1Phase
3Phase
3Phase
1Phase
40/25
25/20
25/20
60/40
1Phase
3Phase
3Phase
1Phase
60/45
45/35
45/35
70/60
1Phase
60/50
TABLE 91
TABLE 92
TABLE 94
TABLE 93
Model
Model
Model
Model
18
30 ~ 36
30 ~ 36
24
30 ~ 36
30 ~ 36
30 ~ 36
42 ~ 48
42 ~ 48
42 ~ 60
42 ~ 60
60
6024
42 ~ 60
42 ~ 60
30 ~ 36
The Specication of Power (indoor power supply)
The Specication of Power (outdoor power supply)
a
b
c

17
NPTC / EPTC
CEILING AND FLOOR TYPE
POWER
(indoor)
POWER
(indoor)
POWER
(indoor)
POWER
(indoor)
POWER
(outdoor)
POWER
(outdoor)
POWER
(outdoor)
POWER
(outdoor)
PHASE
PHASE
PHASE
PHASE
PHASE
PHASE
PHASE
PHASE
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
FREQUENCY AND VOLT
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
CIRCUIT BREACKER/FUSE (A)
1Phase
1Phase
1Phase
1Phase
1Phase
1Phase
3Phase
3Phase
208 - 240V
220 - 240V
208 - 240V
220 - 240V
208 - 240V
208 - 240V
380 - 420V
380 - 420V
208 - 240V
220 - 240V
208 - 240V
220 - 240V
208 - 240V
208 - 240V
380 - 420V
380 - 420V
208 - 240V
220 - 240V
208 - 240V
220 - 240V
208 - 240V
208 - 240V
380 - 420V
208 - 240V
208 - 240V
220 - 240V
208 - 240V
220 - 240V
208 - 240V
208 - 240V
380 - 420V
208 - 240V
208 - 240V
220 - 240V
208 - 240V
208 - 240V
20/16
15/10
20/16
15/10
20/16
30/20
25/20
30/20
1Phase
1Phase
1Phase
1Phase
1Phase
1Phase
3Phase
3Phase
20/16
15/10
20/16
15/10
50/30
40/30
40/25
50/40
1Phase
1Phase
1Phase
1Phase
1Phase
1Phase
3Phase
3Phase
20/16
15/10
20/16
15/10
40/25
30/20
25/20
30/25
1Phase
1Phase
1Phase
1Phase
1Phase
1Phase
3Phase
3Phase
20/16
15/10
20/16
15/10
60/45
40/35
45/35
50/40
1Phase
1Phase
1Phase
1Phase
20/16
15/10
60/50
50/40
TABLE 95
TABLE 97
TABLE 96
TABLE 98
Model
Model
Model
Model
18
18
30 ~ 36
30 ~ 36
30 ~ 36
30 ~ 36
30 ~ 36
30 ~ 36
42 ~ 48
42 ~ 48
42 ~ 60
42 ~ 60
60
60
24
24
42 ~ 60
42 ~ 60
The Specication of Power (independence power supply)
The Specication of Power for the inverter type air conditioner (independence power supply)

18 NPTC / EPTC CEILING AND FLOOR TYPE
The power supply is included in the power supply above mentioned can be applied to the table.
Before obtaining access to terminals, all supply circuits must be disconnected.
Wiring gure
FIG. 94
FIG. 95
Power supply
Power supply
Switch/Fuse (Available locally)
Switch/Fuse
(Available locally)
Power wiring (Outdoor)
Power wiring
(Outdoor)
Power linking wiring (Outdoor)
Power linking wiring (Outdoor)
Strong elec-signal link wiring
Strong elec-signal link wiring
Weak elec-signal link wiring
Weak elec-signal link wiring
Ground wiring
Ground wiring
Ground wiring
Ground wiring
INDOOR
UNIT
INDOOR
UNIT
OUTDOOR
UNIT
OUTDOOR
UNIT
• Ground the air conditioner properly in case to aect its anti-interference function
• Ground the air conditioner properly in case to aect its anti-interference function
CAUTION

19
NPTC / EPTC
CEILING AND FLOOR TYPE
The design and specications are subject to change without prior notice for product improvement.
Consult with the sales agency or manufacturer for details
FIG. 96
FIG. 97
Power supply Power supply
Power supply
Switch/Fuse
(Available locally)
Switch/Fuse
(Available locally)
Power wiring (Outdoor)
Power wiring (Outdoor)
Power linking wiring (Outdoor)
Weak elec-signal link wiring
Weak elec-signal link wiring
Ground wiring
Ground wiring
Ground wiring
Ground wiring
INDOOR
UNIT
INDOOR
UNIT
OUTDOOR
UNIT
OUTDOOR
UNIT
• Ground the air conditioner properly in case to aect its anti-interference function
• Ground the air conditioner properly in case to aect its anti-interference function
Strong elec-signal link wiring
A disconnection device having an air gap contact separation in all active conductors should be incorporated in the xed wiring according to the
National Wiring Regulation.
When wiring, please choose the corresponding chart, or it may cause damage. The signs of the indoor terminal block in the some of following
gures may be replaced by LN L1 N1 .
CAUTION

AF_ECX_181114_MN_NPTC_IM_EM
