EcoxGear SOUNDEXTREME SEI-ETAMPBAT7700 20 Series User manual

ExtremeTower TBB8
8 inch Tower Speakers
No Wire Install
Batteries
2
Bluetooth Amplified Tower Speakers
2
Models: SEI-ETAMPBAT7700...20
Installation Guide

2
· Please read the Hardware Guide, this Installation Guide, and the
User Guide before installation and use.
· These speakers include two rechargeable Battery Packs. As such, the
speakers can be installed without any wires. You also have the option
to power the speakers by connecting them to a 12V Power Supply.
· Only connect a 12V Power Supply to the Amplified Speaker power
input. To prevent damage to the speakers, fire, and/or possible injury,
do NOT connect the BLACK Power Cable to the battery’s negative
(-) terminal until all the installations are completed.
· CAUTION: Do NOT connect to a 24V, 48V or 72V power supply!
The voltage for the power input is +12VDC. You need to connect
to a 12VDC power supply. If your vehicle battery power is not 12V
(e.g., 24V, 36V, or 48V), you will need a DC-DC voltage converter
with 12V output (e.g. a 48V-to-12V converter). Connecting the
ExtremeTower directly to higher voltages will cause damage to the
speaker and cause the rechargeable battery to overcharge and
overheat! In extreme cases, excess voltage can cause the battery
to expand, leak, or potentially catch on FIRE! Any damage to the
battery due to improper connections to higher voltages will VOID
THE PRODUCT WARRANTY.
· The Amplified ExtremeTower Speakers have a Remote Turn-On
Input feature; this is to ensure that the speaker is completely
powered off (no battery consumption) when your vehicle is not in
use. When the Remote Turn-On Input has a 12V signal, the speaker
will turn on or go into standby, depending on the Power Mode Switch
settings. When there is no input voltage, the speaker will turn off. In
general, this Remote Turn-On signal comes from the vehicle ignition
switch – make sure that the signal voltage on the ignition switch is
12V. If your vehicle ignition switch signal is not 12V or if you are not
able to get a connection to the ignition switch, you can connect
the Remote Turn-On Wire on the speaker to a rocker switch. Then
connect the rocker switch to a 12V power supply or the 12V output
on your voltage convertor. Additionally, some vehicles have a built-in
12V switch panel, which will also work for the Remote Turn-On Wire.
Important

3
· When mounting the speaker, it is extremely important to make sure
that the mount is secure and will not cause any potential issues.
Please check that the speaker does NOT block the driver’s view or
prevents the safe operation of your boat or other vehicle. Ensure
that all screws are tightened and the speaker is secured correctly
so that the speaker will NOT fall.
· It is highly recommended to periodically check that the mount is
secured. If loose, please retighten the Locking Screw Latch.
RECOMMENDATION: Do NOT install on your own. This installation
is a two-person job, to be done safely. Please be careful to ensure
no personal injury or damage to your vehicle.

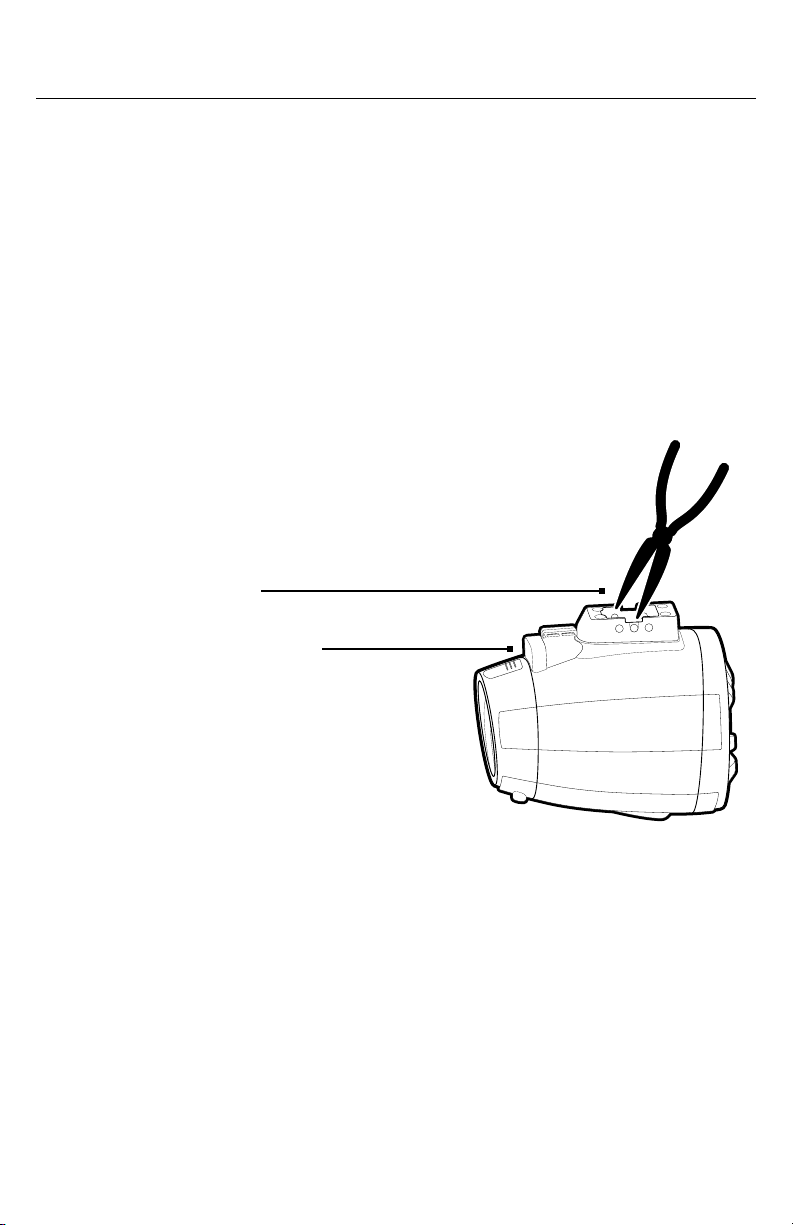

· An Aviation Connector Jack Cap comes attached to the
Base-Mount on each speaker. If you choose to use the Deutsch
Cable Set for wiring, you MUST screw the cap into the unused
Aviation Connector Jack on each speaker, tightening it clockwise
with a long nose plier (not included) or similar tool. Failing to do
this may result in potential water or moisture penetration into the
jack connector pins, cause damage to the speaker, and VOID THE
PRODUCT WARRANTY.
· These speakers do not require wiring, but if you connect
the 9-pin Aviation Connector to the Aviation Connector
Jack in the Base-Mount, you MUST ensure the connector is
tightened (clockwise) so that the connection is waterproof.
· When using the Extension Cable and/or connecting two wires
(e.g., using supplied BUTT Connectors), make sure to seal
the connection either by using electrical tape or heat shrink
tubing. Failing to do this may result in long-term corrosion on the
connection and cause a premature malfunction.
CAUTION: After taking the product out of the polyethylene bag,
be sure to dispose of the polyethylene bag out of the reach of
children. Children may play with the bag, which could result in the
child’s suffocation.
Important

4

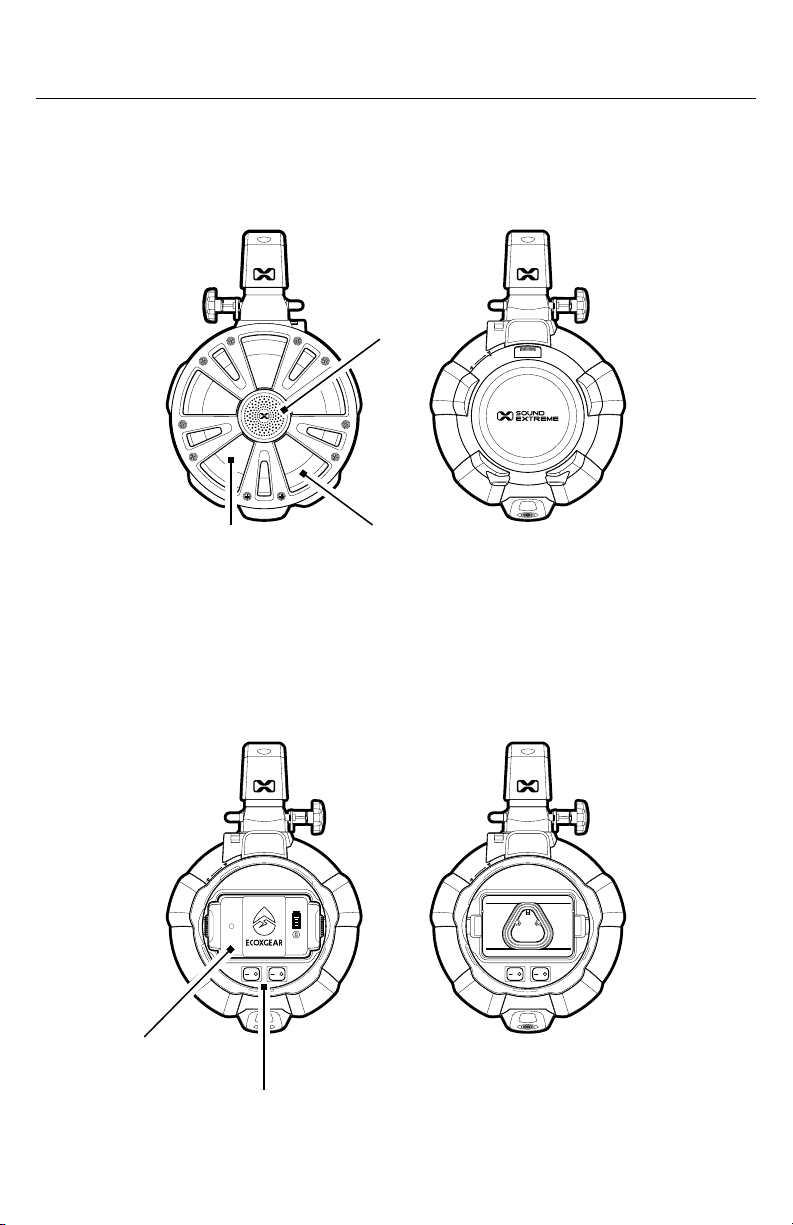

ExtremeTower Speaker Layout
ExtremeTower Overview
SpeakerParty Lights
Tweeter
Switches
Battery Pack

5

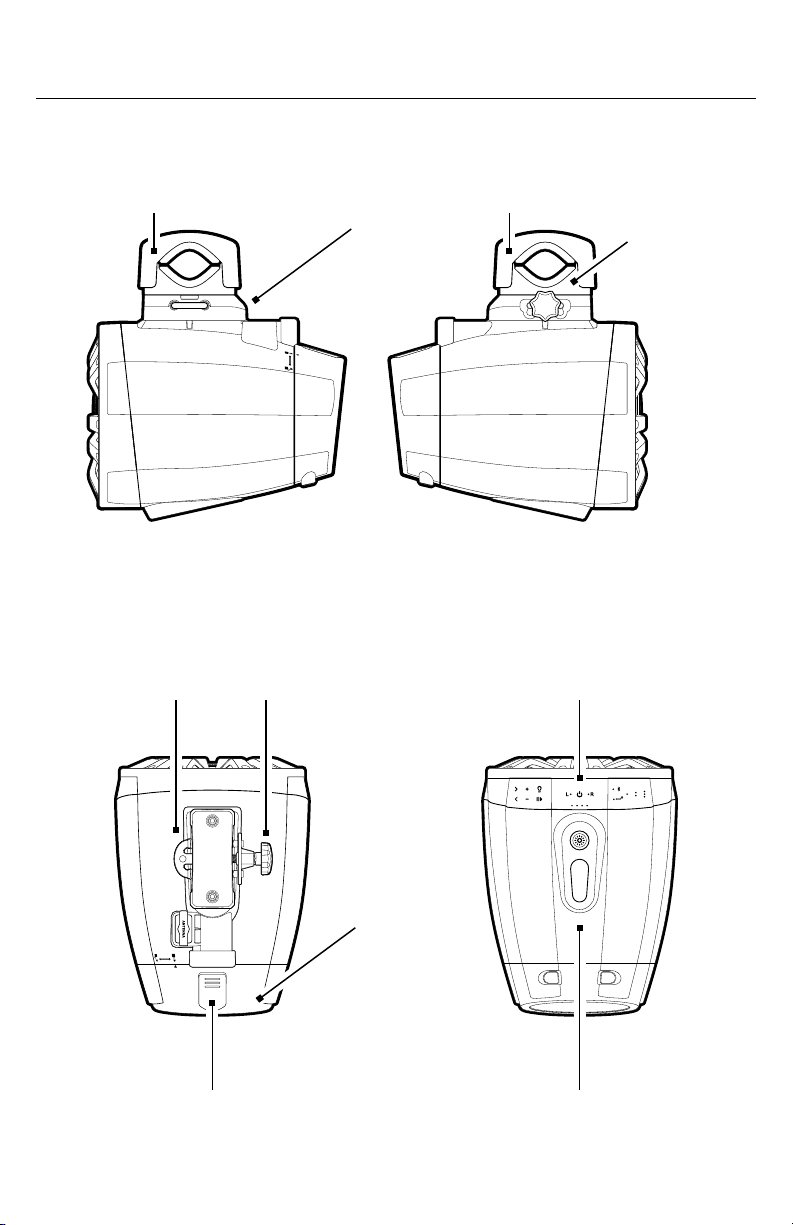

Quick-Release KnobU-Shaped Pin
Rotating 360°
Mount Clamp
Top Mount
Clamp
Base-Mount Bottom Mount
Clamp
ExtremeTower Overview
Dome LightBack Cover Latch
Release Button
Control Buttons
Waterproof
Back Cover

6
ExtremeTower Overview
Audio, LED Control Signals, and Power
Connectors and Cables
Power, Audio, and LED Lighting Connections

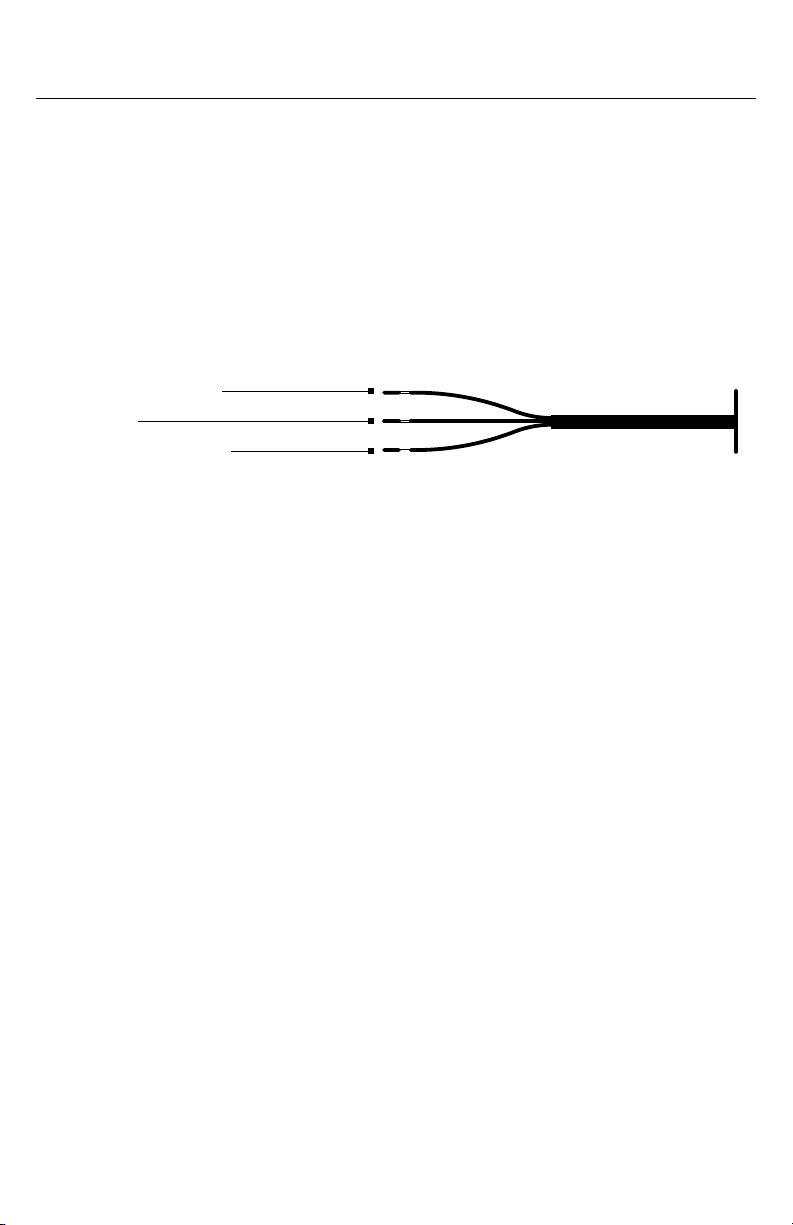

The Amplified ExtremeTower Speaker has a 9-pin connector, but
only 3 pins are used.
· 3 Input Wires: 12V (+), GND (-), and Remote Turn-On to connect to
your vehicle.
Power + 12V DC
Ground
Remote Turn-On

7
ExtremeTower Overview
Speaker Connector Jacks
Each speaker has 2 types of Connector Jacks.
1. A round Aviation Connector Jack is inside the speaker Base-
Mount, which allows the cable to pass through the Bottom Mount
Clamp and go into a hole in the crossbar at the location where the
speaker is mounted. These Amplified ExtremeTower Speakers
have a 9-pin, round connector jack.
2. A square Deutsch Connector Jack is behind the speaker
Base-Mount underneath a rubber cap. This is for an installation
where the wire is installed outside of the tower / roll cage.
This is also the connection suggested if you want to utilize the
Quick-Release-Mount option.
· The speakers have a 4-pin and a 6-pin, square connector jack. The
6-pin square connector jack is NOT used with this set of speakers.
If you choose to connect an Amplified Tower Speaker to your
9-Pin Aviation Connector Jack
6-Pin Deutsch Connector Jack
4-Pin Deutsch Connector Jack

8
vehicle’s battery using the 4-pin Deutsch connector, you will need
to remove the installed, large, rubber cap, then locate the smaller
cap in the package that only covers the 6-pin jack. Insert it into the
6-pin jack so it doesn’t get damaged by dirt or water.
FM Dipole Antenna Jack
The Amplified Speaker has a built-in FM Antenna. It also includes an
FM Dipole Antenna Jack for an optional external antenna connection
and improved reception (dipole antenna sold separately). If you
prefer to use an external FM antenna, follow these steps:
1. Slowly pull out the rubber cap. Keep the rubber cap attached to
the speaker housing if you plan to remove the antenna periodically;
otherwise, you can remove the antenna cap.
2. Plug your dipole antenna into the FM Dipole Antenna Jack.
ExtremeTower Overview
FM Dipole
Antenna Jack

9
ExtremeTower Overview
INT EXT
3. Open the Back Cover (refer to Install the Rechargeable Battery
Pack to the Amplified Speaker for details), move the (Blue) FM
ANT Switch to the EXT position.
Cables
Your package includes 2 Cable Sets for each wiring option. These
cables are optional:
1. Aviation Cable Set — For easy running and fishing wires through
a crossbar. The Aviation Cable connection between a 12V power
supply and each Amplified ExtremeTower Speaker uses the
following cable:
· The cable (“Round C” 9-pin Power Only Pass-through Aviation
Cable) has a 9-pin round connector on one end and 3 bare wires
for power inputs: 12V (+), GND (-), and Remote Turn-On.
“Round C” 9-Pin Power Only Pass-Through
Aviation Cable
3 Bare Wires (Input)9-Pin Aviation
Connector

10
ExtremeTower Overview
· The cable (“Deutsch A1” 4-pin Power Deutsch Cable) has a
4-pin square connector on one end and 3 bare wires for power
inputs: 12V (+), GND (-), and Remote Turn-On.
Note: If you choose to connect the Power +12V, GND, and
Remote Turn-On Inputs to your vehicle’s battery and ignition
switch, you will need to seal the connections to prevent water
or moisture penetration.
2. Deutsch Cable Set —Suggested wiring method if you want to
utilize the Quick-Release-Mount option. The Deutsch Cable
connection between a 12V power supply and each Amplified
ExtremeTower Speaker uses the following cable:
“Deutsch A1” 4-Pin Power Deutsch Cable
4-Pin Deutsch
Connector
Power Inputs: 12V (+), GND (-),
and Remote Turn-On

11
Installation and Wiring
Installation and Wiring Procedure 1:
Round Aviation Cable
If you choose to use the Aviation Cable Set for wiring your
ExtremeTower Speakers, follow the steps below.
Speaker Power Wiring (Optional)
The Aviation Cable will pass through the Bottom Mount Clamp and
go into a hole in the crossbar; therefore, it is necessary to run the
speaker wires and connections before the speakers are mounted
onto the crossbar.

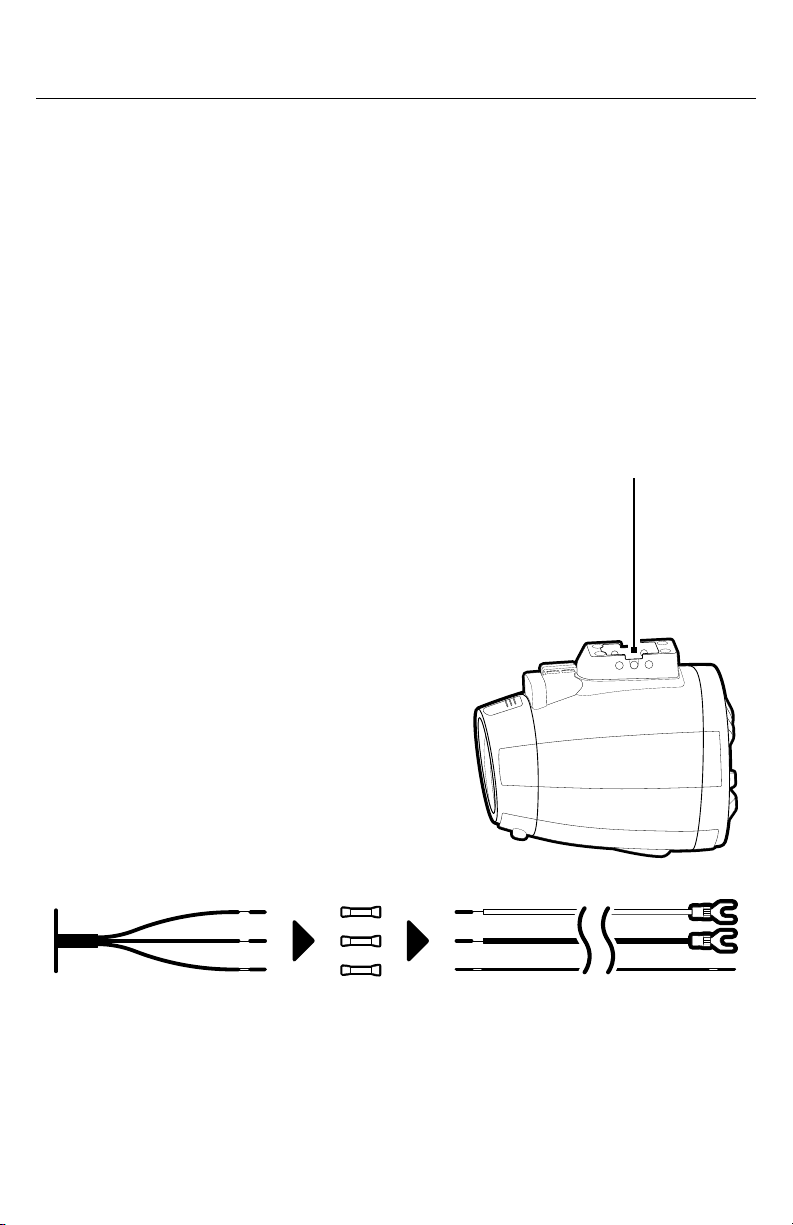

1. Find or drill a hole in the crossbar
at the spots where the speakers
will be mounted.
2. Fish the “Round C” (9-pin power
only pass-through) Aviation Cable
into the hole in the crossbar where
the Amplified Speaker will be
mounted and fish the wires through
the crossbar to the vehicle’s battery
and ignition signal terminal. But do
NOT connect the cables to your
vehicle’s 12V battery and ignition
signal terminal yet. Extension Cables
have been provided, if needed.
· If needed, connect the 3 wires (+12V, GND and Remote Turn-On)
with the supplied Power Extension Cable (+12V and GND) and
the supplied Remote Turn-On Extension Cable with the supplied
BUTT connectors. Use heat-shrink tubing or electrical tape to seal
the connections.
Aviation Connector Jack

12
Installation and Wiring

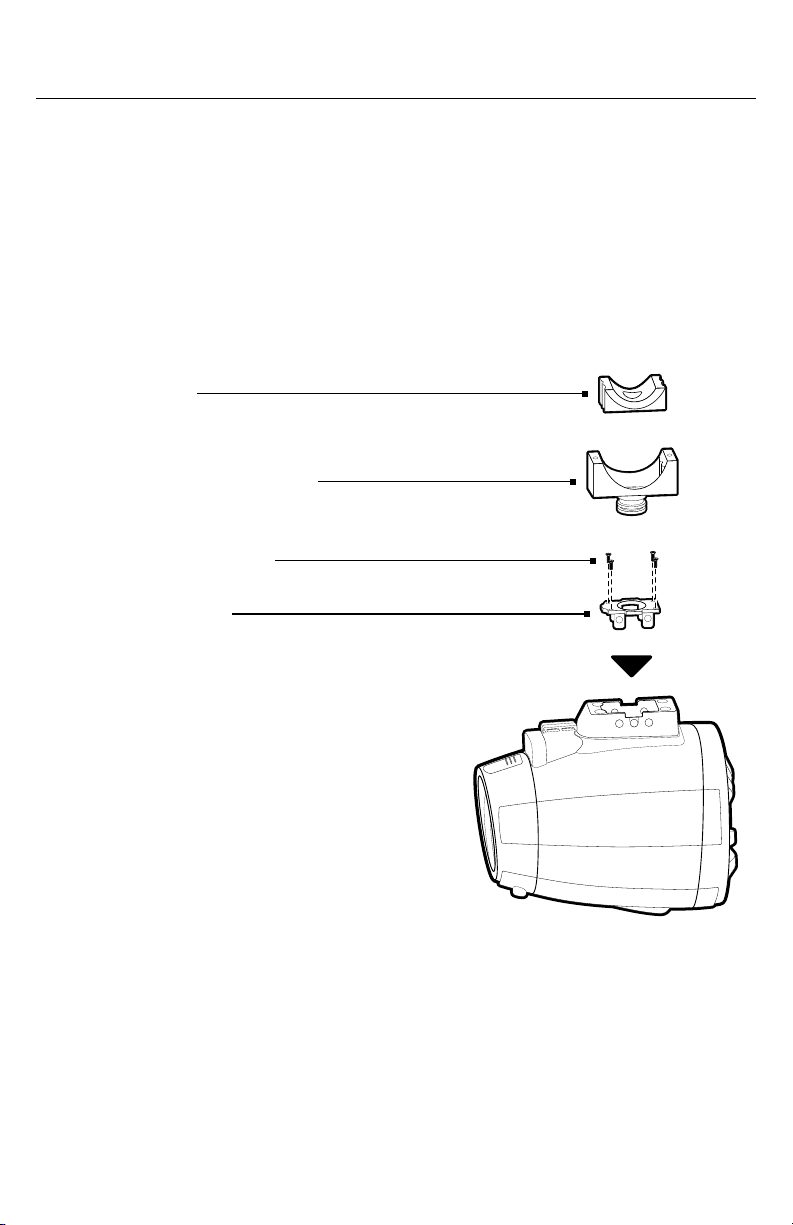

2. Put the appropriate Lower Rubber Insert onto the Swivel Flange
and Bottom Clamp Assembly.
3. Fish the “Round C” (9-pin power only pass-through) Aviation Cable
through the inner hole of the Swivel Flange and Bottom Clamp
Assembly, and the Base Cover Plate.
Mount the Speaker to the Crossbar
1. Base-Mount: Remove the tape and pull out a small plastic bag from
the Base-Mount. This bag has one Aviation Connector Jack Cap.
You don’t need this cap for this installation, but save the cap for
later use in case you change the wiring methods.
Rubber Insert
Swivel Flange and Bottom
Clamp Assembly
4 pcs M3 x 10 Screws
Base Cover Plate
Aviation Connector

13
Installation and Wiring
ANTENNA
U-Shaped Pin Locking Screw Latch
4. Connect the (9-pin round) Aviation Connector to the Aviation
Connector Jack on the speaker. Tighten the connector clockwise
with a long nose plier (not included) or similar tool.
IMPORTANT: Tighten the connector to ensure the connection is
waterproof to avoid potential water or moisture penetration into
the jack connector pins, causing damage to the speaker.
5. Put the Base Cover Plate on the speaker Mount-Base and
secure with 4 pcs of M3 x 10 Screws.
6. Insert the Swivel Flange and Bottom Clamp Assembly into the
speaker Mount-Base.

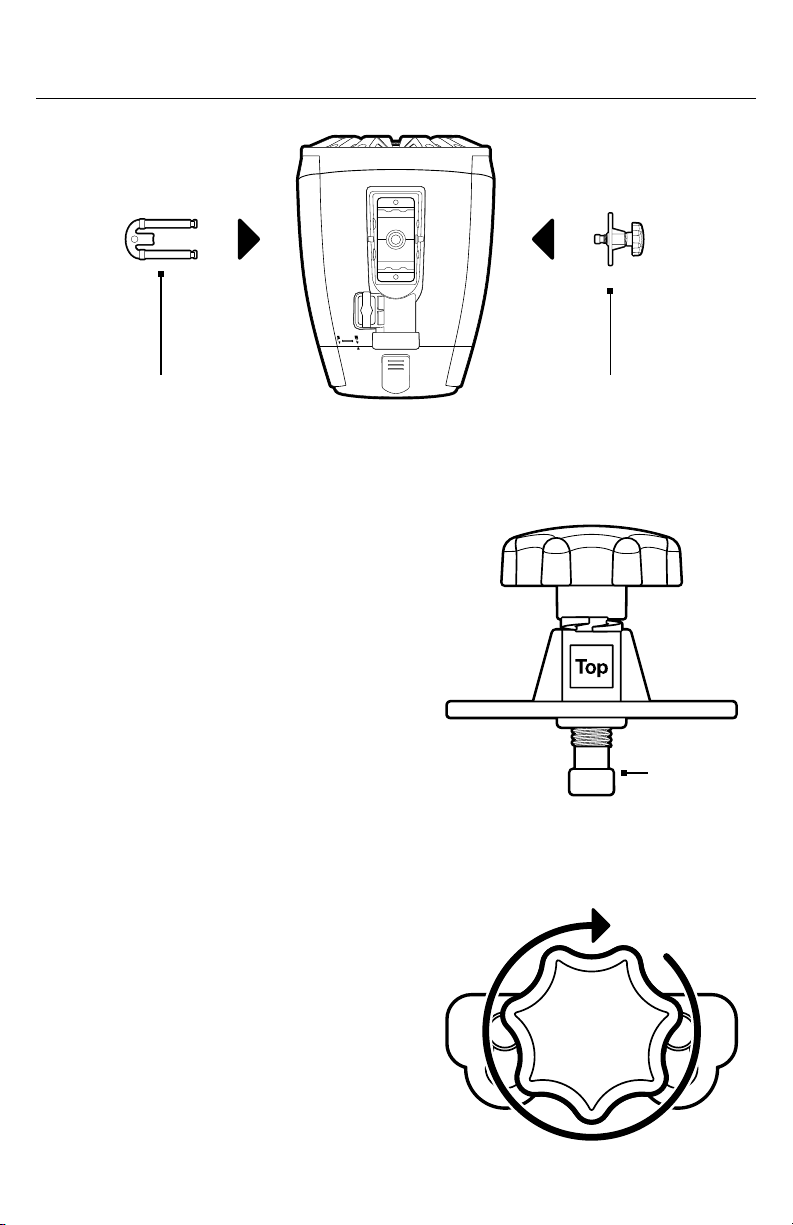

7. Insert the U-Shaped Pin into the two holes on the side of the
Base-Mount. Insert the pins into the holes on the left side of the
Mount when viewing from the rear of the speaker.
8. Attach the Locking Screw Latch
onto the U-Shaped Pin ends
(make sure Top on the Locking
Screw Latch is on top), then move
it downward to align the lock catch
end with the middle hole of the
Base-Mount, and screw in the
Locking Screw with the supplied
Locking
Screw

14
Installation and Wiring
9. Put the Upper Rubber Insert on the
Top Clamp. Align the rubber groove
with the bulge of the Top Clamp and
press down to assemble the Clamp
and Rubber Insert.
10. Place the speaker under the
crossbar. Lower the Top Clamp over
the crossbar and on the Bottom
Clamp. Tighten the two Bolts so that
the speaker is securely mounted on
the crossbar.
11. Turn the speaker to your desired angle, tighten the Locking Screw
with the supplied M5 Allen wrench (or with your hand if utilizing
the Quick-Release Knob).
12. The installation is complete. If you would like to optionally
connect your speaker to an external power source, proceed to
Connecting Your Speaker to a +12V Power Supply (Optional)
and Powering On.
Bolts
Washers and Spring Washers
Top Clamp
Rubber Insert
M5 Allen wrench (or with your hand if
utilizing the Quick-Release Knob).
Note: It is NOT recommended
to use the Quick-Release Knob
with this wiring method. Do NOT
tighten the screw yet.

15
Installation and Wiring
No Wire Installation and Wiring Procedure 2:
Square Deutsch Cable
This cable installation method does NOT require that the cables
go through the mount. This method allows for the speakers to
be mounted to the crossbar before running the wires and before
completing the cable connections. As such, follow the Mount the
Speaker to the Crossbar instructions for a No Wire Installation.
Then proceed to Install the Rechargeable Battery Pack on the
Amplified Speaker.
IMPORTANT:
· Before installation, it is important that you install the Aviation
Connector Caps on the Aviation Connector Jacks in the Base-
Mounts of both the Amplified ExtremeTower Speakers. In the
Base-Mount, remove the tape and pull out the Aviation Connector
Cap from a small plastic bag. Screw the cap into the Connector
Jack on the speaker, tighten it clockwise with a long nose plier
(not included) or similar tool. Failing to do this will result in potential
water or moisture penetration into the jack connector pins causing
damage to the speaker.
Deutsch Connector Jacks
Pliers (Not Included)

16
Installation and Wiring
Rubber Insert
Swivel Flange and Bottom
Clamp Assembly
4 pcs M3 x 10 Screws
Base Cover Plate
· The Deutsch Connector Jacks include an installed 4-pin/6-pin
Rubber Plug to prevent potential water or moisture penetration
into the jack. If you choose NOT to use the Deutsch Cables to
connect the Amplified ExtremeTower Speakers to your vehicle’s
battery, you MUST seal the Deutsch Connector Jacks with the
Rubber Plug.
Mount the Speaker to the Crossbar
1. Put the appropriate Lower Rubber Insert onto the Swivel Flange
and Bottom Clamp Assembly.
2. Put the Base Cover Plate on the speaker Mount-Base and secure
with 4 pcs of M3 x 10 Screws.
3. Insert the Swivel Flange and Bottom Clamp Assembly into the
speaker Mount-Base.

17
Installation and Wiring
4. Insert the U-Shaped Pin into
the two holes on the side of the
Base-Mount. Insert the pins
into the holes on the left side of
the Mount when viewing from
the rear of the speaker.
5. Attach the Quick-Release
Knob (or the Locking Screw
Latch) onto the U-Shaped
Pin ends (make sure Top on
the Quick-Release Knob is on
top), then move it downward
to align the lock catch end
with the middle hole of the
Base-Mount, and screw in the
Locking Screw by turning the
Quick-Release Knob (or with
the supplied M5 Allen wrench
if utilizing the Locking Screw
Latch). Do NOT tighten the
screw yet.
Locking
Screw
ANTENNA
U-Shaped Pin Quick-Release Knob

18
Bolts
Washers and Spring Washers
Top Clamp
Rubber Insert
Installation and Wiring
6. Put the Upper Rubber Insert on the Top Clamp. Align the rubber
groove with the bulge of the Top Clamp and press down to
assemble the Clamp and Rubber Insert.
7. Place the speaker under the crossbar. Lower the Top Clamp over
the crossbar and on the Bottom Clamp. Tighten the two Bolts so
that the speaker is securely mounted on the crossbar.
8. Turn the speaker to your desired angle, tighten the Locking Screw
with the supplied M5 Allen wrench (or with your hand if utilizing the
Quick-Release Knob).
9. To continue with a No Wire Installation, proceed to Install the
Rechargeable Battery Pack on the Amplified Speaker.

19
Speaker Power Wiring (Optional)
1. Run the (“Deutsch A1” 4-pin) Deutsch Power Cable to the location
where your vehicle’s power and ignition signal terminal are located,
but do NOT connect the power cable to the 12V vehicle battery
and ignition signal terminal yet. Extension Cables have been
provided, if needed.
· If needed, connect the 3 wires (+12V, GND, and Remote
Turn-On) on the (“Deutsch A1” 4-pin) Deutsch Power Cable with
the supplied Power Extension Cable (+12V and GND) and the
supplied Remote Turn-On Extension Cable, with the supplied
BUTT Connectors. Use heat-shrink tubing or electrical tape to
seal the connections.
Installation and Wiring
2. Remove the 4-pin/6-pin Rubber Plug
from the Deutsch Connector Jacks
and plug in the (“Deutsch A1” 4-pin)
Deutsch Power Cable’s connector
into the 4-pin Deutsch Connector
Jack on each speaker.
IMPORTANT: You MUST seal the 6-pin Deutsch Connector Jack
by plugging in the included 6-pin Deutsch Rubber Plug, to prevent
potential water or moisture penetration into the jack.

20
Installation and Wiring
Connecting Your Speaker to a +12V Power Supply
(Optional) and Powering On
Black Cable Red Cable Remote Turn-On Extension Cable
1. Once you complete one of the Installation Procedures, you can
connect the 3 wires (+12V, GND, and Remote Turn-On) on the
Power Cables (or Extension Cables, if needed) to the vehicle’s
battery and ignition signal terminal.
· Make sure that the RED Cable is connected to +12V battery’s
positive (+) terminal and the BLACK Cable is connected to
battery’s negative (-) terminal.
· Alternatively, both the Red Cable and the Remote Turn-On Cable
can be connected to a +12V switched power source.
WARNING! Only connect to a 12 volt power supply.
Recommendation: If you are not familiar with all of the vehicle’s
battery or ignition switch connections, consult your vehicle’s
manual or a technician. Incorrect connections to your vehicle’s
battery or ignition signal terminal may cause damage to your
speaker and your vehicle.
2. Turn on your vehicle’s ignition switch. Your speakers should turn
on. You can now connect an ExtremeTower Speaker to your
phone and play your audio or use the built-in FM radio. Refer
to your User Guide to learn how to pair two or more Amplified
ExtremeTower Speakers, among other features.
