EcoxGear SEI-ETAMP7700 20 Series User manual

ExtremeTower
8 inch Tower Speakers
Installation Guide
Built-in Amplifier
ExtremeTower TA8
Models: SEI-ETAMP7700...20
1
1
Bluetooth Amplified
Tower Speaker
Passive Tower Speaker
1
1
1
Bluetooth Amplified
Tower Speaker
Passive Tower Speaker
Battery
ExtremeTower TB8
Models: SEI-ETBAT7700...20

2
· Please read the Hardware Guide, this Installation Guide, and the
User Guide before installation and use.
· This Installation Guide is for the TA8 (SEI-ETAMP7700...20) and
TB8 (SEI-ETBAT7700...20) ExtremeTower Speakers. The TA8
Speakers do NOT include a removable, rechargeable battery. You
can purchase the battery separately.
· Only connect a 12V Power Supply to the Amplified Speaker power
input. To prevent damage to the speakers, fire, and/or possible
injury, do NOT connect the BLACK Power Cable to the battery’s
negative (-) terminal until all the installations are completed.
· CAUTION: Do NOT connect to a 24V, 48V or 72V power supply!
The voltage for the power input is +12VDC. You need to connect
to a 12VDC power supply. If your vehicle battery power is not 12V
(e.g., 24V, 36V, or 48V), you will need a DC-DC voltage converter
with 12V output (e.g. a 48V-to-12V converter). Connecting the
ExtremeTower directly to higher voltages will cause damage to the
speaker and cause the rechargeable battery to overcharge and
overheat! In extreme cases, excess voltage can cause the battery
to expand, leak, or potentially catch on FIRE! Any damage to the
battery due to improper connections to higher voltages will VOID
THE PRODUCT WARRANTY.
· The Amplified Speaker has a Remote Turn-On Input feature; this
is to ensure that the speaker is completely powered off (no battery
consumption) when your vehicle is not in use. When the Remote
Turn-On Input has a 12V signal, the speaker will turn on or go into
standby, depending on the Power Mode Switch settings. When
there is no input voltage, the speaker will turn off. In general, this
Remote Turn-On signal comes from the vehicle ignition switch
– make sure that the signal voltage on the ignition switch is 12V. If
your vehicle ignition switch signal is not 12V or if you are not able to
get a connection to the ignition switch, you can connect the Remote
Turn-On Wire on the Amplified Speaker to a rocker switch. Then
connect the rocker switch to a 12V power supply or the 12V output
on your voltage convertor. Additionally, some vehicles have a built-in
12V switch panel, which will also work for the Remote Turn-On Wire.
Important

3
· When mounting the speaker, it is extremely important to make sure
that the mount is secure and will not cause any potential issues.
Please check that the speaker does NOT block the driver’s view or
prevents the safe operation of your boat or other vehicle. Ensure
that all screws are tightened and the speaker is secured correctly
so that the speaker will NOT fall.
· It is highly recommended to periodically check that the mount is
secured. If loose, please retighten the Locking Screw Latch.
RECOMMENDATION: Do NOT install on your own. This installation
is a two-person job, to be done safely. Please be careful to ensure
no personal injury or damage to your vehicle.

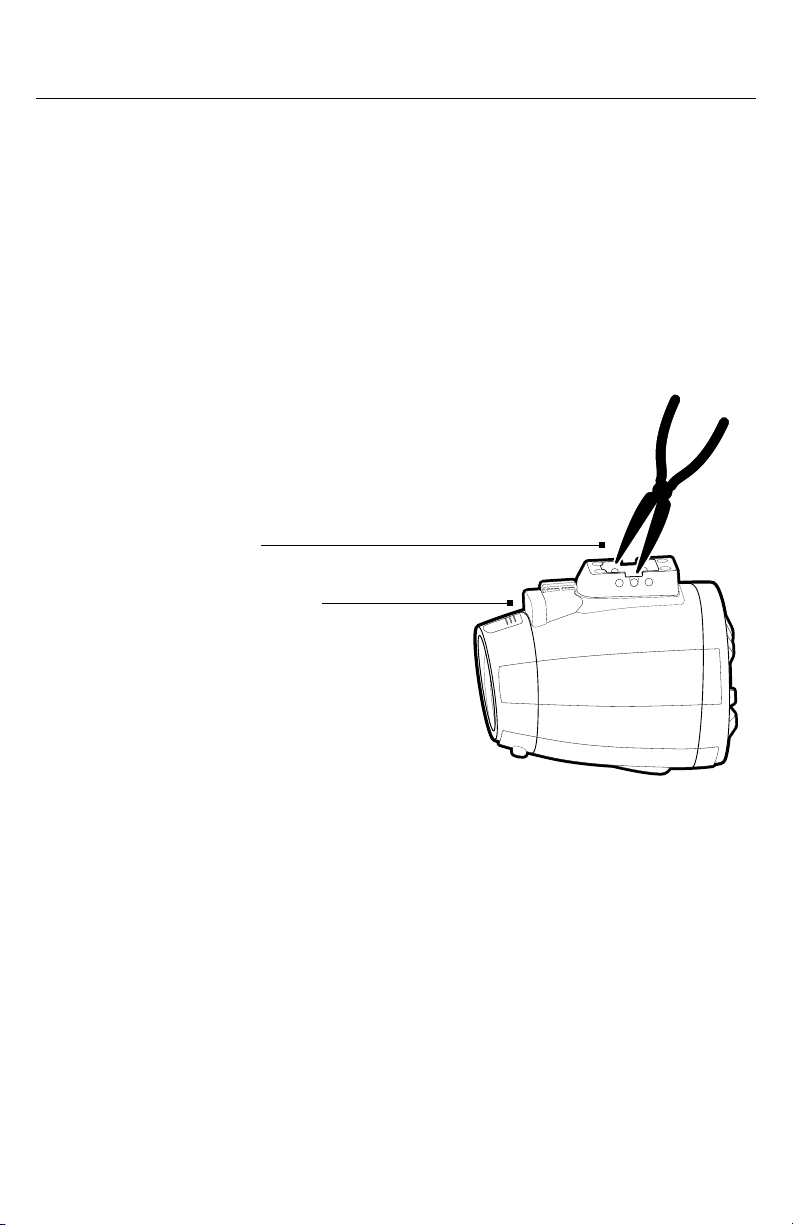

· An Aviation Connector Jack Cap comes attached to the
Base-Mount on each speaker. If you choose to use the Deutsch
Cable Set for wiring, you MUST screw the cap into the unused
Aviation Connector Jack on each speaker, tightening it clockwise
with a long nose plier (not included) or similar tool. Failing to do
this may result in potential water or moisture penetration into the
jack connector pins, cause damage to the speaker, and VOID THE
PRODUCT WARRANTY.
· When you connect the 9-pin or 6-pin Aviation Connector to the
Aviation Connector Jack in the Base-Mount, you MUST ensure
the connector is tightened (clockwise) so that the connection
is waterproof.
· When using the Extension Cable and/or connecting two wires
(e.g., using supplied BUTT Connectors), make sure to seal
the connection either by using electrical tape or heat shrink
tubing. Failing to do this may result in long-term corrosion on the
connection and cause a premature malfunction.
CAUTION: After taking the product out of the polyethylene bag,
be sure to dispose of the polyethylene bag out of the reach of
children. Children may play with the bag, which could result in the
child’s suffocation.
Important

4

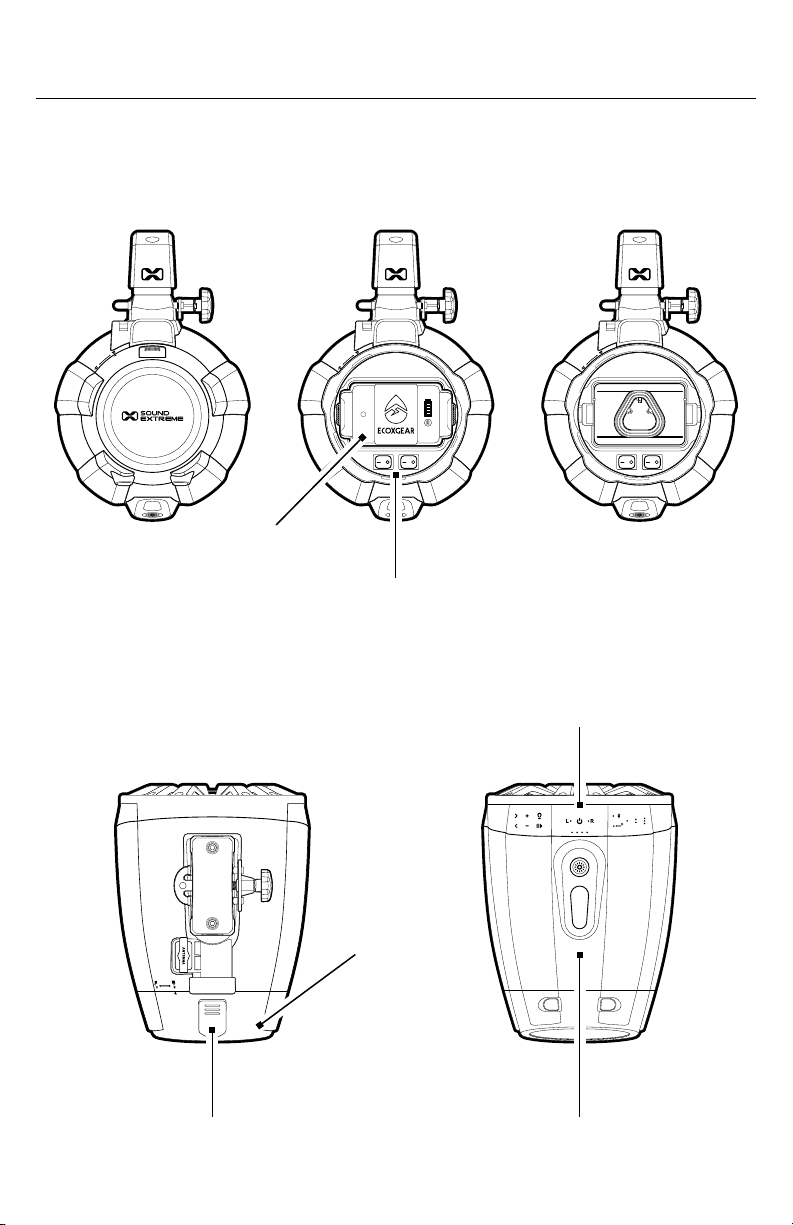

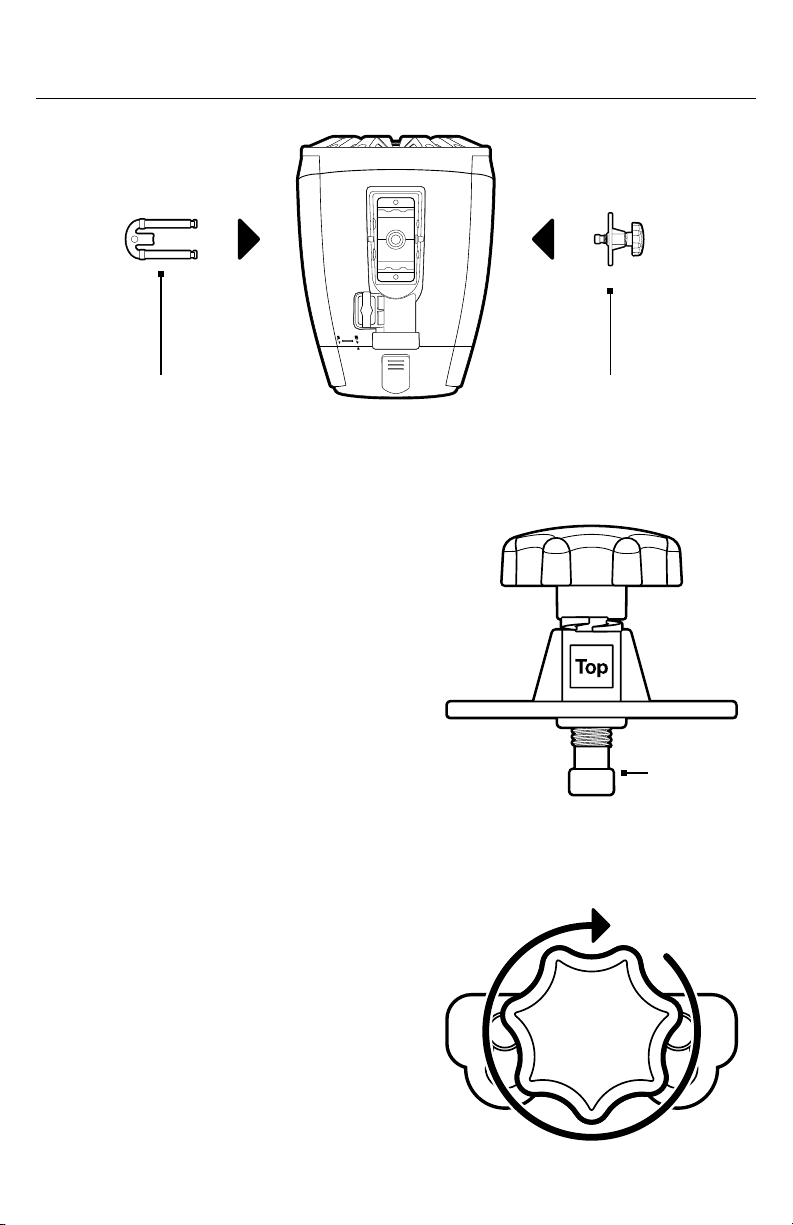

ExtremeTower Passive Speaker Layout
ExtremeTower Overview
SpeakerParty Lights
Rotating 360°
Mount Clamp
Top Mount
Clamp
Quick-Release
Knob
U-Shaped Pin
Tweeter
Base-Mount Bottom Mount
Clamp

5
ExtremeTower Amplified Speaker Layout
ExtremeTower Overview
Switches
Dome Light
Back Cover Latch
Release Button
Battery Pack
Control Buttons
Waterproof
Back Cover

6
ExtremeTower Overview
Audio, LED Control Signals, and Power
Connectors and Cables
Amplified Tower Speaker and Passive Tower Speaker
· Your package has one Amplified Tower Speaker and one Passive
Tower Speaker.
· The Passive Tower Speaker must be connected to the Amplified
Tower Speaker to receive audio and LED control signals.

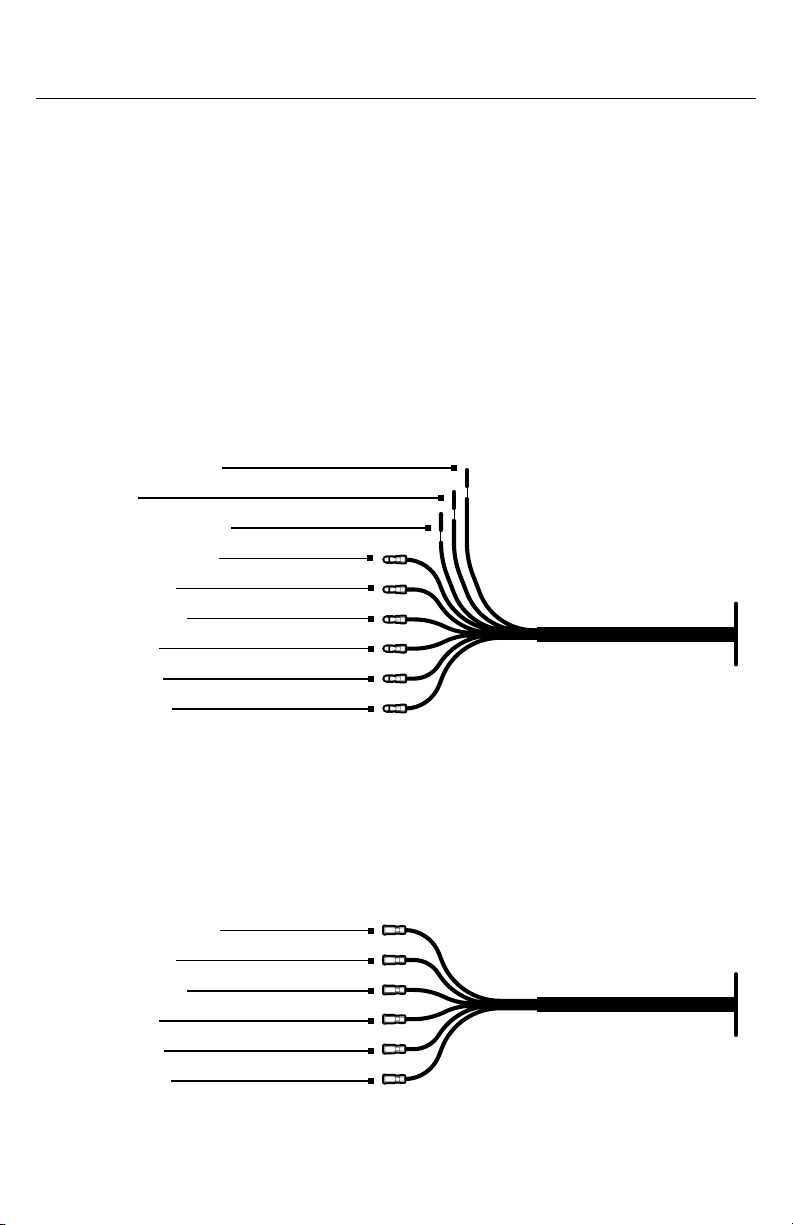

Power, Audio, and LED Lighting Connections
The Amplified ExtremeTower Speaker has 9 input and output wires.
· 3 Input Wires: 12V (+), GND (-), and Remote Turn-On to connect to
your vehicle.
· 6 Wires: To connect both speakers together.
The Passive ExtremeTower Speaker only has 6 input wires.
Power + 12V DC
Ground
Remote Turn-On
Speaker Detect
LED Power
LED Ground
Speaker -
Speaker +
LED Signal
Speaker Detect
LED Power
LED Ground
Speaker -
Speaker +
LED Signal

7
ExtremeTower Overview
Speaker Connector Jacks
Each speaker has 2 types of Connector Jacks.
1. A round Aviation Connector Jack is inside the speaker
Base-Mount, which allows the cable to pass through the
Bottom Mount Clamp and go into a hole in the crossbar at the
location where the speaker is mounted. The Amplified Tower
Speaker has a 9-pin, round connector jack, and the Passive
Tower Speaker has a 6-pin, round connector jack.

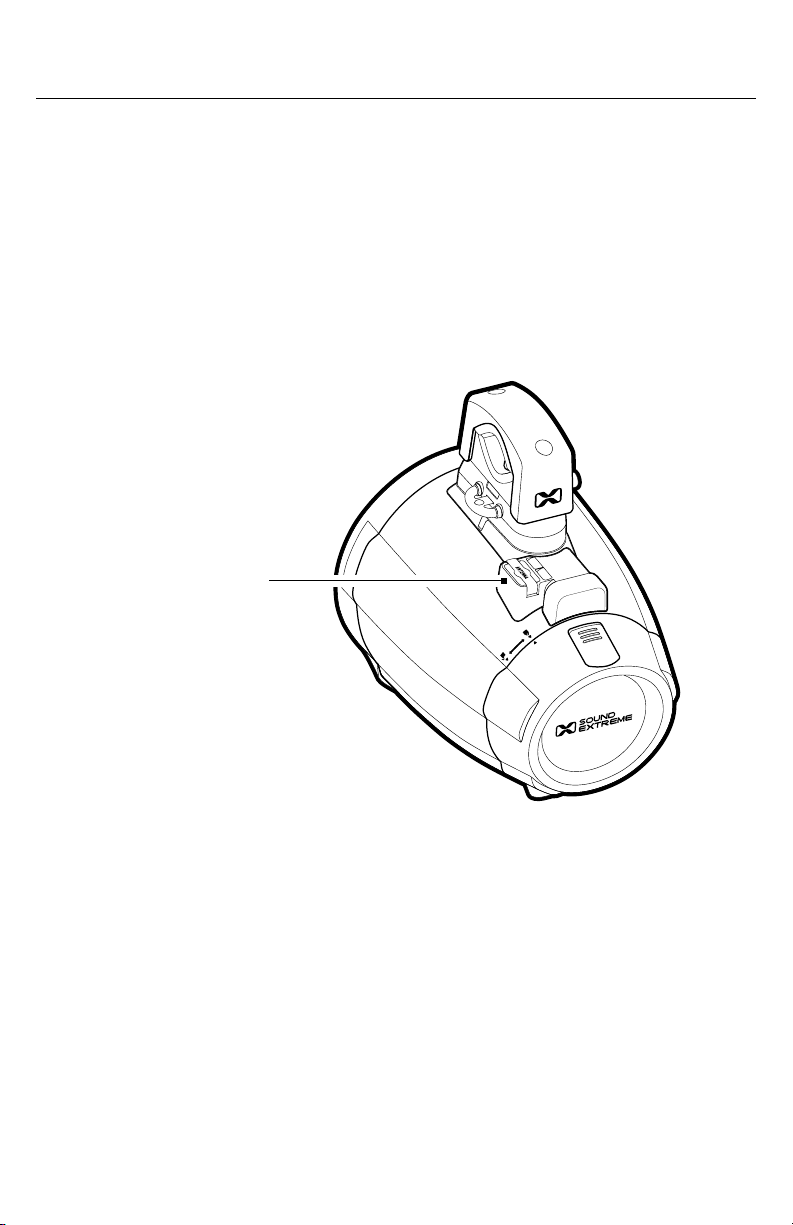

2. A square Deutsch Connector Jack is behind the speaker
Base-Mount underneath a rubber cap. This is for an installation
where the wire is installed outside of the tower / roll cage.
6-Pin Aviation
Connector Jack
9-Pin Aviation
Connector Jack
6-Pin Deutsch Connector Jack
6-Pin Deutsch Connector Jack
4-Pin Deutsch Connector Jack

8
This is also the connection suggested if you want to utilize the
Quick-Release-Mount option.
The Amplified Tower Speaker has both a 4-pin and a 6-pin,
square connector jack. The Passive Tower Speaker only has
a 6-pin square connector jack.

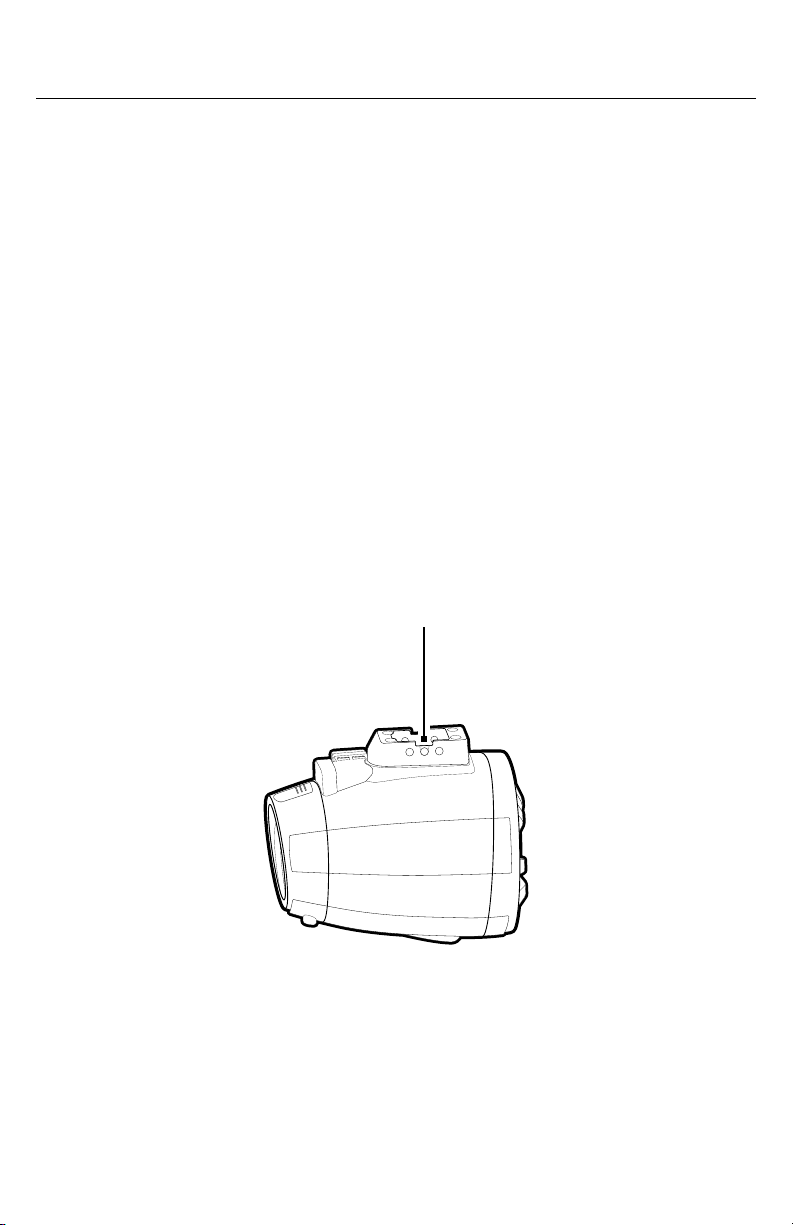

FM Dipole Antenna Jack
The Amplified Speaker has a built-in FM Antenna. It also includes an
FM Dipole Antenna Jack for an optional external antenna connection
and improved reception (dipole antenna sold separately). If you
prefer to use an external FM antenna, follow these steps:
1. Slowly pull out the rubber cap. Keep the rubber cap attached to
the speaker housing if you plan to remove the antenna periodically;
otherwise, you can remove the antenna cap.
2. Plug your dipole antenna into the FM Dipole Antenna Jack.
ExtremeTower Overview
FM Dipole
Antenna Jack

9
ExtremeTower Overview
INT EXT
3. Open the Back Cover (refer to Install the Rechargeable Battery
Pack to the Amplified Speaker for details), move the (Blue) FM
ANT Switch to the EXT position.
Cables
Your package includes 2 Cable Sets for each wiring option.
1. Aviation Cable Set — For easy running and fishing wires
through a crossbar. The Aviation Cable connection between the
Amplified Tower Speaker and the Passive Tower Speaker uses
the following two cables:

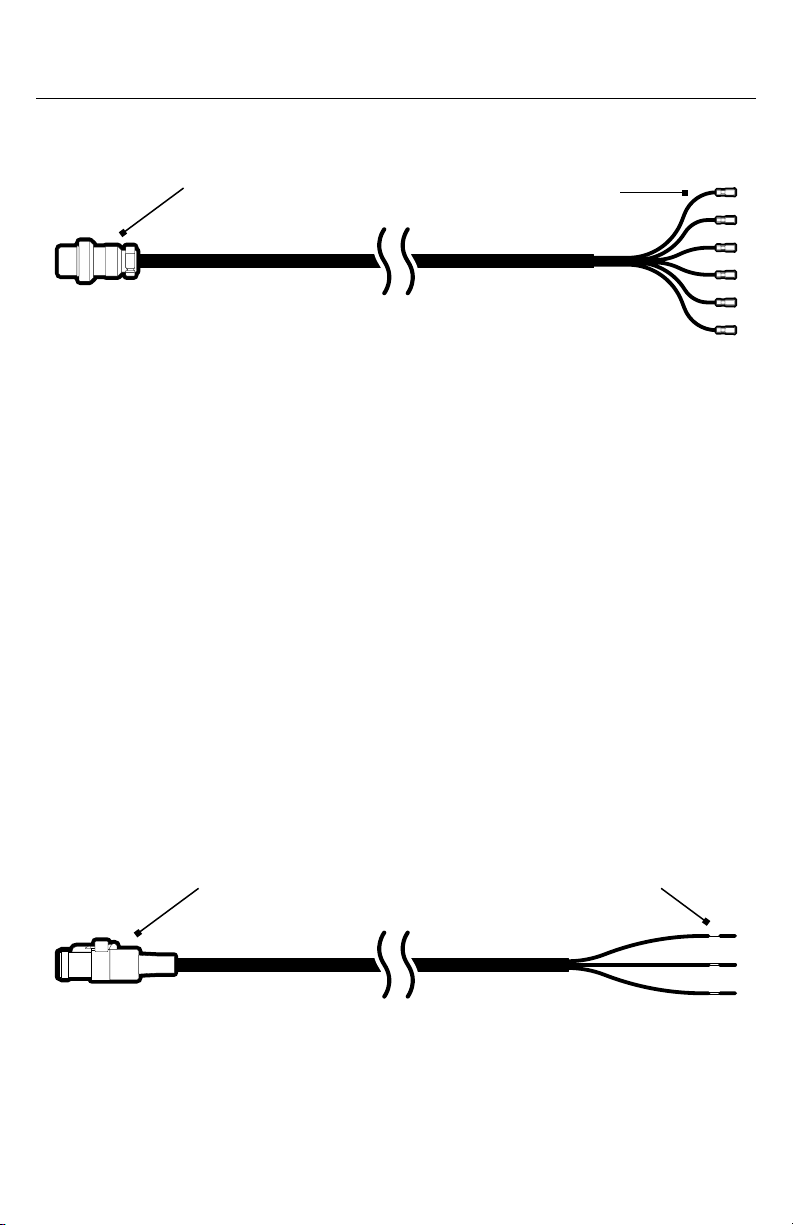

· The long cable (“Round A1” 9-pin to 6-pin pass-through Aviation
Cable) has a 9-pin round connector on one end and 3 bare wires
for power inputs and 6 Bullet connectors on the other end for
interconnection with the Passive Tower Speaker.
“Round A1” 9-Pin to 6-Pin Pass-Through
LED and Speaker Aviation Cable
3 Bare Wires (Input) 9-Pin Aviation
Connector
6 Bullet Connectors (Output)

10
ExtremeTower Overview
· 4-pin Deutsch connector for 12V (+), GND (-), and Remote
Turn-On input for the Amplified Tower Speaker.
· The short cable (“Round A2” 6-pin pass-through Aviation Cable)
has a 6-pin round connector on one end and 6 bullet connectors
on the other end.
Note: Besides the Power +12V, GND, and Remote Turn-On
connections to your vehicle’s battery and ignition switch, you
will need to connect the 6 bullet connectors from both the long
and short cables and seal the connections to prevent water or
moisture penetration.
2. Deutsch Cable Set —Suggested wiring method if you want to
utilize the Quick-Release-Mount option. The Deutsch Cable
connection between the Amplified Tower Speaker and the
Passive Tower Speaker uses the following two cables:
“Round A2” 6-Pin Pass-Through
LED and Speaker Aviation Cable
6-Pin Aviation
Connector 6 Bullet Connectors (Input)
“Deutsch A1” 4-Pin Power Deutsch Cable
4-Pin Deutsch
Connector
Power Inputs: 12V (+), GND (-),
and Remote Turn-On

11
ExtremeTower Overview
“Deutsch A2” 6-Pin LED and Speaker Deutsch Cable
6-Pin Deutsch
Connector
6-Pin Deutsch
Connector
· 6-pin Deutsch connector for interconnection between the
Amplified Tower Speaker and the Passive Tower Speaker.

12
Installation and Wiring
Installation and Wiring Procedure 1:
Round Aviation Cable
If you choose to use the Aviation Cable Set for wiring your
ExtremeTower Speakers, follow the steps below.
Speaker and LED Lighting Control Wiring

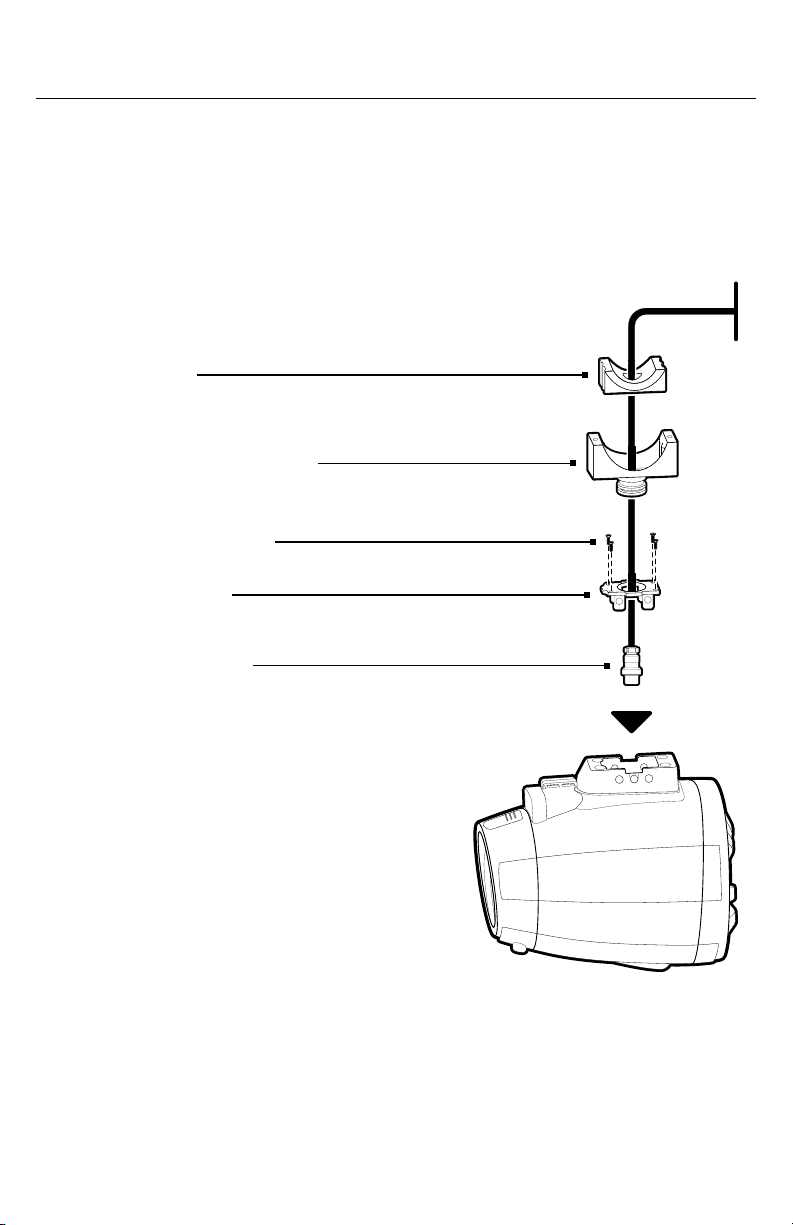

The Aviation Cable will pass through the Bottom Mount Clamp and
go into a hole in the crossbar; therefore, it is necessary to run the
speaker wires and connections before the speakers are mounted
onto the crossbar.
1. Find or drill a hole in the crossbar at the spots where the Amplified
Tower Speaker and Passive Tower Speakers will be mounted.
Aviation Connector Jack
2. Fish the “Round A1” (9-pin to 6-pin pass-through) Aviation Cable
into the hole in the crossbar where the Amplified Speaker will be
mounted and fish the wires through the crossbar to the hole where
the Passive Tower Speaker will be mounted.

13
Installation and Wiring
· Connect 3 wires (+12V, GND and Remote Turn-On) with the
supplied Power Extension Cable (+12V and GND) and the
supplied Remote Turn-On Extension Cable with the supplied
BUTT connectors. Use heat-shrink tubing or electrical tape to
seal the connections.
4. Fish the 3 wires (+12V, GND and Remote Turn-On) back into the
hole and slide them through the crossbar to the vehicle’s battery
and ignition signal terminal. But do NOT connect the cables to
your vehicle’s 12V battery and ignition signal terminal yet.
· Connect the 6 bullet connectors on “Round A1” to those on the
“Round A2” (6-pin pass-through) Aviation Cable. Simply match the
colors of the cables to each end.
3. Pull out the 9 wires from the hole, make the following wire
connections and use heat-shrink tubing or electrical tape to seal
the connections:

14
Installation and Wiring
Rubber Insert
Swivel Flange and Bottom
Clamp Assembly
4 pcs M3 x 10 Screws
Base Cover Plate
Aviation Connector
Mount the Amplified Tower Speaker to the Crossbar
1. Base-Mount: Remove the tape and pull out a small plastic bag from
the Base-Mount. This bag has one Aviation Connector Jack Cap.
You don’t need this cap for this installation, but save the cap for
later use in case you change the wiring methods.
2. Put the appropriate Lower Rubber Insert onto the Swivel Flange
and Bottom Clamp Assembly.
3. Fish the “Round A1” (9-pin to 6-pin pass-through) Aviation Cable
through the inner hole of the Swivel Flange and Bottom Clamp
Assembly, and the Base Cover Plate.

15
Installation and Wiring
4. Connect the (9-pin round) Aviation Connector to the Aviation
Connector Jack on the Amplified Speaker. Tighten the connector
clockwise with a long nose plier (not included) or similar tool.
IMPORTANT: Tighten the connector to ensure the connection is
waterproof to avoid potential water or moisture penetration into
the jack connector pins, causing damage to the speaker.
5. Put the Base Cover Plate on the speaker Mount-Base and
secure with 4 pcs of M3 x 10 Screws.
6. Insert the Swivel Flange and Bottom Clamp Assembly into the
speaker Mount-Base.
ANTENNA
U-Shaped Pin Locking Screw Latch
7. Insert the U-Shaped Pin into the two holes on the side of the
Base-Mount. Insert the pins into the holes on the left side of the
Mount when viewing from the rear of the speaker.
8. Attach the Locking Screw Latch
onto the U-Shaped Pin ends
(make sure To p on the Locking
Screw Latch is on top), then move
it downward to align the lock catch
end with the middle hole of the
Base-Mount, and screw in the
Locking Screw with the supplied
Locking
Screw

16
Installation and Wiring
9. Put the Upper Rubber Insert on the
Top Clamp. Align the rubber groove
with the bulge of the Top Clamp and
press down to assemble the Clamp
and Rubber Insert.
10. Place the Amplified Tower Speaker
under the crossbar. Lower the Top
Clamp over the crossbar and on
the Bottom Clamp. Tighten the two
Bolts so that the speaker is securely
mounted on the crossbar.
11. Turn the speaker to your desired angle, tighten the Locking Screw
with the supplied M5 Allen wrench (or with your hand if utilizing
the Quick-Release Knob).
Bolts
Washers and Spring Washers
Top Clamp
Rubber Insert
M5 Allen wrench (or with your hand if
utilizing the Quick-Release Knob).
Note: It is NOT recommended
to use the Quick-Release Knob
with this wiring method. Do NOT
tighten the screw yet.

17
Installation and Wiring
Mount the Passive Tower Speaker to the Crossbar
1. Base-Mount: Remove the tape and pull out
a small plastic bag from the Base-Mount.
This bag has one Aviation Connector
Jack Cap. You don’t need this cap for this
installation, but save the cap for later use in
case you change the wiring methods.
2. Connect the (6-pin round)
Aviation Connector to the
Connector Jack on the Passive
Tower Speaker. Tighten the
connector clockwise with a
long nose plier (not included) or
similar tool.
IMPORTANT: Tighten the
connector to ensure the
connection is waterproof
to avoid potential water or
moisture penetration into the
jack connector pins, causing
damage to the speaker.
3. Repeat Steps 5 through 11 (from
Mount the Amplified Tower
Speaker to the Crossbar)
to mount the Passive Tower
Speaker to the Crossbar.
4. Once you complete the installations, proceed to Connecting Your
Speaker to a +12V Power Supply and Powering On.

18
Installation and Wiring
Installation and Wiring Procedure 2:
Square Deutsch Cable
This cable installation method does NOT require that the cables
go through the mount. This method allows for the speakers to
be mounted to the crossbar before running the wires and before
completing the cable connections.
IMPORTANT: Before installation, it is important that you install the
Aviation Connector Caps on the Aviation Connector Jacks in the
Base-Mounts of both the Amplified Tower Speaker and the Passive
Tower Speaker. In the Base-Mount, remove the tape and pull out the
Aviation Connector Cap from a small plastic bag. Screw the cap into
the Connector Jack on the speaker, tighten it clockwise with a long
nose plier (not included) or similar tool. Failing to do this will result in
potential water or moisture penetration into the jack connector pins
causing damage to the speaker.
Deutsch Connector Jacks
Pliers (Not Included)

19
Installation and Wiring
Rubber Insert
Swivel Flange and Bottom
Clamp Assembly
4 pcs M3 x 10 Screws
Base Cover Plate
Mount the Amplified Tower Speaker to the Crossbar
1. Put the appropriate Lower Rubber Insert onto the Swivel Flange
and Bottom Clamp Assembly.
2. Put the Base Cover Plate on the speaker Mount-Base and secure
with 4 pcs of M3 x 10 Screws.
3. Insert the Swivel Flange and Bottom Clamp Assembly into the
speaker Mount-Base.

20
Installation and Wiring
4. Insert the U-Shaped Pin into
the two holes on the side of the
Base-Mount. Insert the pins
into the holes on the left side of
the Mount when viewing from
the rear of the speaker.
5. Attach the Quick-Release
Knob (or the Locking Screw
Latch) onto the U-Shaped
Pin ends (make sure To p on
the Quick-Release Knob is on
top), then move it downward
to align the lock catch end
with the middle hole of the
Base-Mount, and screw in the
Locking Screw by turning the
Quick-Release Knob (or with
the supplied M5 Allen wrench
if utilizing the Locking Screw
Latch). Do NOT tighten the
screw yet.
Locking
Screw
ANTENNA
U-Shaped Pin Quick-Release Knob
