EcoxGear EcoBoulder User manual

User's Manual

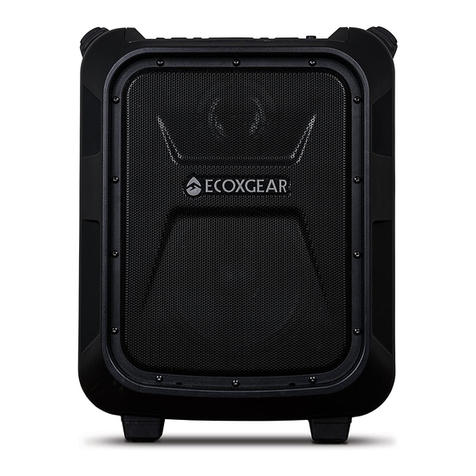

EcoBoulder
Bluetooth Compliance Bluetooth V 4.0
Frequency Band 2.4~2.4835GHz ISM Spectrum
Operating Range
Tweeter
Woofer
Output Power
Modulation GFSK (Gaussian Frequency Shift Keying)
Up to 10m (indoor)
3 ' (76.2mm) tweeter'
8 ' (203.2mm) woofer'
50 W (peak)
Battery Capacity
Charging Time
Link
Link Range
12V, 7.0Ah
About 10 hours
TrueWireless Stereo (TWS)
30' (9.1 m) from left to right speaker
Compatibility Mobile phone/device supporting Bluetooth
V1.1 (and above)
Power Supply Input voltage: 100-240V~50/60Hz
Size
Radio Frequency Range
504mm*393mm*287mm
US: AM 520 - 1710 kHz, FM 87.5 - 107.9 kHz
Specifications
21

FCC
This device complies with part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC's RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied
antenna.
FCC ID: 2AIF5-EM200
FCC

FCC
This device complies with part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC's RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied
antenna.
FCC
FCC ID: 2AAUI-GDIEXBM901

Congratulations
Thanks for purchasing the EcoBoulder.
Enjoy this smart product, please read below instructions carefully.
It's more than just a Bluetooth speaker!
Care and Maintenance
1.Read the
2.Do not attempt to service the EcoBoulder yourself. Opening or
removing covers may expose you to dangerous voltages or other
hazards. Please contact your local reseller before you send the
EcoBoulder for repair.
3.Make sure that you have completely charged the battery prior to
first use for maximum battery life.
4.Do not use the EcoBoulder in temperatures exceeding the
standard. Extreme temperature will lead to damage of the
EcoBoulder, decrease of battery capacity or the EcoBoulder
durability.
5.Place the EcoBoulder in an appropriate position for operation.
6.Use the product in proper volume, extremely high volume can be
harmful for your ear.
7.Return the Master Volume to zero when you are finished using
the product.
8. Switch everying on in the following order:
audio input source(i.e. microphones, instruments, CD/MP3
Players)
EcoBoulder
User' s Manual before using the EcoBoulder.
1
•
•

Contents
Congratulations
Care and Maintenance
Features List
Unpacking
Layout
Battery/Charger
Connections
LCD Icons Description
Key Functions
Operations
Troubleshooting
Specifications
1
3
4
5 ~ 8
9
10
11
12 ~ 13
14 ~ 19
20
21
Page 1
2

Features List
1.
2. Waterproof
3. Bluetooth mode, FM mode, AM mode, AUX 1 mode, AUX 2
mode Optional
4. Bluetooth Connection (Bluetooth V4.0)
5. Music Playing Control
6. Bluetooth Stereo (A2DP/AVRCP)
7. EQ(Default,Bass Boost, Treble Boost, Rock, Jazz) Optional
8. Microphone Input
9. AUX 1, AUX 2 Input
10. USB Charging Ports
11. Master Volume Adjustable(30 levels)
12. Microphone Volume Adjustable(30 levels)
13. Preset the AM/FM Station
14. Store 6 AM Stations
15. Store 6 FM Stations
16. Link Two EcoBoulders
17. Indication(Low battery/Charging/Full charged)
18. Turn On/Off Backlight
19. Bluetooth for 10m distance
Clear and Crystal Sound , Superior Stereo Performance
Bluetooth Compliance Bluetooth V 4.0
Frequency Band 2.4~2.4835GHz ISM Spectrum
Operating Range
Tweeter
Woofer
Output Power
Modulation GFSK (Gaussian Frequency Shift Keying)
Up to 10m (indoor)
3 ' (76.2mm) tweeter'
8 ' (203.2mm) woofer'
50 W (peak)
Battery Capacity
Charging Time
Link
Link Range
12V, 7.0Ah
About 10 hours
TrueWireless Stereo (TWS)
30' (9.1 m) from left to right speaker
Compatibility Mobile phone/device supporting Bluetooth
V1.1 (and above)
Power Supply Input voltage: 100-240V~50/60Hz
Size
Radio Frequency Range
504mm*393mm*287mm
US: AM 520 - 1710 kHz, FM 87.5 - 107.9 kHz
Specifications
3
21

Unpacking
Once you have unpacked your product, make sure that all the parts
shown below are available. If any pieces are missing or broken,
please promptly call your dealer.
EcoBoulder Power cable User’s Manual
User's Manual
EcoBoulder
4

Layout
Top View
Panel
Handle
Front View
Top Cover
Speaker mesh
Rear Cover
Lower Cover
Bar
Rear View
Bottom View
Wheels
Layout
56

Layout
Top View
Panel
Handle
Front View
Top Cover
Speaker mesh
Rear Cover
Lower Cover
Bar
Rear View
Bottom View
Wheels
Layout
56

Side View
Power jack cover
4
Connect jack cover
Side View
4
USB jack
AUX 1 jack
Microphone jack
Power cable jack
Closed
Open
Closed
Open
Bolt
AUX 2 jack USB jack
Layout Layout
78

Side View
Power jack cover
4
Connect jack cover
Side View
4
USB jack
AUX 1 jack
Microphone jack
Power cable jack
Closed
Open
Closed
Open
Bolt
AUX 2 jack USB jack
Layout Layout
78

Battery/Charger
Insert the included power cable(as following pictures) to charge the
EcoBoulder. Note that the EcoBoulder can be used with the power
cable while it simultaneously charges the battery. The icon will
be on when plugged into AC power. When the power cable is
connected, movement of the top battery segment shows the battery is
charging. When fully charged, all battery segments will be lit without
blinking.
9
Key Functions
1.Power Button: Turns EcoBoulder on or off.
2.Bluetooth Button: Press this button to enter pairing mode.
Press and hold this button for 5 seconds to delete the paired
device.
3.Source Button: Press this button to switch the next mode
between Bluetooth, FM, AM, AUX 1 or AUX 2 cyclically.
4. Play/Pause: Press to play or pause a track from a
connected Buletooth device. During playing, press and hold
this button for 2 seconds to switch EQ(Default, Bass Boost,
Treble Boost, Rock, Jazz).
5.Track Buttons: Press this buttons to go to the previous/next
track on a Bluetooth connected device.
6.Microphone Volume Control: Press to adjust the
microphone volume. Press and hold to adjust the volume
continually(30 levels are adjustable).
7.Link Button: Press this button on both speakers to link two
EcoBoulders together.
8.Master Volume Control: Press to adjust the speaker’s main
mix volume. Press and hold to adjust the volume
continually(30 levels are adjustable).
1
12
9
10
11 876
45
2
3
RADIO
12
Note:
To avoid the battery leakage, please put the EcoBoulder face
down when charging.
POWER

Microphone
iPhone
(not included)
T ablet
(not included)
MP3 Player
(not included)
iPod
(not included)
Connections
Microphone Input: You can input such as microphone, guitar, or
other musical instrument.
Auxiliary(AUX 1, AUX2) Input: This input can be used to
connect a CD player, MP3 player.
USB Charging Ports: Connect your device’s charge cable here
to charge it. USB charging only functions when the EcoBoulder’s
power is turned on. Two USB port are totally 3.1A maximum.
iPhone
(not included)
T ablet
(not included)
iPod
(not included)
MP3 Player
(not included)
10

LCD Icons Description
The EcoBoulder is in the
BT mode.
The EcoBoulder is in
the FM mode.
The EcoBoulder is in
the AM mode.
The EcoBoulder is in
the AUX1 mode.
The EcoBoulder is in
the AUX2 mode.
Indicates the speaker volume level of EcoBlouder.
Indicates the microphone volume level of EcoBlouder.
Indicates the current FM station of the EcoBlouder.
Indicates the current AM station of the EcoBlouder.
Battery/Charger
Insert the included power cable(as following pictures) to charge the
EcoBoulder. Note that the EcoBoulder can be used with the power
cable while it simultaneously charges the battery. The icon will
be on when plugged into AC power. When the power cable is
connected, movement of the top battery segment shows the battery is
charging. When fully charged, all battery segments will be lit without
blinking.
Indicates the battery
level of the EcooBoulder.
Indicates the battery is
very low.
Indicates the
EcooBoulder is charging.
Two EcooBoulders are
connected.
When the EcooBoulder is
enter the pairing mode,
the icon will start
flashing.
If the connection is
successful, the icon will
lit solid.
POWER
9
11

Key Functions
1.Power Button: Turns EcoBoulder on or off.
2.Bluetooth Button: Press this button to enter pairing mode.
Press and hold this button for 5 seconds to delete the paired
device.
3.Source Button: Press this button to switch the next mode
between Bluetooth, FM, AM, AUX 1 or AUX 2 cyclically.
4. Play/Pause: Press to play or pause a track from a
connected Buletooth device. During playing, press and hold
this button for 2 seconds to switch EQ(Default, Bass Boost,
Treble Boost, Rock, Jazz).
5.Track Buttons: Press this buttons to go to the previous/next
track on a Bluetooth connected device.
6.Microphone Volume Control: Press to adjust the
microphone volume. Press and hold to adjust the volume
continually(30 levels are adjustable).
7.Link Button: Press this button on both speakers to link two
EcoBoulders together.
8.Master Volume Control: Press to adjust the speaker’s main
mix volume. Press and hold to adjust the volume
continually(30 levels are adjustable).
9.Backlight Button: Turns the back light of buttons on or off.
10.Tune Buttons: Press this buttons to tune in a radio station.
To “seek”(jump to the next available station), press and hold
either button down for a few seconds until it starts to seek a
station.
11.Radio Selector: This button sets the tuner to AM or FM.
12.AM/FM Presets: Store a favorite radio station and quickly
tune to a preset radio station. There are 6 positions for AM
station and 6 positions for FM stations. Press and hold a
preset button(P1~P6) to assign the current station to that
preset number. The LCD will flash 2 times to indicate it has
been set. To use an added preset, press a preset
button(P1~P6) to go to the stored radio station.
1
12
9
10
11 876
45
2
3
RADIO
1
12
9
10
11 876
45
2
3
RADIO
12 13

Key Functions
1.Power Button: Turns EcoBoulder on or off.
2.Bluetooth Button: Press this button to enter pairing mode.
Press and hold this button for 5 seconds to delete the paired
device.
3.Source Button: Press this button to switch the next mode
between Bluetooth, FM, AM, AUX 1 or AUX 2 cyclically.
4. Play/Pause: Press to play or pause a track from a
connected Buletooth device. During playing, press and hold
this button for 2 seconds to switch EQ(Default, Bass Boost,
Treble Boost, Rock, Jazz).
5.Track Buttons: Press this buttons to go to the previous/next
track on a Bluetooth connected device.
6.Microphone Volume Control: Press to adjust the
microphone volume. Press and hold to adjust the volume
continually(30 levels are adjustable).
7.Link Button: Press this button on both speakers to link two
EcoBoulders together.
8.Master Volume Control: Press to adjust the speaker’s main
mix volume. Press and hold to adjust the volume
continually(30 levels are adjustable).
9.Backlight Button: Turns the back light of buttons on or off.
10.Tune Buttons: Press this buttons to tune in a radio station.
To “seek”(jump to the next available station), press and hold
either button down for a few seconds until it starts to seek a
station.
11.Radio Selector: This button sets the tuner to AM or FM.
12.AM/FM Presets: Store a favorite radio station and quickly
tune to a preset radio station. There are 6 positions for AM
station and 6 positions for FM stations. Press and hold a
preset button(P1~P6) to assign the current station to that
preset number. The LCD will flash 2 times to indicate it has
been set. To use an added preset, press a preset
button(P1~P6) to go to the stored radio station.
1
12
9
10
11 876
45
2
3
RADIO
1
12
9
10
11 876
45
2
3
RADIO
12 13

Operations
Power On/Off
Power On: in power off mode, press briefly to power on
the EcoBoulder. “Power On, Ready to Connect” verbal
response will be heard.
Power Off: Press briefly to power off the EcoBoulder.
Pairing a Bluetooth Device
1. Turn on your Bluetooth device.
2. Power on EcoBoulder. “Power on, ready to connect” verbal
response will be heard.
3. Press briefly to start pairing to your device. The
Bluetooth icon will start flashing.
4. Navigate to your Bluetooth device’s setup screen, find
ECOXGEAR and connect.
5. If the connection is successful, the Bluetooth icon will
lit solid and “Connection successful” verbal response will be
heard.
Operations
Adjust the Master Volume
1.
Adjust the Microphone Volume
1.
Press briefly to adjust the speaker volume.
2. Press and hold to adjust the speaker volume
continually(30 levels are adjustable).
a. Press briefly will increase one sound level.
Or press and hold will keep increasing one level until reached
top level then stop.
b. Press briefly will decrease one sound level.
Or press and hold will keep decreasing one level until reached
bottom level then stop.
Press briefly to adjust the microphone volume.
2. Press and hold to adjust the microphone volume
continually(30 levels are adjustable).
a. Press briefly will increase one sound level.
Or press and hold will keep increasing one level until reached
top level then stop.
b. Press briefly will decrease one sound level.
Or press and hold will keep decreasing one level until reached
bottom level then stop.
Mode Switch
Press briefly to switch between Bluetooth, FM, AM, AUX 1
or AUX 2 cyclically.
Notes:
If the pairing is not complete within minutes, the speaker will
quit the pairing mode. You need to repeat the steps of pairing
again.
After the connection is successful, if you turn the speaker off
and turn it on again, it will be connected to the last connected
device automatically. Also, a verbal response “Power on, ready
to connect” followed by “Connection successful” will be heard.
5
Delete the Paired device
Press and hold for 5 seconds to delete the paired device.
14 15

Operations
Power On/Off
Power On: in power off mode, press briefly to power on
the EcoBoulder. “Power On, Ready to Connect” verbal
response will be heard.
Power Off: Press briefly to power off the EcoBoulder.
Pairing a Bluetooth Device
1. Turn on your Bluetooth device.
2. Power on EcoBoulder. “Power on, ready to connect” verbal
response will be heard.
3. Press briefly to start pairing to your device. The
Bluetooth icon will start flashing.
4. Navigate to your Bluetooth device’s setup screen, find
ECOXGEAR and connect.
5. If the connection is successful, the Bluetooth icon will
lit solid and “Connection successful” verbal response will be
heard.
Operations
Adjust the Master Volume
1.
Adjust the Microphone Volume
1.
Press briefly to adjust the speaker volume.
2. Press and hold to adjust the speaker volume
continually(30 levels are adjustable).
a. Press briefly will increase one sound level.
Or press and hold will keep increasing one level until reached
top level then stop.
b. Press briefly will decrease one sound level.
Or press and hold will keep decreasing one level until reached
bottom level then stop.
Press briefly to adjust the microphone volume.
2. Press and hold to adjust the microphone volume
continually(30 levels are adjustable).
a. Press briefly will increase one sound level.
Or press and hold will keep increasing one level until reached
top level then stop.
b. Press briefly will decrease one sound level.
Or press and hold will keep decreasing one level until reached
bottom level then stop.
Mode Switch
Press briefly to switch between Bluetooth, FM, AM, AUX 1
or AUX 2 cyclically.
Notes:
If the pairing is not complete within minutes, the speaker will
quit the pairing mode. You need to repeat the steps of pairing
again.
After the connection is successful, if you turn the speaker off
and turn it on again, it will be connected to the last connected
device automatically. Also, a verbal response “Power on, ready
to connect” followed by “Connection successful” will be heard.
5
Delete the Paired device
Press and hold for 5 seconds to delete the paired device.
14 15

Operations
Play music(Bluetooth mode)
briefly
After the EcoBoulder is connected to your Bluetooth device,
Press briefly to play previous song. Press
briefly to get to the next song. During playing,
e
volume.
press on the EcoBoulder to play, press again
to pause. a
press and hold
a for 2 seconds to switch EQ(Default, Bass Boost, Treble
Boost, Rock, Jazz). Press to adjust th
Notes:
A music player app is required on your device to support this
feature.
Pair and connect your Bluetooth device with EcoBoulder
before using this feature.
If a call is received when you are listening to music, the music
will pause automatically.
Operations
Linking the EcoBoulder A and B together
The EcoBoulder A and B will enter pairing mode automatically
after power on. You must pair EcoBoulder A with the Bluetooth
device, then link two EcoBoulder together(Note:Before linking
the EcoBoulder A and B together, there is only one
EcoBoulder is pair with the Bluetooth device).
1. Power on the EcoBoulder A and B, they will enter pairing
mode automatically, Press briefly to start pairing to your
device. The Bluetooth icon will start flashing. “Pairing
ready” verbal response will be heard.
2. Pairing the EcoBoulder A with Bluetooth device. If the
connection is successful, the Bluetooth icon will lit solid,
“Connection successful” verbal response will be heard.
3. Press briefly on the EcoBoulder A. The Bluetooth icon
on the EcoBoulder A will start flashing. Press briefly
on the EcoBoulder B. The Bluetooth icon on the EcoBoulder
B will start flashing.
4. After a few seconds, the EcoBoulder A and B are linked,
The Bluetooth icon and link icon on the EcoBoulder A
and B lit solid, “Connection successful” verbal response will
be heard.
The EcoBoulder A and B will NOT relink automatically
the next time they are both power on.
a
Notes:
EcoBoulder A EcoBoulder B
16 18

Operations
Listening(AM/FM mode)
Press briefly to switch to FM or AM. Also, you can
press briefly to set the tuner to FM or AM cyclically.Press
to tune in a radio station. To “seek”(jump to the next
available station), press and hold either button down for a few
seconds until it starts to seek a station.
a
a Press
to adjust the volume.
AM/FM Presets
Store a favorite radio station and quickly tune to a preset radio
station. There are 6 positions for AM station and 6 positions
for FM stations.
1.
Press and hold a preset button(P1~P6) to assign the current
station to that preset number. The LCD will flash 2 times to
indicate it has been set.
If you want to use an added preset, press a preset
button(P1~P6) to go to the stored radio station.
You can store the station you like, follow this
steps:
You should be listening to the station you want to store.
2.
17
