Eddie Bauer Langley Open Changer DA5673-1ADR User manual

Model No:
Langley Open Changer UPC CODE:
Lot number:
(TAKEN FROM CARTON)
__________________________________
DPCI#:
DOREL ASIA
DA5673-1ADR (Walnut)
DA5673-1AW (White)
DA5673-1ADR 0-65857-16312-4
DA5673-1AW 0-65857-16318-6
DA5673-1ADR 030-09-1148
DA5673-1AW 030-09-1162
Date of purchase:
_______ / _______ / _______
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [e-mail]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

* Avoid serious injury. Never leave child unattended.
* The Maximum recommended weight of the child is 30 lbs (13.6 kgs).
CARE AND CLEANING
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
* CAUTION: Adult assembly required.
* Estimated assembly time: 30 minutes.
* Assembly may require two people.
*DO NOT use power tools.
Montreal, Quebec
Canada H1G 3L1
WARNING
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service
representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model
number, color and a detailed description of the part.
E-MAIL: [email protected]
* Keep instructions for future use.
* FALL HAZARD - To prevent death or serious injury, always keep child within arm's reach.
* Read all instructions before use of the changing table.
* Assemble on a soft, smooth surface to prevent damage to the product finish.
* This change table is to be used with a changing pad measuring 16 inches X 32 inches and not exceeding
2 inches in thickness (excluding the height of any contoured edges).
NOTES:
* Ensure all parts and components are present before beginning assembly.
* Always secure the child to the changing table using safety strap attached to changing pad.
* DO NOT use the changing table if it is damaged or broken.
* When used as a changing table, this unit must be used with a changing pad (not provided) equipped with safety
straps that secure the child to the changing pad as well as straps that secure the pad to the changing table.
* If a removable pad is supplied by the manufacturer, use only the pad provided by the manufacturer.
WARNING: Should this product become damaged,
and/or components are broken or missing, DO NOT USE.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage finish.
Excessive exposure to sunlight and extreme changes in temperature and moisture can damage
wood furniture.
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
LIMITED WARRANTY
DOREL ASIA warrants its product to be free from defects in material and workmanship and agrees
to remedy any such defect. This warranty covers 1 year from the date of original purchase. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or
replacement of defective furniture components and no assembly labor is included. This warranty
does not apply to any product which has been improperly assembled, subjected to misuse or abuse
or which has been altered or repaired in any way. This warranty gives you specific legal rights and
you may also have other rights which vary from State to State.

HARDWARE LIST
1 2
3
Langley Open Changer
DA5673-1ADR / DA5673-1AW
ALLEN KEY
Ø8mm x 30mm
Ø1/4" x 2-1/2"
1 PC
4mm
12 PCS
12 PCS
HEX SOCKET HEAD BOLT
WOOD DOWEL

PARTS LIST
A B C D
E F G H
3 PCS
2 PCS
LOWER BACK RAIL
RIGHT SIDE FRAME
Langley Open Changer
DA5673-1ADR / DA5673-1AW
1 PC
TOP FRONT RAIL
1 PC
SHELF PANEL
LOWER FRONT RAIL
1 PC
1 PC
TOP BACK RAIL
LEFT SIDE FRAME
1 PC
1 PC
MIDDLE SHELF RAIL

Langley Open Changer
DA5673-1ADR / DA5673-1AW

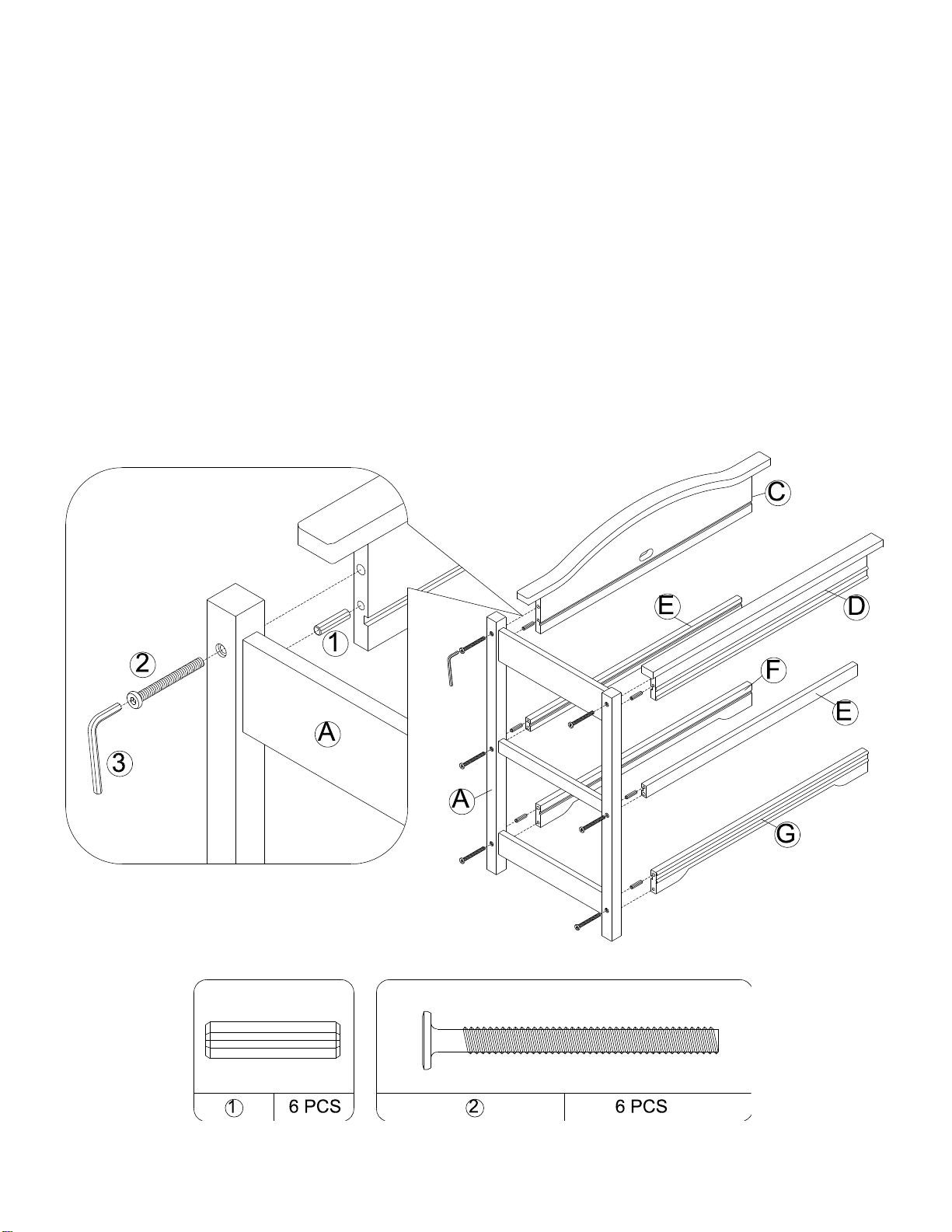

STEP 1:
Insert the wood dowels (1) into the left side frame (A).
Attach the top back rail (C), middle shelf rail (E) and lower back rail (F) to left side
frame (A) with hex socket head bolts (2) as shown.
Attach the top front rail (D), middle shelf rail (E) and flower front rail (G) to left side
frame (A) with hex socket head bolts (2) as shown.
Use Allen key (3) to fully tighten the bolts.

Langley Open Changer
DA5673-1ADR / DA5673-1AW
STEP 2:
Slide the shelf panels (H) into grooves of the rails (C, D, E, F and G) as shown
below.

Langley Open Changer
DA5673-1ADR / DA5673-1AW
STEP 3:
Insert the wood dowels (1) into the top back rail ( C), top front rail (D), middle shelf
rails (E), lower back rail (F) and lower front rail (G).
Attach the right side frame (B) to the rails (C, D, E, F and G) with hex socket head
bolts (2) as shown.
Use Allen key (3) to tighten the bolts.
Turn the assembled unit upright.

That's it ! You've finished assembling your Langley Open Changer.
Dorel Asia is an authorized licensee of Eddie Bauer Licensing Services LLC. Eddie Bauer® and the Eddie
Bauer logos are the registered trademarks of Eddie Bauer Licensing Services LLC.
Langley Open Changer
DA5673-1ADR / DA5673-1AW
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
WARNING: Always use safety strap (not included) when changing baby.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [e-mail]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
The Maximum
recommended weight of
the child is 30 lbs (13.6 kgs).
Maximum weight per
shelf - 10 lbs.

MODEL #: DA5673-1ADR / DA5673-1AW
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Email: [e-mail]
Customer Service Phone Number 1-800-295-1980
