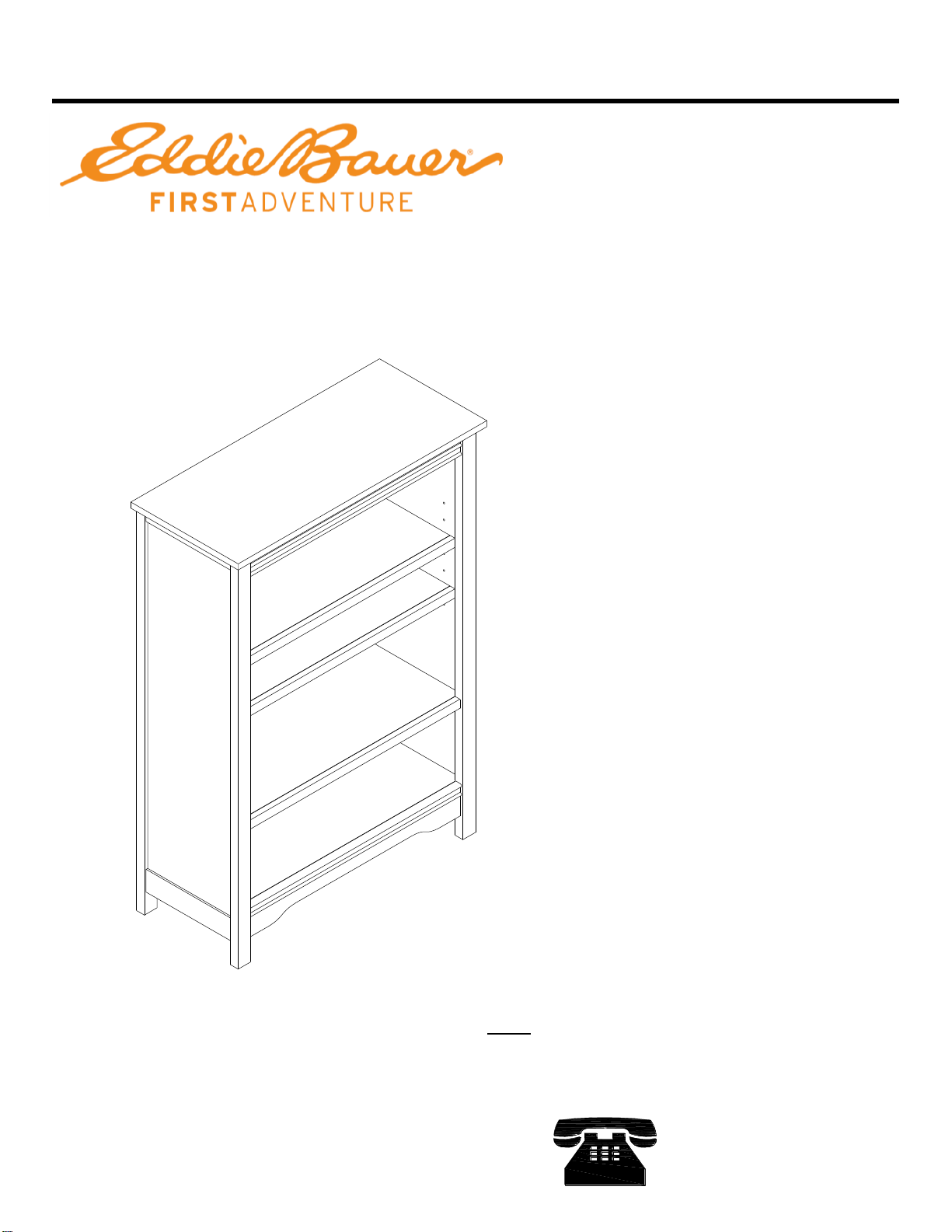

Eddie Bauer Langley Bookcase DA5673-3DR User manual

Model No:
Langley Bookcase UPC CODE:
Lot number:
(TAKEN FROM CARTON)
_____________________________________
DA5673-3DR 030-09-1153
DA5673-3W 030-09-1163
Date of purchase:
_______ / _______ / _______
DA5673-3W 0-65857-16319-3
DPCI#:
DOREL ASIA
DA5673-3DR (Walnut)
DA5673-3W (White)
DA5673-3DR 0-65857-16313-1
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

*
*
* Use the wall safety strap provided to secure the unit to the wall.
* A Phillips head screw driver is not included.
*
*
*
*
*
Montreal, Quebec
E-MAIL: [email protected]
Canada H1G 3L1
NOTES
Assembly will require two people.
Estimated assembly time: 30 minutes.
To avoid unnecessary damage, DO NOT drag across surface when moving. Be sure to lift
and carry the item to its location.
WARNING: Should this product become
damaged, and/or components are broken or
missing, DO NOT USE.
Ensure all parts and components are present before beginning assembly.
Assemble on a soft, smooth surface to prevent damage to the product finish.
CAUTION: Adult assembly required.
Check bolts/screws periodically and tighten them if necessary.
Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any
such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon
presentation of proof of purchase. This is solely limited to the repair or replacement of defective furniture
components and no assembly labor is included. This warranty does not apply to any product which has been
improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. This
warranty gives you specific legal rights and you may also have other rights which vary from State to State.
CARE AND CLEANING
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used
occasionally to clean surface. Dry immediately. Do not use any abrasives that may damage
finish. Excessive exposure to sunlight and extreme changes in temperature and moisture can
damage wood furniture.
MAINTENANCE
DO NOT use power tools.
LIMITED WARRANTY
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer
service representative first!
CALL 1-800-295-1980
Customer Service Department No. 413
You can also order parts by writing to the address listed below. Please include the product
model number, color and a detailed description of the part.
12345 Albert-Hudon Boulevard, Suite 100

HARDWARE LIST
1 2 3
4 5
Langley Bookcase
DA5673-3DR / DA5673-3W
Ø5/32" X 5/8"
CAM LOCK
26 PCS CAM BOLT 26 PCS
WOOD DOWEL
26 PCS
Ø8 X 30mm
SHELF PIN
8 PCS
ROUND HEAD SCREW
22 PCS

PARTS LIST
A B C
D E F
G H I
J K
1 PC
1 SET
Langley Bookcase
DA5673-3DR / DA5673-3W
BOTTOM PANEL
BACK PANEL
TOP PANEL
LEFT SIDE PANEL
RIGHT SIDE PANEL
1 PC
ADJUSTABLE SHELF
FIXED SHELF
BACK TOP RAIL
1 PC
1 PC
FRONT TOP RAIL
FRONT BOTTOM RAIL
1 PC
1 PC
1 PC
1 PC
2 PCS
1 PC
BACK BOTTOM RAIL

STEP 1:
Langley Bookcase
DA5673-3DR / DA5673-3W
Insert cam locks (2) and wood dowels (1) into bottom panel (J).
Insert cam bolts (3) into back bottom rail (G) and front bottom rail (E).
Attach rails (G) & (E) to bottom panel (J) and secure by rotating cam locks (2) 1/2 turn
clockwise using a Phillips head a screwdriver (not included).

STEP 2:
Insert cam bolts (3) into left side panel (B) and right side panel (C).
Langley Bookcase
DA5673-3DR / DA5673-3W

STEP 3:
Langley Bookcase
DA5673-3DR / DA5673-3W
Insert wood dowels (1) and cam locks (2) into front top rail (D), back top rail (F), fixed shelf (I), front
bottom rail (E) and back bottom rail (G).
Attach rails (D) & (F), fixed shelf (I) and the bottom unit (assembled in step 1) to left side panel (B)
and right side panel (C).
Secure by rotating cam locks (2) 1/2 turn clockwise using a Phillips head a screwdriver (not
included).

STEP 4:
Insert cam bolts (3) into top panel (A).
Langley Bookcase
DA5673-3DR / DA5673-3W

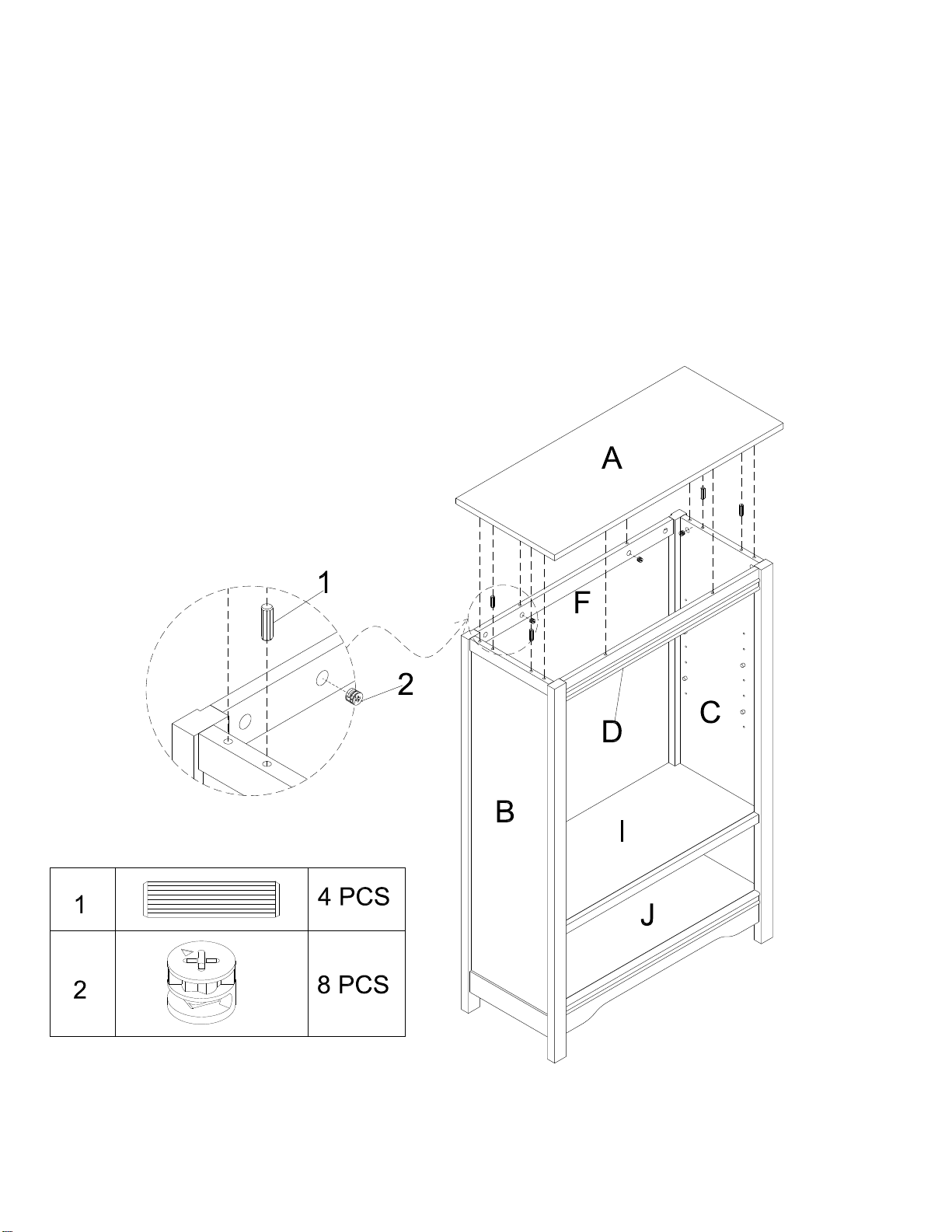

STEP 5:
Use a Phillips head screw driver (not included) to rotate the cam locks to secure cam bolts.
Langley Bookcase
DA5673-3DR / DA5673-3W
Insert wood dowels (1) into side panels (B) & (C).
Insert cam locks (2) into side panels (B) & (C), back top rail (F) and front top rail (D).
Attach top panel (A) to the assembled frame.
Secure top panel (A) by rotating cam locks (2) 1/2 turn clockwise using a Phillips head a

STEP 6:
Attach back panel (K) to the assembled unit with round head screws (4) using a
Phillips head screw driver (not included).
Langley Bookcase
DA5673-3DR / DA5673-3W
4
4
22

STEP 7:
Insert shelf pins (5) into the desired location on side panels (B) & (C).
Place adjustable shelves (H) into the assembled unit.
DA5673-3DR / DA5673-3W
Langley Bookcase

That's it! You've finished assembling your Langley Bookcase!
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
Langley Bookcase
DA5673-3DR / DA5673-3W
Dorel Asia is an authorized licensee of Eddie Bauer Licensing Services LLC. Eddie Bauer® and the Eddie Bauer logos are the
registered trademarks of Eddie Bauer Licensing Services LLC.
Top panel
maximum
weight 25lbs
Maximum
weight per
shelf 20lbs
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

Furniture Wall Safety Strap
1 2 3 4 5
TOOLS NECESSARY: RUBBER MALLET AND PHILLIPS SCREW DRIVER ARE NOT INCLUDED.
NOTE: 3/8" DRILL BIT AND ELECTRIC DRILL ARE NOT PROVIDED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE
USING THIS PRODUCT AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, PLEASE
CALL OUR CUSTOMER SERVICE NUMBER: [phone].
LONG SCREW
1 PC
SAFETY WALL STRAP
1 PC
WALL ANCHOR
1 PC
MOUNTING BRACKET
2 PCS
SHORT SCREW
1 PC
WARNING: WHEN UPRIGHT, IT IS POSSIBLE THAT THE
FURNITURE MAY TIP OVER. PLEASE INSTALL THE
SAFETY WALL STRAP BEHIND THE FURNITURE TO
ENSURE SAFETY.
Step 2:
Step 3:
Step 1:
Determine where furniture is to be placed and mark location on the wall for the mounting bracket
(3), screw hole approximately 2" below the bracket mounted to the edge of the furniture.
Attach one of the mounting brackets (3) securely to the back edge of the furniture. Use the short
screw (4).
Drill a 3/8" hole in the wall. Press the wall anchor (2) into the hole and gently tap until the flange on
the anchor is against the wall surface.
Step 4:
Step 5:
Position the bracket (3) over the anchor (2) and use the long screw (5) to securely, attach the
bracket (3) to the wall.
Place the furniture so the bracket (3) on the back edge is in line with the bracket (3) on the wall.
Step 8:
Step 6:
Step 7:
Lace an end of the safety wall strap (1) down through each bracket (3). Bring both ends together
and slide the beaded end of the strap (1) through the keyhole shaped slot in the other end until
snug. Pull down on the beaded end until it snap locks into the keyhole slot.
To double lock return the beaded end back through the keyhole as shown.
Check to make sure the strap (1) is securely laced and locked to the brackets (3).
CEAB B
Email:[e-mail]

MODEL #: DA5673-3DR / DA5673-3W
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Phone Number 1-800-295-1980
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Email: [email protected]
