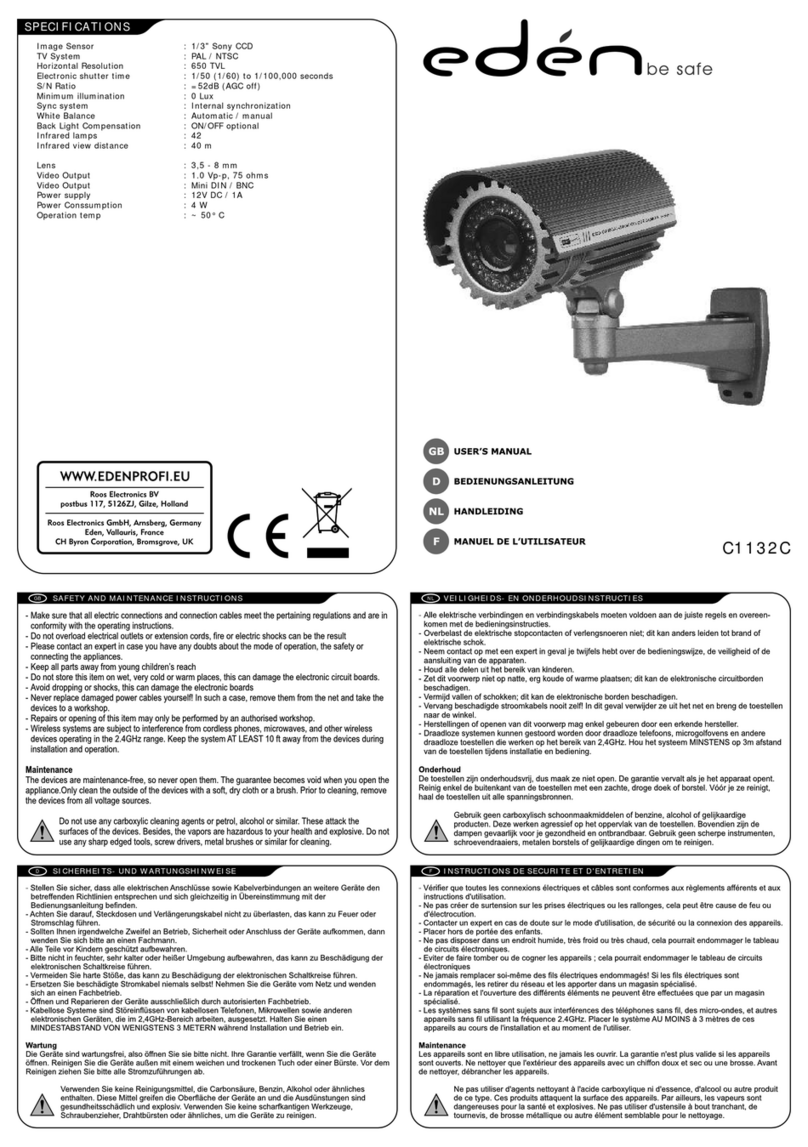

Eden C1132 User manual

SAFETY AND MAINTENANCE INSTRUCTIONS
INSTRUCTIONS DE SECURITE ET D'ENTRETIEN
SICHERHEITS- UND WARTUNGSHINWEISE
GB
D
VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES
NL
F
SPECIFICATIONS
Image Sensor : 1/3" Sony CCD
TV System : PAL / NTSC
Horizontal Resolution : 540 TVL
Electronic shutter time : 1/50 (1/60) to 1/100,00 seconds
S/N Ratio : 48 dB (AGC off)
Minimum illumination : 0 Lux
Sync system : Internal synchronization
White Balance : Automatic / manual
Back Light Compensation : Built-In
Infrared lamps : 42
Infrared view distance : 40 m
Lens : 9,0 - 22,0 mm
Video Output : 1.0 Vp-p, 75 ohms
Video Output : Mini DIN / BNC
Power supply : 12V DC / 1A
Power Consumption : 4 W
Operation temp : -10° C ~ 50° C
C1132

GB
D
NL
F
a. Rain Cover
b. Camera Lens
c. Leds
d. Unscrew to AIM the camera
screw to fix the camera
e. Mounting Plate
a.
b. Kamera-Objektiv
c. Leds
d. Aufschrauben zum Ausrichten der Kamera und
Zuschrauben zum Fixieren
e. Befestigungsplatte
Regenschutz
a.
b.
c. Leds
d. Losschroeven om de camera te richten,
vastschroeven om de camera vast te zetten
e. Bevestigingsplaat
Regenscherm
Cameralens
a.
b.
c. Led
d. Dévisser pour orienter verticalement la caméra
visser pour figer la position de la caméra
e. Montage à plat
Protection contre la pluie
Objectif de la caméra
How to connect
1. < 60m
Extension cables
Extra accessories
Mini DIN
extension cables
- C9112 5m
- C9113 15m
- C9114 30m
AV (bnc) Monitor
DVR-Recorder
Mini DIN plug
Adapter
Mini DIN plug Mini DIN extension BNC
Adapter
2. > 60m Mini DIN plug BNC
Adapter
Overview
C9126
BNC
extension cables
with female adapter
- C9122 5m
- C9123 10m
- C9124 25m
- C9125 50m
BNC extension
- C9126 BNC to BNC male adapter 1pcs
- C9120 BNC male plugs 4pcs - C9121 BNC to RCA adapter 4pcs - C9129 150m cable RG59 black
DC12V
d.
b.
c.
e.
a.
