EdenPURE Bio SpeedCLEAN VX200 User manual

PLEASE READ
AND SAVE THESE
INSTRUCTIONS
Model No. A5969
Owner’s Manual
Bio SpeedCLEAN
Bio SpeedCLEAN
TM
TM
VX200
Model No. A5969
Owner’s Manual
PLEASE READ
SAVE THESE
INSTRUCTIONS
z
TROUBLESHOOTING TIPS
uIf there is no power/the machine doesn’t turn on, it will need to be
charged.
uIf the bristles are not rotating, they will need to be cleaned.
uIf you are charging the battery and the charging light isn’t on, the
cord may not be inserted properly into the charging port. Try
pushing it in farther.
uIf the battery won’t hold a charge, you may need a replacement
battery. Go to www.edenpuresupport.com to purchase one.
is vacuum comes with a 1 year limited component warranty.
If your unit does not appear to be working properly, please
contact our service center by calling 1-800-225-6595. Prior to
your call, we encourage you to visit our service related website
www.edenpuresupport.com for troubleshooting tips and service
instructions if needed.
EdenPURE®
7800 Whipple Avenue NW
N. Canton, OH 44720
[email protected]
©2021 EdenPURE® I-5699 BR12066R-1
Model Number A5969
Volts 22.2Vdc
Power 120W
Input 100-240V – 50/60Hz 0.5A
Output 26Vdc, 650mA
z
PRODUCT SPECIFICATIONS

z
INSTRUCTIONS
PLEASE CAREFULLY READ THIS MANUAL BEFORE
OPERATING THIS MACHINE
Do not use this vacuum to clean up liquids such as water, detergent
or other wet uids.
Do not use this vacuum to clean up small granules such as our,
cement or plaster powder or large objects such as toys or balls of
paper. at will cause the vacuum to become blocked and overheat.
Use a damp cloth with mild detergent to clean the outside of this
machine. Make sure it is unplugged from the wall outlet before
cleaning it.
Do not store this vacuum in very high or low temperatures. Do not
let it sit in the sun. Store it in a cool, dry spot.
Charge the batteries fully before using it the rst time. If this unit
is stored a long time, you may need to recharge the batteries before
using it again.
When the usage time is becoming shorter as the batteries weaken, it
may be necessary to replace the battery pack.
Charge the battery pack only with the adaptor that is provided with
this machine. Do not disassemble the battery pack or get it close to
liquids. Do not place the battery pack near high temperatures. Do not
disassemble the battery pack.
If this vacuum is not working properly, contact custserv@edenpure.
com. Do not try to repair the unit yourself.
Do not let children play with or use this machine or the battery pack.
z
USES
uLow Speed, High Speed, Off
Press the Speed Control Button once to turn the unit on. Press it
again to turn the unit o. Use the Speed Control Button to switch the
speed between low and high by touching the + or – on the button.
uUse of 2-in-1 Upholstery Brush
1. Insert the 2-in-1 Upholstery Brush into the hole below the
Dust Cup Assembly, then push out the brush head of the
2-in-1 Upholstery Brush by pressing the button and pushing the
brush out at the same time. You can then clean furniture, home
appliances, book shelves, wardrobes, vanity tables, PC keyboards
and many other places.
2. Pull the brush head back by pressing the button and pushing
the brush back in at the same time. You can then clean beds,
curtains, sofas and many other places.
uUse of Motorized Floor Brush
Insert the Motorized Floor Brush into the end of the lower Vacuum
Tube or into hole below the Dust Assembly. You can then clean
carpet, tile and other ooring.
uUse of Mini Motorized Brush
Insert the Mini Motorized Brush into the end of the lower Vacuum
Tube or into the hole below the Dust Assembly. You can then clean
upholstered chairs, couches and also beds.
uCharging the Unit
Use the included adaptor to charge the battery. Plug the adaptor into
the Charging Port on the Motor and plug the other end into a wall
outlet. When charging, the light will be red. When it is fully charged,
the light will turn blue and you can remove the adaptor.
You can also charge the battery when it is outside the unit by plugging
the adaptor into the Charging Port on the battery and plugging the
other end into the wall.

SPEED
CONTROL
BUTTON
DUST CUP ASSEMBLY
RELEASE BUTTON
RELEASE BUTTON
VACUUM TUBE
UV LIGHT
RELEASE
BUTTON
MOTORIZED
FLOOR BRUSH
ON/OFF BUTTON
CHARGING
NEEDLE
PORT
CHARGING
INDICATOR
LIGHT
MOTOR
DUST CUP
ASSEMBLY
DUST CUP
RELEASE BUTTON
uConnection of the Vacuum Tube with
the accessory pieces
Insert the accessory brushes into the bottom of the Vacuum Tube
until you hear them click and lock into place.
z
WALL MOUNT
Attach wall mount to a wall using the screws and anchors that are
included. Flip the wall mount handle on the main vacuum unit down
to allow the unit to hang onto the wall mount.

WALL
MOUNT
HANDLE
BATTERY
UNIT
ON/OFF
BUTTON
DUST CUP
RELEASE
2-IN-1 UPHOLSTERY BRUSH
LONG CREVICE TOOL
MINI MOTORIZED BRUSH
CHARGING CORD

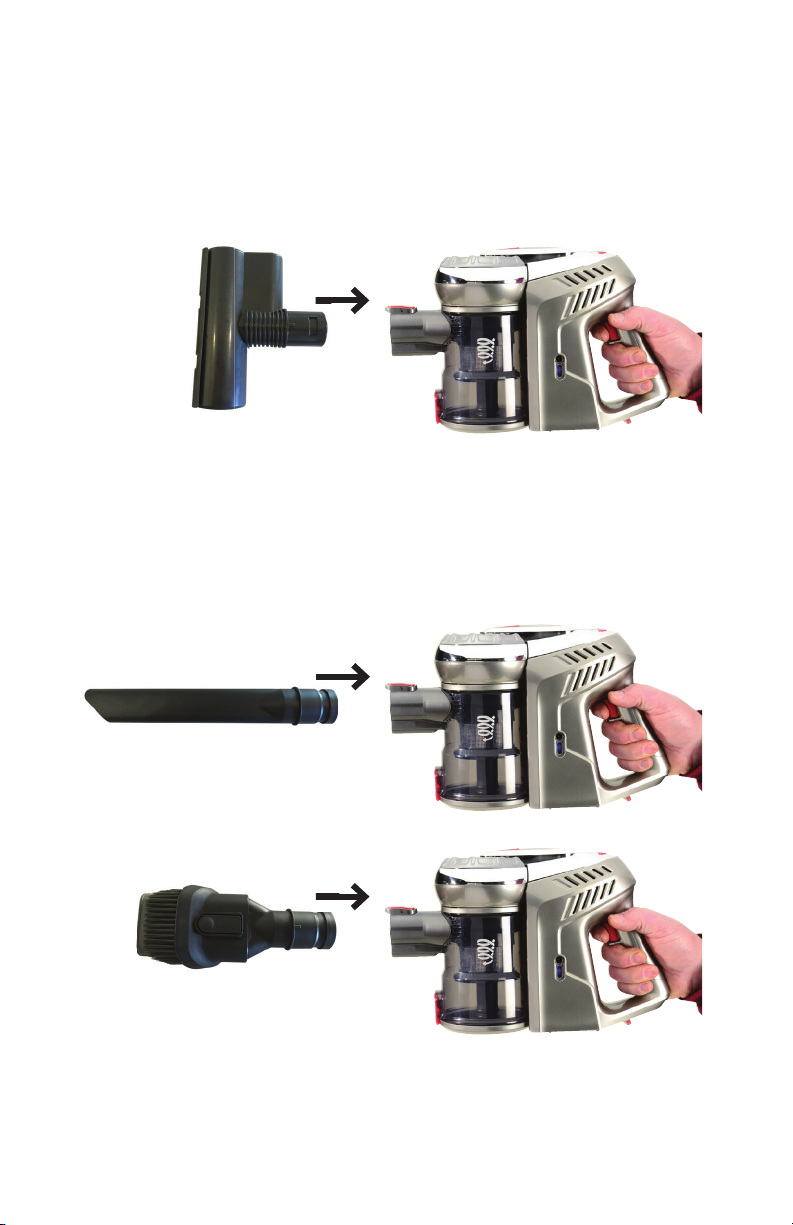

uConnection of the Mini Motorized Brush and
the Motor
Insert the upper part of the Mini Motorized Brush into the main hole
of the Motor below the Dust Cup until you hear it click in and lock
into place.
uConnection of accessory pieces to the Motor
Insert the accessory brushes into the main hole of the motor below
the Dust Cup until you hear them click in and lock into place.

z
PARTS ASSEMBLY
uBattery Unit
Insert the battery unit into the bottom of the motor. When it is locked
into the motor, you will hear it click.
uConnection of Vacuum Tube and
Motorized Floor Brush
Insert the upper end of the Motorized Floor Brush into the lower
connection of the Vacuum Tube until you hear it click in and lock
into place.
uDust Cup
Insert the lower plastic clip into the hole on the motor. en snap
the upper cover with the upper release button on the motor. Snap the
Dust Cup in place, then press down on the upper and lower release
button to lock the cup into place.
uConnection of the Motor and the Vacuum Tube
Insert the upper end of the Vacuum Tube in to the main hole of the
Motor below the Dust Cup until you hear it click in and lock into
place.
Dust Cup in place, then press down on the upper and lower release

z
PARTS ASSEMBLY
uBattery Unit
Insert the battery unit into the bottom of the motor. When it is locked
into the motor, you will hear it click.
uConnection of Vacuum Tube and
Motorized Floor Brush
Insert the upper end of the Motorized Floor Brush into the lower
connection of the Vacuum Tube until you hear it click in and lock
into place.
uDust Cup
Insert the lower plastic clip into the hole on the motor. en snap
the upper cover with the upper release button on the motor. Snap the
Dust Cup in place, then press down on the upper and lower release
button to lock the cup into place.
uConnection of the Motor and the Vacuum Tube
Insert the upper end of the Vacuum Tube in to the main hole of the
Motor below the Dust Cup until you hear it click in and lock into
place.
Dust Cup in place, then press down on the upper and lower release

WALL
MOUNT
HANDLE
BATTERY
UNIT
ON/OFF
BUTTON
DUST CUP
RELEASE
2-IN-1 UPHOLSTERY BRUSH
LONG CREVICE TOOL
MINI MOTORIZED BRUSH
CHARGING CORD
uConnection of the Mini Motorized Brush and
the Motor
Insert the upper part of the Mini Motorized Brush into the main hole
of the Motor below the Dust Cup until you hear it click in and lock
into place.
uConnection of accessory pieces to the Motor
Insert the accessory brushes into the main hole of the motor below
the Dust Cup until you hear them click in and lock into place.

SPEED
CONTROL
BUTTON
DUST CUP ASSEMBLY
RELEASE BUTTON
RELEASE BUTTON
VACUUM TUBE
UV LIGHT
RELEASE
BUTTON
MOTORIZED
FLOOR BRUSH
ON/OFF BUTTON
CHARGING
NEEDLE
PORT
CHARGING
INDICATOR
LIGHT
MOTOR
DUST CUP
ASSEMBLY
DUST CUP
RELEASE BUTTON
uConnection of the Vacuum Tube with
the accessory pieces
Insert the accessory brushes into the bottom of the Vacuum Tube
until you hear them click and lock into place.
z
WALL MOUNT
Attach wall mount to a wall using the screws and anchors that are
included. Flip the wall mount handle on the main vacuum unit down
to allow the unit to hang onto the wall mount.

z
INSTRUCTIONS
PLEASE CAREFULLY READ THIS MANUAL BEFORE
OPERATING THIS MACHINE
Do not use this vacuum to clean up liquids such as water, detergent
or other wet uids.
Do not use this vacuum to clean up small granules such as our,
cement or plaster powder or large objects such as toys or balls of
paper. at will cause the vacuum to become blocked and overheat.
Use a damp cloth with mild detergent to clean the outside of this
machine. Make sure it is unplugged from the wall outlet before
cleaning it.
Do not store this vacuum in very high or low temperatures. Do not
let it sit in the sun. Store it in a cool, dry spot.
Charge the batteries fully before using it the rst time. If this unit
is stored a long time, you may need to recharge the batteries before
using it again.
When the usage time is becoming shorter as the batteries weaken, it
may be necessary to replace the battery pack.
Charge the battery pack only with the adaptor that is provided with
this machine. Do not disassemble the battery pack or get it close to
liquids. Do not place the battery pack near high temperatures. Do not
disassemble the battery pack.
If this vacuum is not working properly, contact custserv@edenpure.
com. Do not try to repair the unit yourself.
Do not let children play with or use this machine or the battery pack.
z
USES
uLow Speed, High Speed, Off
Press the Speed Control Button once to turn the unit on. Press it
again to turn the unit o. Use the Speed Control Button to switch the
speed between low and high by touching the + or – on the button.
uUse of 2-in-1 Upholstery Brush
1. Insert the 2-in-1 Upholstery Brush into the hole below the
Dust Cup Assembly, then push out the brush head of the
2-in-1 Upholstery Brush by pressing the button and pushing the
brush out at the same time. You can then clean furniture, home
appliances, book shelves, wardrobes, vanity tables, PC keyboards
and many other places.
2. Pull the brush head back by pressing the button and pushing
the brush back in at the same time. You can then clean beds,
curtains, sofas and many other places.
uUse of Motorized Floor Brush
Insert the Motorized Floor Brush into the end of the lower Vacuum
Tube or into hole below the Dust Assembly. You can then clean
carpet, tile and other ooring.
uUse of Mini Motorized Brush
Insert the Mini Motorized Brush into the end of the lower Vacuum
Tube or into the hole below the Dust Assembly. You can then clean
upholstered chairs, couches and also beds.
uCharging the Unit
Use the included adaptor to charge the battery. Plug the adaptor into
the Charging Port on the Motor and plug the other end into a wall
outlet. When charging, the light will be red. When it is fully charged,
the light will turn blue and you can remove the adaptor.
You can also charge the battery when it is outside the unit by plugging
the adaptor into the Charging Port on the battery and plugging the
other end into the wall.

uDust Cup Cleaning
A. Press the button at the bottom of the Dust Cup to
release the Lower Cover of the Dust Cup to empty
it.
B. Hold the Dust Cup with one hand, and use your
other hand to open the top of the Dust Cup
counterclockwise and take the upper part o the
Dust Cup.
C. Take the lter out as shown below to clean it. Run
it under water to clean and let it air dry.
uCleaning the Power Brush
Slide the lock clip on the back of the brush. Remove the bristle from
the brush and remove debris and hair from it. en put the bristle
back in and lock the clip.
A.
B. C.
z
CLEANING THE UNIT
uClean Dust Cup after each use
Press the upper button on the Motor to
release the Dust Cup Assembly Unit,
then press the lower button to release
the Dust Cup Lower Cover.
LOCK
CLIP
B.

PLEASE READ
AND SAVE THESE
INSTRUCTIONS
Model No. A5969
Owner’s Manual
Bio SpeedCLEAN
Bio SpeedCLEAN
TM
TM
VX200
Model No. A5969
Owner’s Manual
PLEASE READ
SAVE THESE
INSTRUCTIONS
z
TROUBLESHOOTING TIPS
uIf there is no power/the machine doesn’t turn on, it will need to be
charged.
uIf the bristles are not rotating, they will need to be cleaned.
uIf you are charging the battery and the charging light isn’t on, the
cord may not be inserted properly into the charging port. Try
pushing it in farther.
uIf the battery won’t hold a charge, you may need a replacement
battery. Go to www.edenpuresupport.com to purchase one.
is vacuum comes with a 1 year limited component warranty.
If your unit does not appear to be working properly, please
contact our service center by calling 1-800-225-6595. Prior to
your call, we encourage you to visit our service related website
www.edenpuresupport.com for troubleshooting tips and service
instructions if needed.
EdenPURE®
7800 Whipple Avenue NW
N. Canton, OH 44720
[email protected]
©2021 EdenPURE® I-5699 BR12066R-1
Model Number A5969
Volts 22.2Vdc
Power 120W
Input 100-240V – 50/60Hz 0.5A
Output 26Vdc, 650mA
z
PRODUCT SPECIFICATIONS
